PHD3016 FINCM Construction Plate Drilling Machine Steel Plates High speed Vertical CNC Drilling Machine
- Category: >>>
- Supplier: Shandong Fin Cnc Machine Co. Ltd.
Share on (1600324274653):
Product Overview
Description
Products Description

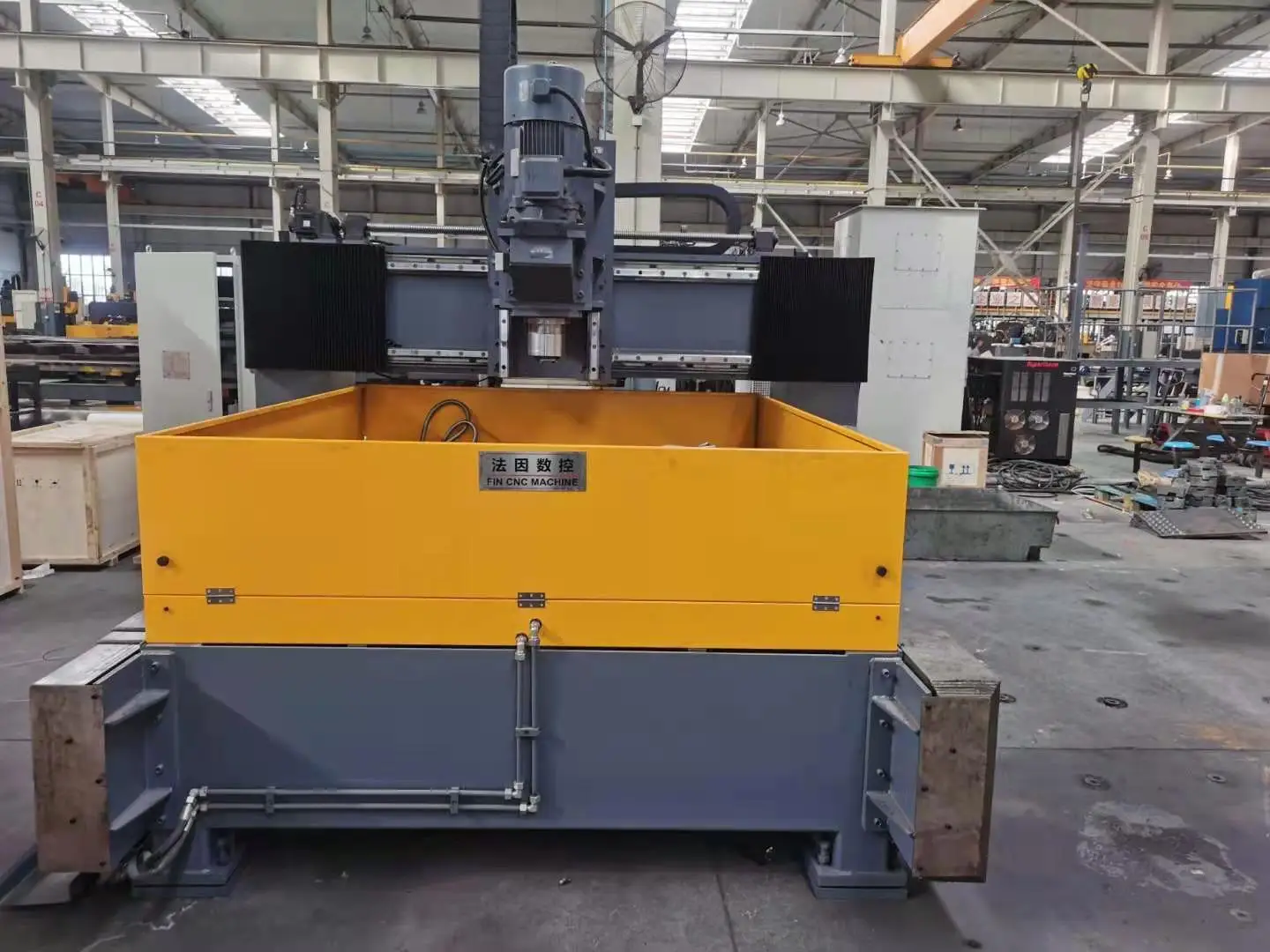

The machine adopts the form of bed fixing and gantry moving, which reduces the length of bed and saves the floor area. The gantry, bed and spindle box are all welded, and the internal stress is completely eliminated after heat aging treatment, which can
ensure the overall rigidity and accuracy of the machine tool.

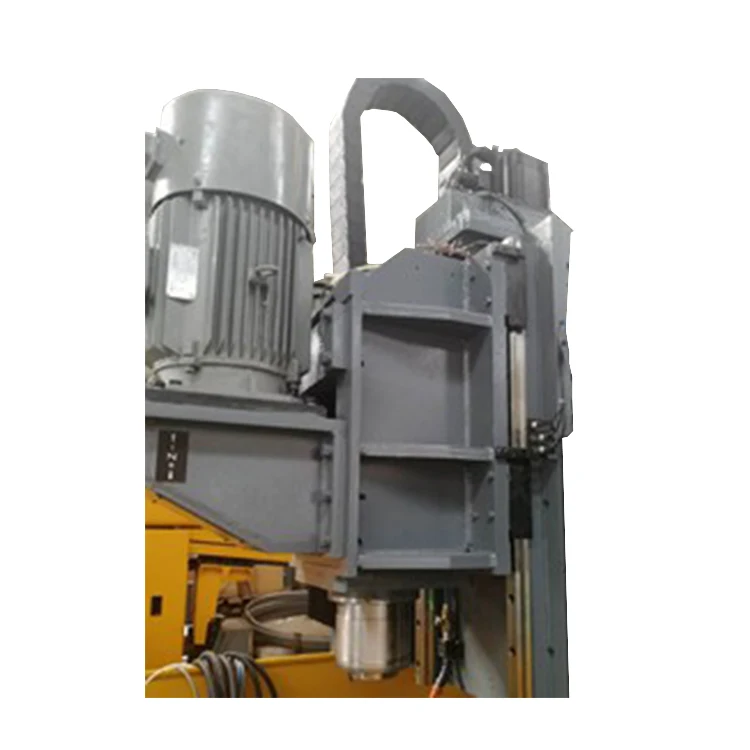

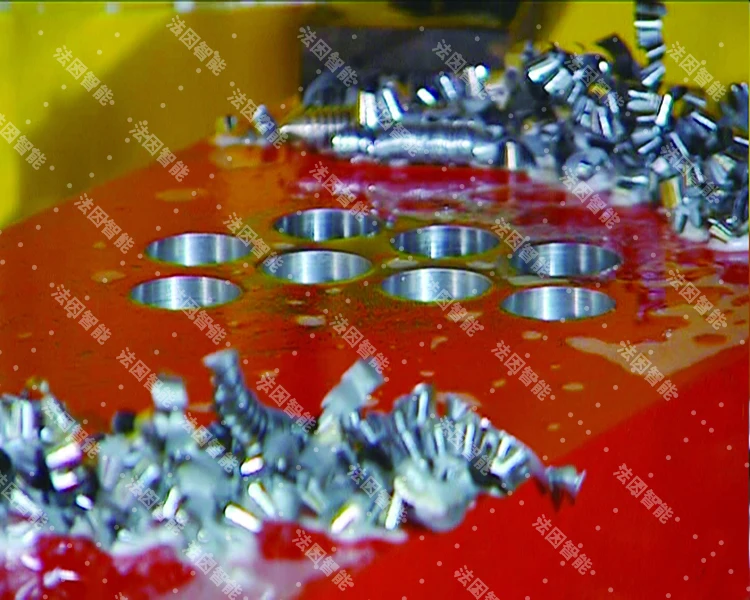

The spindle adopts precision spindle with high rotation precision and good rigidity. Equipped with BT50 taper hole, it is convenient for tool change, which can be used to clamp twist drill and cemented carbide drill. The spindle is driven by the spindle frequency conversion motor, which has a wide range of applications. The speed can be continuously variable in a large range to meet a variety of speed requirements. The thickness of cemented carbide drilling plate should not be about twice the
diameter of drill bit。

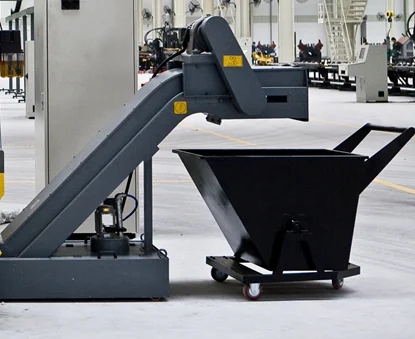

The machine tool is equipped with a flat chain chip conveyor in the middle of the bed. The iron chips are collected in the chip conveyor, and the iron chips are transported to the chip carrier, which is very convenient for chip removal; The coolant is recycled.
Parameter name | Details | Parameter value | |
Workpiece size | thickness | Max. 100mm | |
Width × length | 3000mm×1600mm | ||
Spindle | Spindle model | BT50 | |
Drill diameter MAX | Common twist drill Φ50mm Cemented carbide drill Φ40mm | ||
Drilling depth of cemented carbide | ≤2d | ||
speed | 0－2000r/min | ||
travel length | 350mm | ||
Spindle variable frequency motor power | 15KW | ||

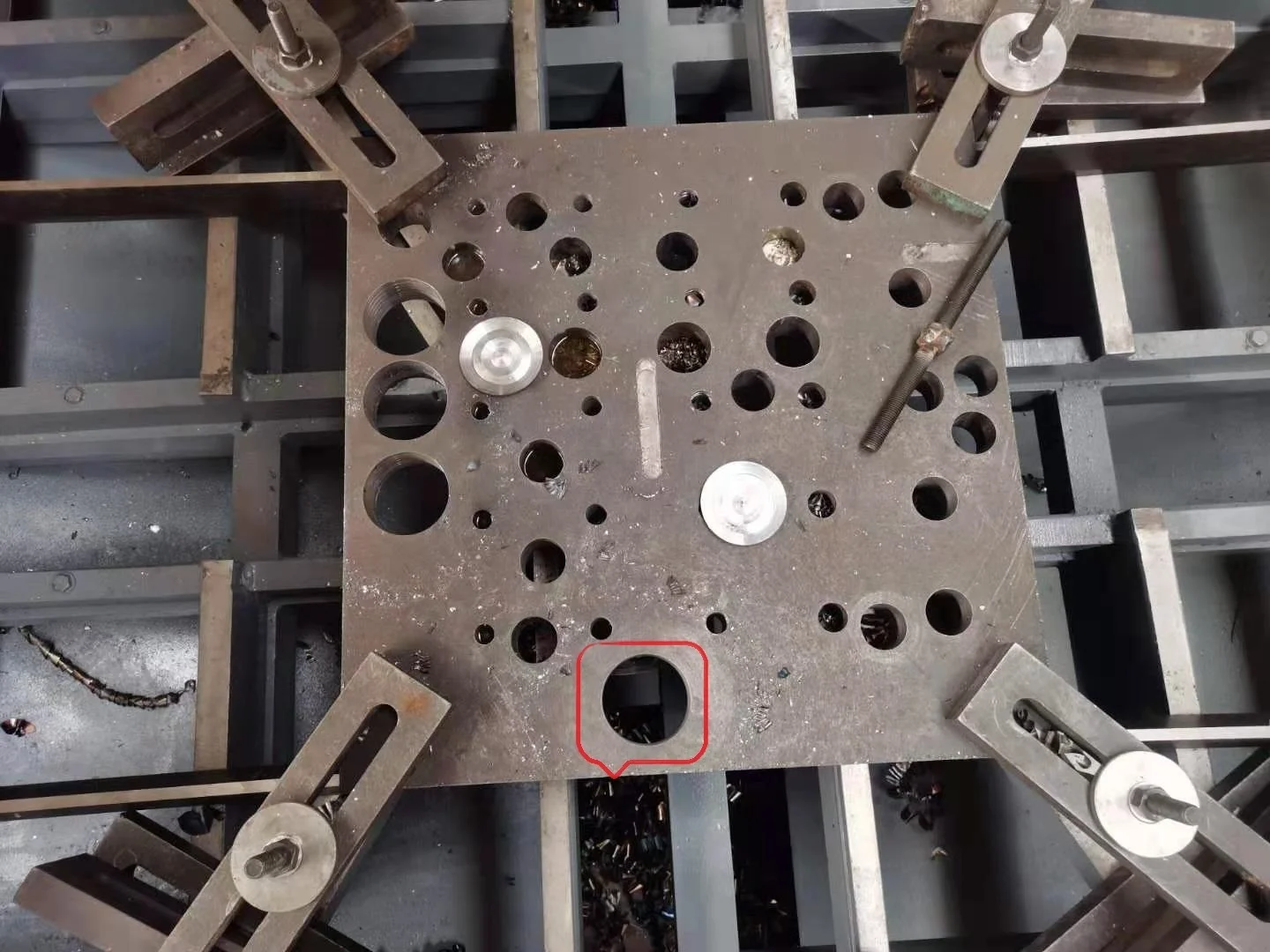

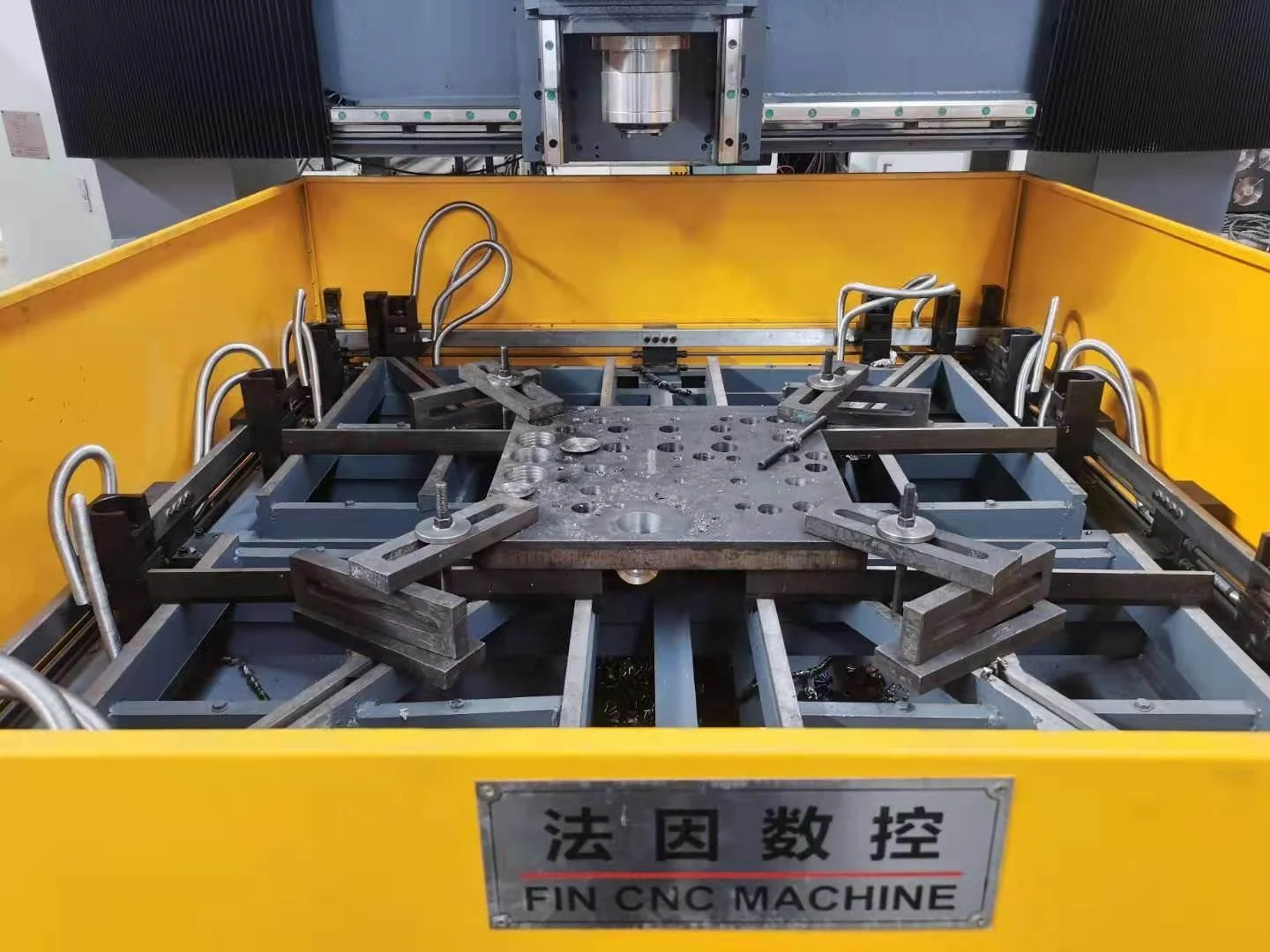

Workpiece clamping | Clamping thickness | 15－100mm | |
Number of clamping cylinders | 12 | ||
Clamping force | 7.5kN | ||
Clamping opening mode | Foot switch | ||

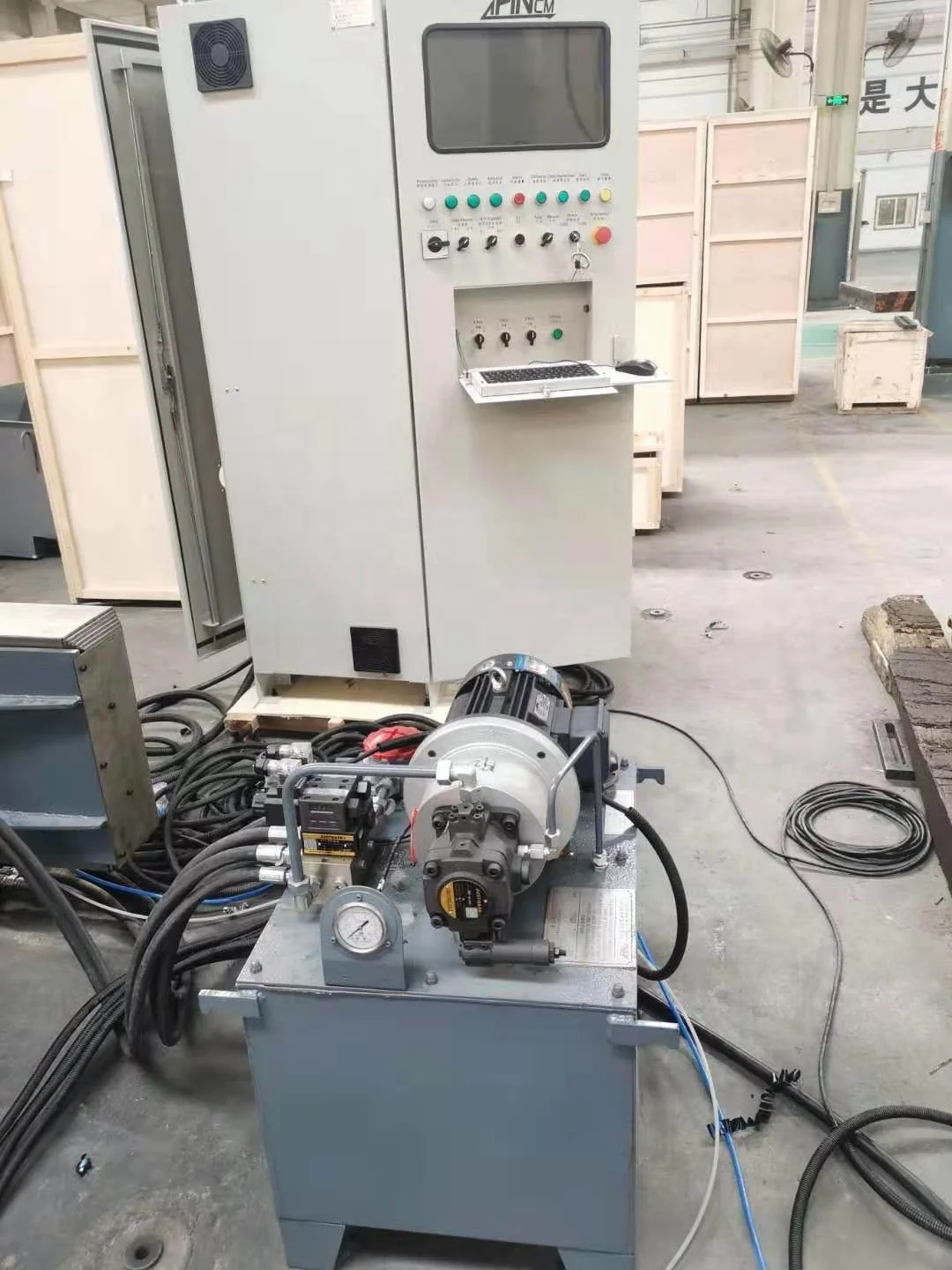

hydraulic pressure | Clamping pressure | 6MPa（60kgf/cm2） | |
Tank capacity | 100L | ||
air pressure | Gas demand | 0.8MPa | |
electric machinery | Hydraulic pump motor | 2.2KW | |
X-axis feed motor | 2.0KW | ||
Y-axis servo motor | 1.5KW | ||
Z-axis servo motor | 2.0KW | ||
Chip removal motor | 0.75KW | ||
Number of control axes | 10. Y (point control) Z (spindle, servo feed) | ||
trip | X-axis | 3000mm | |
Y-axis | 1600mm | ||
Z-axis | 350mm | ||
Maximum positioning speed | 10m/min（X、Y-axis） | ||
