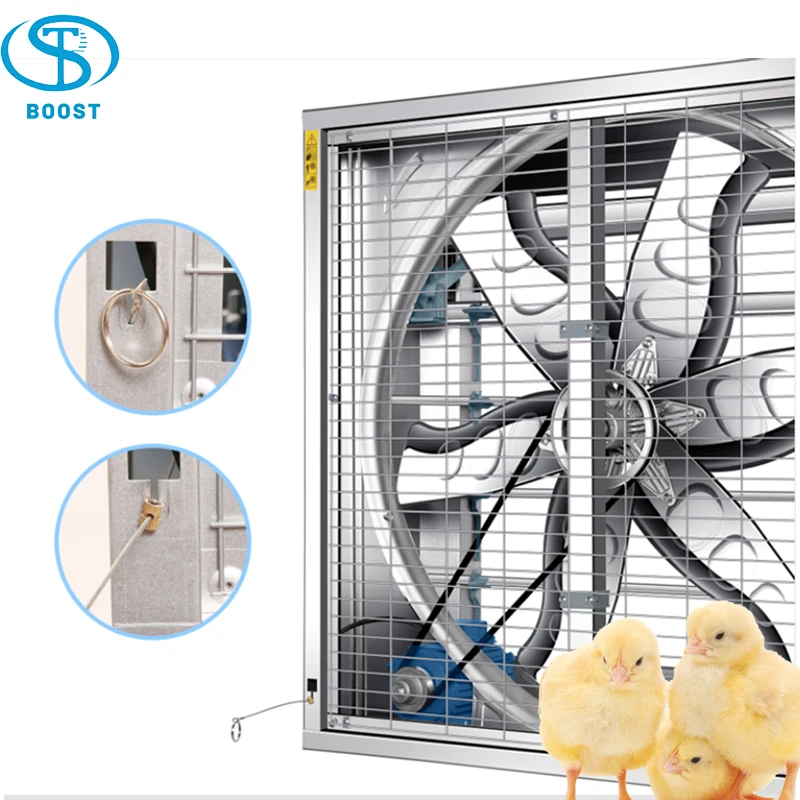

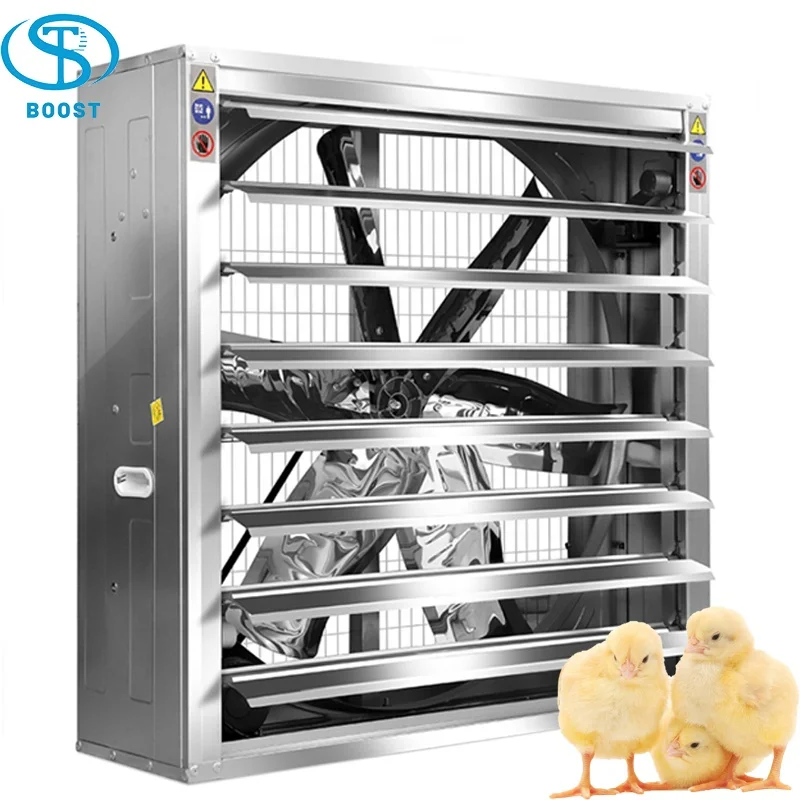

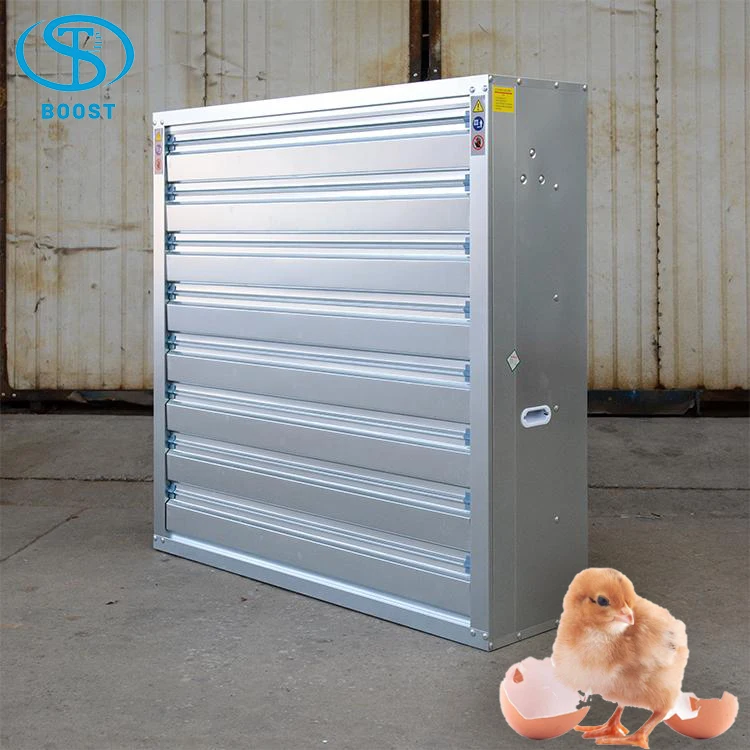

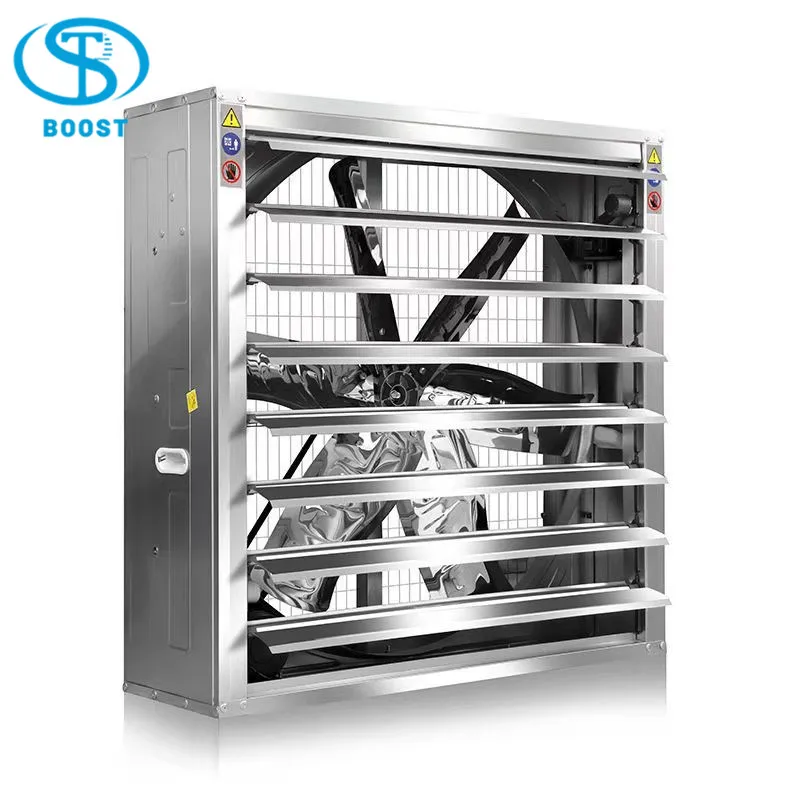

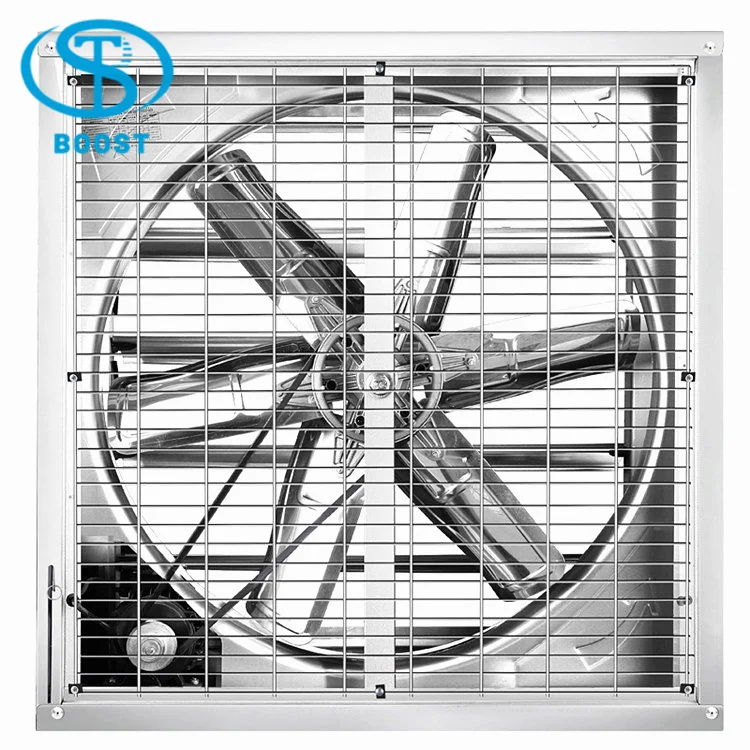

Hot sales Stainless Steel blades negative pressure fan poultry farm greenhouse exhaust fan
- Category: >>>
- Supplier: Qingzhou Boost Temperature Control Equipment Co. Ltd.
Share on (1600324337208):
Product Overview
Description
Products Description
Boost is a professional company engaged in the design and development of air fluid mechanics and temperature control equipment.Boost exhaust fan widely used in agriculture,flowers,animal husbandry,poultry house,greenhouse,factory workshop.
Model | BST1380 |
Input Power | 1100W |
Motor rpm | 1400 rpm |
Air flow | 44000m3/h |
Rated power | 380v/220V/Customized |
Size | 1380*1380*400mm |
Opening Device | Swung drop hammer system |
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed (rpm) | Air flow m³/hr | Input power (W) | Noise(db) |
BST300 | Drive | 200 | 1400 | 1400 | 1000 | 120 | ＜70 |
BST400 | Drive | 300 | 1400 | 1400 | 2000 | 180 | ＜70 |
BST480 | Diect | 380 | 1400 | 1400 | 3000 | 180 | ＜70 |
BST600 | Direct | 500 (20inch) | 1400 | 1400 | 5700 | 370 | ＜70 |
BST800 | Belt | 710 (28inch) | 660 | 1400 | 18000 | 370 | ＜65 |
BST900 | Belt | 750 (30inch) | 630 | 1400 | 22000 | 370 | ＜65 |
BST1000 | Belt | 900 (36inch) | 610 | 1400 | 25000 | 750 | ＜65 |
BST1100 | Belt | 1000 (40inch) | 600 | 1400 | 32500 | 750 | ＜65 |
BST1220 | Belt | 1100 (44inch) | 460 | 1400 | 38000 | 750 | ＜64 |
BST1380 | Belt | 1270 (50inch) | 458 | 1400 | 44000 | 1100 | ＜64 |
BST1530 | Belt | 1400 (56inch) | 325 | 1400 | 55800 | 1500 | ＜64 |
Main Features
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

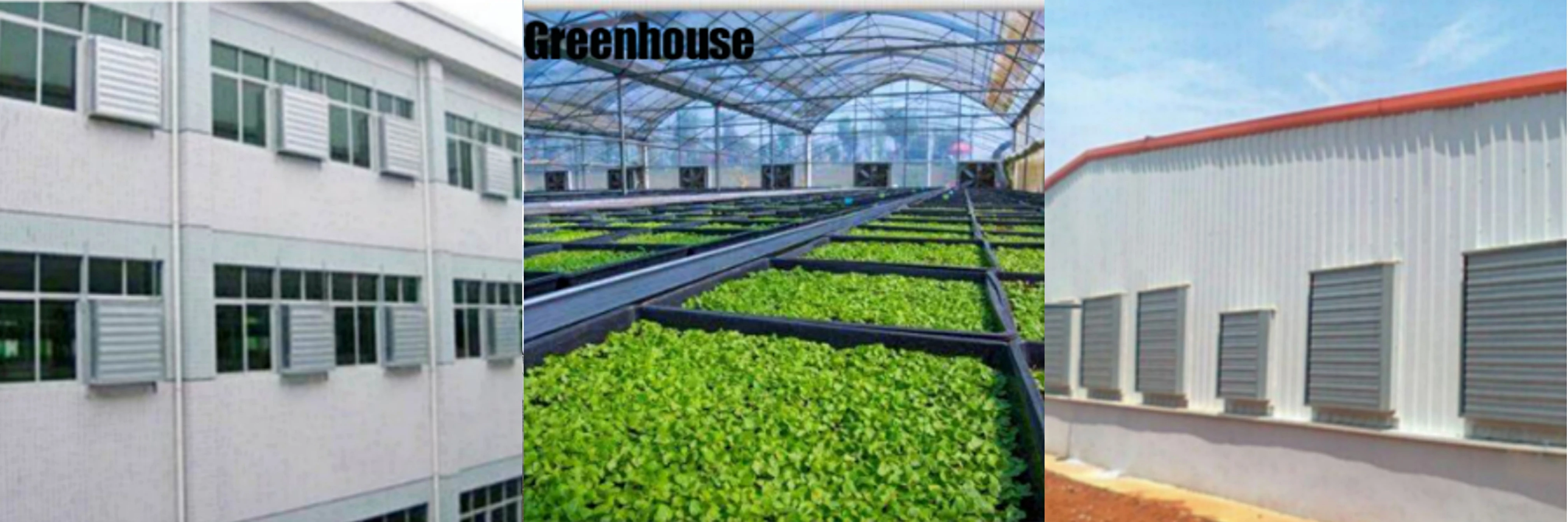

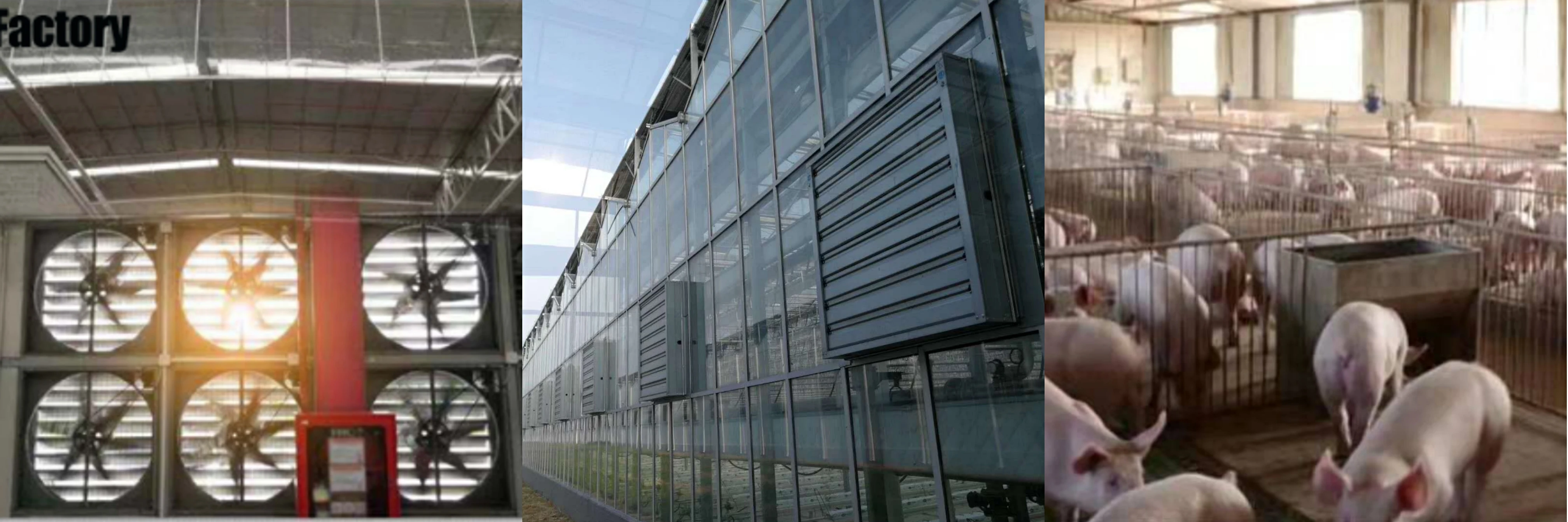

Application
Detail Images
Hot sales Stainless Steel blades negative pressure fan poultry farm greenhouse exhaust fan

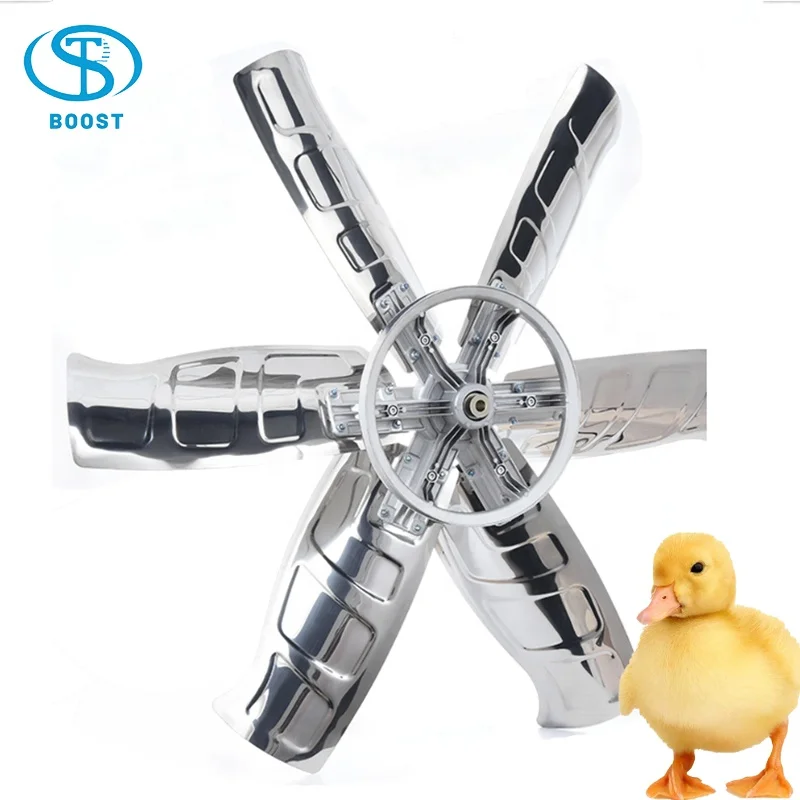

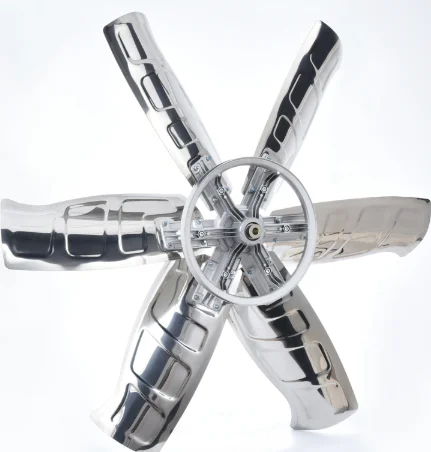

Blade:
*Blade is made of Krupp stainless steel by punch forming,,no broken,no dust,attractive and durable.*Special blades shape design ensure large air volume,no deformation,no broken,keep air volume same all the way.
Hot sales Stainless Steel blades negative pressure fan poultry farm greenhouse exhaust fan

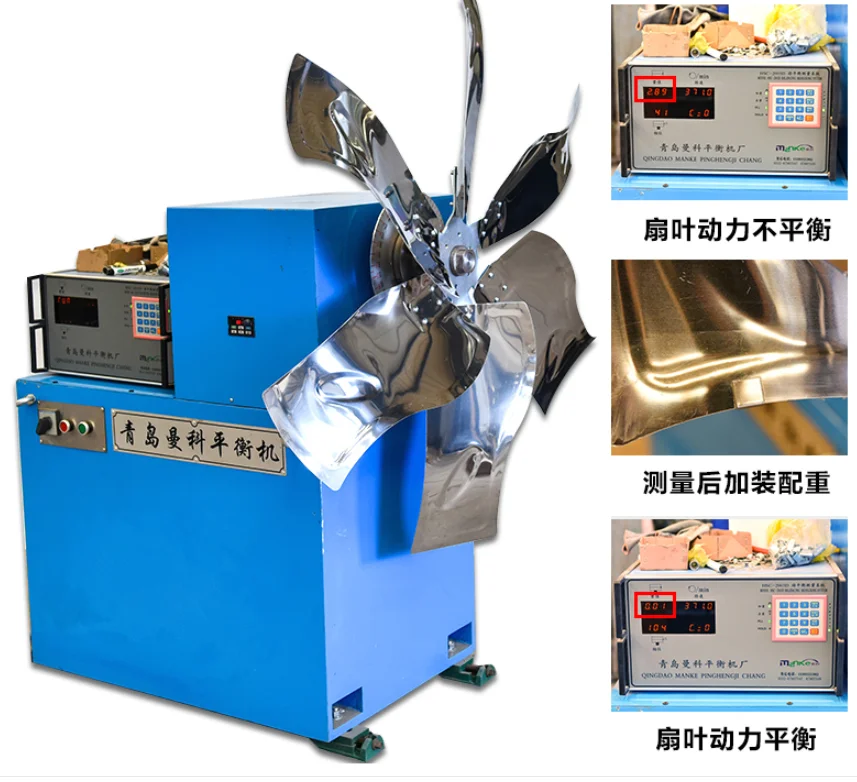

Italligent Dynamic-Fan balance Tester
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Hot sales Stainless Steel blades negative pressure fan poultry farm greenhouse exhaust fan

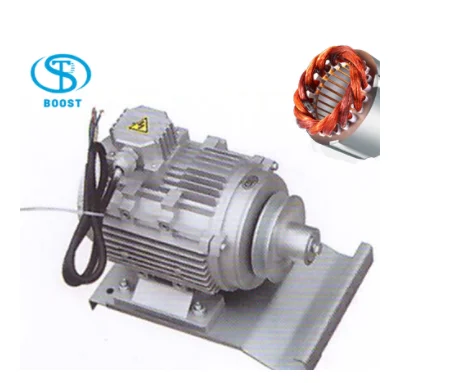

Motor:
*Both Chinese famous motor and Siemens motor are available.*Motor voltage and frequency could be customized.
*Chinese famous motor,special design for fan,the first one put forward the phase lack protection device which could power off when
shortage of electricity.
*Motor protection grade IP55,insulation Class:Grade F
Hot sales Stainless Steel blades negative pressure fan poultry farm greenhouse exhaust fan

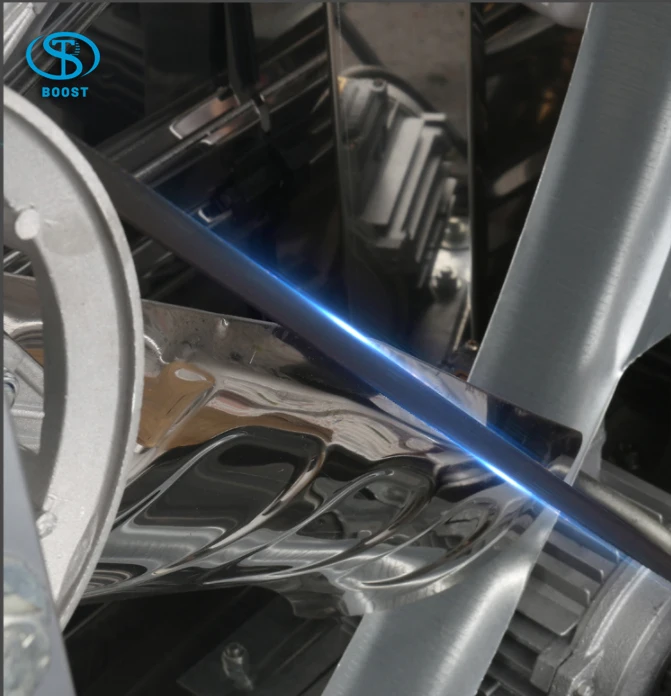

Use abroad belts,making sure long service life,free to maintain.
Hot sales Stainless Steel blades negative pressure fan poultry farm greenhouse exhaust fan

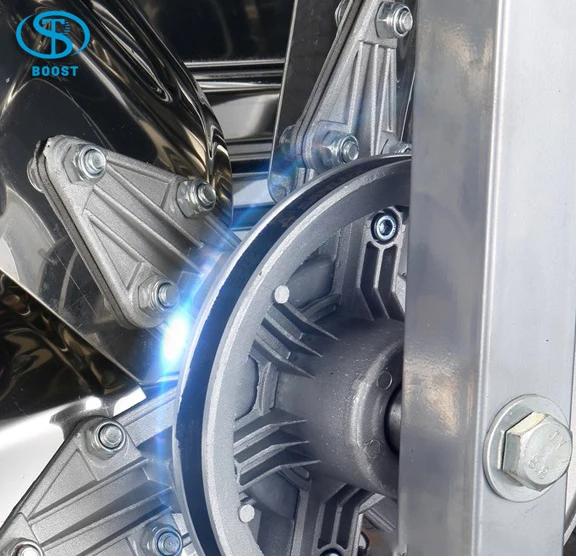

Fan belt pulley:
*Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which reduces the weight of blade impeller
complete,high corrosion resistance
*The special three ribbed pulley design eliminates internal stress and improves its own rigidity and stability without breaking.
*Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which reduces the weight of blade impeller
complete,high corrosion resistance
*The special three ribbed pulley design eliminates internal stress and improves its own rigidity and stability without breaking.

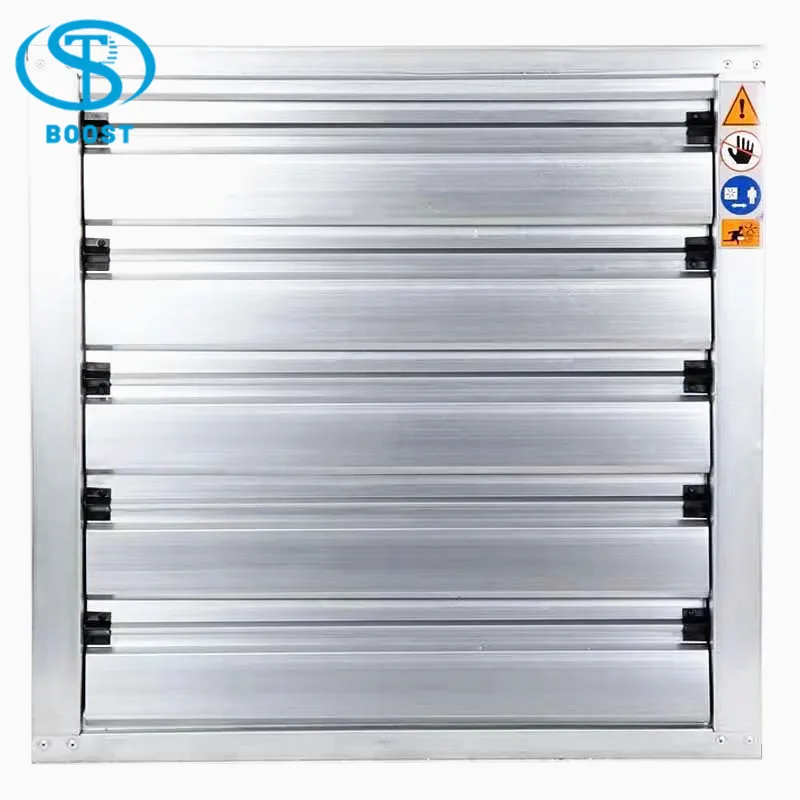

Hot sales Stainless Steel blades negative pressure fan poultry farm greenhouse exhaust fan

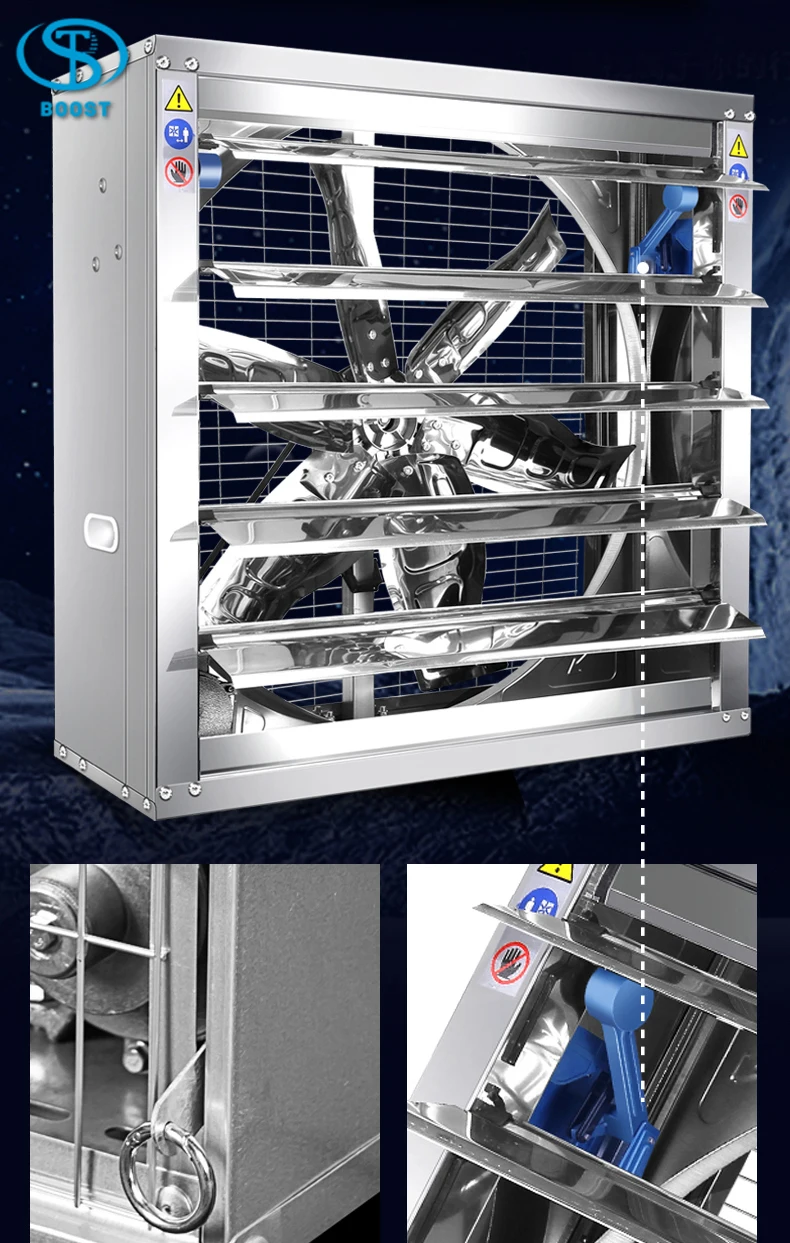

*.Material: High quality Nylon PA66
*Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
*Rivet: 304 stainless steel , wear-resisting, no rust
*Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
*Rivet: 304 stainless steel , wear-resisting, no rust

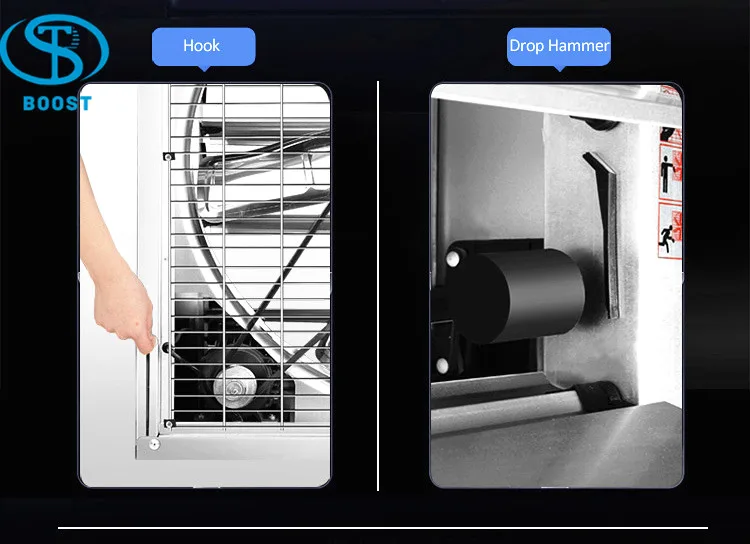

.Advantage:

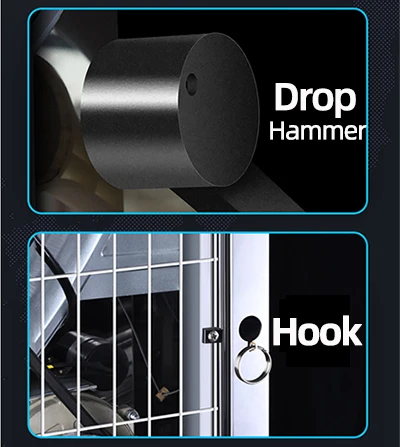

1.No electricity ventilation,Pull ring for assistance the Heavy Hammer

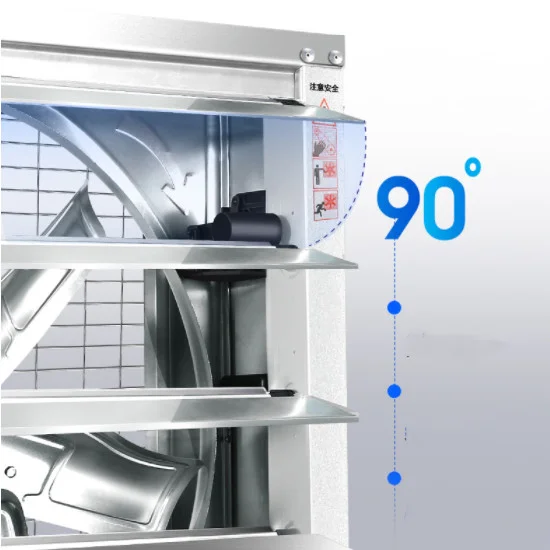

2.It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.
1.No electricity ventilation,Pull ring for assistance the Heavy Hammer
2.It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.
Hot sales Stainless Steel blades negative pressure fan poultry farm greenhouse exhaust fan
Frame:
Farm adopts Hot Galvanized sheet with zinc thickness of 275g/m2,which extremely improve its anti-corrosion performance
Farm adopts Hot Galvanized sheet with zinc thickness of 275g/m2,which extremely improve its anti-corrosion performance

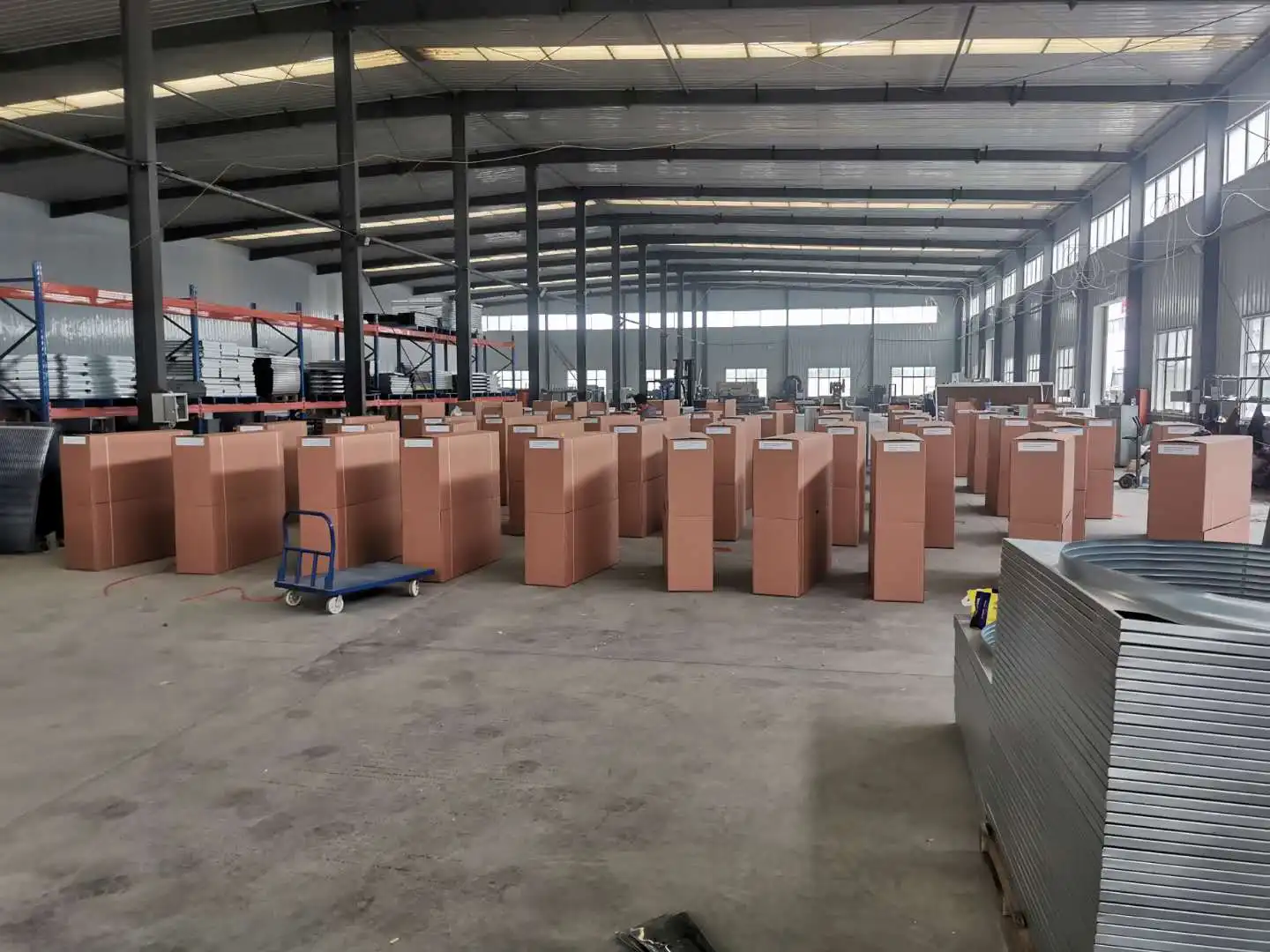

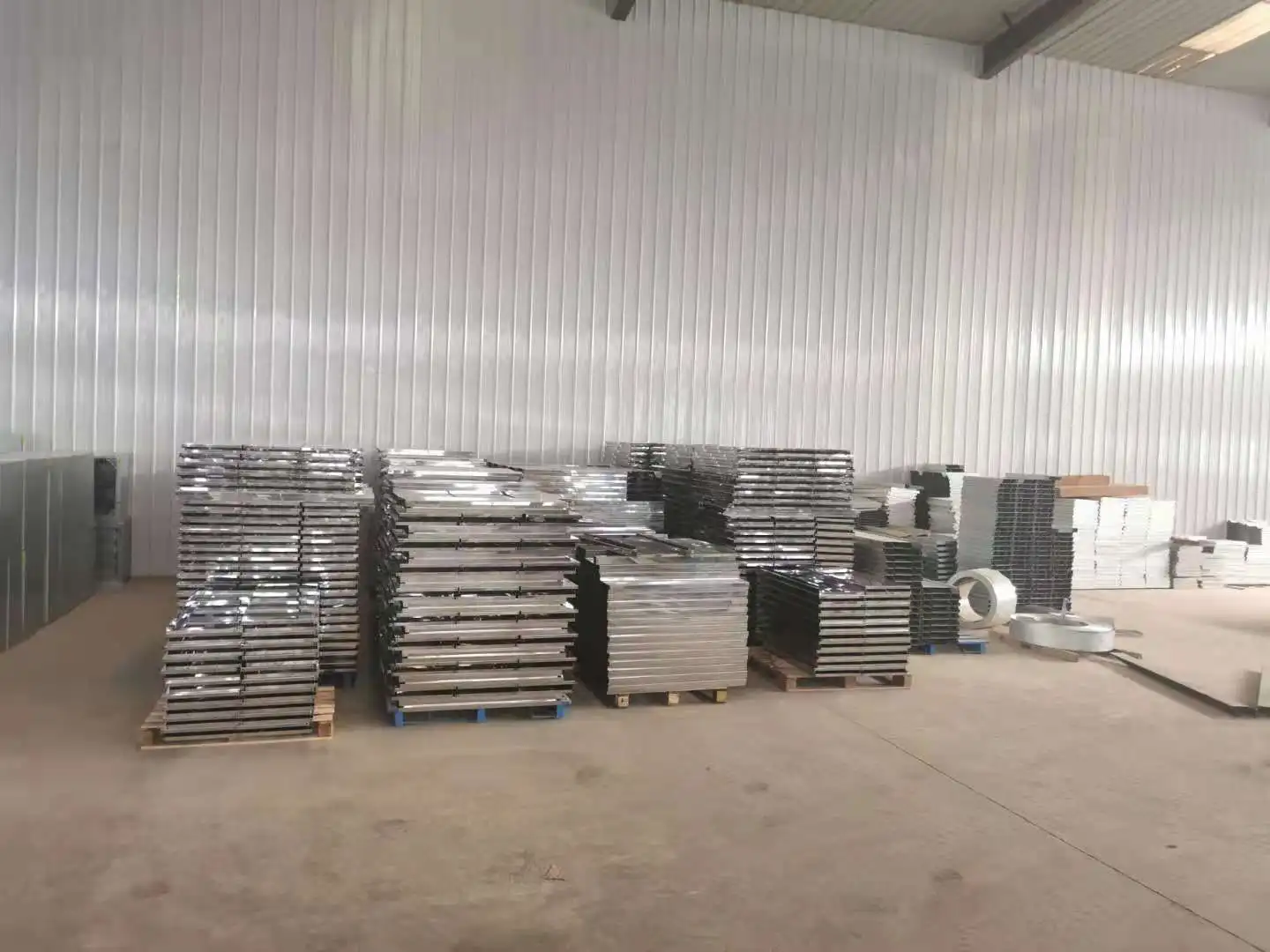

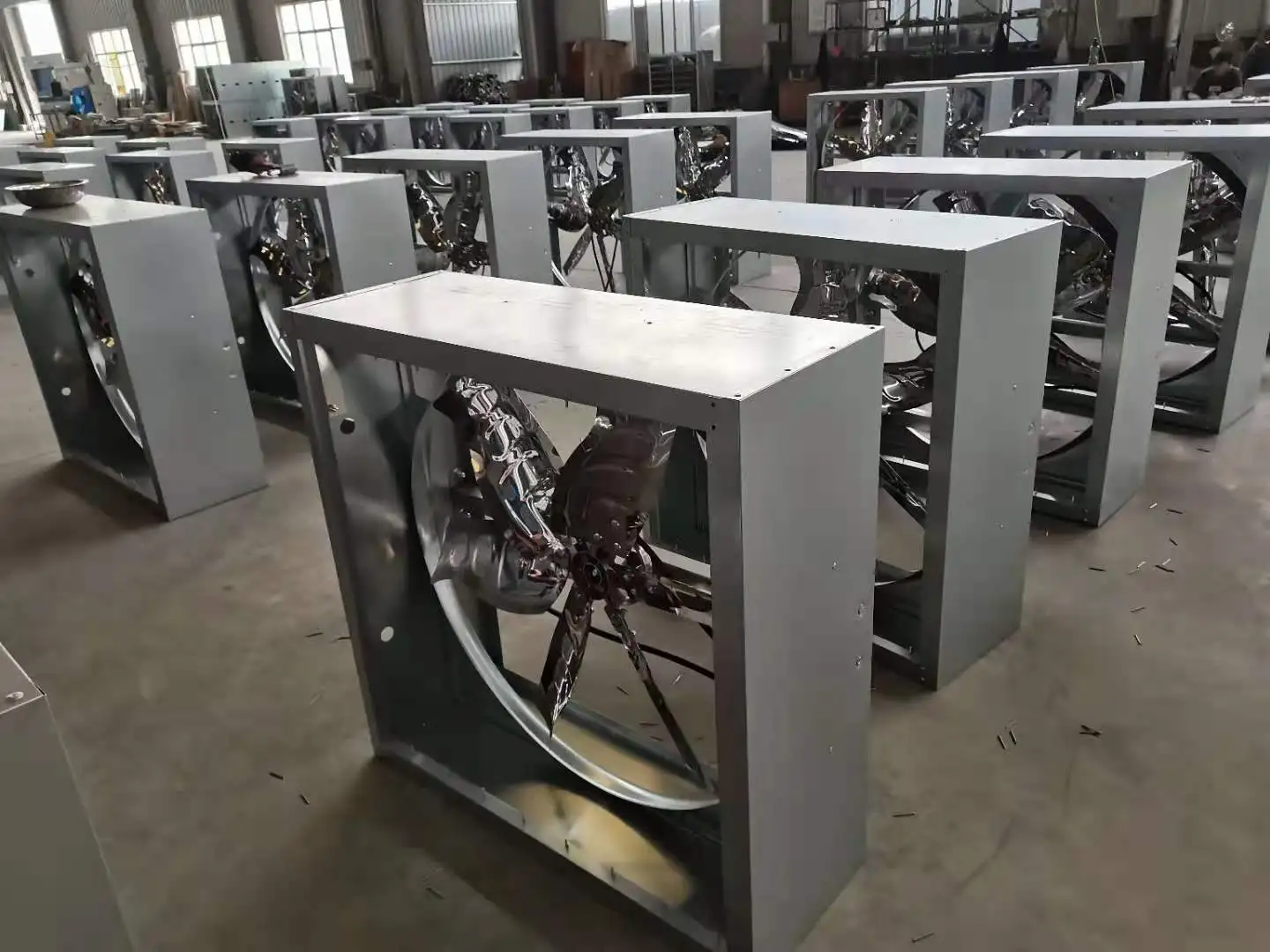

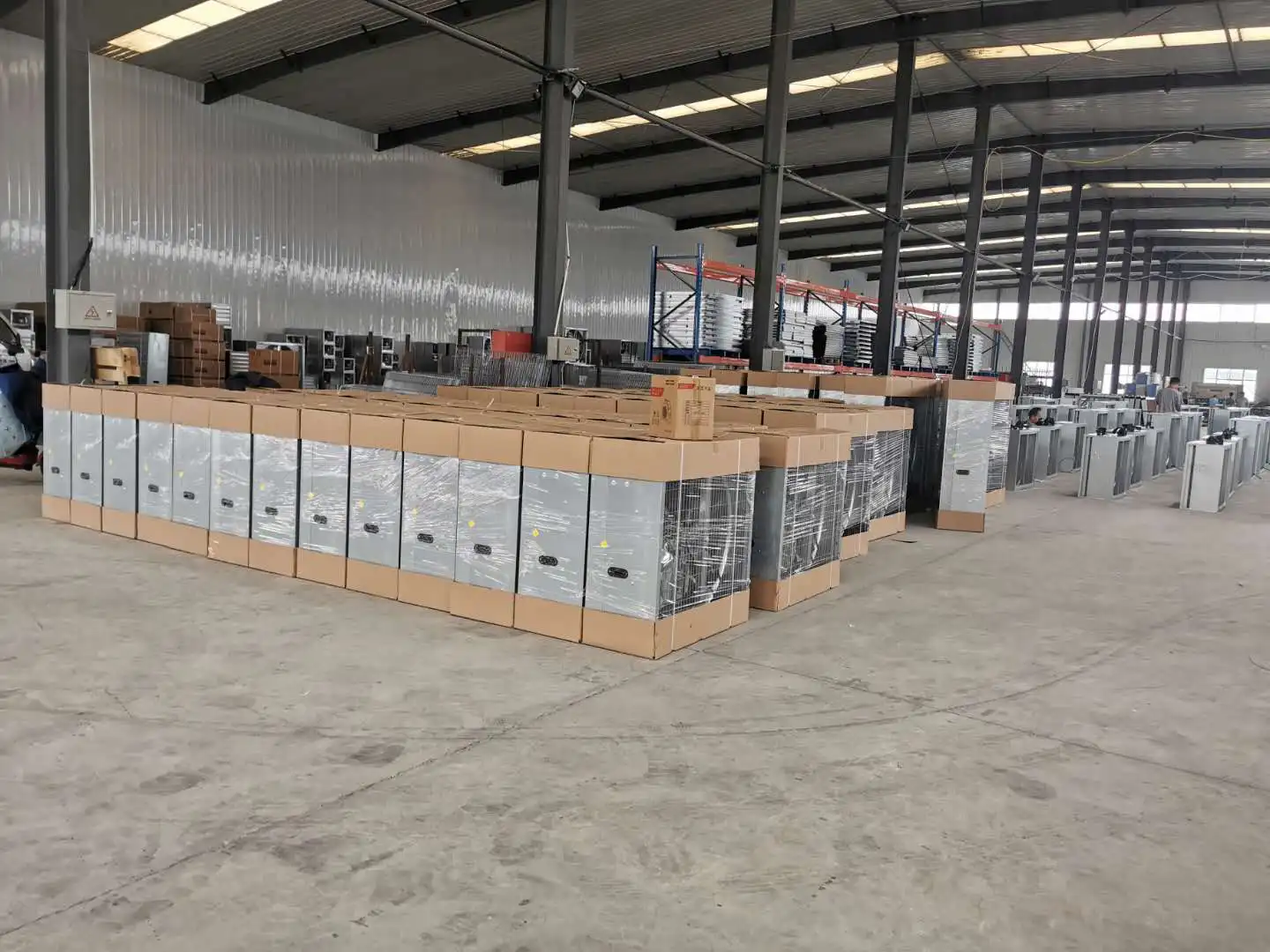

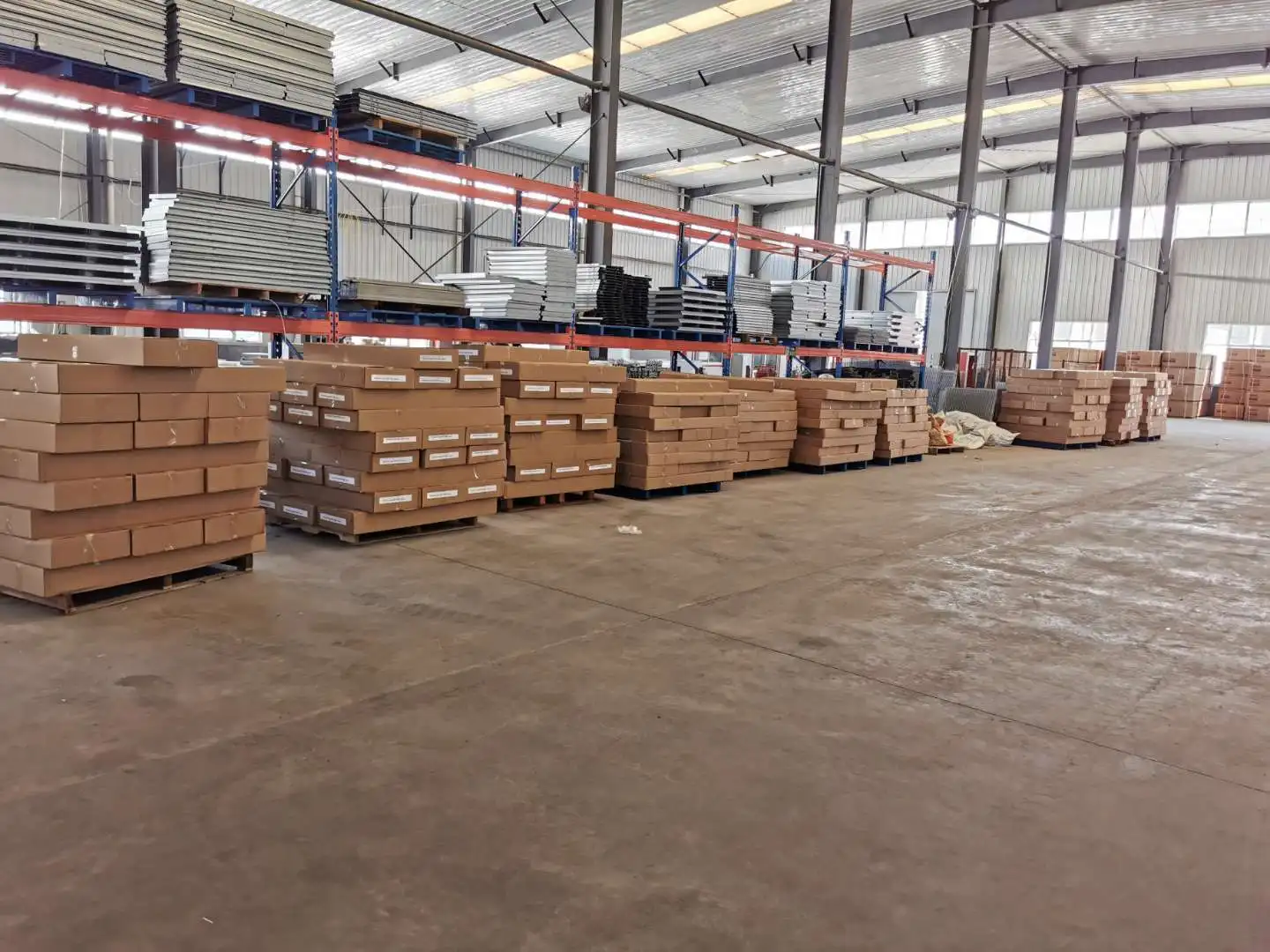

Factory&Workshop
How to install Exhaust Fan
Remarks
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly2. After fixing the fan, the remaining gap need to be sealed
3. The Expansion screws and Self tapping screw can be used to fix .
3. The Expansion screws and Self tapping screw can be used to fix .
Why Choose Us

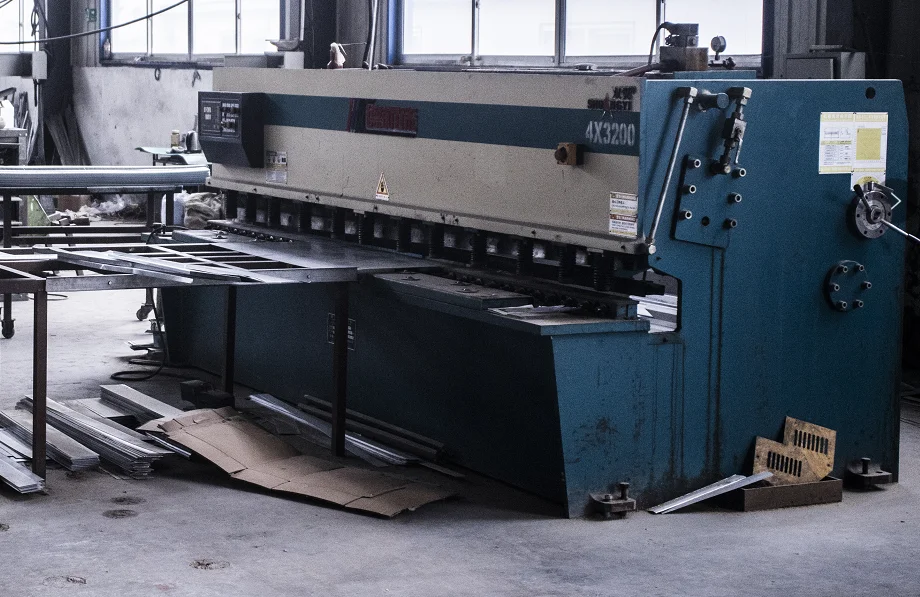

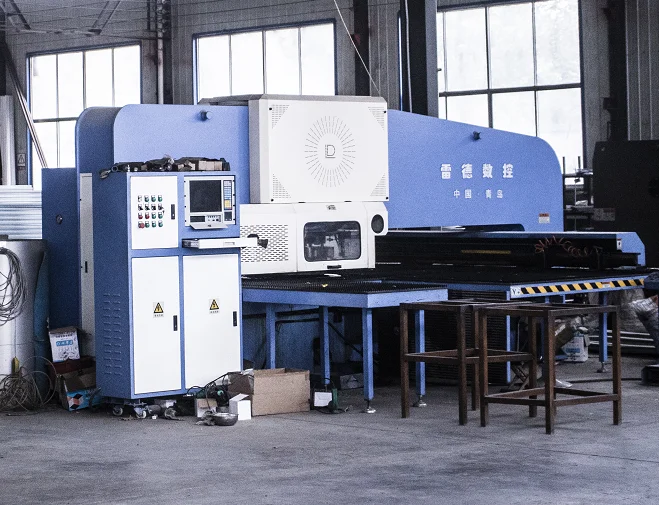

BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-e ffective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory..
* Sample testing support.
* Visit our Factory..
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Engineers are available to service machinery overseas.

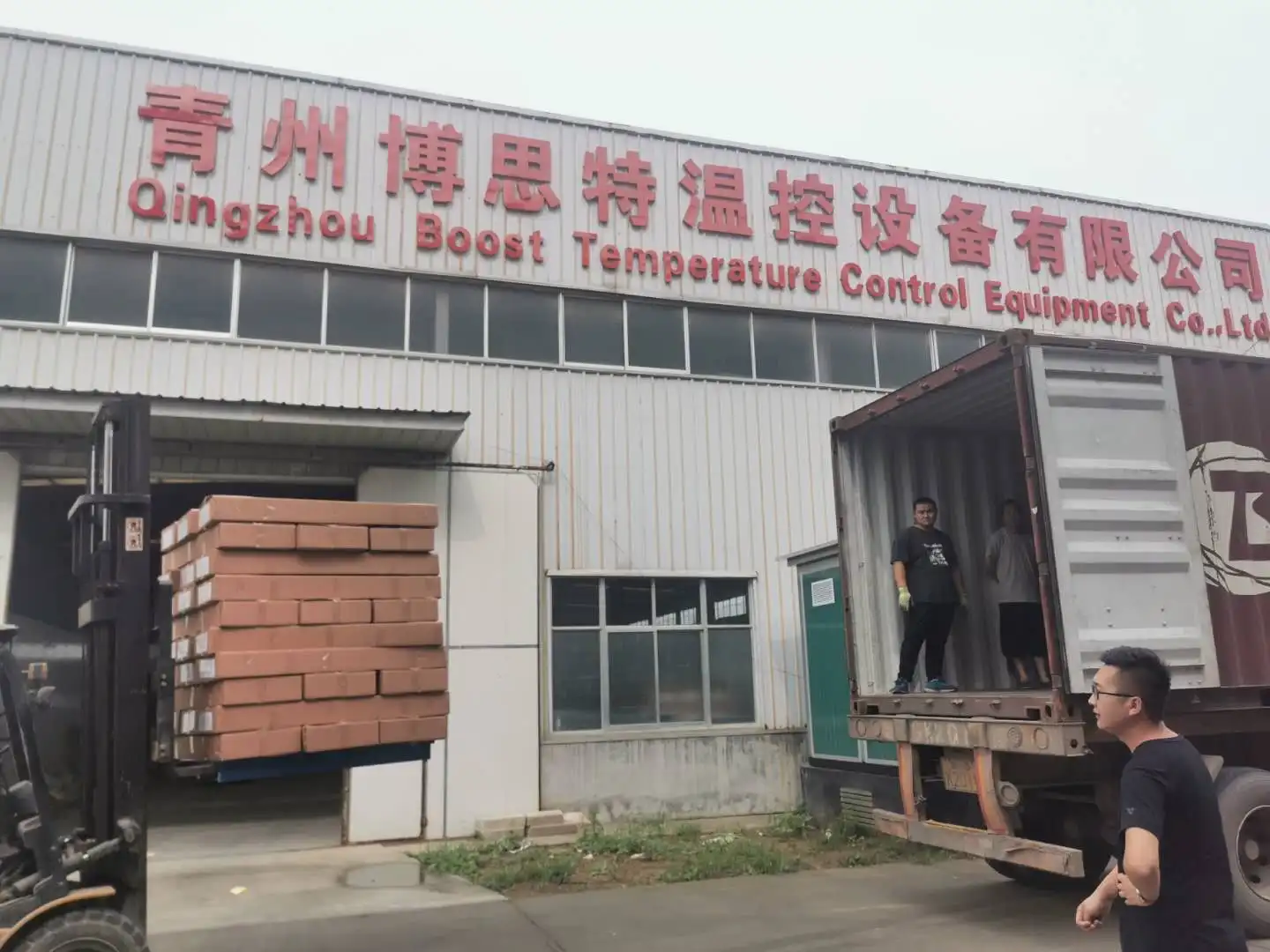

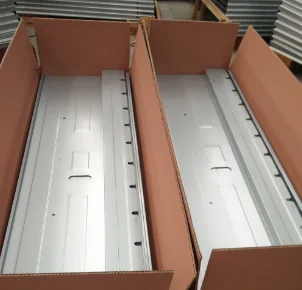

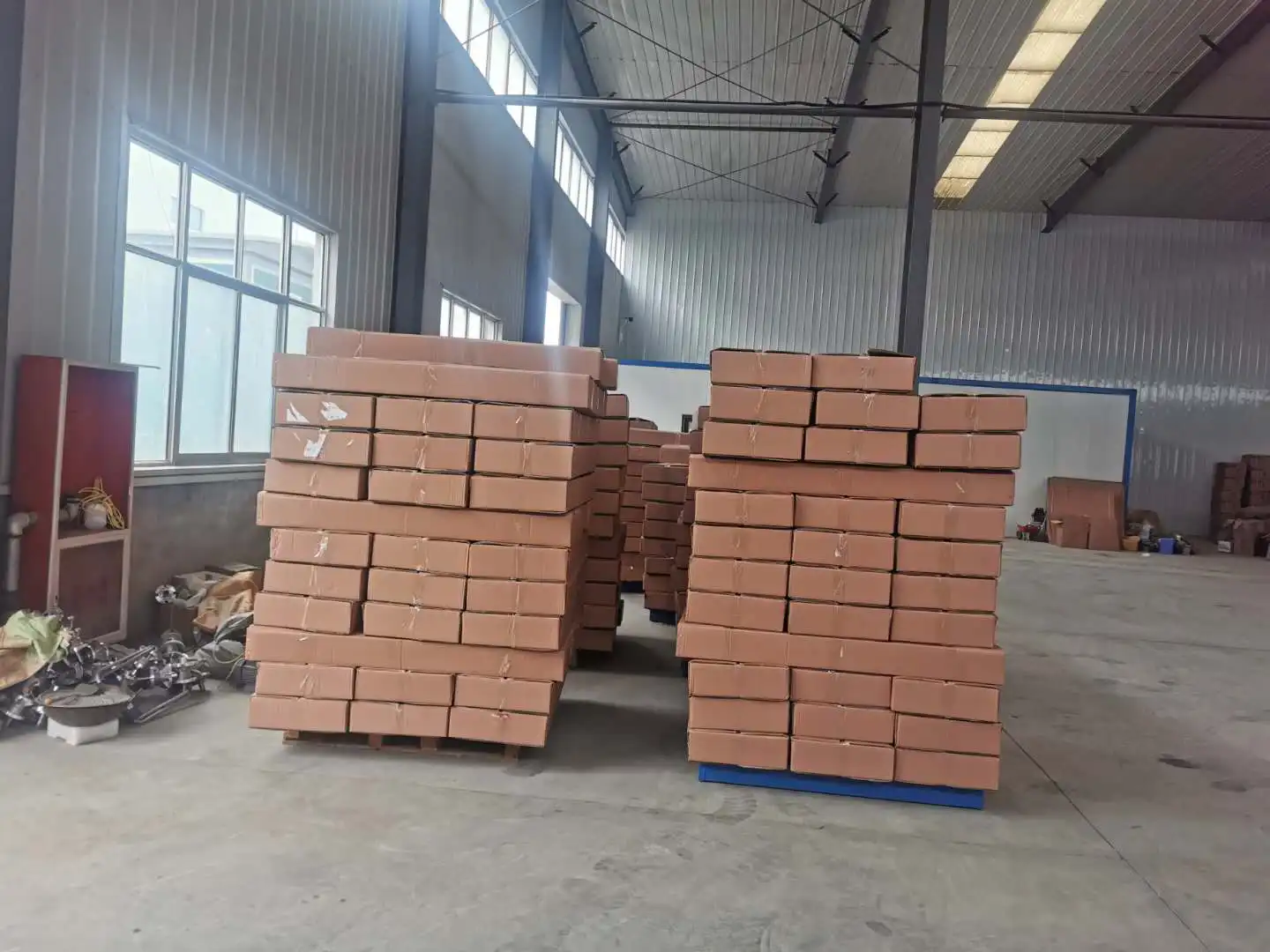

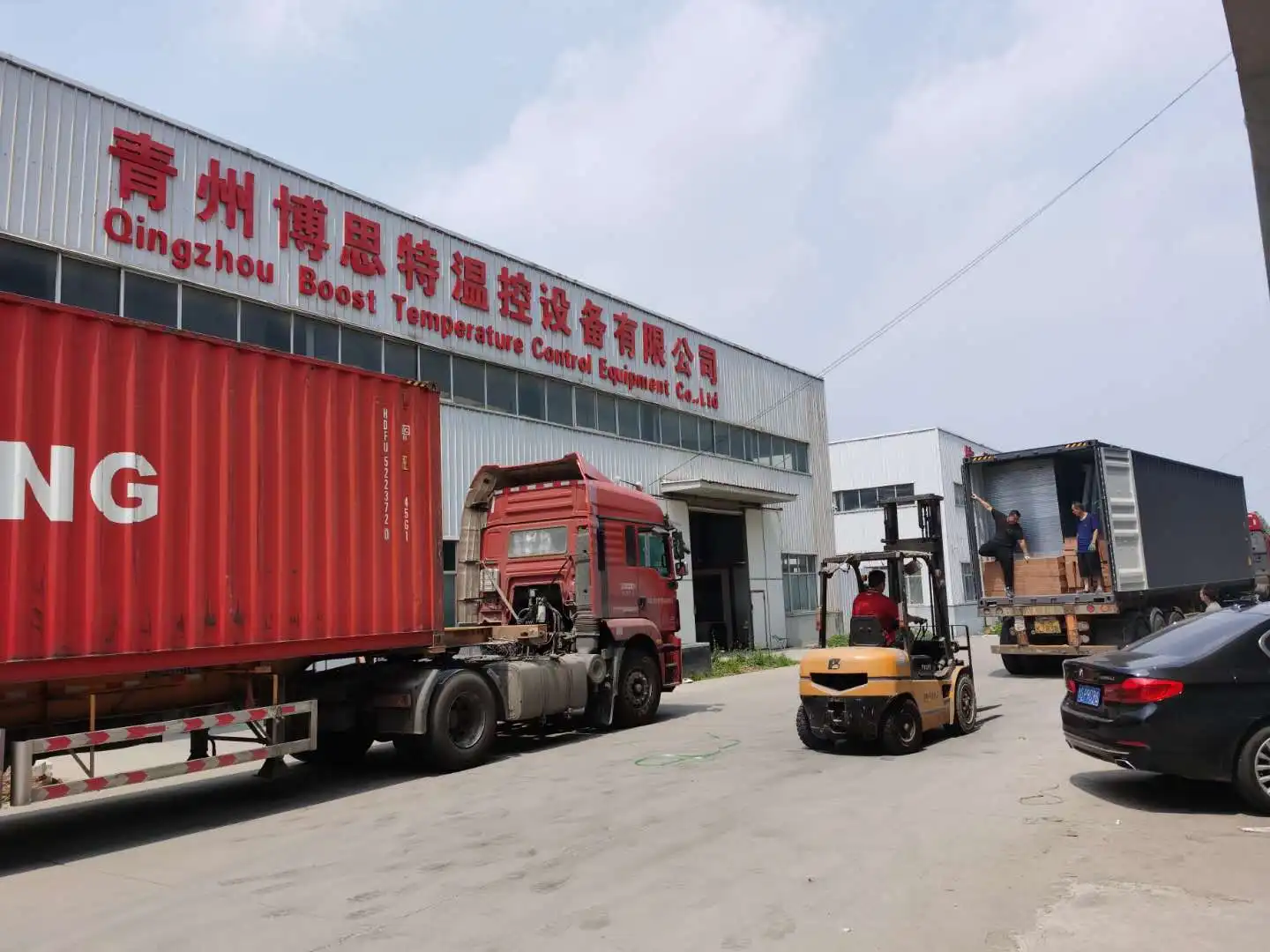

Packaging&Shipping
FAQ
Q:Is your company a manufacture or Trading company?
A:We are professional manufacture of Ventilation equipment,Cooling equipment and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?

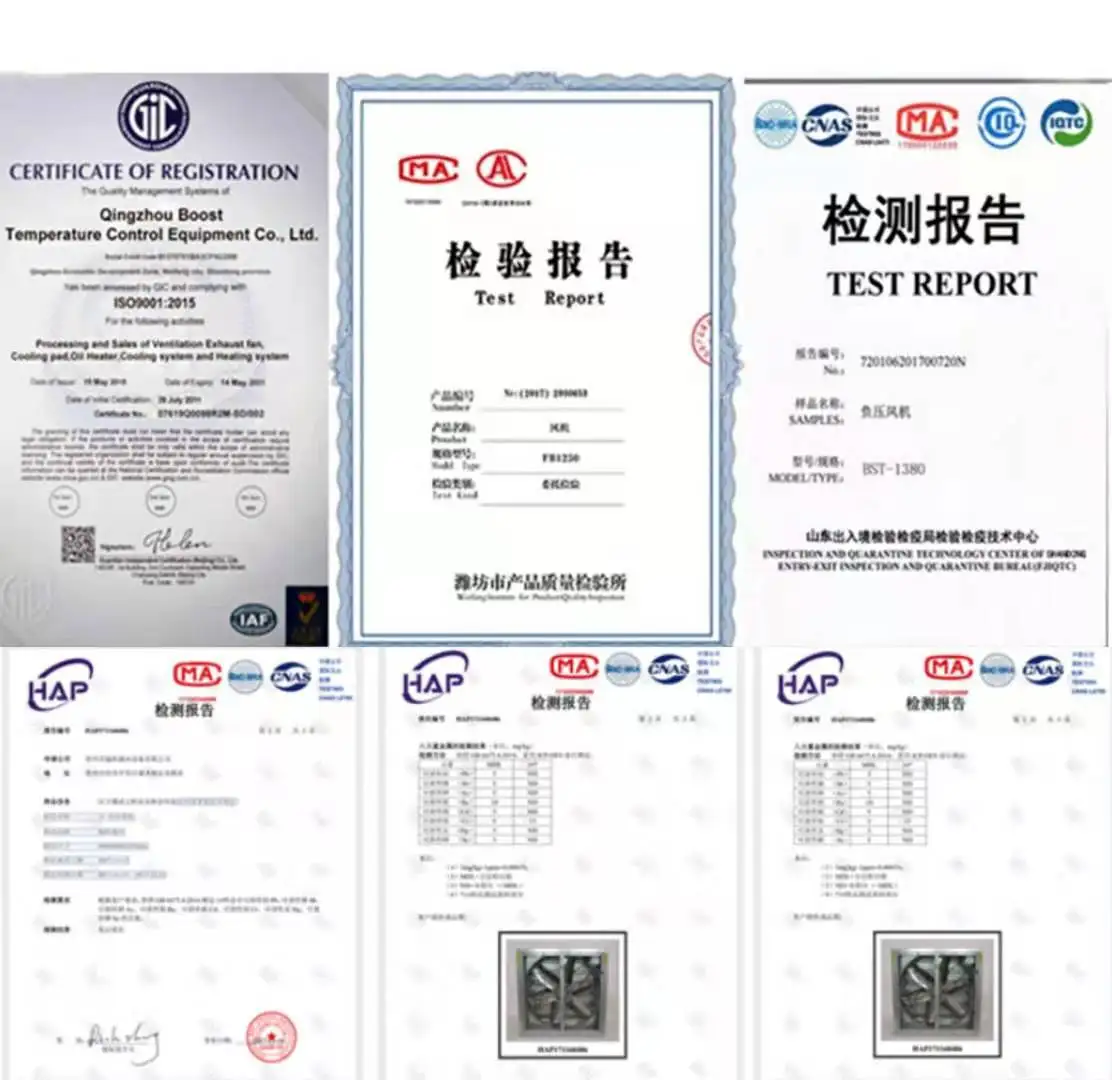

A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
