Roller glass coating machine
US $10000-$13000

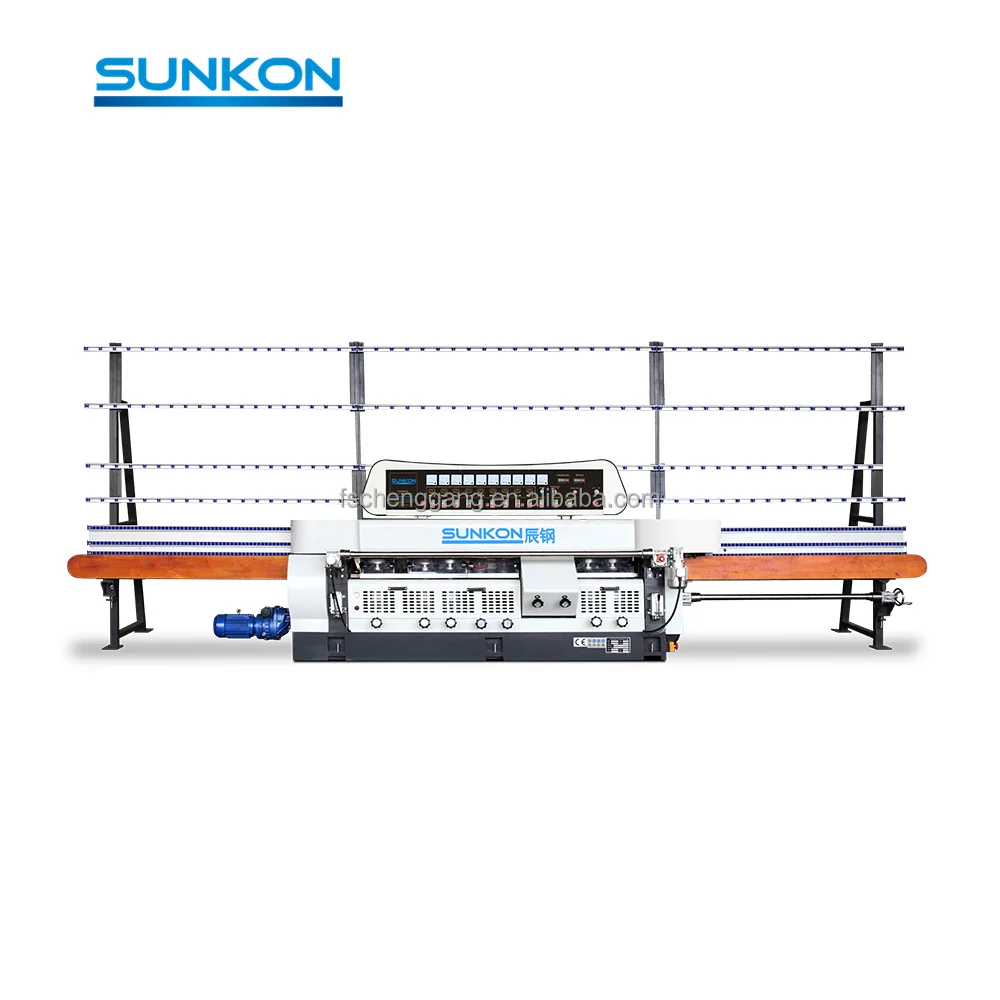

CGZ9325D Cnc 9 Motors Stainless Steel Automatic Glass Edger Machine
- Category: Glass Processing Machinery >>>
- Supplier: Cgtech Glass Machinery Co. Ltd.
Share on (1600324375287):
Product Overview
Description
Products Description
■Glass straight line edging machine CGZ9325D with 9 motors, It's suitable for processing straight line edging & 45° arris on flat glass sheet with various size and thickness.
■ Adopt digital display the glass thickness, working speed.
■ Coarse grinding, fine grinding, polishing and chamfering can be completed in one time. It can process the glass edge as bright as the glass itself.
■ The base, front and rear beams, pedestal, and grinding heads are of casting materials (annealed to prevent deformation), which can bear large loads and has stable performance.
■ It is the best glass grinding equipment for processing furniture glass, building glass and architecture glass.
■ Adopt digital display the glass thickness, working speed.
■ Coarse grinding, fine grinding, polishing and chamfering can be completed in one time. It can process the glass edge as bright as the glass itself.
■ The base, front and rear beams, pedestal, and grinding heads are of casting materials (annealed to prevent deformation), which can bear large loads and has stable performance.
■ It is the best glass grinding equipment for processing furniture glass, building glass and architecture glass.
Max.Glass Width | 3000mm |
Min.Glass Width | 80mm |
Glass thickness | 3-25mm |
Transmissinon speed | 0.5-6m/min |
Power | 19.5KW |
Weight | 2800kg |
Land occupation | 7000×1000×2500mm |
Power | 380V/50HZ or Customized |

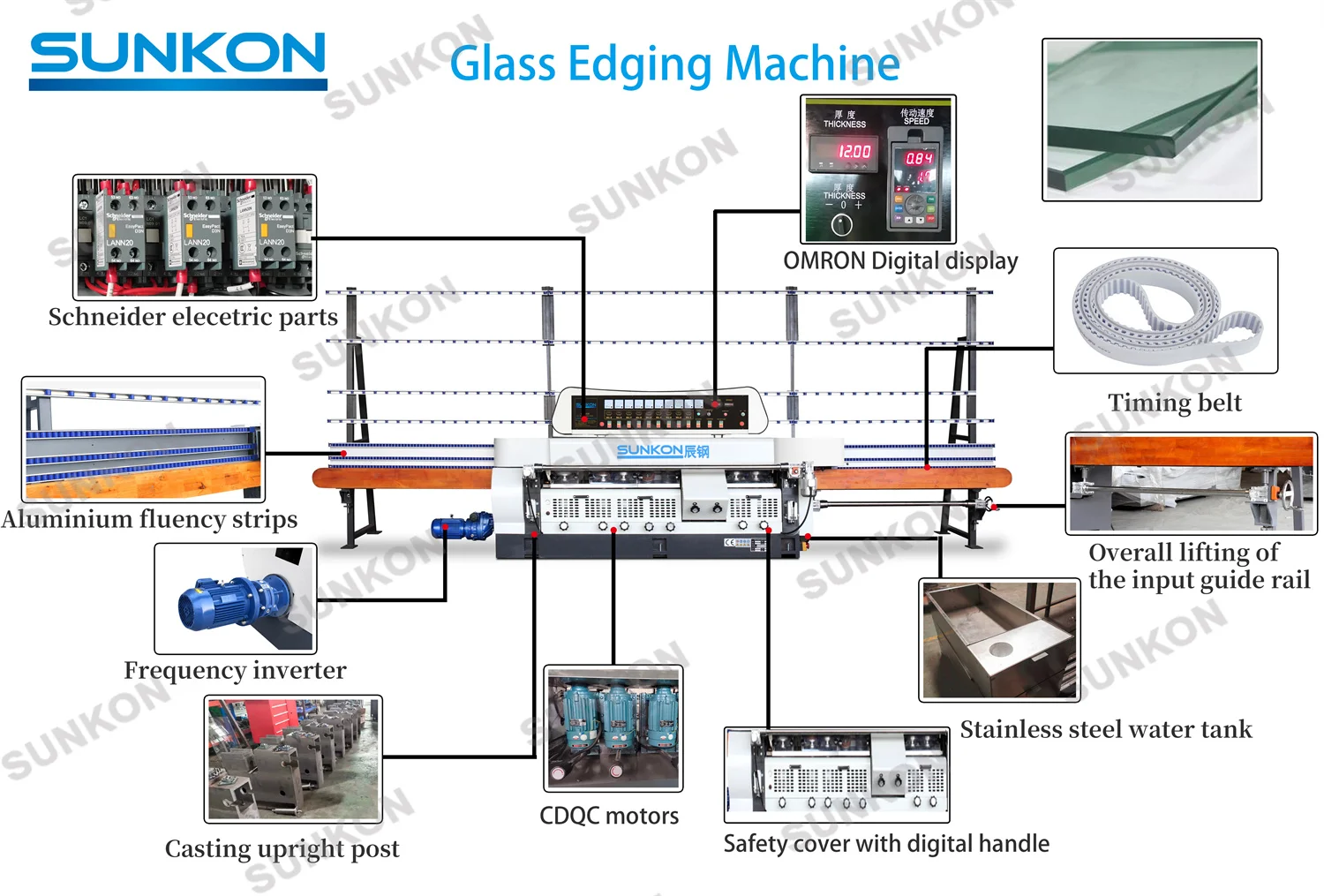

Details Images

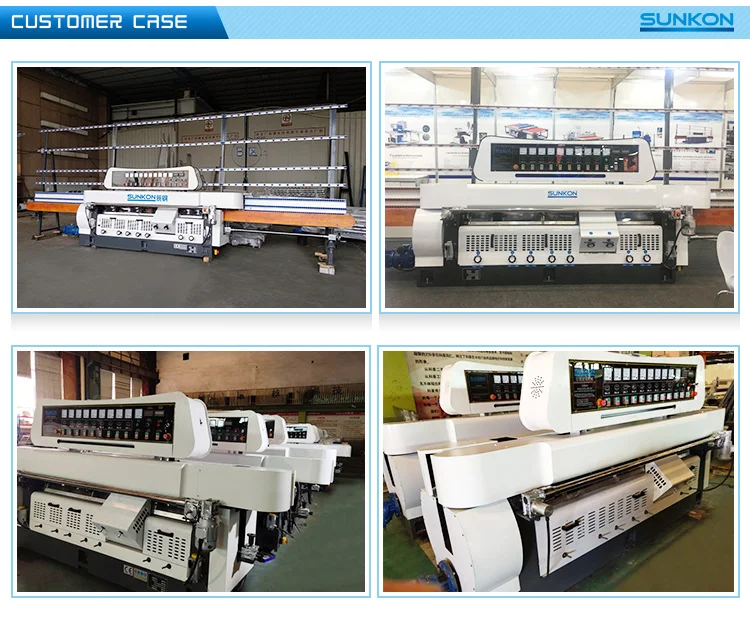

Our Case
Product packaging
Company Profile
Why Choose Us
Product Catalog
FAQ
