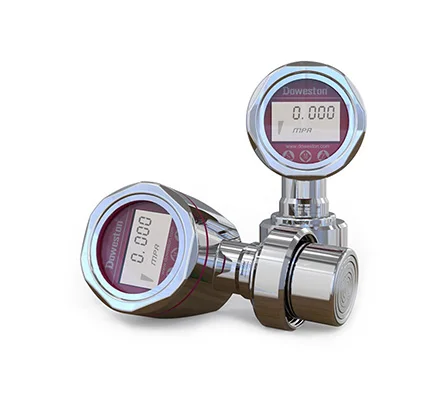

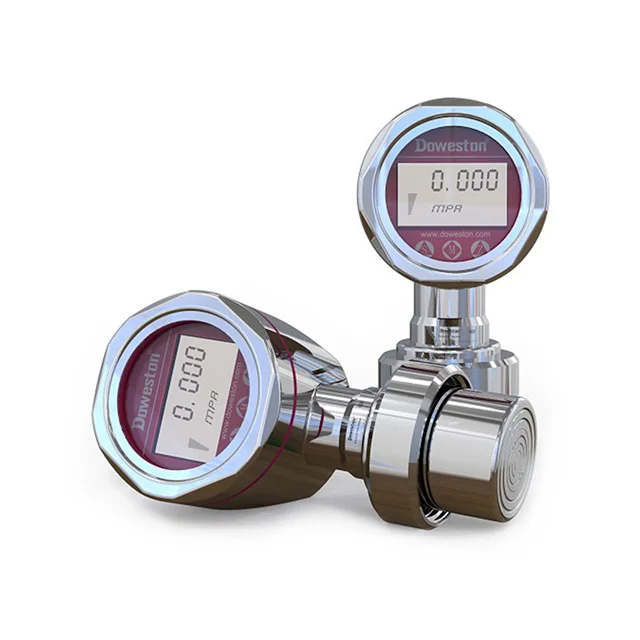

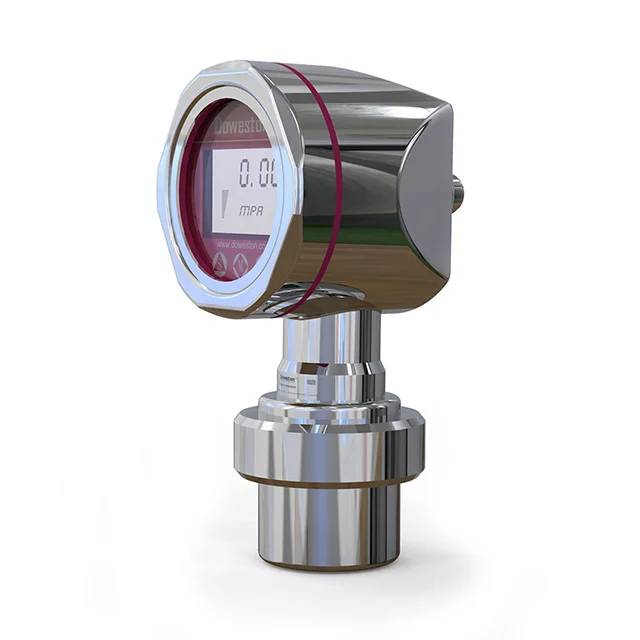

PD 310QB series Hygienic pressure transmitter
- Category: Pressure Measuring Instruments >>>
- Supplier: Doweston (china) Co. Ltd.
Share on (1600324453024):
Product Overview
Description
PD-310QB series
Hygienic pressure transmitter
Hygienic pressure transmitter
It is the first choice for CIP/SIP cleaning and disinfection pressure measurement in food, medicine and other industries
The PD-310QB sanitary pressure transmitter adopts a single crystal silicon sensor with a compact design. The middle part of the welding process diaphragm is made of high-quality stainless steel 316L, with a roughness Ra≤0.4μm, which conforms to aseptic standards, and the filling liquid complies with FDA sanitary standards. There are various international standard process connections, specially designed for the food and pharmaceutical industry, suitable for CIP/SIP cleaning and sterilization, with on-site display function, diversified information output, chucks, clamps, flanges and other connection methods, which can meet Most hygienic requirements require measurement requirements.
The PD-310QB sanitary pressure transmitter adopts a single crystal silicon sensor with a compact design. The middle part of the welding process diaphragm is made of high-quality stainless steel 316L, with a roughness Ra≤0.4μm, which conforms to aseptic standards, and the filling liquid complies with FDA sanitary standards. There are various international standard process connections, specially designed for the food and pharmaceutical industry, suitable for CIP/SIP cleaning and sterilization, with on-site display function, diversified information output, chucks, clamps, flanges and other connection methods, which can meet Most hygienic requirements require measurement requirements.
Performance characteristics
The PD-310QB sanitary pressure transmitter can convert the physical pressure parameters of gas, liquid, etc., felt by the load cell sensor into standard electrical signals (such as 4~20mADC, etc.) to provide indicator alarms, recorders, and regulators Wait for the secondary instrument to measure, indicate and adjust the process. It is a pressure transmitter widely used in food and pharmaceutical industries.
■ Measuring range: -1-4MPa
■ Comprehensive accuracy: ±0.25%FS
■ Diaphragm material:Stainless steel 316L
■ Working temperature: -35-120℃
■ Output: 4-20mA, RS485, Hart, etc.
■ Process connection: thread, flange
■ Electrical connection: Aviation plug (IP65), waterproof gland (IP68)
■ Measuring range: -1-4MPa
■ Comprehensive accuracy: ±0.25%FS
■ Diaphragm material:Stainless steel 316L
■ Working temperature: -35-120℃
■ Output: 4-20mA, RS485, Hart, etc.
■ Process connection: thread, flange
■ Electrical connection: Aviation plug (IP65), waterproof gland (IP68)
Technical parameter
Applicable medium | Dry gas, gas, liquid, |
Measuring range | -1-4MPa |
Comprehensive accuracy | ±0.25%FS |
Repeat accuracy | ≤± 0.1%FS/year |
Zero temperature drift | ±0.02FS/℃ |
Input voltage | 12-36V DC |
Output | 4-20mA, 0-5V, 0-10V, etc. |
Operating temperature | -40-120℃ |
Overload pressure | 150%FS |
Burst pressure | 200%FS |
Ambient temperature | -40-80℃ |
Response time | ＜3-10ms (10...90%FS) |
Vibration resistance | ±20g 20-5000Hz |
Service life | ＞1*10^8 pressure cycles |
Liquid contact material | Stainless steel 316L |
Surface roughness | Ra≤0.4μm |
shell material | Stainless steel |
Protection level | Electrical part IP65 |
Electrical connections | Aviation plug (IP65), waterproof gland (IP68) |
Electrical protection | Overload/reverse phase protection |
seal | Silicone, fluorine rubber |
Installation method | Chuck, clamp, flange |
weight | About 0.15kg |
Application areas:
■PD-310QA high temperature hygienic pressure transmitter is widely used in food, brewing, pharmaceutical and other industrial fields to realize the measurement of liquid, gas, and vapor pressure.
