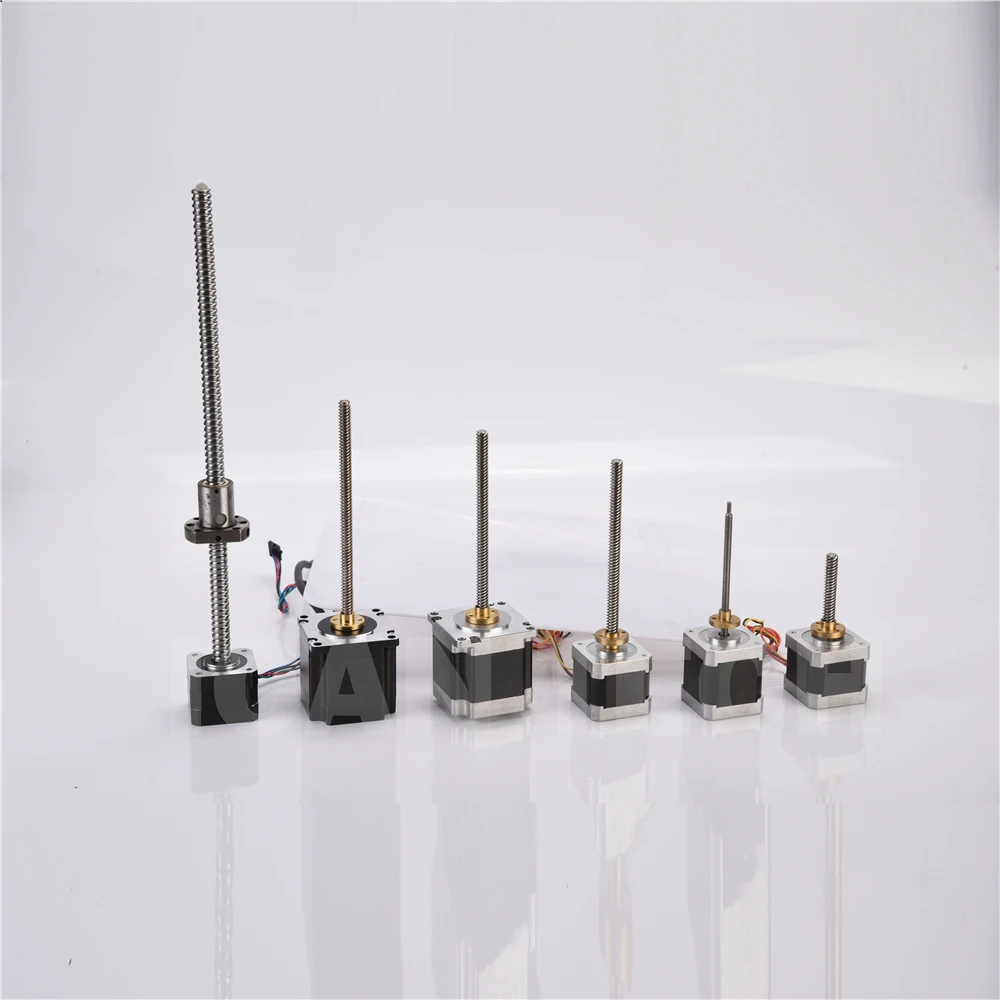

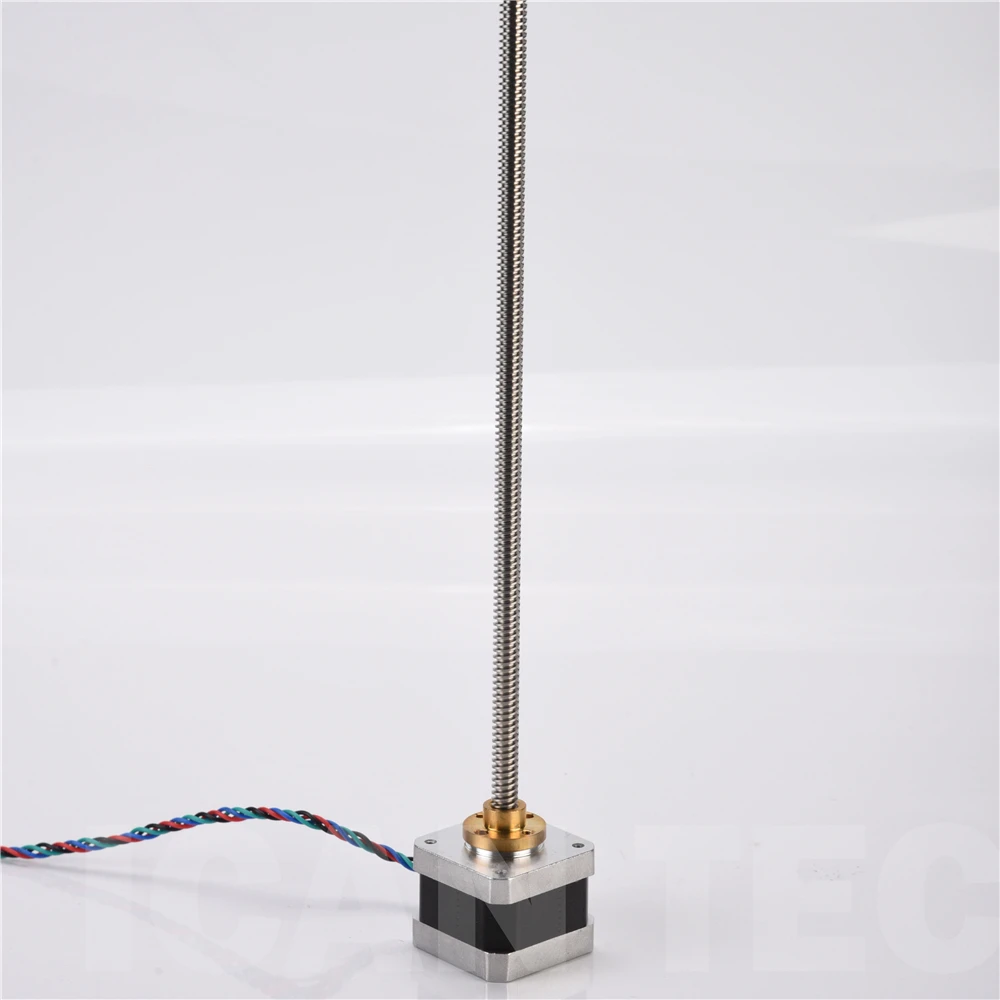

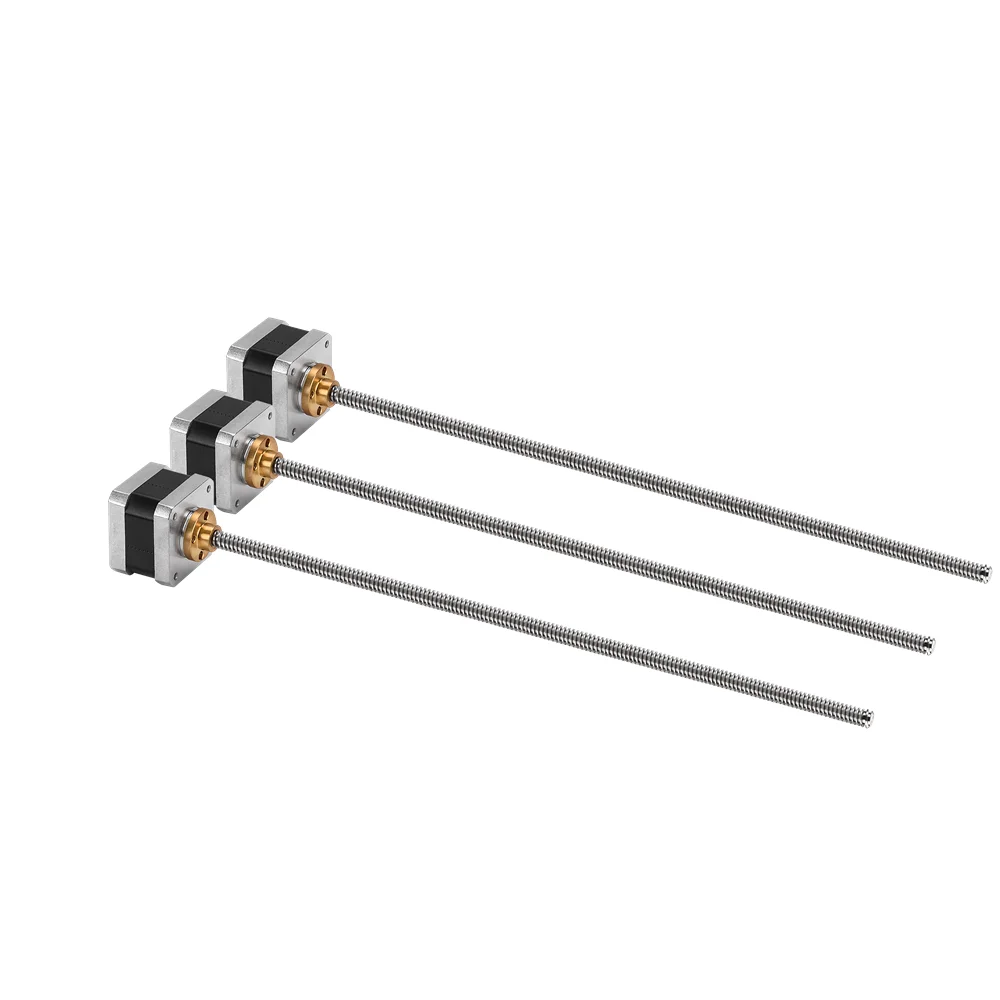

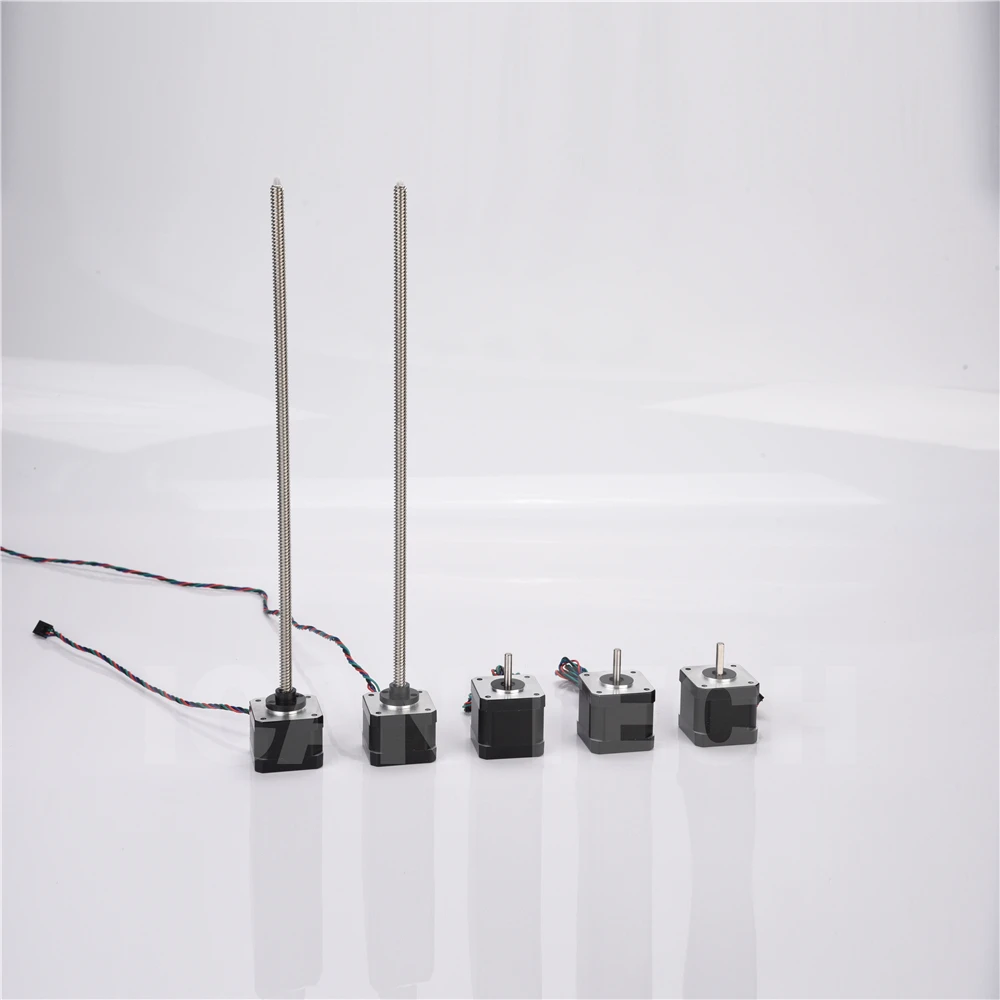

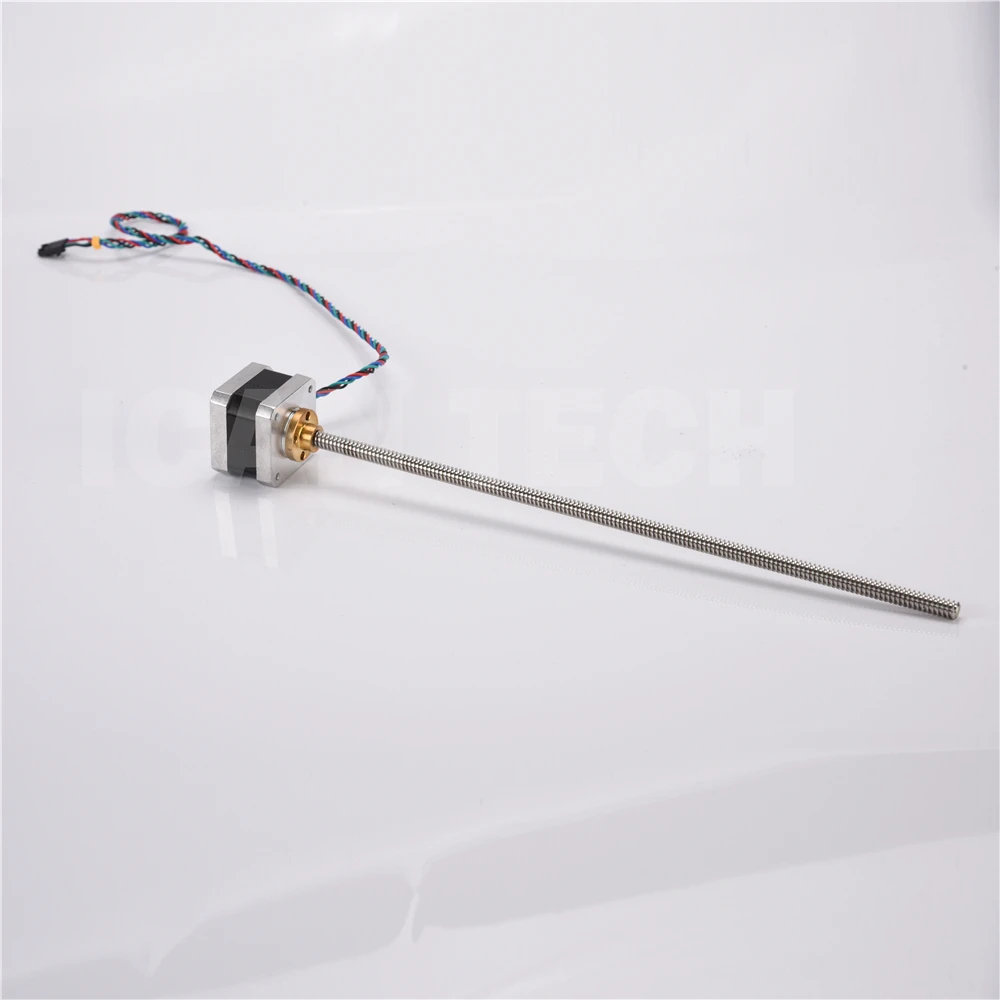

Hybrid nema 17 ball screw stepper motor Mini Lead Screw Stepper Motor For 3D printer
- Category: >>>
- Supplier: Dongguan ICAN Technology Co. Ltd.
Share on (1600324456142):
Product Overview
Description
Hybrid nema 17 ball screw stepper motor Mini Lead Screw Stepper Motor For 3D printer
Related Products
linear motor
| Model | Step Angle(degree) | Voltage (V) | Phase Current (A) | Resistance (Ω) | Thrust (kg) | Lead (mm) |
| 25BYZ-A01 | 7.5 | 12 | 0.23 | 53 | 2.5 | 12 |
| 25BYZ-A022-01 | 7.5 | 12 | 0.23 | 53 | 2 | 22 |
| 28BYZ-A04 | 7.5 | 24 | 0.24 | 100 | 5.0 | 37 |
| 35BYZ33Z-01 | 7.5 | 4 | 0.5 | 8 | 5.5 | 12.5 |
| 35BYZ-B01 | 7.5 | 5 | 0.45 | 11 | 5.5 | 75 |
| 39HZ1015M5B | 1.8 | 9.6 | 0.4 | 24 | 15 | 100 |
| 42HZ1220M5B | 1.8 | 3.8 | 1.2 | 3.2 | 20 | 116 |
| 42HZ0608T8C | 1.8 | 5.7 | 1.0 | 5.7 | 8 | 58 |
| 42HZ1380T8C | 1.8 | 5.7 | 1.0 | 5.7 | 8 | 128 |
| 57HZ0621T8C | 1.8 | 2.24 | 2.8 | 0.8 | 21 | 58 |
| 57HZ1321T8C | 1.8 | 2.24 | 2.8 | 0.8 | 21 | 128 |
Main Products Series
Company Information
Original factory: YES
Year Established: 2009
Total Employees: 80-100People
Manufacturing Equipment: Ultra-precision CNC universal grinder (Sweden), CNC (Germany), DMG lathe and milling, etc.
Detection Capacity:
Motor: Full detection one by one; Motor driver aging time: 8H
Our Services
Packaging & Shipping
Certifications
All our motors and motor drivers passed CE Certifications. ISO9001:2008 is also passed.
