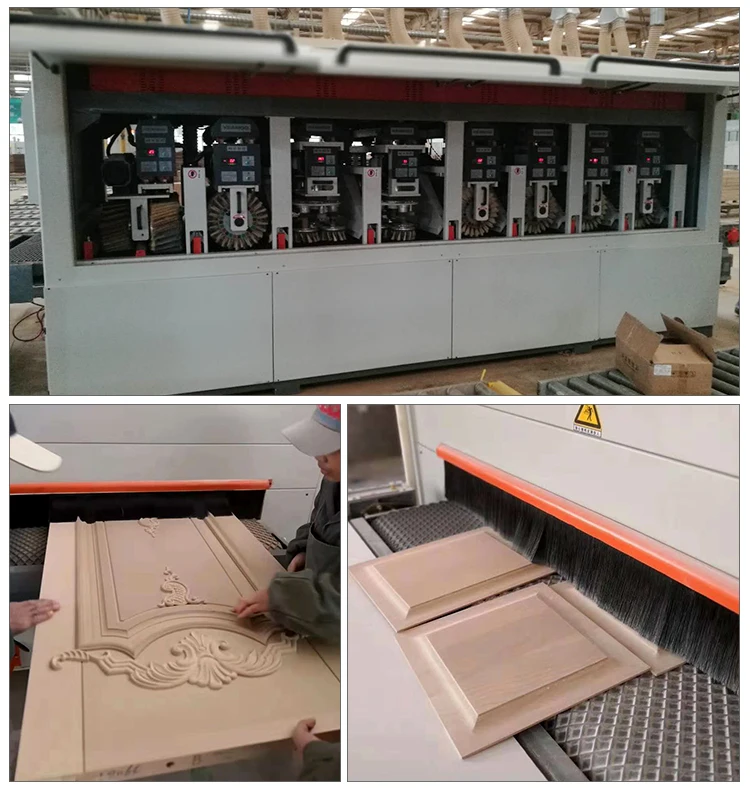

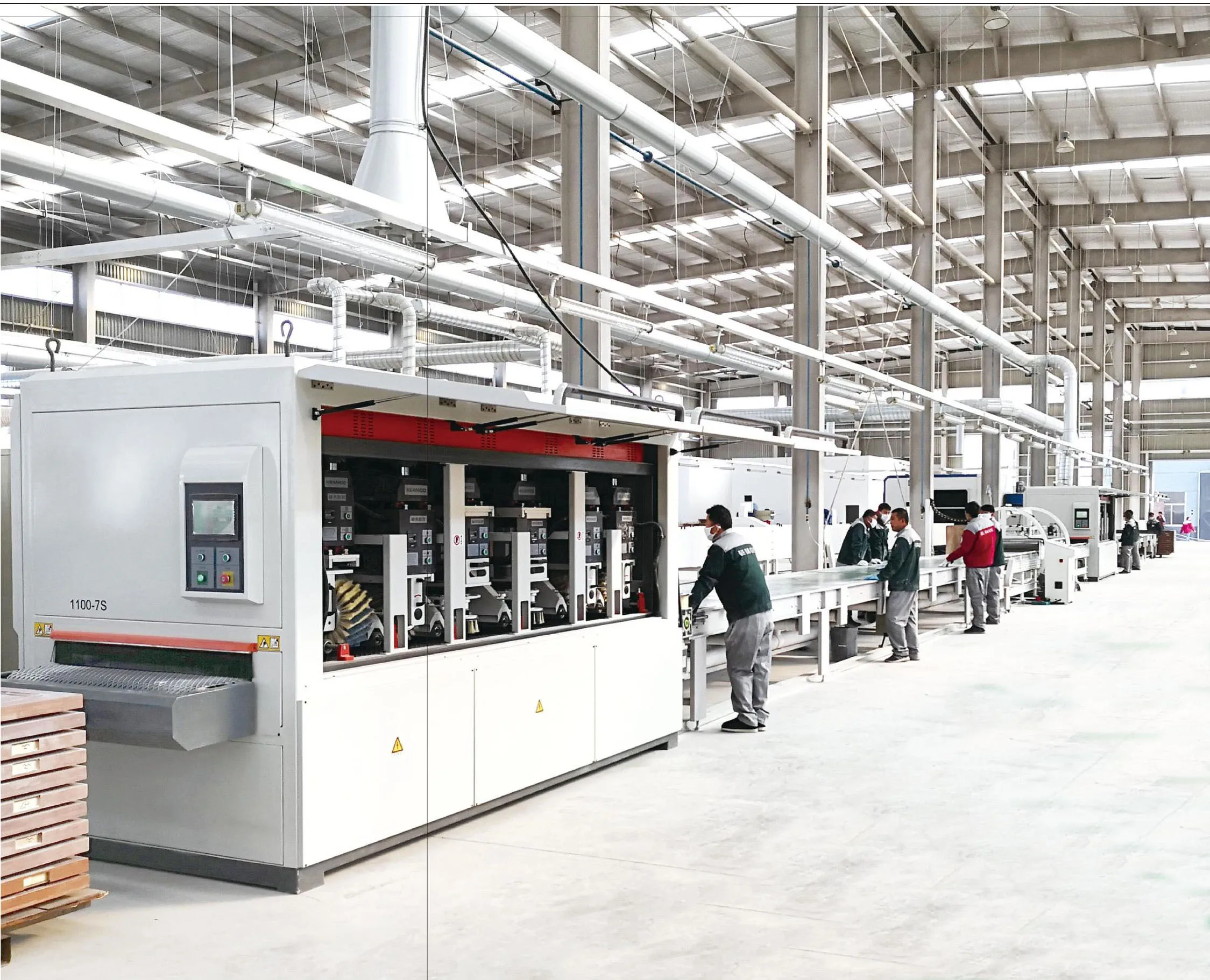

Fengkai Good Quality Double Sander Wood Door Sanding Machine Woodworking Machinery
- Category: >>>
- Supplier: Qingdao Fengkai Machinery And Equipment Co. Ltd.
Share on (1600324517558):
Product Overview
Description
Product Description
Product Paramenters
Name | Sanding Machine |
Model | FK-G9-1300 |
Working thickness | 100mm |
Adjustable brush speed | 80-450rpm(can adjust) |
Screw roller speed | 80-550 rpm(can adjust) |
Conveyor speed | 0-10m/min(can adjust) |
Each group of the lifting power | 8*0.25kw |
Integral lifting power | 2kw |
Disc brush motor power | 2*0.55kw |
Disc brush motor power | 2*1.5kw |
Screw roller motor power | 5*2.2kw |
Horizontal roller motor power | 2*1.1kw |
Conveyor motor power | 2.2kw |
Swing motor power | 8*0.2kw |
Total power | 24.2kw |
Screw roller number | 1 set |
Screw roller diameter | 420mm |
Brush plate number in each group | 3*3 set |
Brush tray diameter | 180mm |
Horizontal roller number | 8 sets |
Horizontal roller diameter | 350mm |
Vacuuming mouth | 17*100mm |
The wind speed | 22-30m/s |
Suction air | 17*635m3/h |
The weight | 6200kg |
The overall dimensions | 5950*2150*2275mm |
Consumtion power | About 8-12kw/h |

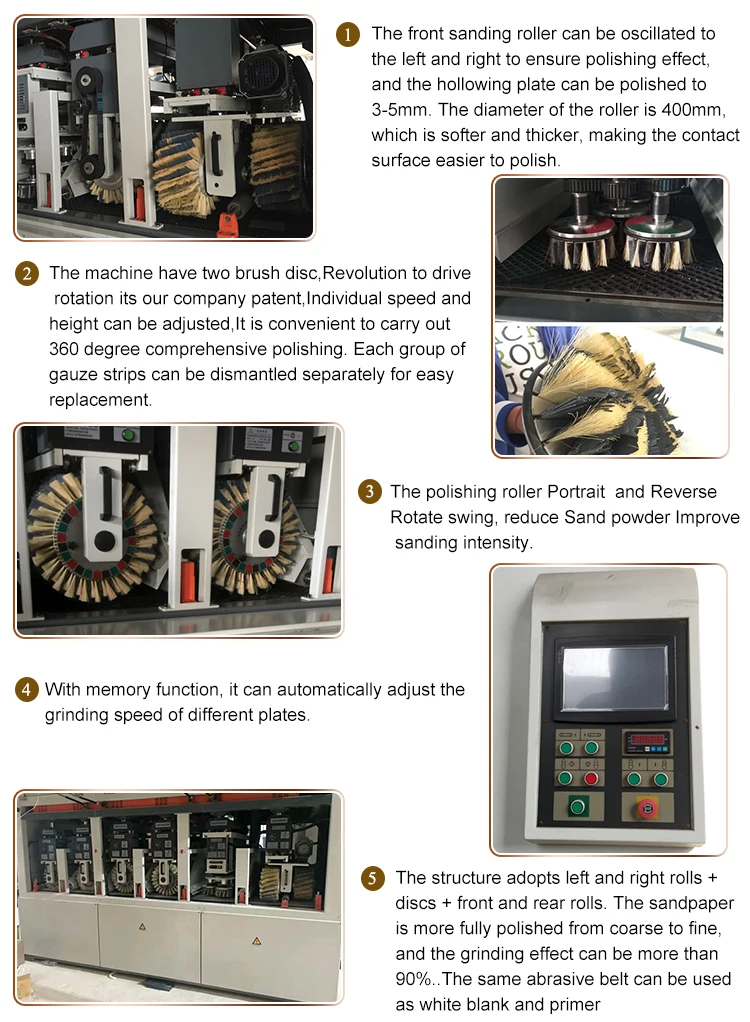

Detailed Images
Japan SEND Motor
Germany Siemens Electric appliance
China Liteon Frequency converter
Germany Continental Belt
China ZhouYi Reducer
China HIWIN Guide Bearing

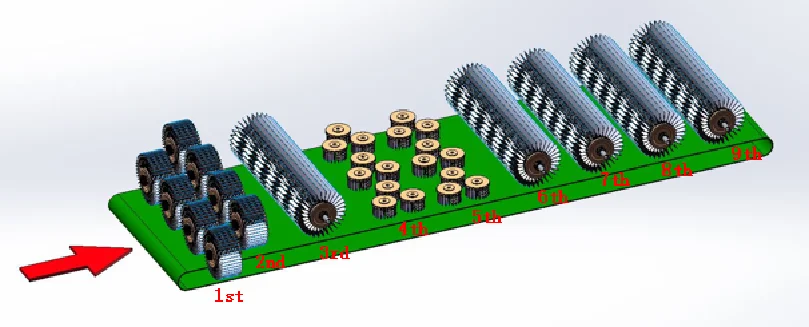

Work Steps
Advantages:
1. Each sanding unit can be adjusted independently, and can be fine-tuned according to the product process to ensure the maximum combination of abrasive and workpiece, which can significantly improve the grinding effect. Strengthen the independent lifting mechanism to make the grinding process more stable.
2. Each sanding unit can independently adjust the speed, effectively improve the quality of grinding, prevent damage to the shape and paint leakage.
3. Each sanding unit cooperates with swing system to make the grinding range wider and more uniform, and effectively avoid scratches caused by long grinding.
4. Each sanding unit is equipped with a human-designed drawing system, which makes it easier to replace consumables.
5. Each group of sanding units with thickness display function, the operation is more intuitive , convenient (Note:This model can choose memory function).
6. Large diameter sanding roller structure , matched with high quality sand paper , mexico sisal, softer and flexible, and it is easier to sand the complex design products.
7. Each sanding unit is removable .This structure is more portable to replace the sanding paper or sanding part and it is easier to sand the complex design products and it is convenient for maintenance.

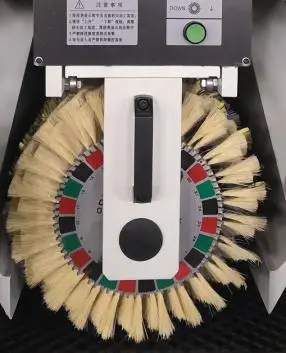

8. Brush disc adopts the high speed disassembly structure , effectively shortens the replacement time of the sand paper, which is faster and more efficient than the traditional structure
3. Each sanding unit cooperates with swing system to make the grinding range wider and more uniform, and effectively avoid scratches caused by long grinding.
4. Each sanding unit is equipped with a human-designed drawing system, which makes it easier to replace consumables.
5. Each group of sanding units with thickness display function, the operation is more intuitive , convenient (Note:This model can choose memory function).
6. Large diameter sanding roller structure , matched with high quality sand paper , mexico sisal, softer and flexible, and it is easier to sand the complex design products.
7. Each sanding unit is removable .This structure is more portable to replace the sanding paper or sanding part and it is easier to sand the complex design products and it is convenient for maintenance.
8. Brush disc adopts the high speed disassembly structure , effectively shortens the replacement time of the sand paper, which is faster and more efficient than the traditional structure
Related Products
Company Profile
Our Company：
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback

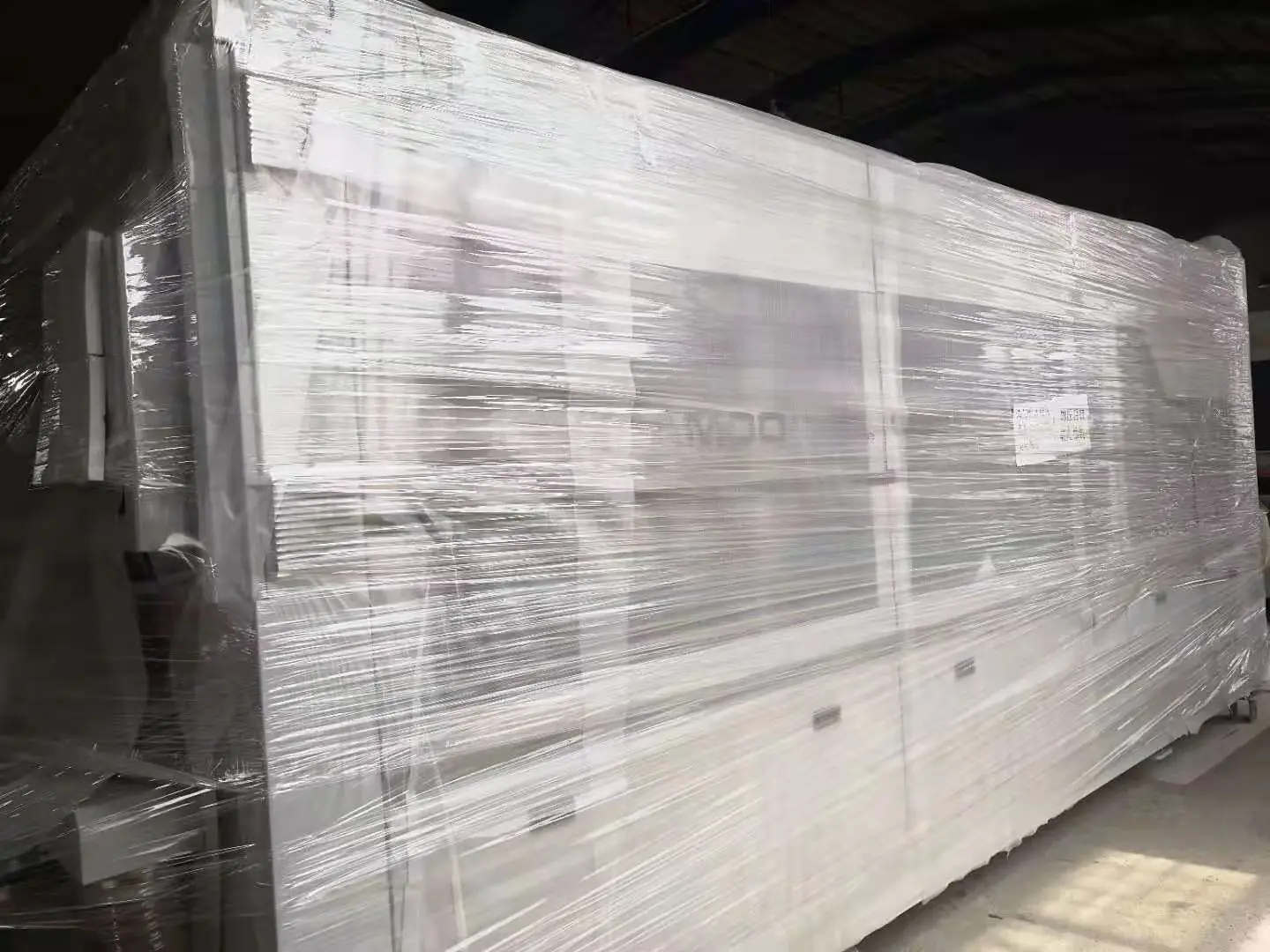

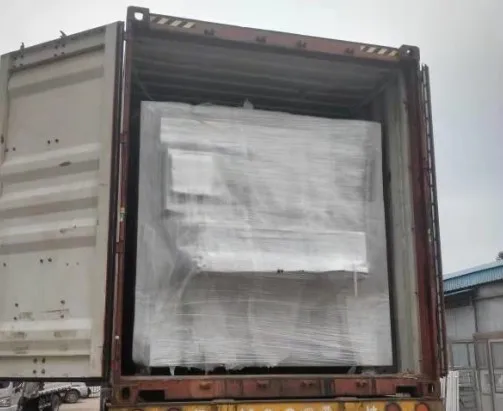

Packing & Delivery
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer’s account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines has been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia, Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
