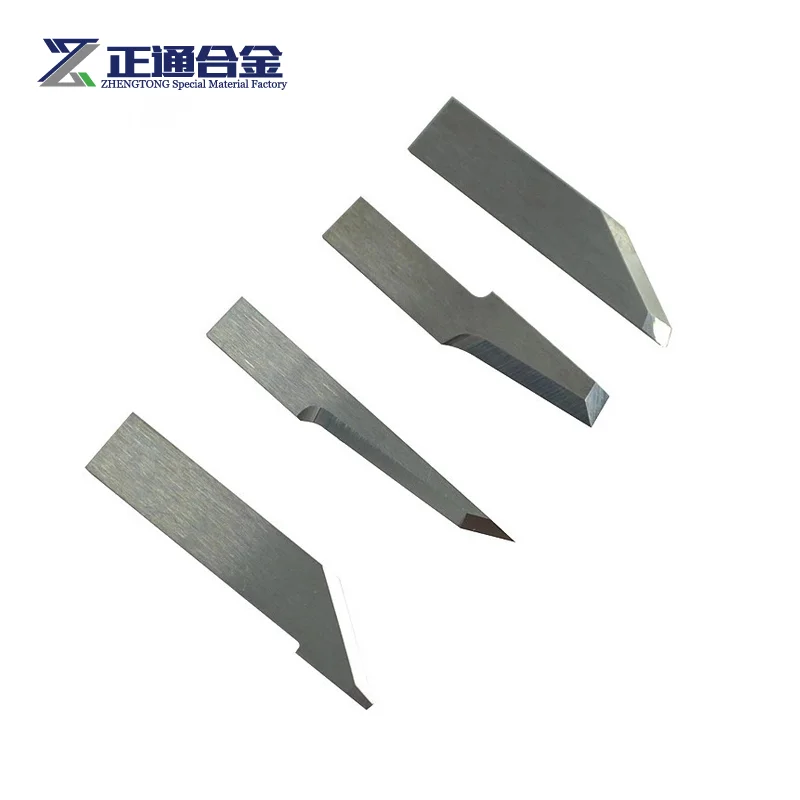

cloth cutting Oscillating Blade ZUND Cutter Z16 Knife Pointed

Product Overview

Description

Model	Z16
Length	25mm
Thickness	0.63mm
Material	Tungsten carbide
Max. cutting depth	7.4mm
Recommeded materials	Canvas,Self-adhesive vinyls,Reflective vinyls,Folding Carton,Magnetic foil,PVC Banner,Paper,Polyester fabric,Foam board/Foam,Gasket materials



Zund cutting blades are made from 100% raw tungsten carbide. These blades have a significantly higher life

expectancy than high speed steel blades. Greater productivity thanks to fewer blade changes. And better

cutting quality thanks to the blade's precision finish and very high stability.These are a direct replacement to

the OEM blades. Designed to last longer and cost less!



Flat-stock blades: Z10, Z11, Z83, Z101, Z16, Z17, Z44, Z46, Z102...

V-cut blades: Z70, Z71, Z73..

Mat-cutting blades: Z30, Z33, Z34...

Oscillating blades-pointed: Z22, Z20, Z60, Z21, Z66...

Oscillating blades-flat: Z42, Z43, Z26, Z41, Z62, Z61, Z64...

Rotary blade: Z50, Z51, Z52, Z53, Z55



Zund Cutting blades Advantages:



• Longer lifetime than any other materials like HSS;

• Greater productivity thanks to fewer blades change.

• Better cutting quality thanks to the blade's precision finish and very high stability.



Depending on which tool they are used in, a distinction is made between the following blade Types:



Drag blades: used in non-powered tools such as UCT, KCT, VCT, SCT, C2, insert sleeve 40

Oscillating blades: used in EOT/POT oscillating tools

Rotary blade: decagonal (ten-sided) blades for DRT/PRT tools.
