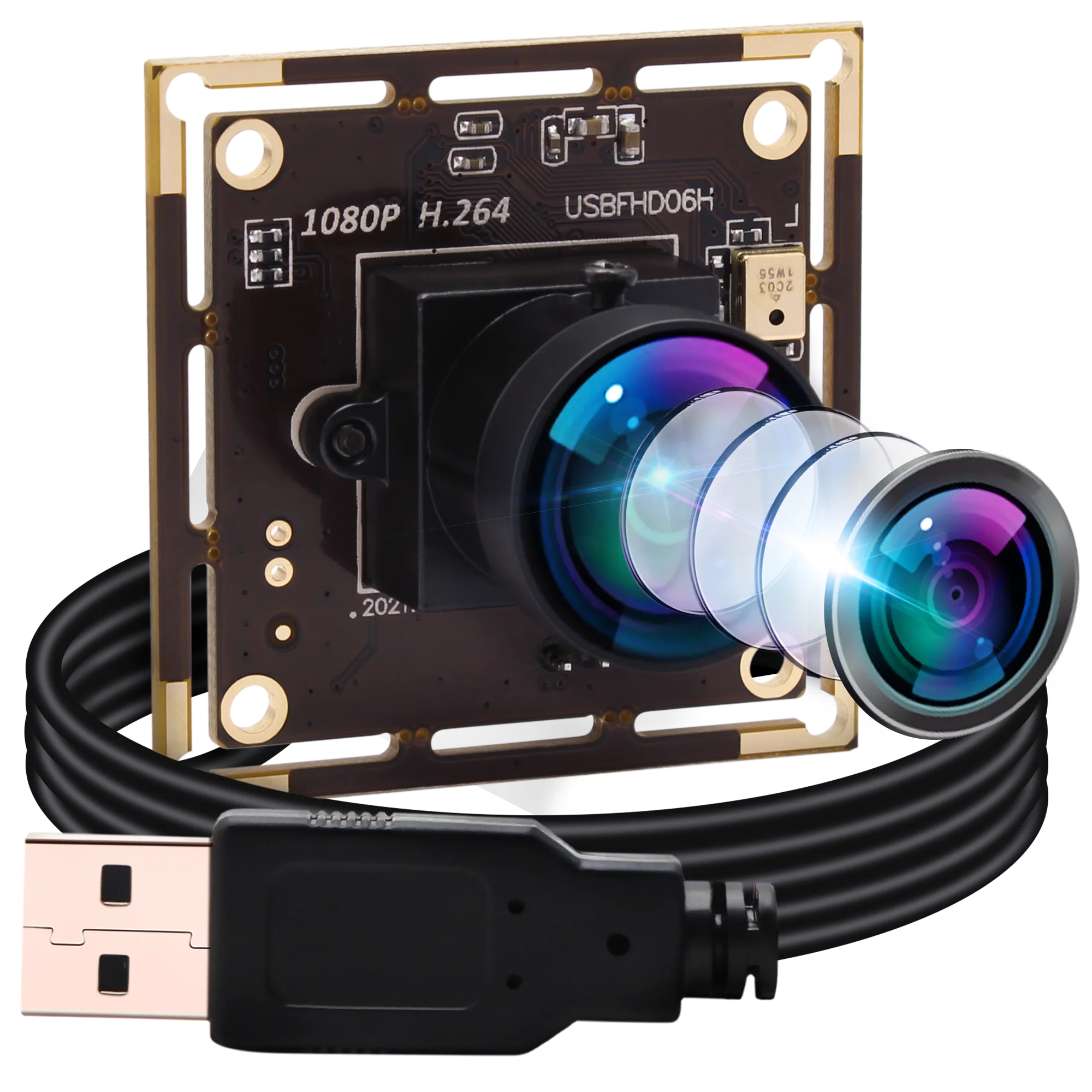

ELP 1080P Low Light Camera 0.01Lux Sony IMX323 UVC H.264 Wide Angle 170degree fisheye USB Webcam Camera Module for Machine Vision




1) Low illumination min 0.01Lux,has good performance in low/weak light condition.

2) High frame rate -deliver H.264 30fps in 1920x1080 resolution

3) Come with buil-in Microphone,support single, dual channel



4) Quick Plug&Play- This usb camera is easy to use, only plug and camera into computer USB port and running the software can make
video display and recording work. No drive installation is required.















Products Description

Products Description

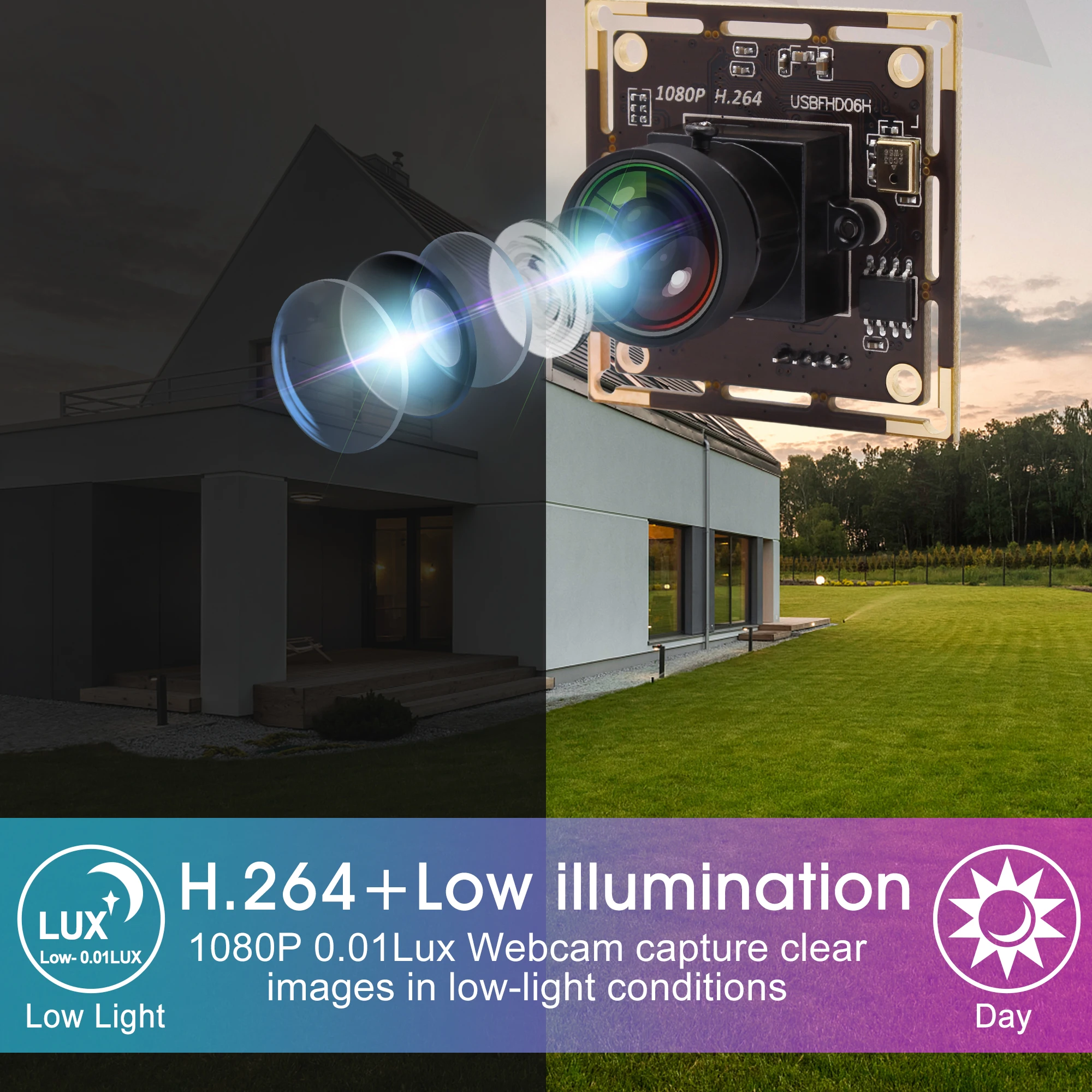

*Ultra Low light Camera, Minimum illumination 0.01lux

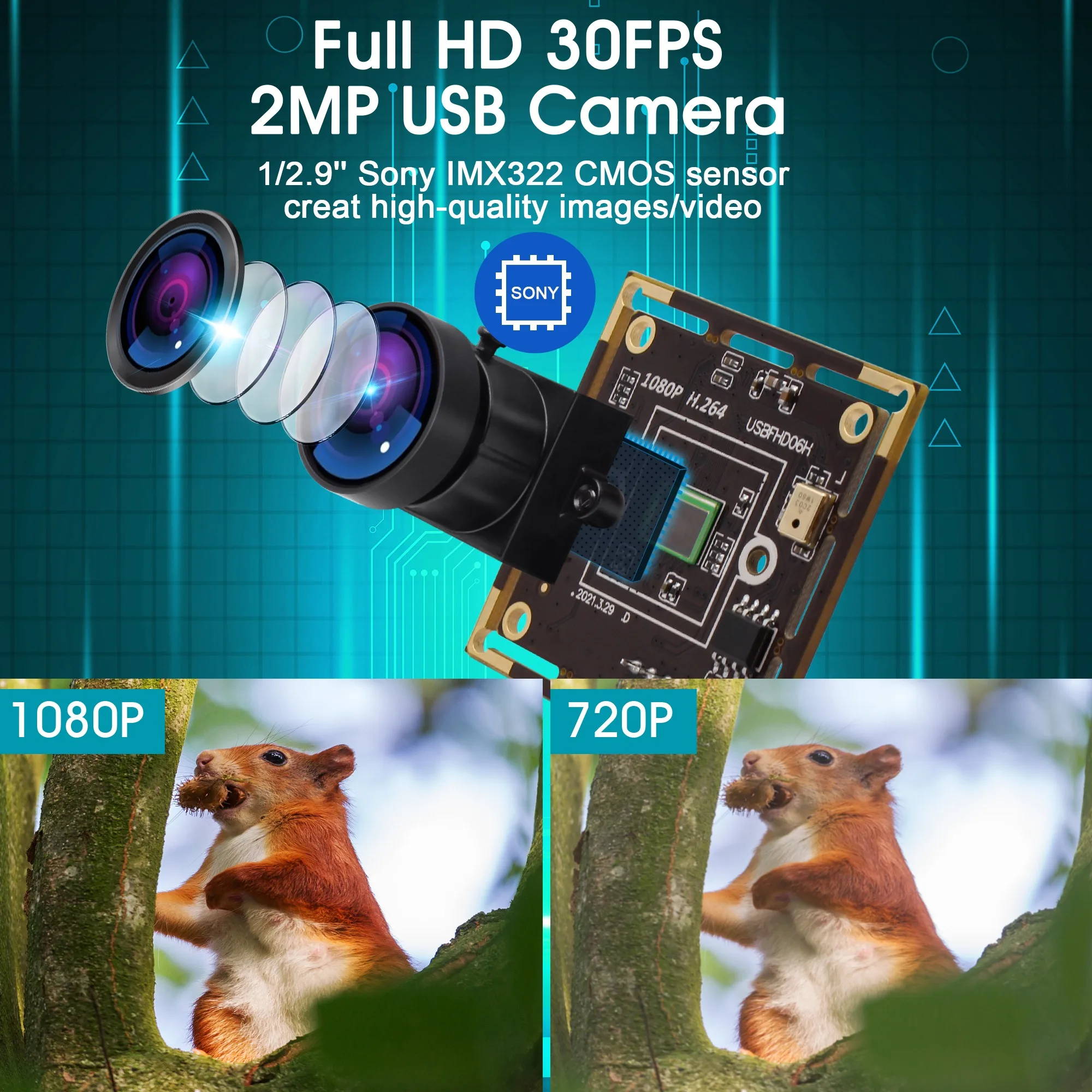

*Highly advanced Sony IMX323 Sensor
*Max resolution :1920*1080P ,2.0 Megapixel
* Compression format : H264 /MJPEG / YUV2(YUYV)

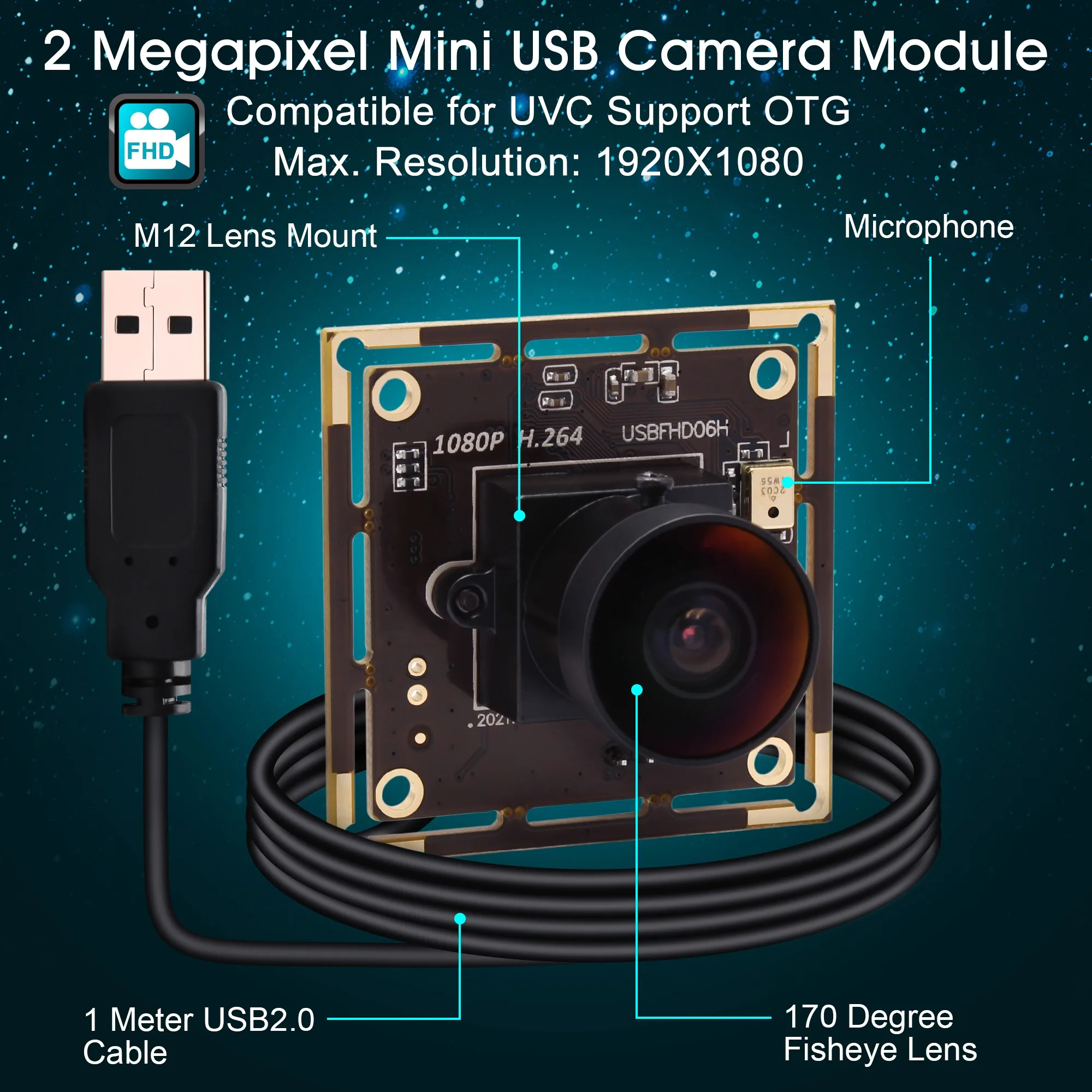

*Come with microphone on the board which support single channel and dual channel.
*Support IR Cut, optional to add IR LED Board for night vision
*Equiped with mini M12 170degree fisheye lens ,fixed focus lens
*USB 2.0 High speed port
*Support OTG protocal: can connect your mobile via OTG cable
*White balance adjustable: Resolve color reduction and tone processing issues








































































































































Model


ELP-USBFHD06H-L170


Sensor


Sony IMX323


Lens Size


1/2.9 inches


Pixel Size


12.8X11.6 mm


image area


2000(H)X1121(V) approx. 2.24 M pixels


Max. Resolution


1080P


Compression format


H.264 /MJPEG / YUV2(YUYV)


Resolution & frame


H264:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/
800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps/
640X480@30fps/800X600@ 30fps/ 1280X720@ 30fps/1920X1080@ 30fps
YUV:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/
800X600@ 15 fps


S/N Ratio


42dB


Dynamic Range


86dB


Sensitivity


5.0V/lux-sec@550nm


Mini illumination


0. 01lux


Shutter Type


Electronic rolling shutter / Frame exposure


Connecting Port type


USB2.0 High Speed


Free Drive Protocol


USB Video Class(UVC)


Support OTG Protocol


USB2.0 OTG


AEC


Support


AEB


Support


AGC


Support


Adjustable parameters


Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure


Lens Parameter


170 Degree fisheye lens


Digital audio


High quality digital MIC, support single, dual channel


LED board power connector


Support 2P-2.0mm socket


Power supply


USB BUS POWER 4P-2.0mm socket


Power supply


DC5V


Operating Voltage


140mA~190mA


Working current


-10~70℃


Working temperature


-20~85℃


Board size /Weight

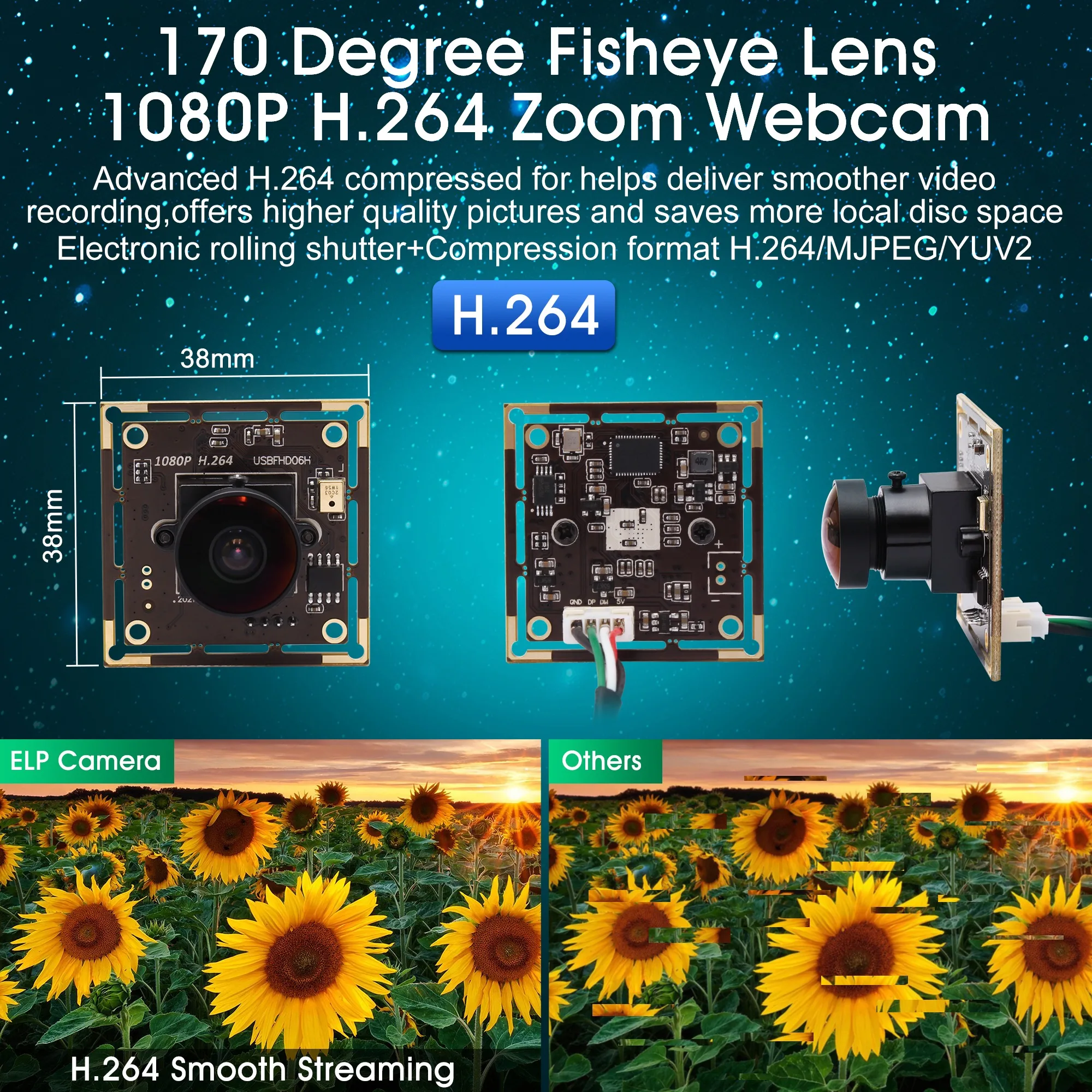

38X38mm(Compatible 32X32mm)/ about 30g


Cable


Standard 1M / 2M,3M,5M optional


Operating system request


Win7 Win8 Win10 Win11
Linux 2.6 or above
Android 4.0 or above

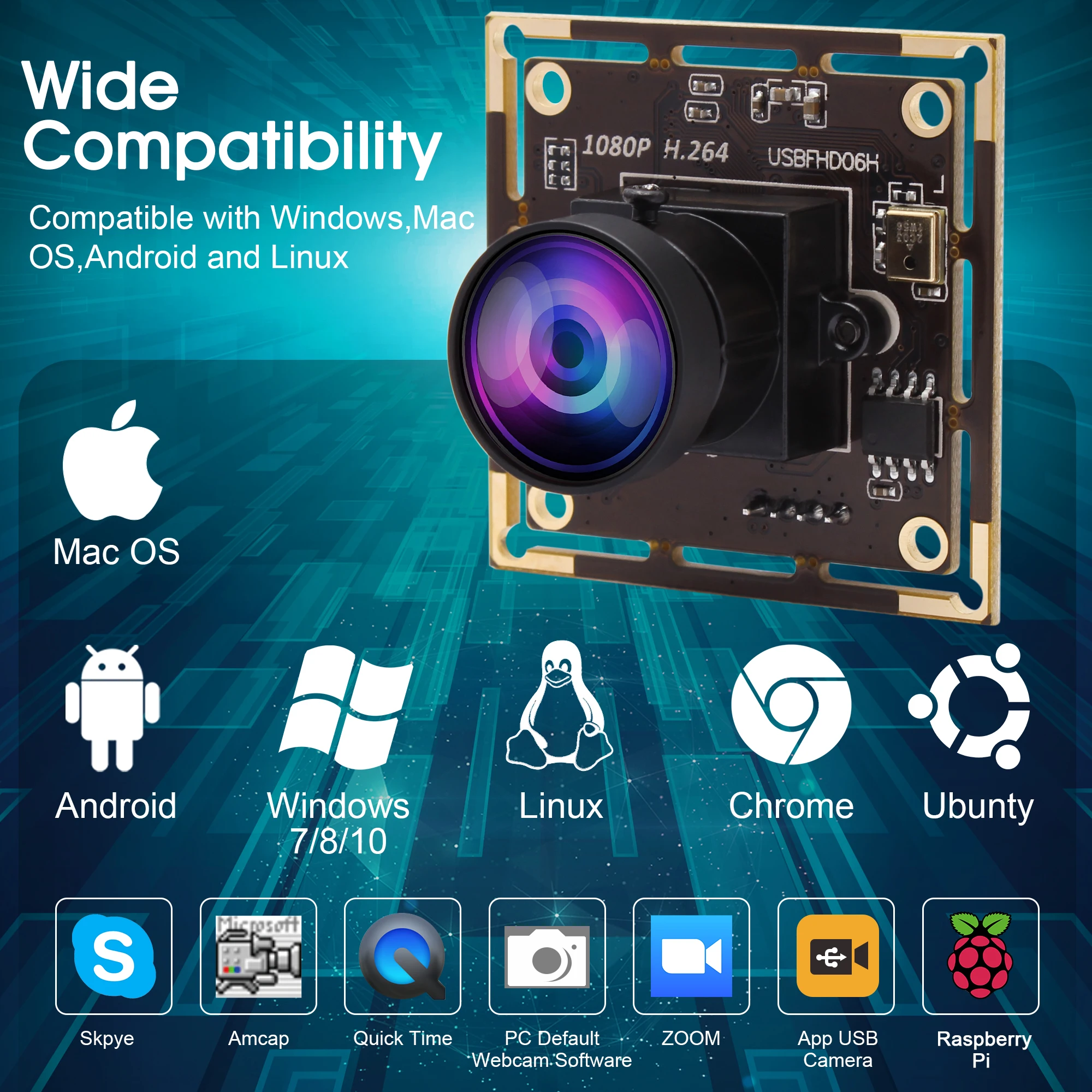

Best Universal Compatibility- 1080P webcam usb camera is versatile for CSkype, OBS, Zoom, GoToMeeting, Facebook LIVE, and YouTube Livestreaming services, widely works with Raspberry Pi/WinXP/Vista/Windows 7/8,Windows 10 Linux with UVC(above linux-2.6.26)MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC. Our usb camera can work along with the webcam software installed by default in the PC.









Packing and delivery

Packing and delivery


























Company Profile

Company Profile






Shenzhen Ailipu Technology Co.,Ltd, who has 16 years history, is a professional manufacturer of surveillance system . Ailipu has its own brand ELP, which already well know in security surveillance system.

With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.










































FAQ

FAQ






1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.

2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.

3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.

4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module

5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens

6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac

7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL

8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.

10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
