Product Overview

Description

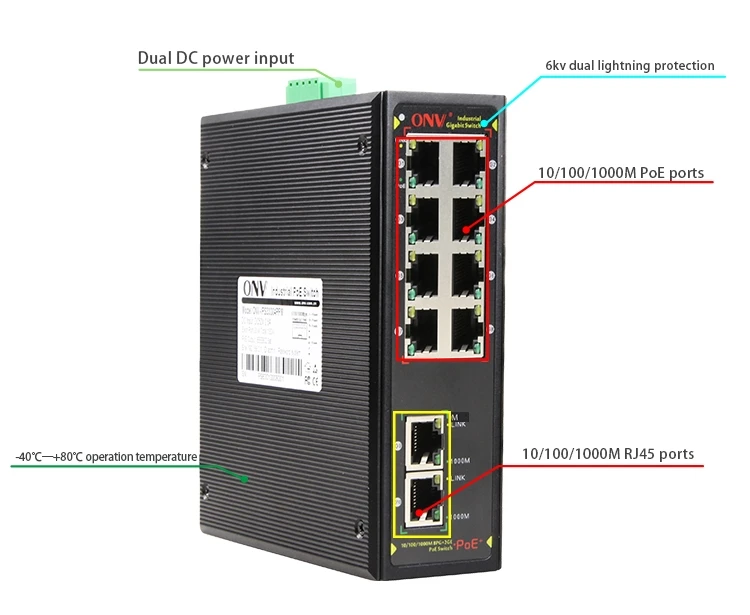

Din rail industrial poe network switch gigabit 10 port unmanaged


The series of products are all full gigabit industrial PoE switch independently developed by ONV. Port 1-8 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 30W, and the maximum PoE output power of the host is 120W (at-240W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera,industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.






Gigabit wire speed forwarding

    All series supports full gigabit Ethernet ports, high speed and high bandwidth connection to meet the needs of various scenarios.

    Support non-blocking wire-speed forwarding.



  Powerful port lightning protection, wide voltage input

  —   Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;

  —   Industrial dual power input

  —   DC INPUT: 47V-58V, non-PoE DC INPUT: 12-48V.





Intelligent PoE power supply

  —   8*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

     IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

     Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.



Stable and reliable

  —   Low power consumption, No fan low noise, aluminum shell.

  —   CCC,CE, FCC, RoHS.

  —   The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link,L/A, PoE.



ONV-IPS33108P




ONV-IPS33108PF




ONV-IPS33128PF


















Model
Description
Recommended power supply
ONV-IPS33108P
Unmanaged industrial PoE switch with 10*10/100/1000M RJ45 ports, Port 1-8 can support IEEE802.3af/at PoE standard. Support dual DC
power supply input and DIN rail mounting.
120W/240W
ONV-IPS33108PF
Unmanaged industrial PoE fiber switch with 8*10/100/1000M RJ45 ports and 2*1000M SFP ports, Port 1-8 can support IEEE802.3af/at
PoE standard. Support dual DC power supply input and DIN rail mounting.
120W/240W
ONV-IPS33128PF
Unmanaged industrial PoE fiber switch with 10*10/100/1000M RJ45 ports and 2*1000M uplink SFP slot ports, Port 1-8 can support
IEEE802.3af/at PoE. Support dual DC power supply input and DIN rail mounting.
       120W/240W
Note: Industrial PoE switch does not match the SFP optical module and power supply.




PACKING LIST
CONTENT
QTY
UNIT
full gigabit industrial PoE fiber switch
1
SET
User Guide
1
PC
Warranty Card
1
PC
