Henan Hongke LECA Clay Kiln Machine Small Ceramic Kiln for Ceramic Industry

1.Introduction of Small Ceramic Kiln

Clay rotary kiln is one of the most important equipment for lightweight aggregate family. The main raw material of it are all kinds of clay, mudstone, slate, coal gangue, fly ash, shale, sludge and industrial solid waste.

After processing to make granulation and roasting, it becomes artificial lightweight aggregate.

shale rotary kiln equipment is composed of raw material storage bin, dust control chamber, induced fan, main kiln body, coal injection system, control cabinet and so on.

The feeder in the lower part of the raw material bin, the rotary speed of kiln body and the amount of arch coal are all stepless speed regulation, with the purpose of adjusting technological parameters and obtain the maximum output under the premise of ensuring the product quality.

The auxiliary equipments for producing shale ceramsite include: crusher, filter machine, belt conveyer, loading machine, discharging machine, etc.

The auxiliary equipments for producing fly ash and clay ceramsite are: wheel mill, double shaft mixer, granulator, screen machine, belt conveyor, etc.











2.Features of Small Ceramic Kiln

1. Clay rotary kiln  has simple structure, high unit volume, long kiln life, high running rate, stable operation, high heat transfer efficiency and low heat consumption.

2. Clay rotary kiln  is sealed with shell and the shaft contact sealing device is installed at the end of kiln to ensure the reliability of seal.

3. With a vertical preheater at the end of rotary kiln, the high temperature flue gas generated by calcination in the rotary kiln can be fully utilized to preheat the material from normal temperature to initial decomposition temperature,

which can not only greatly increase the output of rotary kiln. It can also reduce heat consumption per unit product.



3.Process of Small Ceramic Kiln

1.Plastic process: suitable for clay and clay raw materials. The process is: clay → plasticizing, levelling→ roasting→ roll to make granulation → cooling → the finished product.

 2, Slurry pelletizing process: suitable for fly ash or other powdered raw materials, its process: fly ash →mixing and levelling→ pelletizing → roasting → cooling→ the finished product.

3, Grinding and pelletizing process: suitable for shale, Shales and coal gangue and other raw materials, its process: shale-drying→ grinding→, pre-wetting→pelletizing→ roasting  →cooling→the finished product

4, Crushing (dry process) technology: suitable for shale and other raw materials, The process is as follows: Shale→ crushing and grading→ roasting→ cooling→ the finished product.









 4.Technical Parameters of Small Ceramic Kiln

Product specifications (m)	Diameter (m)	Kiln  dimensions Length (m)	Obliquity (%)	Capacity (t/d)	Rotation speed (r/min)	Motor power   (kw)	Total weight  (t)
Φ2.5*40	2.5	40	3.5	180	0.44-2.44	55	149.61
Φ2.5*50	2.5	50	3	200	0.62-1.86	55	187.37
Φ2.7*42	2.7	42	3.5	320	0.10-1.52	55	198.5
Φ2.8*44	2.8	44	3.5	400	0.437-2.18	55	201.58
Φ3.0*45	3	45	3.5	500	0.5-2.47	75	210.94
Φ3.0*60	3	60	3.5	300	0.3-2	100	310
Φ3.2*50	3.2	50	4	1000	0.6-3	125	278
Φ3.3*52	3.3	52	3.5	1300	0.266-2.66	125	283
Φ3.5*54	3.5	54	3.5	1500	0.55-3.4	220	363
Φ3.6*70	3.6	70	3.5	1800	0.25-1.25	125	419
Φ4.0*60	4	60	3.5	2500	0.396-3.96	315	510
Φ4.2*60	4.2	60	4	2750	0.4-3.98	375	583
Φ4.3*60	4.3	60	3.5	3200	0.396-3.96	375	633
Φ4.5*66	4.5	66	3.5	4000	0.41-4.1	560	710.4
Φ4.7*74	4.7	74	4	4500	0.35-4	630	849
Φ4.8*74	4.8	74	4	5000	0.396-3.96	630	899
Φ5.0*74	5	74	4	6000	0.35-4	710	944
Φ5.6*87	5.6	87	4	8000	Max4.23	800	1265
Φ6.0*95	6	95	4	10000	Max5	950*2	1659

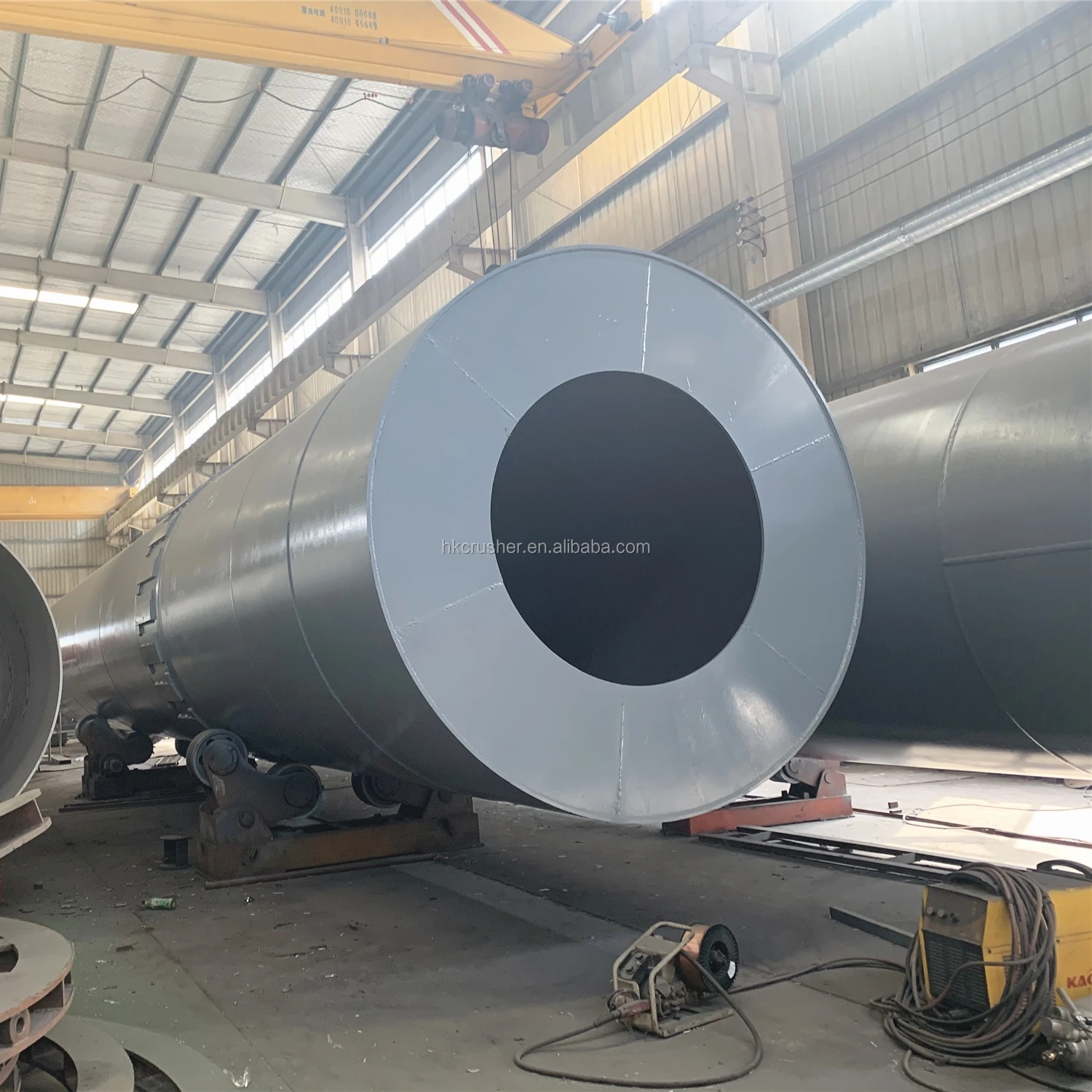

5.Our factory delivery of Small Ceramic Kiln

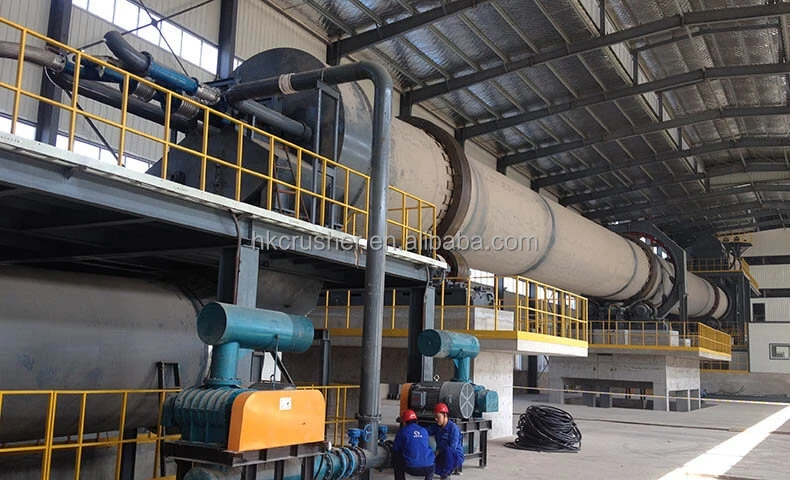

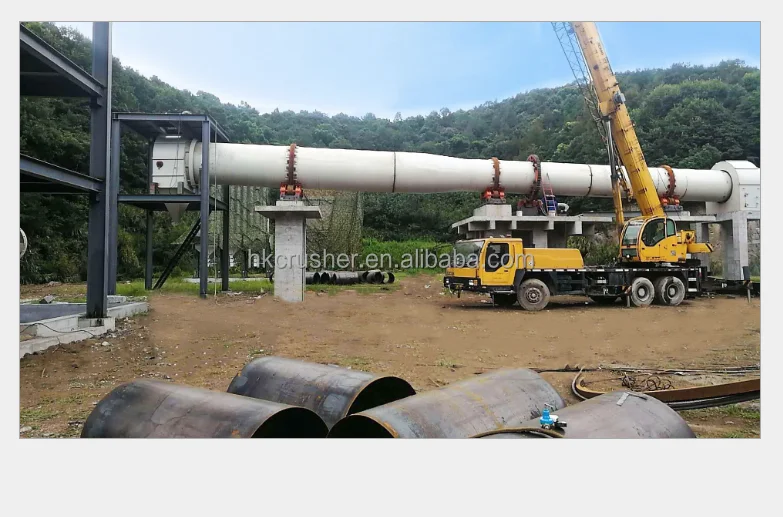

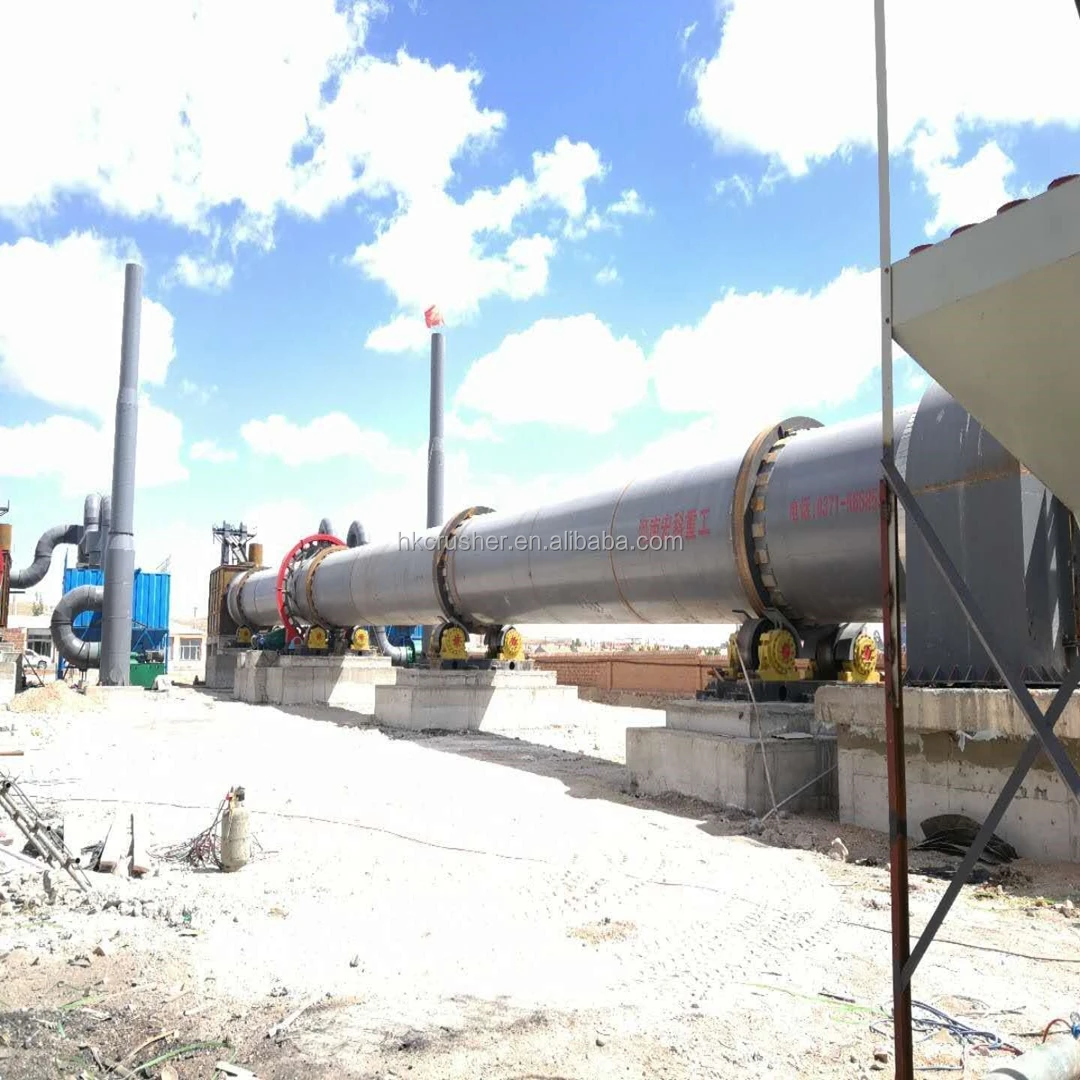

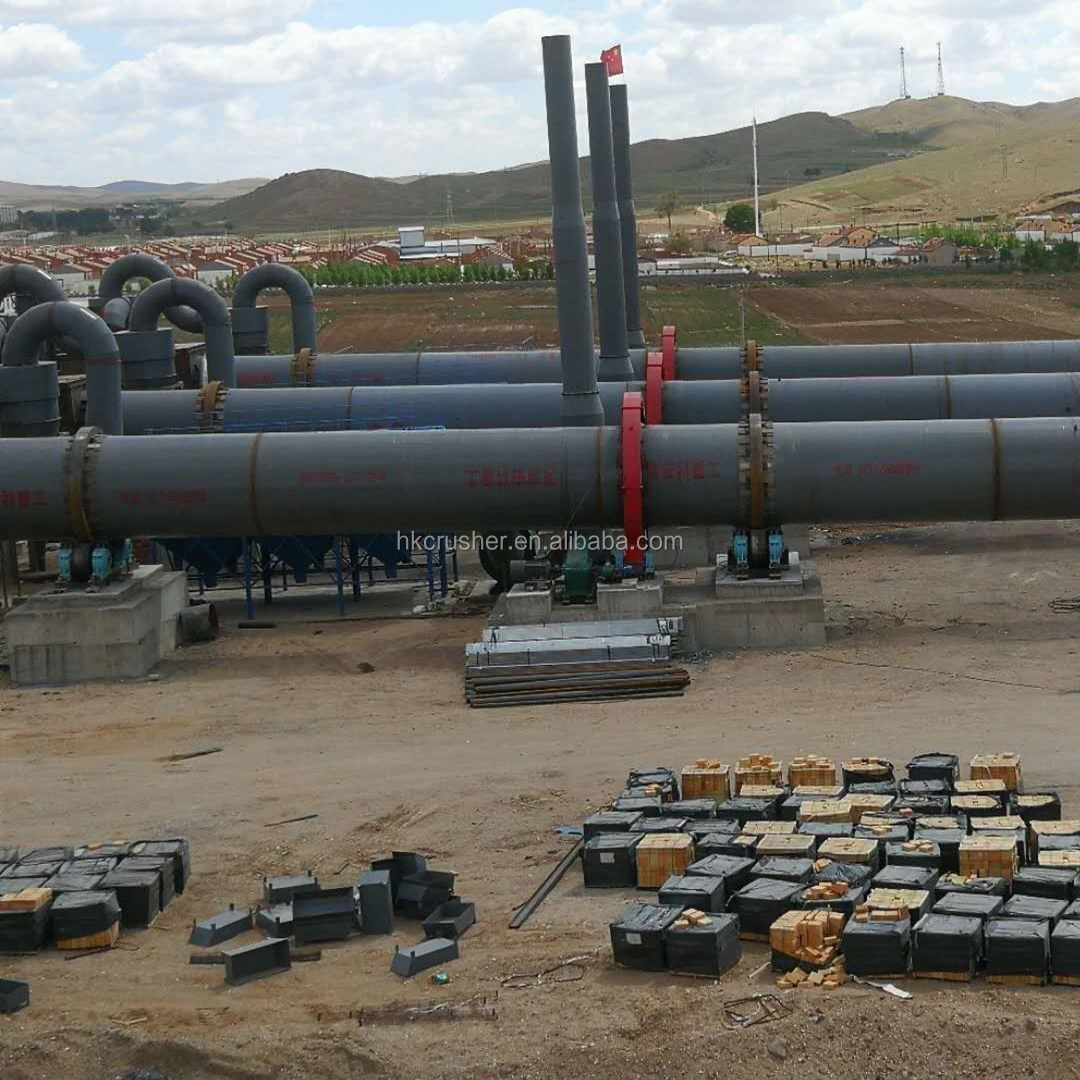

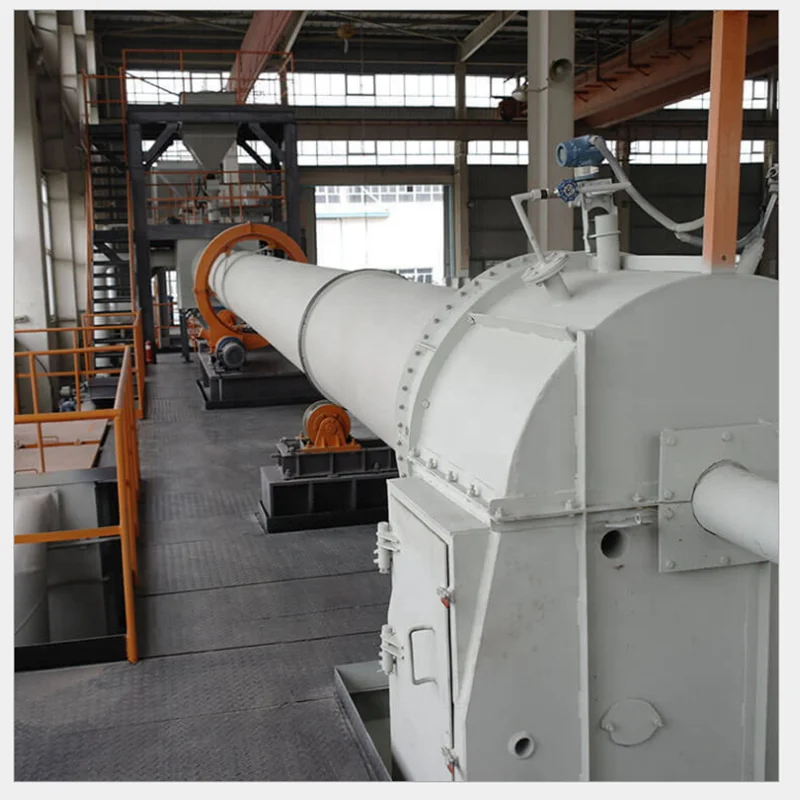

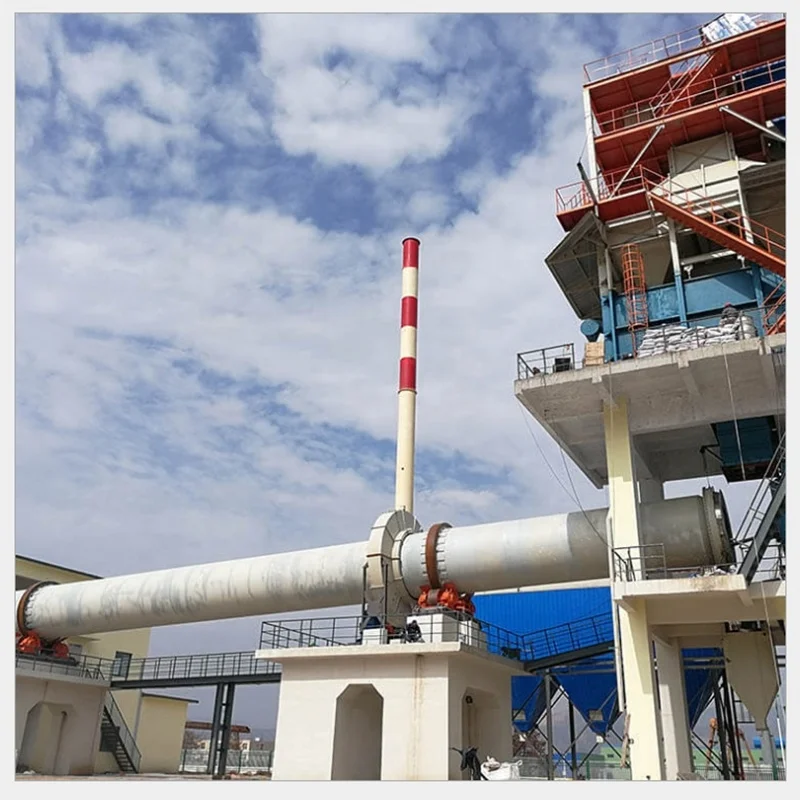

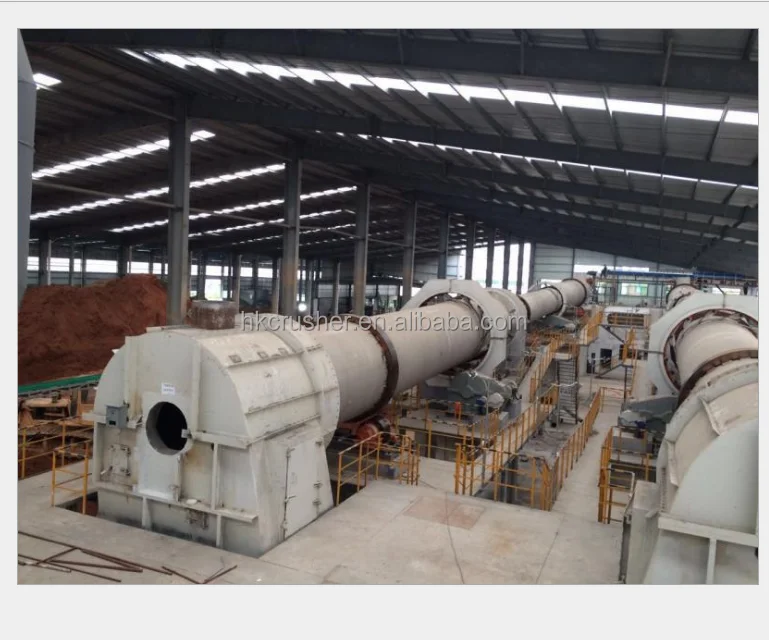

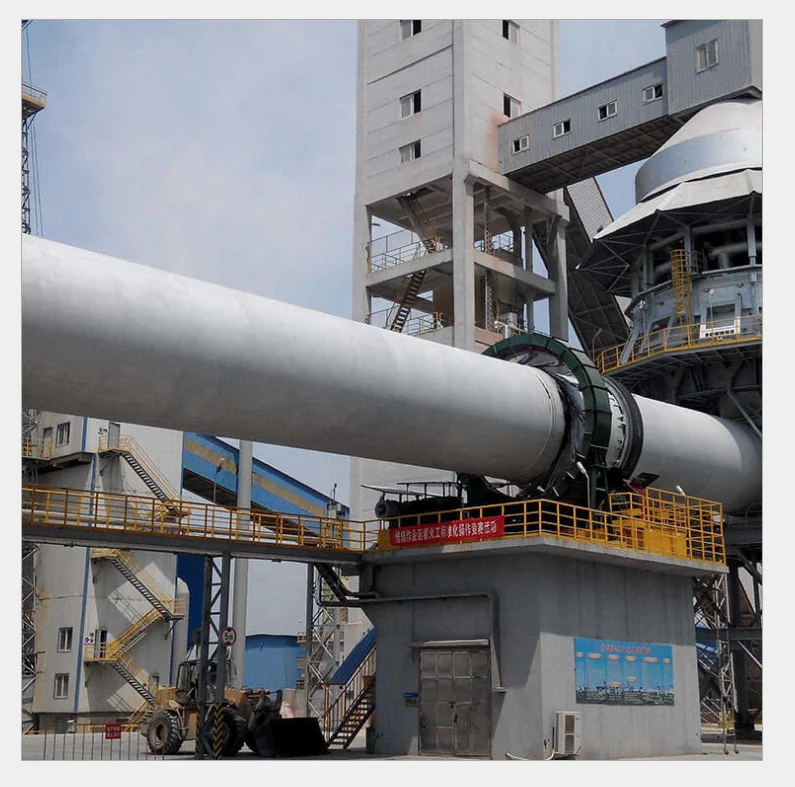

6.Working Sites for Small Ceramic Kiln

7.Company Information

 Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on,
such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln,
metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill, stone production line,
mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.
We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to cooperatingwith you!
