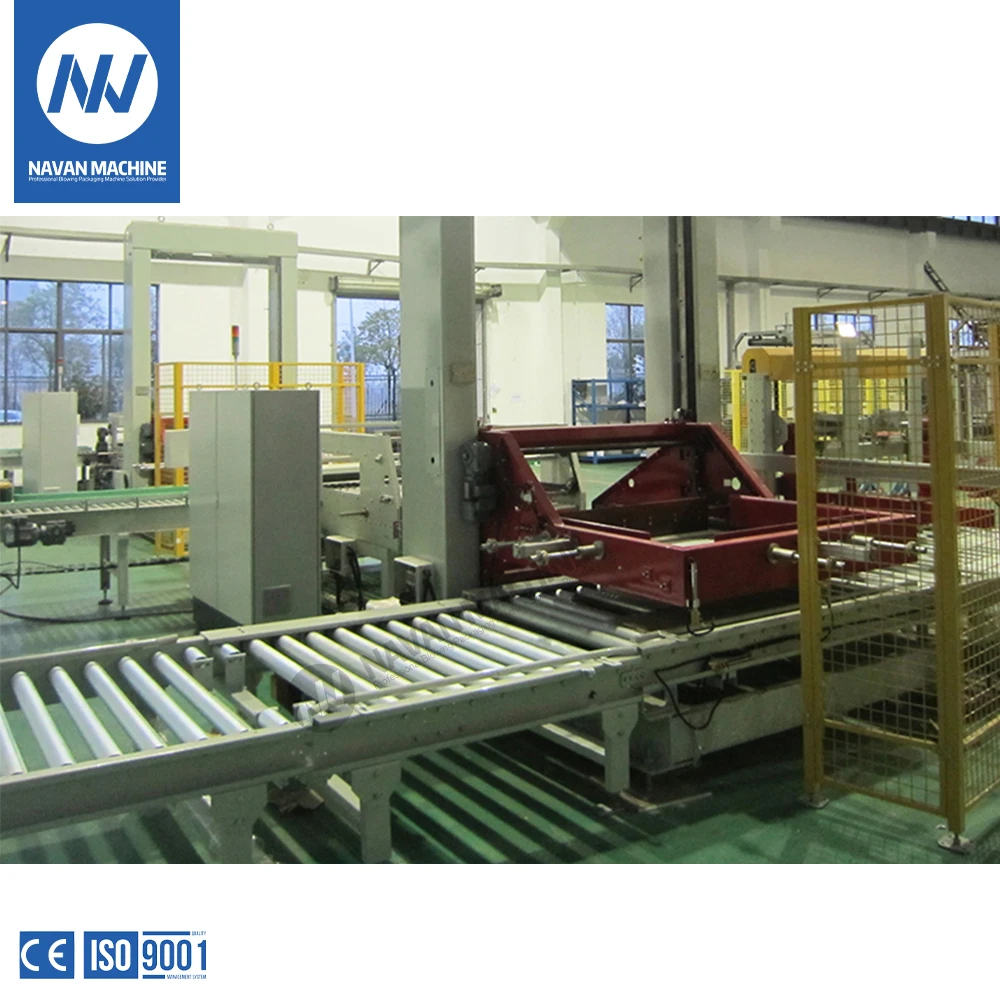

Automatic Robotic Palletizer Box Palletizing Machine
- Category: >>>
- Supplier: Zhangjiagang Navan Industrial Co. Ltd.
Share on (1600324803193):
Product Overview
Description
NAVAN Machine.
With over 20 years of experience in designing and implementing customised complete PET line solutions for water, we can help you reach your production targets. Over the years, we have significantly reduced the weight of water bottles while retaining their durability and expanding design opportunities.

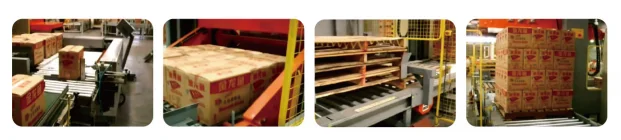

Final Products
Low palletizer can put cartons that have been loaded into the containers on the pallets according to a certain arrangement, carrying out automatic stacking, stacking multiple layers, and then push them out, so they can be transported to warehouses forklifts. The device adopts PLC+ touch screen control to realize intelligent operation management, which is simple and easy to master greatly reducing the labor force and reduce labor intensity.
Products Description

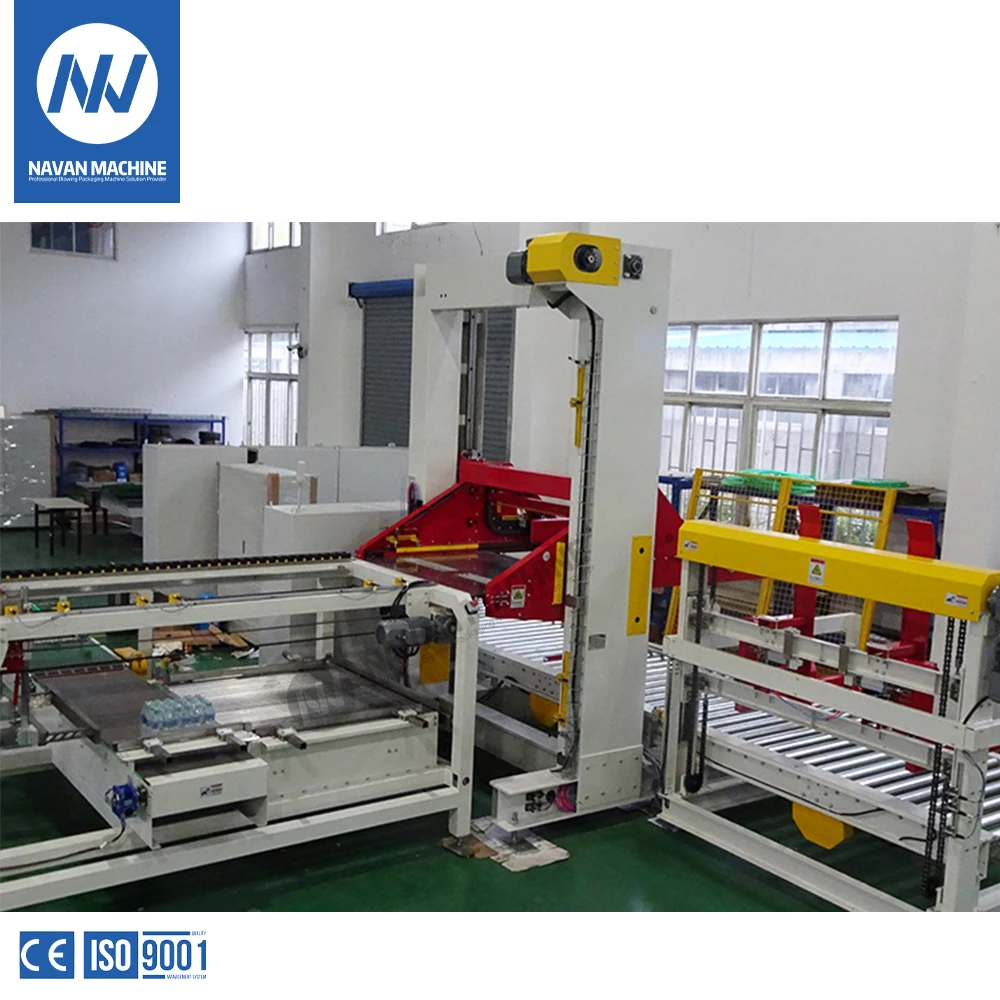

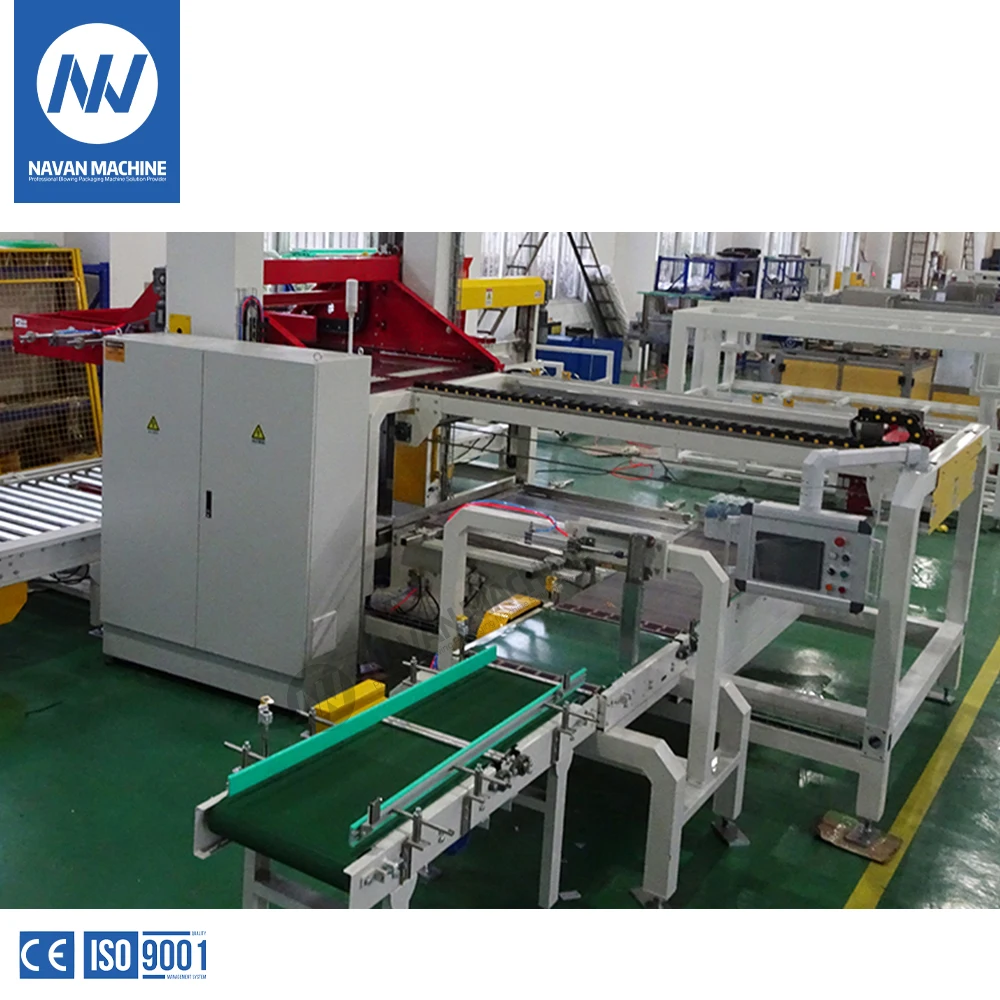

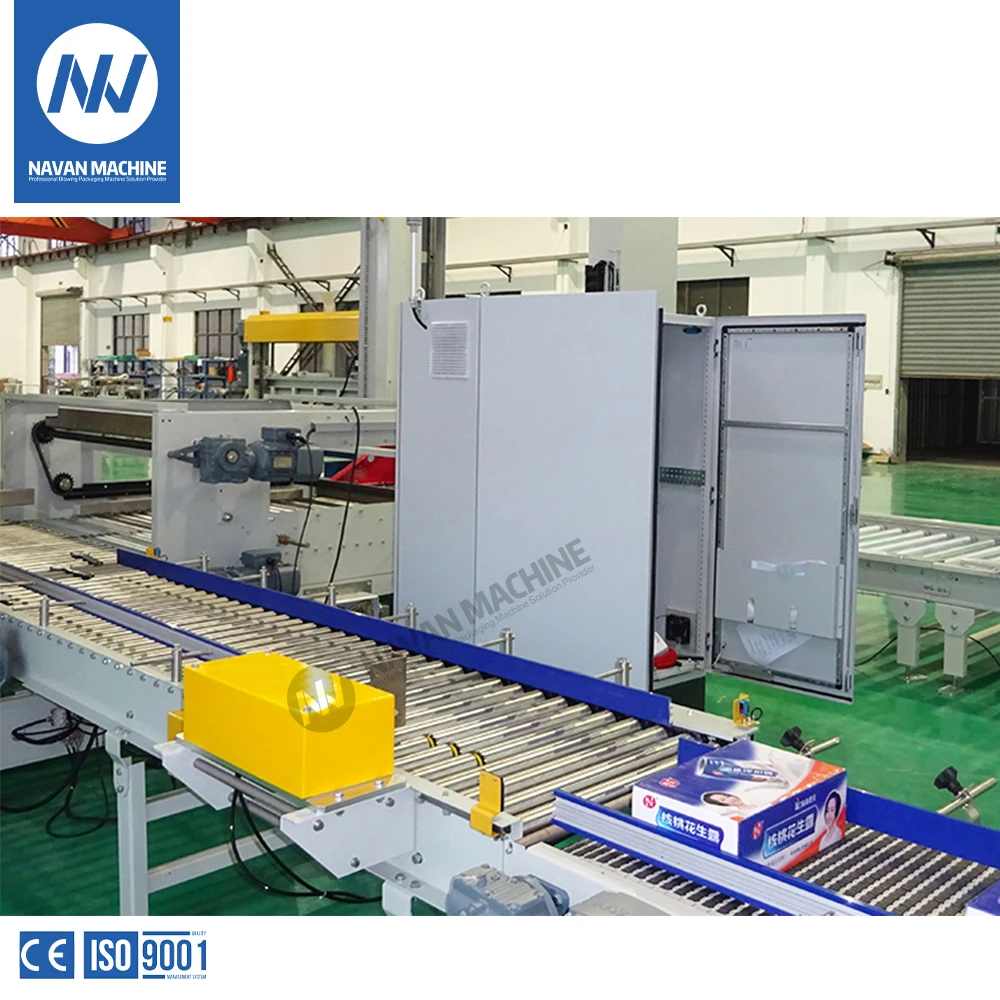

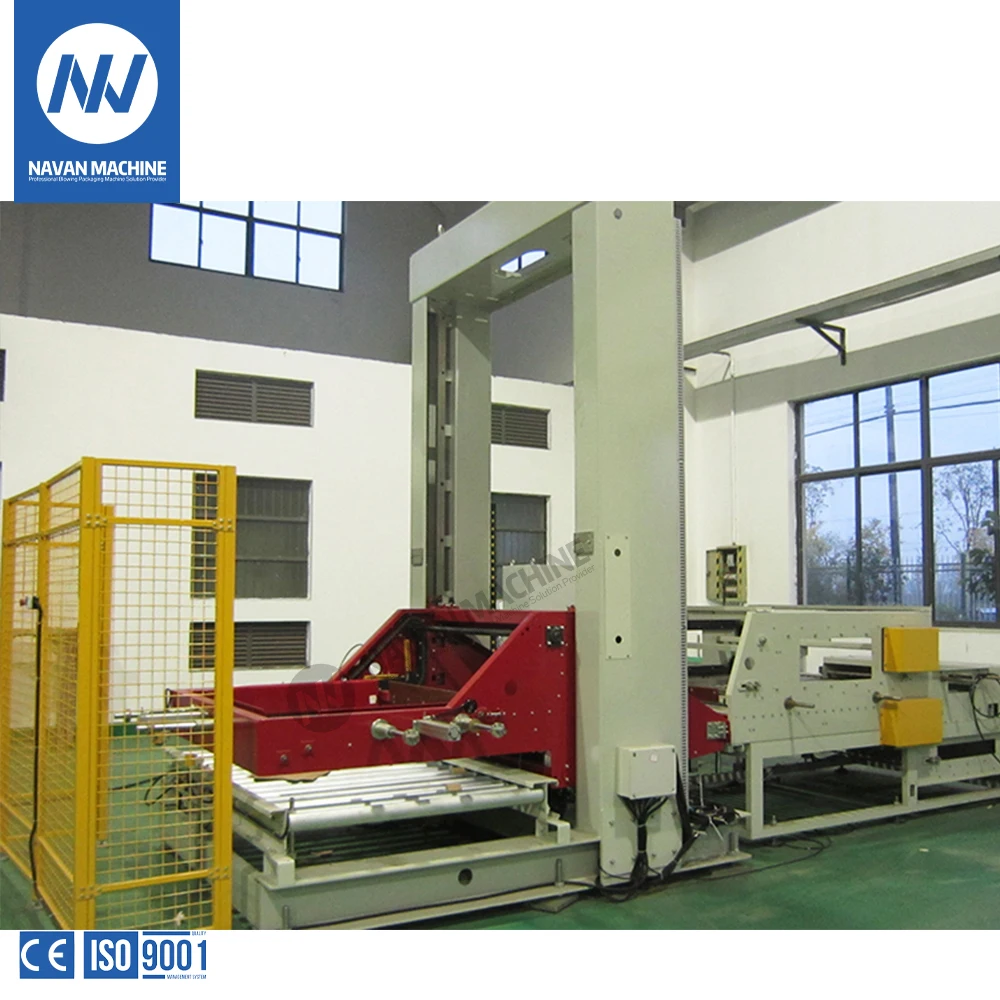

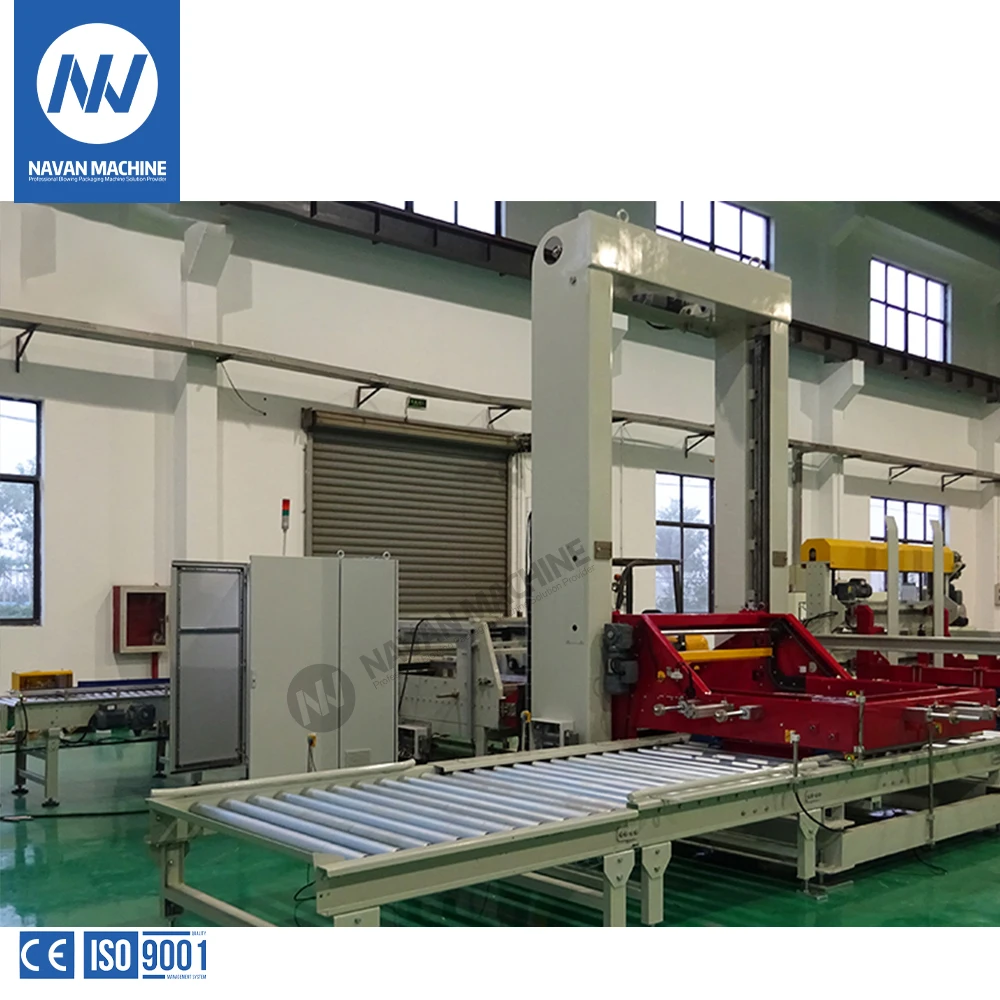

Automatic Robotic Palletizer Box Palletizing Machine
Case Palletizer is developed by our company after absorbing advanced technology from Germany,and is used for stacking different patterns of layers for beer,beverage,foods etc.The packages to be processed can be carton,plastic,tray and hot shrunk packs etc.Including high and low position palletizing,it shall apply suitable type according to the actual situation of bee(beverage) workshop.Maximun capacity can reach 16000-30000BPH.
Details Images
According to a certain order, palletizer stacks the packed products(in box, bag, bucket) to the corresponding empty pallets
through a series of mechanical actions so as to facilitate handling and transporting batches of products to improve production efficiency. Meanwhile it can use stack layer pad to improve the stability of each stack layer. Various forms designed to meet different palletizing requirements.
through a series of mechanical actions so as to facilitate handling and transporting batches of products to improve production efficiency. Meanwhile it can use stack layer pad to improve the stability of each stack layer. Various forms designed to meet different palletizing requirements.
Electrical Configuration:
Electrical Configuration: | ||
PLC | Siemens | |
Frequency Converter | Danfoss | |
Photoelectricity Inductor | SICK | |
Driving Motor | SEW | |
Pneumatic Components | FESTO | |
LOW-voltage Apparatus | Schneider | |
Touch Screen | Schneider | |
Servo | Panasonic | |
Technical Parameter: | ||
Stack Speed | 40 cartons per minute, 4-5 layers per min | |
Height of Carton case | >100mm | |
Max. carrying capacity /layer | 150Kg | |
Max. carrying capacity /pallet | Max 1500kG | |
Max. stack height | 1800mm | |
Installation Power | 15.3KW | |
Air Pressure | ≥0.6MPa | |
Power | 380V.50Hz , three-phase four-wire | |
Consumption of the Air | 600L/Min | |
Size of the Pallet | According to customer reqirement | |
After Sales Protection:
1. Ensure outstanding quality
2. Professional engineers with more than 7 years experience, all in readiness
3. Available on-site installation and debugging
4. Experienced foreign trade staff to guarantee instant and efficient communication
5. Provide lifelong technical support
6. Provide operation training if necessary
7. Quick response and in-time installation
8. Provide professional OEM&ODM service
2. Professional engineers with more than 7 years experience, all in readiness
3. Available on-site installation and debugging
4. Experienced foreign trade staff to guarantee instant and efficient communication
5. Provide lifelong technical support
6. Provide operation training if necessary
7. Quick response and in-time installation
8. Provide professional OEM&ODM service
Technical Paramenters
Main Technical Paramenters | ||
Total Dimension(L/W/H): | 17700/5700/3995(mm) | |
Package Dimension(L/W/H）： | 200-350/110-350/70-360(mm) | |
Full Pallet Height: | 1800(mm) | |
Pallet Dimension(L/W/H): | 1300/1300/150(mm) | |
Capacity: | 50package/min | |
Bottle Volume: | 200ml-2500ml | |
