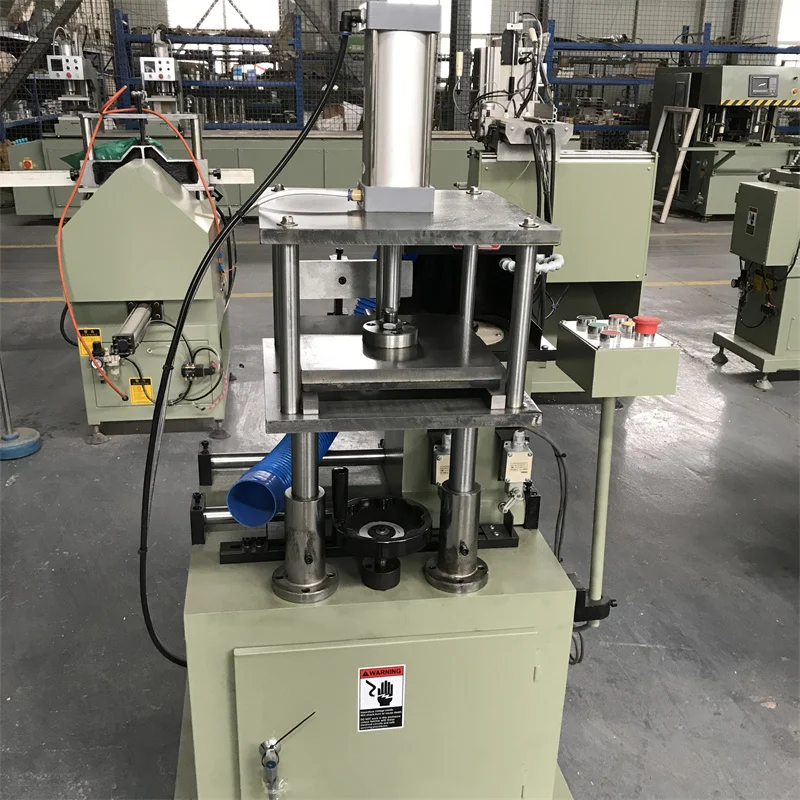

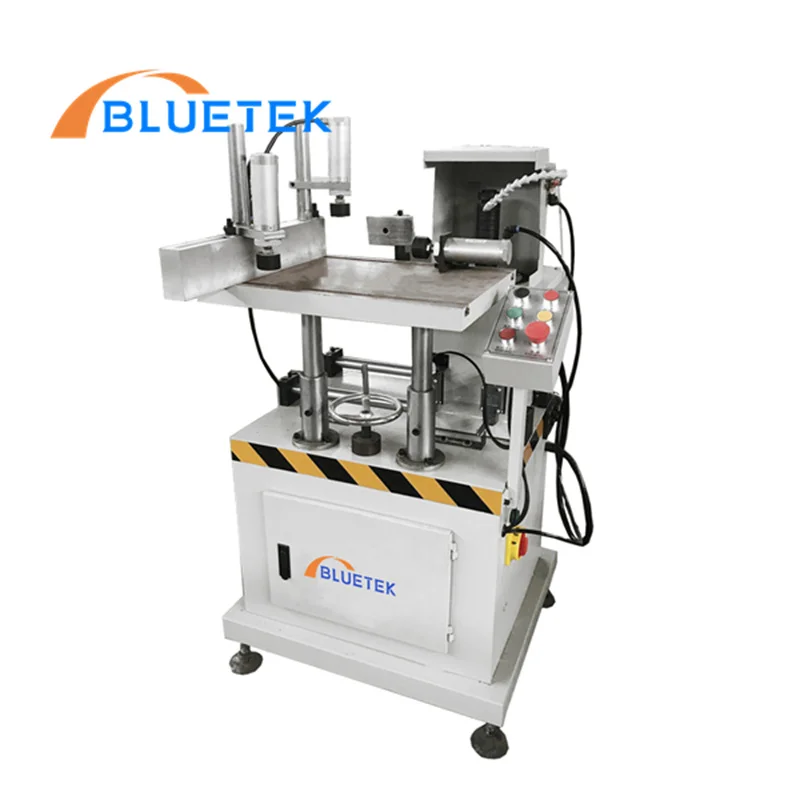

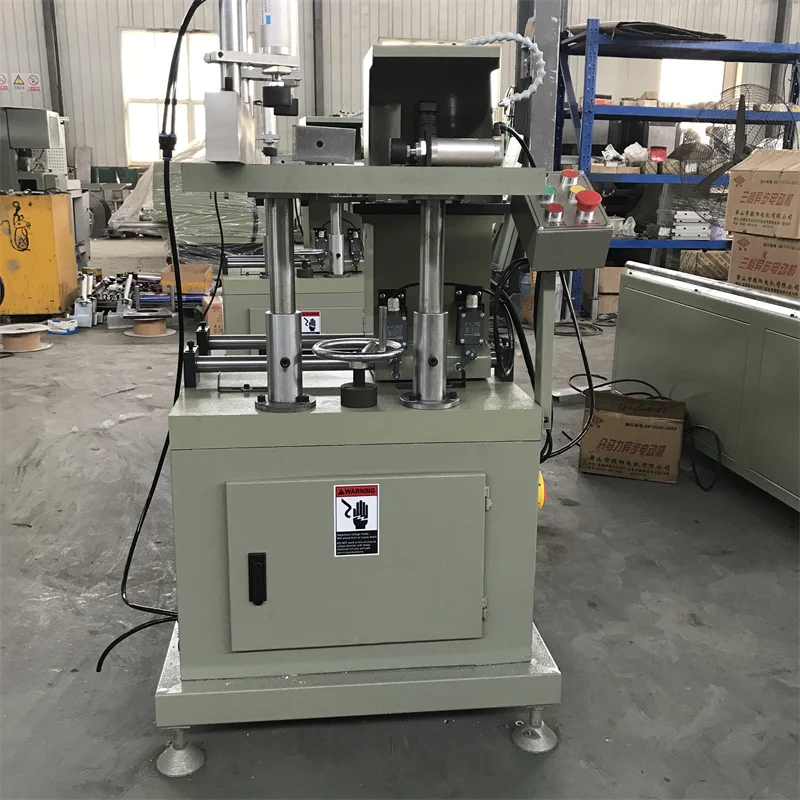

Small Type UPVC and Aluminum Window End Milling Machine
- Category: >>>
- Supplier: Jinan Bluetek Intelligent Co. Ltd.
Share on (1600324938004):
Product Overview
Description
PRODUCT DESCRIPTION
1. Aluminum window end milling machine is used to cut the end faces of door and window mullions, milling grooves and to join window beams together.
2. The cutting tool is customized according to the aluminum material. It is made of multiple saw blades stacked together and moved in the horizontal direction to cut the end face.
3. The position of the backing plate can be adjusted to cut different angles.
4. It can also be used to process the end face of the middle stile of PVC doors and windows.
2. The cutting tool is customized according to the aluminum material. It is made of multiple saw blades stacked together and moved in the horizontal direction to cut the end face.
3. The position of the backing plate can be adjusted to cut different angles.
4. It can also be used to process the end face of the middle stile of PVC doors and windows.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Name | Aluminum Window End Milling Machine |
2 | Model | DX05-200 |
3 | Power Supply | 380V 50Hz ( As Customer's Request ) |
4 | Total Power | 1.5 KW |
5 | Air Consumption | 50L /min |
6 | Spindle Speed | 2800 r/min |
7 | Diameter of Milling Cutter | 110mm , 200mm |
8 | Milling Range | 0 - 320mm |
9 | Net Weight | 300 KG |
10 | Overall Dimension | 900x800x1400mm |
DETAILS IMAGES

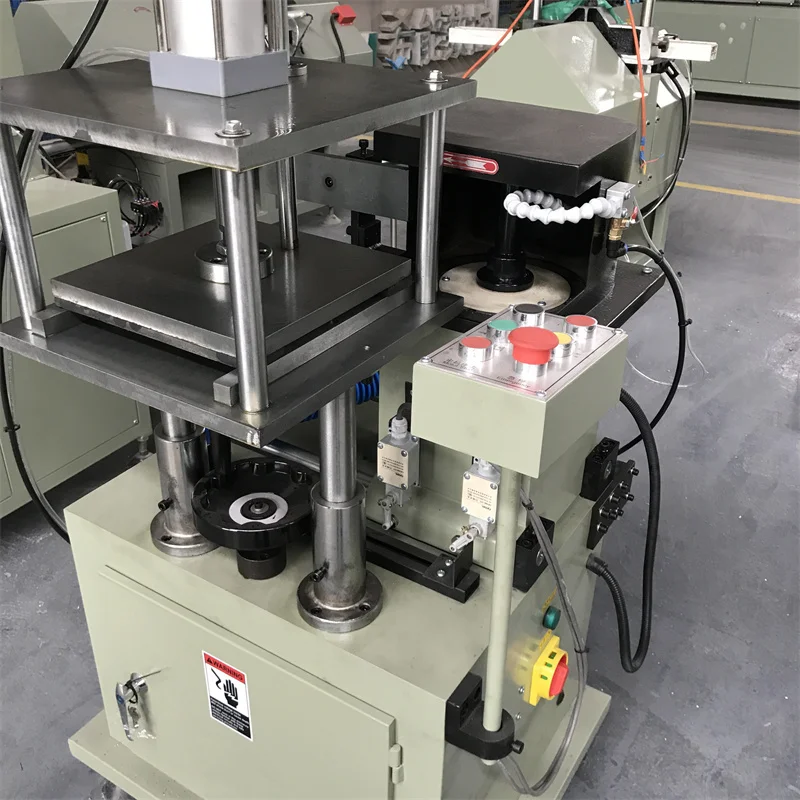

Spindle
Used to install the cutting blade

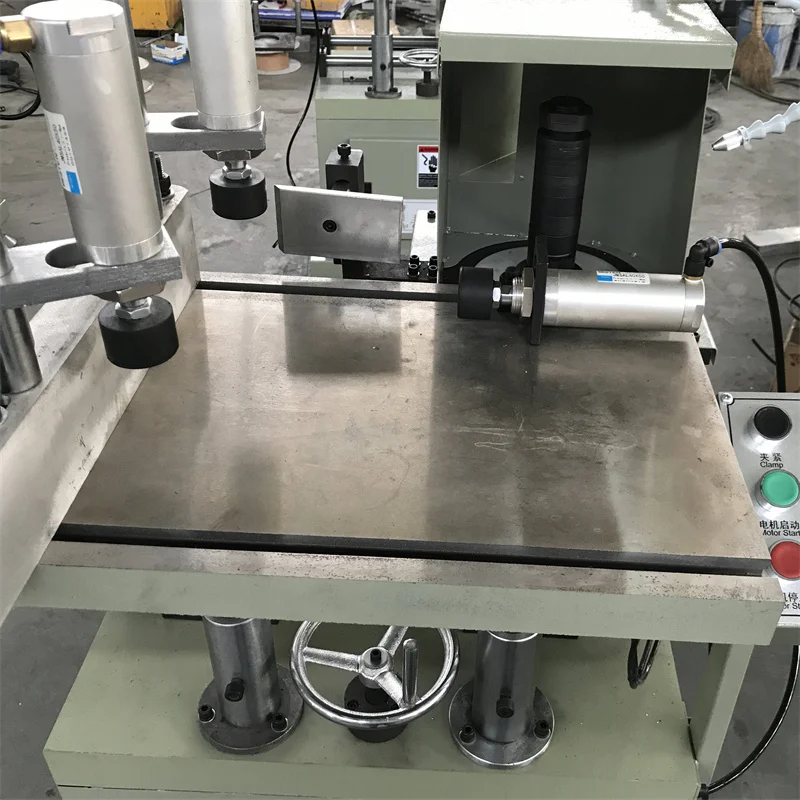

Clamping
Vertical and horizontal pressing cylinders to fix aluminium profiles
Window Mullion
There is almost no gap between the mullion and the beam

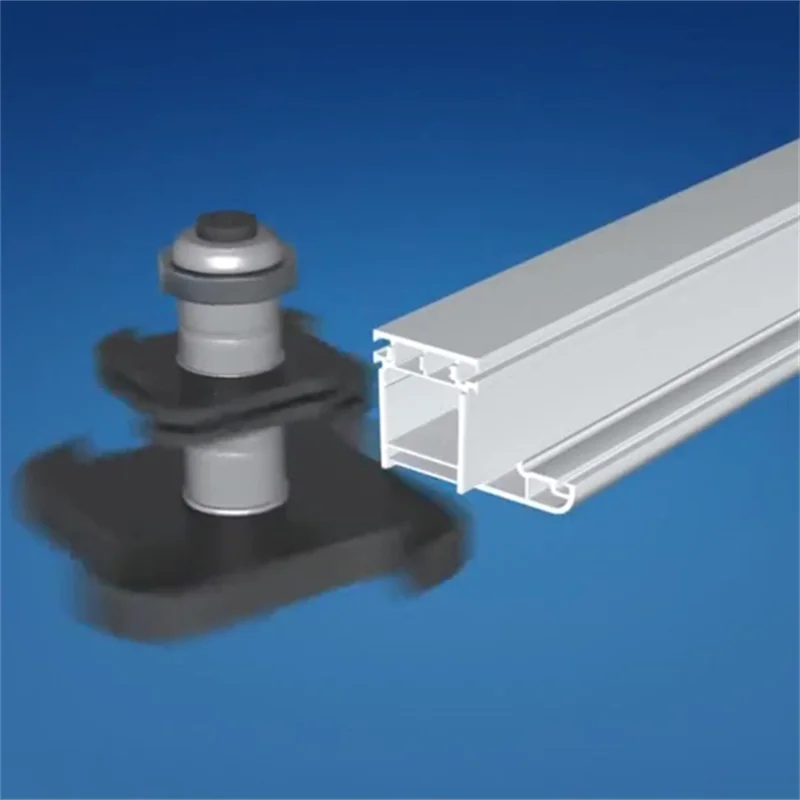

Cutting Blade
Need to customize based on customer's aluminum window profiles
PRODUCT CONFIGURATION
Low-voltage Electrical appliances :
Schneider , France
Air filter : STNC , China
Motor : Zhenyang , China
PACKING AND SHIPPING
Inner packing: waterproof plastic film
Steel wire fixing for Base
Outer packaging: non-fumigation wooden box
If two layers of machines are loaded, a special shelf is used to fix the machines above.
Reasonable space utilization, each machine will be fixed with steel wire to ensure safe arrival at the destination.
Professional and responsible shipping, air, and railway agency services, providing customers with all import customs clearance documents, reducing the tax burden of customers as much as possible.
COMPANY PROFILE
ABOUT US
BLUETEK is founded in 2005, is a well-known high-tech private enterprise specializing in industrial aluminum processing machinery, aluminum window and door manufacturing machinery, PVC window and door manufacturing machinery, and insulating glass processing machinery.
After 16 years of development, BLUETEK has become a leading brand in domestic metal material processing equipment and building materials processing equipment. Our main products include: Aluminum door and window sawing machining center, double-head CNC cutting machine, Aluminum window end milling machine , CNC milling machine, PVC windows seamless welding machine , Double heads UPVC window cutting machine, CNC corner clearing machine for PVC doors and windows, automatic insulating glass production line, CNC glass cutting machine.
Now it has a professional R&D team, more than 10 engineers, nearly 100 employees, 20 CNC machine tools, and a workshop of 15,000 square meters.
BLUETEK has service offices in more than 20 cities in China, and has long-term professional sales and after-sales service personnel. Can provide customers with professional solutions and after-sales service in the shortest time.
According to the changes in domestic market demand and the production of new materials, our machine products have been transformed from small-scale operations to intelligent automation, providing one-stop intelligent solutions for large-scale enterprise manufacturers.
In order to open up foreign markets, BLUETEK actively absorbs foreign advanced technology and concepts, cooperates with foreign companies, and develops mechanical equipment that meets European and American technical requirements. It has passed the European Union CE certification and the United States UL certification. Our products are exported to more than 50 countries and regions around the world, including the United States, Canada, Spain, France, Russia, the Middle East, India, Thailand, Chile, Peru and Brazil.
With the rapid development of technology, BLUETEK always regards innovation as the foundation of survival and insists on creating value for customers. Let us create a better future!
After 16 years of development, BLUETEK has become a leading brand in domestic metal material processing equipment and building materials processing equipment. Our main products include: Aluminum door and window sawing machining center, double-head CNC cutting machine, Aluminum window end milling machine , CNC milling machine, PVC windows seamless welding machine , Double heads UPVC window cutting machine, CNC corner clearing machine for PVC doors and windows, automatic insulating glass production line, CNC glass cutting machine.
Now it has a professional R&D team, more than 10 engineers, nearly 100 employees, 20 CNC machine tools, and a workshop of 15,000 square meters.
BLUETEK has service offices in more than 20 cities in China, and has long-term professional sales and after-sales service personnel. Can provide customers with professional solutions and after-sales service in the shortest time.
According to the changes in domestic market demand and the production of new materials, our machine products have been transformed from small-scale operations to intelligent automation, providing one-stop intelligent solutions for large-scale enterprise manufacturers.
In order to open up foreign markets, BLUETEK actively absorbs foreign advanced technology and concepts, cooperates with foreign companies, and develops mechanical equipment that meets European and American technical requirements. It has passed the European Union CE certification and the United States UL certification. Our products are exported to more than 50 countries and regions around the world, including the United States, Canada, Spain, France, Russia, the Middle East, India, Thailand, Chile, Peru and Brazil.
With the rapid development of technology, BLUETEK always regards innovation as the foundation of survival and insists on creating value for customers. Let us create a better future!
Machine Showroom
There are many aluminum door and window machines and PVC door and window machines on display in our showroom. When customers visit, they can fully demonstrate the functions and performance of the machines and help customers better understand the processing technology of doors and windows.
Our Customers
Our Aluminium and UPVC window door processing machines are exported to more than 50 countries and regions around the world, and are highly praised by customers. Every year, many customers come to visit the factory. We carefully arrange every job and arrange a reasonable itinerary for our customers.
At the same time, our sales staff and after-sales service staff also visit customers overseas every year, provide customers with free maintenance services, and actively listen to customers' suggestions during use.
At the same time, our sales staff and after-sales service staff also visit customers overseas every year, provide customers with free maintenance services, and actively listen to customers' suggestions during use.
Exhibition
Every year we participate in professional door, window and facade exhibitions in China and overseas, communicate with customers,
and use our latest technology to solve the most practical needs of customers.
and use our latest technology to solve the most practical needs of customers.
RECOMMEND PRODUCTS

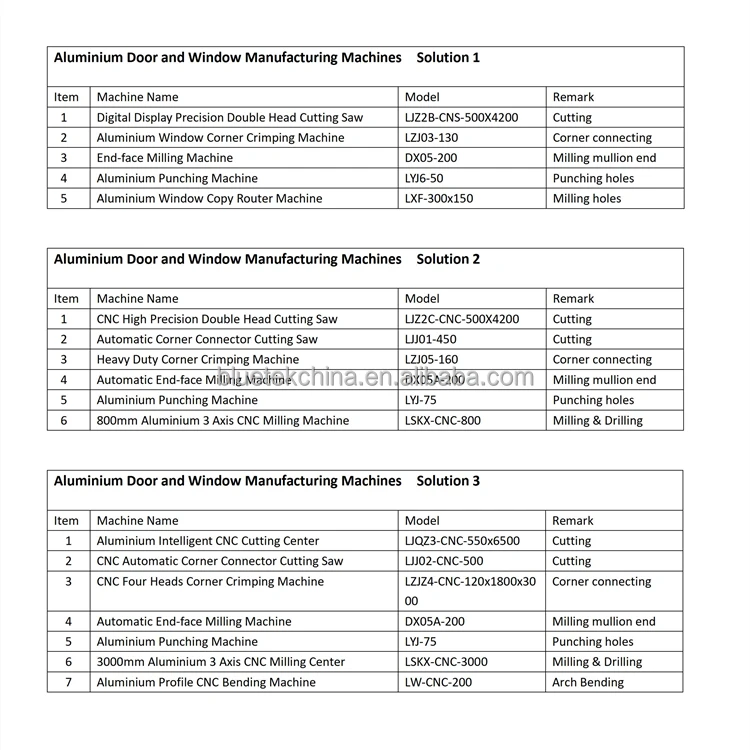

PRODUCTION SOLUTION
