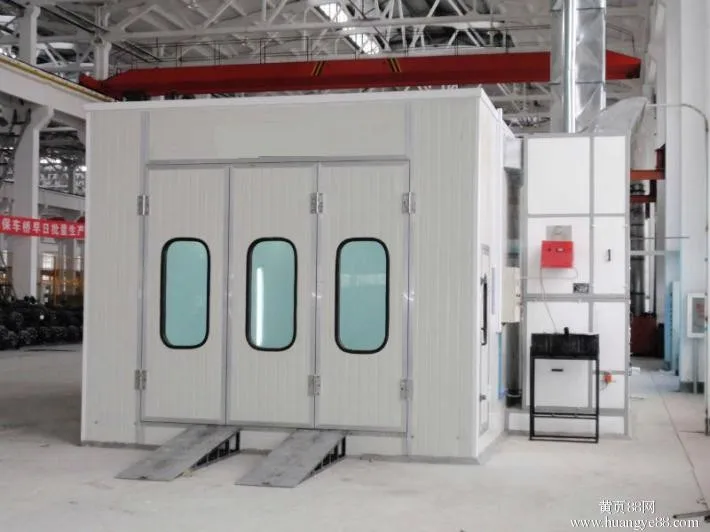

2023 Factory direct sales high quality fuel oil heating spray booth car painting
- Category: >>>
- Supplier: Zouping Jinding Coating Equipment Co. Ltd.
Share on (1600324950522):
Product Overview
Description
Product Overview

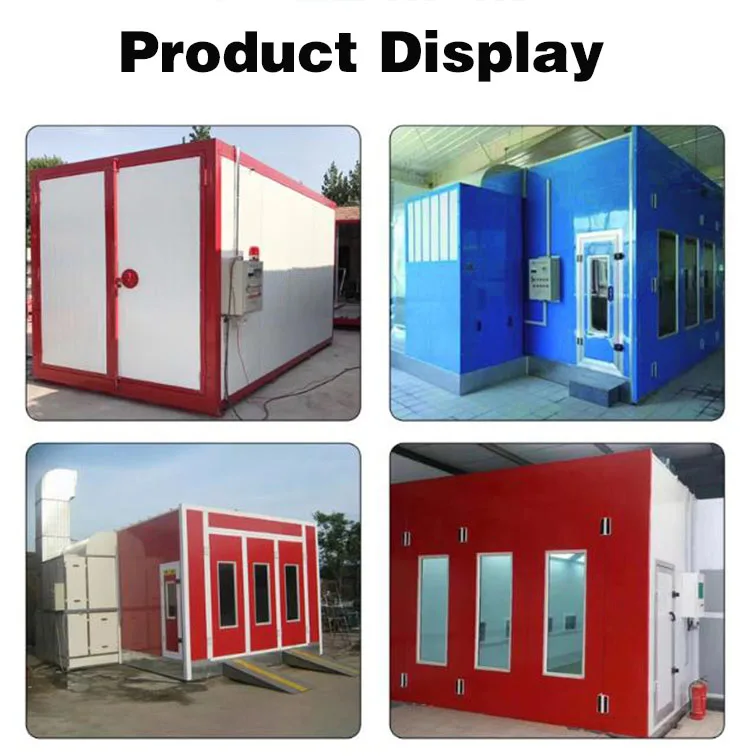

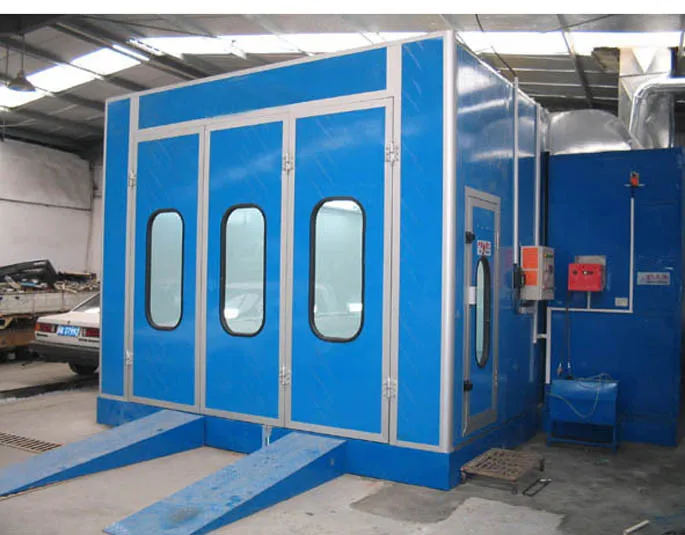

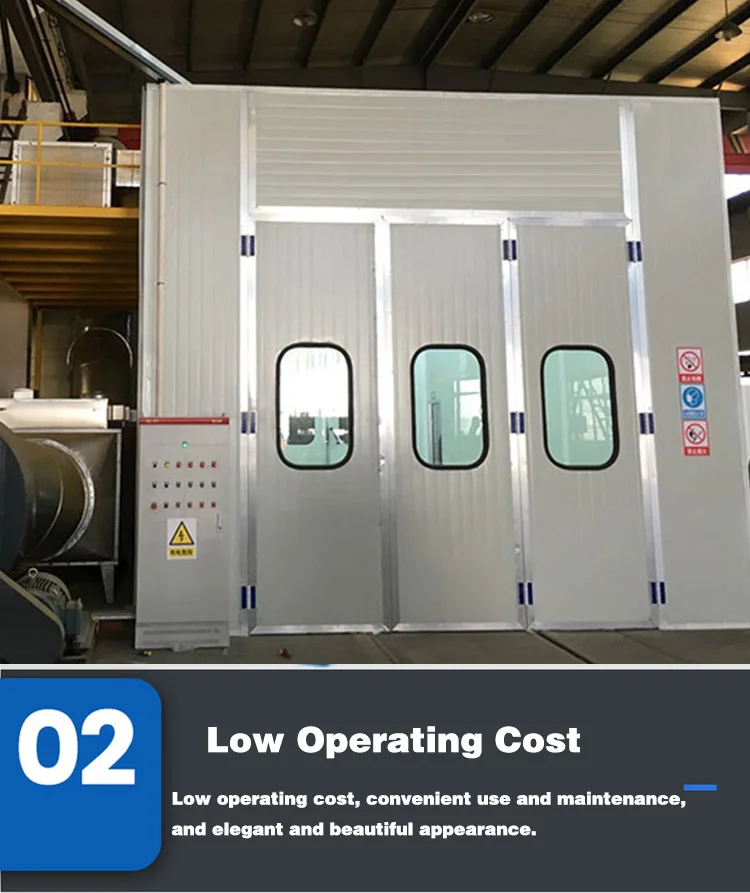

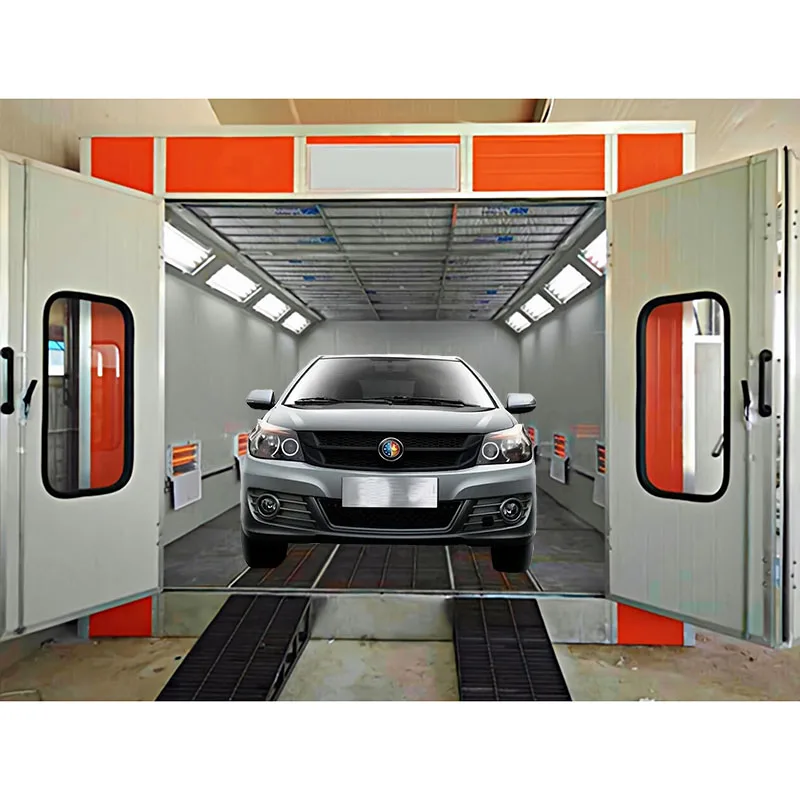

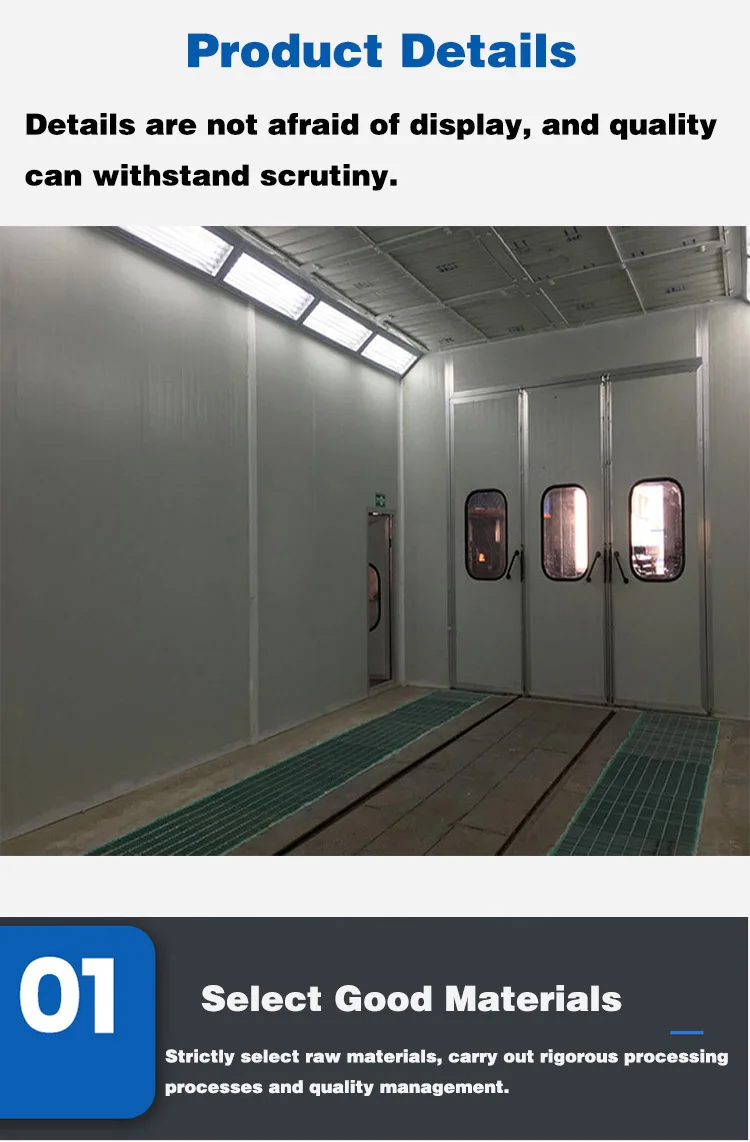

Detail Images
Products Specifications
Type | Spray Booths |
Model | JD-A6 |
External Size | 7*5.3*3.2m |
Internal Size | 6.9*3.9*2.4m |
Place of Origin | China |

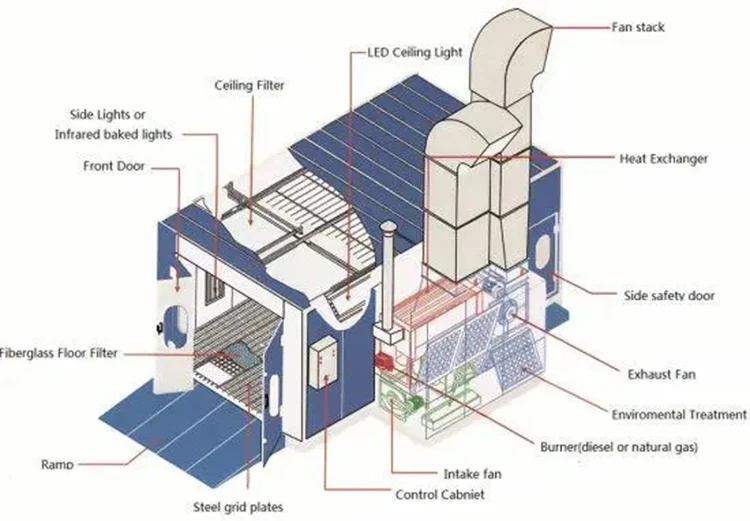

Composite plate | 7.5 cm rock wool board, density 120 kg, tin thickness 0.4 mm |
Climbing table | Size 1.6*0.7m, mechanism pressure welding 3*5 grille |
Steel grating | Mechanism of pressure welding 3*5, both sides of the anti slide thickness 2.2mm |
The vertical leg | 10cm international steel welding |
Two layer bending parts | 0.6mm galvanized plate bending, spray |
Filter cotton | High efficiency three-dimensional plastic filter cotton |
Filter cotton box | Using 1mm thick galvanized sheet bending, welding |
Lighting system | LED lighting, 24 groups |
Heating system | Fuel oil heating, using G-20 burner |
Fan | 5.5 kw Air inlet fan, 1 set; 7.5 kW induced draft fan, 1 set |
Application
Packaging and Transportation
Sales and Service Network
Company Profile
Zouping Jinding Coating Equipment Factor
Our factor scale continuous development in recent year, a growing enterprise strength and technical force, successfully developed the furniture design, real wood door, handicrafts, decorative materials, construction machinery, medical equipment, mold, chemical machinery and other industries, high and low temperature spray paint room of the lacquer that bake, and activated carbon, infrared paint, coating line,auto manufacturing and customized according to user needs all kinds of special paint.
