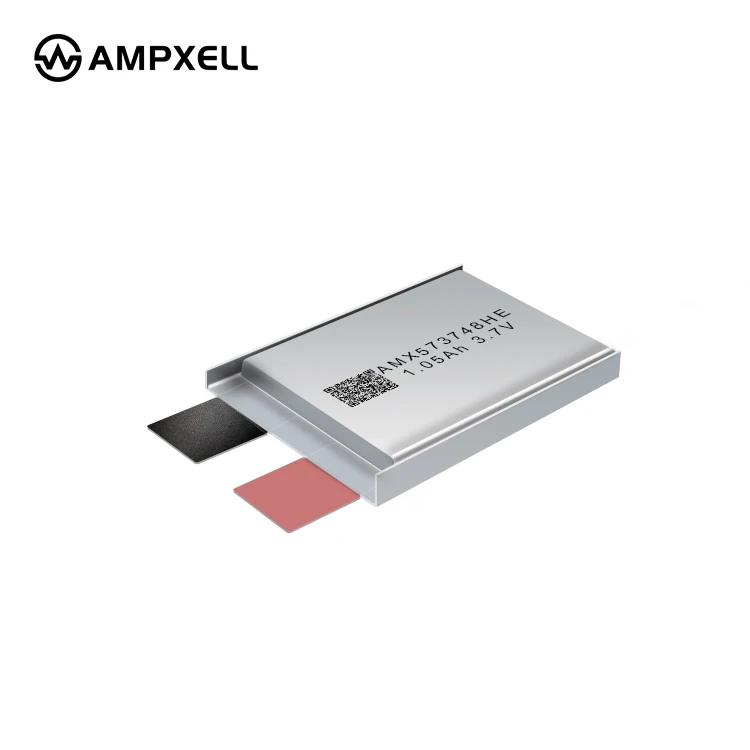

AMPXELL 3.7v 1050mah tattoo lipo battery work at low temperature for Mini RC Drone Quadcopter/Radio Control Toys
- Category: >>>
- Supplier: Ampxell Technology Co. Ltd.
Share on (1600324963544):
Product Overview
Description
Product Description
LiCoO2 /NCM / LiFePO4, LTO types

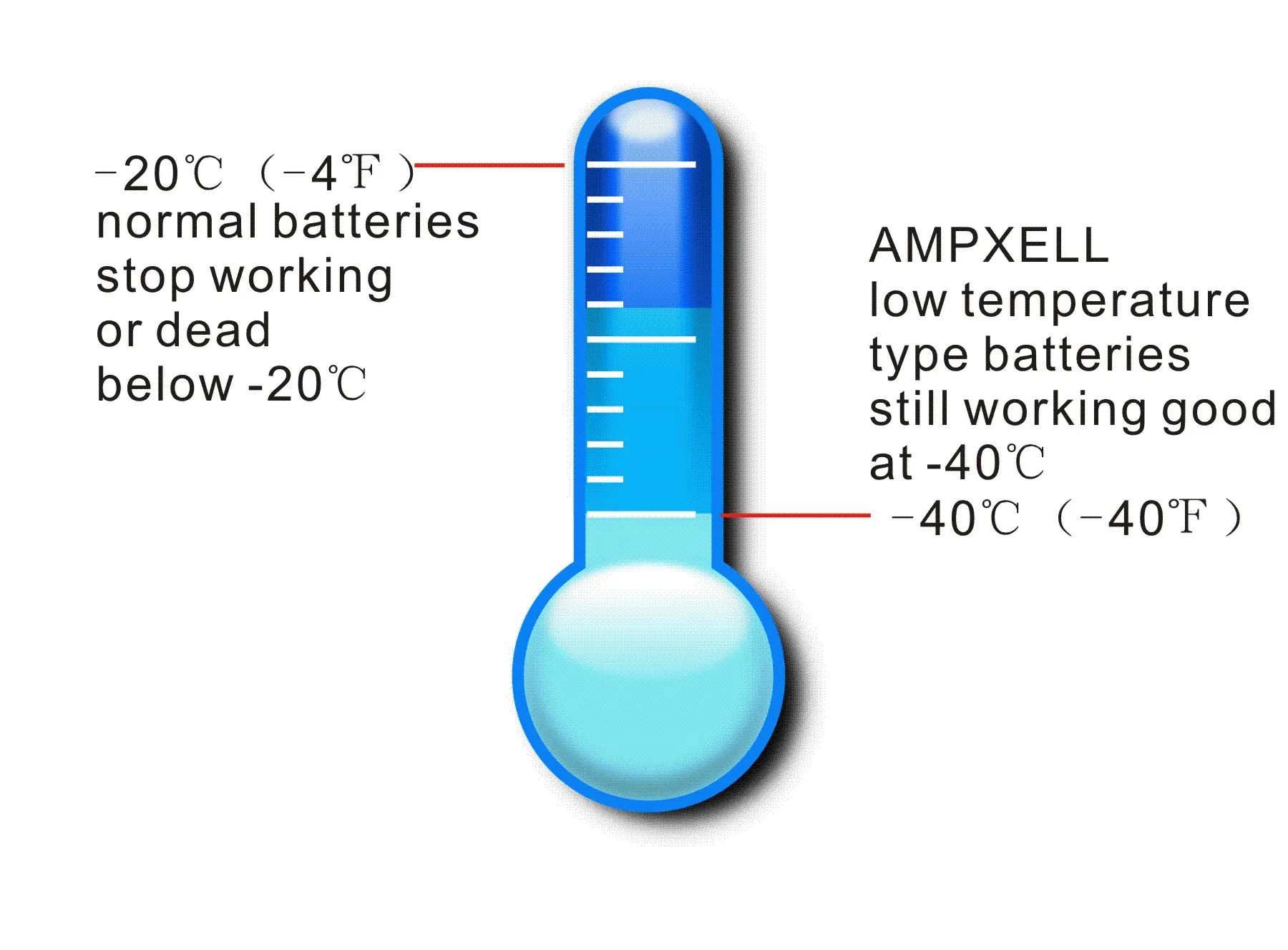

Low Temperature Applicable cell and battery pack Low Temperature series cells are special designed with low temperature type electrolyte and structure to meet the need of extremely cold environment, such as polar area science research, outdoor work and adventures,

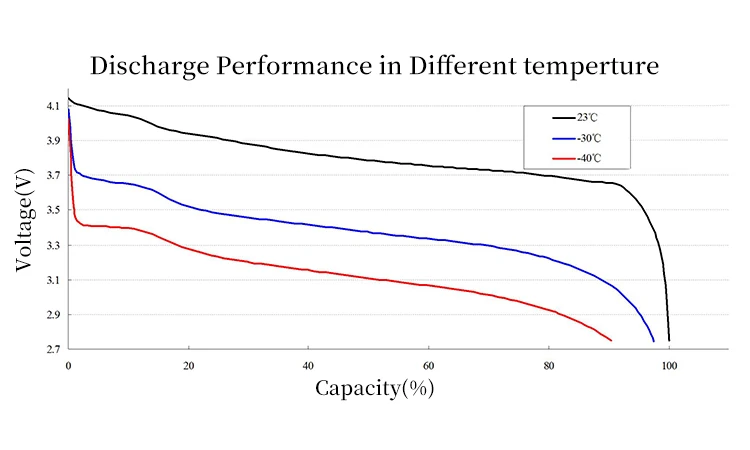

the battery has fairly good performance and reliable even at extra cold of -40℃, normally other batteries already quit working at such cold environment.
Advantages and features:
![]()
Outstanding safety performance, survived the harsh battery needle puncture test;

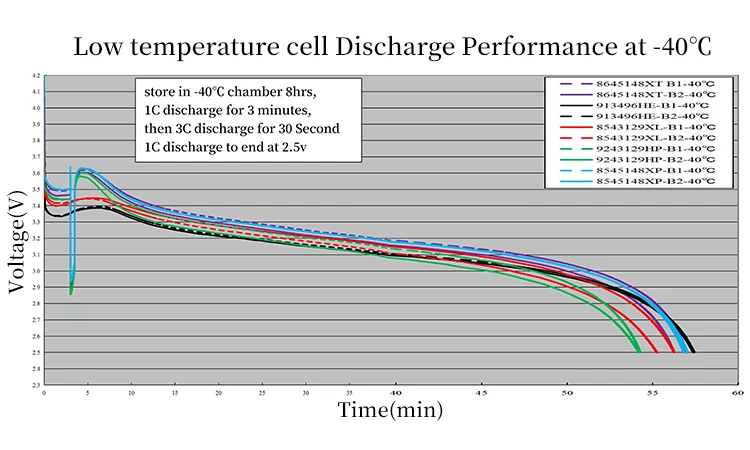

Capacity retention rate >80% when discharge at -40℃， after store in -40℃ freezer for 8 hours.
GREAT POWER IN SMALL PACKAGE
low temperature lipo pack
low temperature LiFePO4 pack
low temperature18650 Pack

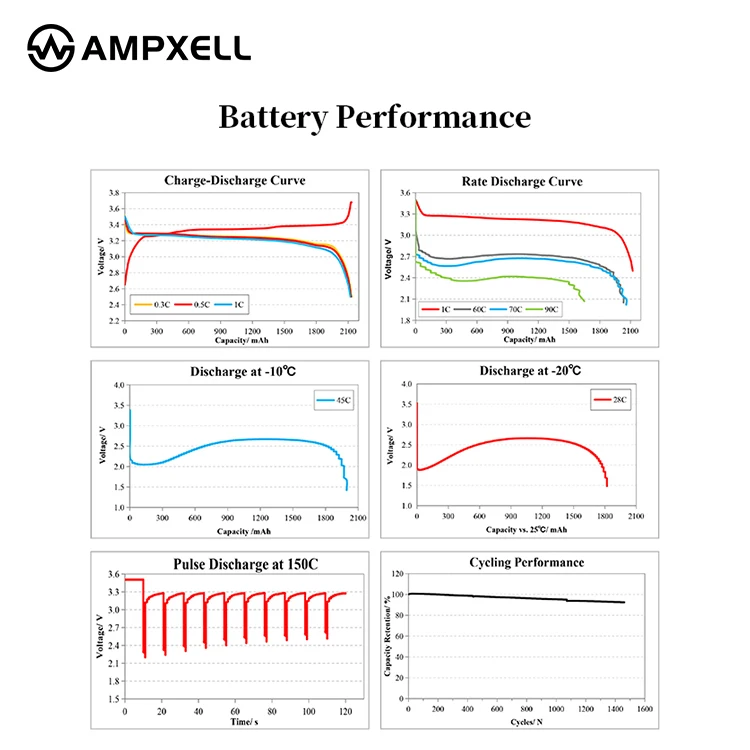

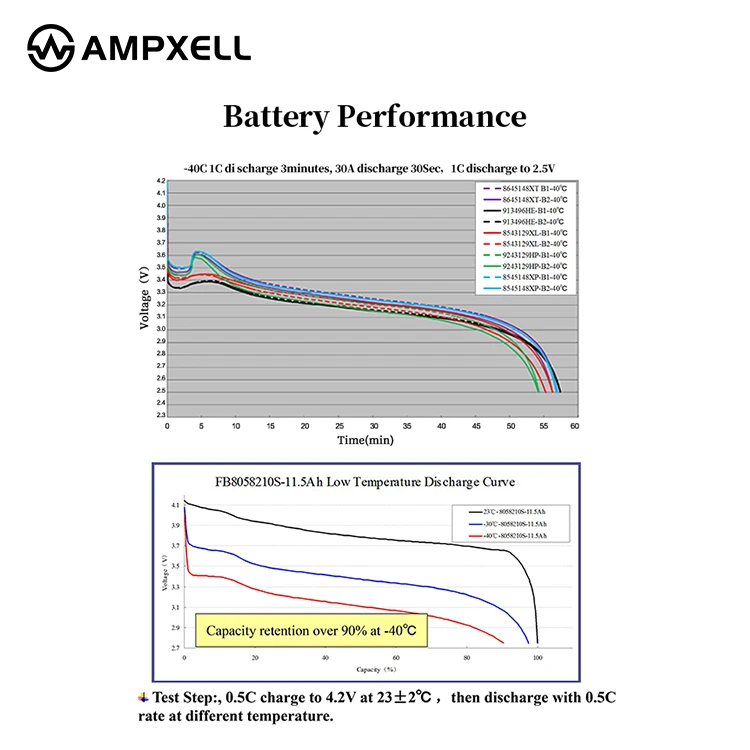

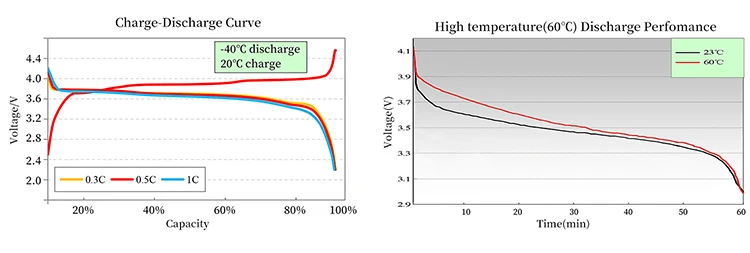

Battery Performance
application-
polar area electronic equipment
application-
special rescue and medical equipment
application-
outdoor and military devices
application-
ice and snow sports and photography
Low Temperature Applicable battery and cell Catalog:
available cells as below, for customize battery pack product please consult with us.
Item No. | Cell spec | Operate temperature | Cell size mm | Discharge rate max | Charge rate max | |||||||
at 25℃ | at -40℃ | at 20℃ | ||||||||||
LiCoO2 Lipo pouch cell | ||||||||||||
AMX573748HE | 1.05Ah 3.7V 1C | （-40 - 60℃） | 5.7*37*48 | 1A | 0.2A | 1A | ||||||
AMX783673HE | 2.75Ah 3.7V 1C | （-40 - 60℃） | 7.8*36*73 | 2.75A | 0.5A | 2.75A | ||||||
AMX104058HE | 3AH 3.85V 3C | （-40 - 60℃） | 10*40*58 | 9A | 1.5A | 3A | ||||||
AMX457578XLP | 3Ah 3.7V 60C | （-40 - 60℃） | 4.5*75*78 | 180A | 18A | 6A | ||||||
AMX8645148XT | 5Ah 3.7V 60C | （-40 - 60℃） | 8.6*45*148 | 300A | 30A | 10A | ||||||
AMX9545148XT | 5.5Ah 3.7V 25C | （-40 - 60℃） | 9.5*45*148 | 80A | 16A | 11A | ||||||
AMX4089107HE | 5.2AH 3.7V 3C | （-40 - 60℃） | 4.0*89*107 | 15A | 1A | 5A | ||||||
AMX7263110HE | 6Ah 3.7V 25C | （-40 - 60℃） | 7.2*63*110 | 150A | 18A | 12A | ||||||
AMX8545148HP | 6.25Ah 3.7V 25C | （-40 - 60℃） | 8.5*45*148 | 160A | 18A | 12A | ||||||
AMX8365188HP | 10Ah 3.7V 25C | （-40 - 60℃） | 8.3*65*188 | 250A | 30A | 20A | ||||||
AMX544853HE | 1.5Ah 3.7V 1C | （-40 - 60℃） | 5.4*48*53 | 1.5A | 0.3A | 1.5A | ||||||
AMX9788188HP | 16Ah 3.7V 3C | （-40 - 60℃） | 9.7*88*188 | 48A | 8A | 16A | ||||||
AMX10398198HP | 22Ah 3.7V 3C | （-40 - 60℃） | 10*98*198 | 66A | 11A | 22A | ||||||
NCM Lipo pouch cell | ||||||||||||
AMX8657198PN | 2.4Ah 3.6V 1C | （-40 - 60℃） | 7.8*42*85 | 2.4A | 0.5A | 2.4A | ||||||
AMX9263126PN | 2.8Ah 3.6V 1C | （-40 - 60℃） | 4.0*67*100 | 2.8A | 0.6A | 2.8A | ||||||
AMX6055183PN | 3.1Ah 3.6V 1C | （-40 - 60℃） | 5.7*45*99 | 3.1A | 0.6A | 3.1A | ||||||
AMX5669135PN | 3.2Ah 3.6V 1C | （-40 - 60℃） | 9.3*45*67 | 3.2A | 0.6A | 3.2A | ||||||
AMX8543110PN | 3.6Ah 3.6V 1C | （-40 - 60℃） | 9.0*45*68 | 3.6A | 0.7A | 3.6A | ||||||
AMX904568PN | 5.2Ah, 3.6V 1C | （-40 - 60℃） | 8.5*43*110 | 5.2A | 1.0A | 5.2A | ||||||
AMX934567PN | 6.2Ah 3.6V 1C | （-40 - 60℃） | 5.6*69*135 | 6.2A | 1.2A | 6.2A | ||||||
AMX574599PN | 6.7Ah, 3.6V 1C | （-40 - 60℃） | 6.0*55*183 | 6.7A | 1.3A | 6.7A | ||||||
AMX4067100PN | 7.5Ah 3.6V 1C | （-40 - 60℃） | 9.2*63*126 | 7.5A | 1.5A | 7.5A | ||||||
AMX784285PN | 12.5Ah 3.6V 1C | （-40 - 60℃） | 8.6*57*198 | 12.5A | 2.5A | 12.5A | ||||||
LiFePO4 cell | ||||||||||||
AMX7470125PF | 5Ah 3.2V 35C | （-40 - 60℃） | 7.4*70*125 | 165A | 5A | 5A | ||||||
AMX9087125HF | 8Ah 3.2V 35C | （-40 - 60℃） | 9.0*87*125 | 280A | 8A | 8A | ||||||
AMX9584165HF | 10Ah 3.2V 35C | （-40 - 60℃） | 9.5*84*165 | 350A | 10A | 10A | ||||||
18650 NCM cell | ||||||||||||
18650-2A3PN | 2.3Ah 3.6v 1C | （-40 - 60℃） | 18*65 | 2.3A | 0.4A | 2.3A | ||||||
18650-2A5PN | 2.5Ah 3.6v 1C | （-40 - 60℃） | 18*65 | 2.5A | 0.5A | 2.3A | ||||||
Li2TiO3 (LTO) prismatic cell | ||||||||||||
245173115NT | 40Ah 2.3v 5C | （-45 - 65℃） | 25*173*115 | 200A | 40A | 200A | ||||||
If couldn't find the one in above sheet, please contact us for more information.
Learn more >>>>>
About Us
AmpXell Technology Co.,Ltd
is a leading high discharge rate Li-po battery manufacturer in the industry. A high-tech enterprise specializing in the production of
high discharge rate and high energy, and low temperature li-po battery includiing LiCoO2, LiFePO4 NCM cell, BMS, pack assembly.
high discharge rate and high energy, and low temperature li-po battery includiing LiCoO2, LiFePO4 NCM cell, BMS, pack assembly.

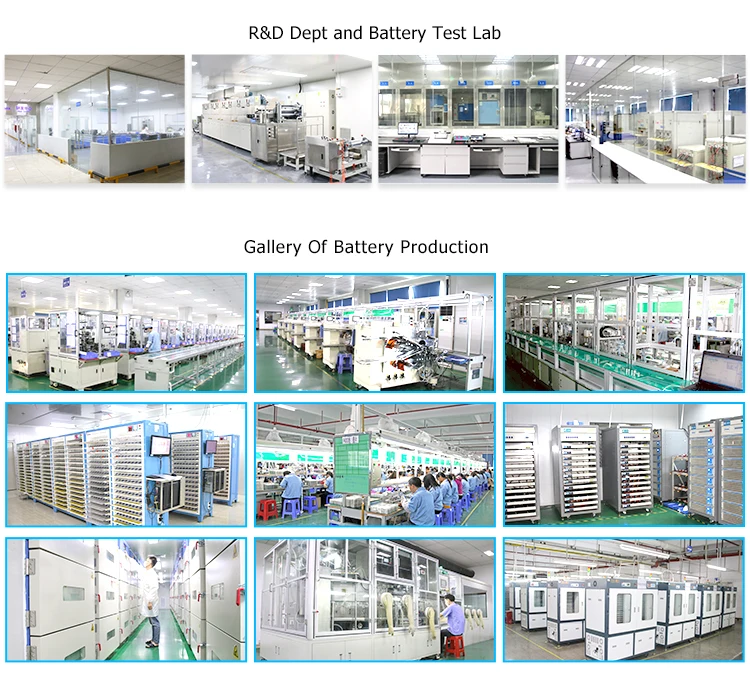

Ampxell has the ability to design, produce and sell cell, battery pack, BMS, and has a complete battery performance test laboratory, and safety / reliability test center, which can ensure the stable and controllable quality of each product in all aspects of R & D, production and after-sales.
