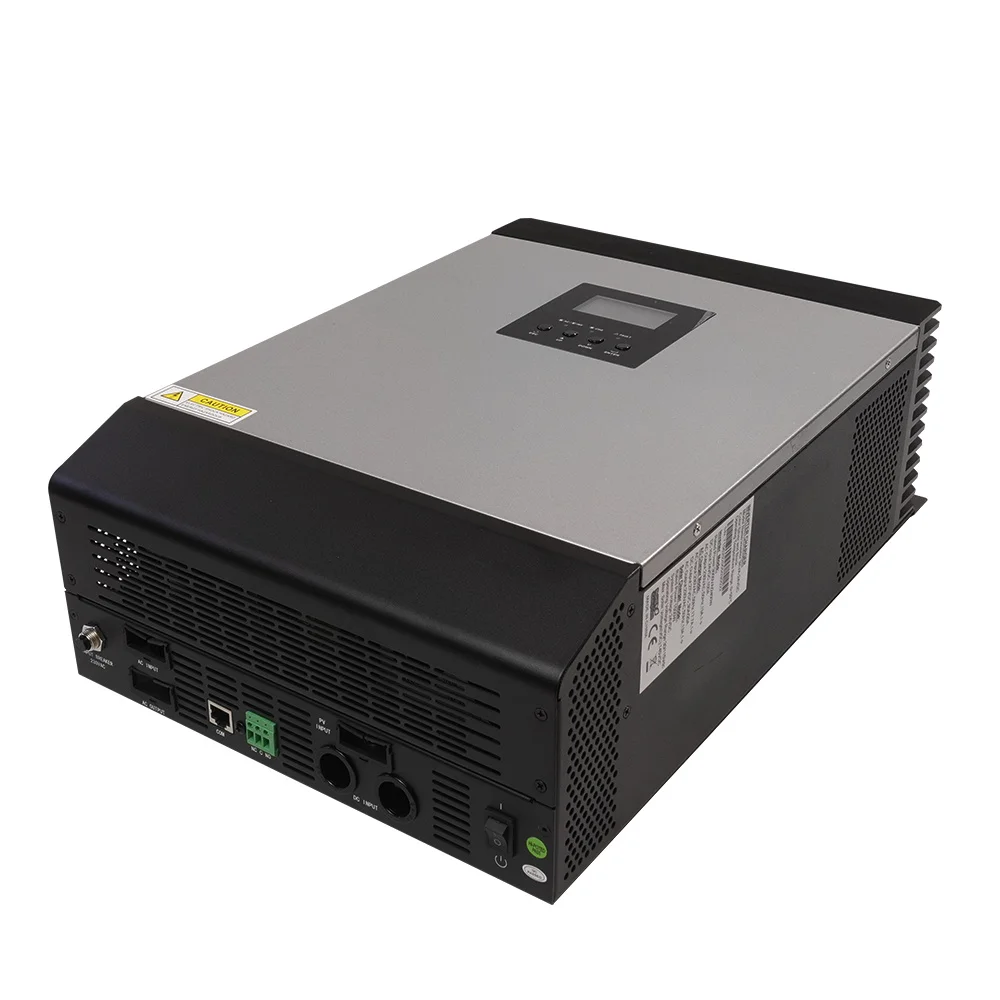

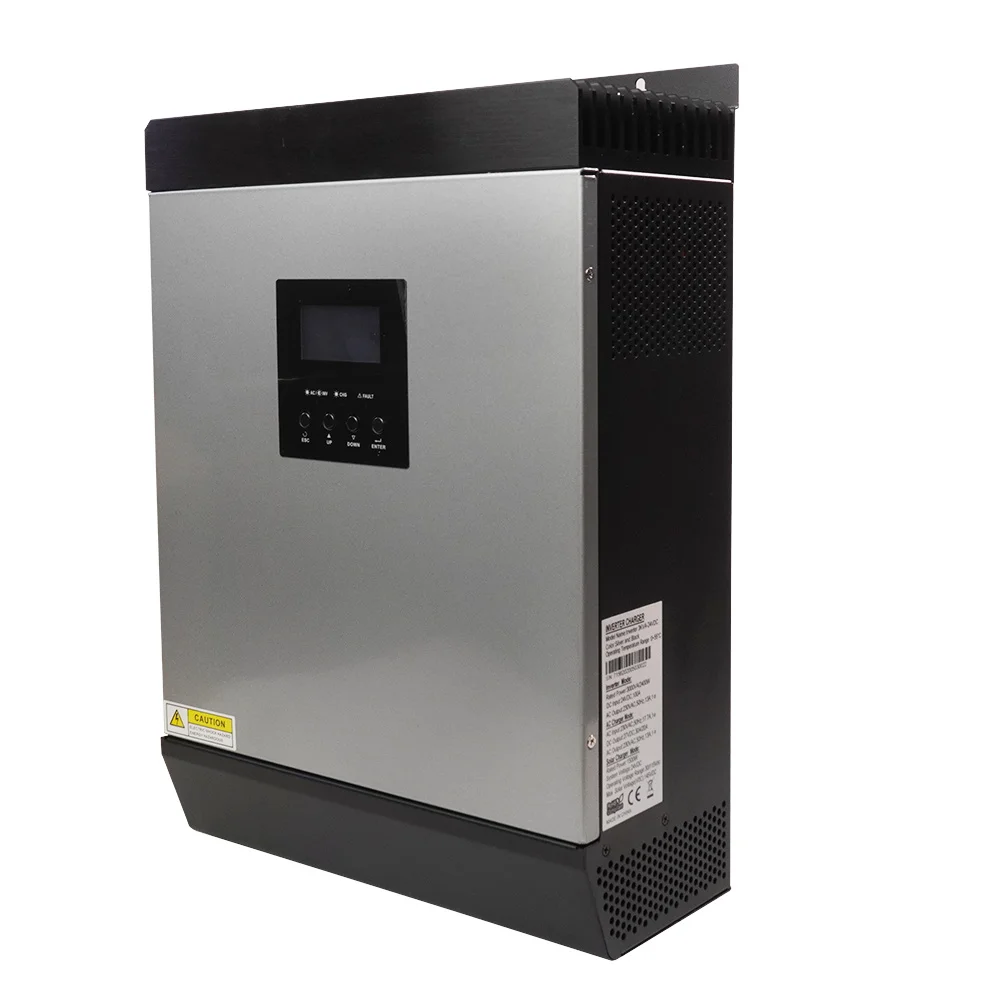

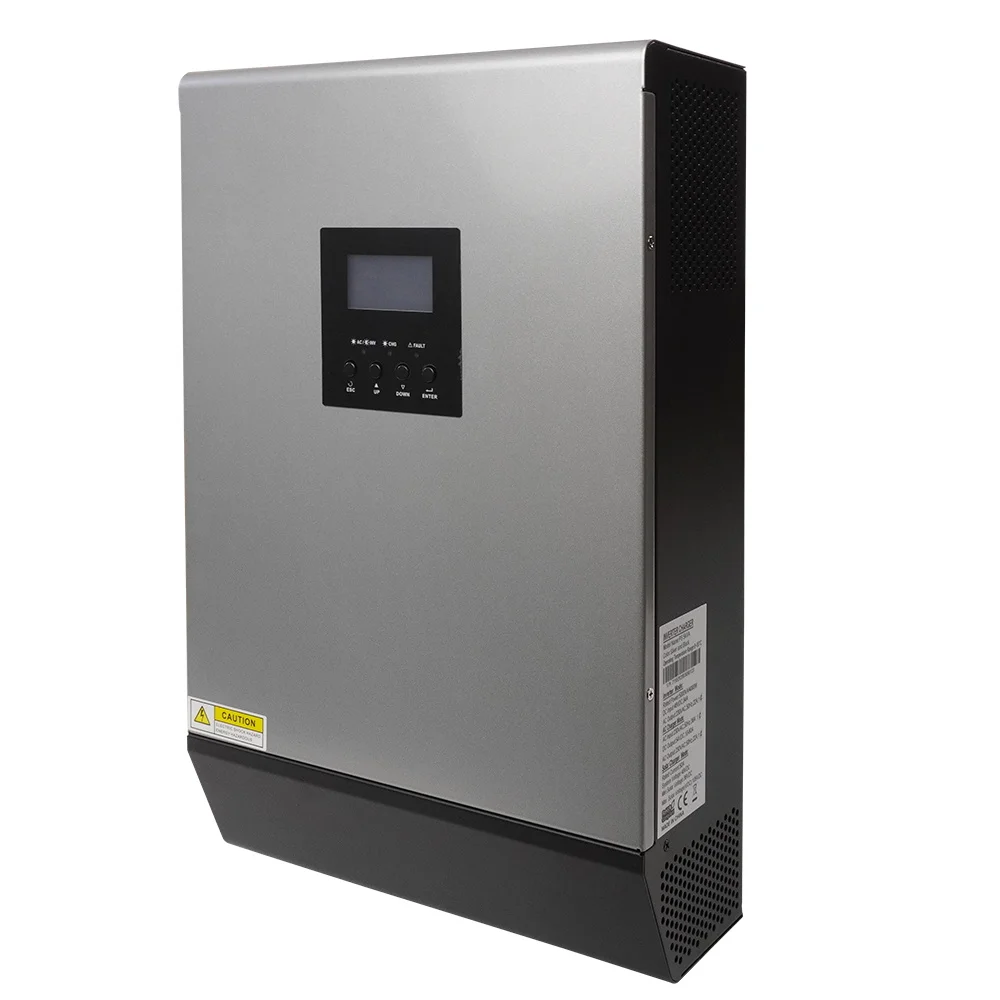

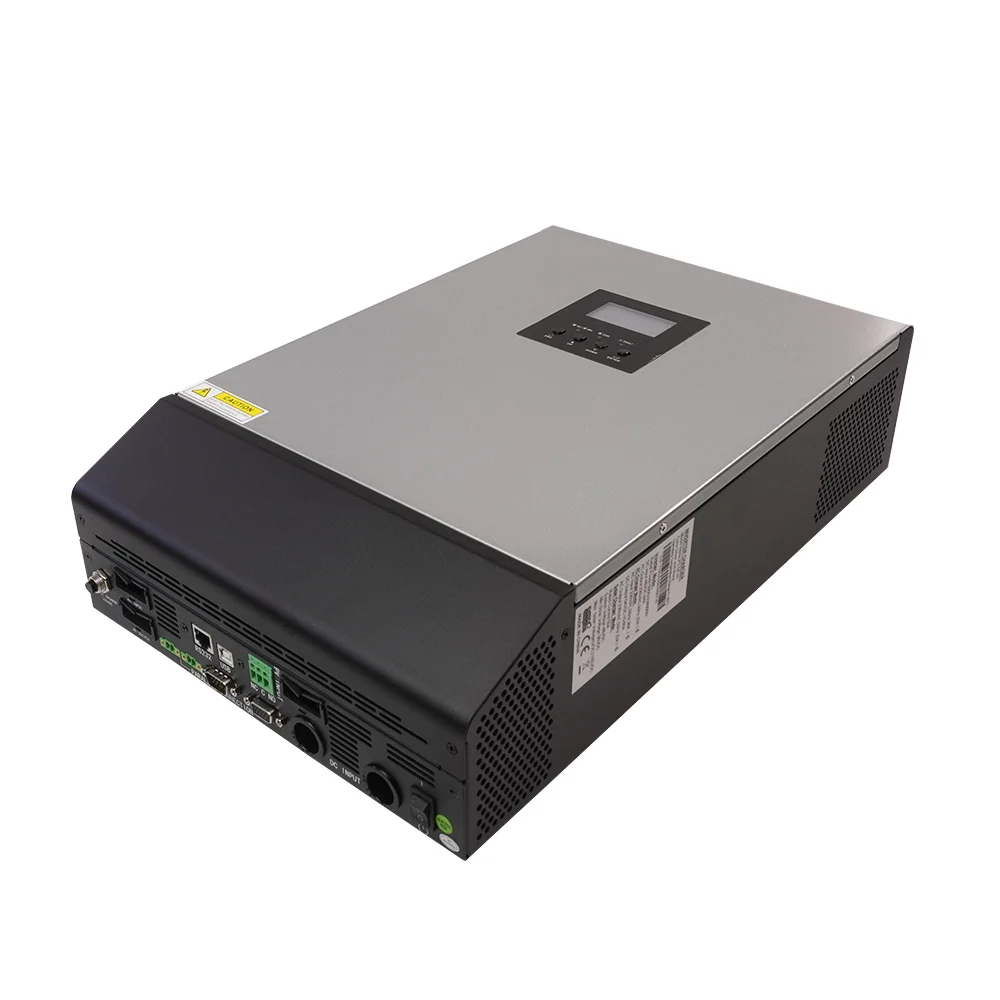

5KVA DC to AC Power Inverter with 80A MPPT Solar Charge Controller Parallel Function

Product Overview

Description

5KVA DC to AC Power Inverter with 80A MPPT Solar Charge Controller Parallel Function

















Product Features:

• Pure sine wave inverter
• Built-in MPPT solar charge controller
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function

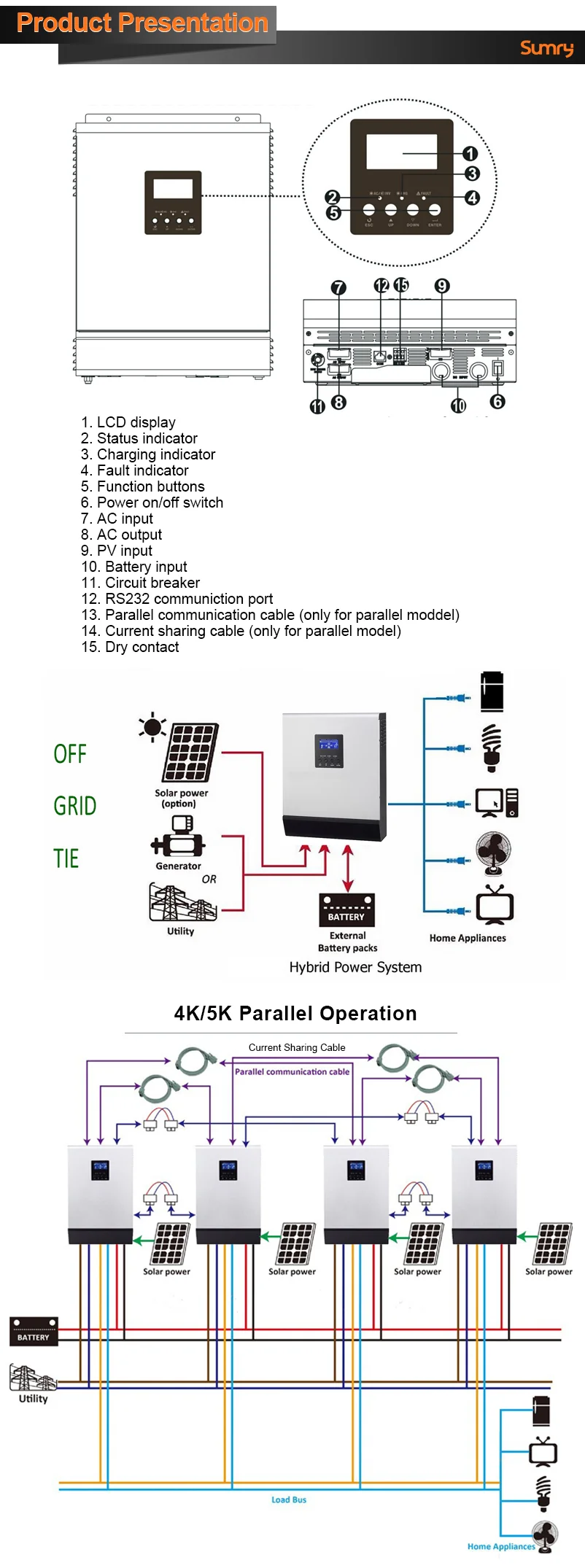

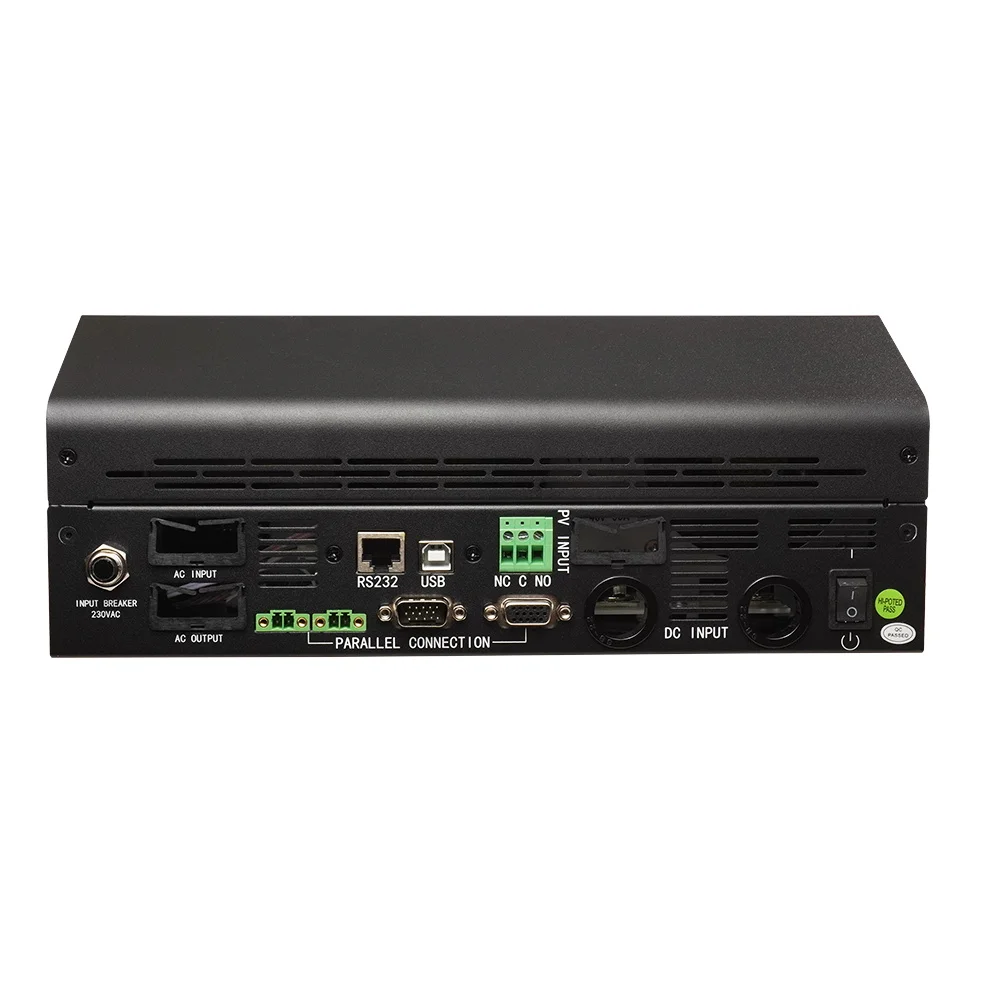

• Parallel operation with up to 6 units only available for MPS4K and MPS 5K

•Connectting 3-6 pcs can also get 3 phase 380vac solar system







Product Specification:



Model No.		MPS1KVA-24VDC	MPS2KVA-24VDC	MPS3KVA-24VDC	MPS3KVA-24VDC	MPS4KVA-48VDC	MPS5KVA-48VDC
Rated power		1000VA /800W	2000VA /1600W	3000VA /2400W	3000VA /2400W	4000VA /3200W	5000VA /4000W
Input	voltage	230VAC
	selectable voltage range	170-280VAC (for personal computers)                                                                                                             90-280VAC (for home appliances)
	Frequency range	50Hz/60Hz (auto sensing)
Output	AC voltage regulation (Batt.mode)	230VAC±5%
	Surge power	2000VA	4000VA	6000VA	6000VA	8000VA	10000VA
	efficiency (peak)	90%-93%	93%
	transfer time	10ms(for personal computers);   20ms (for home appliances)
	waveform	pure sine wave
Battery&              AC charger	battery voltage	24VDC				48VDC
	floating charge voltage	27VDC				54VDC
	overcharge protection	31VDC				62VDC
	maximum charge current	10A/20A	20A/30A			2/10A  20A/30A   40A/50A/60A
	MAX PV array power	600W			1500W	3000W
	MPPT range@ operating voltage	30VDC-66VDC			60VDC-115VDC
	maximum PV array open circuit voltage	75VDC			145VDC
	maximum charging current	25A			60A
	maximum efficiency	98%
	standby power consumpsion	2W
Physical	Dimension, D*W*H(mm)	128*272*355			140*295*479
	Net weight (kgs)	7.4	7.6	8	11	12.5	13.5
operating Environment	humidity	5%-95% relative humidity ( non-condensing)
	operating temperature	0℃-55℃
	storage temperature	-15℃-60℃
Model		GPH-1024M	GPH-2024M	GPH-3024M	GPH-3024M	GPH-4048M	GPH-5048M
inverter power		800W	1600W	2400W	2400W	3200W	4000W
max generated from solar charger		25Amp,               600W	24Amp,               600W	20Amp.              900W	60Amp,              1500W	60Amp,              3000W	60Amp,               3000W
best panel configuration		500Wp (250Wp*2pcs)	500Wp ( 250Wp*2pcs)	500Wp (     250Wp*2pcs)	1500Wp ( 250Wp*6pcs)	3000Wp (250Wp*12pcs)	3000Wp (250Wp*12pcs)
