Product Overview
Description
Product Description

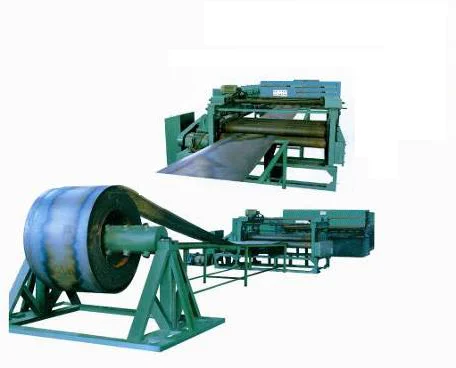

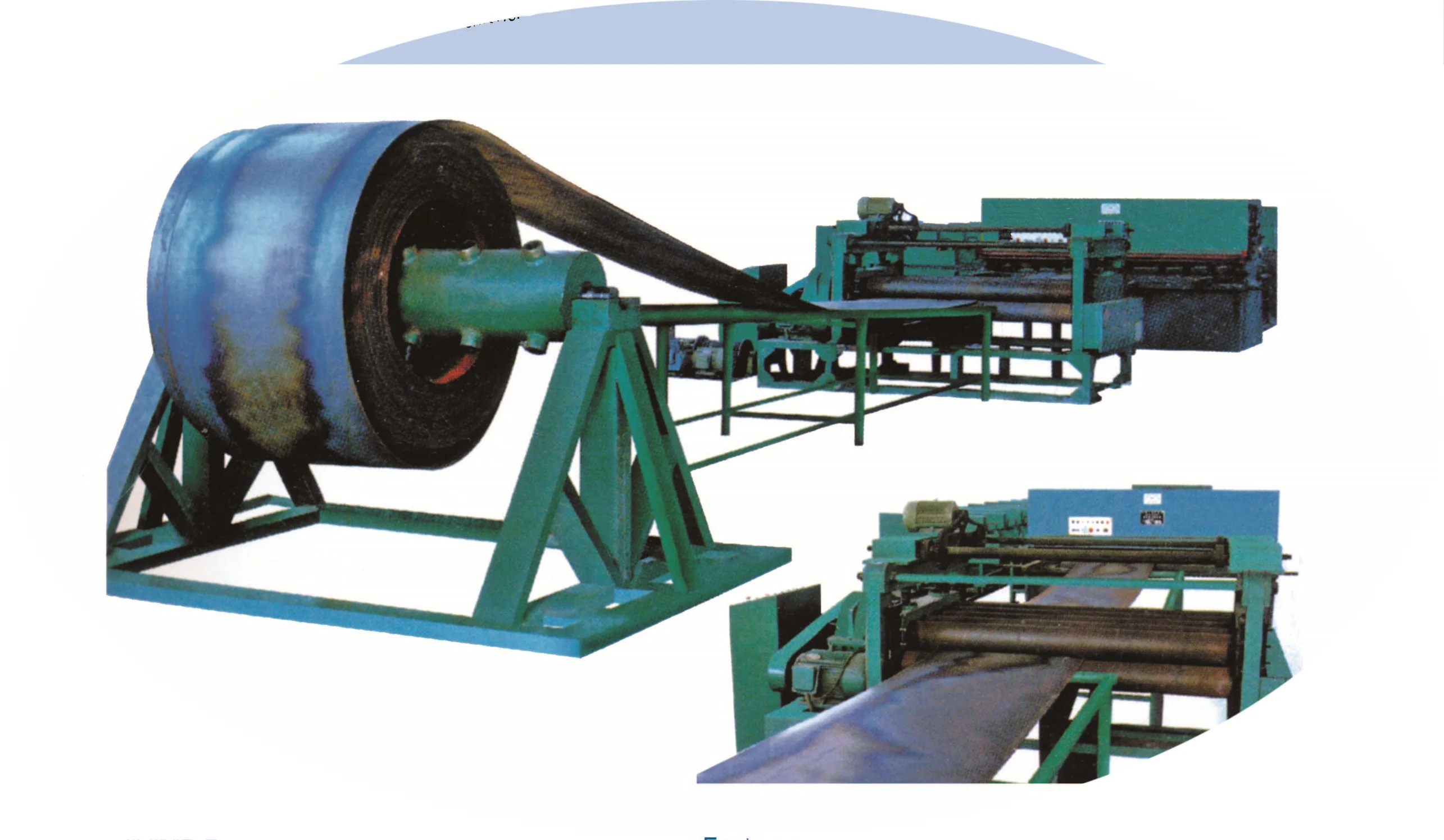

simple uncoil and leveling
This machine used to decoil the steel coil,leveling and cutting steel sheet into requirement size. Feeding sheet metal into
leveling machine manually and the machine line help to straight and cutting metal sheet into fixed length.
The line including six parts:
1).Decoiler—2.)Side Guiding Unit—3).Leveling Machine—4).Cutting Machine—5).Stack Table—6).Electric System
leveling machine manually and the machine line help to straight and cutting metal sheet into fixed length.
The line including six parts:
1).Decoiler—2.)Side Guiding Unit—3).Leveling Machine—4).Cutting Machine—5).Stack Table—6).Electric System

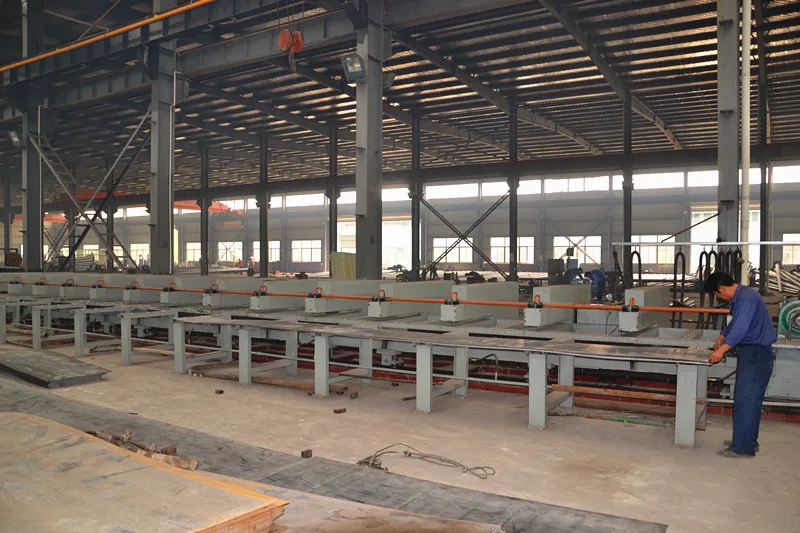

Diagonally Shearing
This machine is suitable for the plate cutting processing specially the long plate. Easy of operating and processing of optional
length of the plate make the machine productive. Pressing the plate which needs to cut to walking-equipment through the hydraulic
cylinder and shear it by revolving cutter accompanied the movement of the walking-equipment. It can also cuts taper plate
according to the request inclination. Therefore, this machine widely used in the processing of light pole, vessel,metal
structure,ships,building,hardware and so on
length of the plate make the machine productive. Pressing the plate which needs to cut to walking-equipment through the hydraulic
cylinder and shear it by revolving cutter accompanied the movement of the walking-equipment. It can also cuts taper plate
according to the request inclination. Therefore, this machine widely used in the processing of light pole, vessel,metal
structure,ships,building,hardware and so on

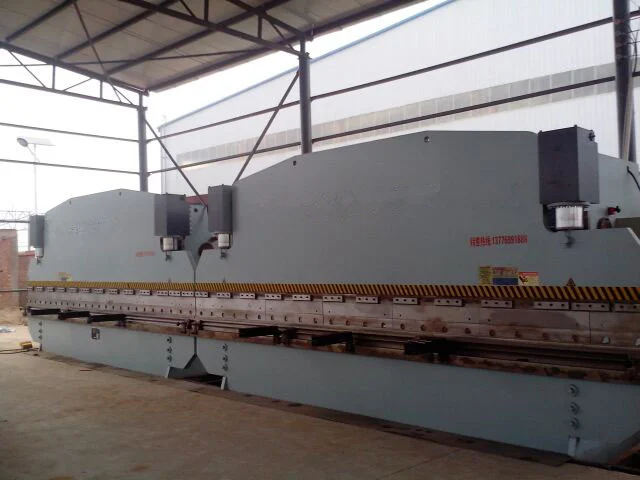

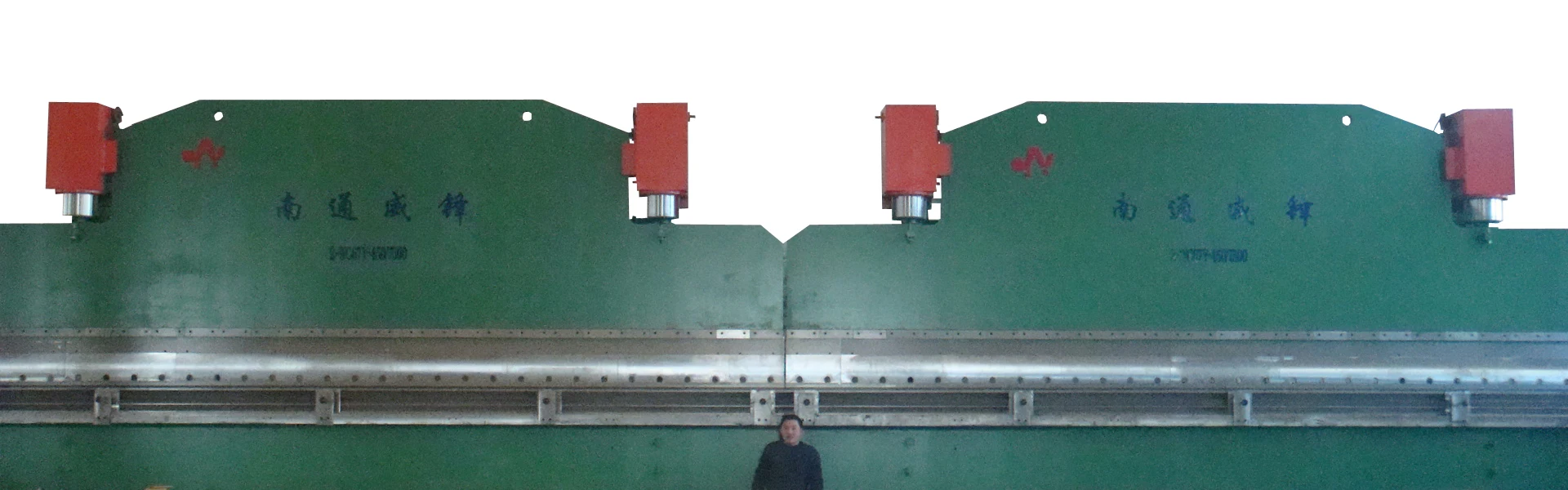

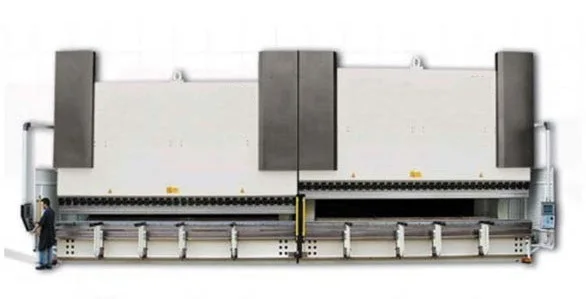

Tandem press brake
This machine was combined by two sets of press brake.tandem achieve synchronization working.single machine was combined
by worktable ram and right and left wall board.wall baord adopt assemble structure due to the transportation.the rack has enough
rigidity.two cylinders install to the right and left wall board,under the effect of electric operation system,drive the slider
running down.on slide there is upper dies,when upper and lower dies touch workpieces,system raise pressure,form the workpieces.use
different dies,under different bending,can get the different types of workpieces.the quality is reliable and stable.
by worktable ram and right and left wall board.wall baord adopt assemble structure due to the transportation.the rack has enough
rigidity.two cylinders install to the right and left wall board,under the effect of electric operation system,drive the slider
running down.on slide there is upper dies,when upper and lower dies touch workpieces,system raise pressure,form the workpieces.use
different dies,under different bending,can get the different types of workpieces.the quality is reliable and stable.
mechanical seam machine
it is a optional machine, for pipe seam together.

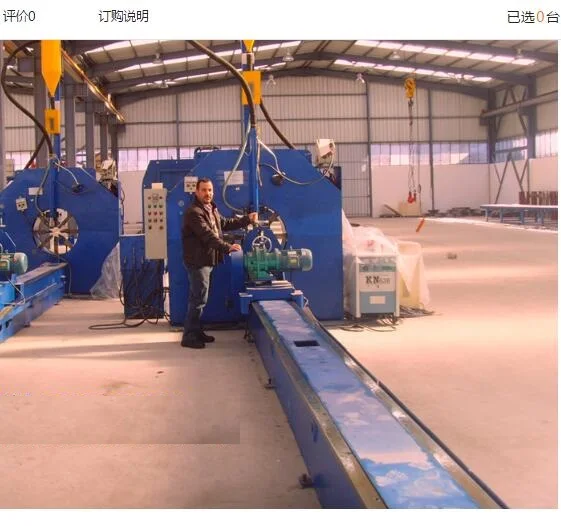

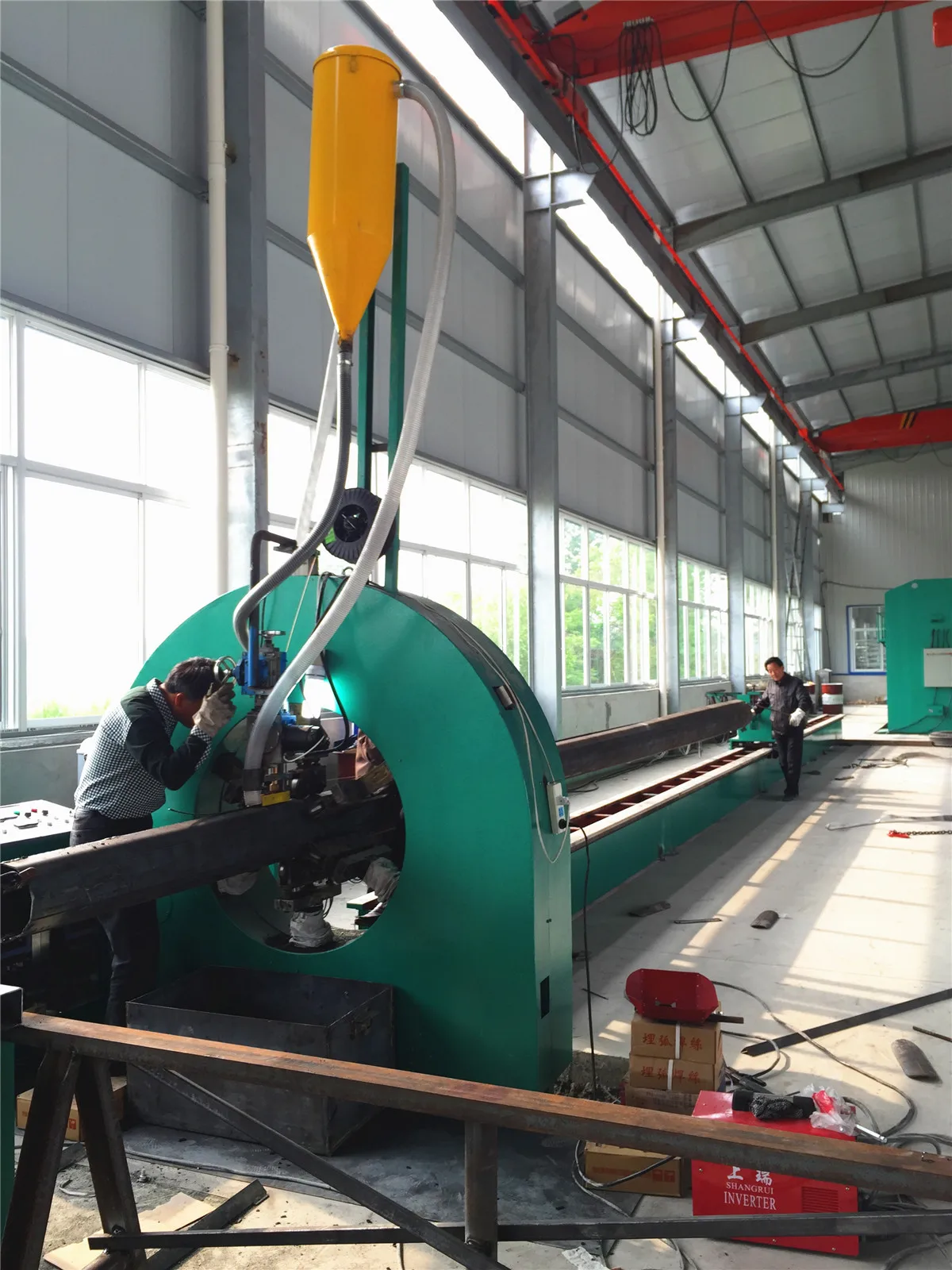

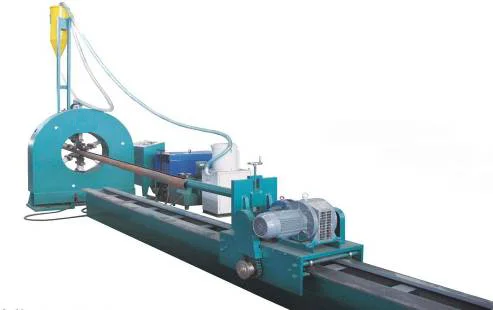

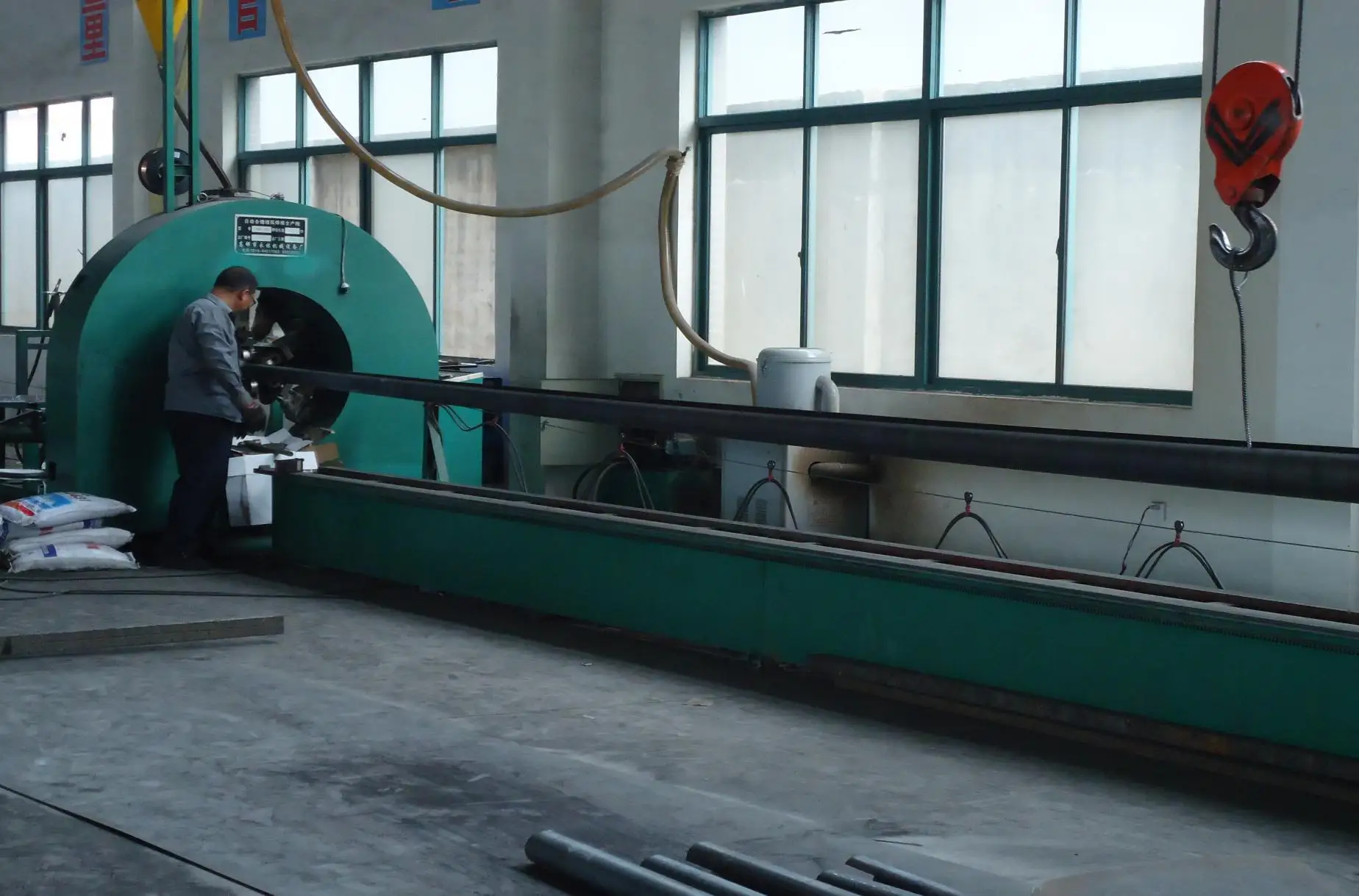

pole welding machine
This machine composed by main machine head , tractive body and feeding shelf. Tractive body was moved by collet in small vehicle
nipping the steel pole’s collet.when the small vehicle moved,drived steel pole,from small collet to big collet ,regularity
moved.the big side of the steel pole was hold by feeding vehicle,force automatic sewing from head of machine to steerable wheel.
At one time,the welding machine starts welding.this machine adopt multiple wire submerged arc welding,solder was reclaimed
automatic. Welding line was symmetrical and slinky. It has strong filter,forming one time,and be with high welding efficiency. The
speed of welding achieve 2 to 3 meters per minutes,is about 3 times of the gas welding .the cost of the welding is lower than gas
weldong. It is with speedy welding ,high efficiency ,and lowest price in china light poles industry now.
nipping the steel pole’s collet.when the small vehicle moved,drived steel pole,from small collet to big collet ,regularity
moved.the big side of the steel pole was hold by feeding vehicle,force automatic sewing from head of machine to steerable wheel.
At one time,the welding machine starts welding.this machine adopt multiple wire submerged arc welding,solder was reclaimed
automatic. Welding line was symmetrical and slinky. It has strong filter,forming one time,and be with high welding efficiency. The
speed of welding achieve 2 to 3 meters per minutes,is about 3 times of the gas welding .the cost of the welding is lower than gas
weldong. It is with speedy welding ,high efficiency ,and lowest price in china light poles industry now.

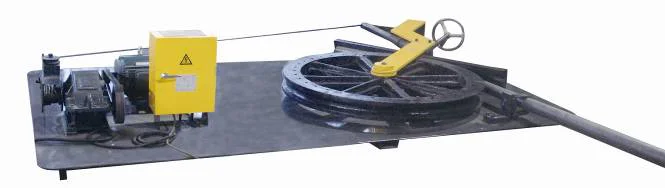

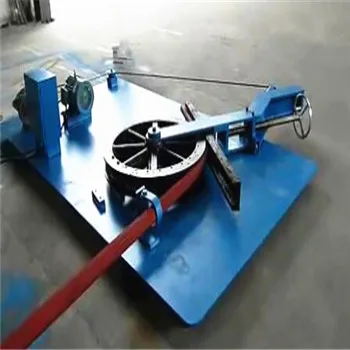

pole bending machine
this equipment composed by the board and bending mode, with two sets of molds. Direct mode traction motor reducer, will die on
the pressure in the round steel bar along the curved arc surface, simple operation, without heating and filler, economic benefits,
compared with the industry's large-scale bending machine is similar effect, is steel manufacturer of equipment necessary.
the pressure in the round steel bar along the curved arc surface, simple operation, without heating and filler, economic benefits,
compared with the industry's large-scale bending machine is similar effect, is steel manufacturer of equipment necessary.

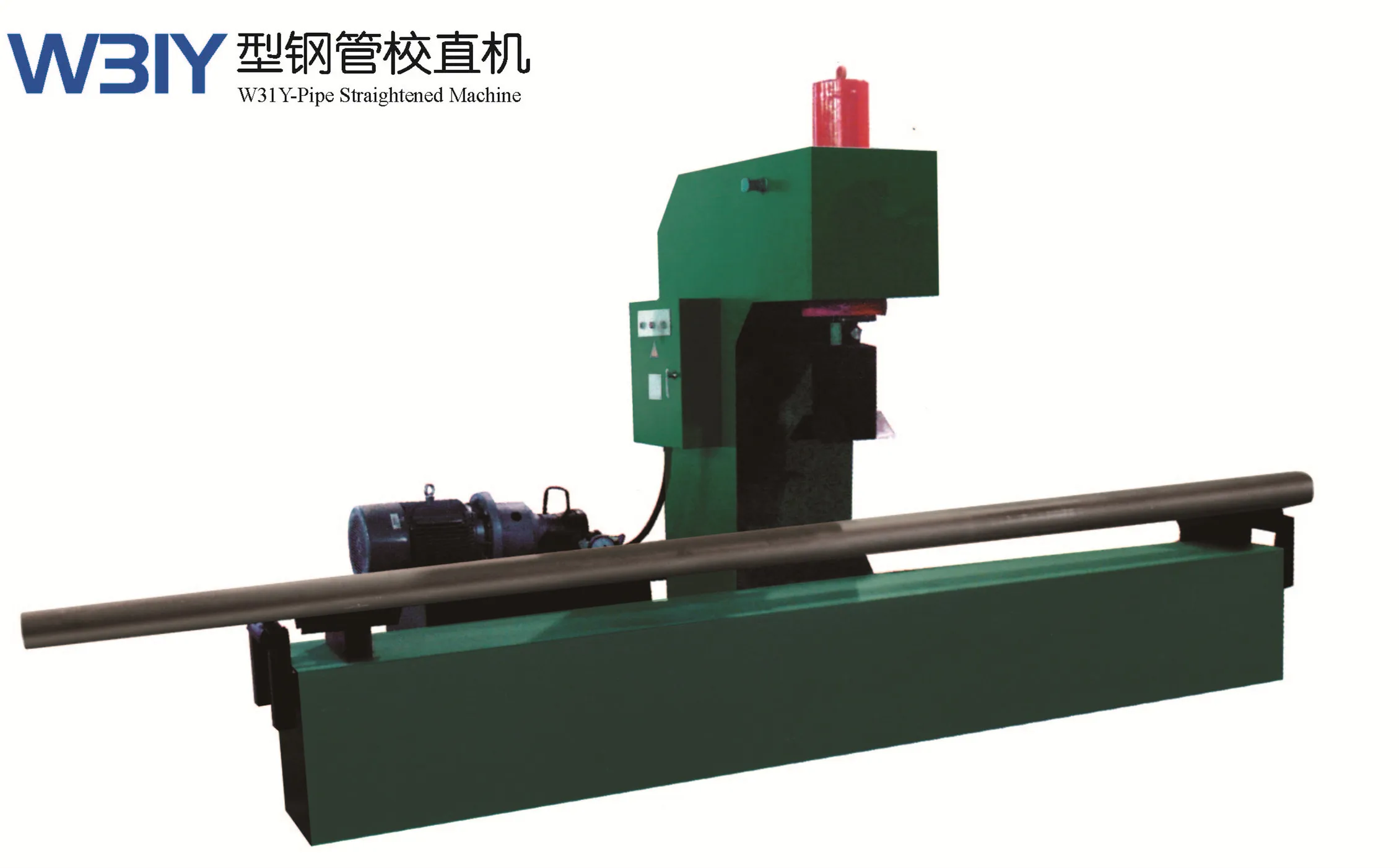

pole strighten machine
This machine with easy and compact structure, convenient and reliable.the time of putting steel pole to penetrator can be fit by
workers.the workers hold the press-button press molding,the linearity was fit by eyes of the workers,it is with high efficiency.
workers.the workers hold the press-button press molding,the linearity was fit by eyes of the workers,it is with high efficiency.

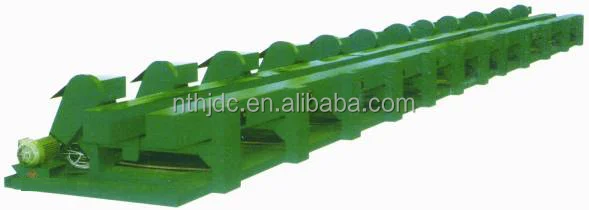

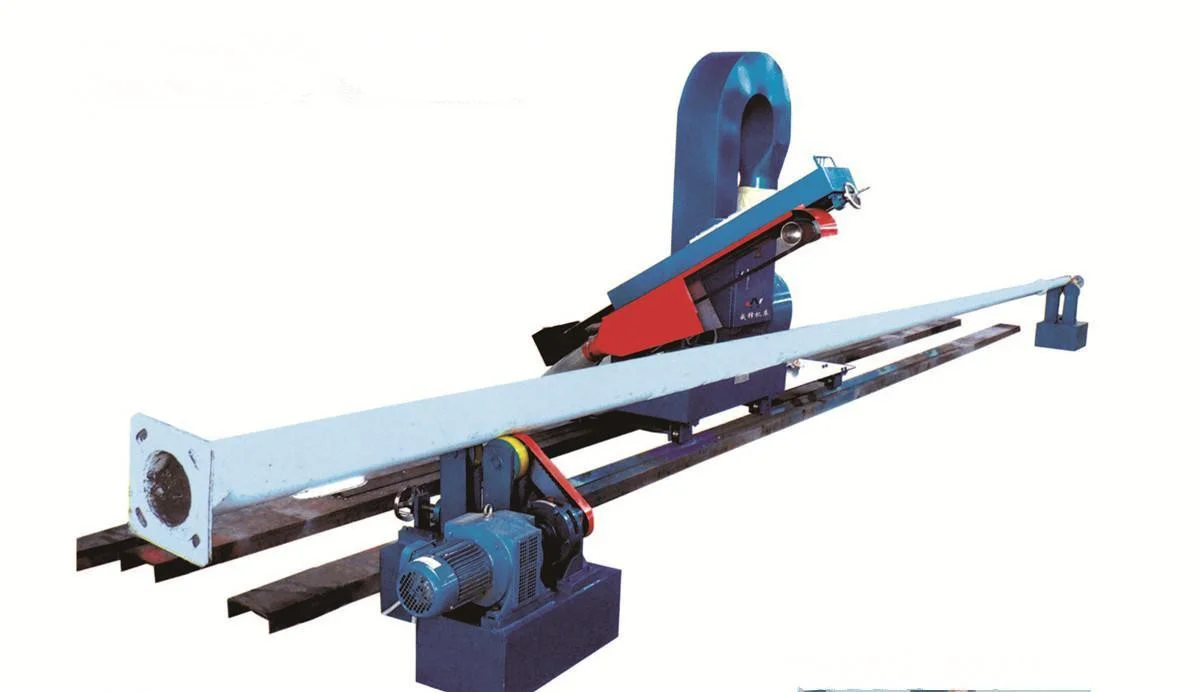

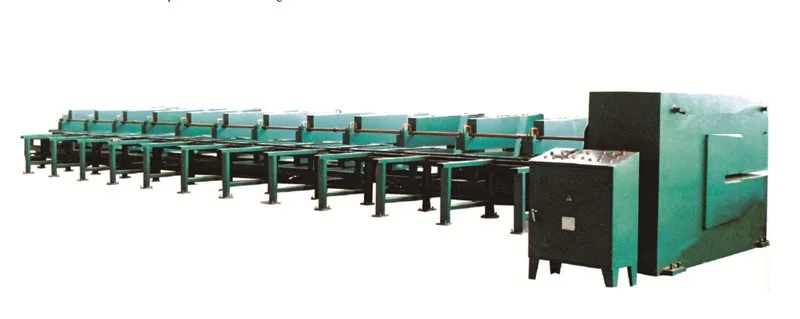

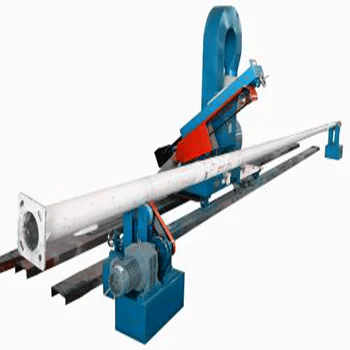

pole polish machine
This machine steel tube adopt self-run and the movement of the machine in order tomove the steel tube. The machine is fitted with
grinding polishing bar, these grinding polishing bars will grind and polish the surface of steel tube quickly. It is speedy,
efficient, saving workers and energy.it was the first choice for grinding and polishing every poles
grinding polishing bar, these grinding polishing bars will grind and polish the surface of steel tube quickly. It is speedy,
efficient, saving workers and energy.it was the first choice for grinding and polishing every poles

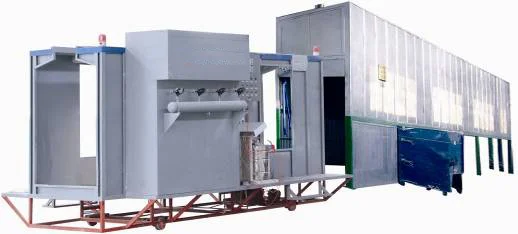

electrostatic spraying production line
The room was combined by cold steel rolling plate ,the structure was easy,and also easy for cleaning.color side was install the
convulsions sets.at the same time we install the dustproof floodlight.it was very easy to operate spraying.
It adopt spelling installing.there is ripple plate outside.the surface of the oven was rigour,firm,nice,with good heat
insulation.the temperature adopt general electrical machine to control,work in heat wind circulate.to keep the temperature in the
furnace equality.and fully satisfy powder with 180°C±5°C require of solidifying
convulsions sets.at the same time we install the dustproof floodlight.it was very easy to operate spraying.
It adopt spelling installing.there is ripple plate outside.the surface of the oven was rigour,firm,nice,with good heat
insulation.the temperature adopt general electrical machine to control,work in heat wind circulate.to keep the temperature in the
furnace equality.and fully satisfy powder with 180°C±5°C require of solidifying

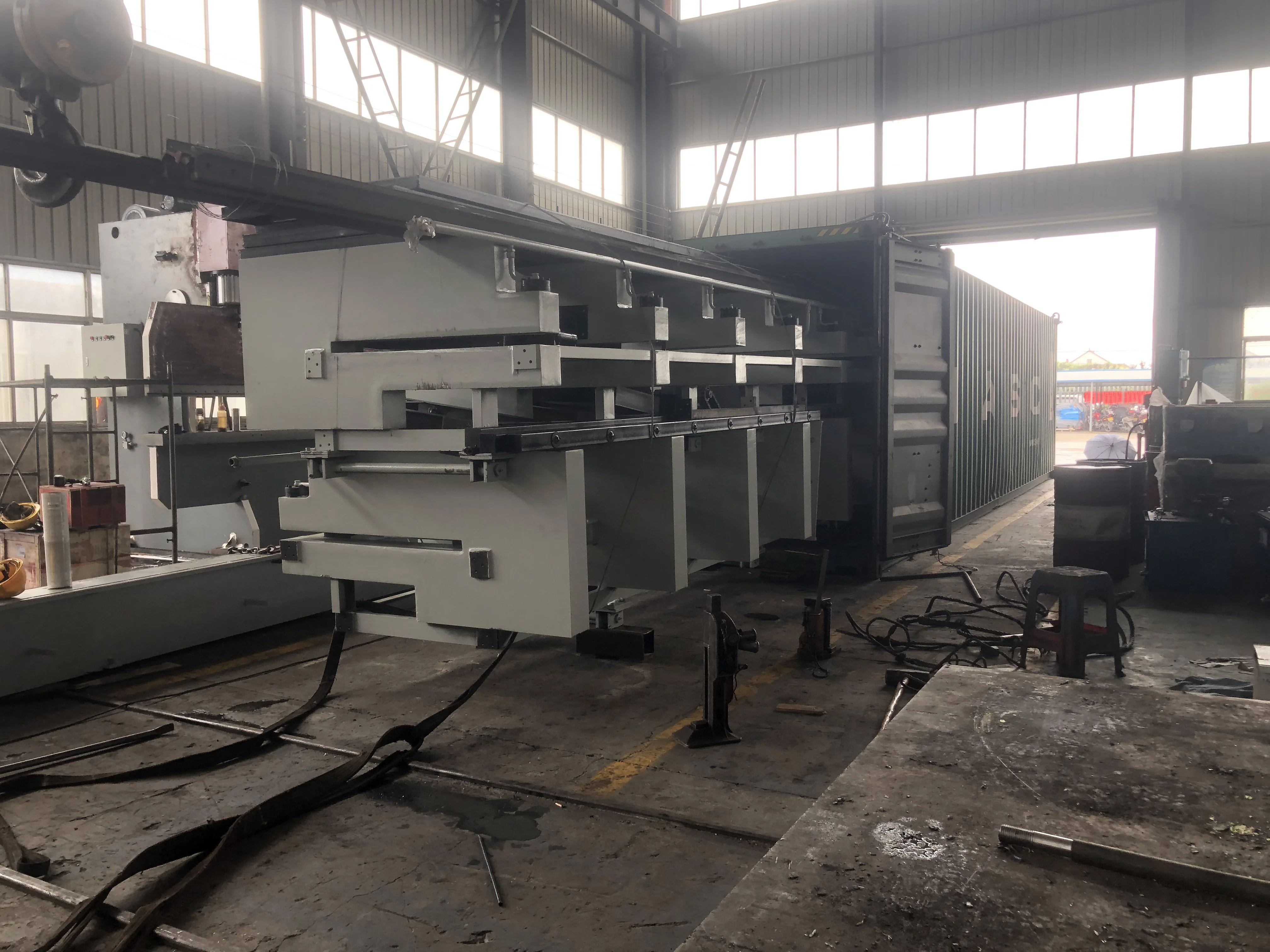

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
