Vacuum Mixer Vacuum Homogenizing Emulsifying Machine ketchup tomato sauce mayonnaise Making Machine
- Category: >>>
- Supplier: Guangzhou Jutao Machinery Equipment Co. Ltd.
Share on (1600325083229):
Product Overview
Description
Products Description
Suitable for making cream, paste, ointment, lotion, gel, conditioner, milk, sauce, etc
Model: JUTAO-C
Capacity: 10~5000L
Vacuum: -0.09Mpa
Fineness: 2µm
Contact part: SS304/316L (three jackets, contact material parts adopt SUS316L, the other two layers adopt SS304-2B)
Homogenizer speed: 0~3000/3500rpm
Scraper speed: 0~80rpm
Lifting: hydraulic lifting system
Heating: by steam/electrically
Operation: automatically (PLC)/manually
Class: GMP (optional)
Model: JUTAO-C
Capacity: 10~5000L
Vacuum: -0.09Mpa
Fineness: 2µm
Contact part: SS304/316L (three jackets, contact material parts adopt SUS316L, the other two layers adopt SS304-2B)
Homogenizer speed: 0~3000/3500rpm
Scraper speed: 0~80rpm
Lifting: hydraulic lifting system
Heating: by steam/electrically
Operation: automatically (PLC)/manually
Class: GMP (optional)

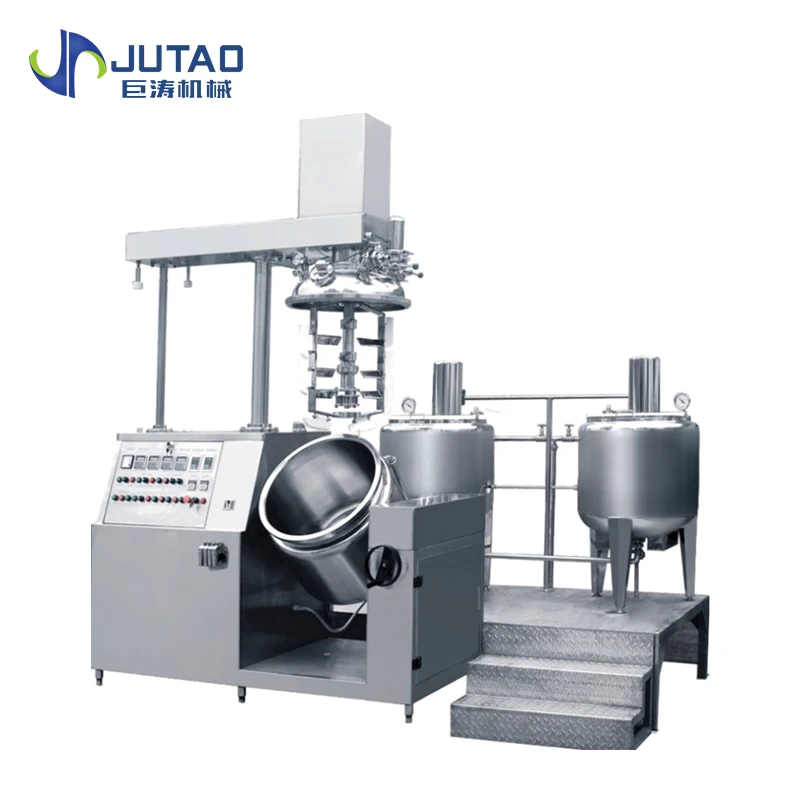

hydraulic lifting type vacuum emulsifying mixer
Lifting lid means the lid of main pot tank can be lifted and the main pot tank can be tilt discharged to discharge material ， which can easily clean rhe pot and save production time.

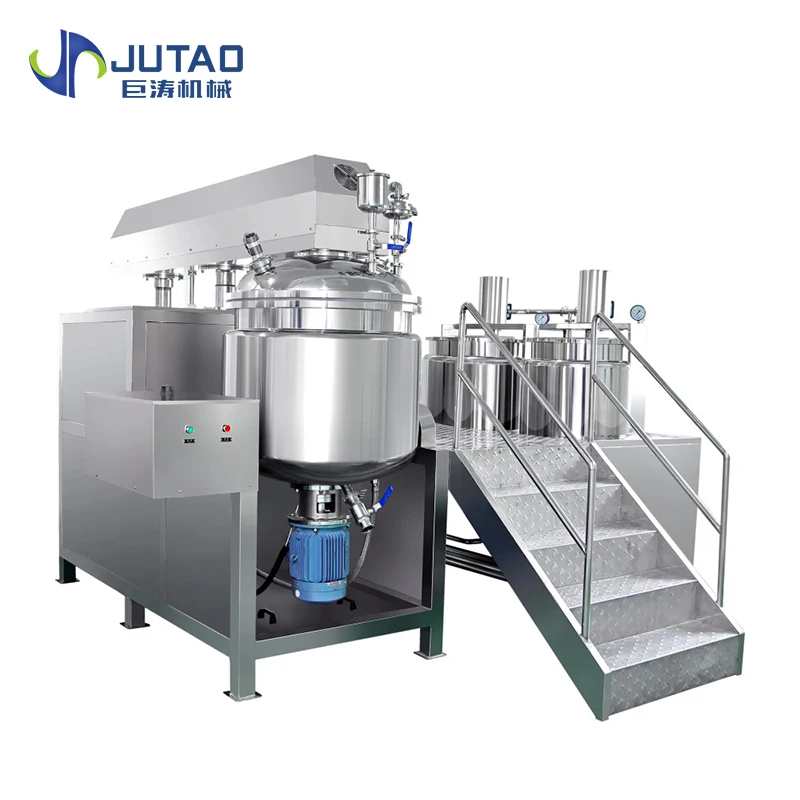

fixed type vacuum homogenizer mixer
Fixed lid means the lid of main pot tank can not be lifted and the pot can not be tilt dischaged.
The vacuum emulsifier homogenizer machine is composed of mixing, homogenizing, dispersing, emulsifying and Plc or button control system and also be used with oil, water phase, vacuum, heating/cooling system, ect. Materials go through the upper tank stirring, PTFE scraper will sweep the wall sticky materials, and then after the blades and rotary blades cut, compressed, The materials is cut in the high shear condition, due to the emulsification tank in a vacuum condition, the bubbles generated in the mixing process is promptly removed.
Product Details
Emulsigying tank lid
Emulsifying pot lid has spice inlet、material inlet ,air filter ,view window ,sight glass light.

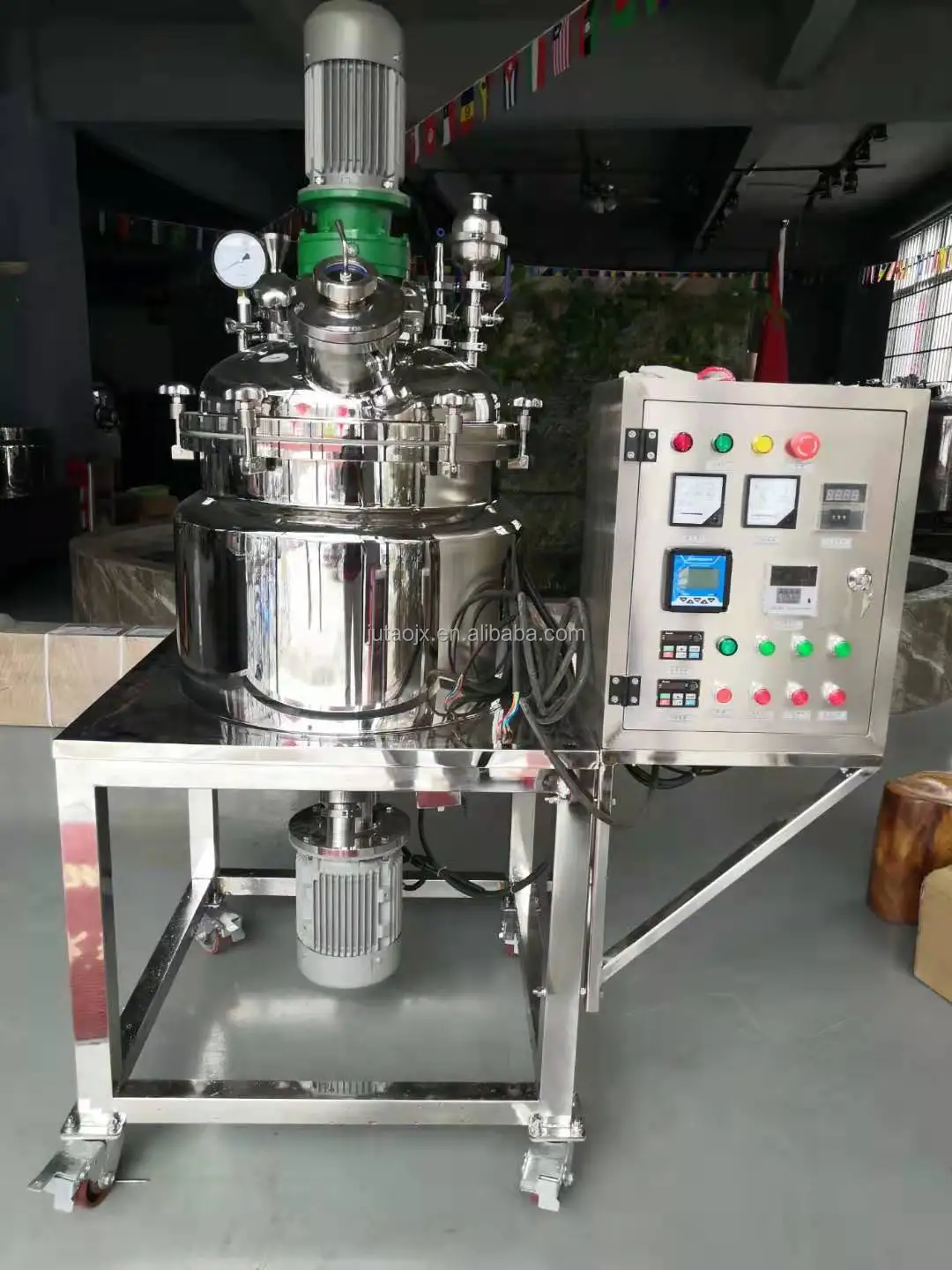

Oil and water pot
The oil and water pot mixers have exactly the same construction. There's a high speed disperser mounted from the top of the cover which helps dissolve the ingredients. Some customers will omit the oil and water phase mixers and keep the main emulsification machine only.
Cleaning ball
Our product can naturally generate three kilograms of pressure, after the hose is connected to the top of the cleaning ball, the cleaning ball is ejected, it is easy to clean the whole pot, and all the waste liquid is discharged.
internal and external circulating homogenizer type vacuum homogenizer mixer
Make the material homogenization effect better
PLC control system
Our siemens PLC control cabinet Has the memory function, can store the data for use next time.
Button control system
Each function can be controlled separately, which can control temperature and homogenizer or mixer speed.
Customer can choose between PLC control system and Button control system ,which is optional.
upper homogenizer
bottom homogenizer
single-way mixing with Telfon scraper
double-way mixing and helical ribbon mxing with Telfon scraper
single-way mixing and helical ribbon mxing with Telfon scraper
Technical parameter
No | volume | Main Pot homogenizer motor/KW | Main Pot Wall scraping/KW | Hydraulic System/KW | Vacuum pump power(Kw) | Water pot Volume | Oil pot Volume |
1 | 5L | 1.1 | 0.18 | 0.75 | 0.55 | ||
2 | 10L | 1.1 | 0.37 | 0.75 | 0.75 | 7L | 5L |
3 | 20L | 1.5 | 0.75 | 0.75 | 0.75 | 14L | 10L |
4 | 50L | 2.2 | 1.1 | 1.5 | 1.5 | 35L | 25L |
5 | 100L | 3 | 1.5 | 1.5 | 1.5 | 70L | 50L |
6 | 200L | 4 | 2.2 | 1.5 | 2.2 | 140L | 100L |
7 | 300L | 5.5 | 3 | 1.5 | 2.2 | 210L | 150L |
8 | 500L | 7.5 | 4 | 1.5 | 3 | 350L | 250L |
9 | 1000L | 11 | 5.5 | 2.2 | 3 | 700L | 500L |
Certifications
Project cases
Customer Photos
FAQ
Why choose us?
Factory
We are a direct factory with more than ten years production experience. There are skilled workers,rich-experienced design team and good after service.
Quality and Price
Our good quality is built on superior material, imported from Japan, French and so on.We pass ISO9001,CE, GMP. Our price is based on the quality,we give the reasonable price to every customer!
Product range
We can provide various kinds of stainless products for your choice.Also,we can customize according to your specific requiements.
Convenient transportation
We cooperated with efficient logistics.Which ensure the goods can be reached your place timely and safely.
Pre-consultation
Please contact us before you place an order,or need any technical support or guidance.
