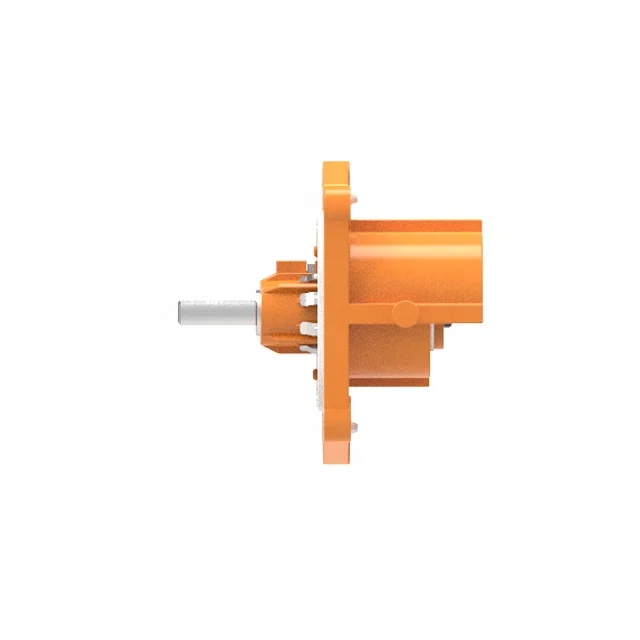

EV connector 2 poles HVIL high voltage connector
- Category: >>>
- Supplier: Suzhou chilye green technology Co. Ltd
Share on (1600325213316):
Product Overview
Description
Company Profile
Suzhou Chilye is a leading supplier of high voltage electrical appliances and power distribution units for new energy vehicles, focus on the development, production, and solution support to high power electronic components, high voltage connectors, power distribution units for new energy vehicles.
The products & services range extend from power battery, drive motor, battery/inverter/motor technology to vehicles, battery charging and charging facilities.
"Innovation & Technology"are the driving force for Chilye's development, total investment on new technology, new products and new process is over
10% of the sales revenue in the past 6 years, which enables Chilye to have a comprehensive variety of high voltage connectors series, charging connectors series, power distribution units series. Chilye is involved in drafting up several GB standards and 6 industrial standards, and is the owner of 120 patents.
Chilye takes lead in technology and system integration in the industrial field Apply smart technology to connect the green future.
Chilye is willing to cooperate with the players in EV industrial chain for the standardization, industrialization of electric vehicle components to create a better future.
The products & services range extend from power battery, drive motor, battery/inverter/motor technology to vehicles, battery charging and charging facilities.
"Innovation & Technology"are the driving force for Chilye's development, total investment on new technology, new products and new process is over
10% of the sales revenue in the past 6 years, which enables Chilye to have a comprehensive variety of high voltage connectors series, charging connectors series, power distribution units series. Chilye is involved in drafting up several GB standards and 6 industrial standards, and is the owner of 120 patents.
Chilye takes lead in technology and system integration in the industrial field Apply smart technology to connect the green future.
Chilye is willing to cooperate with the players in EV industrial chain for the standardization, industrialization of electric vehicle components to create a better future.
Product Description

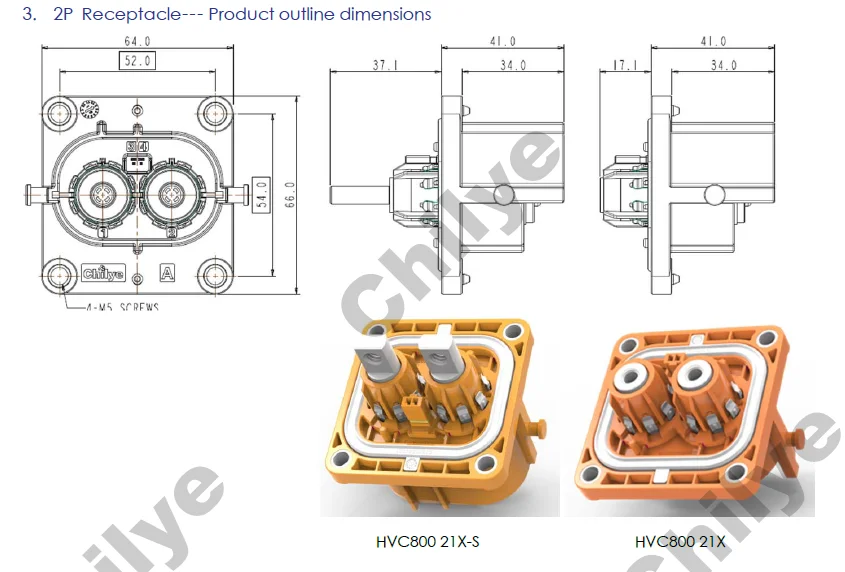

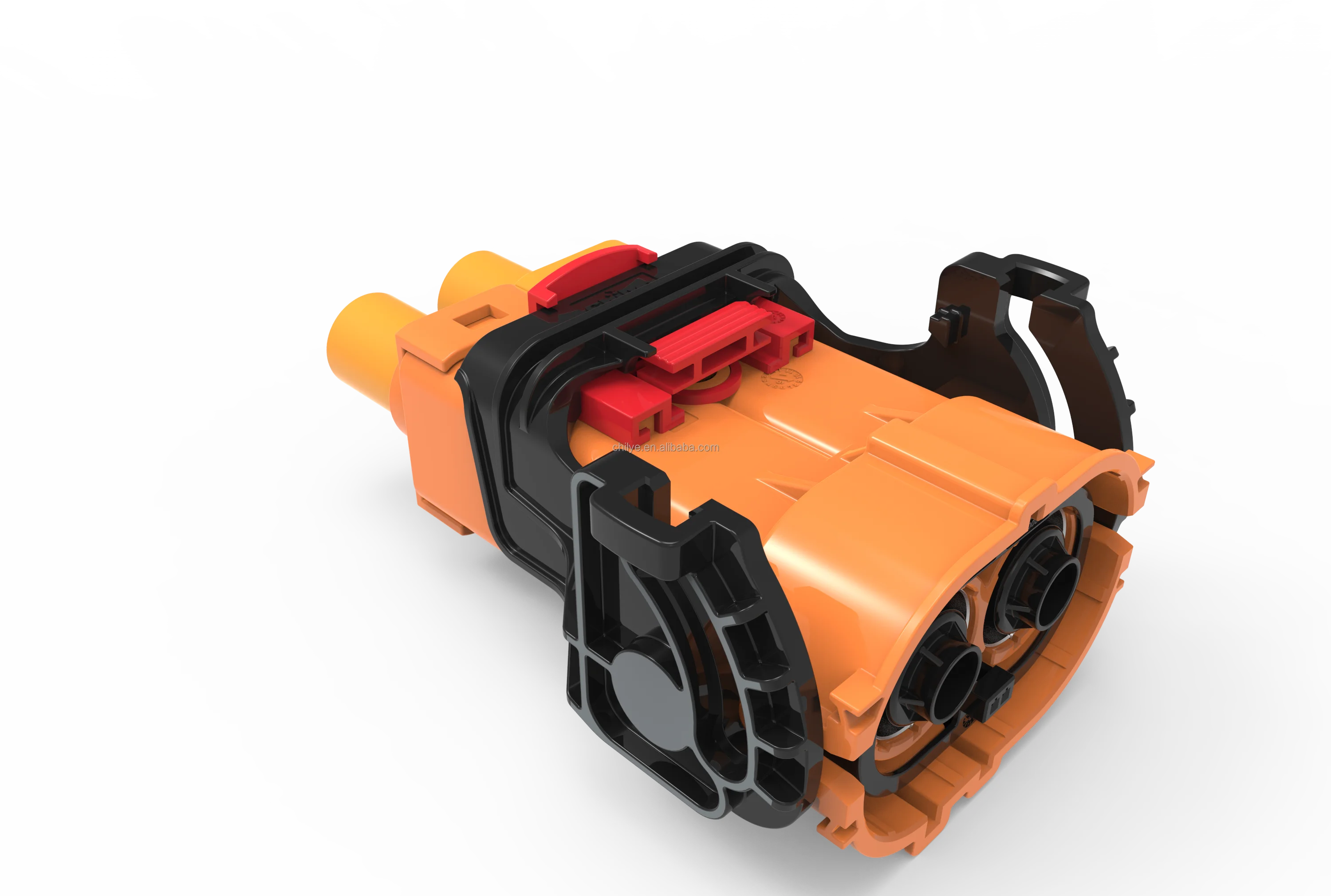

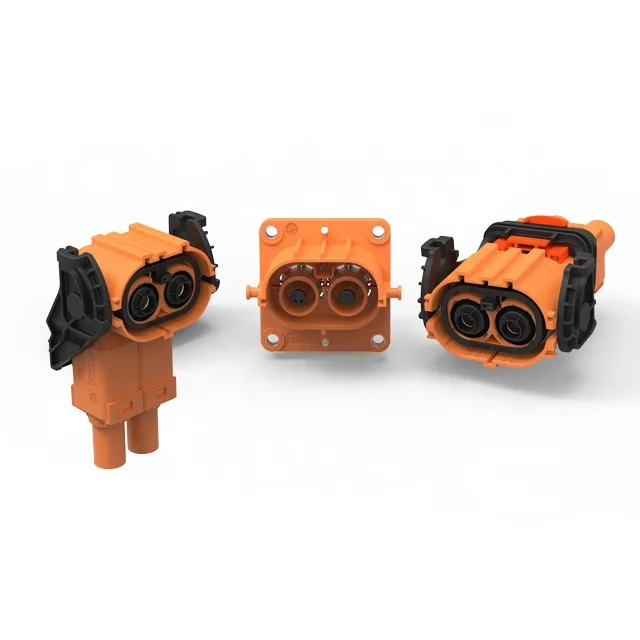

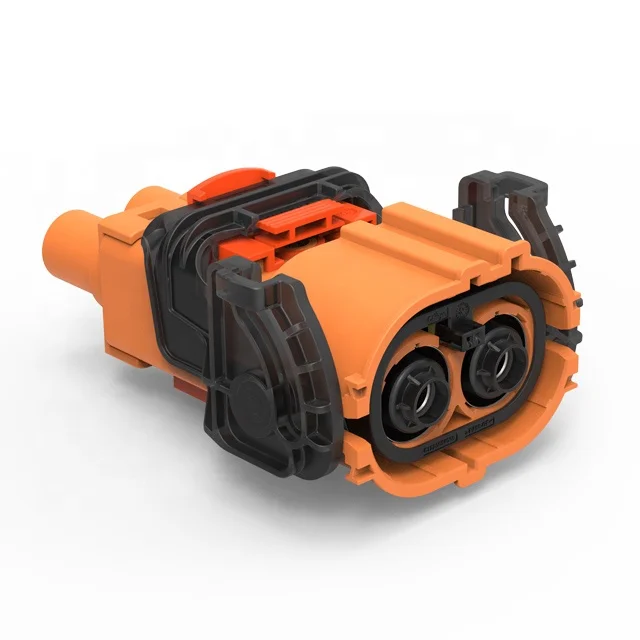

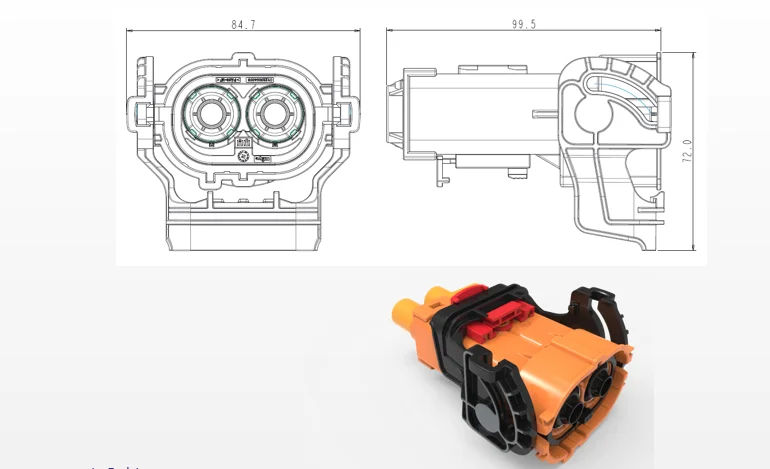

HVC800 series connector is a plastic sealing high-voltage connector, which specially developed for the high-voltage connection system in electric and hybrid vehicles. The product has good shielding performance and high IP protection. There are three kinds of layout:1+2/2+2/3+2. And it with two kinds of plug connection modes, straight and elbow, and the current carrying capacity can reach 250A. It can be widely used in electric vehicle PDU, power battery, motor controller, inverter equipment to provide stable high voltage and high current transmission.
Specification
Electrical | ||||||
Rated Current | 250A | Rated Voltage | 1000 Vdc | |||
Insulation resistance | >500MΩ | Withstand Voltage | 3000 Vac | |||
Cable | ||||||
Pole | 2 | HV cables | 25/35/50 mm² | |||
HVIL cables | 0.5mm² | cable assemble or not | Option | |||
Cable range | 25 to 50mm2 shielding single core cable | |||||
Environmental | ||||||
Protection grade | IP67,IP6k9k | Operating temperature | -40ºC to 125ºC | |||
Electrical protection | IP2XB(No dust cap) | Storage temperature | -40ºC to 85ºC | |||
Mechanical | ||||||
Durability | 100 mating cycles | Connection | Crimped connections | |||
Standards | ||||||
SAE J1742/J2223 USCAR-2 USCAR-37 ROHS LV-215 IEC60529 | IP2XB(No dust cap) | |||||
Details Images

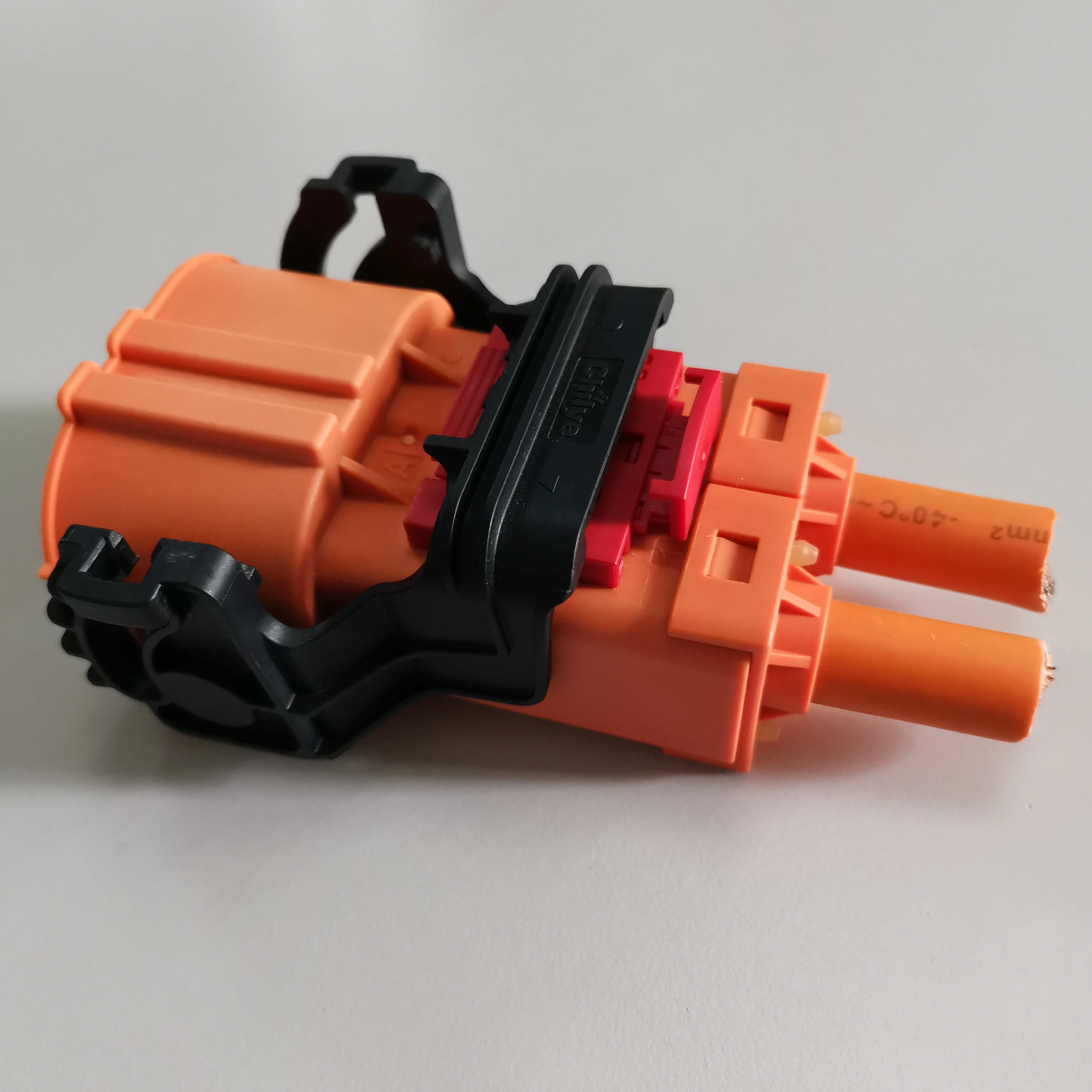

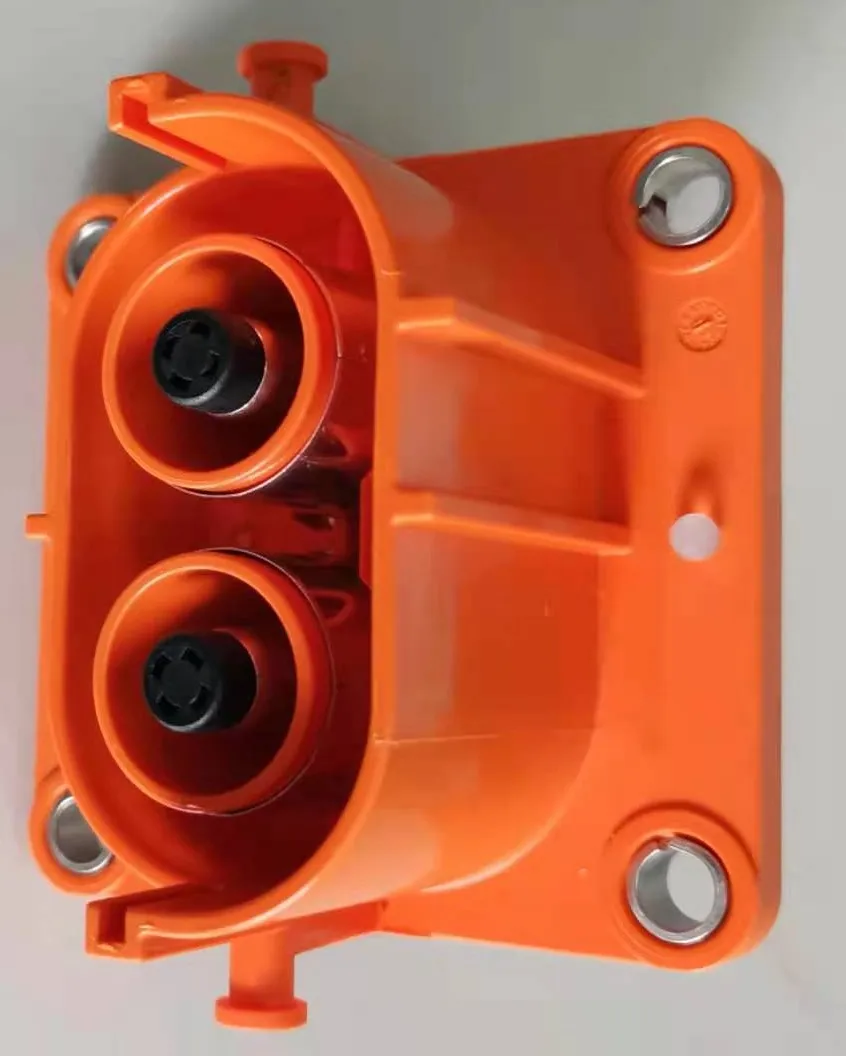

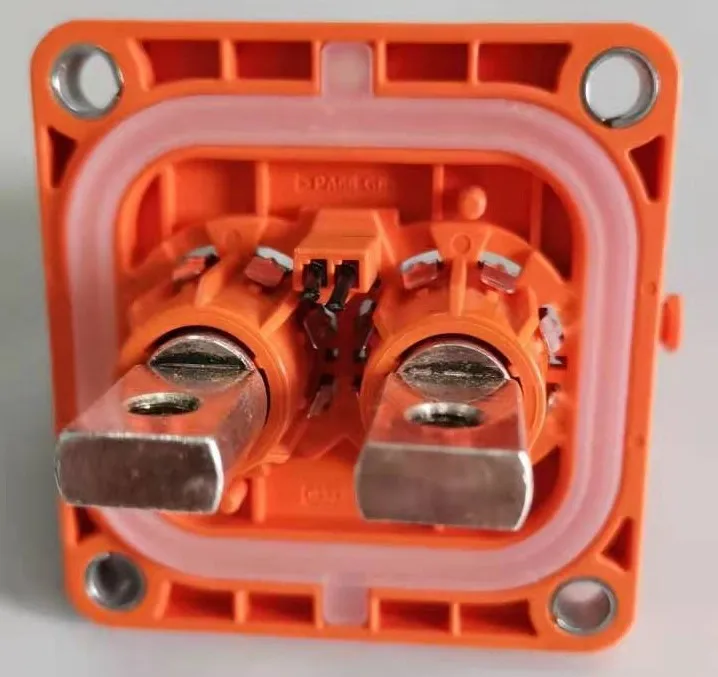

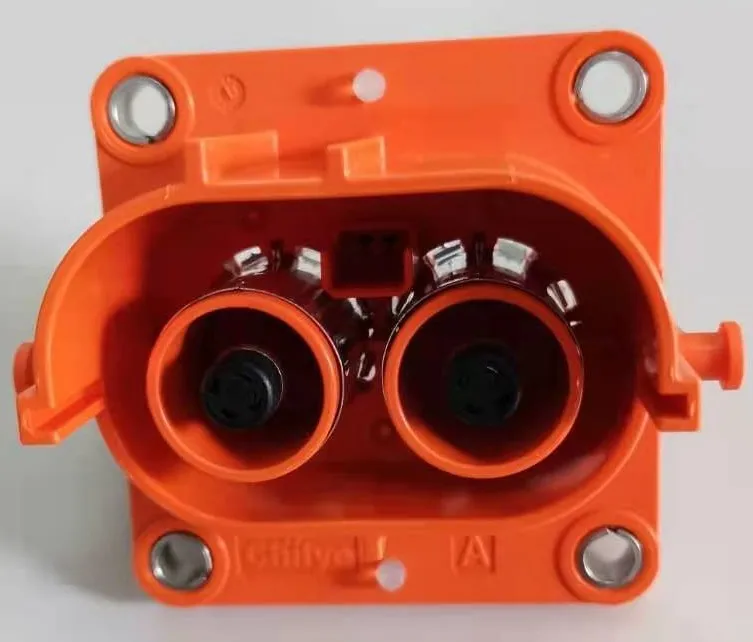

Male
Why Choose Us
Chilye is an enterprise committed to research and development, production, sales of EV charging stations,EV charging cables,EV
charging connectors,High voltage connectors,PDU and MSD.And we also have strong product development capabilities and experieced
technical team to constantly renew and develop new products,also offer ODM&OEM service. . In recent years, Chilye Have gotten more
than 120 patents, most of the products have got quality authentication such as the TUV, UL,CE. Our company has passed through the
IATF16949,ISO 9001, ISO 14001,CNAS certification.
Quality assurance:
All the products will go through lots of tests carefully before dispatch: Raw material check, Assemble test and finished testing
Abundant production capacity:

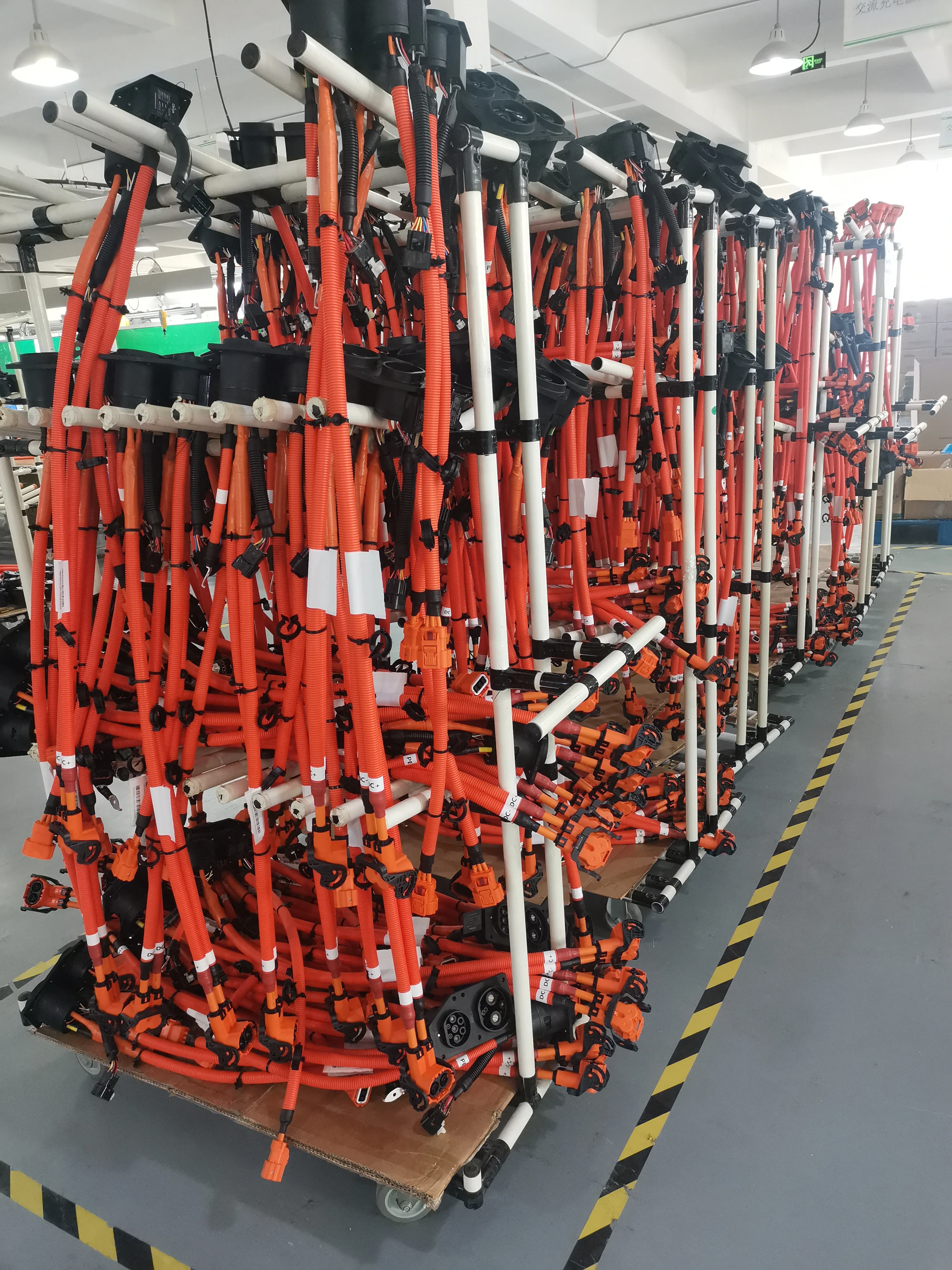

3 Manufacture bases,450 workers,boast a monthly capacity of 250,000pieces.
How about the price?
Ans:We are the real manufacturer and have a competitive price.
How about the quality?
Ans: we offer 2 years quality guarantee.
OEM&ODM Service
Yes
charging connectors,High voltage connectors,PDU and MSD.And we also have strong product development capabilities and experieced
technical team to constantly renew and develop new products,also offer ODM&OEM service. . In recent years, Chilye Have gotten more
than 120 patents, most of the products have got quality authentication such as the TUV, UL,CE. Our company has passed through the
IATF16949,ISO 9001, ISO 14001,CNAS certification.
Quality assurance:
All the products will go through lots of tests carefully before dispatch: Raw material check, Assemble test and finished testing
Abundant production capacity:
3 Manufacture bases,450 workers,boast a monthly capacity of 250,000pieces.
How about the price?
Ans:We are the real manufacturer and have a competitive price.
How about the quality?
Ans: we offer 2 years quality guarantee.
OEM&ODM Service
Yes
Packing & Delivery
Export cartons packed
FAQ
Q1. Can I have a sample order for EV charging cables?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples: 3-5 days(in stock)7-10 days (no stock), mass production:2-4 weeks.
Q3. Do you have MOQ requirement for EV charging cables?
A: No, please contact us freely.
Q4. How do you ship the goods and how long it will take to arrive?
A: We normally ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive at destination. Air or sea shipping is also optional.
Q5. How do you proceed with an order for EV charging cables?
A: Firstly, customer tell us their requirements or application.
Secondly, we quote according to customer's requirements or our suggestions.
Thirdly, customer confirms the samples and pays deposit for formal order.
Fourthly, we arrange production.
Q6. Can I print my logo on EV charging cables?
A: Yes.It depends on your order quantity and trademark(logo) authorization.
Q7: Do you offer guarantee for the EV charging cables?
A: Yes, we offer 2 years warranty to our products.
Q8:why should you buy from us not from other suppliers?
A:Drafting up 6 GB/ industrial standardsOwner of 120 patents
Preferred EVSE supplier
Top 100 company on core components in EV industry
a board member of Chine E-drive Alliance
TS/IATF 16949/ISO 9001,ISO 14001,UL,CE TUV certified
Q9: what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples: 3-5 days(in stock)7-10 days (no stock), mass production:2-4 weeks.
Q3. Do you have MOQ requirement for EV charging cables?
A: No, please contact us freely.
Q4. How do you ship the goods and how long it will take to arrive?
A: We normally ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive at destination. Air or sea shipping is also optional.
Q5. How do you proceed with an order for EV charging cables?
A: Firstly, customer tell us their requirements or application.
Secondly, we quote according to customer's requirements or our suggestions.
Thirdly, customer confirms the samples and pays deposit for formal order.
Fourthly, we arrange production.
Q6. Can I print my logo on EV charging cables?
A: Yes.It depends on your order quantity and trademark(logo) authorization.
Q7: Do you offer guarantee for the EV charging cables?
A: Yes, we offer 2 years warranty to our products.
Q8:why should you buy from us not from other suppliers?
A:Drafting up 6 GB/ industrial standardsOwner of 120 patents
Preferred EVSE supplier
Top 100 company on core components in EV industry
a board member of Chine E-drive Alliance
TS/IATF 16949/ISO 9001,ISO 14001,UL,CE TUV certified
Q9: what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
