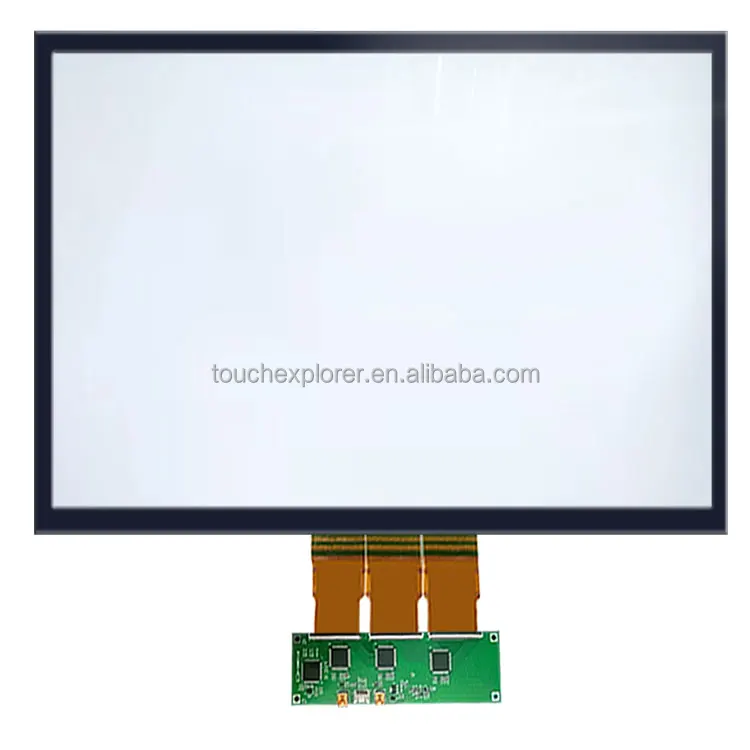

XTB 98Inch Customize Size Multi Touch Foil interactive transparent touch sensor For Touch Table/LED TV/Projector Touch Screen
- Category: >>>
- Supplier: Touch Explorer Photoelectric Co. Ltd.
Share on (1600325215768):
Product Overview
Description
Specification
Product Name | Capacitive touch foil | Series | XTB |
Regular Size | 55"-86"(XTB series) | Other Size | 7”-43” |
Touch Points | 40 Points | Deviation | ≤0.5mm |
Sensor | TX:80(MAX) RX: 142(MAX) | Scanning Speed | 8ms |
FPS | 140 | Power Consumption | 1.15W |
Power Supply | USB(5V+/-5%DC) | Calibration | Software Calibration |
Thickness | ≤200um | Transmittance | ＞93% |
Voltage | 5V | Transmission | USB2.0 |
Transmit Distance | ≤50m(Add USB signal amplifier) | Safe Distance | 2mm |
Operating Temperature | -20℃~70℃ | Storage Temperature | -20℃~80℃ |
Touch Gesture | Click/drag/zoom/rotate | Warranty | 1Year |

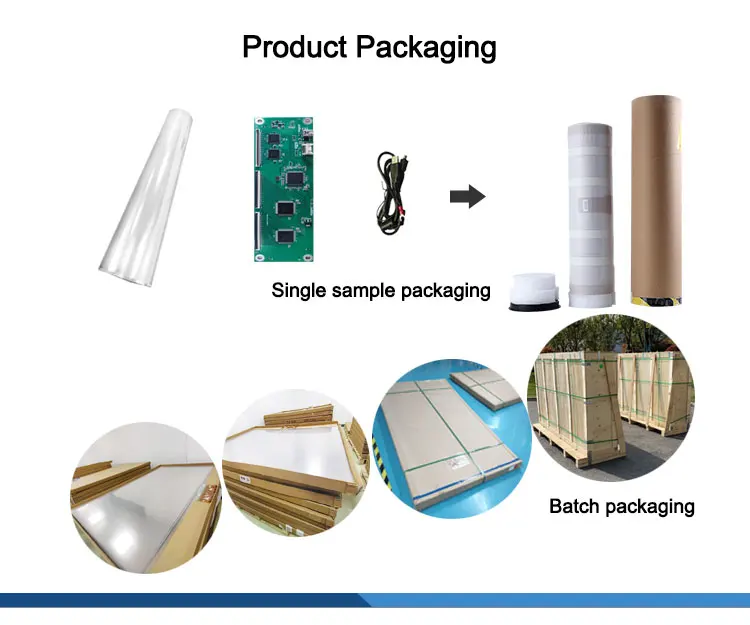

Ambient Lightness | Full-angle anti-glare Illumination | Packing List | Touch foil*1 Controller*1 USB Cable*1 |
Support Systems | Win/android/linux | Certificates | ROHS CE FCC ISO |
Related Products
FAQ
Q: What operation system it support ?
A: WIN7 /WIN8 /Linux (Ubuntu 2.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel version>A20->3.3.0,RK3188->3.0.36)
Q: What is your MOQ?
A: 1pcs
Q: Which certificates passed ?
A: CE,FCC,RoHs.
Q: How proceed the order?
A: online or offline
Q: What is your guarantee period?
A: 1year touch foil warranty.
Q: What is your delievey time ?
A: Sample order : within 5 days, 5-12 working days for bulk production after confirmed
Payment terms:
TT, Western Union, PAYPAL, Trade Assurance.
1) For sample order : 100% T/T, Western Union, Paypal.
2) For bulk order more than ten thousand dorllors : 30% T/T in advance. 70% Blance before delivery.
