ms4345 high isolation semi automatic rf shield box for Emi Wifi GSM Signal Test Manual shielding box enclosure
- Category: >>>
- Supplier: Shenzhen Osbay Technology Co. Ltd.
Share on (1600325220071):
Product Overview
Description
Product Description
Product Name | ms4345 high isolation semi automatic rf shield box for Emi Wifi GSM Signal Test Manual shielding box enclosure |
Material | Stainless steel |
Function | Signal blocking for testing wireless products |
Frequency | 0.8GHZ-6GHZ |
Isolation: | 0.8GHZ-6GHZ≥70dB |
Interior Size: | (L)405x(W)419x(H)301mm |
Box Size: | (L)444x(W)550x(H)383mm |
Exterior Size: | (L)486x(W)520x(H)342mm |
Communication interface type | RS232,DB25,USB2.0,USB3.0,DC,AC,RJ45,RJ11,HDMI,VGA,AV3.5,ect. |
RF connector type | SMA-KK,N-KK.N/SMA-KK,BNC-KK,ect. |
Net Weight | 35KG |
Package | Wooden Package for ms4345 high isolation semi automatic rf shield box for Emi Wifi GSM Signal Test Manual shielding box enclosure |
Product Performance Description
MS4345 is a semi automatic rf shield box, suitable for building a module and terminal testing solution platform in the
fields of smart phones, WI-FI, Bluetooth, smart grid equipment, automotive electronics, drones, and smart homes and so on.
It is made of more than a dozen rigorous processes such as the CNC laser cutting of sheet metal, sheet metal forming,
electroplating, electrostatic spray painting, assembly and debugging, testing, etc., with several advantages like high shielding
effectiveness, firm structure, and stable performance.
fields of smart phones, WI-FI, Bluetooth, smart grid equipment, automotive electronics, drones, and smart homes and so on.
It is made of more than a dozen rigorous processes such as the CNC laser cutting of sheet metal, sheet metal forming,
electroplating, electrostatic spray painting, assembly and debugging, testing, etc., with several advantages like high shielding
effectiveness, firm structure, and stable performance.
Details Images
ms4345 high isolation semi automatic rf shield box for Emi Wifi GSM Signal Test Manual shielding box enclosure has the following details ：

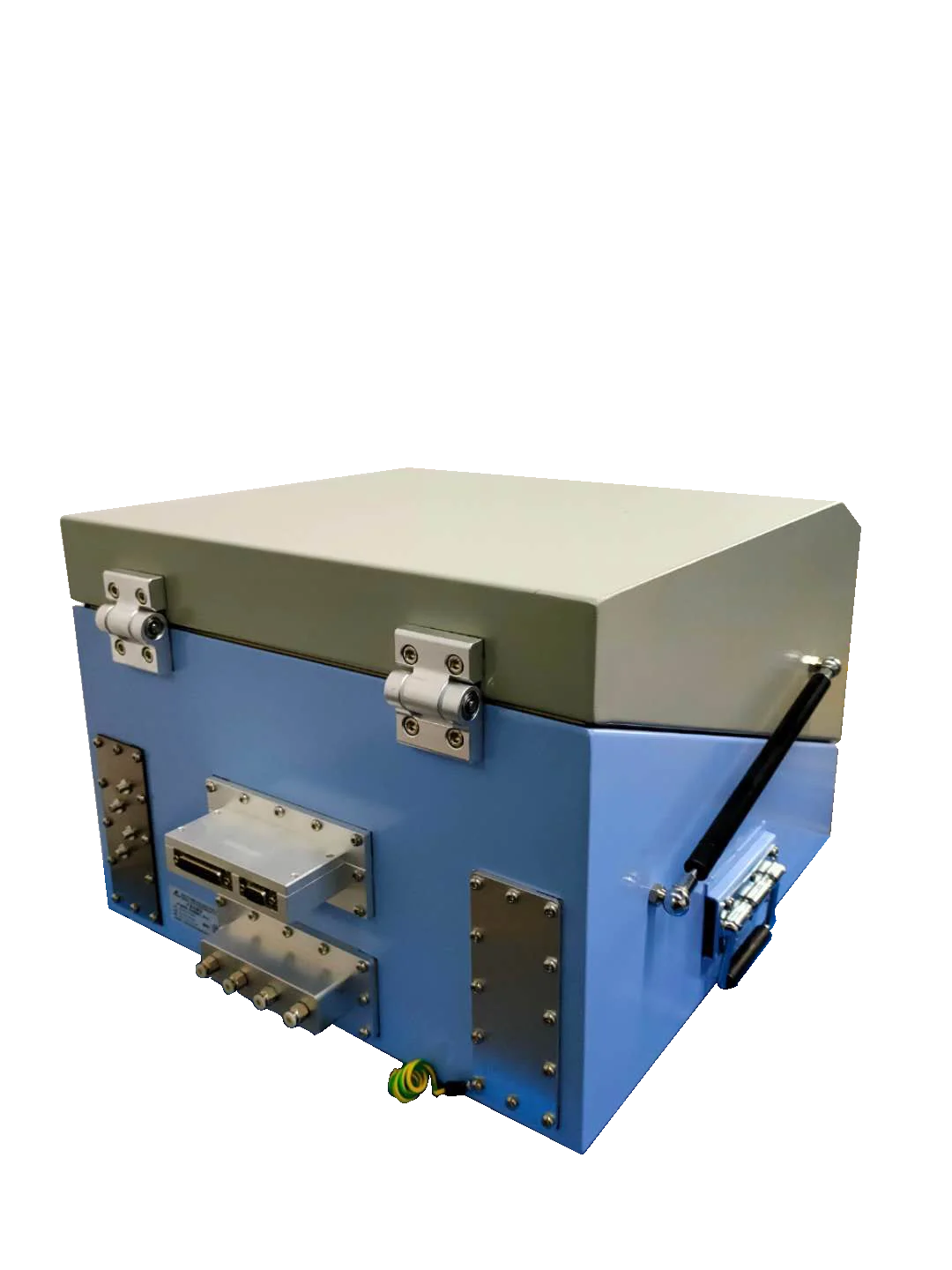

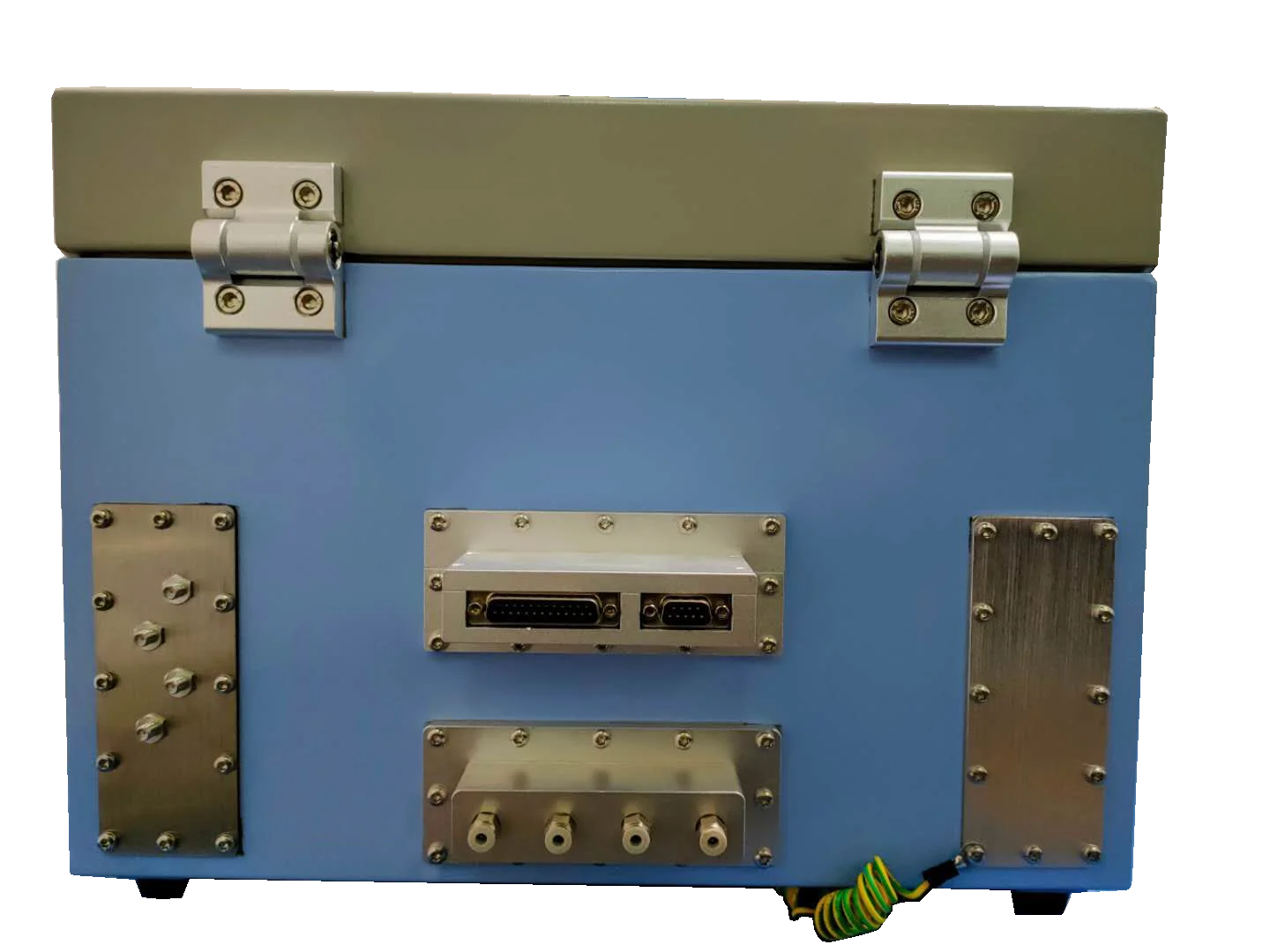

The MS4345 shielding box body adopts two different colors, blue and gray, to enhance the product texture;

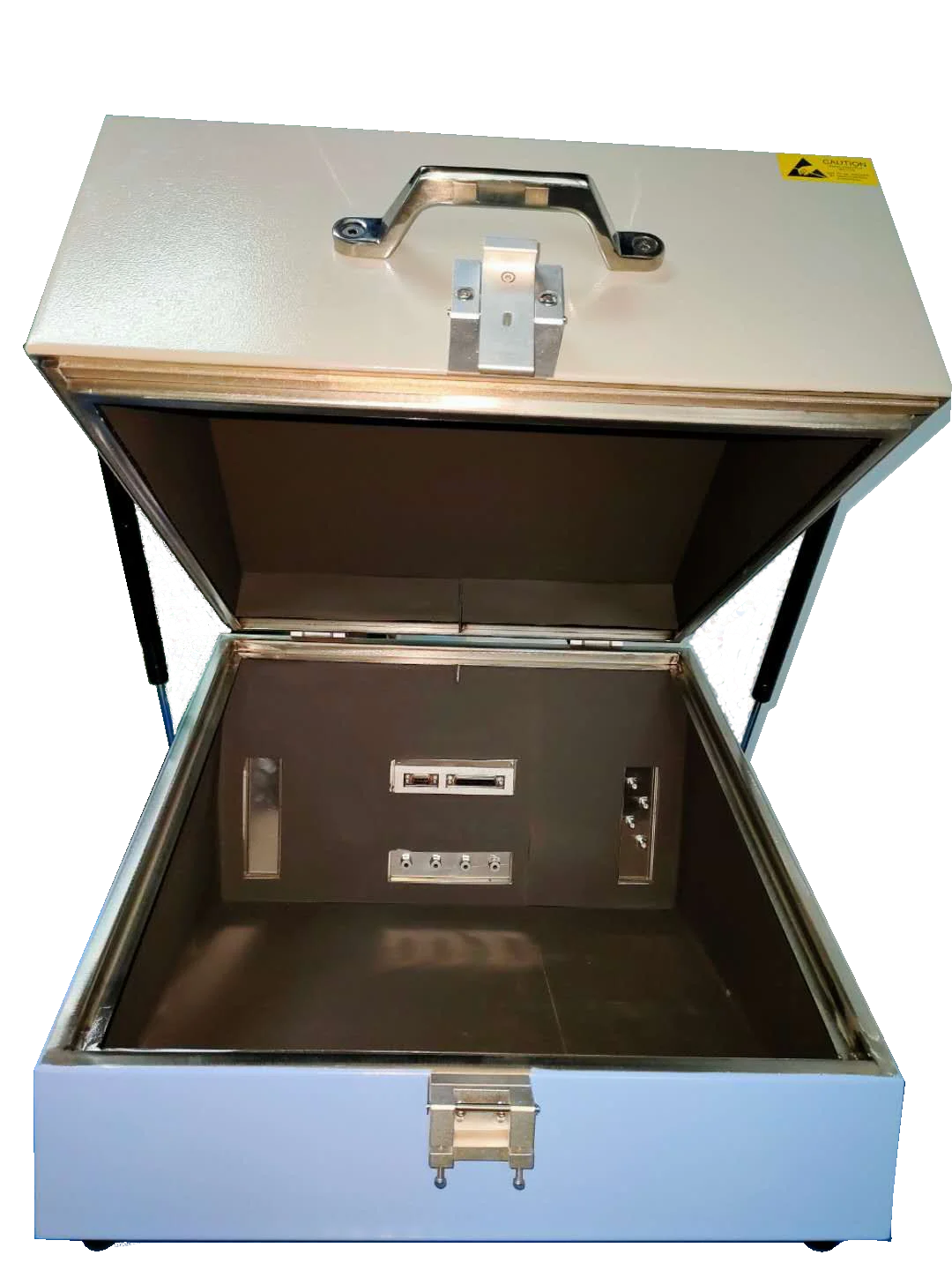

The high-quality gas spring is installed, which makes it easy to open the cover and has a long service life.
The high-quality gas spring is installed, which makes it easy to open the cover and has a long service life.
The MS4345 RF shield box body is stamped from 2MM stainless steel plate, which is sturdy, reliable and not easy to rust;;

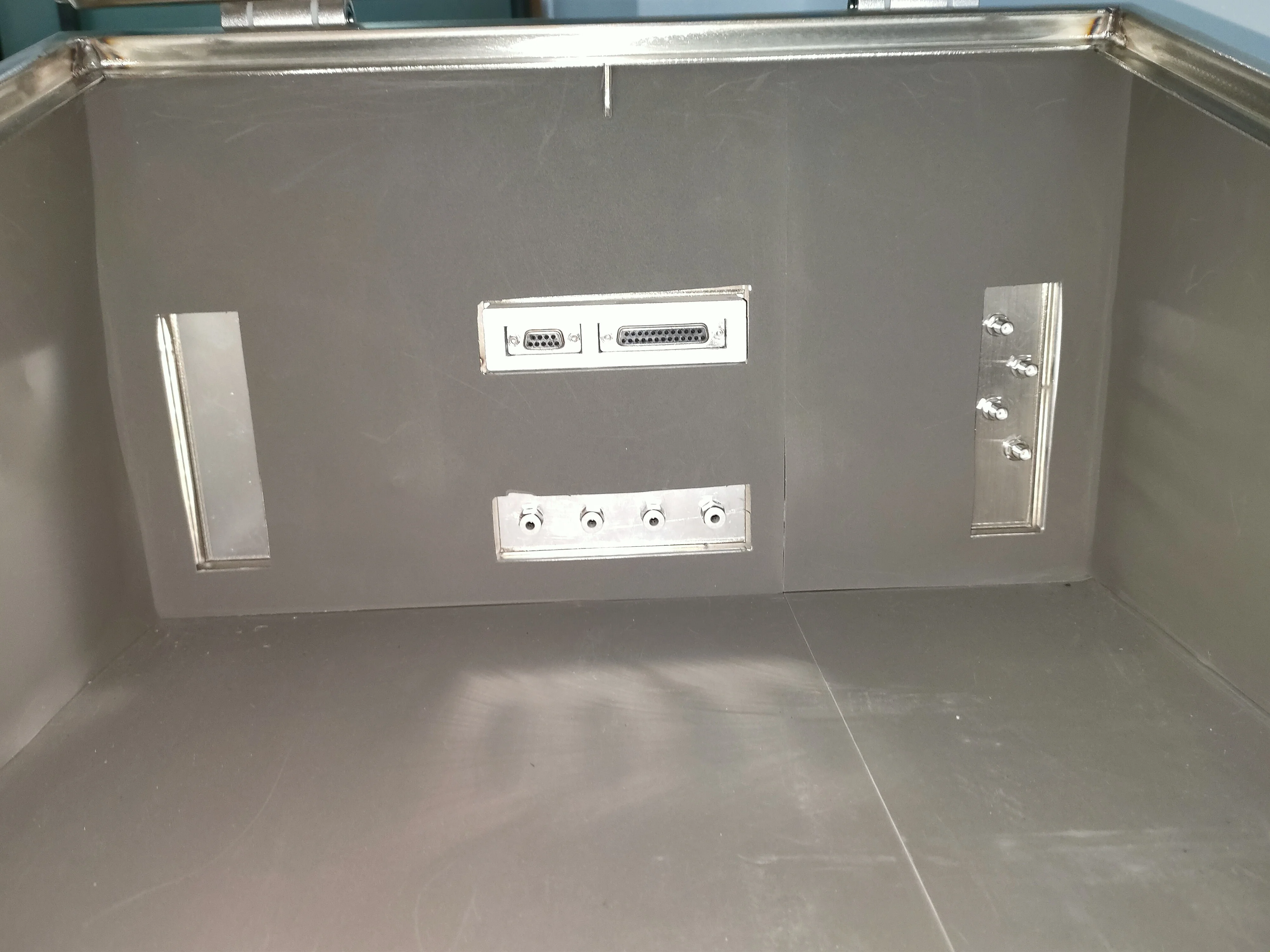

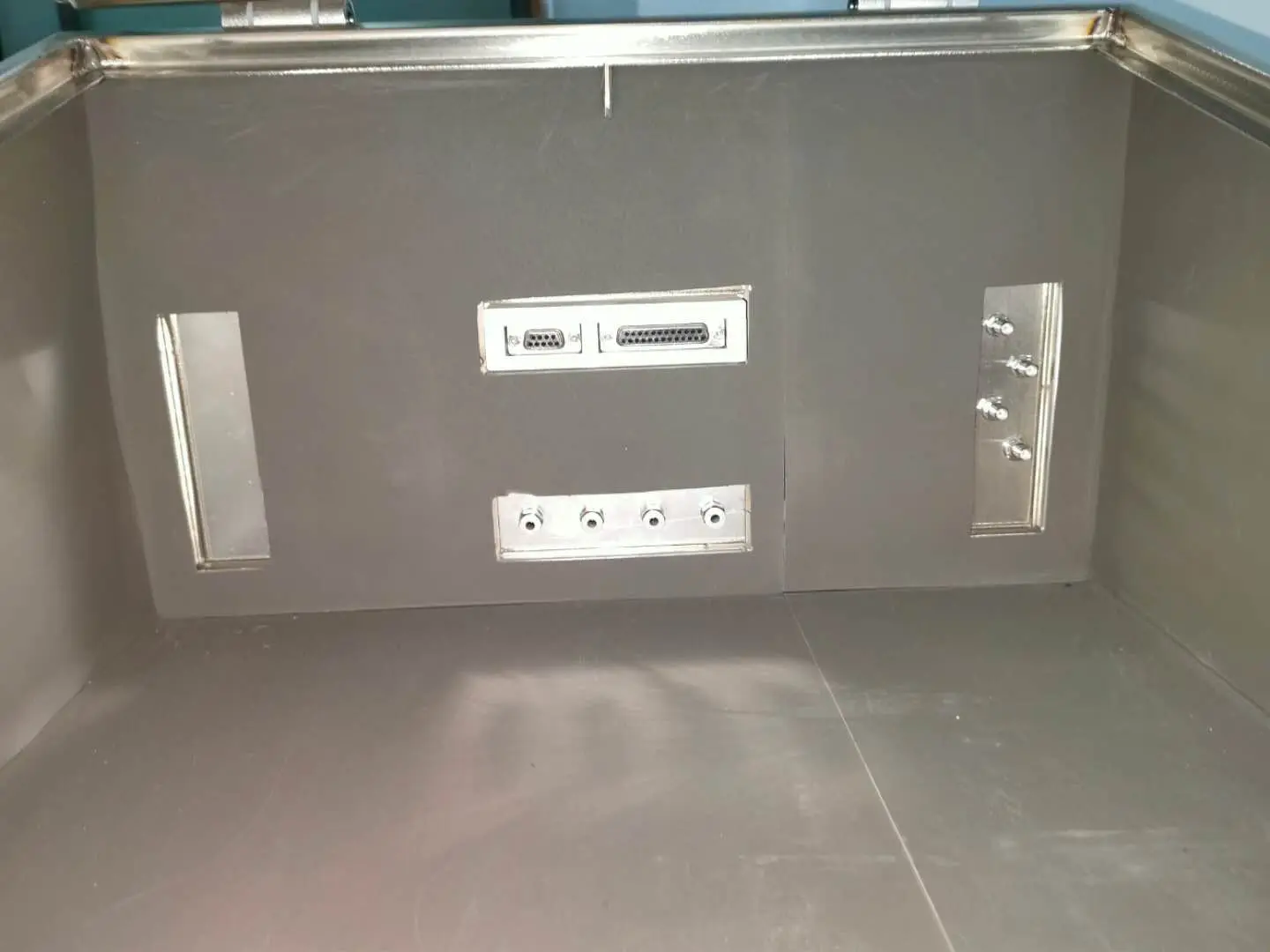

The interior of the high isolation shielding box adopts the latest absorbing materials, which has strong absorbing ability and good blocking ability;
The manual shielding box adopts squeeze type sealing design, which has better shielding effect;

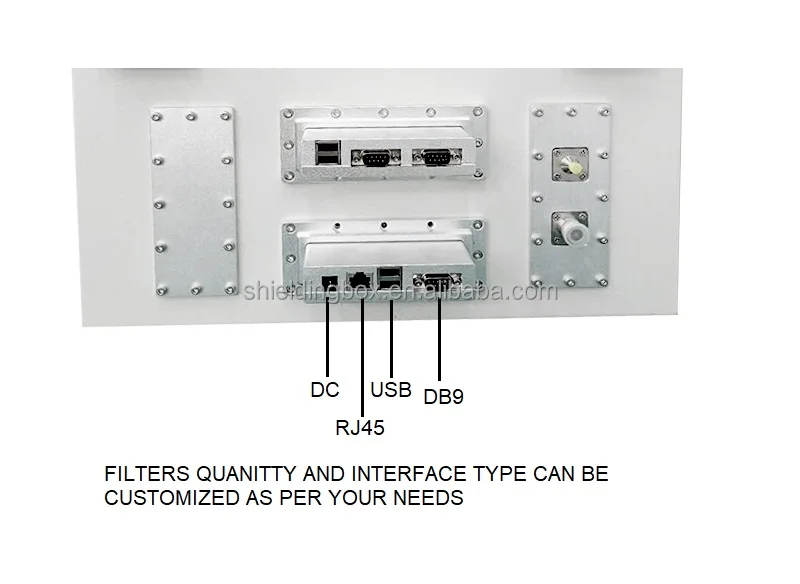

MS4345 RF shield enclosure can be used to test WIFI routers, set-top boxes, 4G/5G mobile phones, drones, Bluetooth, car keys, wireless water and electricity meters, etc. Therefore, in addition to the built-in 4 SMA interfaces, customers can choose other interfaces according to the test requirements , Such as: RS232, DB25, DB37, RJ45, AC, DC, USB, HDMI, VGA, etc.
Product Usage
Product introduction

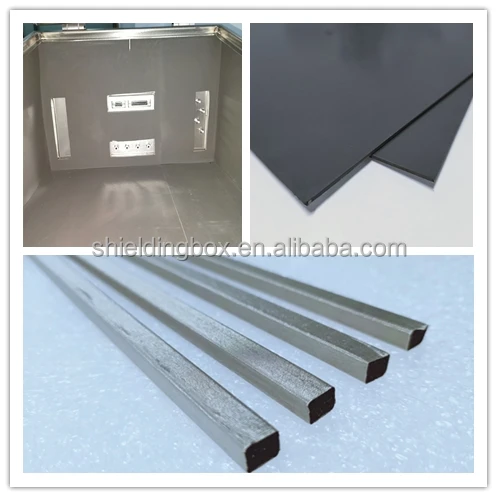

The MS4345 RF shield box door frame and door are all pasted with conductive cotton to improve the isolation of the shielding box.
The RF shielding box internal adopts the latest absorbing materials,with 1-18GHz, 2.0MM, greatly improves the absorbing effect and isolation

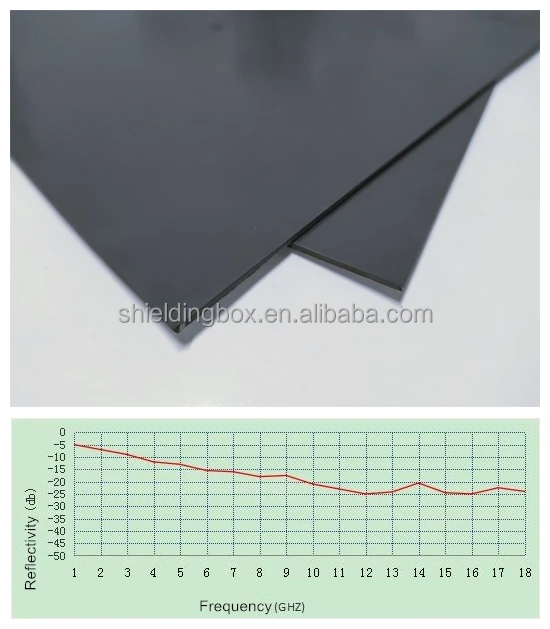

Description of Absorbing material：
1.Raw material structure:
Polyurethane flexible foam, conductive materials, dielectric materials；
Polyurethane flexible foam, conductive materials, dielectric materials；
2. Size:
200*200*2.0mm
200*200*2.0mm
3. Working temperature:
-35°/+70°
-35°/+70°
4. Electrical performance:
Frequency： 1-18GHz≥-28dB
5.Standard:
Compliance with EU environmental protection guidelines
Compliance with EU environmental protection guidelines
Related Products
Packing&Shipping
Wooden Package for designing and manufacturing leading edge 433x451x310 pneumatic single-layer shielding box tojoin suppliers Emi Wifi GSM Signal Test Rf Shield Box, is packaged in export-free inspection and fumigation-free wooden boxes, with a firm structure. Ensure that the shielding box is not easily damaged during transportation. This kind of wooden box is suitable for long-distance transportation, including sea and air transportation, and can be exported to any country in the world.
Any query, please feel free to contact with us
Company Introduction
Osprey Technology Limited is one of the leading professional manufacturer in the electromagnetic compatibility (EMC)
field, provide full range of EMI shielding materials and EMC solutions.
Our EMI shielding materials are widely used for various communication, computer, medical equipment, shielding room, MRI room, EMC chamber, electronics, military equipment, etc.
We have cooperated with a group worldclass customers from all industries at home and abroad.
field, provide full range of EMI shielding materials and EMC solutions.
Our EMI shielding materials are widely used for various communication, computer, medical equipment, shielding room, MRI room, EMC chamber, electronics, military equipment, etc.
We have cooperated with a group worldclass customers from all industries at home and abroad.
Our Services & Strength
Customized design:We are able to offer whatever size you need according to your DUT.
Low MOQ:Our OEM/ODM starts at as few as 1-10 pcs of one design to fit your needs.
Fast Delivery:Delivering the products within 3 business days for some models.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and also we can help to buy other parts for clients.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-20 days against the quantity if the goods are not in stock.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with charge
Q: What is your warranty?
A: One year
If you have another question, pls feel free to contact us as below:
Others
Shielding box full box without breaking hole design (Filter, SMA holes excluded), the frequency band is 1GHz ~ 6GHz, isolation is
more than 80dB. Shielded box opened and closed is controlled by the manual button or through RS232 interface communication
command. The rf shielding chamber or enclosures opens way is to take a large angle clamshell to facilitate operation. To prevent
the hand grip design avoids industrial safety accident. In accordance with testing requirements can choose to use different filter
interface.
