Низкотемпературная вакуумная ленточная сушилка для промышленности фармации, продуктов питания, химии, новых материалов и новой энергии
- Category: >>>
- Supplier: Changzhou Shinma Drying Engineering Co. Ltd.
Share on (1600325260435):
Product Overview
Description
Product Overview

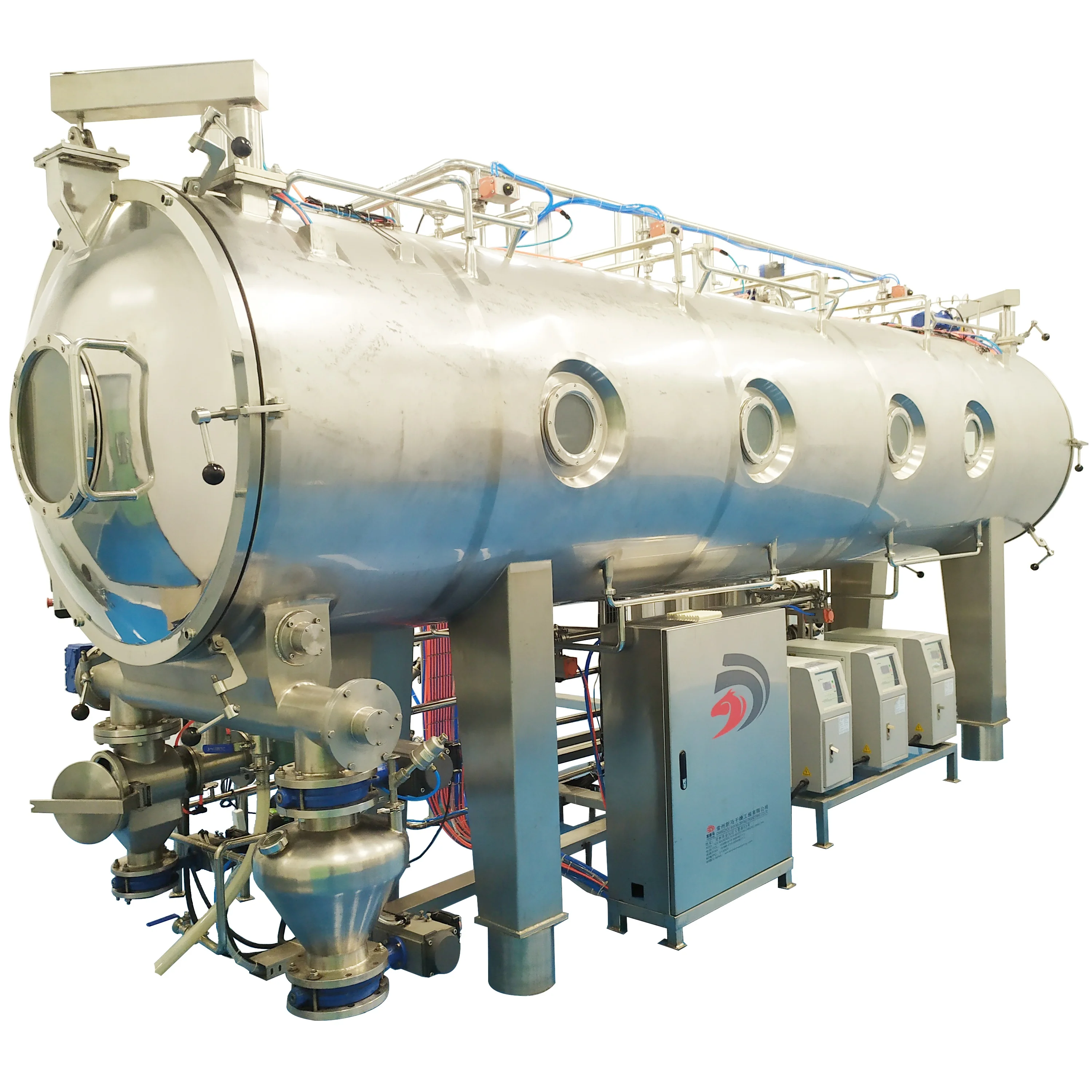

XMVBD Vacuum Belt Dryer
Integrating the advantages of similar products in the same industry at home and abroad, through precise process calculation and repeated experiments, an intelligent drying equipment with high efficiency, energy saving, continuous feeding and discharging,full coverage of CIP cleaning and multi-self-control management was developed.
The company has a 10,000-grade clean laboratory, equipped with XMVBD6 testing machine. Welcome customers to carry material test,customize design according to customer needs and test data, provide more reliable, more flexible, consistent with customer wishes of low- temperature continuous drying solutions, help customers produce more high-quality, safer, more energy-saving and environmental protection products.
The company has a 10,000-grade clean laboratory, equipped with XMVBD6 testing machine. Welcome customers to carry material test,customize design according to customer needs and test data, provide more reliable, more flexible, consistent with customer wishes of low- temperature continuous drying solutions, help customers produce more high-quality, safer, more energy-saving and environmental protection products.
FEATURES AT A GLANCE
Pharmaceutical industry: such as Chinese herbal extract, vitamin C, antibiotics, active substances, fermentation broth, natural
pharmaceutical raw materials, etc.
Food industry: such as wheat extract, tea powder, food additives, condiments, instant soft drinks, oligosaccharides, vegetable
protein, etc.
Fine chemical industry: enzymes, flavors, pharmaceutical intermediates, surfactants, etc.
Environmental protection energy industry: such as bio-organic fertilizer, activated sludge treatment, etc
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Heat transfer area(㎡) | 10 |
2 | Total heat transfer area(㎡) | 10.4 |
3 | Heating plate length(mm) | 1400 |
4 | Heating plate width(mm) | 1000 |
5 | operation temputure | 40~120℃ |
6 | Number of tapes(layers) | 2 |
7 | Inner diameter of cylinder(mm) | 1400 |
8 | cylinder length(m) | 7.3 |
9 | Number of heating plates | 8 |

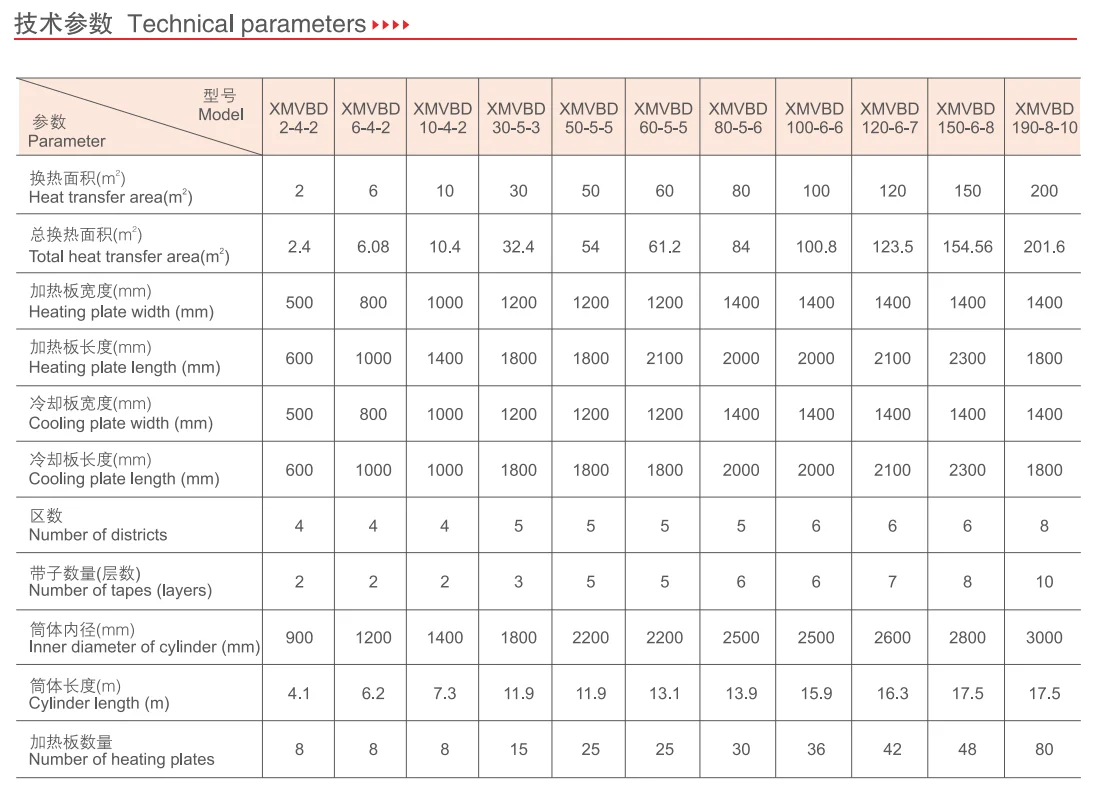

Other model technical parameters

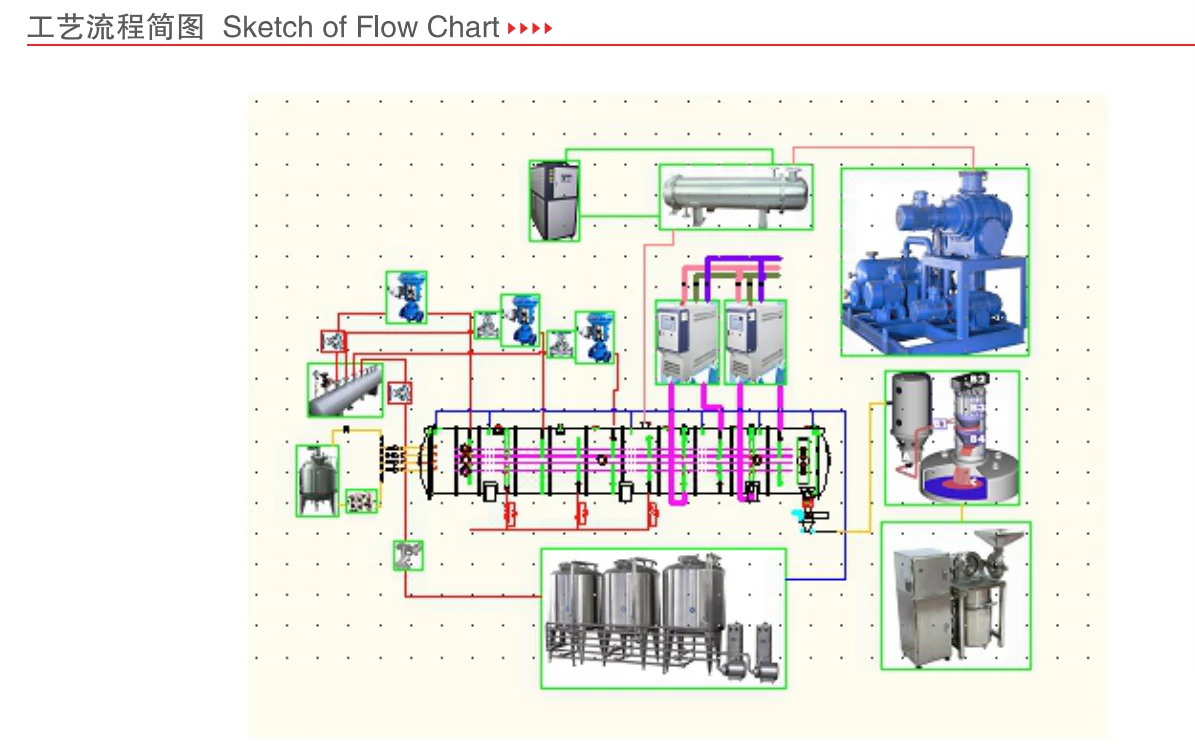

Sketch of Flow Chart
