ISO179 Standard Chapry Izod Impact Tester

Product Overview

Description

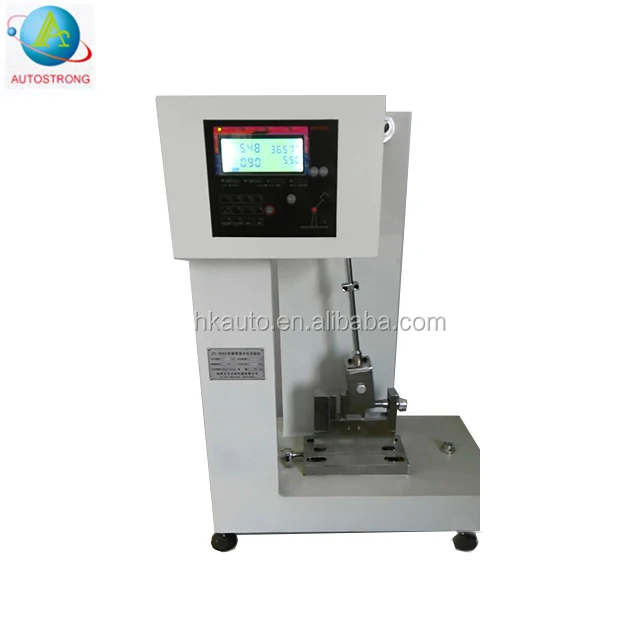

ISO179 Standard Chapry Izod Impact Tester

Model:AUTO-IK2



Application:

Izod and Charpy Pendulum Impact Tester is mainly used to measure the impact toughness of the rigid plastics (including plates, tube stock and plastic profile), reinforced nylon, glass steel, ceramic, cast stone, electrical insulating materials and other non-metal. It is an ideal test equipment for chemical industry, scientific research units, colleges and universities to test the materials’ performance.



Features:

The main technical parameters of this impact test machine totally meet the requirements of  ISO179, JB/T8762 and other standards. It is featured with intuitional digital display, simple structure, easy operation and accurate data.



Technical Parameter:

Specification	Technical Requirements
Pendulum Pre-elevation	150°±1°
Izod impact center distance	335mm
Izod impact Blade fillet radius	0.8±0.5mm
Izod impact distance between blade and Jaw	22±0.2mm
Charpy Impact center distance	395mm
Charpy Impact Blade fillet radius	2±0.5mm
Charpy Impact blade Angle	30±1°
Charpy Jay fillet radius	1.0±0.1mm
Impact Energy	1J,5.5J,7.5J,15J,25J,50J





1.How to choose the most suitable products?

Our professional team will give you the best suggestion,when you need some products to make the test,just be patiently to tell us the information about your test sample,the parameters your required.Our team may help you to find the best one.



2.Can payment term be changed?

Yes,it is negotiated,please just tell us your ideal payment.We may arrange as your requirements.



3.How can I make sure for your quality?

Don't worry about that,we can also offer you the third party calibration as your requirements,all products can be sent to  Metrology Institute.And also,our factory have pass ISO9001 and CE test.Also with the the calibration of CNAS,ILAC.



4.How to choose the Transportation Term?

Usually,we may according to your needs,we may choose the most rasonable freight,then to select for you.



5.How long does the warranty takes and what are the after sales services?

Usually,our warranty is one year,but also it can accordingly lasting as your requires.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.



If you still have question,please feel free to contact us, thanks in advance !
