Напольный Пластик hdpe geocell гравийная сетка контроль эрозии натуральный материал geocell по отличной цене
- Category: Earthwork Products >>>
- Supplier: Anhui,Zhonglu,Engineering,Materials,Co.,Ltd.
Share on:
Product Overview
Description
floor plastic hdpe geocell gravel grid erosion control virgin material geocell with great price
Product Name | HDPE Geocell |
Cell Depth | 50, 75, 100, 125, 150, 200mm |
Weld Spacing | 330, 356, 400, 445, 660, 712mm |
Thickness(Texturing) | 1.50, 1.52, 1.60mm |
Thickness:(Smooth) | 1.10, 1.20mm |
Colour | Black, Sand, Yellow |
Standard | ASTM, ISO |
Introduction
Geocell is a net-shaped cell structure made from high density polyethylene by welding high intensity thermoplastic sheet, it is flesible to fold during transportation, stretching out and being filled with stone or concrete during service, and fourming into structure with powerful lateral confinement and rigidity.
Geocell is a net-shaped cell structure made from high density polyethylene by welding high intensity thermoplastic sheet, it is flesible to fold during transportation, stretching out and being filled with stone or concrete during service, and fourming into structure with powerful lateral confinement and rigidity.
Geocell | ||||||||
item | PP | PE | ||||||
tensile strength of Strip ≥（Mpa） | 23 | 20 | ||||||
Tensile strength of weld ≥（N/cm） | 100 | 100 | ||||||
Tensile strength of cell edge ≥（N/cm） | 200 | 200 | ||||||
Intermediate tensile strength of cell sheet ≥（N/cm） | 120 | 120 | ||||||
Load Support
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3Dcellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances
load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.

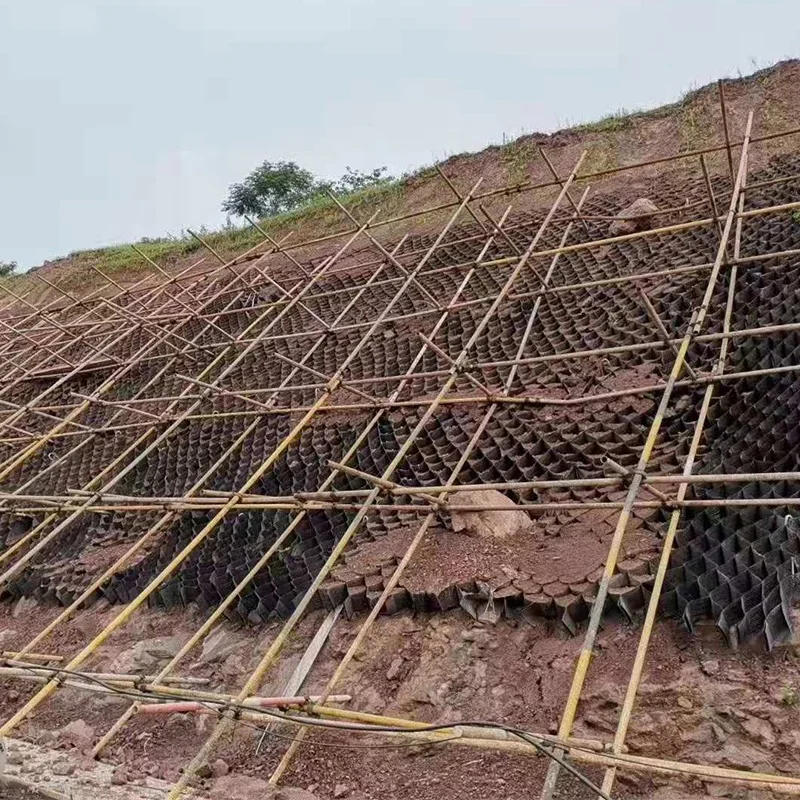

Slope Pretection
The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term
stability of slopes using vegetated topsoil, aggregate or concrete surfacing
The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term
stability of slopes using vegetated topsoil, aggregate or concrete surfacing
Gruound Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior
material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include
reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement;
working platforms in intermodal ports; airport runways.
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior
material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include
reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement;
working platforms in intermodal ports; airport runways.
Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced
walls) for steep faces, walls and irregular topography
Anhui Zhonglu Engineering Materials Co.,ltd ,with a registered capital of 52 milion,is located in hefei China. It is a high-tech
enterprise integrating the production, development and sales of new geosyntheticsuch as geotextile, geomembrane geogrid, warp knitted composite, geonet, waterproof and dranage board.
enterprise integrating the production, development and sales of new geosyntheticsuch as geotextile, geomembrane geogrid, warp knitted composite, geonet, waterproof and dranage board.
Zhonglu Geosynthetics, as leading manufacturer of geosynthetics materials, enables our company to provide customers excellent delivery time and high quality products.
Q：Can you send samples?
A：Yes, we are very happy to provide you with free samples to check the quality of our products.
Q：Are you a manufacturer or a trading company?
A：Our company located in Hefei，Anhui Province，with are gistered capital of 52 miion yuan. It is a professional
manufacturer of geomembrane, geotextile, geogrid and other products. So we have the competitive price with best quality.
Q：Can you produce the product according to customers' requirements?
A:Sure，we are professional manufacturer，OEM and ODM are both welcome.
Q：How long is the delivery time?
A:General within 3-7days after received the deposit.
Q:How to control product quality?
A:Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
Q：Are you a manufacturer or a trading company?
A：Our company located in Hefei，Anhui Province，with are gistered capital of 52 miion yuan. It is a professional
manufacturer of geomembrane, geotextile, geogrid and other products. So we have the competitive price with best quality.
Q：Can you produce the product according to customers' requirements?
A:Sure，we are professional manufacturer，OEM and ODM are both welcome.
Q：How long is the delivery time?
A:General within 3-7days after received the deposit.
Q:How to control product quality?
A:Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
