IP 8560P ip network 60/120/240/360/500/650 w network audio digital ip amplifier pa system
- Category: >>>
- Supplier: Guangzhou Yingen Electronics Co. Ltd
Share on (1600325311482):
Product Overview
Description

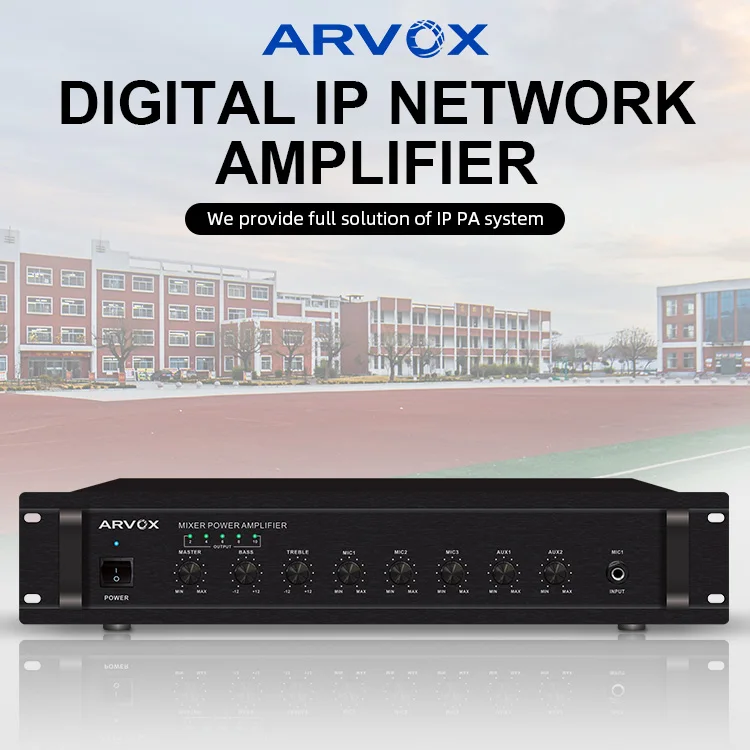

IP-8560P ip-network 60/120/240/360/500/650 w network audio digital ip amplifier pa system
Our Advantages
Products Description
Descriptions
* High-grade aluminum 2U black pull panel, cabinet-style installation, beautiful and generous;

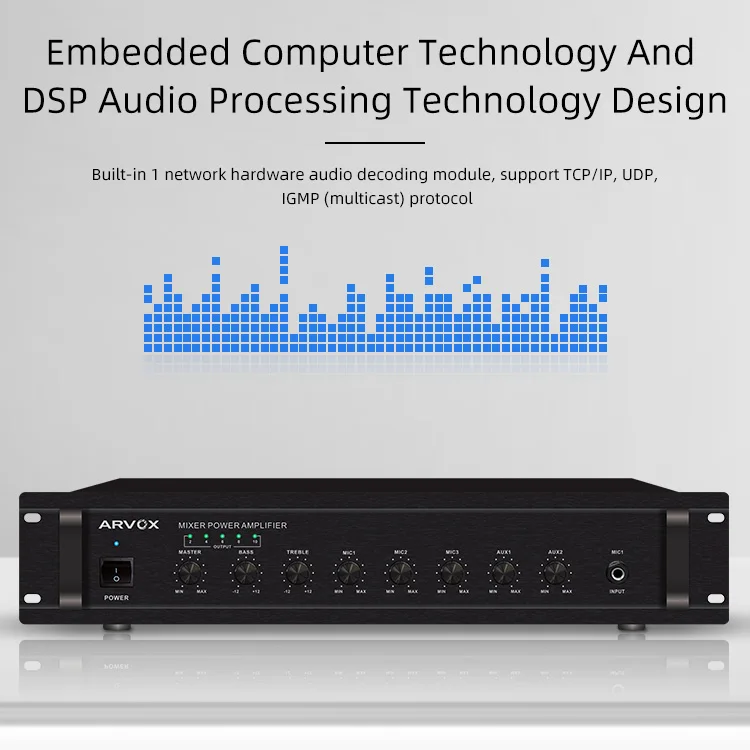

* The equipment is designed with embedded computer technology and DSP audio processing technology;
* The use of high-speed industrial-grade chips, start-up time is less than 1s;
* It is provided with a 100V, 70V fixed-pressure output and a 4-16-degree fixed-stop output;
* Five signal inputs (three microphones, two routes);
* 1 audio signal auxiliary output interface, expandable external power amplifier;

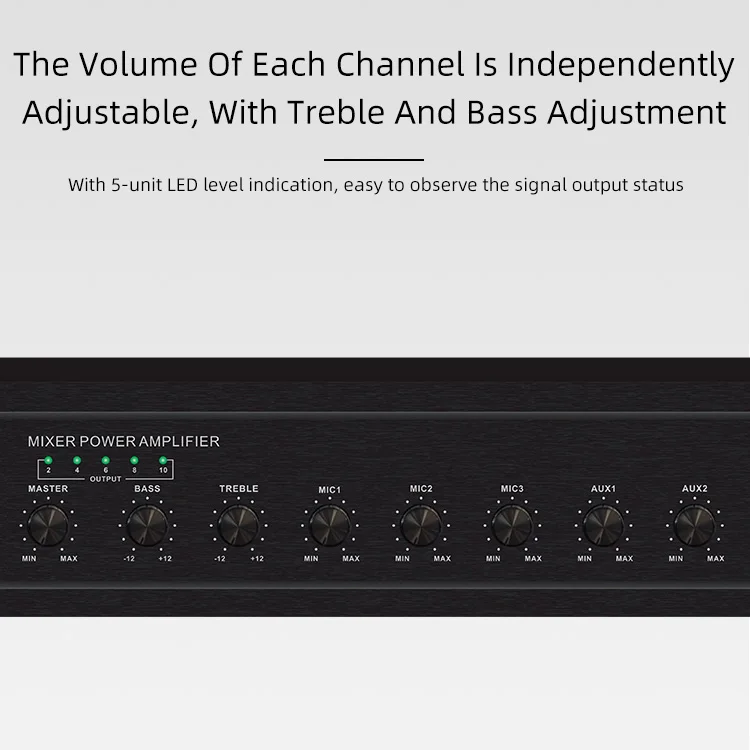

* Each channel volume is independently adjustable, with treble and bass adjustment;
* MIC1 automatic silent sound with adjustment switch, adjustable range: 0 to -30dB;
* With 5-unit LED level indication, easy to observe the signal output status;
* MIC1 automatic silent sound with adjustment switch, adjustable range: 0 to -30dB;
* Three-wire sound control strong cut output interface, unlimited number of audio control;
* Built-in DC24V power output for strong cutting 4-wire sound control;
* 1 set of short-circuit signal input, through the software settings can trigger the native alarm;
* 1 set of short-circuit signal trigger outputs to drive other linkage devices;

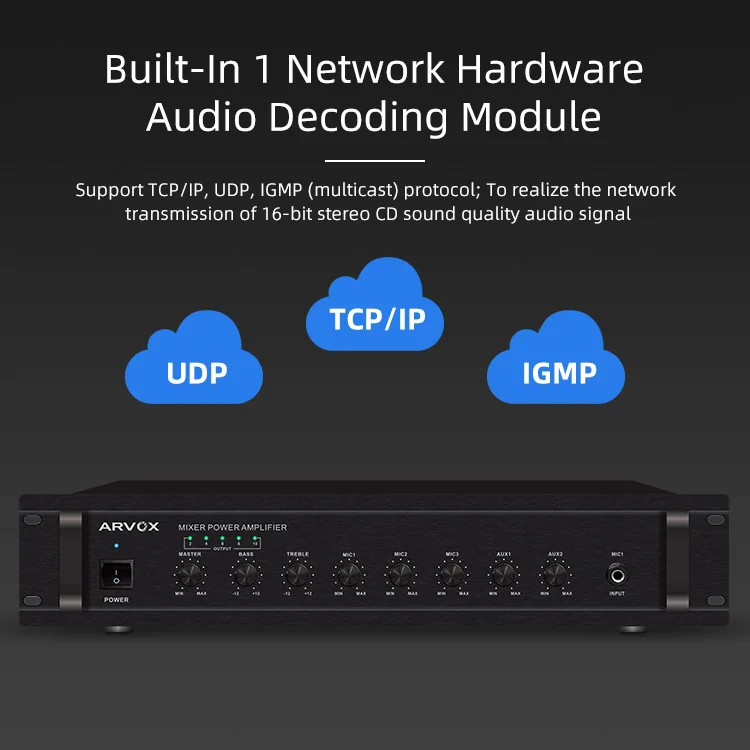

* Built-in 1 network hardware audio decoding module, support TCP/IP, UDP, IGMP (multicast) protocol;
* To realize the network transmission of 16-bit stereo CD sound quality audio signal;
* Support for 1000 levels of custom audio priority silent sound control;

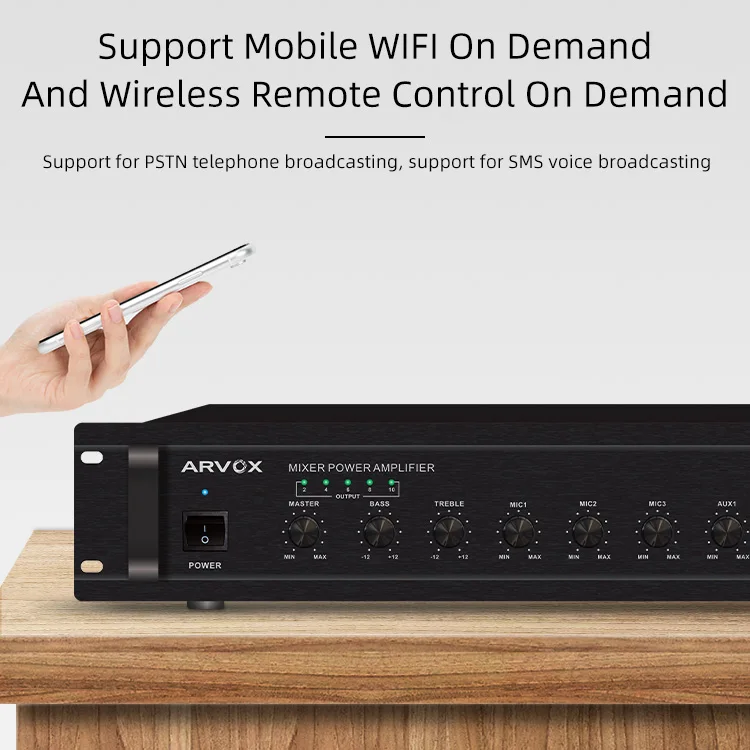

* Support for PSTN telephone broadcasting, support for SMS voice broadcasting;
* Support mobile WIFI on demand, support wireless remote control on demand;
* Support the server unified authorization operation management function, unified configuration management users and passwords;

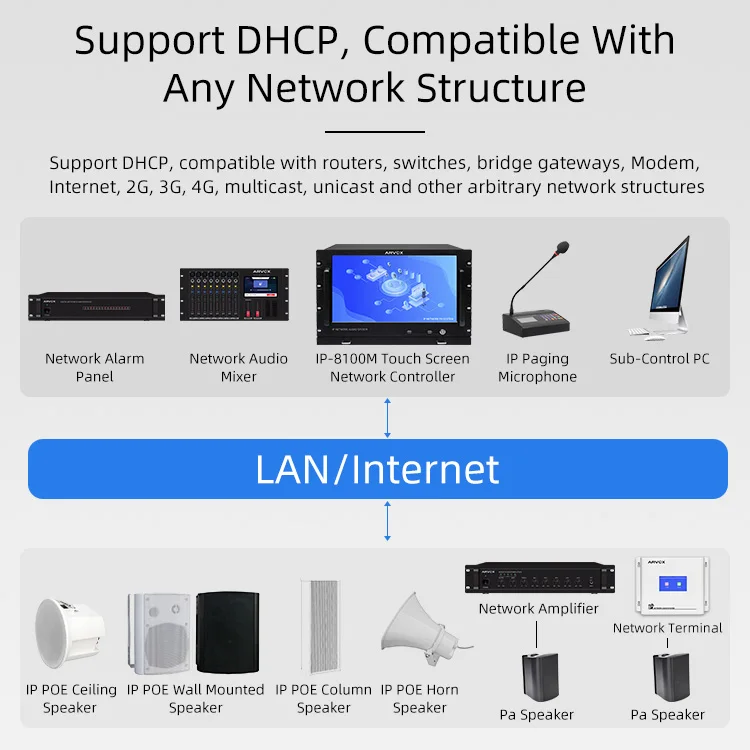

* Support DHCP, compatible with routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, multicast, unicast and other arbitrary network structures;
* Supports the smart voice prompt function when the terminal is newly configured for registration (e.g. the device is connected);
* Support for 15KVESD protection, built-in network isolation lightning treatment circuit;
* 1 PC to download IP address serial port, used to modify the network decoding module IP address;
* Digital networked products, easy to expand, not limited by geographical location, no need to increase room management equipment;
* The design concept of the network-free line construction is adopted, and the installation is simple;
* The cooling fan is activated with intelligent temperature control;
* Standby power is less than 3W, to meet the national environmental protection and energy conservation certification standards;
* With a perfect output short-circuit protection and over-temperature protection function
* High-grade aluminum 2U black pull panel, cabinet-style installation, beautiful and generous;
* The equipment is designed with embedded computer technology and DSP audio processing technology;
* The use of high-speed industrial-grade chips, start-up time is less than 1s;
* It is provided with a 100V, 70V fixed-pressure output and a 4-16-degree fixed-stop output;
* Five signal inputs (three microphones, two routes);
* 1 audio signal auxiliary output interface, expandable external power amplifier;
* Each channel volume is independently adjustable, with treble and bass adjustment;
* MIC1 automatic silent sound with adjustment switch, adjustable range: 0 to -30dB;
* With 5-unit LED level indication, easy to observe the signal output status;
* MIC1 automatic silent sound with adjustment switch, adjustable range: 0 to -30dB;
* Three-wire sound control strong cut output interface, unlimited number of audio control;
* Built-in DC24V power output for strong cutting 4-wire sound control;
* 1 set of short-circuit signal input, through the software settings can trigger the native alarm;
* 1 set of short-circuit signal trigger outputs to drive other linkage devices;
* Built-in 1 network hardware audio decoding module, support TCP/IP, UDP, IGMP (multicast) protocol;
* To realize the network transmission of 16-bit stereo CD sound quality audio signal;
* Support for 1000 levels of custom audio priority silent sound control;
* Support for PSTN telephone broadcasting, support for SMS voice broadcasting;
* Support mobile WIFI on demand, support wireless remote control on demand;
* Support the server unified authorization operation management function, unified configuration management users and passwords;
* Support DHCP, compatible with routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, multicast, unicast and other arbitrary network structures;
* Supports the smart voice prompt function when the terminal is newly configured for registration (e.g. the device is connected);
* Support for 15KVESD protection, built-in network isolation lightning treatment circuit;
* 1 PC to download IP address serial port, used to modify the network decoding module IP address;
* Digital networked products, easy to expand, not limited by geographical location, no need to increase room management equipment;
* The design concept of the network-free line construction is adopted, and the installation is simple;
* The cooling fan is activated with intelligent temperature control;
* Standby power is less than 3W, to meet the national environmental protection and energy conservation certification standards;
* With a perfect output short-circuit protection and over-temperature protection function

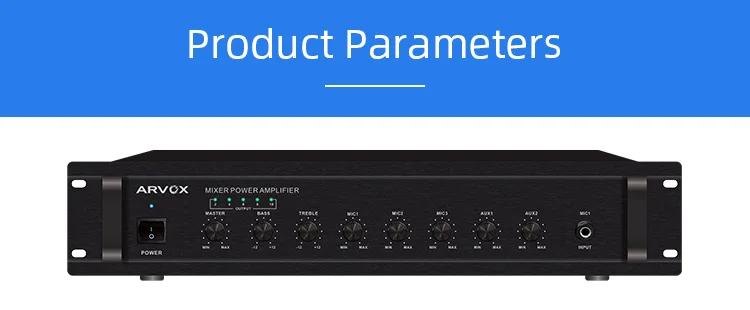

Item NO. | IP-8560P | IP-8512P | IP-8524P | IP-8536P | IP-8550P | IP-8565P | |||||
Rated power | 60W | 120W | 240W | 360W | 500W | 650W | |||||
Network interface | Rj45 | ||||||||||
Transmission rate | 100Mbps | ||||||||||
Support agreements | TCP/IP, UDP, IGMP (broadcast) | ||||||||||
Audio format | MP3/MP2 | ||||||||||
Audio mode | 16-bit stereo CD sound quality | ||||||||||
Sample rate | 8K to 48K | ||||||||||
Bit rate | 8K to 512Kbps | ||||||||||
LINE OUT output level | 775mV, 2 lotus seats | ||||||||||
LINE OUT output impedance | 470 Ω | ||||||||||
AUX input sensitivity | 470mV (non-balanced) | ||||||||||
MIC input sensitivity | 5 to 10mV (non-balanced) | ||||||||||
Treble lift, attenuation | ±12dB | ||||||||||
Bass lift, attenuation | ±12dB | ||||||||||
Standby power consumption | <3W | ||||||||||
Frequency response | 60Hz to 18KHz | ||||||||||
Harmonic distortion | THD ≤0.5% | ||||||||||
Signal-to-noise ratio | ≥75dB | ||||||||||
The output mode | 4 to 16 o fixed resistance output, 70V/100V fixed pressure output | ||||||||||
Protection circuit | DC output, overload, over temperature, short circuit protection circuit | ||||||||||
The ambient temperature | 5°C to 40°C | ||||||||||
Ambient humidity | 20% to 80% relative humidity | ||||||||||
Input power supply | – 220V/50Hz | ||||||||||
Power consumption | 95W | 175W | 350W | 486W | 675W | 870W | |||||
Size | 485x365x89mm | ||||||||||
Weight | 10.04kg | 11.36kg | 13.68kg | 14.08kg | 15.58W | 17.58kg | |||||
