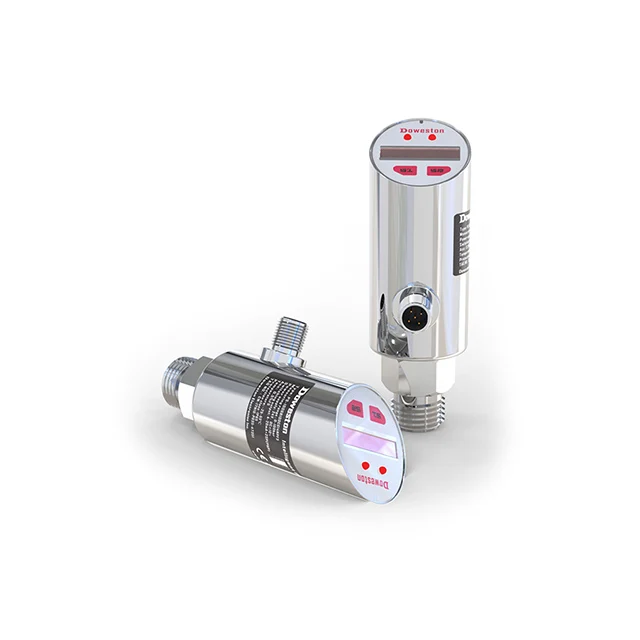

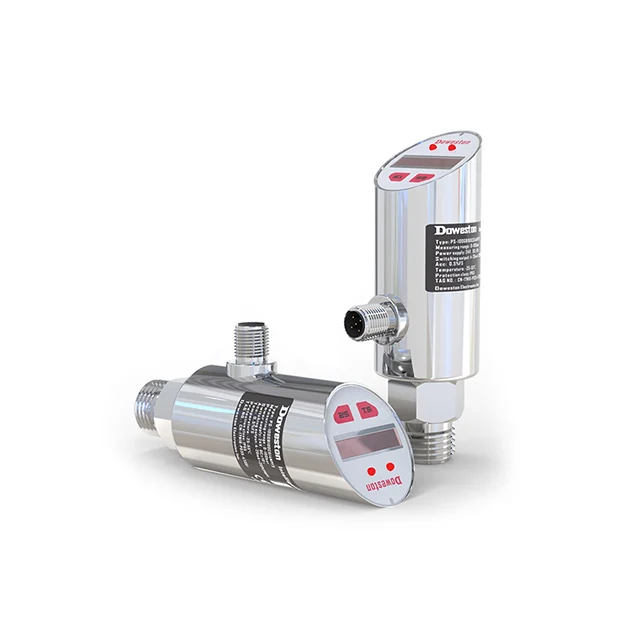

PSC 100 series digital display pressure switch
PSC-100 series digital display pressure switch
PSC-100 series digital display pressure switch
PSC-100 series digital display pressure switch

PSC 100 series digital display pressure switch

Share on (1600325327940):


Price:

Quantity:


Product Overview

Description



Recommend Products

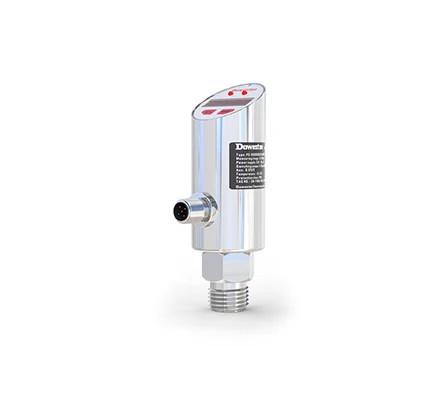

PSC-100 series
Digital display pressure switch
Suitable for pressure control of mechanical equipment, project engineering, etc.
The PSC-100 series digital pressure switch adopts ceramic or metal sputtering film technology to ensure the high precision and stability of the sensor. When the pressure reaches the set value, it will trigger the preset mechanical structure and send out a switch signal, which has a wide range of applications. , Compact structure, with digital display, convenient observation and high stability. Switch quantity, 4-20mA output is optional. It is suitable for all kinds of fluids and gaseous media, and there are thread specifications to choose a variety of connection methods to meet the needs of different working conditions.


Performance characteristics


■The meter head can rotate freely at 300° for easy observation
■ 4-digit high-brightness LED display
■The operating point does not drift, and the measurement range is wide
■Comply with IO-Link communication standard
■ Good market feedback, high sales volume and good stability
■ Compact structure, small size
■ Flexible installation
■ The pressure range can be manufactured according to the pressure value selected by the user arbitrarily
■ Sealed stainless steel sensor is safe and reliable


Technical parameter


Applicable medium
Dry gas, gas, liquid, slightly corrosive liquid
Measuring range
0.2, 1, 5, 10, 15, 30, 40, 60MPa
Accuracy
±0.25%FS, ±0.5%FS, ±0.75%FS Adjustment accuracy≤±5FS
Repeat accuracy
±0.5% of measured value
Switch signal
1 or 2 optional
PNP, NPN normally open or normally closed can be set
Rated current≤300mA
Corresponding time≤30ms
Analog output
4-20mA analog
Accuracy 0.5%FS
Load ≤500Ω
Input voltage
15-36V DC
show
4-digit LED highlight display
Setting method
Key setting
Operating temperature
-20-85℃
Environmental temperature and humidity
-20-80℃ 45-75%RH
Vibration resistance
10g (IEC 60068-2-27, under resonance condition)
Impact resistance
50g (IEC 60068-2-6, mechanical shock)
Material
Process connection: stainless steel 316L
Shell material: stainless steel 304:
Button: TPE-E
Display window: PC (polycarbonate)
Display body: PC+ABS-Blend
Electrical protection
Reverse phase, short circuit, overload protection
Protection level
Electrical part IP67
Electrical connections
M12*1.4 4/5-pin aviation plug
Service life
100 million switching cycles
Installation method
External thread (G thread, M thread, NPT thread), flange and clamp are optional
weight
About 0.55kg
