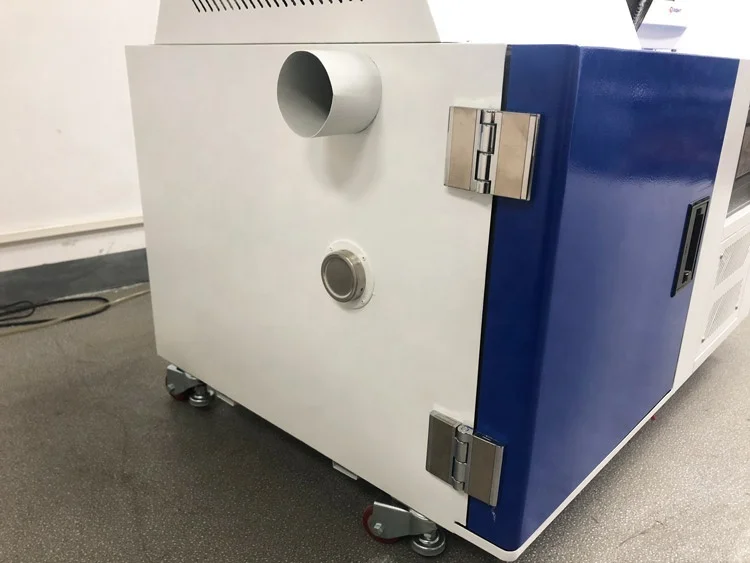

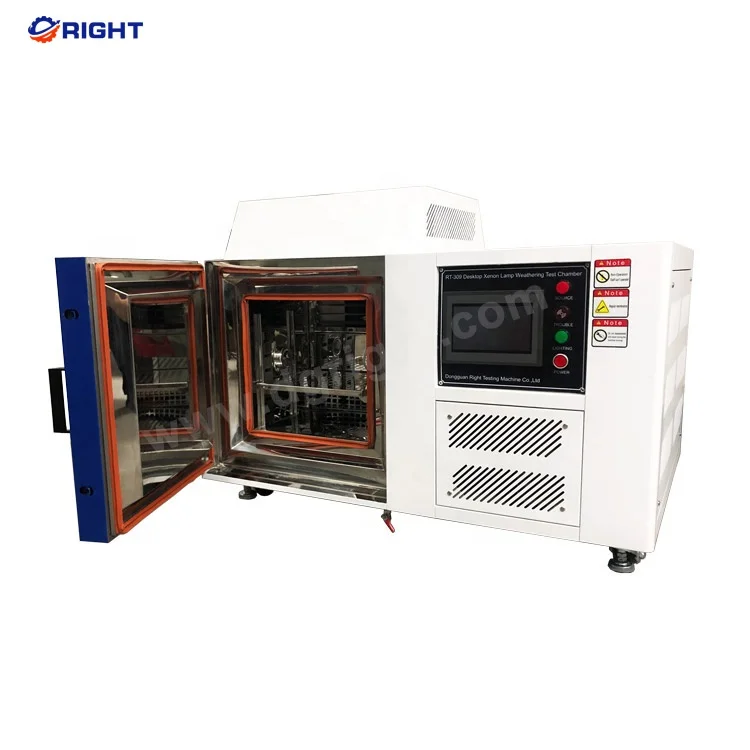

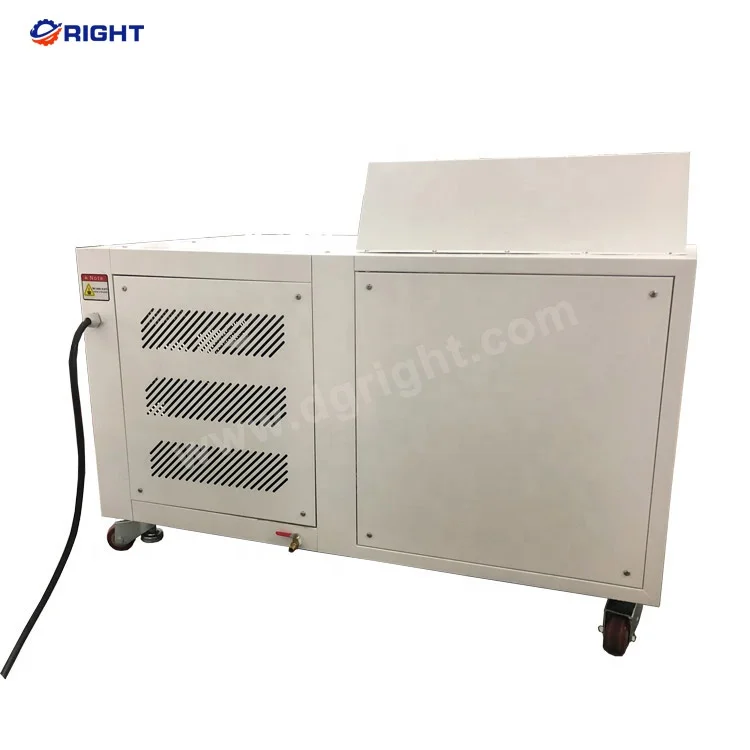

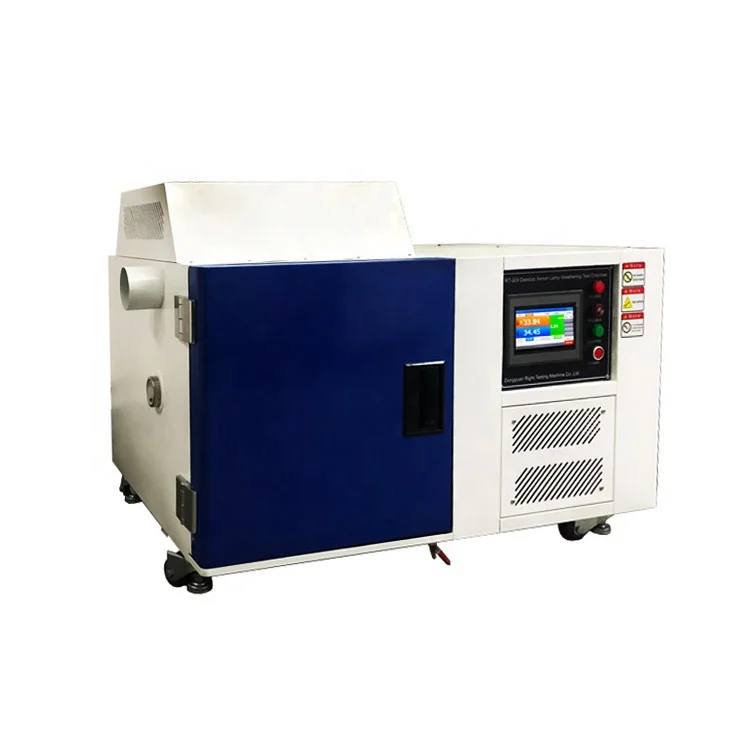

Desktop Xenon Lamp Arc Aging Chamber Xenon Accelerated Weathering Aging Testing Machine
- Category: >>>
- Supplier: Dongguan Right Instrument Co. Ltd.
Share on (1600325348000):
Product Overview
Description
Product Paramenters
Product Name | ASTM G155 1600 Hours Bench Mini Xenon Arc Fading Lamp Test Chamber |
Model | RT-309 |
Testing room D×W×H | 300x300x350mm |
Temperature range | RT+10℃~80℃ |
Humidity Range | 65～98%R·H |
Rainfall Time | 1～9999 Min, adjustable |
Rainfall Cycle | 1-240 Min, interruption adjustable |
Spectral Wavelength | 280nm～800nm, 250~1000w/m2 adjstable |

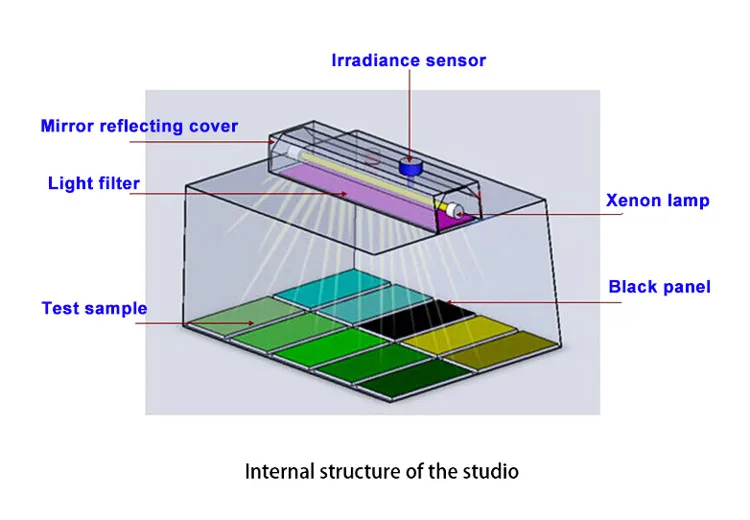

Irradiation Light Source | Full spectrum xenon lamp (air-cooled) |
Xenon Lamp Power | 2.5kw (Life: 1600 hours) |

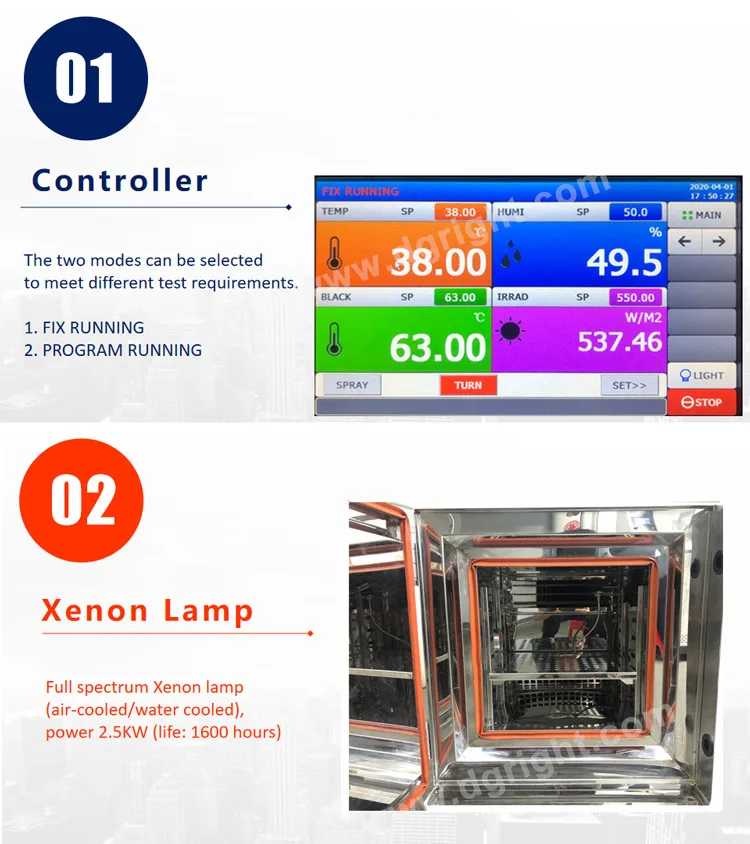

Time Controller | Programmable time computer integrated controller |
Accuracy Range | Setting accuracy: temperature ±1℃, humidity ±1℃R·H Indication accuracy: temperature ±1℃, humidity ±1℃R·H |

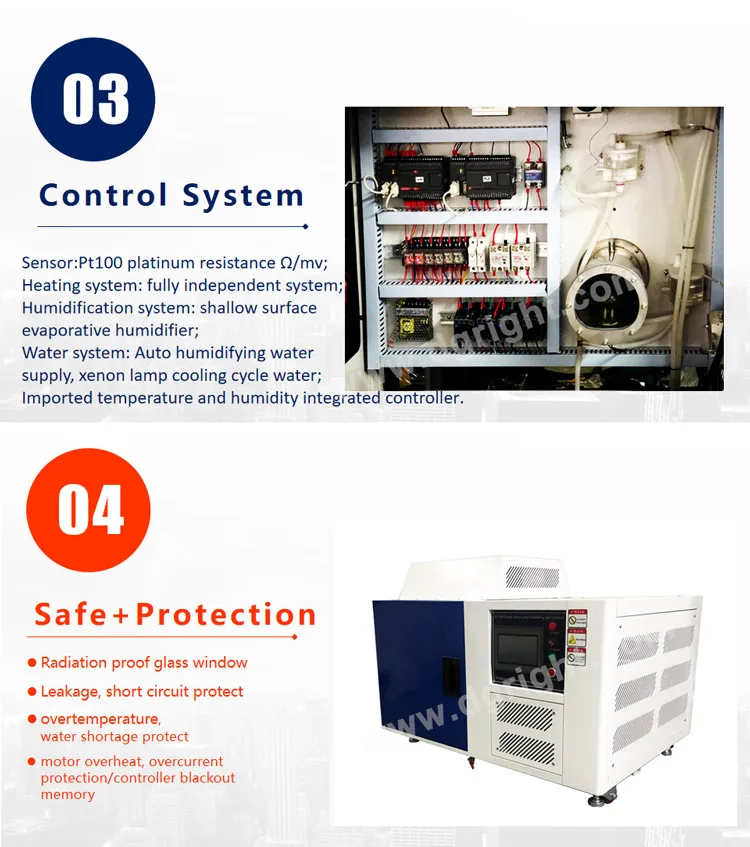

Temp and Humidity Sensor | Platinum resistance Pt100Ω/mv |
Heating system | Fully independent system, nickel-chromium alloy electric heater |
Humidification System | External isolated stainless steel surface evaporation humidifier |
Water Supply System | Automatic humidification, Xenon lamp cooling cycle water |
Temperature Controller | Imported microcomputer temp and humidity integrated controller |
Humidity | When irradiated 30%~65%RH, In the dark Max 90%RH |
Circulatory System | Temperature-resistant, low-noise air-conditioning motor, multi-blade centrifugal wind wheel |
Outer Box Material | Advanced spray-painted color steel plate / SUS304 stainless steel matte line hairline treatment |

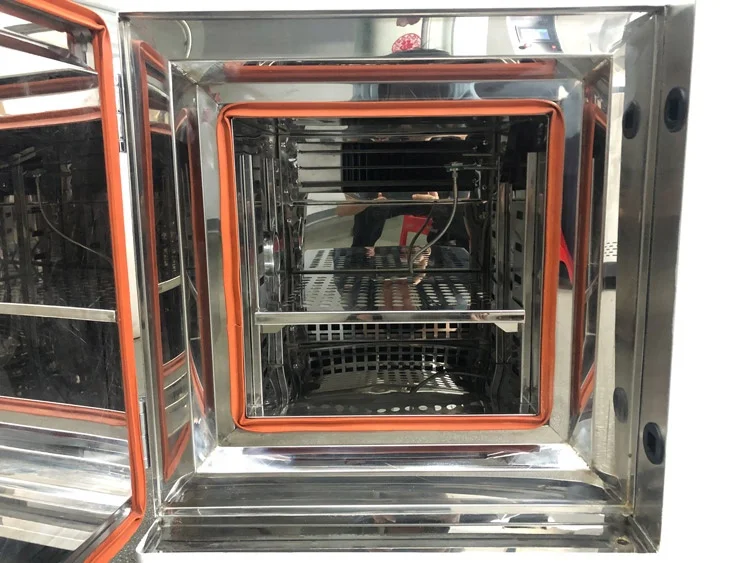

Inner box material | SUS304 high quality stainless steel light board |
Material of Rack | SUS304 high quality stainless steel bar |
Door Frame Insulation | High and low temperature resistant silicone rubber door seal |
Standard Configuration | 1 set of radiation-proof glass window, 1 set of dynamic test rack, 1 xenon lamp tube |
Safety Protection | Leakage, short circuit, over temperature, water shortage, motor overheating, over current protection / controller memory failure |
Voltage | AC220V±10% 50±0.5HZ Three-phase five-wire system |
Use Ambient Temperature | ±5℃～+30℃ ≤85%R·H |
Applicable industries:
Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
Corresponding Standard :
ASTM D5099, ISO 11443, GFT 014-02, JIS K 6259 , ASTM1149 , ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003, GB 2951 etc.
ASTM D5099, ISO 11443, GFT 014-02, JIS K 6259 , ASTM1149 , ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003, GB 2951 etc.
Product Advantages
Why Choose Us
Our Services & Strength:
1. 10 years manufacture in testing machine
2. 5 years alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE
1. 10 years manufacture in testing machine
2. 5 years alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE
Recommend Products
Company Profile
FAQ
Q1: How long is the delivery time?
A:Normally 5-10 working days after received deposit,we have our own factory,the delivery time
can be adjust flexible.
Q2: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q3: What is the payment terms?
A: T/T, L/C, Western Union, etc
Q4: How about the products quality?
A: Our products apply to ISO,ASTM, GB, etc
Q5: Is it OK to print my logo on machine product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance. or 100% L/C at sight .
Q7: Can we test sample before place order?
A: Of course,we can test sample and provide test report to you with free.
A:Normally 5-10 working days after received deposit,we have our own factory,the delivery time
can be adjust flexible.
Q2: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q3: What is the payment terms?
A: T/T, L/C, Western Union, etc
Q4: How about the products quality?
A: Our products apply to ISO,ASTM, GB, etc
Q5: Is it OK to print my logo on machine product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance. or 100% L/C at sight .
Q7: Can we test sample before place order?
A: Of course,we can test sample and provide test report to you with free.
