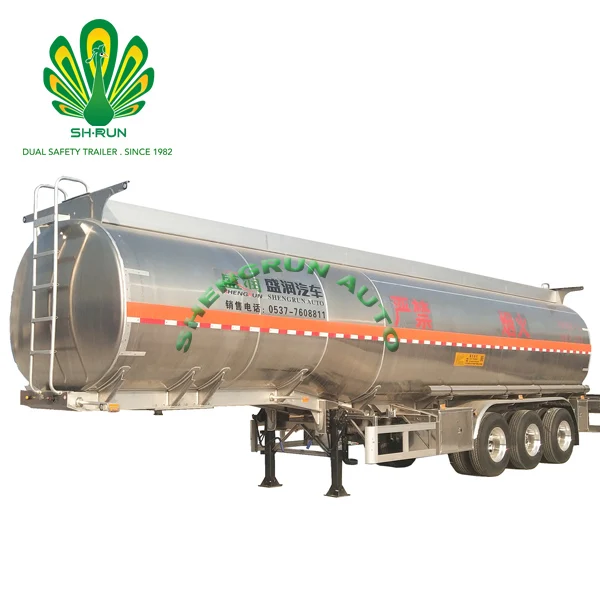

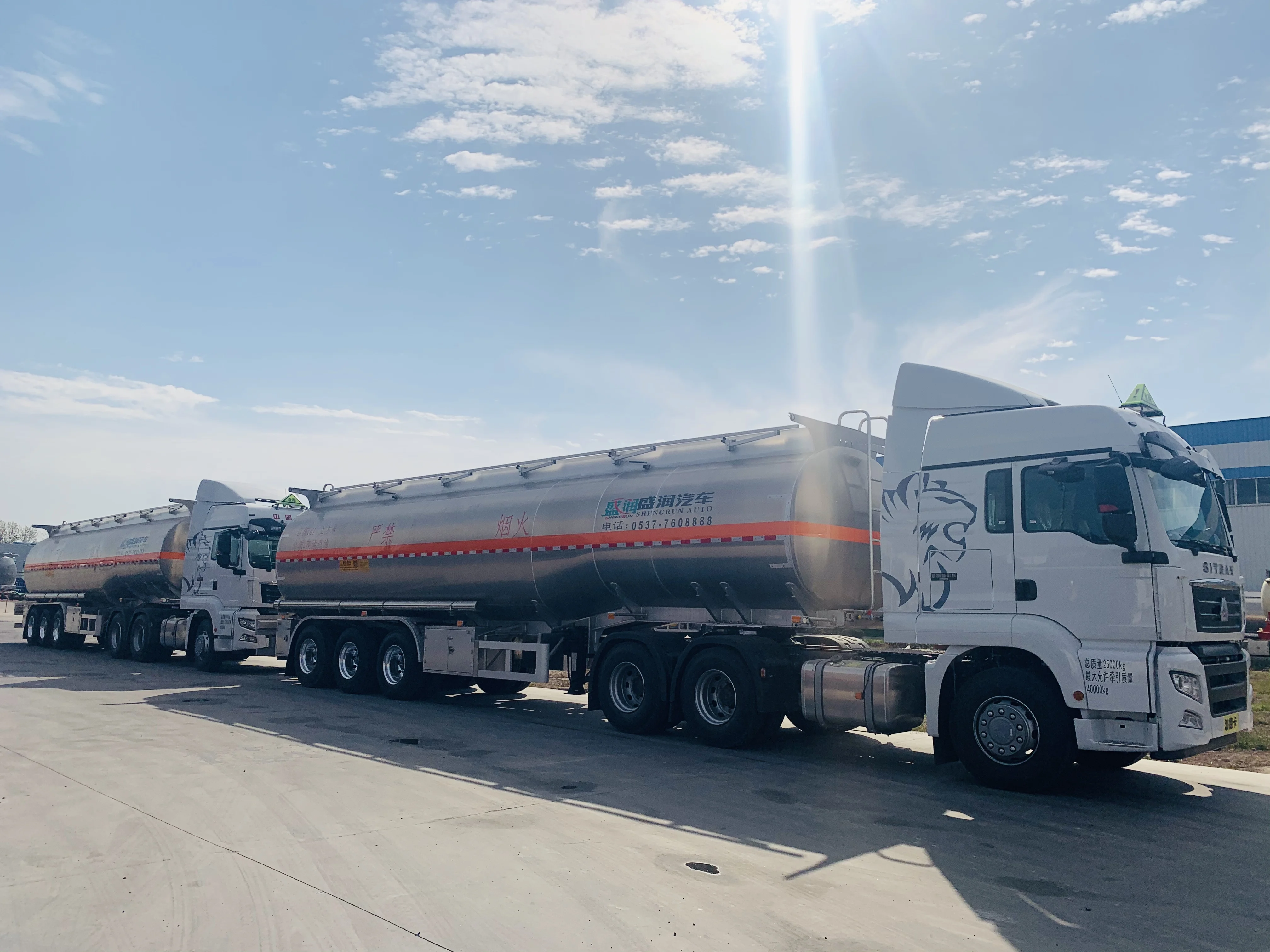

China factory Shengrun brand 42000 liters Aluminum alloy 5454 Oil Tanker/Fuel Tank Semi Truck Trailer with surface mill finished
- Category: Commercial Truck Trailers >>>
- Supplier: Shandong,Shengrun,Automobile,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

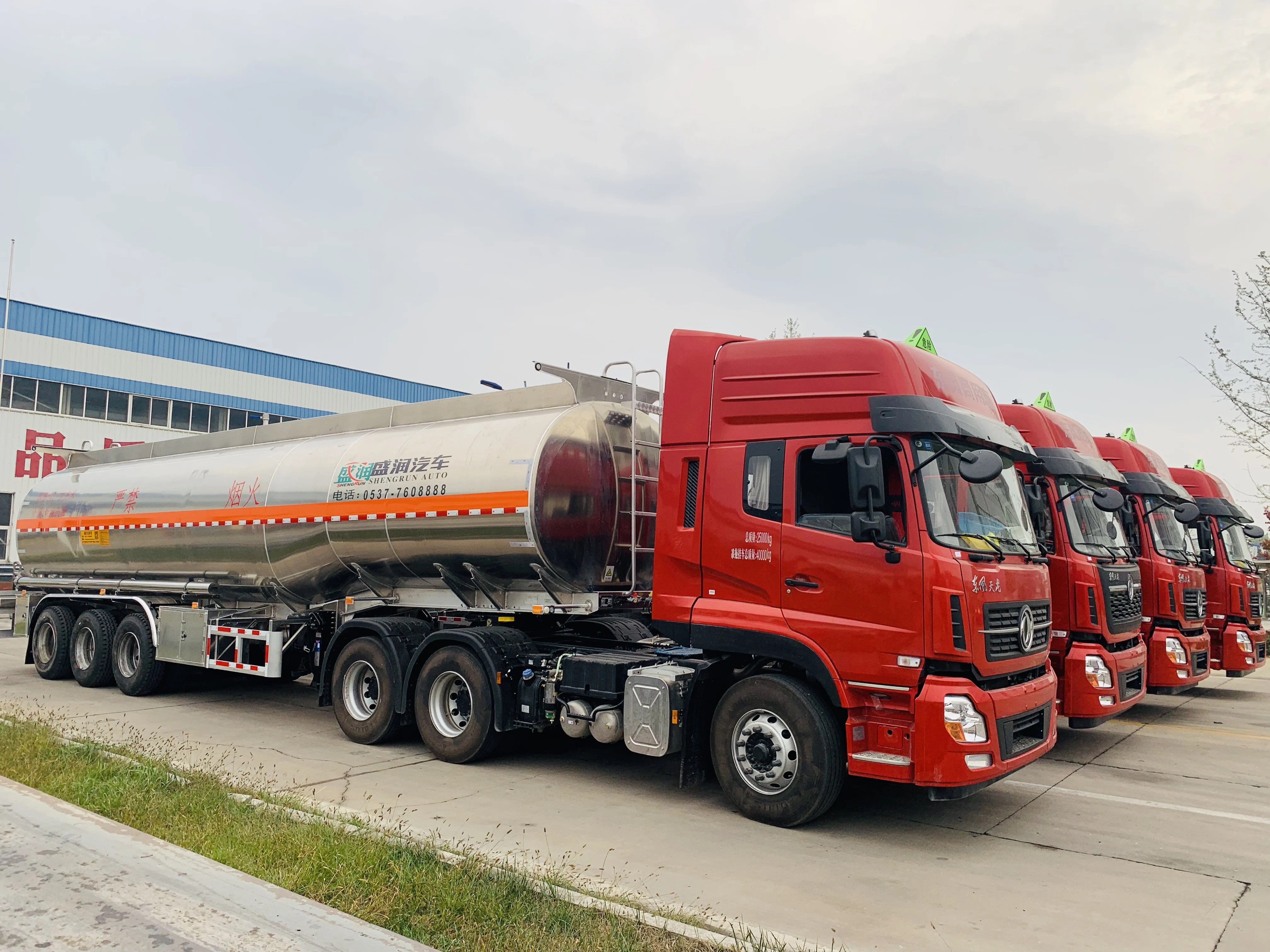

Liquid fuel tanker semi trailer
Liquid tanks are used for hauling liquids such as fuel, water, acids and alcohol etc. Some are designed with a lowered centre of gravity to ensure greater stability. Generally bottom loaded with the ability to recover any waste vapor for safety reasons. The tank body material can be carbon steel, stainless steel, aluminum alloy depends on the transport medium.
FEATURES AT A GLANCE
Shengrun Dual Safety Liquid tank trailer
T shape extruded main beam and dual safety chassis anti-fracture
Low gravity anti-rollover
Automatic Robot welding anti leakage
Fabricated anti-vibration suspension
Strengthened type body supporter
Pneumatic control safety bottom valve
Bolted type Kingpin
Corrosion resistant valve
Wide variety of products One-stop service
Low gravity anti-rollover
Automatic Robot welding anti leakage
Fabricated anti-vibration suspension
Strengthened type body supporter
Pneumatic control safety bottom valve
Bolted type Kingpin
Corrosion resistant valve
Wide variety of products One-stop service
T shape extruded main beam
Automatic Robot welding
Strengthen ring
Company Profile
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PRODUCT SPECIFICATIONS
Manufacturer | Shandong Shengrun Automobile Co., Ltd. | Data | |||||
Model Number | SKW9403GYYA/SKW9406GYYA/SKW9407GYYA/SKW9408GYYA/SKW9400GRY/SKW9401GRY | 37.5KW | |||||
Tank body | 2.8 M3 | ||||||
Shape | Round or Square (Optional) | ||||||
Dimension | 9500-13000*2500*3900mm (Exact size depends on the final design) | 125Ton | |||||
Tare Weight | About 8000kgs-12800kgs | 96kN | |||||
Capacity | 32,000-60,000 liters | 96kN | |||||
Tank body material | 5mm or 6mm/Q235 Carbon steel plate/ Aluminum alloy 5083 ,5182,5454 / Stainless steel | 60kN | |||||
Dished End | 6mm or 7mm/Q235 Carbon steel plate/ Aluminum alloy 5083 ,5182,5454 / Stainless steel | 6750ml | |||||
Manhole Cover | Carbon steel/ aluminum/ stainless steel manhole cover, diameter 500mm, 1-9 pieces | ||||||
Bottom Valve | Aluminum / Stainless steel | 500N.m | |||||
Discharging Valve | Diameter 3" or 4" or 6" | ||||||
Compartments | Optional | ||||||
Discharging hose | Rubber tube, 2 pieces, 6 m each | ||||||
Chassis | |||||||
Main beams | Steel Q345B or Aluminum Alloy | ||||||
Axle | 13T/16T, FUWA/BPW /SHENGRUN brand | ||||||
Kingpin | 2" or 3.5" brand optional | ||||||
Suspension | Mechanical suspension/Air suspension | ||||||
Leaf spring | 90mm (W) * 13mm (T)* 10 layer or 100mm *12mm *12 layer | ||||||
Braking system | RE 6 relay valve, spring brake chamber, 2 pieces of 45 L air tanks | ||||||
Tire | 12.00R22.5/315/80R22.5/11.00R20/12.00R20 brand optional | ||||||
Rim | 9.00*22.5/8.0-20/8.5-20 | ||||||
ABS | Optional | ||||||
Fire extinguiser | 2 pieces | ||||||
Spare tire carrier | 2 pieces | ||||||
Safety guard | Standard | ||||||
Painting | Complete chassis sand blasting to clean rust, 1 coat of anti-corrosion primer, 2 coats of final painting | ||||||
Tool box | One pieces standard | ||||||
Lights | LED, 24V | ||||||

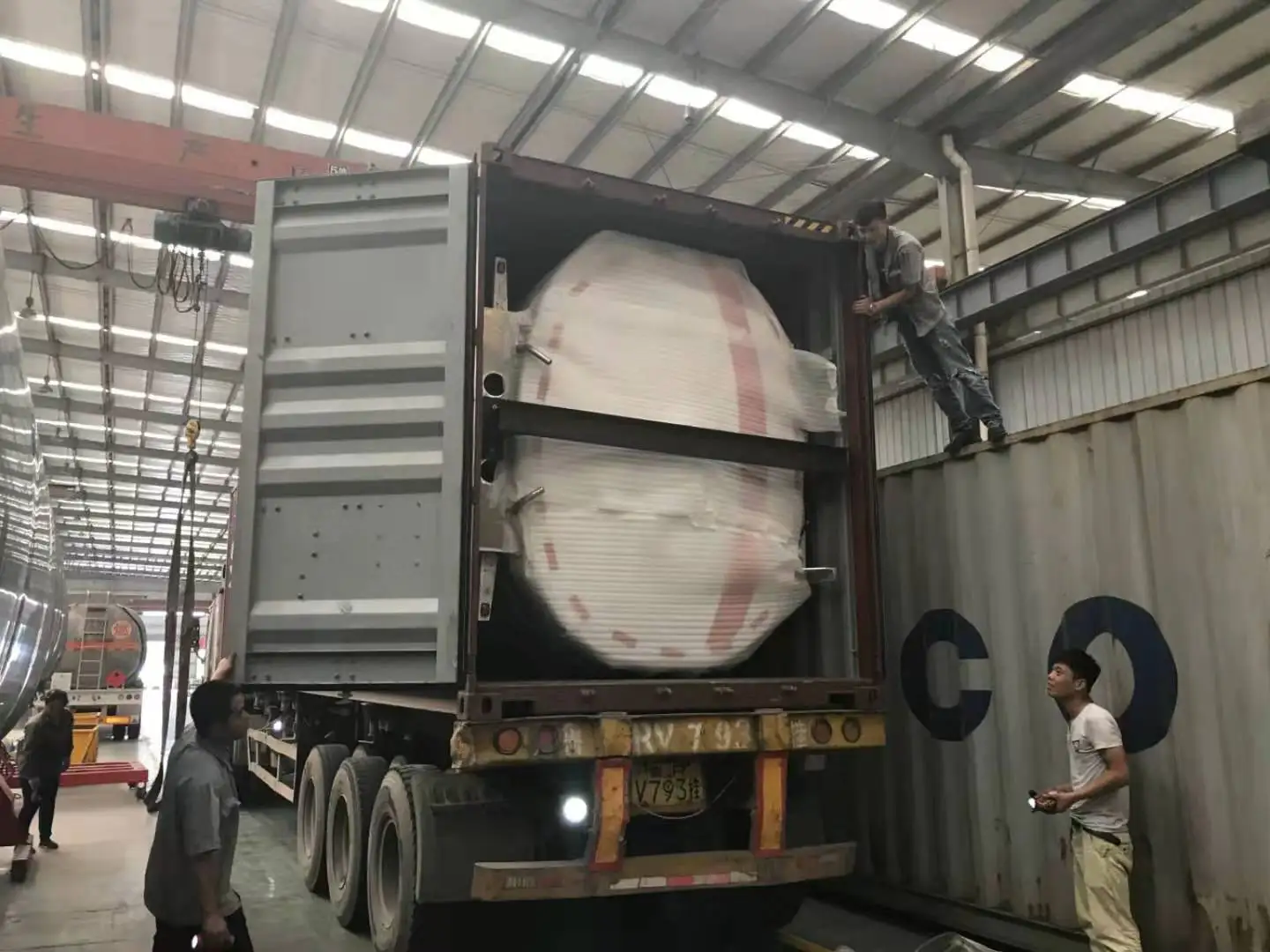

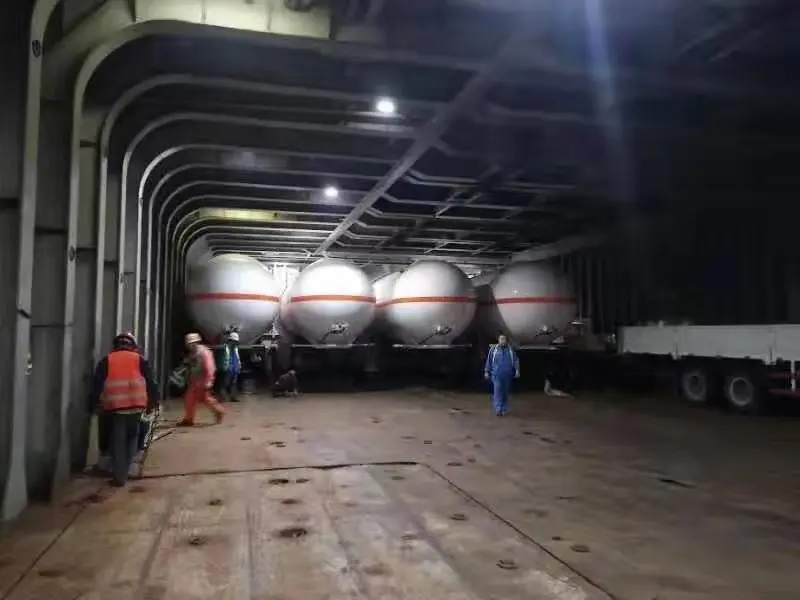

Shipping terms | By 40" HQ container or bulk vessel or RORO ship | ||||||
Exhibition
Certifications
SALES AND SERVICE NETWORK
FAQ
Q1. Are you a factory or trading company:
We are a factory specialized in manufacture kinds of semi trailers and tanker trailers. So we know exactly what you are looking for. You are very welcome to visit our facilities and production line at any time.
Q2. Could you accept special design and specification？
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will
design and our well-trained staff will produce according to customer special requirements. Such as: special Size, special control, or OEM, etc.
Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. Do you have stock?
Yes we have a few stock in our warehouse for your urgent order, but the main design already finished, the only we can change are some of the spare parts such like tires, axles, stickers, painting etc.
Q5. How to control quality?
We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
Q6. How about your price level?
You get what you pay for! We are direct factory, you will get the most high cost performance products.
