12V Access control Electric Strike Door Lock for Push Panic Bar Exit Device Emergency Door Lock Fire Push Bar Electric Strike
- Category: >>>
- Supplier: Shenzhen Yistar Technology Co. Ltd.
Share on (1600325425397):
Product Overview
Description
NO/NC Type Power To Close 12V Electric Lock Electric Stricke Door Lock For Access Control System Push Panic Bar Exit Device Emergency Door Lock Fire Push Bar Electric Strike

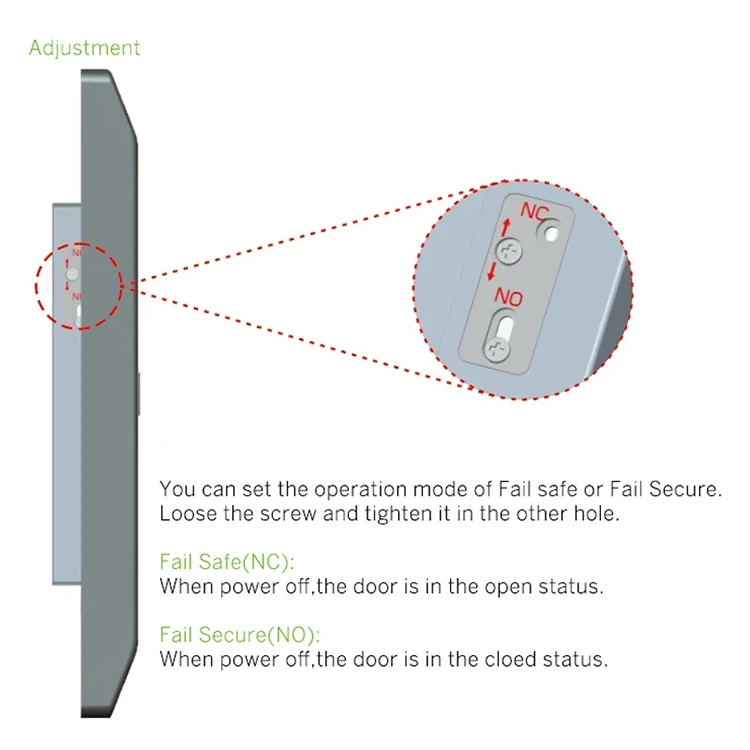

What's NO, NC?
NO means locked when power off, unlocked when power on
NC means locked when power on, unlocked when power off
Introduction:
standard electronically controlled locking 12V electric locks
With thick stainless steel production, built-in full copper coils,
Quality stable 12V operating voltage power lock to force small and beautiful price
Quality stable 12V operating voltage power lock to force small and beautiful price
Very suitable for fire door! long lasting
Embedded installation, beautiful appearance, electromagnetic part made of high quality magnetic materials
and special process,Long working hours does not produce residual magnetism, ensure the normal use
Specifications:
lock tongue structure:304 Stainless Steel
Holding Force:1000kg
Voltage:DC12V (24V need order)
Current:12V/220mA;24V/110mA

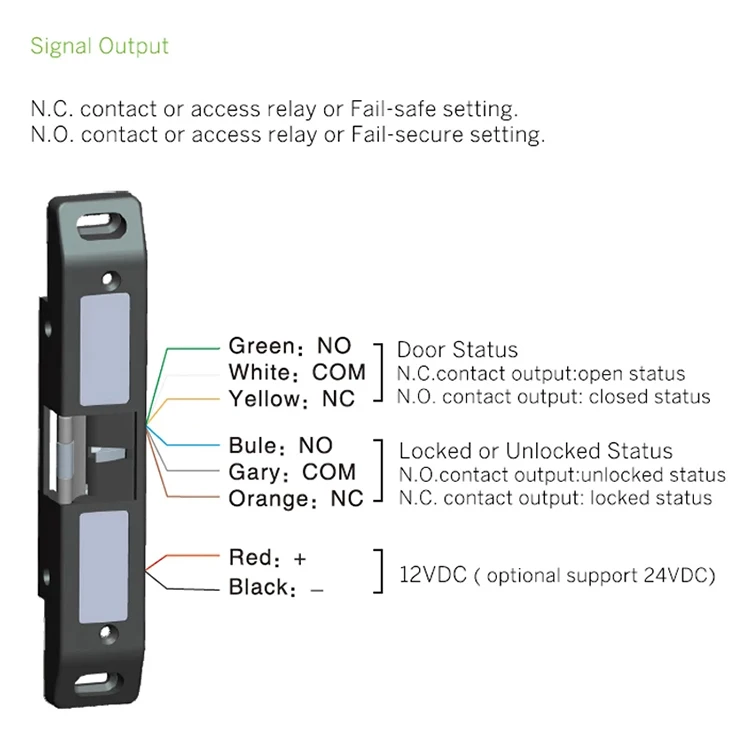

Signal Output:Lock Status Output NO/NC/COM
special design:applies to all brands of fire push rod lock
Suitable For:supporting rod lock fire door
Surface Temperature:Within +20℃
Suitable Temperature:-10~+55℃(14-131F)
Operating Humidity:0~95%(non-condensing)
Face plate Housing:High temperature paint
Lock tongue:Surface by coating nickel
The door open:90 degrees

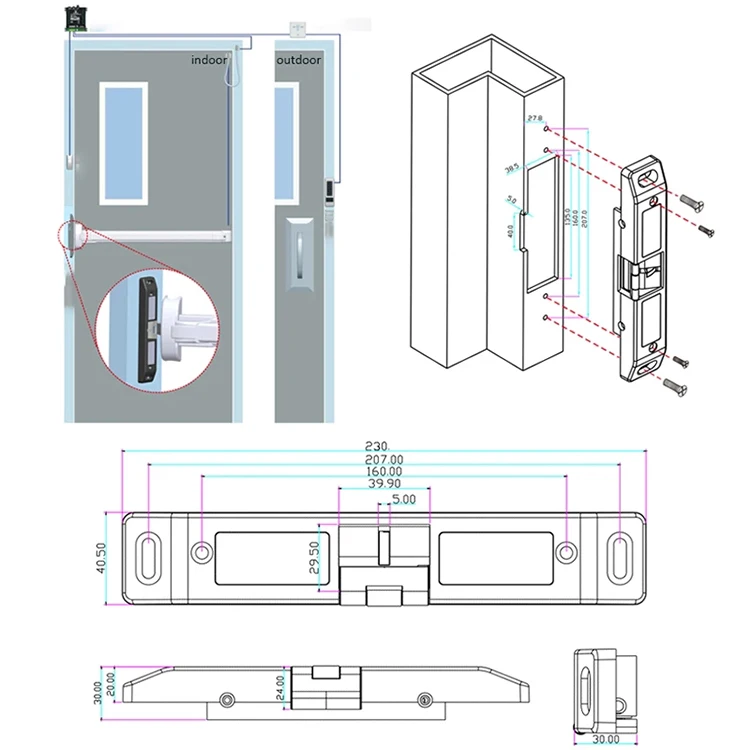

Lock Size:
XM-370A:230L*45W*30H(mm)

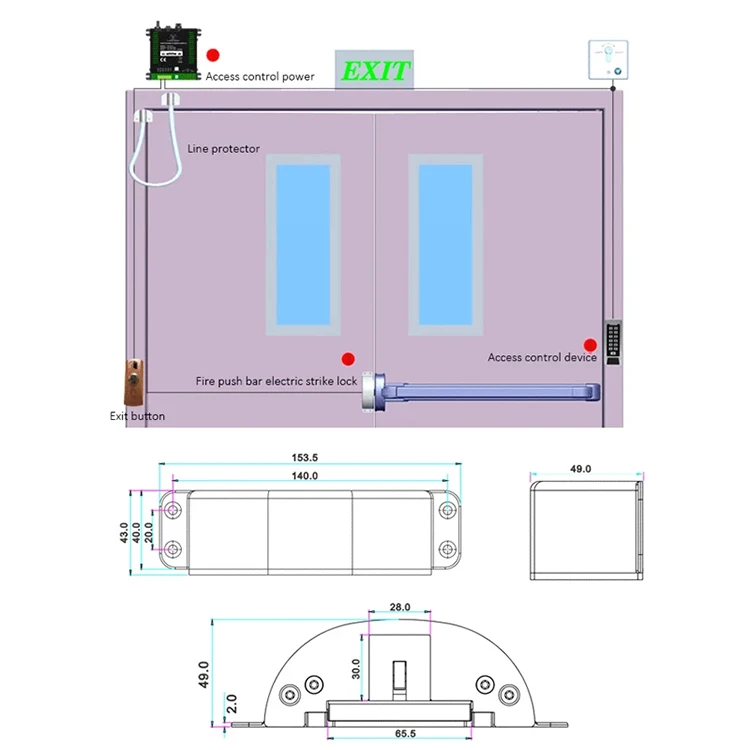

XM-370B:153.5L*43W*49H(mm)
Weight:0.75kg
