Универсальная подъемная муфта для сборного бетона, подъемная скоба, подъемная скоба
- Category: >>>
- Supplier: Qingdao Skywalker Intelegent Manufacture E-Commerce Co. Ltd
Share on (1600325484716):
Product Overview
Description
Product Description

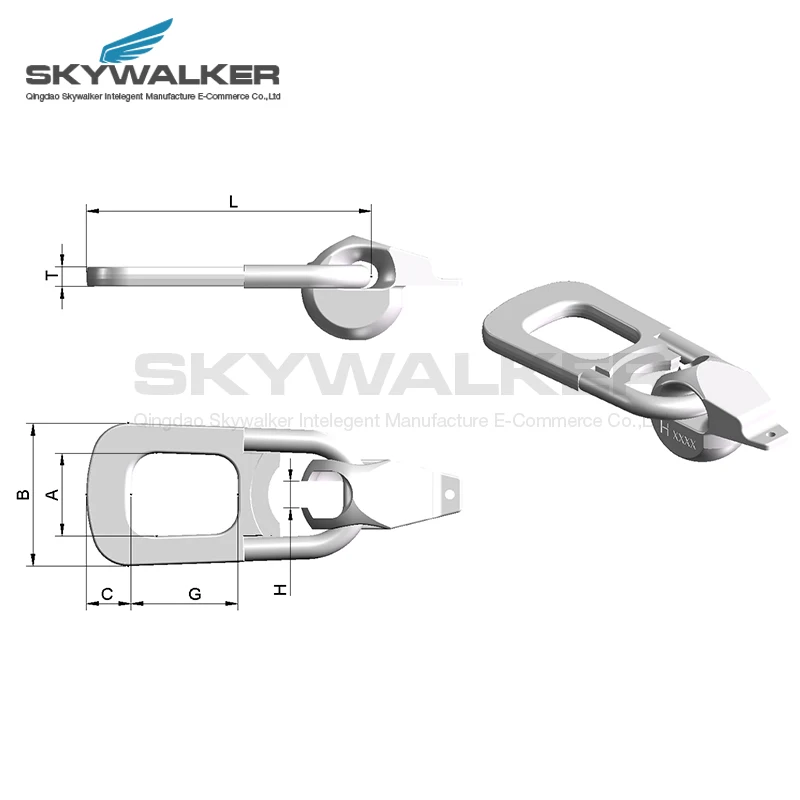

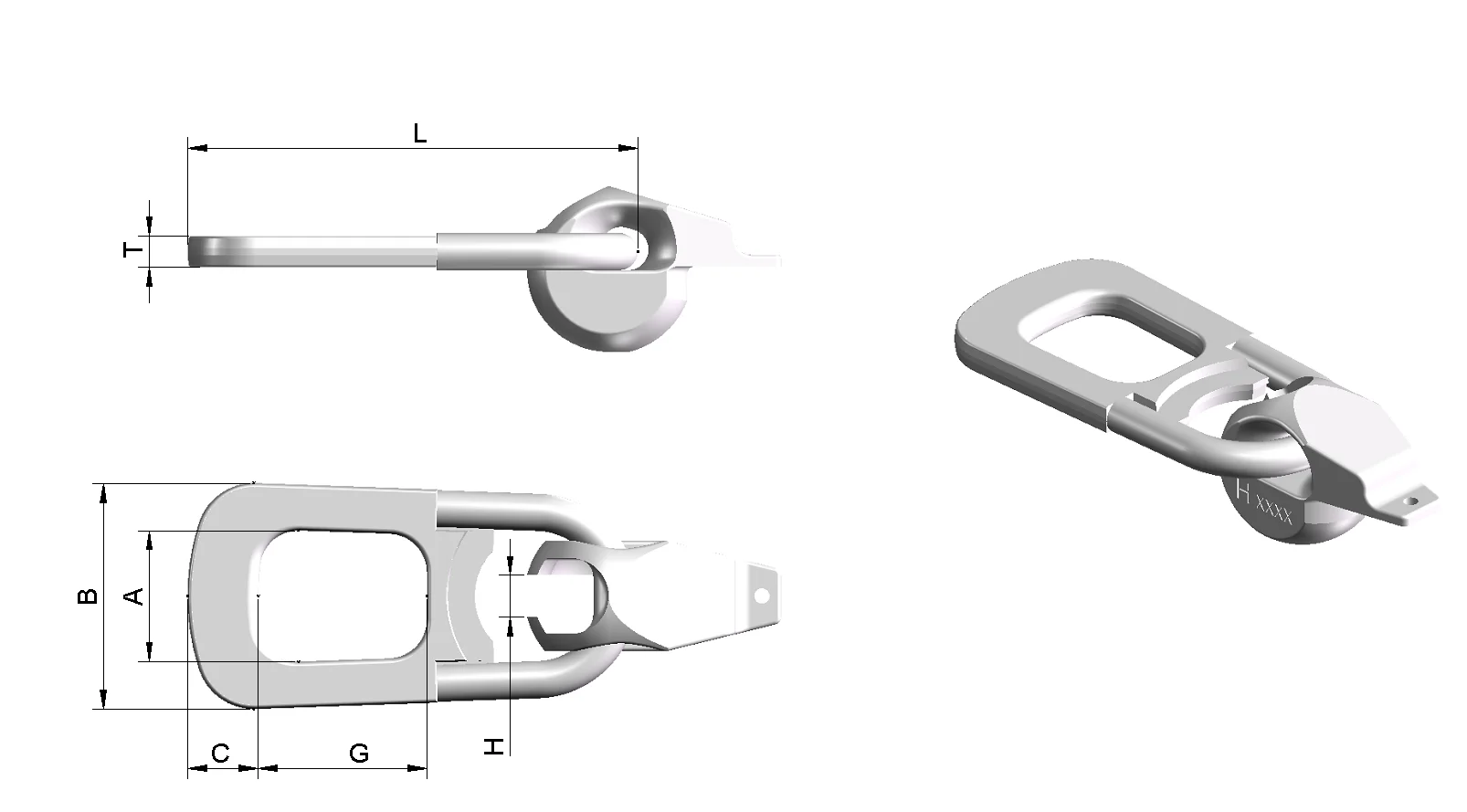

PRODUCT SPECIFICATIONS | ||||||||||||||||
PRODUCT CODE | LOAD GROUP | A | B | C | G | H | T | L | ||||||||
6102-1.3 | 1.3 T | 46 mm | 74 mm | 20 mm | 70 mm | 11 mm | 12 mm | 162 mm | ||||||||
6102-2.5 | 2,5 T | 54 mm | 88 mm | 25 mm | 85 mm | 16 mm | 14 mm | 196 mm | ||||||||
6102-5 | 5 T | 70 mm | 118 mm | 37 mm | 88 mm | 22 mm | 16 mm | 238 mm | ||||||||
6102-10 | 10 T | 84 mm | 160 mm | 50 mm | 112 mm | 30 mm | 26 mm | 339 mm | ||||||||
6102-20 | 20 T | 113 mm | 191 mm | 75 mm | 135 mm | 42 mm | 30 mm | 455 mm | ||||||||
6102-32 | 32 T | 180 mm | 280 mm | 100 mm | 189 mm | 54 mm | 42 mm | 582 mm | ||||||||

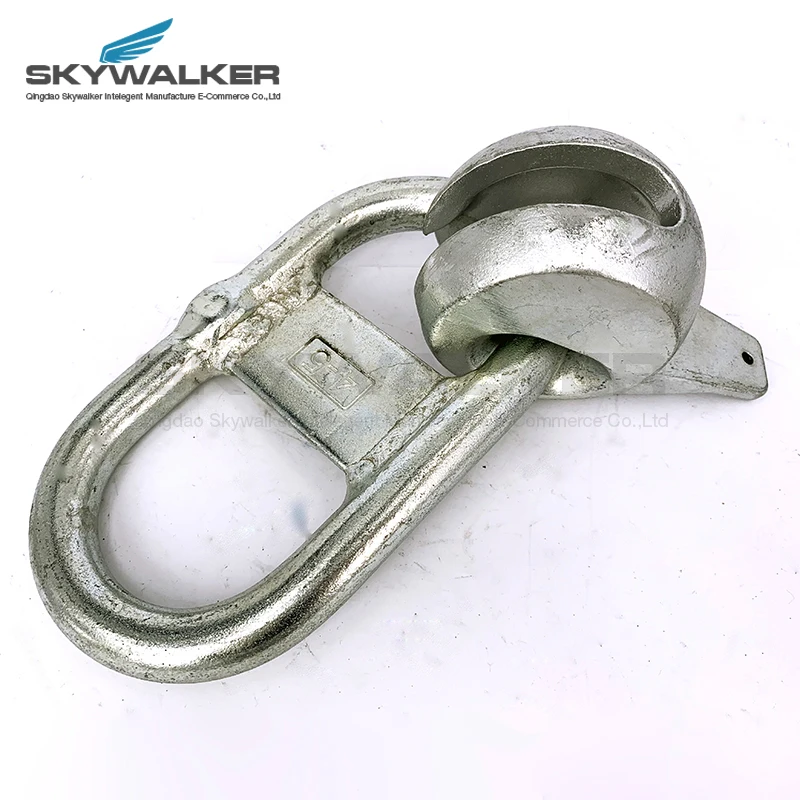

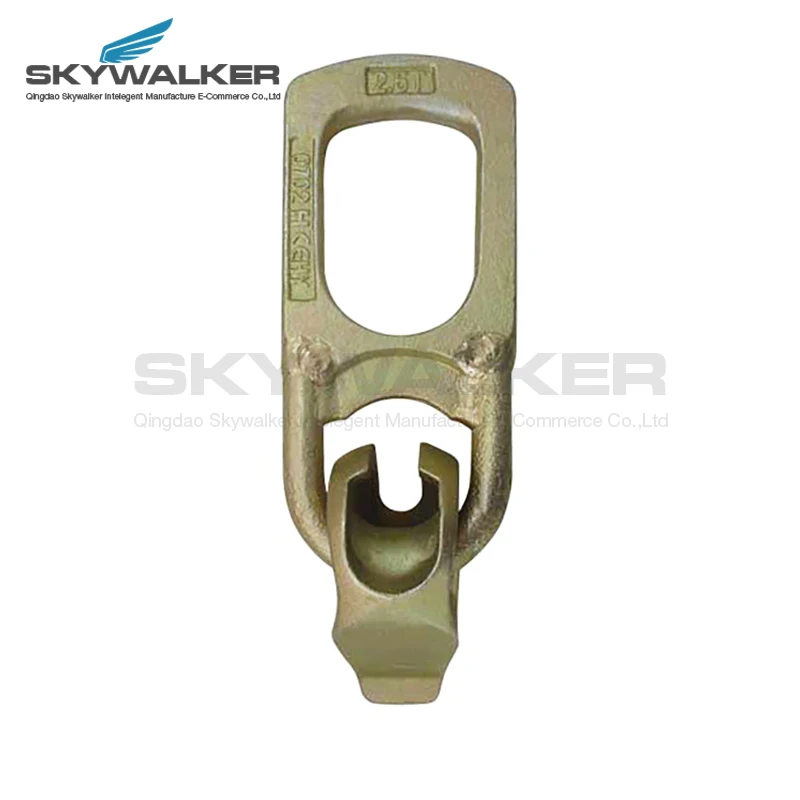

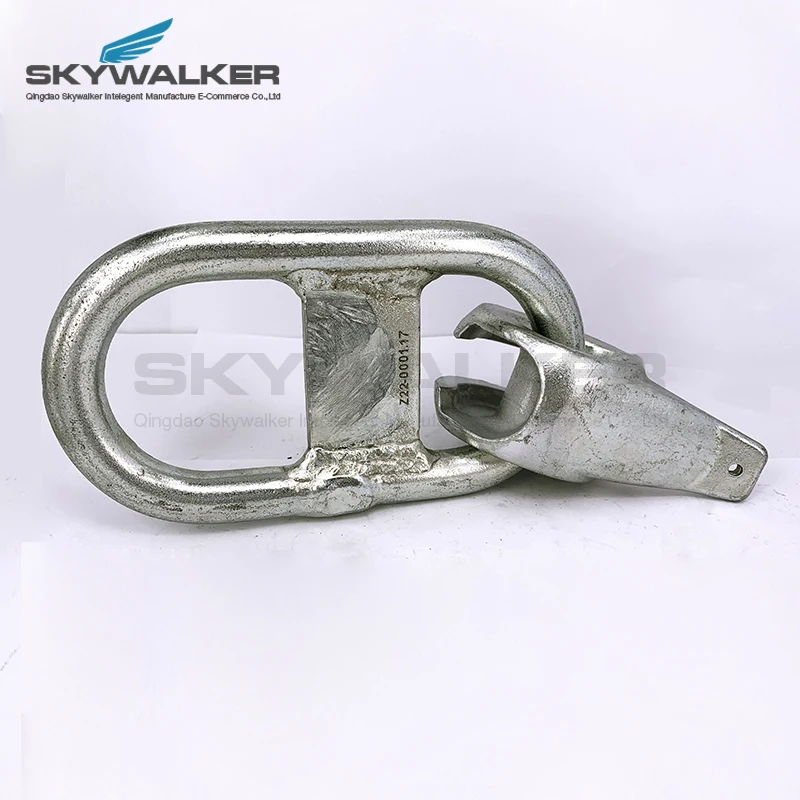

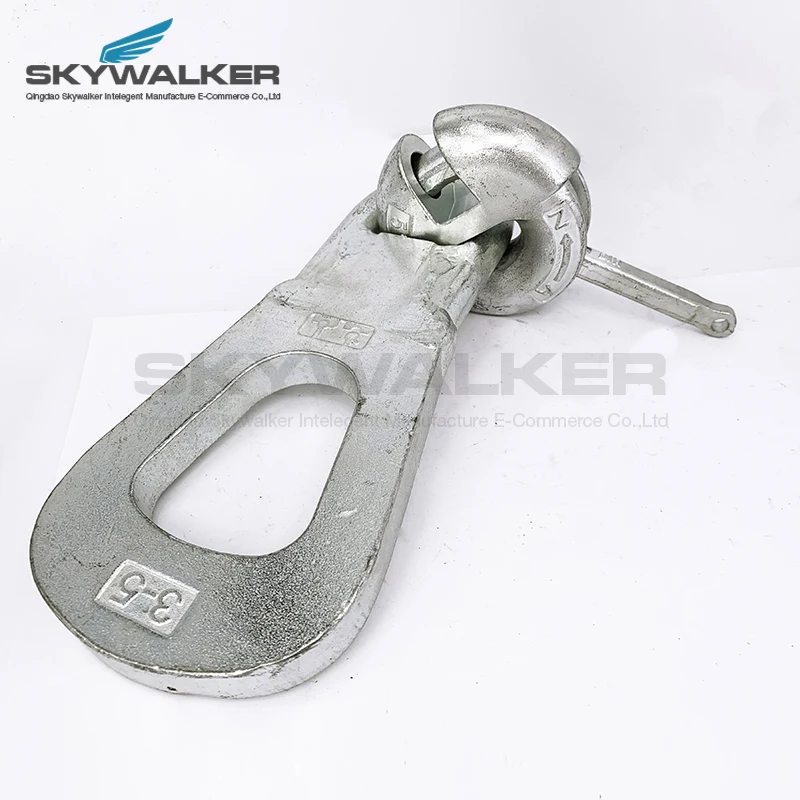

LIFTING CLUTCH FOR SPHERICAL HEAD ANCHORS
Lifting clutchs are used for lifting and handling of head anchors. The lifting clutch is manufactured of high alloy steel and
tested according to safety factor 3 times working load.
The construction ensure the clutch self-lock when applying upward forces ensures a tight and safe connection to the spherical head lifting anchor.
The allowable loads for the individual cases can be taken from the tables in the following table. Accident prevention regulations of the country of use must always be observed,
especially those for the use of cranes and lifting equipment.
Lifting clutch is a heavy duty lifting device for load groups from 1.3-32.0 tons as standard.
Lifting clutchs are designed and manufactured in accordance with EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205. The lifting
clutchs meet the requirements for safe lifting and handling of concrete elements.
All items are:
* CE Marked
* With traceability no
* Delivered with 3.1 certificate
* Can be delivered as private label
Lifting clutchs are used for lifting and handling of head anchors. The lifting clutch is manufactured of high alloy steel and
tested according to safety factor 3 times working load.
The construction ensure the clutch self-lock when applying upward forces ensures a tight and safe connection to the spherical head lifting anchor.
The allowable loads for the individual cases can be taken from the tables in the following table. Accident prevention regulations of the country of use must always be observed,
especially those for the use of cranes and lifting equipment.
Lifting clutch is a heavy duty lifting device for load groups from 1.3-32.0 tons as standard.
Lifting clutchs are designed and manufactured in accordance with EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205. The lifting
clutchs meet the requirements for safe lifting and handling of concrete elements.
All items are:
* CE Marked
* With traceability no
* Delivered with 3.1 certificate
* Can be delivered as private label
Specification
Product Name | universal lifting clutch |
Application | Building Construction |
Certification | ISO9001 Certificated |
Sample | Free sample is aceepted |
Using Range | Construction,etc |
Port | Qingdao,tianjin,shanghai |
Package | Nylon Bags then in wooden Pallet |
Company Profile
Skywalker is a manufacturer and global supplier of components for precast, formwork, construction and industrial products for many different industries. We only produce in our own factories on modern high technology machines which insure maximized cost efficiencies. We offer both standard and customer designed solutions in both large and small order quantities. The production is based on high quality, safety, values as well as profitability. To insure that all processes and products are produced and controlled according to ISO 9001/ EN 1090-2.
Skywalker is a family owned company with representation departments placed in United States, Germany, France and Denmark, and more then 450 employees worldwide. We are close to our customers in both technical and cultural perspective, which guarantee our customers safety, stability,
performance and credibility.
Skywalker is a family owned company with representation departments placed in United States, Germany, France and Denmark, and more then 450 employees worldwide. We are close to our customers in both technical and cultural perspective, which guarantee our customers safety, stability,
performance and credibility.
Certifications
Packing & Delivery
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
