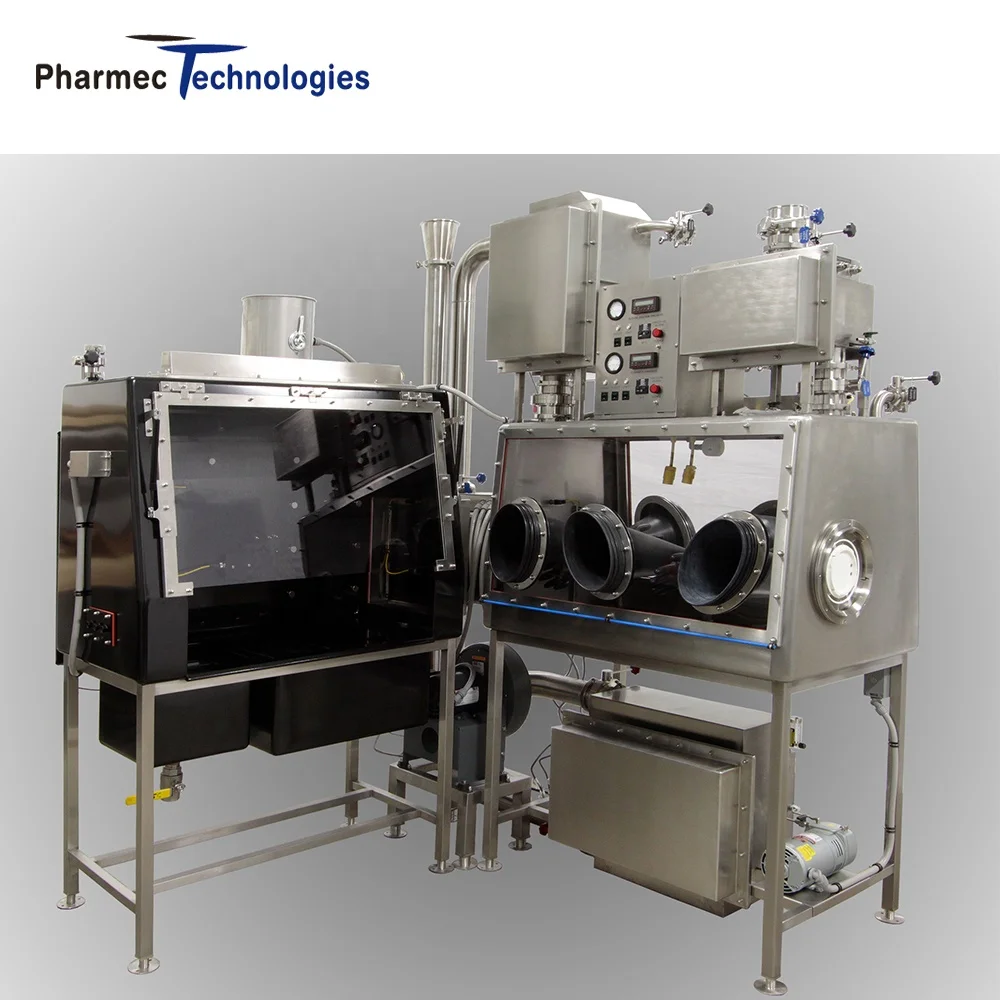

Class III Biological Cabinet Laboratory Biosafety Cabinet
- Category: Metal Furniture >>>
- Supplier: Pharmec Technologies Co. Ltd.
Share on (1600325514926):
Product Overview
Description
Products Description

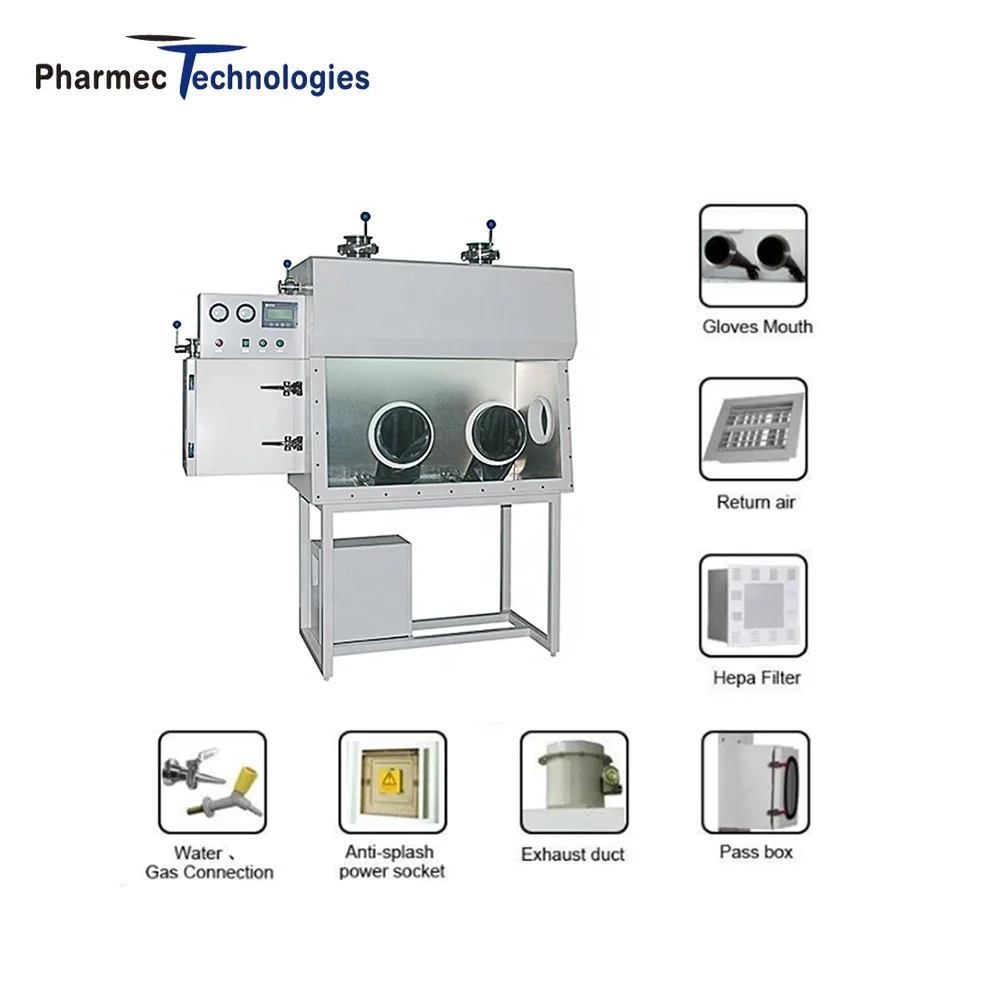

Features
1. Meet the requirements of China SFDA YY0569 standard and American NSF/ANSI 49 standard for three-level biological safety cabinet.
2. It has the characteristics of full enclosed, full negative pressure and full discharge. 100% of the air is filtered through two channels and discharged to the exhaust system of the laboratory system for centralized treatment.
3. The ergonomically designed isolation operating surface is designed with a 10° incline to make the operator more comfortable.
4. The interior of the working area is made of an overall high-quality stainless steel plate, without eddy current, and can be
cleaned, disinfected and sterilized.
5. Fully enclosed reinforced safety glass front window. Use strict physical methods to operate inside the cabinet through
isolation gloves.
6. The cabinet body and the bracket can be designed separately.
7. The whole system is filtered by multi-stage high-efficiency filters to ensure safe operation, and there will be no leakage of internal substances or polluted air.
8. Strict internal isolation valve, suitable for internal sterilization.
9. The exterior of the cabinet adopts antibacterial coating, which can inhibit the growth of bacteria on the surface.
10. Humanized design, LCD man-machine dialogue, touch button operation, microcomputer intelligent control.
11. Mechanical and electronic double pressure gauges can monitor the internal pressure of the safety cabinet in real time, carry out internal pressure monitoring and over-limit alarm.
1. Meet the requirements of China SFDA YY0569 standard and American NSF/ANSI 49 standard for three-level biological safety cabinet.
2. It has the characteristics of full enclosed, full negative pressure and full discharge. 100% of the air is filtered through two channels and discharged to the exhaust system of the laboratory system for centralized treatment.
3. The ergonomically designed isolation operating surface is designed with a 10° incline to make the operator more comfortable.
4. The interior of the working area is made of an overall high-quality stainless steel plate, without eddy current, and can be
cleaned, disinfected and sterilized.
5. Fully enclosed reinforced safety glass front window. Use strict physical methods to operate inside the cabinet through
isolation gloves.
6. The cabinet body and the bracket can be designed separately.
7. The whole system is filtered by multi-stage high-efficiency filters to ensure safe operation, and there will be no leakage of internal substances or polluted air.
8. Strict internal isolation valve, suitable for internal sterilization.
9. The exterior of the cabinet adopts antibacterial coating, which can inhibit the growth of bacteria on the surface.
10. Humanized design, LCD man-machine dialogue, touch button operation, microcomputer intelligent control.
11. Mechanical and electronic double pressure gauges can monitor the internal pressure of the safety cabinet in real time, carry out internal pressure monitoring and over-limit alarm.
Technical Parameters
Model | BSC-1100III | BSC-1300III | BSC-1600III | ||
Cleanliness | HEPA:ISO Class 5 (Class 100) / ULPA: ISO Class 4 (Class 10) | ||||
Filter Efficiency | HEPA: ≥99.995%, at 0.3µm / ULPA: ≥99.999%, at 0.12µm | ||||
Inner Pressure (Pa) | -125 | ||||
Power Supply | ~220V, 50Hz | ||||
Input Power (VA) | 100 | 100 | 150 | ||
Weight (kg) | 350 | 400 | 450 | ||
Qty. of Glove | 2 | 3 | 4 | ||
Work Dimension (mm) | 1100 x 600 x 650 | 1300 x 600 x 650 | 1600 x 600 x 650 | ||
Overall Dimension (mm) | 1650 x 620 x 1980 | 1850 x 620 x 1980 | 2150 x 620 x 1980 | ||
Size and Qty. of Light | 36W, 2 | 36W, 2 | 36W, 3 | ||
Lumin. (Lx) | ≥650 | ||||
Material | Stainless Steel |
Customized | Accept |
Service | OEM and OEM |
Package | Standard wooden packing for sea shipping |
