Industrial ice machine 30Ton ice block making machine
- Category: Ice Machines >>>
- Supplier: Jiangsu Linsky Refrigeration Equipment Co. Ltd.
Share on (1600325515531):
Product Overview
Description
Ice Machine Description
Industrial ice machine 30Ton ice block making machine
Aluminum direct refrigeration block ice machine is also called direct refrigeration block ice machine, direct fast cooling ice
machine (block ice machine). The principle is to use the specially designed cooling channel of the ice making box to carry on the circulation of the low temperature refrigerant, so as to rapidly cool the water in the box and realize rapid ice making.
Direct refrigeration block ice machine needs no brine tank, hoist, ice thawing tank and the water doe not need to add industrial salt. There is no need to change ice buckets and labors does not need 24 hours working time.
machine (block ice machine). The principle is to use the specially designed cooling channel of the ice making box to carry on the circulation of the low temperature refrigerant, so as to rapidly cool the water in the box and realize rapid ice making.
Direct refrigeration block ice machine needs no brine tank, hoist, ice thawing tank and the water doe not need to add industrial salt. There is no need to change ice buckets and labors does not need 24 hours working time.
Industrial ice machine 30Ton ice block making machine

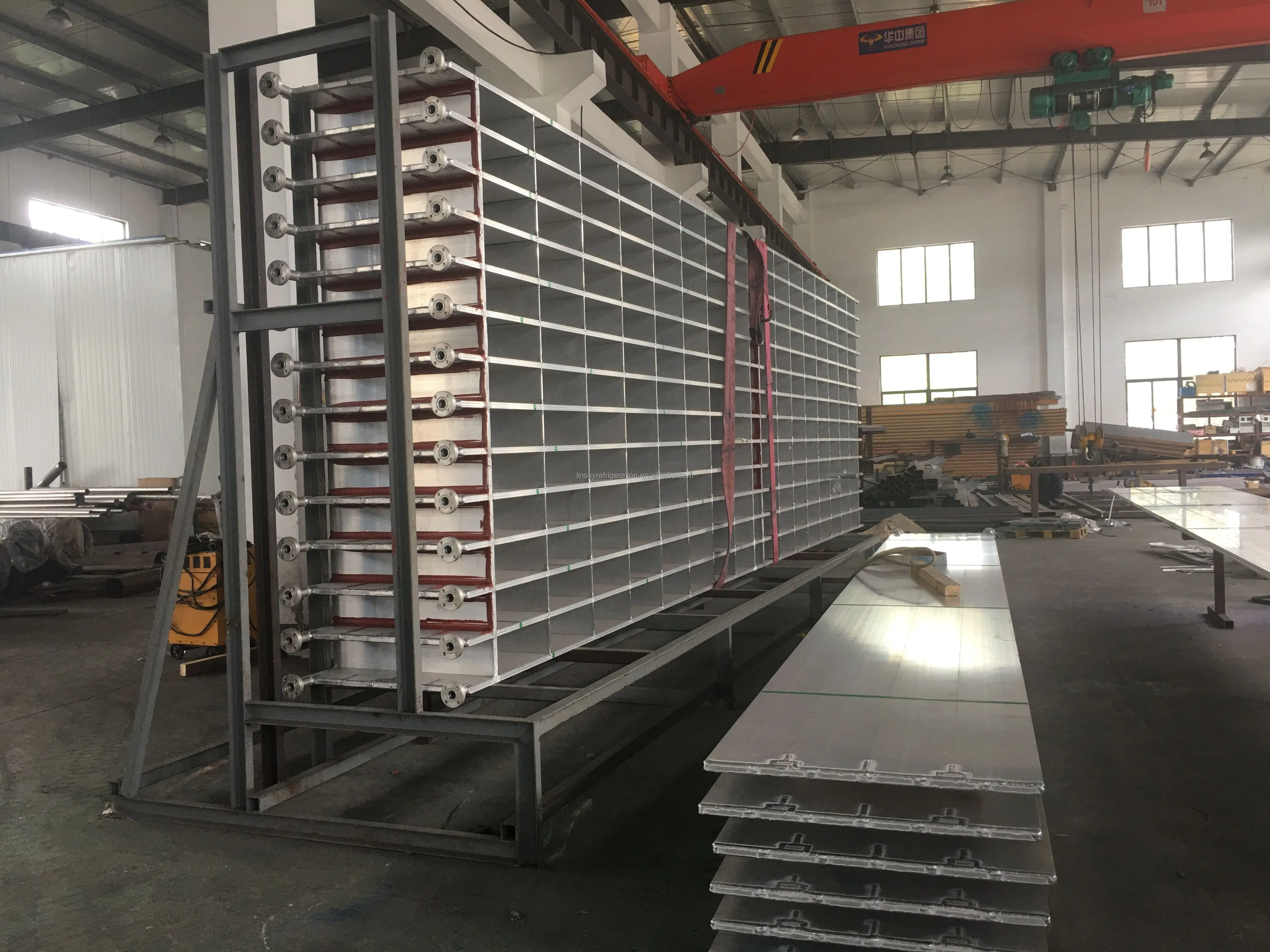

*Linsky direct system block ice machine uses aluminum alloy plate evaporator instead of traditional cooling media “brine” to make ice. Ice and refrigerant conduct heat transfer directly through aluminum alloy plate. In this way, machine can harvest ice within shorter time and effectively increase ice making efficiency and meanwhile, more energy is saving;
*All parts of Linsky direct system block ice machine which contact with water are made of SUS304 or aluminum alloy material. The produced ice is clean and hygiene.
*Block ice has a large dimension but has small contact area so it does not melt easily. It is usually cut into different pieces for different uses in ice sculpture, sea shipping and fish vessels. The small pieces of block ice can be also be used for various purposes.
Industrial ice machine 30Ton ice block making machine | ||
Model: | LIB-300D | |
Daily capacity: | 30Ton/24hr | |
Working Conditions: | Ambient temperature 35℃, Water temperature 25℃ | |
Power supply: | 380V/50Hz/3P, can customized 220V/440V, 50hz/60hz | |
Operating Power: | 103kw | |
Install Power: | 105kw | |
Block ice weight: | 20kg/25kg/30kg/50kg/100kg | |
Compressor: | Bitzer (Germany) / Hanbell (China) | |
Ice Machine Application
Industrial ice machine 30Ton ice block making machine

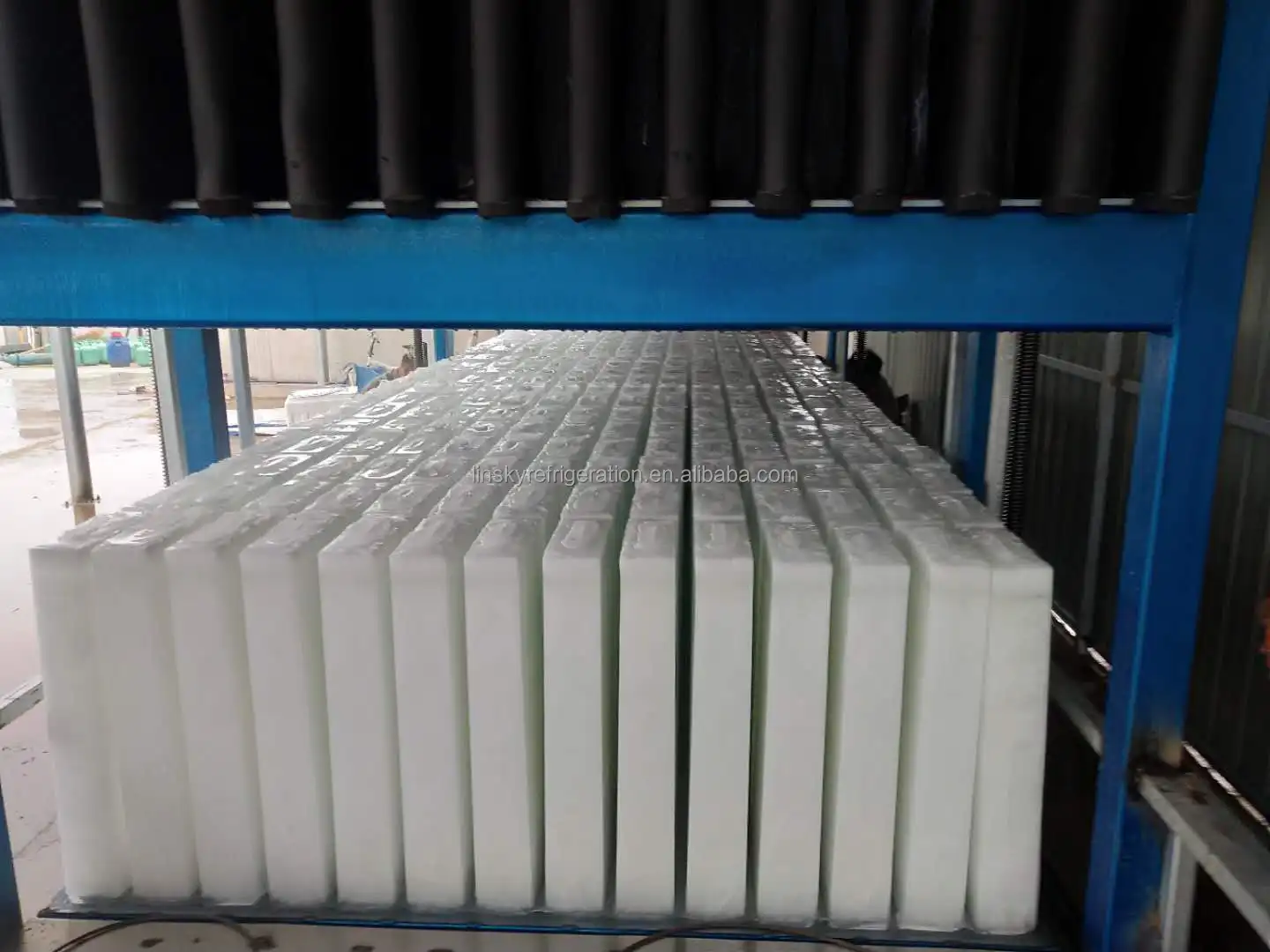

Block Ice is large cube shape, weight of 1~200kg, solid ice; Block ice is the largest ice in all the ice products. It is not easyto thaw due to its small contact area. And it can be crushed into different shapes of ice according to different requirements.
Linsky offers transparent, semi-transparent or milky white three ice appearances available.
Features: Industrial ice machine 30Ton ice block making machine
Transparent ice features: crystal, solid and not easy to melt;
Semi-transparent ice features: misty white appearance as a few amount of gas mixed in ice making process, ice is solid and not easy to melt;
Milky white ice features: milky white as lot of gas mixed in fast ice making process, low temperature, not easy to melt but suitable for crushing.
Block Ice Applications fishing industry, fresh keeping or human consumption after crushing; transparent one used for ice sculpture, ice show etc.; it also can be used in the area of chemical industry, food processing cooling.
Transparent ice features: crystal, solid and not easy to melt;
Semi-transparent ice features: misty white appearance as a few amount of gas mixed in ice making process, ice is solid and not easy to melt;
Milky white ice features: milky white as lot of gas mixed in fast ice making process, low temperature, not easy to melt but suitable for crushing.
Block Ice Applications fishing industry, fresh keeping or human consumption after crushing; transparent one used for ice sculpture, ice show etc.; it also can be used in the area of chemical industry, food processing cooling.

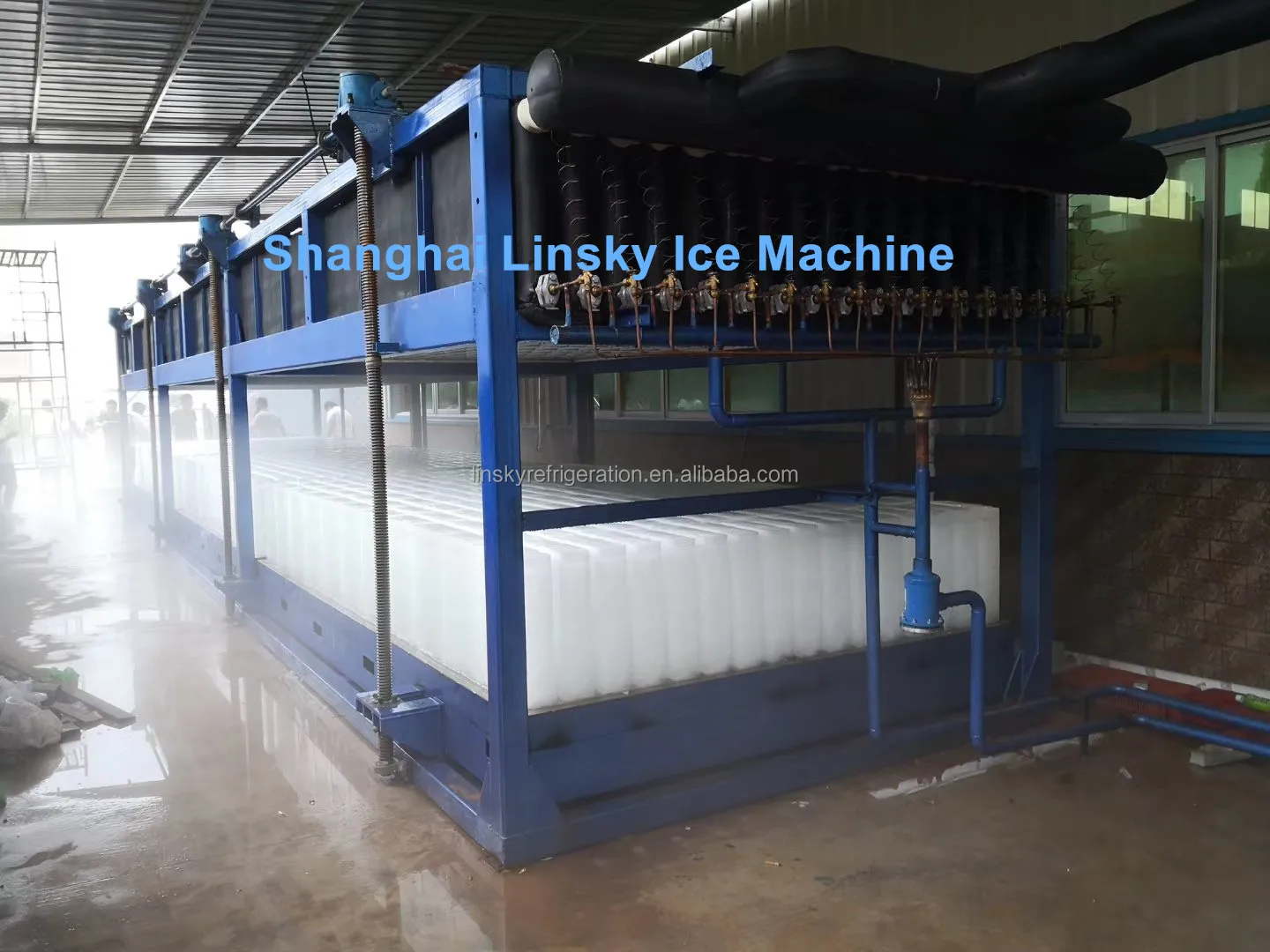

Ice Machine Manufacturing Technique

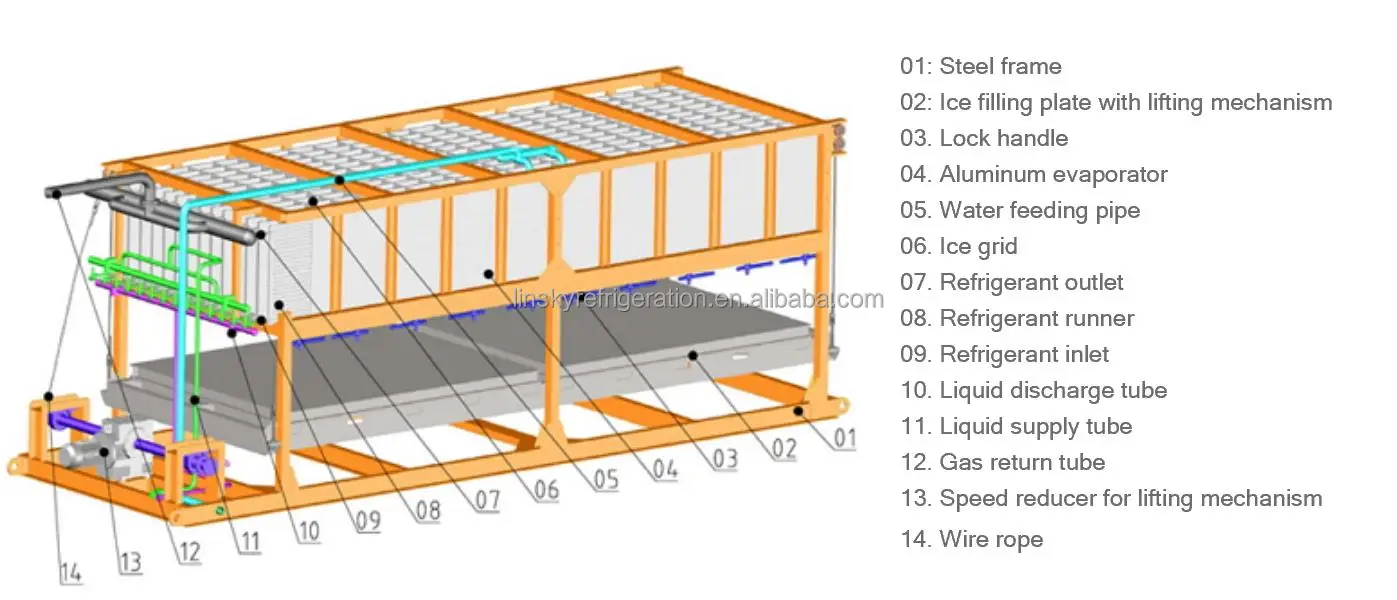

As shown, Ice filling plate (02) will be elevated by wire rope (14) which is driven by speed reducer (13). Lift up the filling
plate to be fastened in the lock handle (03) and get the whole aluminum alloy plate evaporator (04) sealed. Add water into the ice grid (06) automatically through water feeding pipes (05). At the bottom of all ice grid there is a 5mm space ensures water can flow through each ice can. When water reaches to the standard level, it will stop to continue to add water automatically.
Refrigeration system starts to run after water adding process. Refrigerant flows into the refrigerant runner (08) of aluminum evaporator (04) from refrigerant inlet (09) and exchanges heat with water in ice grid to lower the water temperature.
In a certain time, all the water in ice can will turn into block ice. At this time, refrigeration system switches to ice defrost
mode. Hot gas enters into gas return tube (12) and becomes fluid in refrigerant runner (08), then back through liquid discharge tube (10) to the dry evaporator.
Hot gas defrosts ice surface and separates them from ice grid. At this time, refrigeration system stops to work. Speed reducer for lifting mechanism (13) drives wire rope to lower ice lifting plate to the bottom place of steel frame (01). The ice on filling plate can be manually moved away or the whole plate be taken away by forklift for swift and labor-free ice shift.
plate to be fastened in the lock handle (03) and get the whole aluminum alloy plate evaporator (04) sealed. Add water into the ice grid (06) automatically through water feeding pipes (05). At the bottom of all ice grid there is a 5mm space ensures water can flow through each ice can. When water reaches to the standard level, it will stop to continue to add water automatically.
Refrigeration system starts to run after water adding process. Refrigerant flows into the refrigerant runner (08) of aluminum evaporator (04) from refrigerant inlet (09) and exchanges heat with water in ice grid to lower the water temperature.
In a certain time, all the water in ice can will turn into block ice. At this time, refrigeration system switches to ice defrost
mode. Hot gas enters into gas return tube (12) and becomes fluid in refrigerant runner (08), then back through liquid discharge tube (10) to the dry evaporator.
Hot gas defrosts ice surface and separates them from ice grid. At this time, refrigeration system stops to work. Speed reducer for lifting mechanism (13) drives wire rope to lower ice lifting plate to the bottom place of steel frame (01). The ice on filling plate can be manually moved away or the whole plate be taken away by forklift for swift and labor-free ice shift.
Aluminum Direct Type Block Ice Machine Features-Industrial ice machine 30Ton ice block making machine
*Adopts latest technology, no need of brine tank; *Aerospace aluminum alloy 6063-T5, high heat transfer coefficient, high strength and robust evaporator by enhanced welding technology; *Direct heat exchange between the water and refrigerant in aluminum evaporator brings higher ice making efficiency, thus ice forms 1.5 times faster than ordinary ice machine which uses brine water.
Aluminum Direct Type Block Ice Machine Features-Industrial ice machine 30Ton ice block making machine
*Easy-to-operate screw rod lifting mechanism gets feedback from the distance sensor which can realize more precise and safe control; *Passive reservoir control method applied to specify precise liquid supply, which increases ice making efficiency and system reliability; *Automatic water adding function by back type liquid level control technology; *Silicone foam seal avoids evaporator dripping problem.
*Unique refrigeration system, using hot gas defrost technology makes easier and automatic ice harvest;
*Integrated modular designfacilitates installation and maintenance on the spot;
*Food grade manufacturing process, totally complies with food standard.

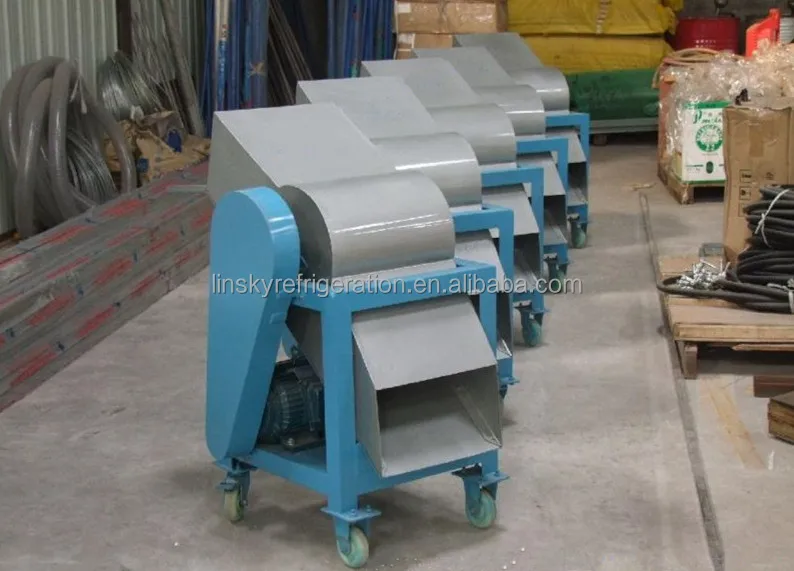

Ancillary equipment (optional)-Industrial ice machine 30Ton ice block making machine

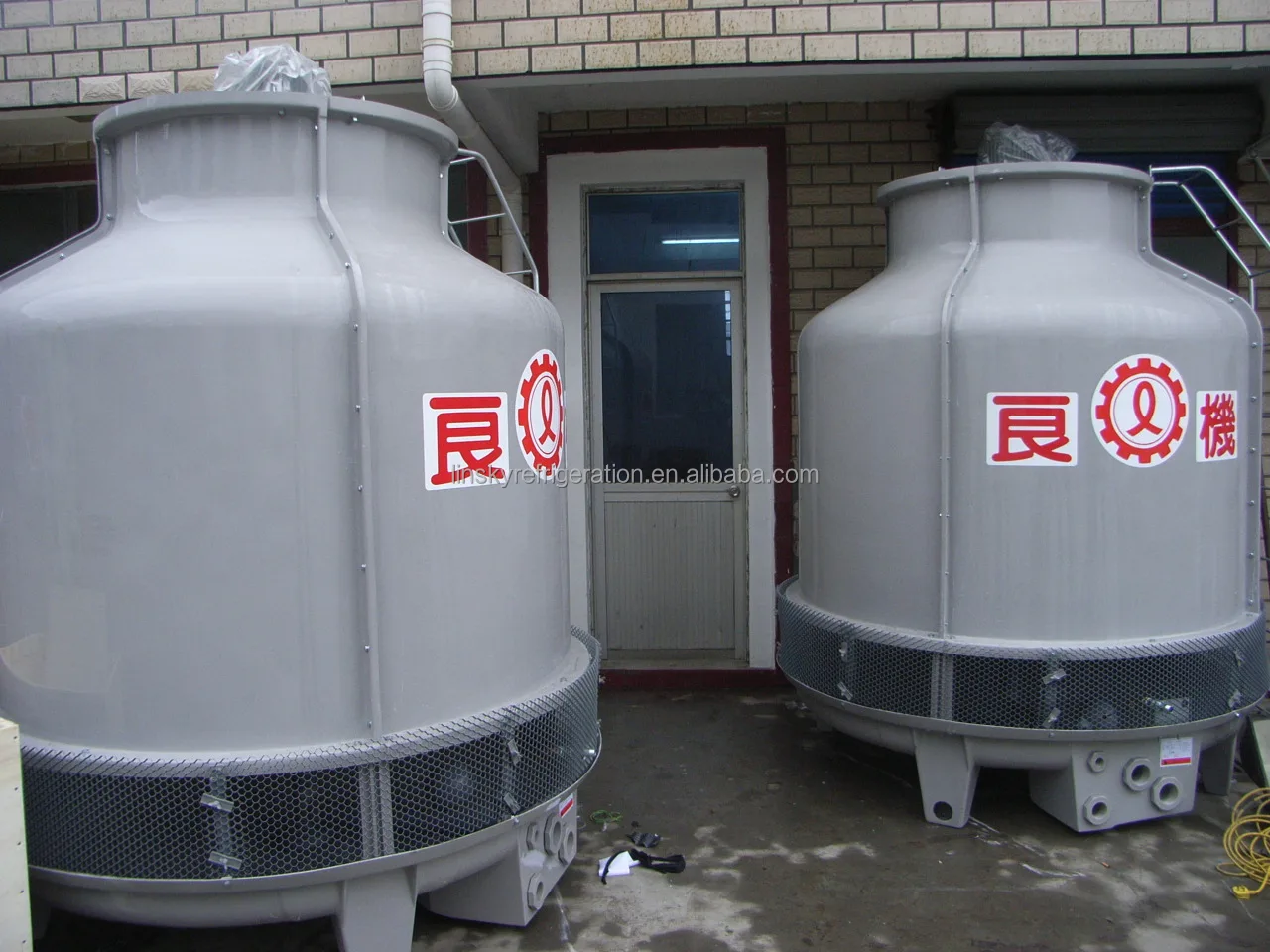

Including full-automatic ice crusher, water chiller, conveying device and cold room.

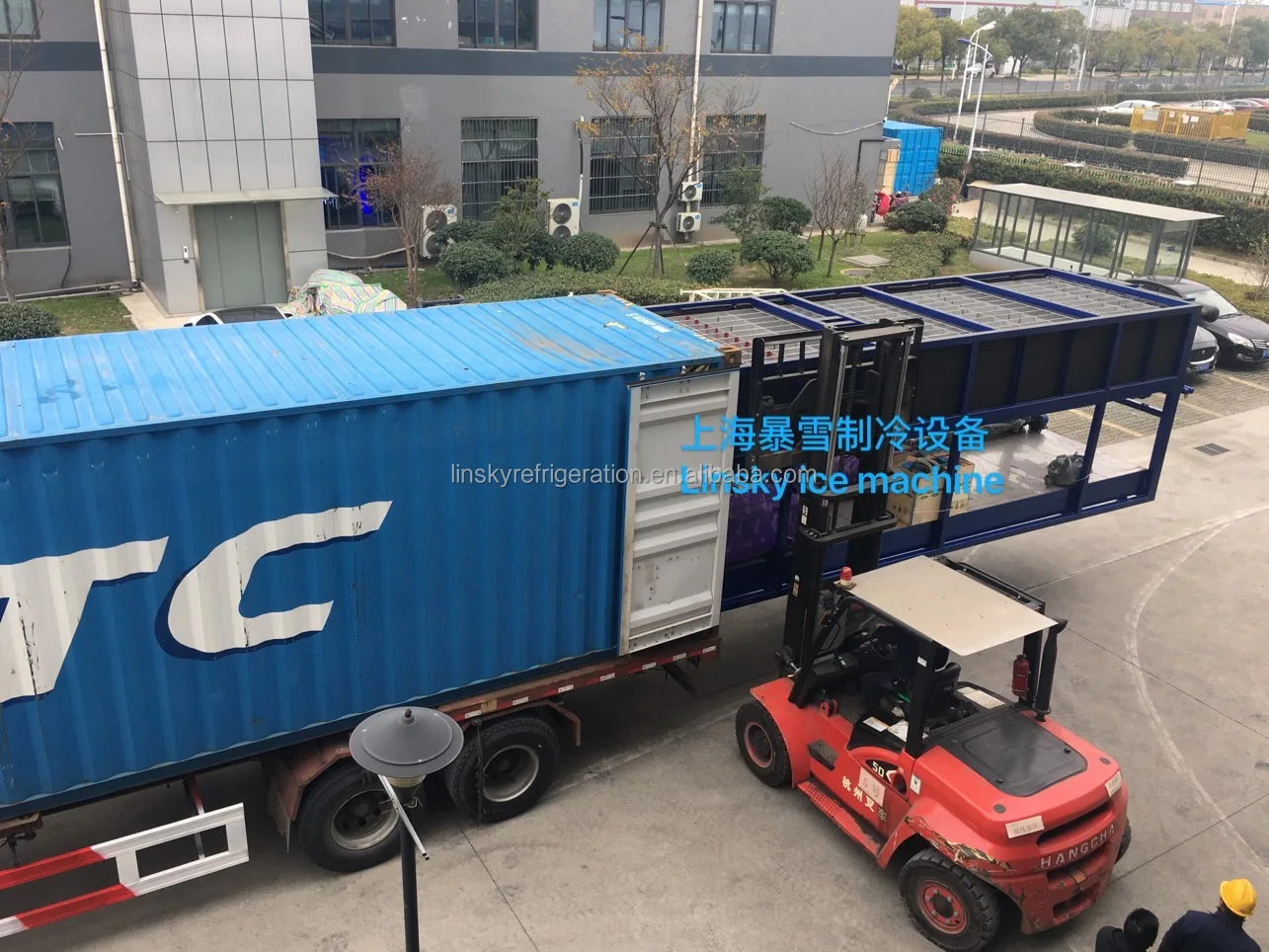

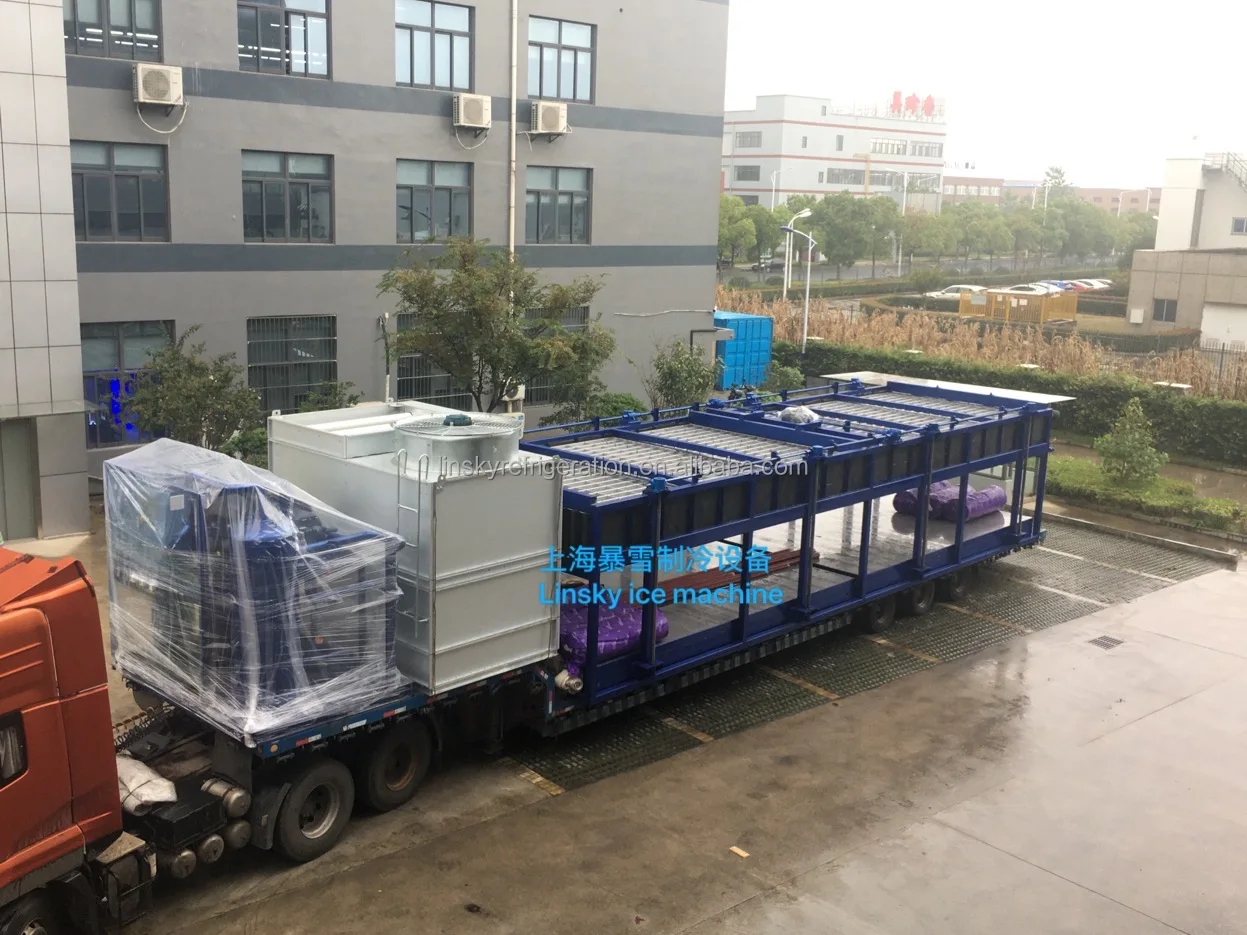

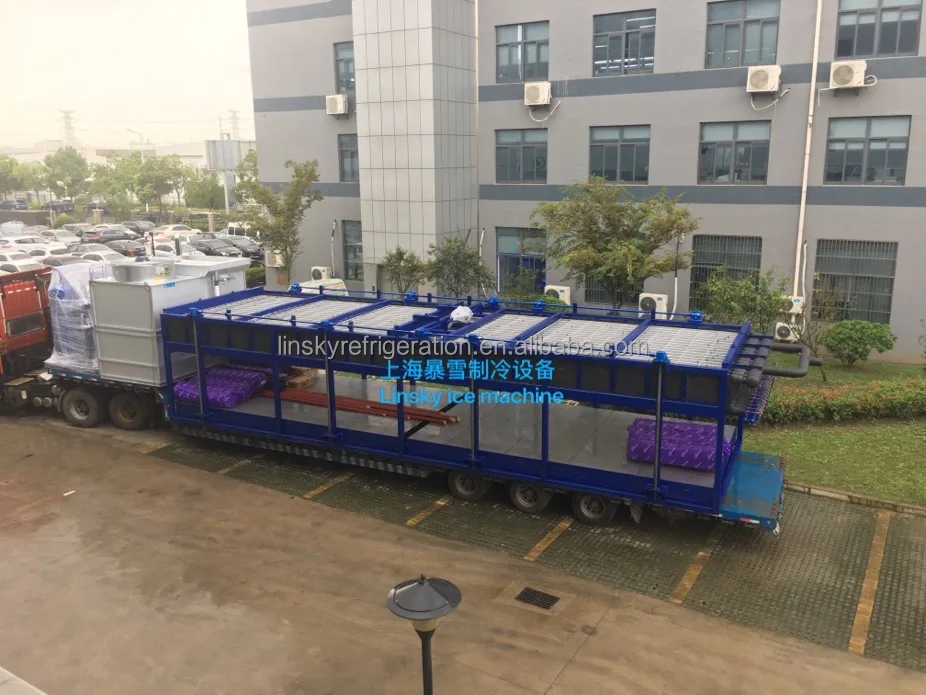

Ice Machine packaging&Shipping
For Industrial ice machine 30Ton ice block making machine:
(1)Use one 40ft container for 30Ton block ice machine;
(1)Use one 40ft container for 30Ton block ice machine;
(2)Spared parts and accessories are offered free of charge for installation and operation.
Ice Machine Projects

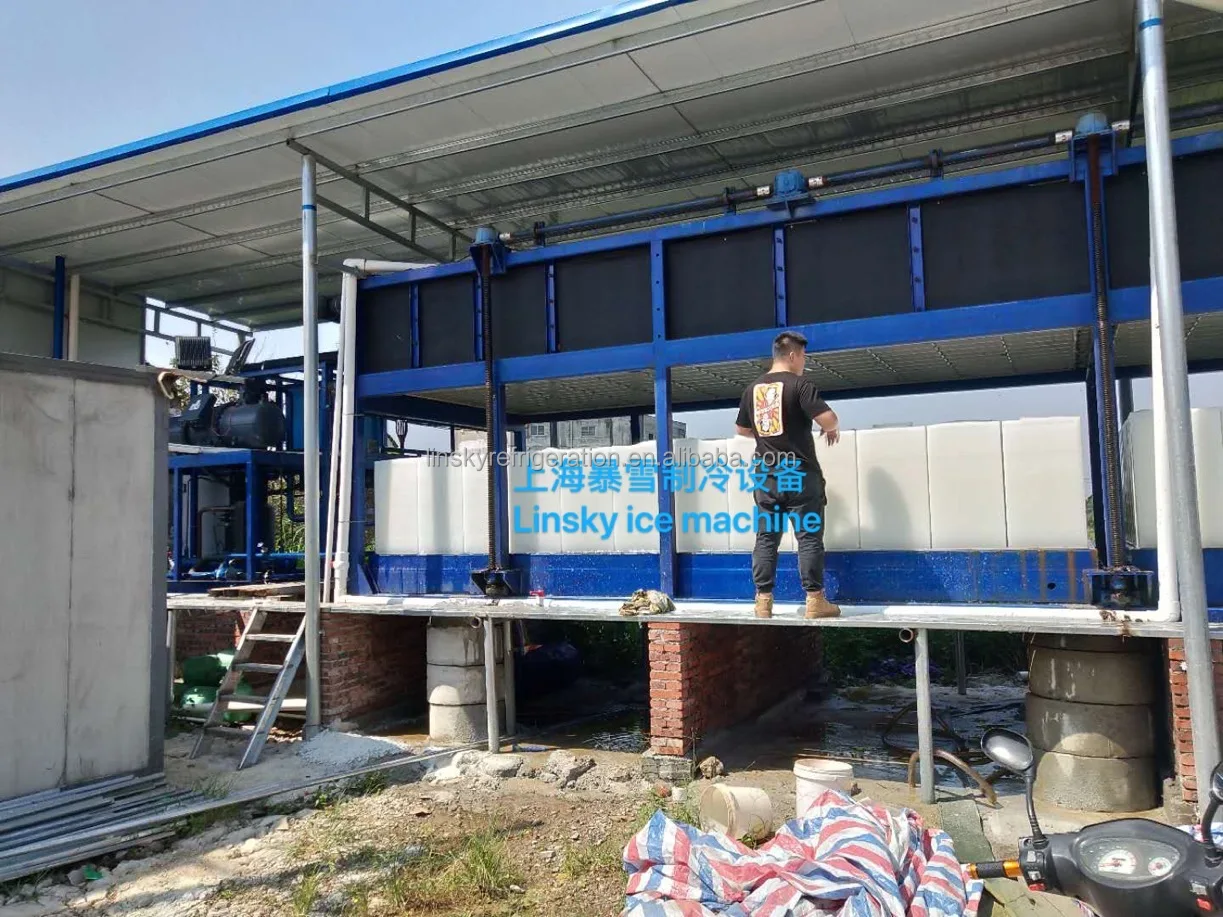

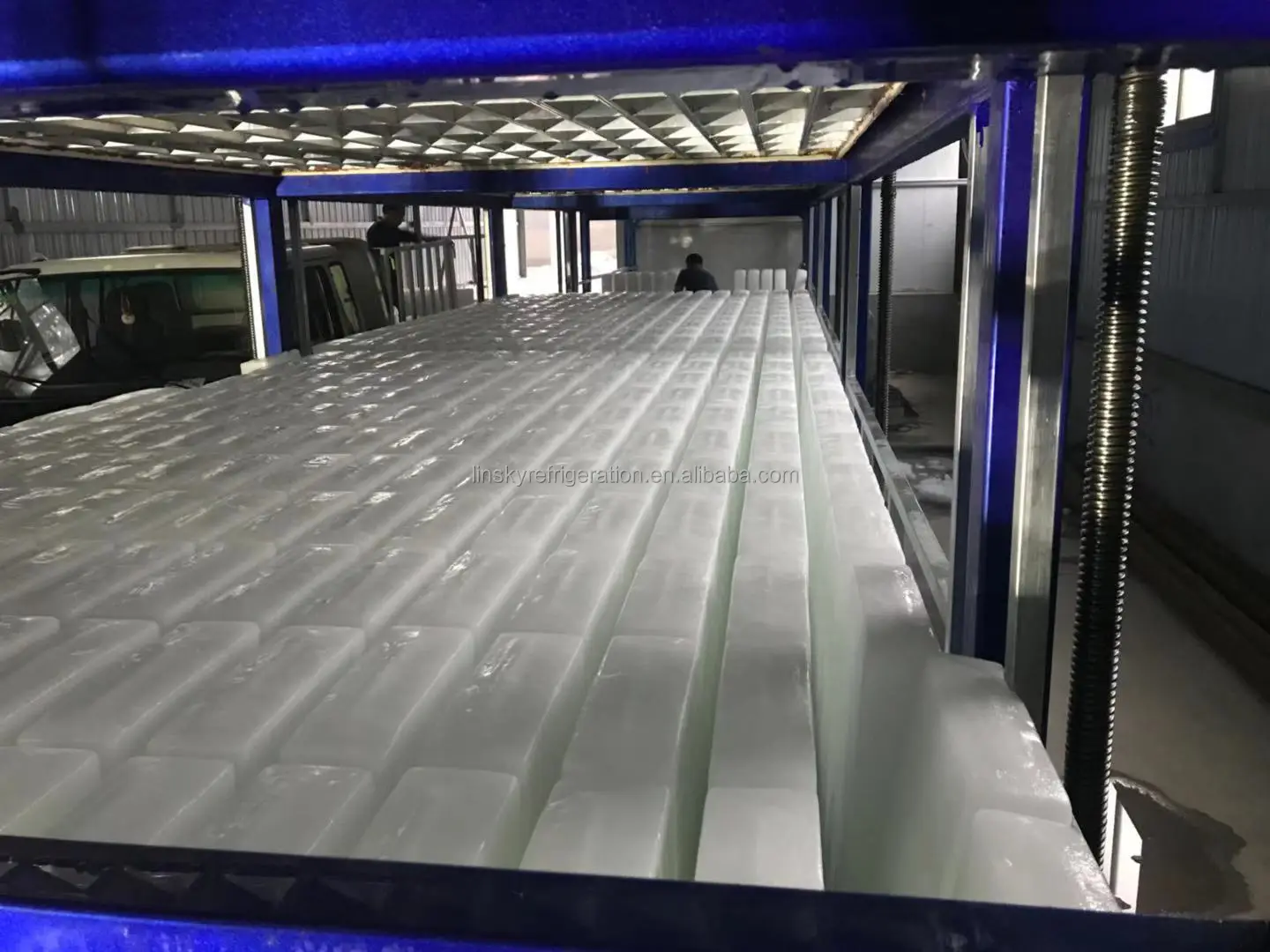

Linsky 20Ton/24h block ice machine to China for frozen seafood
Faster ice Making /Lower power consumption

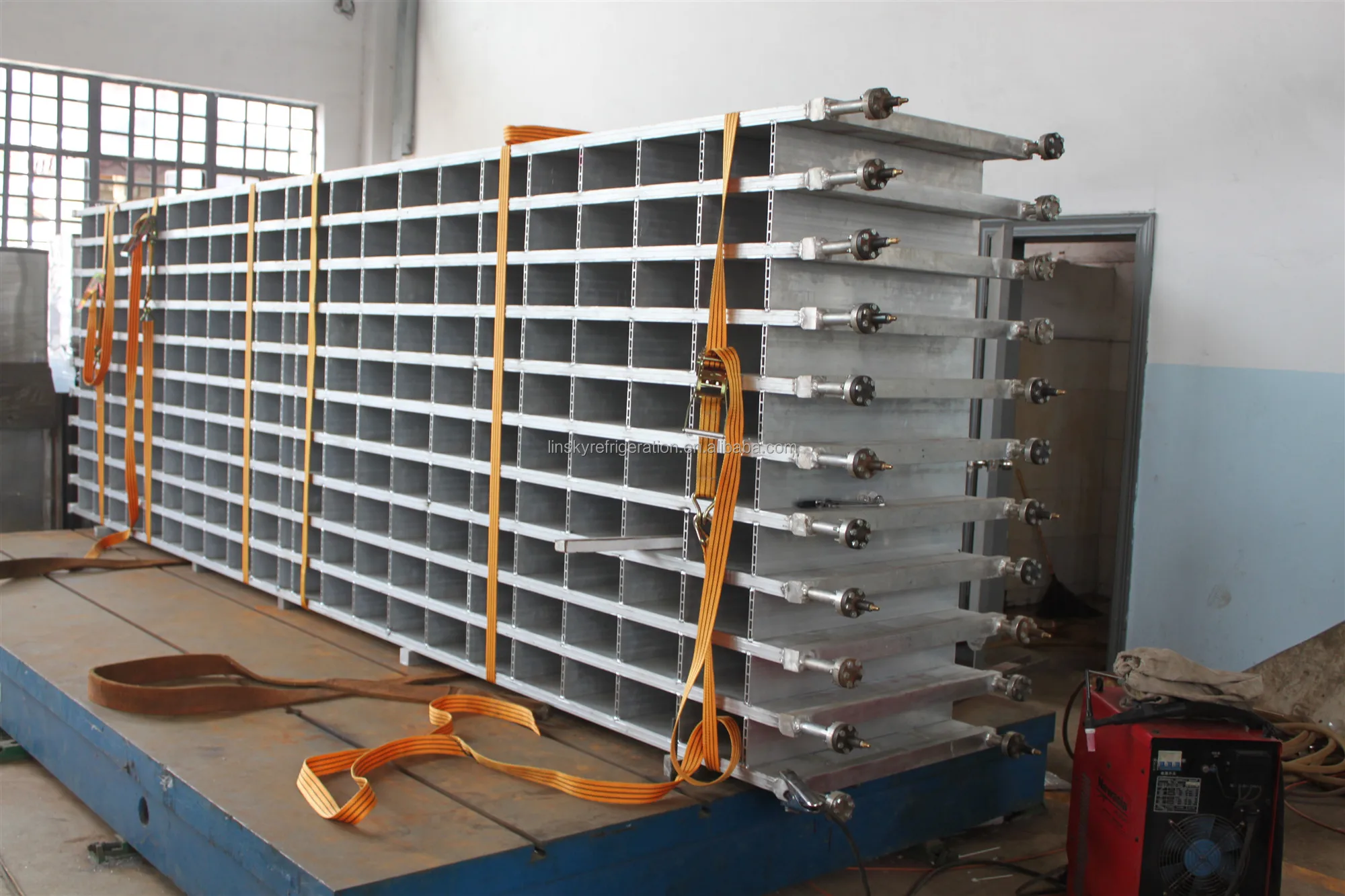

Aluminum evaporator is of 3 times higher heat exchange efficiency than other steel [SUS304, galvanized steel], so ice block can be
completely frozen faster. In this way, it can produce more ice blocks with lower power consumption.
Aluminum evaporator is of 3 times higher heat exchange efficiency than other steel [SUS304, galvanized steel], so ice block can be
completely frozen faster. In this way, it can produce more ice blocks with lower power consumption.

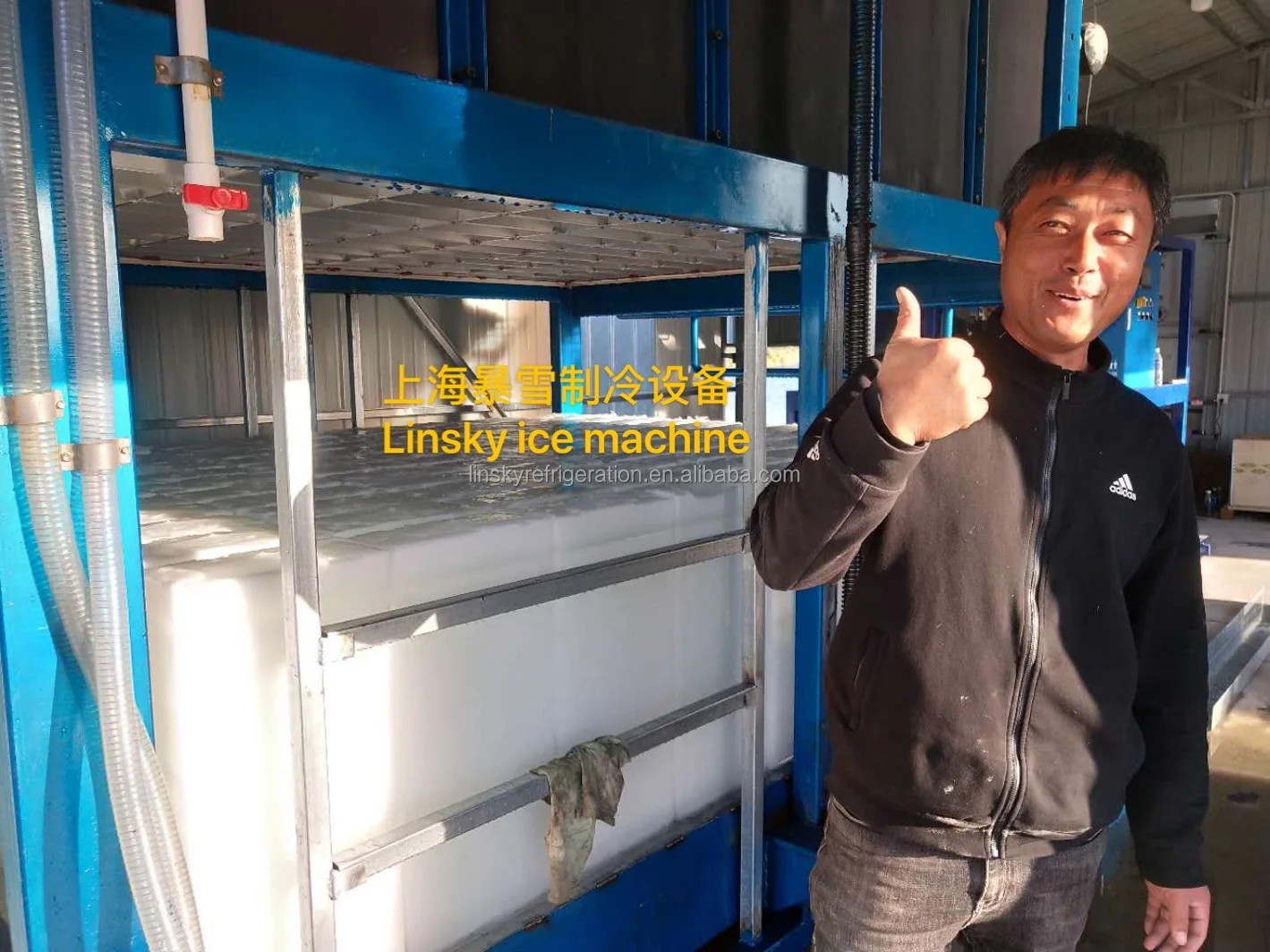

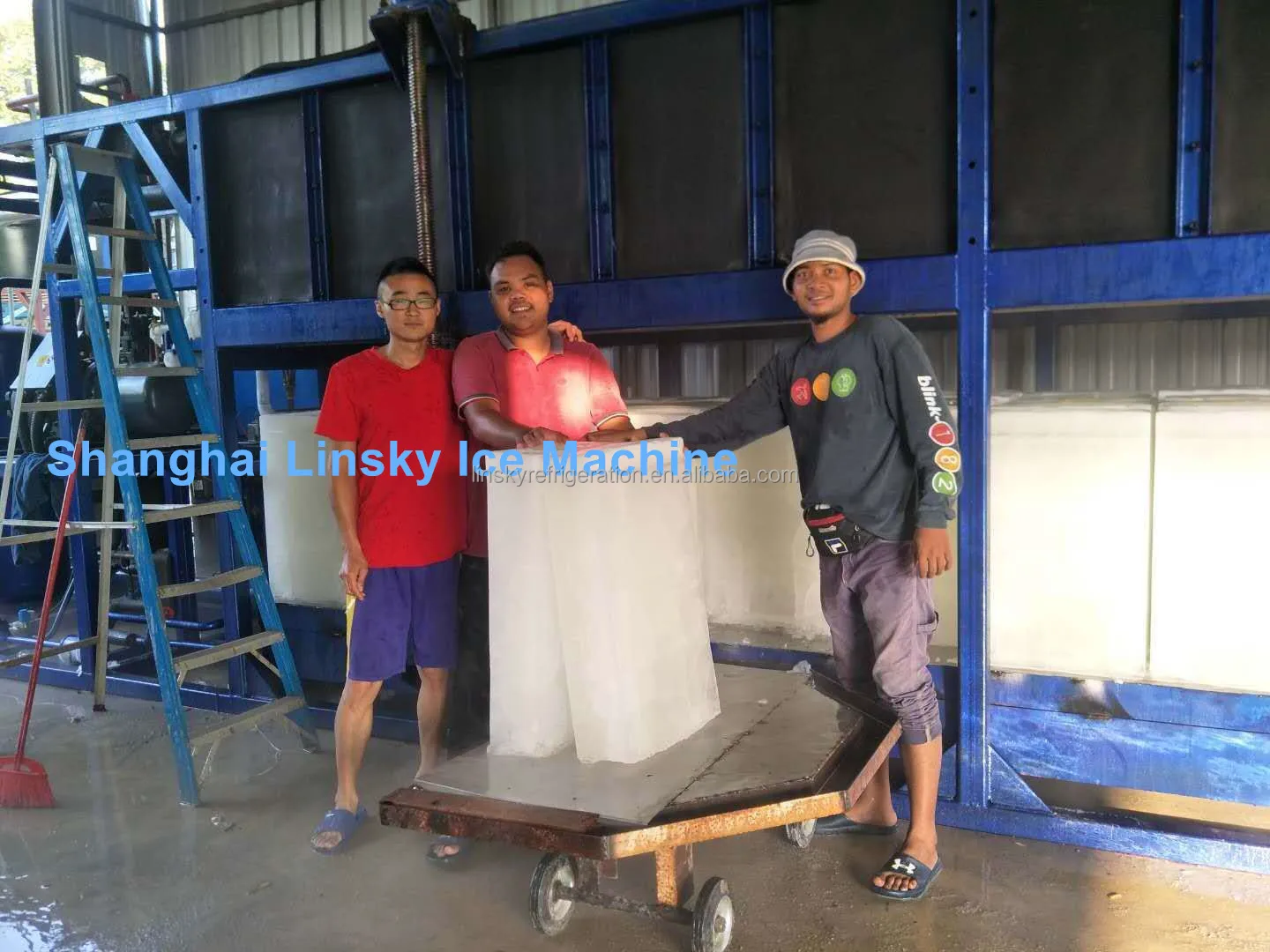

Linsky 10Ton/24h block ice machine to Malaysia
Longer service life Lower future investment
Without salt and other material's corrosion, Linsky all LIB series ice block machine with longer service life and you need just
clean the ice moulds/ice machine regularly. The fucture maintenance investment is lower.
Without salt and other material's corrosion, Linsky all LIB series ice block machine with longer service life and you need just
clean the ice moulds/ice machine regularly. The fucture maintenance investment is lower.

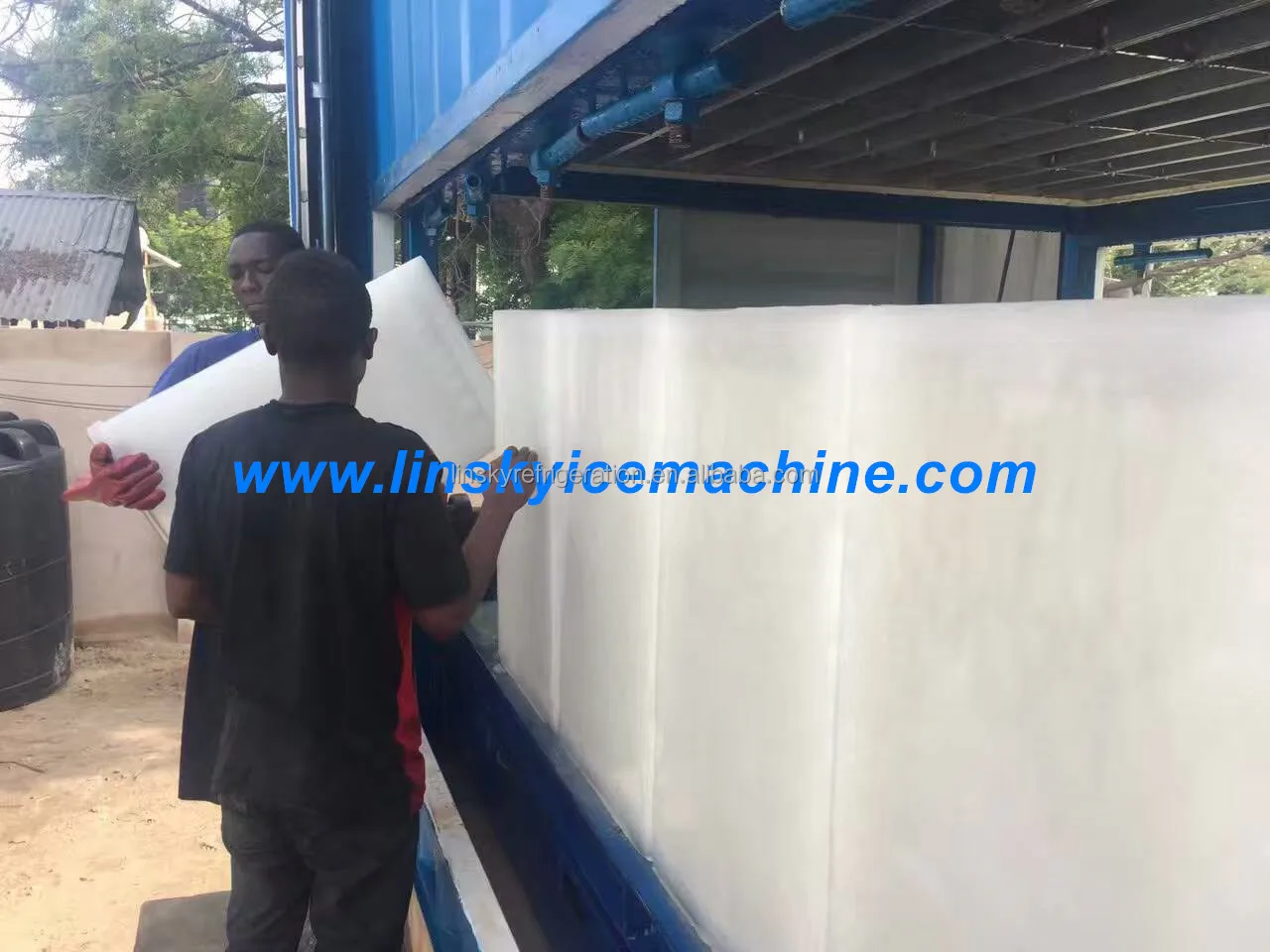

Linsky 20Ton/24h containerized block ice machine to Tanzania

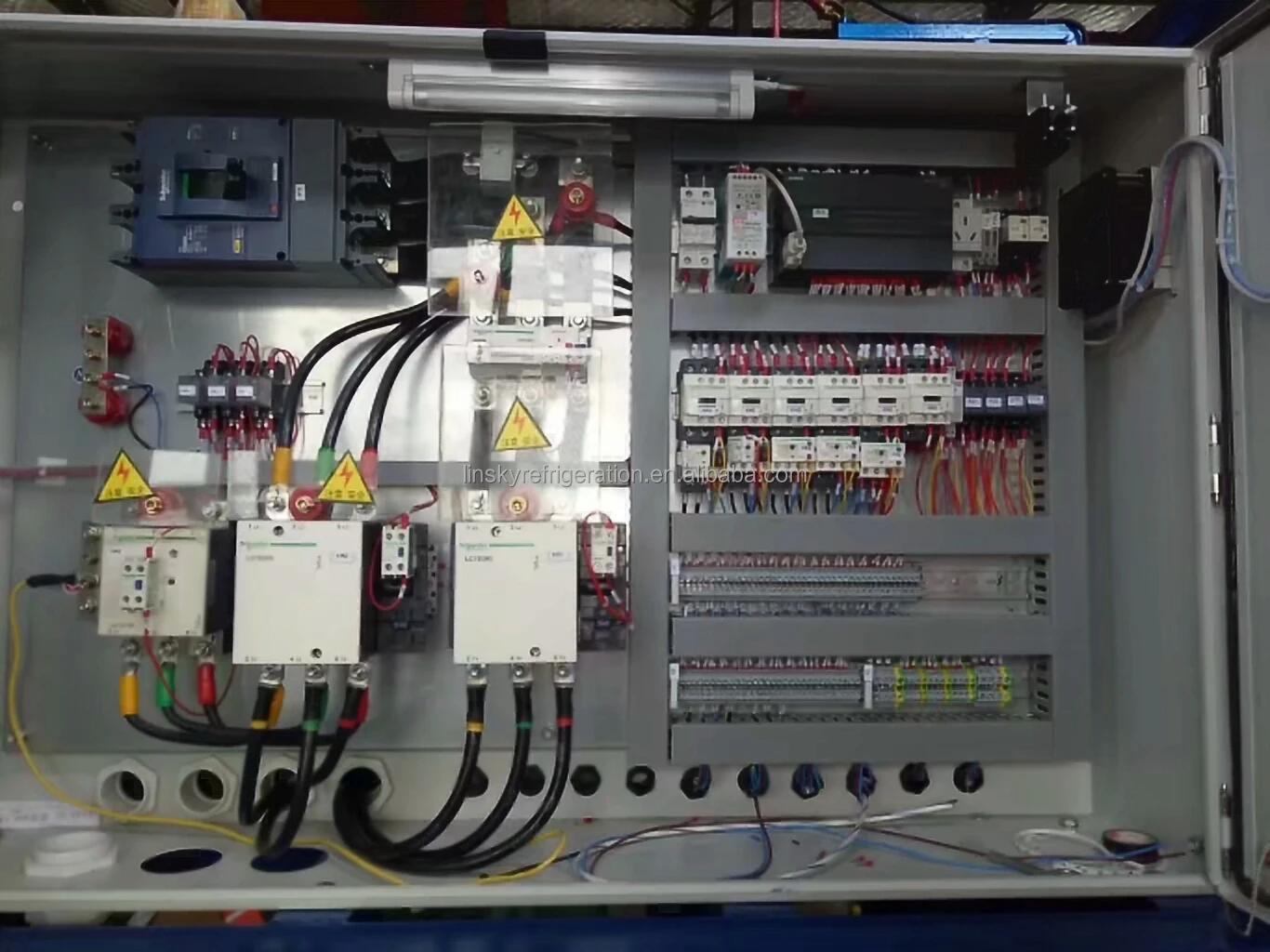

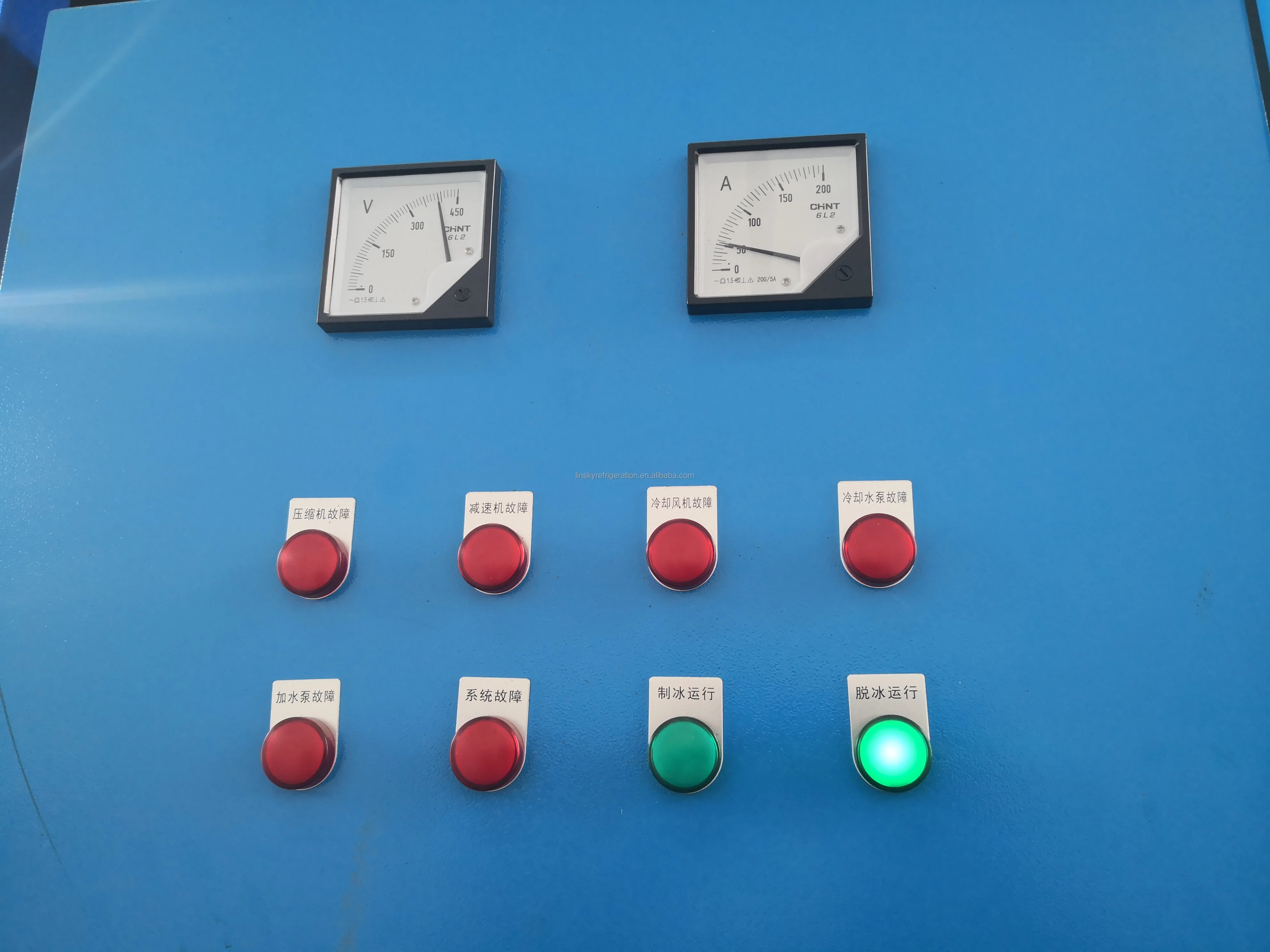

New full automatic control system
LINSKY direct block ice machine has complete automatic control functions, not only including compressor high voltage protection, low voltage protection,oil shortage protection, phase sequence protection, compressor module protection,motor overload protection, but also including lifting platform limited protection, automatic watering, automatic ice doffing and other functions.
LINSKY direct block ice machine has complete automatic control functions, not only including compressor high voltage protection, low voltage protection,oil shortage protection, phase sequence protection, compressor module protection,motor overload protection, but also including lifting platform limited protection, automatic watering, automatic ice doffing and other functions.
About LINSKY Factory Introduction
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
Related Products
1.Bitzer Compressor Unit
1.1 Cooling Type Bitzer Screw Compressor Unit
1.2 Freezing Type Bitzer Screw Compressor Unit
1.3 Cooling Type Bitzer Piston Compressor Unit
1.4 Freezing Type Bitzer Piston Compressor Unit
2.Hanbell Compressor Unit
2.1 Cooling Type Hanbell Screw Compressor Unit
2.2 Freezing Type Hanbell Screw Compressor Unit
2.3 Quick-freeze Type Hanbell Double-stage Screw Compressor Unit
3.FUSHENG Compressor Unit
3.1 Cooling Type FUSHENG Screw Compressor Unit
3.2 Freezing Type FUSHENG Screw Compressor Unit
3.3 Quick-freeze Type FUSHENG Double-stage Screw Compressor Unit
4. Indoor Compressor Condensing Unit
4.1 Indoor Bitzer Piston Compressor Condensing Unit
4.2 Indoor Copeland Piston Compressor Condensing Unit
4.3 Indoor GEA Piston Compressor Condensing Unit
4.4 Indoor Copeland Scroll Compressor Condensing Unit
4.5 Indoor Danfoss Scroll Compressor Condensing Unit
5. Outdoor Compressor Condensing Unit
5.1 Outdoor Bitzer Piston Compressor Condensing Unit
5.2 Outdoor Copeland Piston Compressor Condensing Unit
5.3 Outdoor GEA Piston Compressor Condensing Unit
5.4 Outdoor Copeland Scroll Compressor Condensing Unit
5.5 Outdoor Danfoss Scroll Compressor Condensing Unit
6. Small Outdoor Compressor Condensing Unit
6.1 Commercial Copeland Condensing Unit
7. Freon Pumps and Low-pressure Circulation Drums System
8. Ice Machine
Direct Cooling Block Ice Machine
Tube Ice Machine
Flake Ice Machine
Plate Ice Machine
Cube Ice Machine
9. Refrigeration Components
9.1 Air Cooling Fan
9.2 Air Cooling Condenser
9.3 Water Cooling Condenser
9.4 Evaporative Condenser
9.5 Liquid Receiver
9.6 Oil Segregator
9.7 Accumulator
9.8 Water Cooling Oil Cooler
9.9 Air Cooling Oil Cooler
10. Refrigeration accessories
10.1 O&F Refrigeration accessories
10.2 Danfoss Refrigeration accessories
10.3 Emerson Refrigeration accessories
1.1 Cooling Type Bitzer Screw Compressor Unit
1.2 Freezing Type Bitzer Screw Compressor Unit
1.3 Cooling Type Bitzer Piston Compressor Unit
1.4 Freezing Type Bitzer Piston Compressor Unit
2.Hanbell Compressor Unit
2.1 Cooling Type Hanbell Screw Compressor Unit
2.2 Freezing Type Hanbell Screw Compressor Unit
2.3 Quick-freeze Type Hanbell Double-stage Screw Compressor Unit
3.FUSHENG Compressor Unit
3.1 Cooling Type FUSHENG Screw Compressor Unit
3.2 Freezing Type FUSHENG Screw Compressor Unit
3.3 Quick-freeze Type FUSHENG Double-stage Screw Compressor Unit
4. Indoor Compressor Condensing Unit
4.1 Indoor Bitzer Piston Compressor Condensing Unit
4.2 Indoor Copeland Piston Compressor Condensing Unit
4.3 Indoor GEA Piston Compressor Condensing Unit
4.4 Indoor Copeland Scroll Compressor Condensing Unit
4.5 Indoor Danfoss Scroll Compressor Condensing Unit
5. Outdoor Compressor Condensing Unit
5.1 Outdoor Bitzer Piston Compressor Condensing Unit
5.2 Outdoor Copeland Piston Compressor Condensing Unit
5.3 Outdoor GEA Piston Compressor Condensing Unit
5.4 Outdoor Copeland Scroll Compressor Condensing Unit
5.5 Outdoor Danfoss Scroll Compressor Condensing Unit
6. Small Outdoor Compressor Condensing Unit
6.1 Commercial Copeland Condensing Unit
7. Freon Pumps and Low-pressure Circulation Drums System
8. Ice Machine
Direct Cooling Block Ice Machine
Tube Ice Machine
Flake Ice Machine
Plate Ice Machine
Cube Ice Machine
9. Refrigeration Components
9.1 Air Cooling Fan
9.2 Air Cooling Condenser
9.3 Water Cooling Condenser
9.4 Evaporative Condenser
9.5 Liquid Receiver
9.6 Oil Segregator
9.7 Accumulator
9.8 Water Cooling Oil Cooler
9.9 Air Cooling Oil Cooler
10. Refrigeration accessories
10.1 O&F Refrigeration accessories
10.2 Danfoss Refrigeration accessories
10.3 Emerson Refrigeration accessories
FAQ
1. What should I prepare to buy the ice machine from you?
(1) We will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
(2) The install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V/50Hz/3P, most North and South America countries are using 220V/60Hz/3P, please confirm with our salesman and make sure it is available in your factory.
(3) With all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment (T/T or L/C or Trade Assurance Order on Alibaba.com directly) to close the deal, for all our standard design, we will need about 35~45 working days on the production.
(4) After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2. How to install the ice machine?
(1) For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
(2) For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3. What if I buy your ice machine, but I cannot find the solution for the problem?
All Linsky ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
(1) We will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
(2) The install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V/50Hz/3P, most North and South America countries are using 220V/60Hz/3P, please confirm with our salesman and make sure it is available in your factory.
(3) With all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment (T/T or L/C or Trade Assurance Order on Alibaba.com directly) to close the deal, for all our standard design, we will need about 35~45 working days on the production.
(4) After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2. How to install the ice machine?
(1) For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
(2) For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3. What if I buy your ice machine, but I cannot find the solution for the problem?
All Linsky ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
