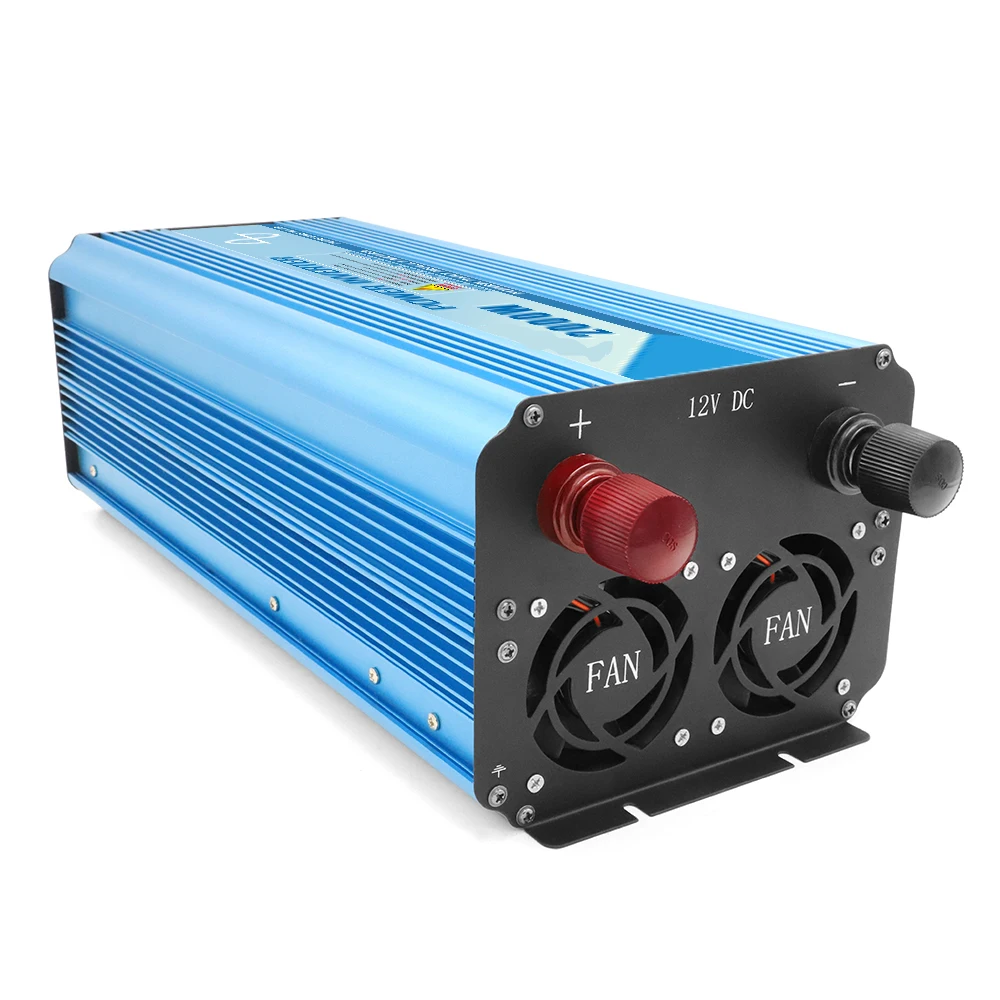

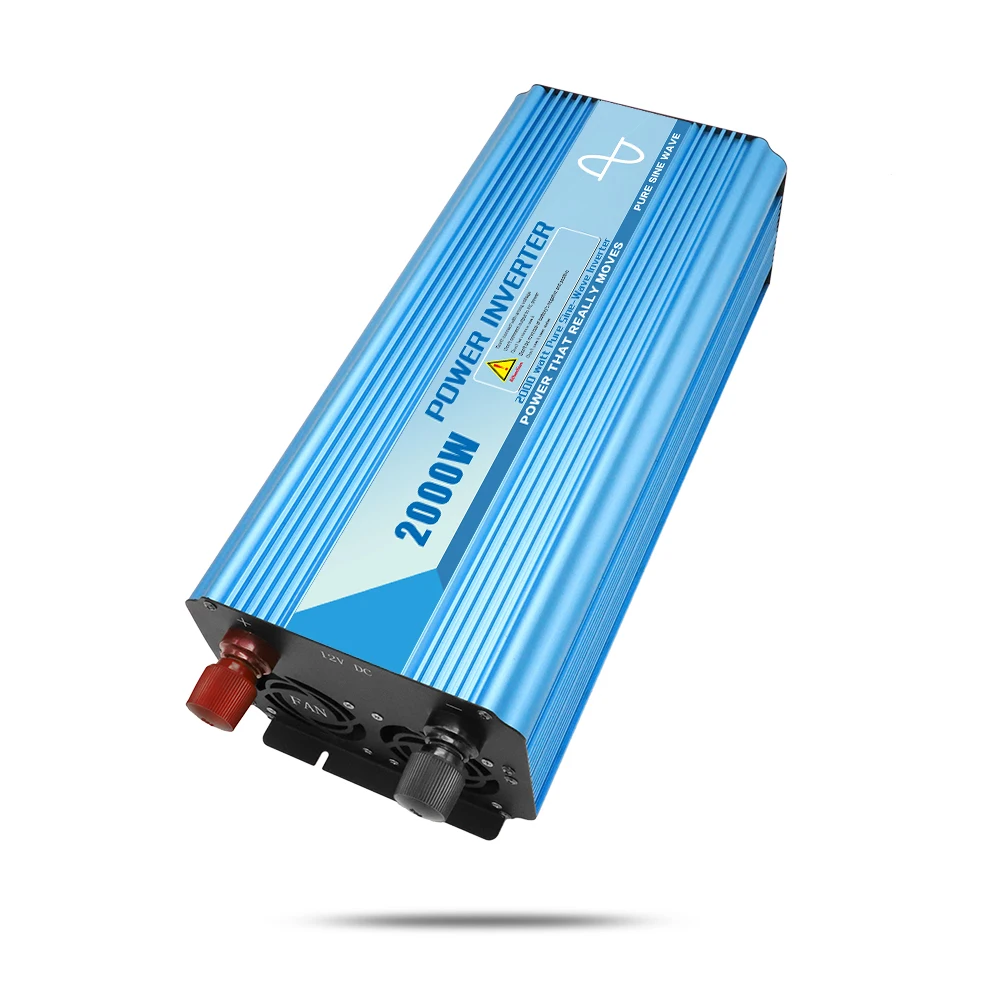

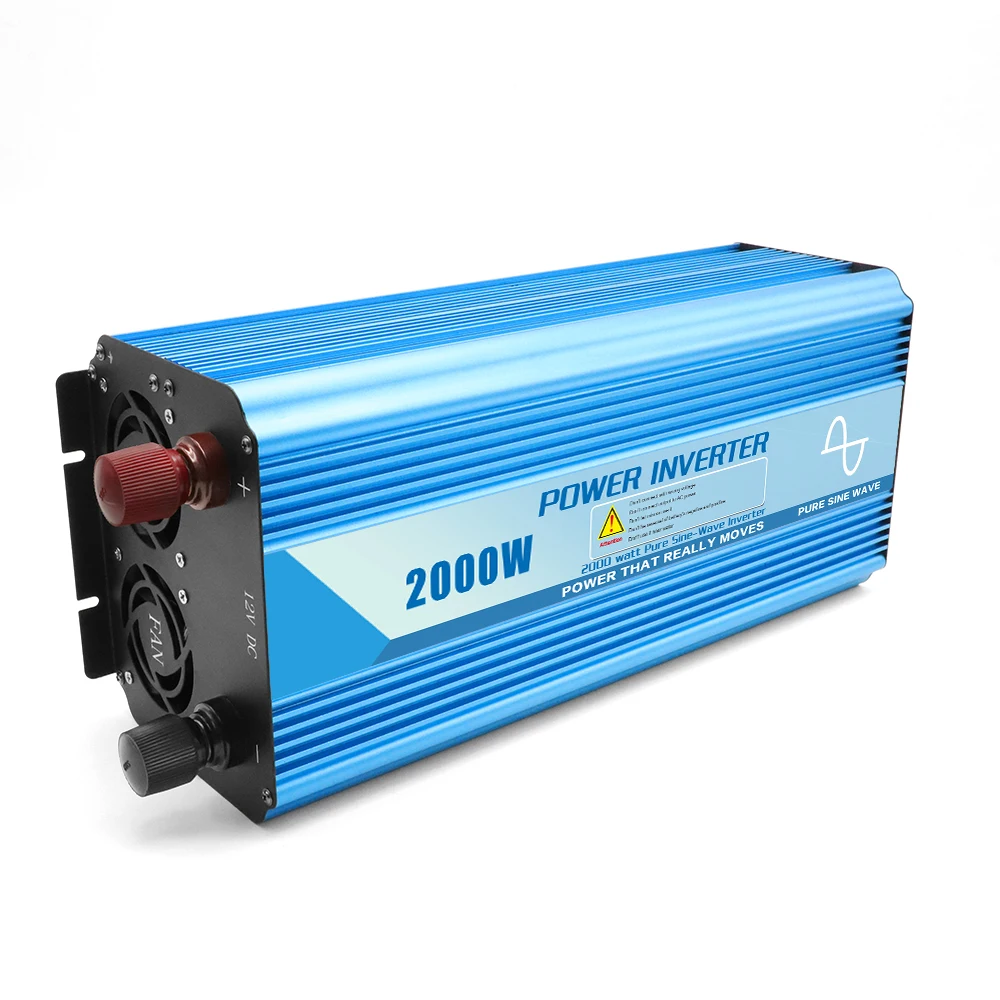

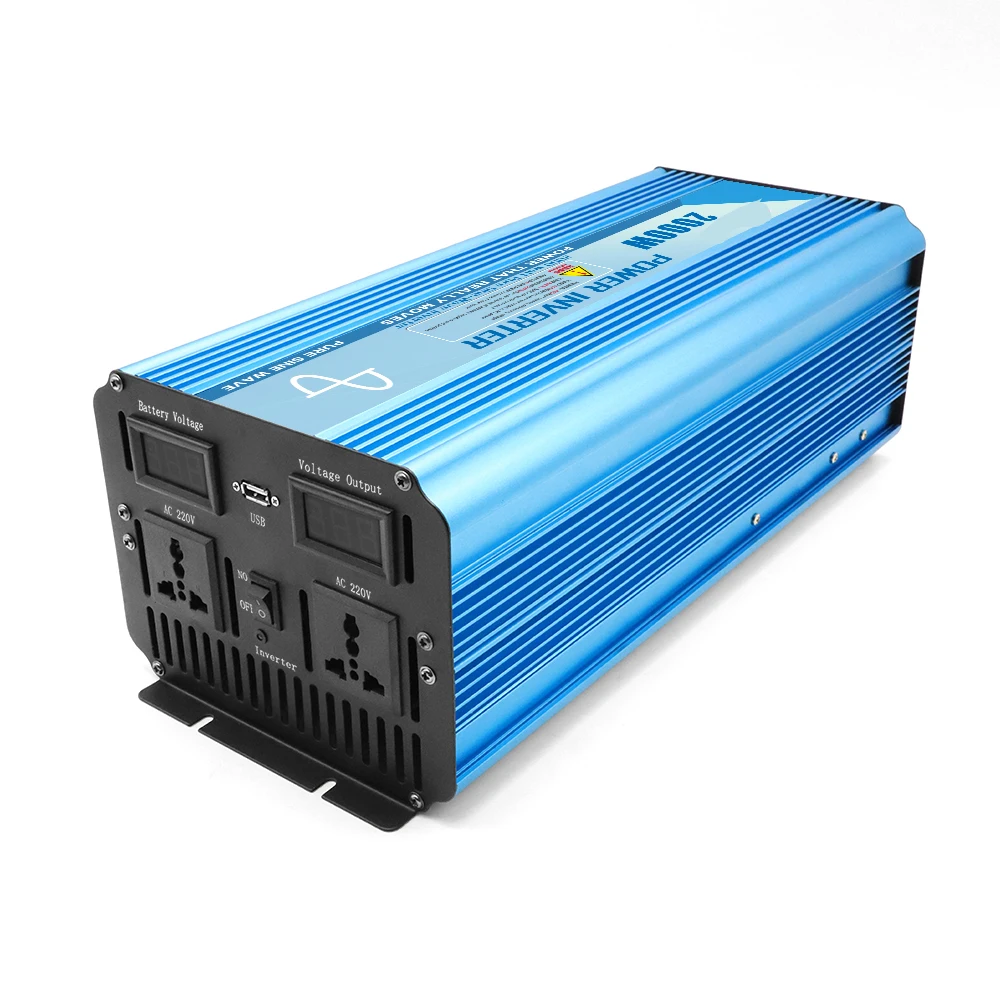

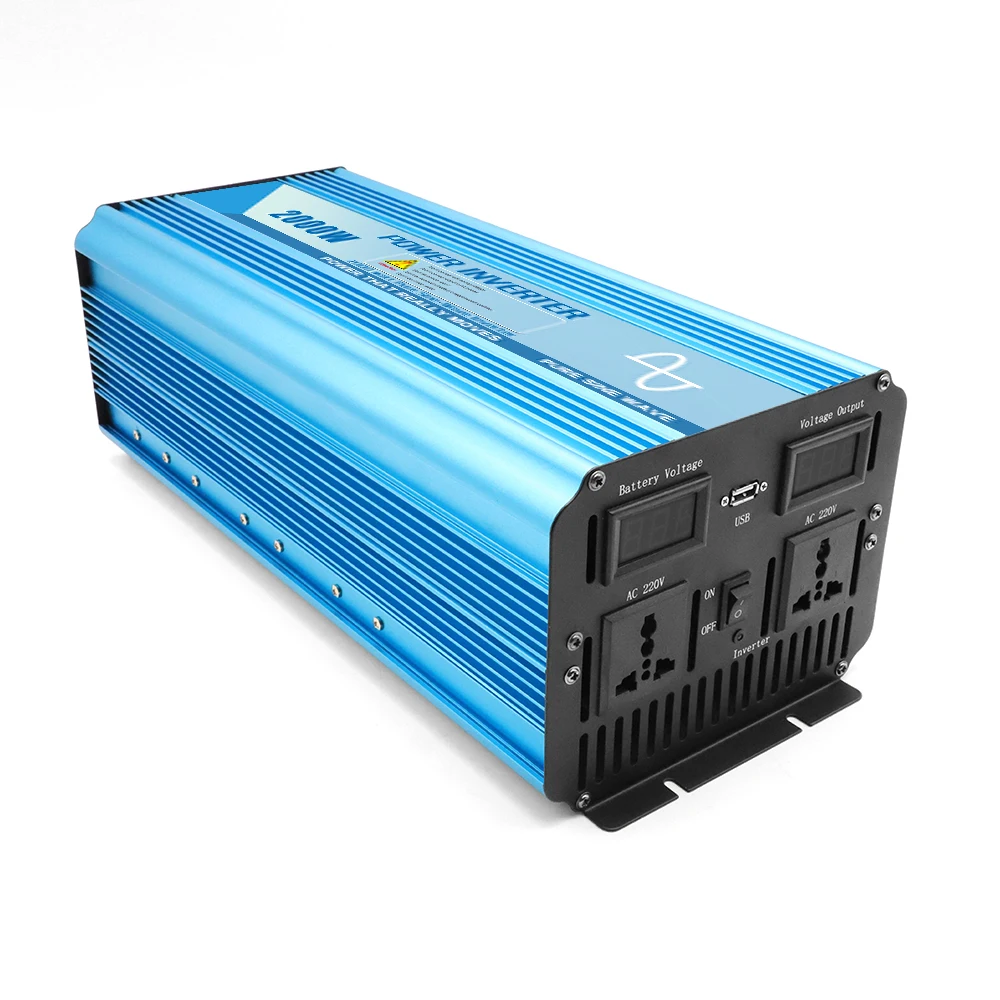

Soft start 12v 24v 48v dc to ac 110v 220v inverter for musical instruments
- Category: >>>
- Supplier: Guangzhou Moli E-Commerce Co. Ltd.
Share on (1600325517299):
Product Overview
Description
Product Description
Description-Soft start 12v 24v 48v dc to ac 110v 220v inverter for musical instruments
Power inverter is a kind of products which change the DC electricity to AC electricity. It has been widely used in cars, steamboats, mobile offering post and telecommunications, public security, emergency and other field.
This power inverter has adopted the international lead circuit design, with the advantage of small size, light, stable, and high conversion efficiency. It has five kind of protect function such as: input under voltage protection, input over voltage protection, overload protection, over temperature protection, output short circuit protection.

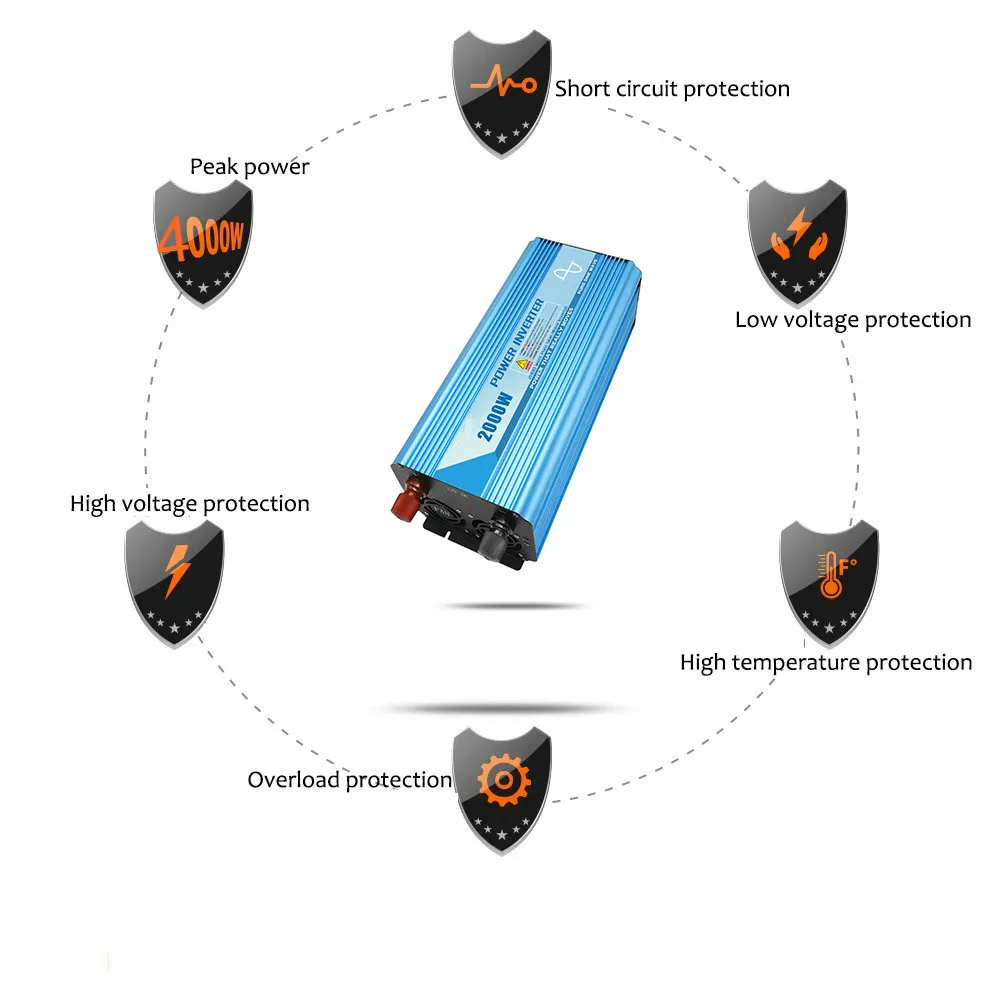

Protection Features-Soft start 12v 24v 48v dc to ac 110v 220v inverter for musical instruments
1.Low voltage protection
2.Over voltage protection
3.Overload protection
4.Over temperature protection
5.Short circuit protection
6.Reverse Polarity Protection
7. Soft start
8. Auto. Reset after being in protected
9.A(USA),B(Australia),C(Universal),D(Europe+USA+Japan),E(UK),F(France),G(Germany),H(Brazil),I(Israel) sockets optional.

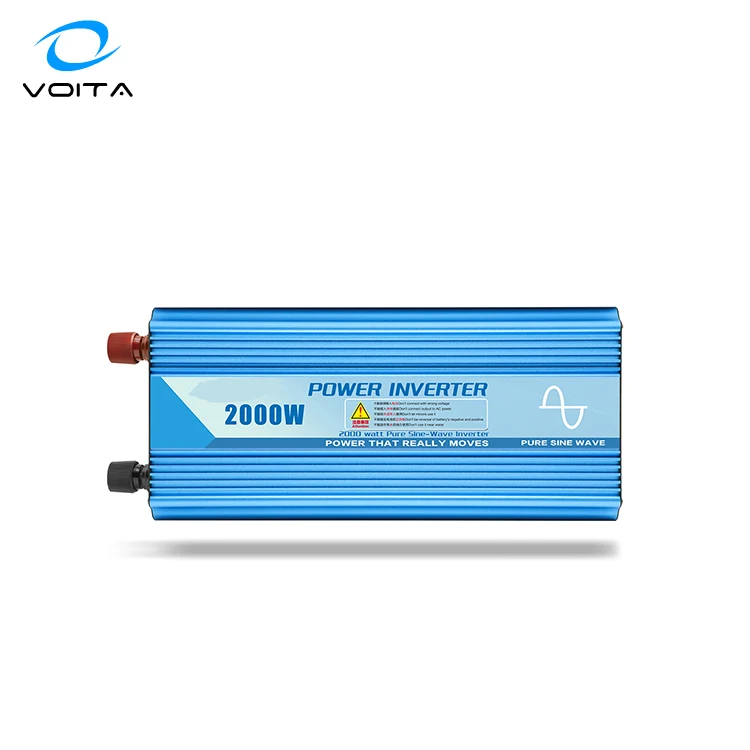

MODEL | VT-BEP2000S | |
OUTPUT | Continual Power | 2000W |
| Surge power | 4000W |
| Waveform | Pure sine wave |
| Frequency | 50HZ or 60HZ |
| AC Regulation | 5% |
| AC voltage | 100/110/120VAC or 220/230/240VAC |
INPUT | Battery Voltage | 12V/24V/48V optional |
| Voltage range | 10-15VDC or 21-30VDC or 42-60VDC |
| No Load Current Draw | 3.0A(12V) 1.5A(24V) 0.8A(48V) |
| Efficiency | >90% |
| DC Connector | Cables with Clips OR Car Adapter |
PROTECTING | Low Voltage Alarm | 10VDC±0.5V or 20VDC±0.5V or 40VDC±0.5V |
| Low Voltage Shut down | 9.5VDC±0.5V or 19VDC±0.5V or 38VDC±0.5C |
| Battery reverse polarity protection | NO |
| Over Load | Shut Off Output |
| Over Voltage Shut down | 14.5V or 30.0V or 61.0V |
| Over Thermal | Shut Off Output Automatically |
| Fuses | Short Circuit |
ENVIRONMENT | Storage Temperature | Between -30℃ and +70℃ |
| Working Temperature | Between -10℃ and +50℃ |
| Working Humidity | 20%~90%RH non-condensing |
OTHERS
| Start | Soft start |
| Fan | Smart Fan,Automatic startup of high temperature and load |
| USB | YES |
| Total Harmonic Distortion | THD<4% |
| Size(mm) | 454*180*142MM |
| Weight | 4.90kg |

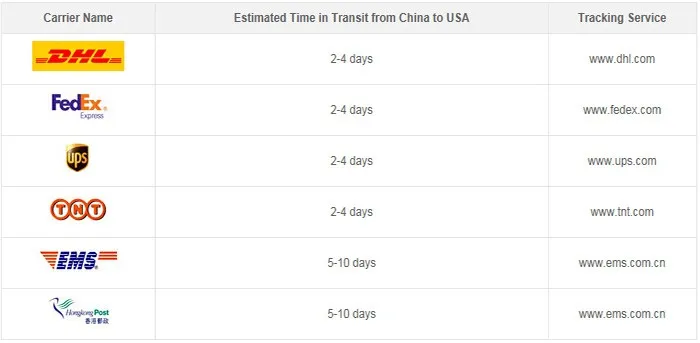

Packaging & Shipping
Our Services
1. Your inquiry will be replied within 24hrs
2. OEM&ODM are welcome.
3. Distributorship will be offered for your unique design and some of our current models.
4. Protection of your sales area, ideas of design and all your private information.
5. Free replacement and maintaining are guaranteed in warranty period.
6. Skilled workers and strict quality inspection(QA Report)
7. 100% product quality protection. All of our products will be tested 100% before packing.

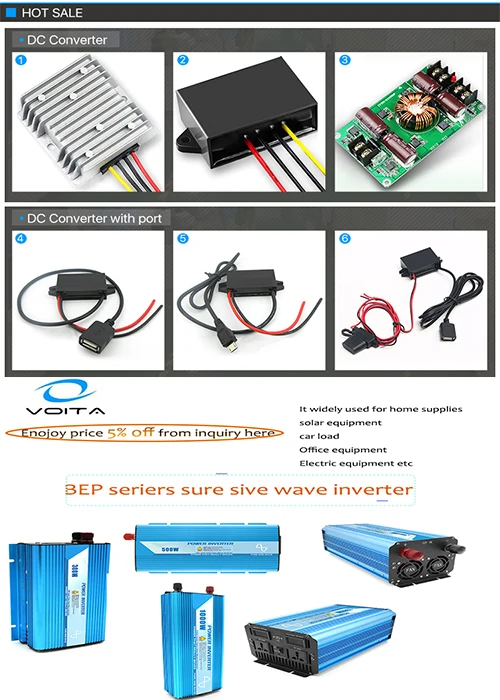

Hot sale

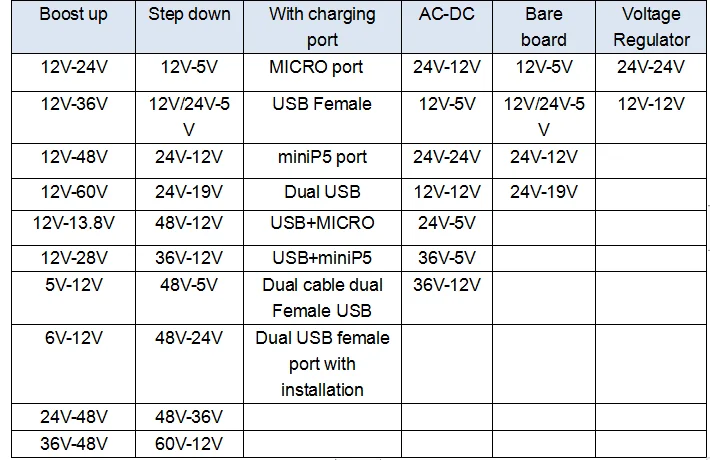

Customize Range
Company Information

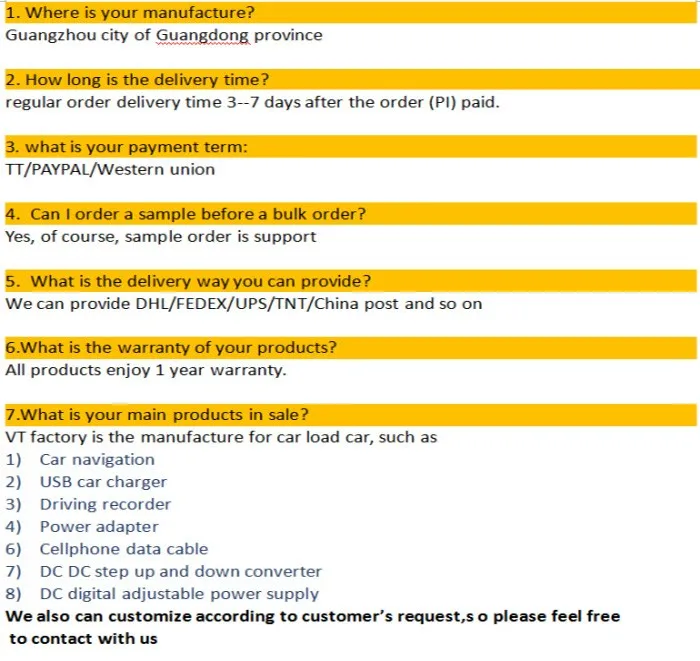

FAQ
