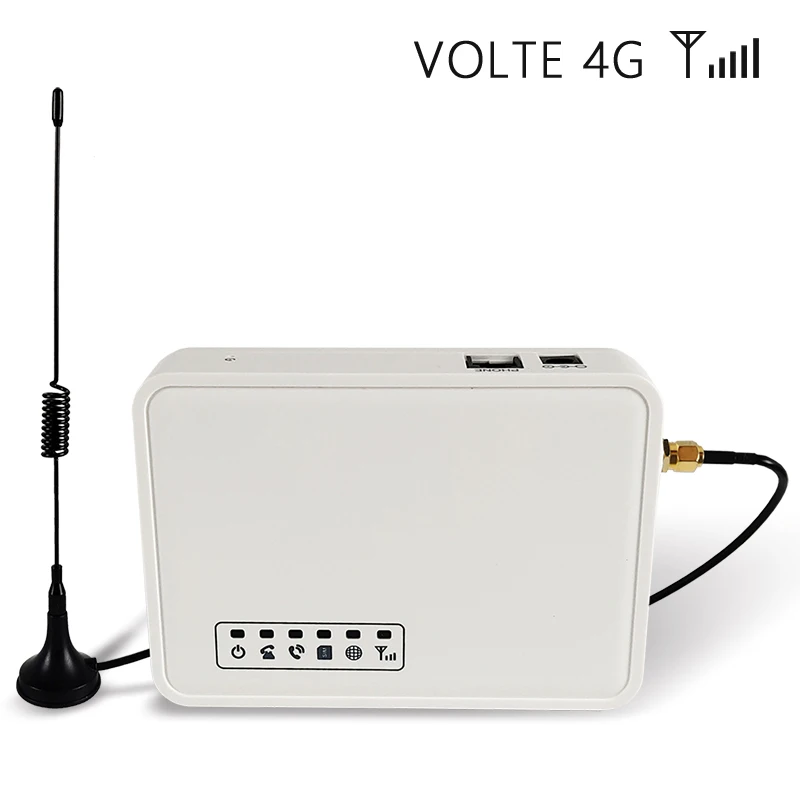

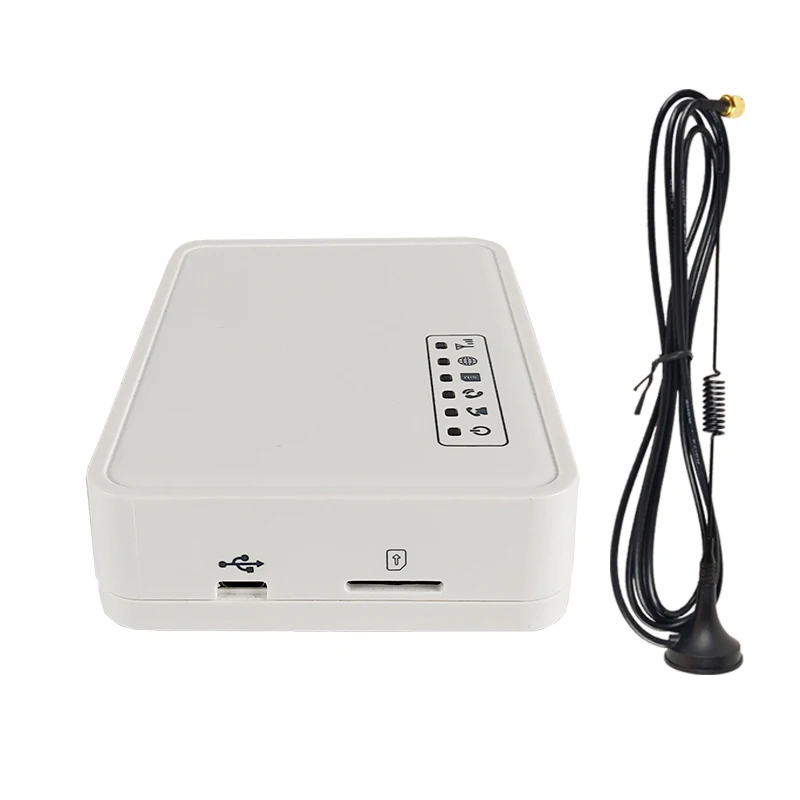

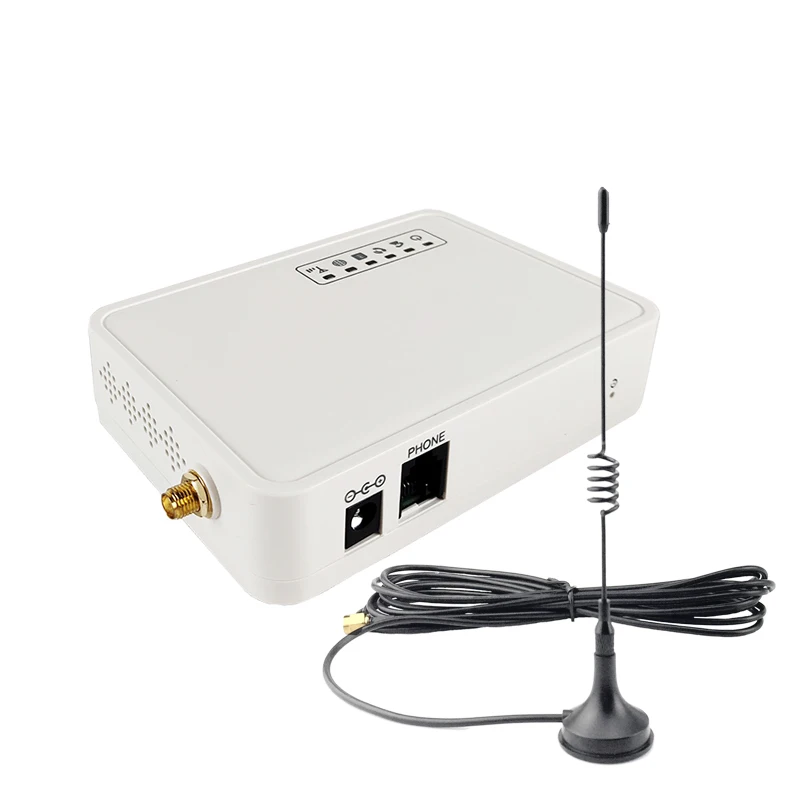

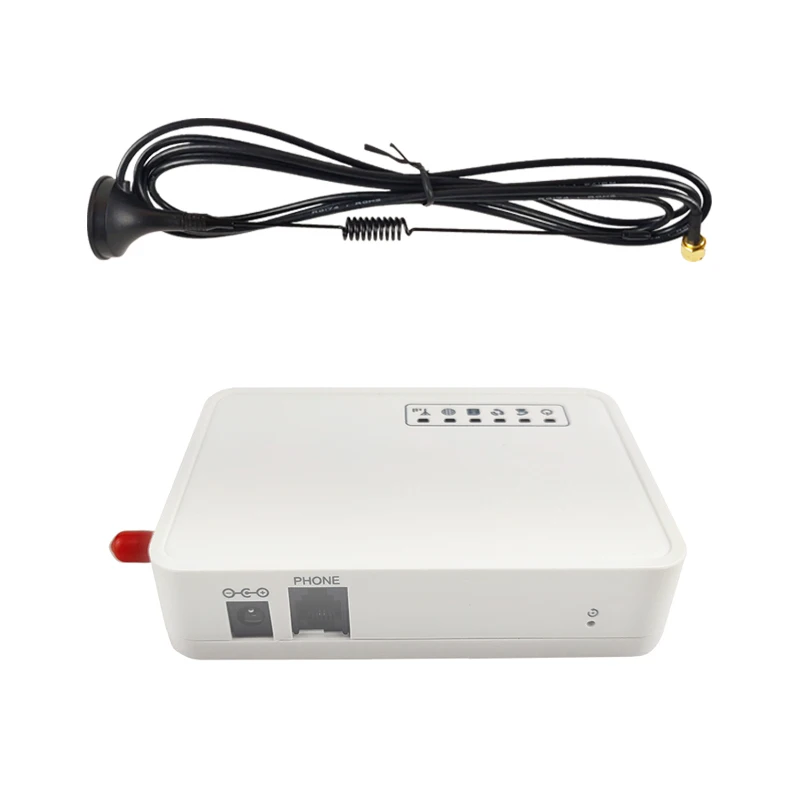

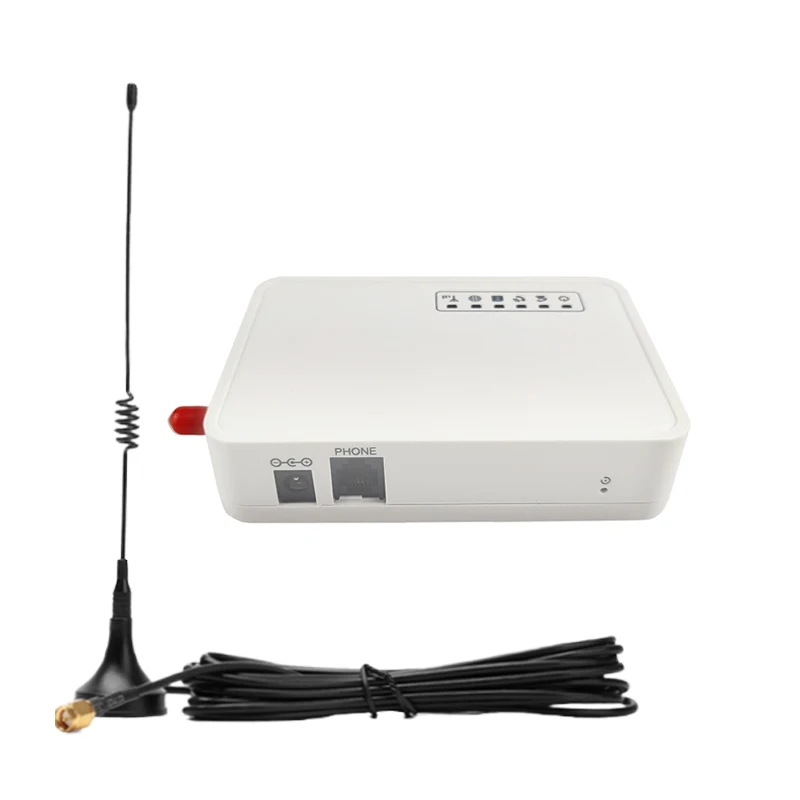

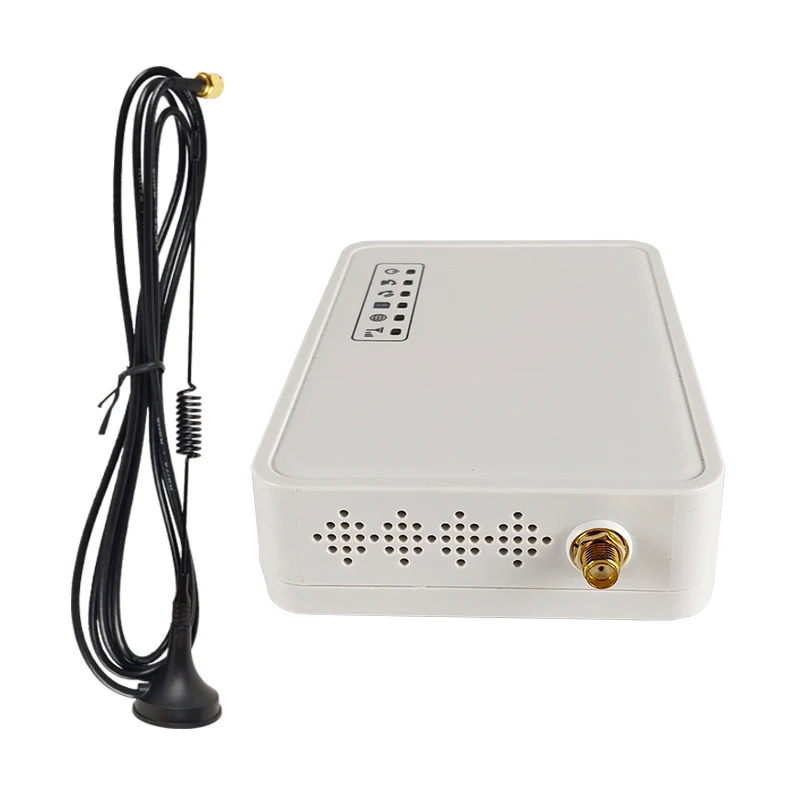

Gsm сотовый фиксированный беспроводной терминал 4g Volte LTE
- Category: Fixed Wireless Terminals >>>
- Supplier: Shenzhen Eway Communication Technology Co. Ltd.
Share on (1600325646565):
Product Overview
Description
Gsm Cellular Fixed Wireless Terminal 4g Volte LTE
This is a fixed wireless voice access device adopting wireless communication technology to quickly provide wireless telephone communication service under the coverage of cellular network, which is used to replace fixed telephone in certain area where is difficult to wire.
You just need to insert standard SIM card and connect it with regular wired telephone to make and answer both domestic and abroad calls.
In a word, it features with convenient installation, easy operation, stable performance, clear sound with high quality, and strong signal receiving capability.
You just need to insert standard SIM card and connect it with regular wired telephone to make and answer both domestic and abroad calls.
In a word, it features with convenient installation, easy operation, stable performance, clear sound with high quality, and strong signal receiving capability.
Item No. | EV FWT 4G |
Interface form | RJ11*1 |
Working voltage | DC12V |
Antenna power | >1.5DB |
Dialing frequency | 450hz |
Power | <=5w |
Ambient temperature | 0°C --40°C |
Feed Current | 30 mA /40 mA |
Signal Sensitivity | <-104DB |
Frequency Band | Customized |
Network Format | VOLTE 4G |
Material | ABS |
Dimension | 120*28*84mm |
Wight | 400g |
Appearance | White/customized |
Battery | 1000mA |
OEM | Accepted |
3.Application Background
EV FWT 4G Fixed Wireless Terminals are widely used in the following fields:
Remote countries and regions, tourist attractions, rural areas, mountainous areas and other places with weak network signals where is difficult for you to set fixed telephone.,
Place where is hard for wiring: Movable ships, trains, high-speed railways, and coaches, etc.
Place where the emergency measures are needed: Elevators, machine rooms, and alarming system etc.
Place where the billing is needed: City public telephone, public phone supermarket, and unattended public phone system, etc.
Remote countries and regions, tourist attractions, rural areas, mountainous areas and other places with weak network signals where is difficult for you to set fixed telephone.,
Place where is hard for wiring: Movable ships, trains, high-speed railways, and coaches, etc.
Place where the emergency measures are needed: Elevators, machine rooms, and alarming system etc.
Place where the billing is needed: City public telephone, public phone supermarket, and unattended public phone system, etc.
4.Function Description
Functions of EV FWT Fixed Wireless Terminals are mainly as follow:
Multi-function LED signal display lights, which display the running status of equipment in real-time.
Domestic calls, local calls and international calls even some of special free calls are available
Standard communication voltage and DTMF format are both available.
Synchronous display of caller ID, time and date are supported.
Automatic lock of SIM card and network are supported.
Modem mode is supported
Standard reverse polarity billing signal is supported.
The device will be restarted by the built-in watchdog duty cycle circuit when malfunction occurs.
Multi-function LED signal display lights, which display the running status of equipment in real-time.
Domestic calls, local calls and international calls even some of special free calls are available
Standard communication voltage and DTMF format are both available.
Synchronous display of caller ID, time and date are supported.
Automatic lock of SIM card and network are supported.
Modem mode is supported
Standard reverse polarity billing signal is supported.
The device will be restarted by the built-in watchdog duty cycle circuit when malfunction occurs.
5.Installation and Operation
Before working, it is necessary for you to connect it with related devices. You can connect it with ordinary wired telephone, billing system, alarm system, PBX, voice recorder and voice card through RJ11 interface. It is easy to operate with crystal-head telephone cable.
Please find propriate location to place the antenna before installing the terminal device. Using mobile phone to search for the strongest signal is suggested. Please note that do not place the antenna too close to TV, computer, and radio, etc. otherwise the reception of signal by antenna will be weakened.
please remember to insert the SIM card when the terminal is power-off. SIM card chip damage, SIM card unrecognize, even terminal burn caused by short-circuit will occur if you insert the SIM card when it power-on.
Before plugging in the power, please remember to confirm that all the related devices like antenna and telephone, etc. are all connected well.
Please find propriate location to place the antenna before installing the terminal device. Using mobile phone to search for the strongest signal is suggested. Please note that do not place the antenna too close to TV, computer, and radio, etc. otherwise the reception of signal by antenna will be weakened.
please remember to insert the SIM card when the terminal is power-off. SIM card chip damage, SIM card unrecognize, even terminal burn caused by short-circuit will occur if you insert the SIM card when it power-on.
Before plugging in the power, please remember to confirm that all the related devices like antenna and telephone, etc. are all connected well.
6.Indicator Light Introduction
① Power indicator: sustainable green light after power on.
② Off-hook indicator: stable green light on when off-hook/hands-free, out during standby
③Call indicator: stable green light on during the call, out during standby.
④ SIM card status indicator: Right light on when SIM card is abnormal. Out when SIM card is normal.
⑤ Network signal indicator: Red light on when the network registration is abnormal.
⑥ Signal indicator: Red light on when signal strength is 1-9. Yellow light on when signal strength is 10-17. Green light on when signal strength is 18-31.
② Off-hook indicator: stable green light on when off-hook/hands-free, out during standby
③Call indicator: stable green light on during the call, out during standby.
④ SIM card status indicator: Right light on when SIM card is abnormal. Out when SIM card is normal.
⑤ Network signal indicator: Red light on when the network registration is abnormal.
⑥ Signal indicator: Red light on when signal strength is 1-9. Yellow light on when signal strength is 10-17. Green light on when signal strength is 18-31.
7.Function Setting
Please follow the instructions below to set it up.
Under the status of hook-off/hands-free, input command after dialing tone. If hearing two beeps when completes the command, it indicates success. If hearing 4beeps or nothing, it indicates failure.
Bellow are the common functions and commands:
*0#000# Reset
*00#011#0# Coming Calls allowed (default set)
*00#011#1# Coming calls are not allowed
*00#031#X# Volume adjustment (Local volume X:0-9)
*00#032#X# Volume adjustment (Called volume X:0-9)
*00#050#2*IP# Max 15-digit IP prefix setting
*00#035#IMEI# IMEI setting (Only 15 valid IMEIs are supported. Illegal IMEI is not supported)
Under the status of hook-off/hands-free, input command after dialing tone. If hearing two beeps when completes the command, it indicates success. If hearing 4beeps or nothing, it indicates failure.
Bellow are the common functions and commands:
*0#000# Reset
*00#011#0# Coming Calls allowed (default set)
*00#011#1# Coming calls are not allowed
*00#031#X# Volume adjustment (Local volume X:0-9)
*00#032#X# Volume adjustment (Called volume X:0-9)
*00#050#2*IP# Max 15-digit IP prefix setting
*00#035#IMEI# IMEI setting (Only 15 valid IMEIs are supported. Illegal IMEI is not supported)
8. Precautions:
8.1 Do not install it in underground garages, oil depots, chemical plants or flammable and explosive materials storage place.
8.2 Do not use it in hospitals, or else it may interfere with medical equipment such as pacemakers and audiphones.
8.3 Please inspect if SIM card and antenna are set correctly when you find the network signal is weak.
8.4 When making a call, do not touch the antenna, otherwise the device will be damaged.
8.5 To ensure good calling quality you’d better set the terminal in the place with strong signal and keep distance from other electronic devices.
8.6 Clean the device with soft cloth and clear water instead of using chemicals.
8.7 Do not disassemble the terminal without authorization. When malfunction occurs, please ask our after-sales service for help
8.2 Do not use it in hospitals, or else it may interfere with medical equipment such as pacemakers and audiphones.
8.3 Please inspect if SIM card and antenna are set correctly when you find the network signal is weak.
8.4 When making a call, do not touch the antenna, otherwise the device will be damaged.
8.5 To ensure good calling quality you’d better set the terminal in the place with strong signal and keep distance from other electronic devices.
8.6 Clean the device with soft cloth and clear water instead of using chemicals.
8.7 Do not disassemble the terminal without authorization. When malfunction occurs, please ask our after-sales service for help
