oil and gas equipment Intelligent Electric Submersible Progressing Cavity Pump
- Category: >>>
- Supplier: Hua Xing Shi Ji International Trading Co. Ltd
Share on (1600325757864):
Product Overview
Description
Product Description

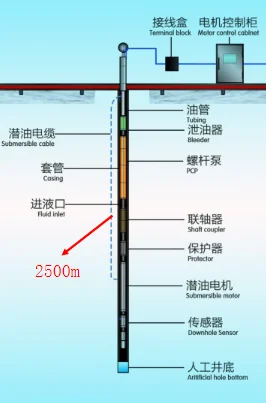

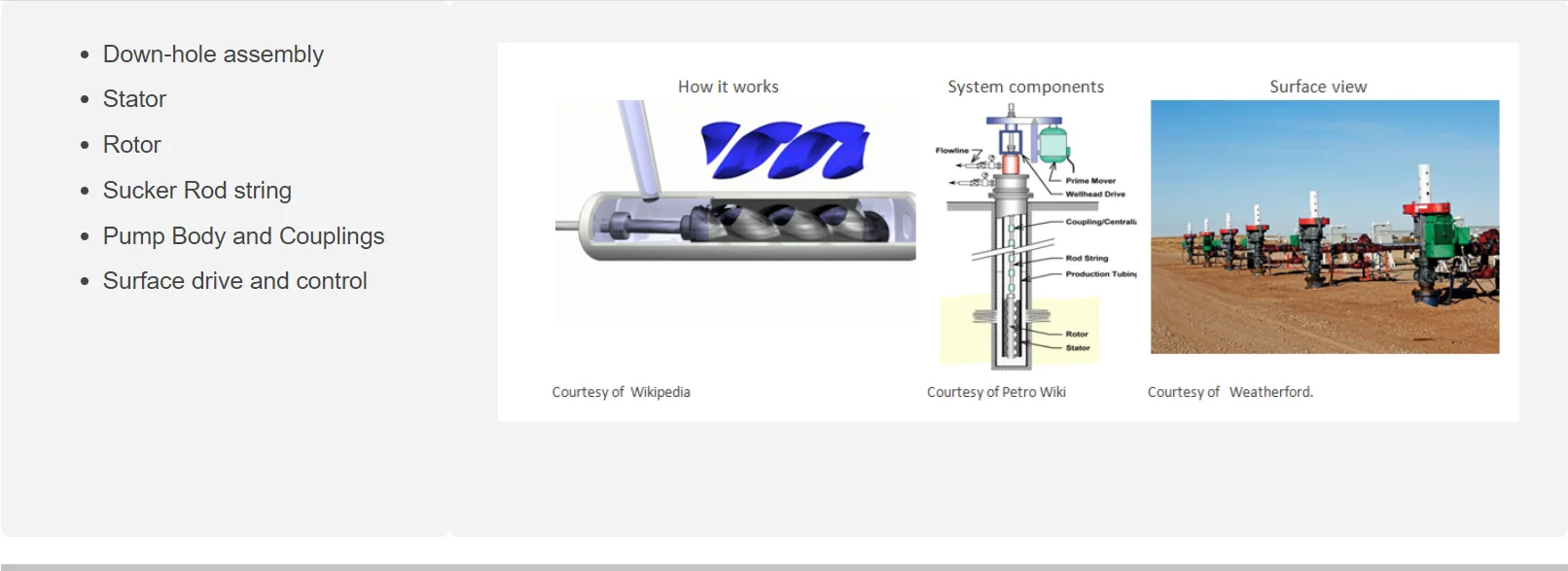

Intelligent Electric Submersible Progressing Cavity Pump（IESPCP）consists of:
Through years of research and development, application, and application examples in more than 200 wells, the IESPCP has the following characteristics: high system efficiency, which can greatly reduce power consumption; average power saving rate of 56%; rodless oil production, completely solve the problem of rod and tube Partial wear problem, better adaptability to highly deviated wells, horizontal wells, and directional wells; can pass the maximum dogleg degree up to 9°, and the maximum well deviation at the installation position is 81°; In gas with sand, and heavy oil wells It has a very good application effect; there are no moving parts on the ground, no moving seals, and no leakage, which greatly improves process safety, reduces labor intensity, and greatly improves on-site management. Through the combination of downhole sensors and systems, oil well production can be controlled intelligently, which greatly improves the digital level of the oil field; rationally controls the flow pressure and improves the output of a single well.

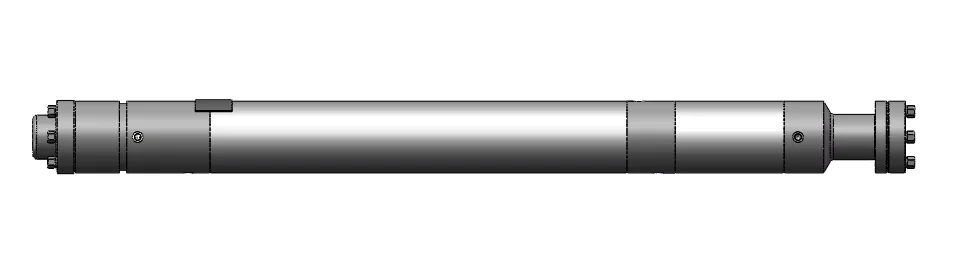

1.Submersible motor
*Large low-speed torque, suitable for direct drive screw pump
*Speed adjustment 60~250rpm
*No slip, no rotor loss
*Efficiency above 80%
*No slip, no rotor loss
*Efficiency above 80%

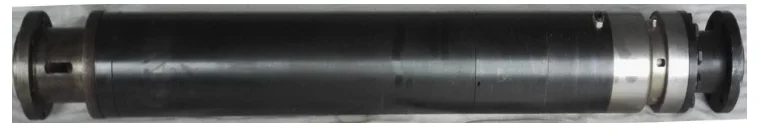

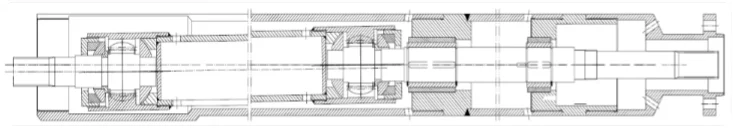

2.High thrust protector
*High thrust protector, which can reliably bear 60KN axial force.
*Various combinations of capsule and settlement to meet the requirements of wider well conditions.
*Increase the strength of the drive shaft, suitable for low-speed and high-torque transmission requirements
3.Shaft coupler
*High wear-resistant and corrosion-resistant radial bearing design to ensure the operating accuracy of the drive end shaft. *High thrust design to ensure the reliability of the coupling under large axial thrust.
*Large swing angle design to adapt to more pump types
4.Screw pump
*Choose internationally brand to ensure performance and longevity.
*Pumping is continuous and stable, and does not produce pressure excitement on the oil layer.
*Good adaptability to sand and wax, and can work with high efficiency in high-viscosity crude oil.

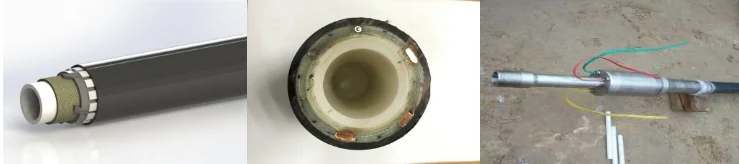

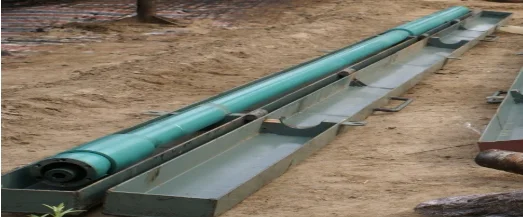

5.Composite coiled tubing
composite coiled tubing integrates power cables and heating cables into a corrosion-resistant composite pipe structure, which not only ensures the medium transmission channel in the oil well, but also solves the problem of pump overpressure and insulation failure.

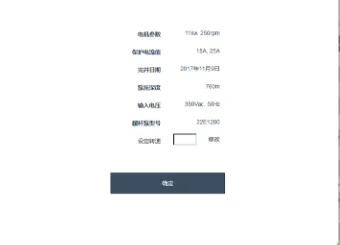

6.control cabinet for electric submersible screw pump
* 2500m vector control technology without position encoder.
*Cable reflection wave and leakage current processing technology.
*Motor start and stop and protection functions.
*System operation status monitoring.
*Downhole temperature and pressure measurement device (patented technology), constant liquid level control, to eliminate "Dry pumping".
*Core technology of digital remote intelligent control *Patented technology of anti-demagnetization of submersible permanent magnet synchronous motor.

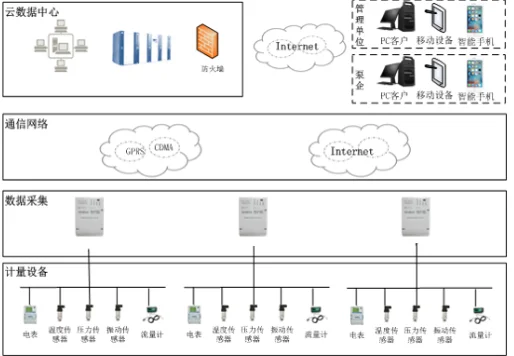

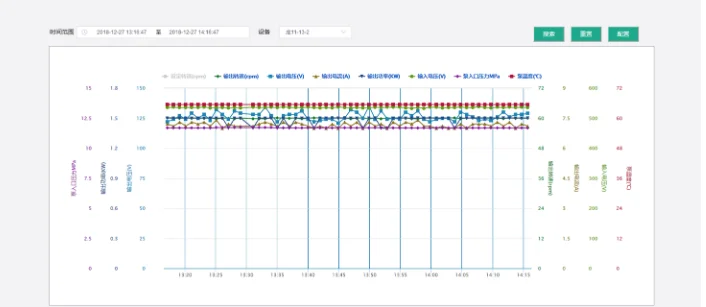

7.Remote intelligent control platform
Collect the operating status of the system in real time through the 2G/4G/5G network, store the collected data in the cloud data center, and establish a variety of mathematical models for big data processing

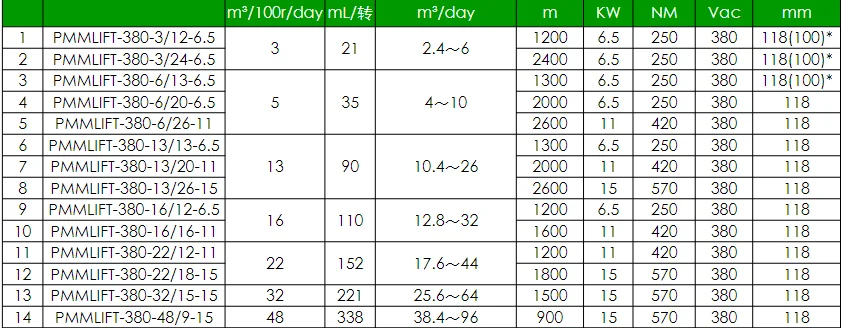

Specification
