Halogen free flame retardant heat shrinkable tubing complete specifications waterproof wire protection tube electrical casing
Halogen-free flame-retardant heat-shrinkable tubing complete specifications waterproof wire protection tube electrical casing
Halogen-free flame-retardant heat-shrinkable tubing complete specifications waterproof wire protection tube electrical casing
Halogen-free flame-retardant heat-shrinkable tubing complete specifications waterproof wire protection tube electrical casing
Halogen-free flame-retardant heat-shrinkable tubing complete specifications waterproof wire protection tube electrical casing
Halogen-free flame-retardant heat-shrinkable tubing complete specifications waterproof wire protection tube electrical casing
Halogen-free flame-retardant heat-shrinkable tubing complete specifications waterproof wire protection tube electrical casing

Halogen free flame retardant heat shrinkable tubing complete specifications waterproof wire protection tube electrical casing

Share on (1600325770643):


Price:$1.00 - $1.50

Quantity:


Product Overview

Description



Product Description



Features

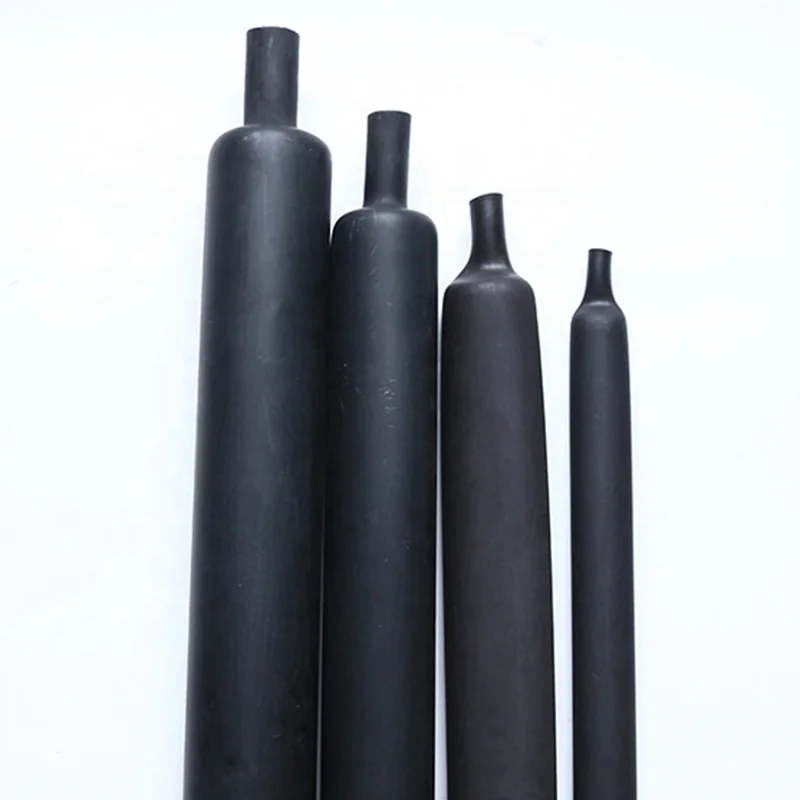

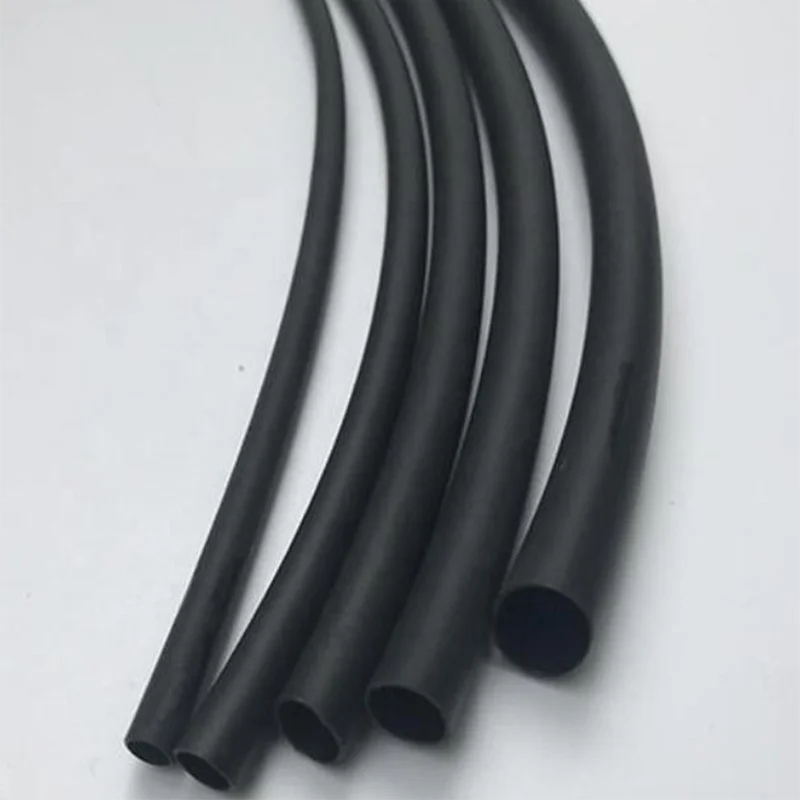

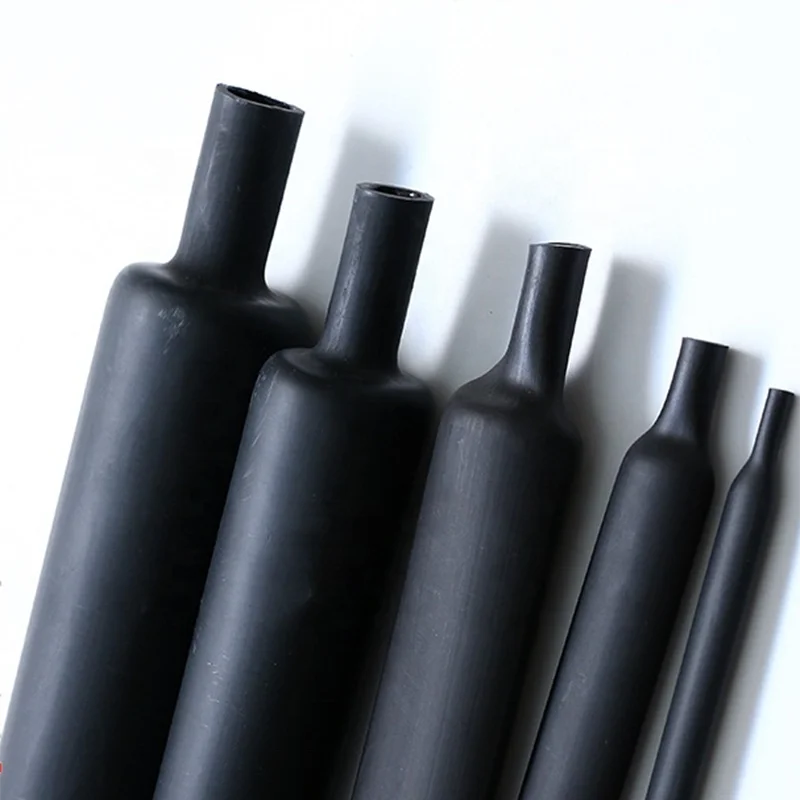

A semi-conductive heat shrinkable tube with hot melt adhesive attached to the inner layer. The outer layer is composed of radiation cross-linked polyolefin. The inner layer is a specially designed gluey inner wall; the inner wall melts when heated, and as the outer wall shrinks to fill the pores or gaps, the wall thickness of the double-walled tube is uniform and solid after cooling.


Product Comparison



Using inferior raw materials, many small manufacturers use inferior raw materials produced by small domestic manufacturers in order to reduce costs, resulting in products that fail to meet technical requirements. The appearance of oiliness and stickiness in the heat-shrinkable tube indicates that the heat-shrinkable tube has entered a severely aging state.

The inner layer of the double-walled pipe is hot melt adhesive with good bonding performance, and the outer layer is soft irradiated cross-linked polyethylene. Its shrinkage ratio is three times. Maintenance required; able to withstand the impact of harsh environments, humidity, etc., and reach the protection zero group


Product Paramenters


Specification
Inner diameter before contraction
Inner diameter after contraction
Wall thickness before shrinkage
Wall thickness after shrinkage
Packing (m/plate)
Ф2.4
2.4±0.2
0.8±0.2
0.32±0.10
0.96±0.10
200
Ф3.2
3.2±0.2
1.07±0.2
0.38±0.10
1.14±0.10
200
Ф4.8
4.8±0.2
1.6±0.2
0.45±0.10
1.35±0.10
100
Ф6.8
6.4±0.2
2.13±0.2
0.50±0.10
1.50±0.10
100
Ф7.9
7.9±0.2
2.63±0.2
0.55±0.12
1.65±0.12
100
Ф9.5
9.5±0.2
3.17±0.2
0.6±0.12
1.80±0.12
50
Ф12.7
12.7±0.2
4.23±0.2
0.66±0.15
1.98±0.15
50
Ф15.0
15.0±0.2
5.0±0.2
0.75±0.15
2.25±0.15
25
Ф19.1
19.1±0.2
6.37±0.2
0.79±0.15
2.37±0.15
25
Ф25.4
25.4±0.2
8.47±0.2
0.81±0.20
2.43±0.20
25
Ф30.0
30.0±0.2
10.0±0.2
0.83±0.20
2.49±0.20
25
Ф35.0
35.0±0.2
11.67=0.2
0.83±0.20
2.49±0.20
25
Ф40.0
40.0±0.2
13.33±0.2
0.97±0.25
2.91±0.20
25
Ф50.0
50.0=0.2
16.67=0.2
1.26±0.25
3.78±0.25
25
Ф60.0
60.0±0.2
20.0±0.2
1.35±0.20
4.05±0.20
25
Ф70.0
70.0=0.2
23.0:0.2
1.38±0.20
4.14±0.20
1.22 M/root
Ф80.0
80.0±0.2
26.67±0.2
1.41±0.20
4.23±0.20
1.22 M/root
Ф90.0
90.0±0.2
30.0±0.2
1.46±0.20
4.38±0.20
1.22 M/root
Ф100
100±0.2
33.33±0.2
1.50±0.20
4.50±0.20
1.22 M/root
Ф120
120±0.2
40.0±0.2
1.53±0.20
4.59±0.20
1.22 M/root




Appllcatlon

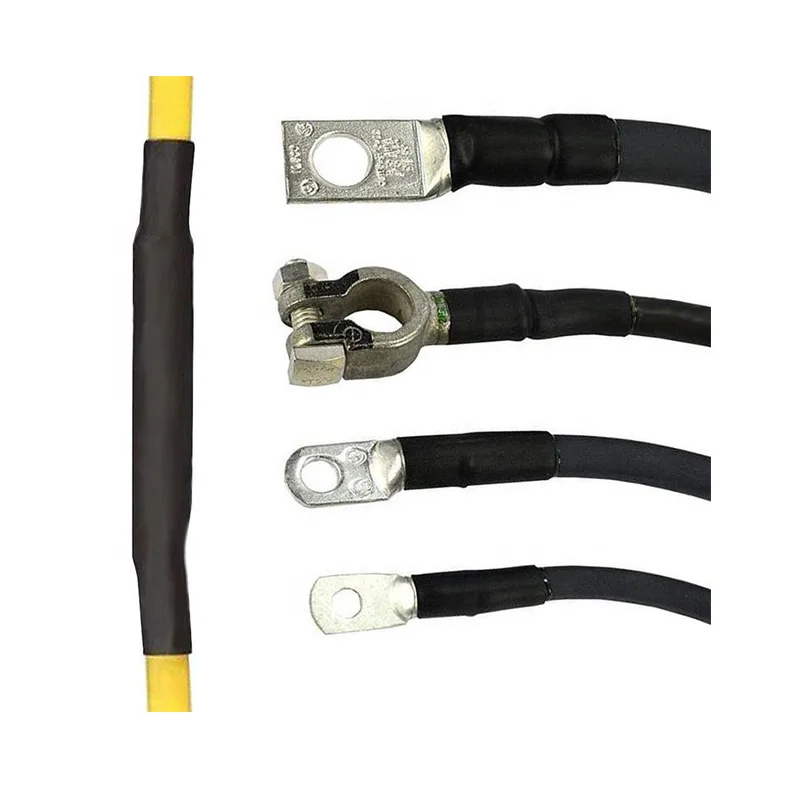

The inner layer of the double-walled pipe is hot melt adhesive with good bonding performance, and the outer layer is soft irradiated cross-linked polyethylene. Its shrinkage ratio is three times. It needs maintenance, can withstand the impact of harsh environment, humidity, etc., to protect the components. Widely used in the wiring of electronic equipment for waterproofing, air leakage, sealing and waterproofing of multi-strand wiring harnesses (such as home wiring harnesses, automotive wiring harnesses, etc.), sealing and moisture-proofing, waterproofing, corrosion-proofing and insulation protection of components, sealing and waterproofing of wire and cable branches, Corrosion protection of metal pipelines, repair of wires and cables, water pumps and submersible pump wiring and other occasions.

Features:
Applicable temperature: -55℃~125℃;
initial shrinkage thermometer: 70℃;
complete shrinkage thermometer: 125℃;
melting temperature of inner glue layer: 70℃-80℃.
Shrinkage ratio: 3:1. (A larger shrinkage ratio can be provided according to customer requirements, such as 4:1) Sealed and waterproof, large strain capacity; easy to use, can shrink when heated by oven and hot air gun; timely delivery and strong production capacity.

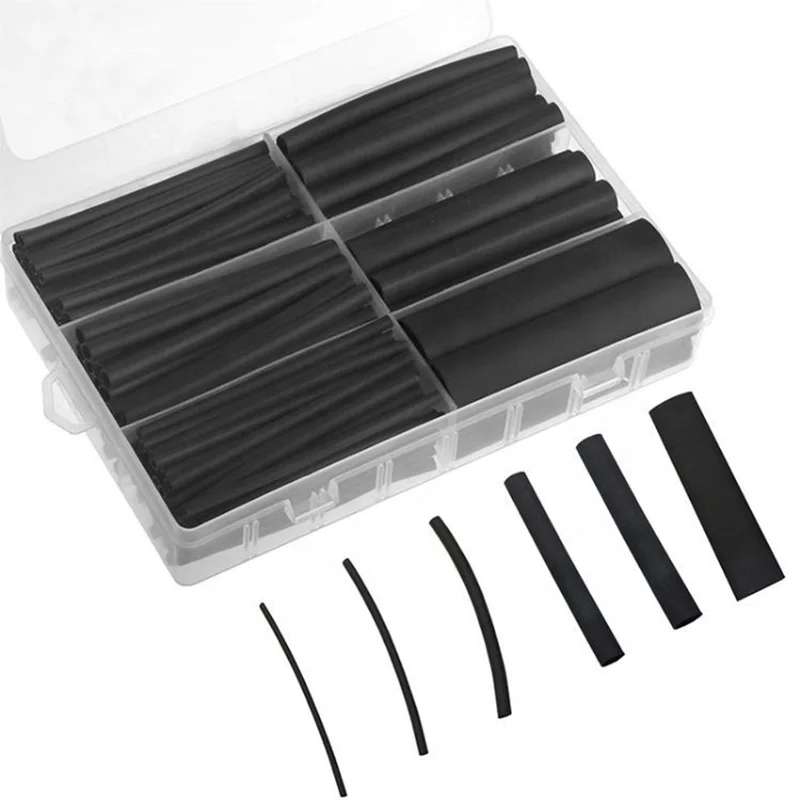

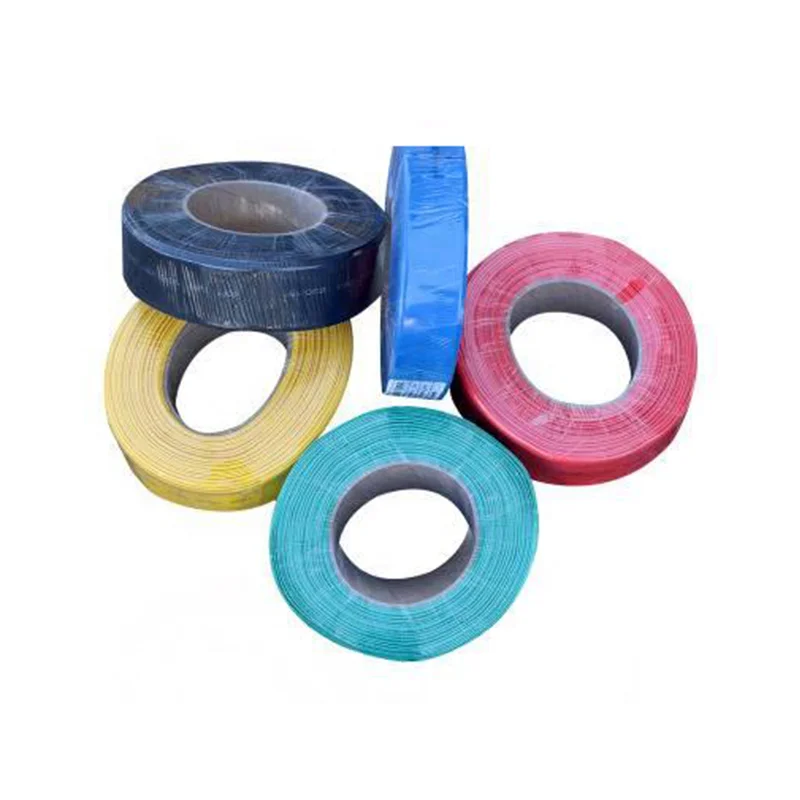

Standard colors: red, green, yellow, blue, black, white, transparent, orange.


Related Products






Company Information

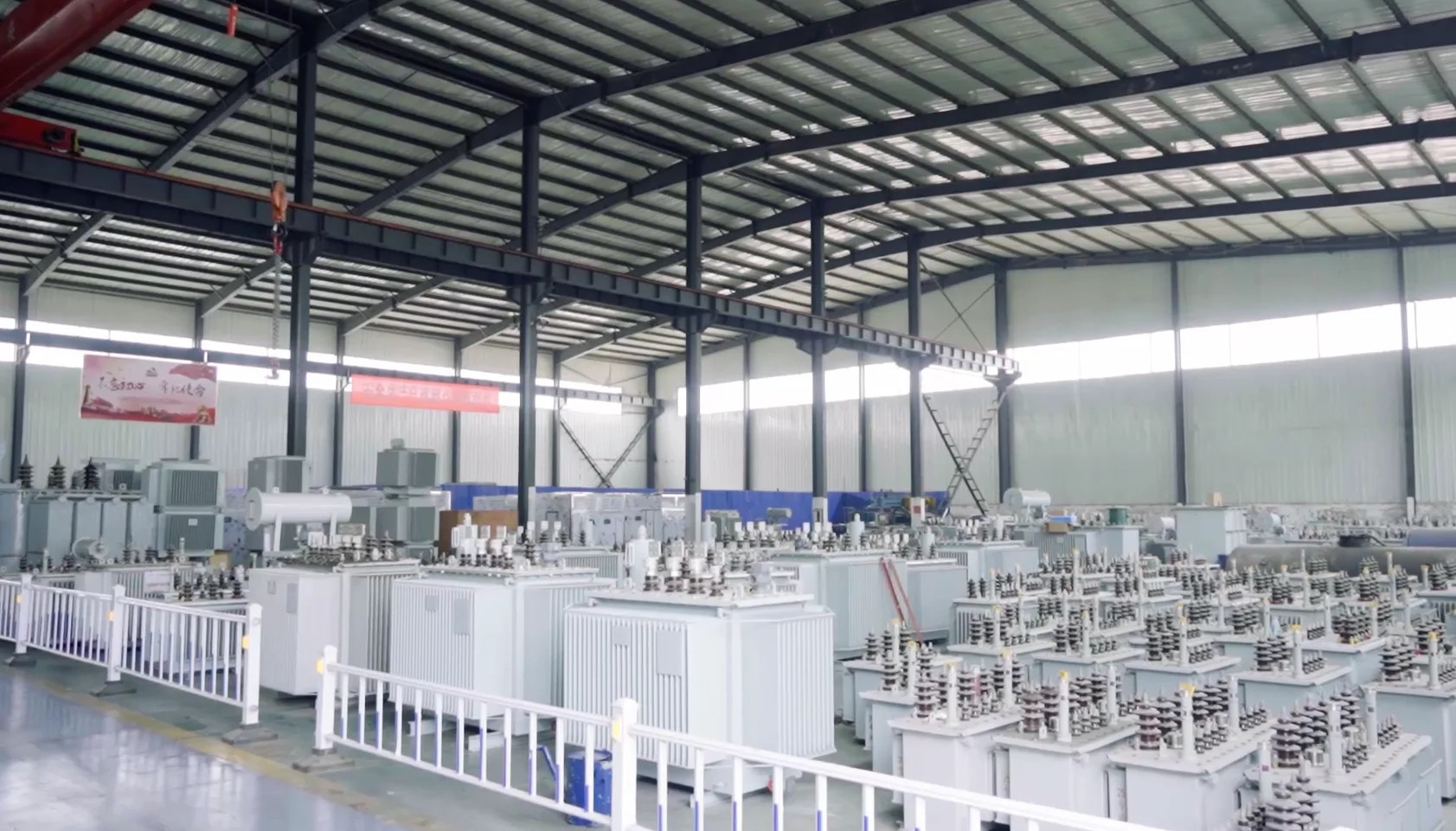

Shanxi Yawei Electric Technology Co., Ltd. is located in the Wusu Comprehensive Bonded Zone, Shanxi Comprehensive Reform Demonstration Zone.

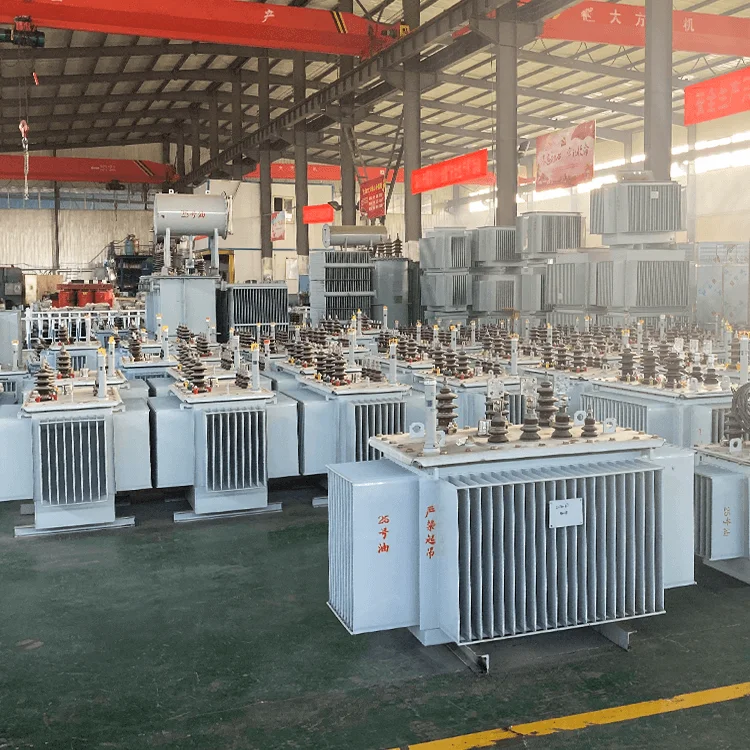

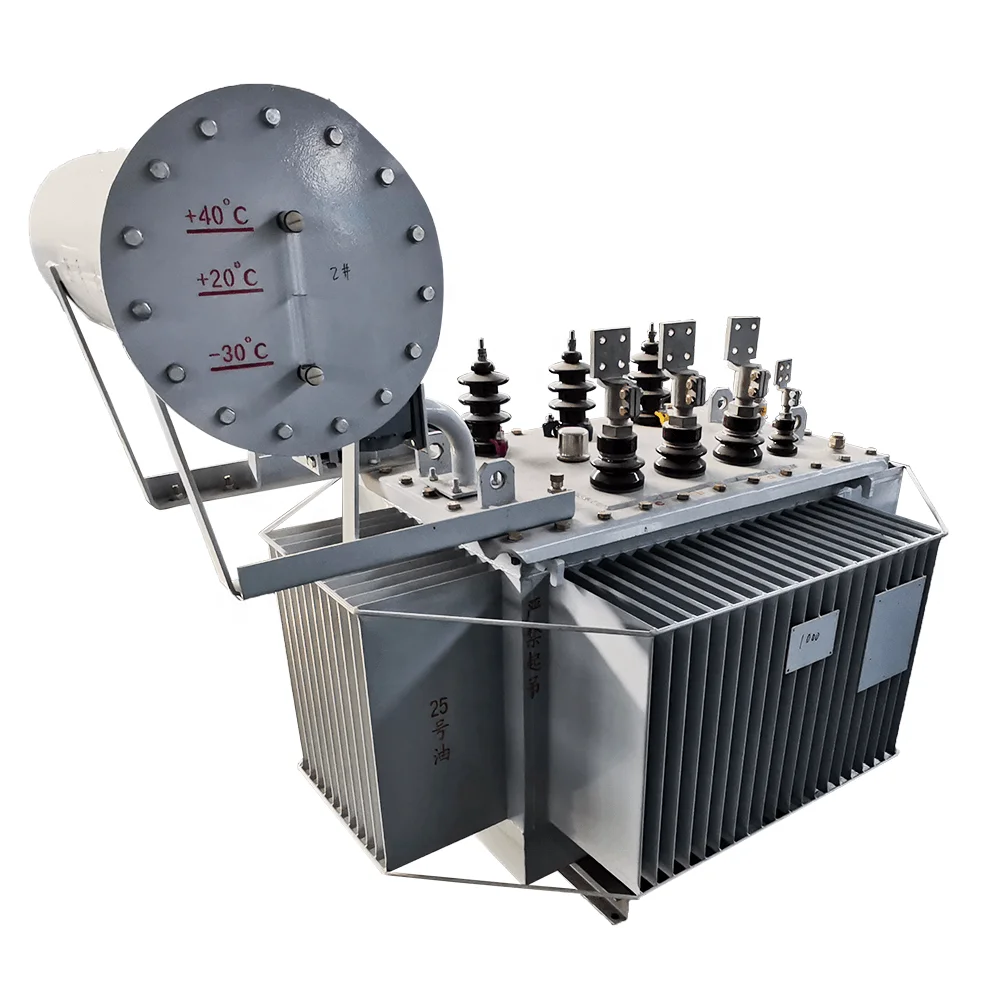

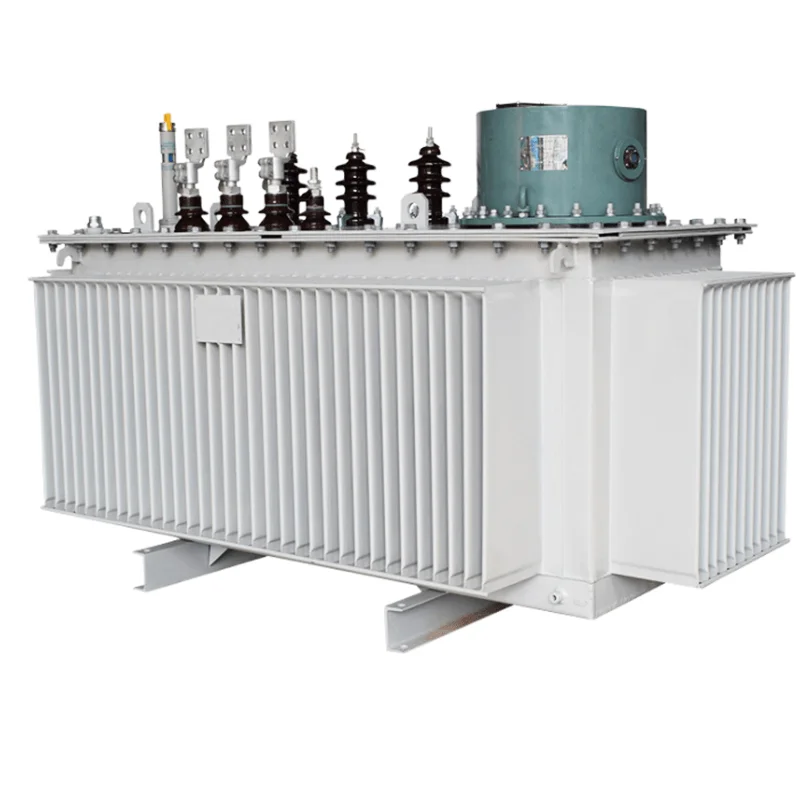

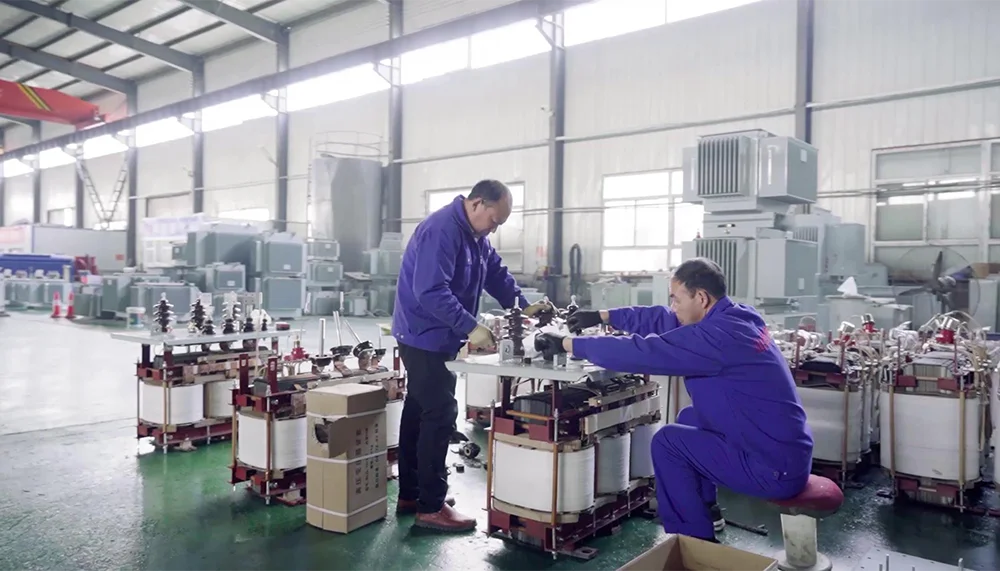

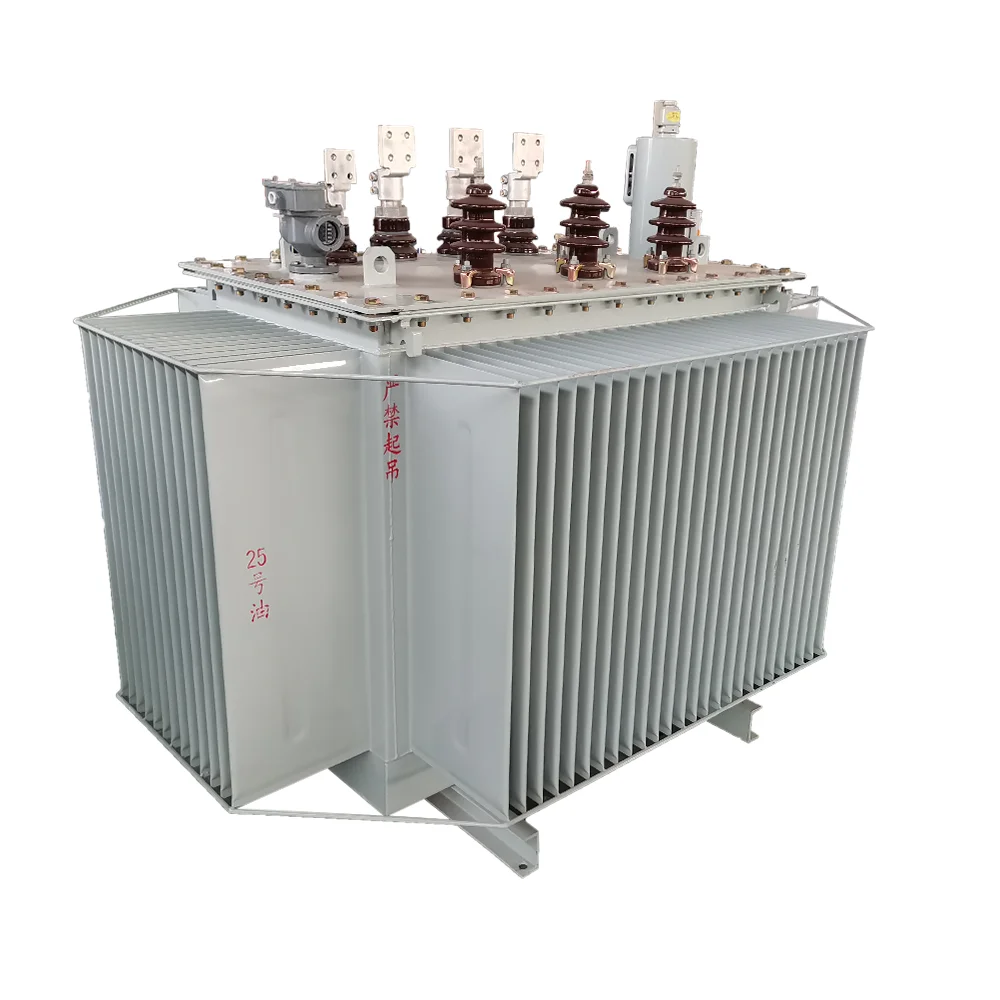

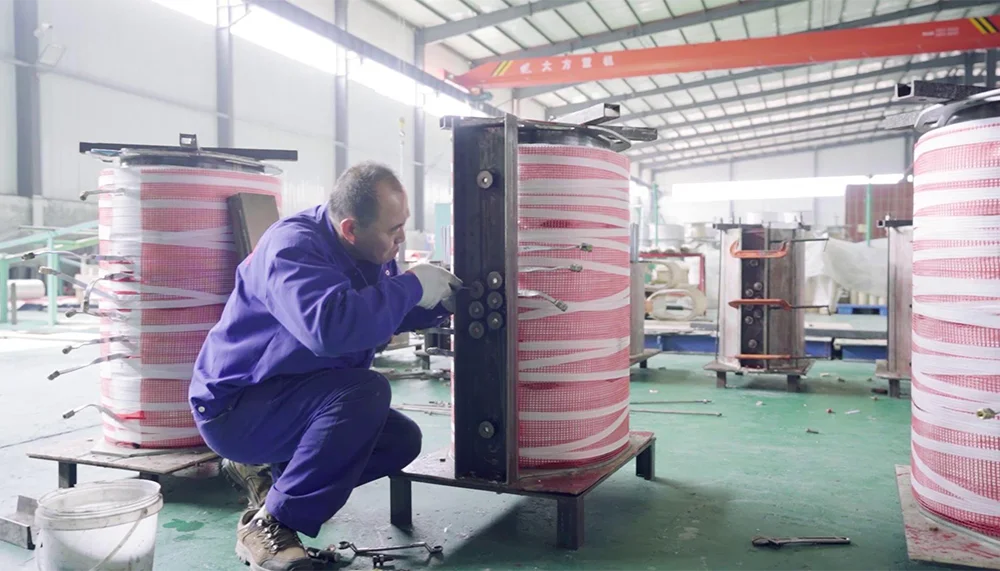

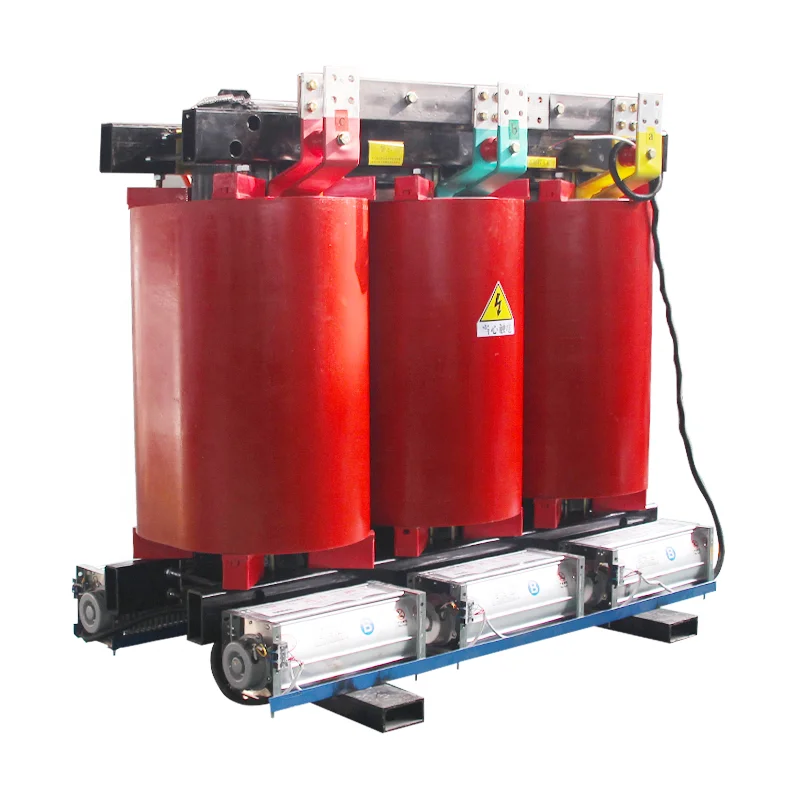

It mainly produces transformers of 110KV and 220KV large ultra-high voltage transformers and various dry-type transformers below 35KV. Oil-immersed transformers, amorphous alloy transformers, pre-assembled transformer substations, and special transformers of various specifications such as box transformers, electric furnace transformers, rectifier transformers, and mine transformers.
