Battery Repair Equipment Multifunction Battery Tester Instrument Battery Discharge/charge/regenerator/online Monitoring

Product Name

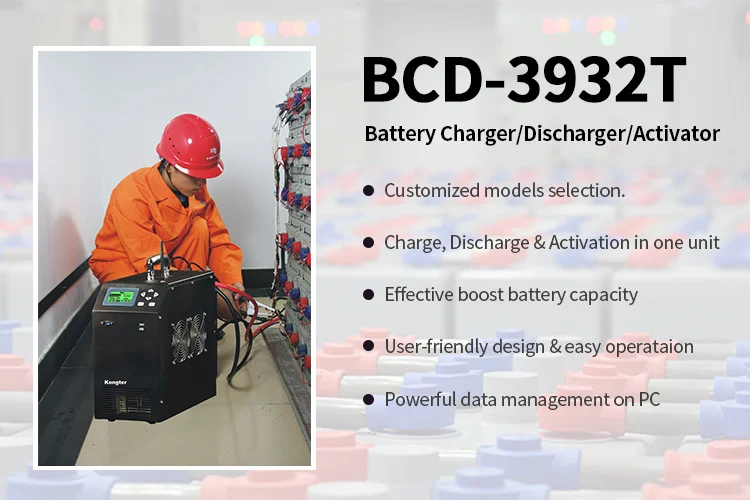

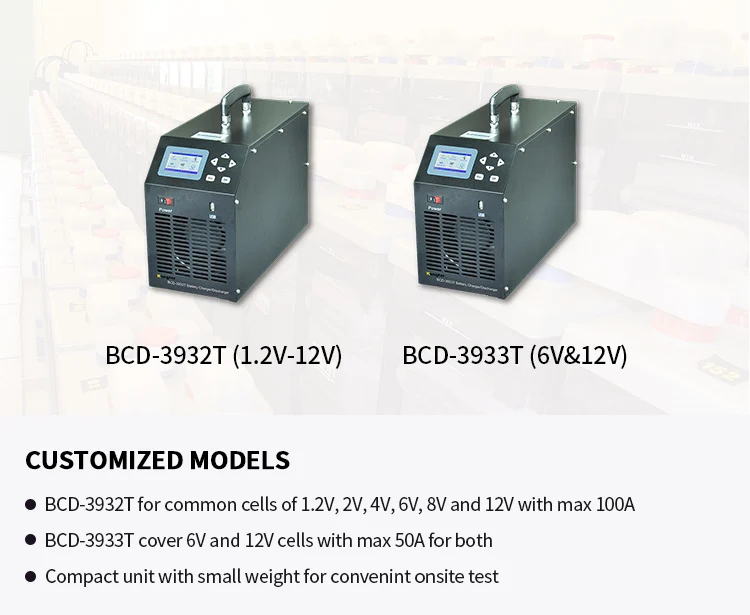

BCD-3932T Battery Charger/Discharger

Parameters

Measurement Range

Resolution

Accuracy

Charging current

1-50A(cell: 1.2V)

1-100A (cell: 2V)

1-30A (cell: 4V, 6V, 8V & 12V)

1A

1%

Discharge current

1-25A(cell: 1.2V)

1-100A(cell: 2V)

1-30A(cell: 4V, 6V, 8V & 12V)

1A

1%

Voltage measurement

1.2V: 1.08V-1.41V (Discharge)

     1.08V-1.44V (Charge)
2V: 1.8V-2.35V (Discharge)

    1.8V-2.4V (Charge)

4V: 3.6V-4.7V (Discharge)

3.6V-4.8V (Charge)
6V: 5.4V – 7.05V (Discharge)

5.4V-7.2V (Charge)
8V: 7.2V – 9.4V (Discharge)

7.2V-9.6V (Charge)

12V: 10.8V – 14.1V (Discharge)

     10.8V-14.4V (Charge)

0.1V

0.25%
