MX-303ESK BUSBAR PROCESSING MACHINE
Product Overview

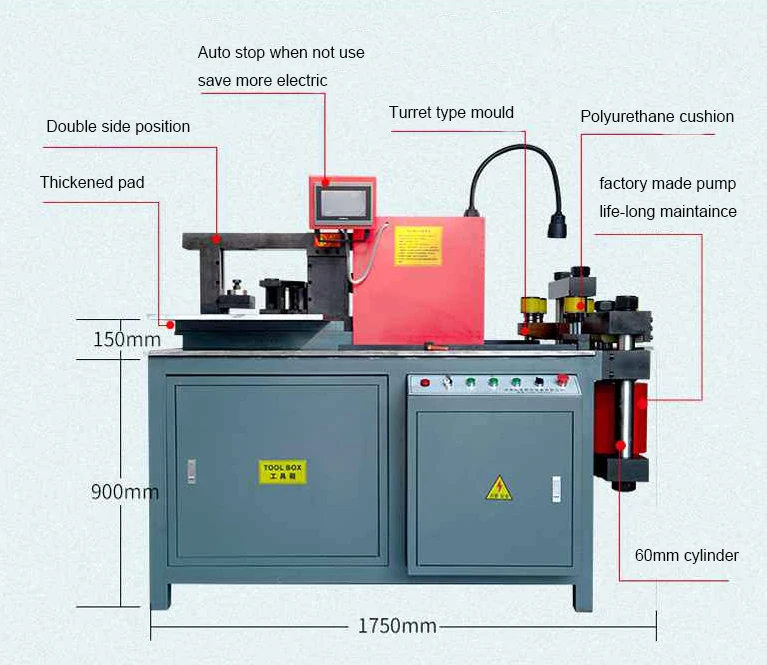

FEATURES AT A GLANCE
PUNCHING UNIT
Punching unit use 6 station die,do not need to change mold when use.enlarge mold life time
BENDING UNIT
Bending unit use open type bending , with double side position.easy to take out after bending.
CUTTING UNIT
Cutting unit use double column . cut with good performance.
DOUBLE WOKE TABLE
Thickened pad as second worktable.
3 work station not affected each other
PRODUCT SPECIFICATIONS
Station | Function | Value | Unit | |
Punching | max. punching force | 300 | Kn | |
diameter range | φ4.3-φ30 | mm | ||
max. thickness | 12 | mm | ||
max. width | 150 | mm | ||
Cutting | Max. cutting force | 300 | mm | |
max. cutting thickness | 12 | mm | ||
max. cutting width | 150 | mm | ||
bending | max. bending force | 300 | mm | |
max. bending thickness | 12 | mm | ||
max. bending width | 150 | mm | ||
worktable size | 1400*1200 | mm | ||
worktable thickness | 16 | mm | ||
second worktable size | 100*500 | mm | ||
motor power | 3*4 | KW | ||
voltage | 220 380 415 | mm | ||
weight | 1380 | KG | ||
dimension | 1750*1400*1300 | mm | ||
Details Images

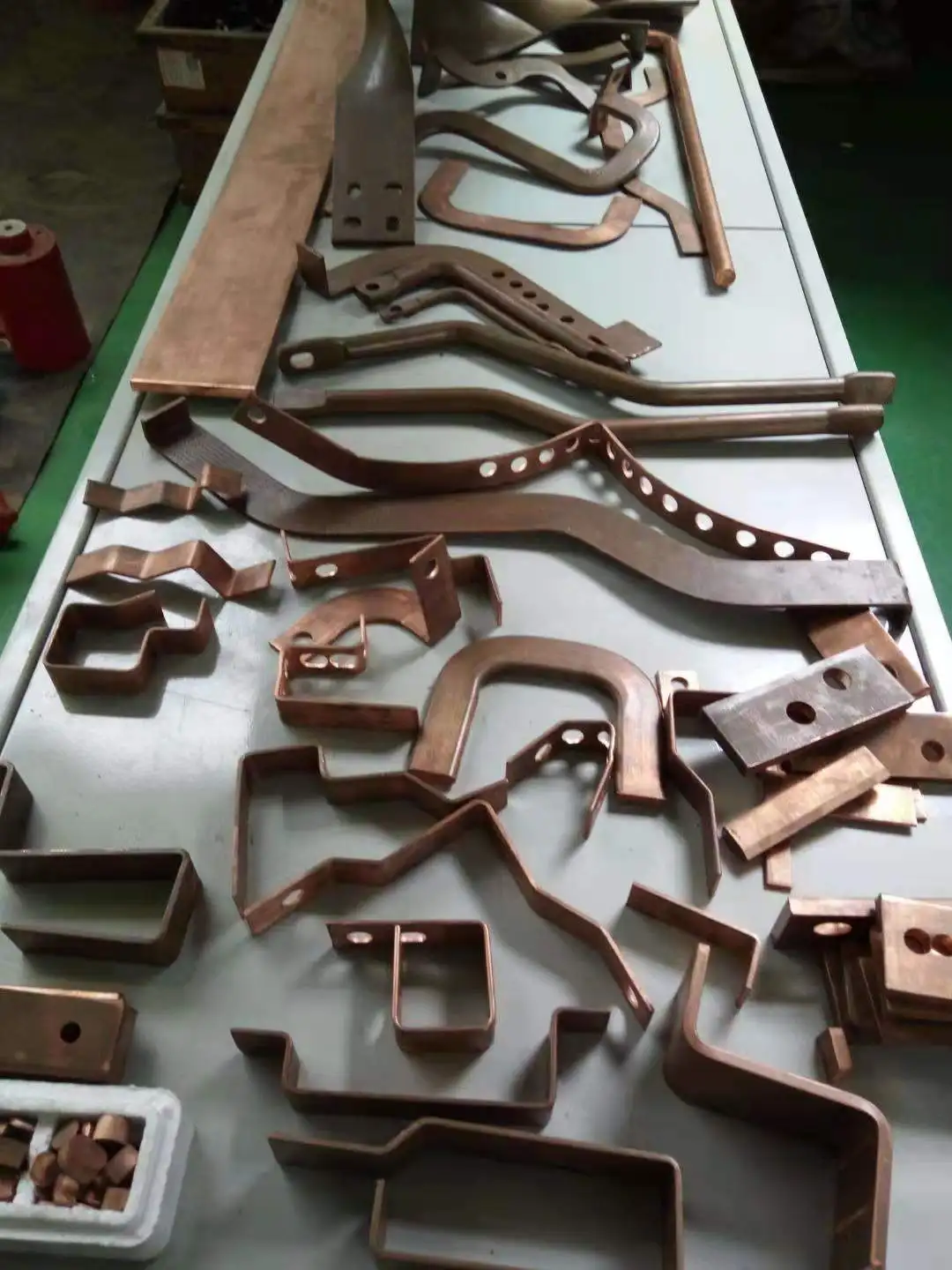

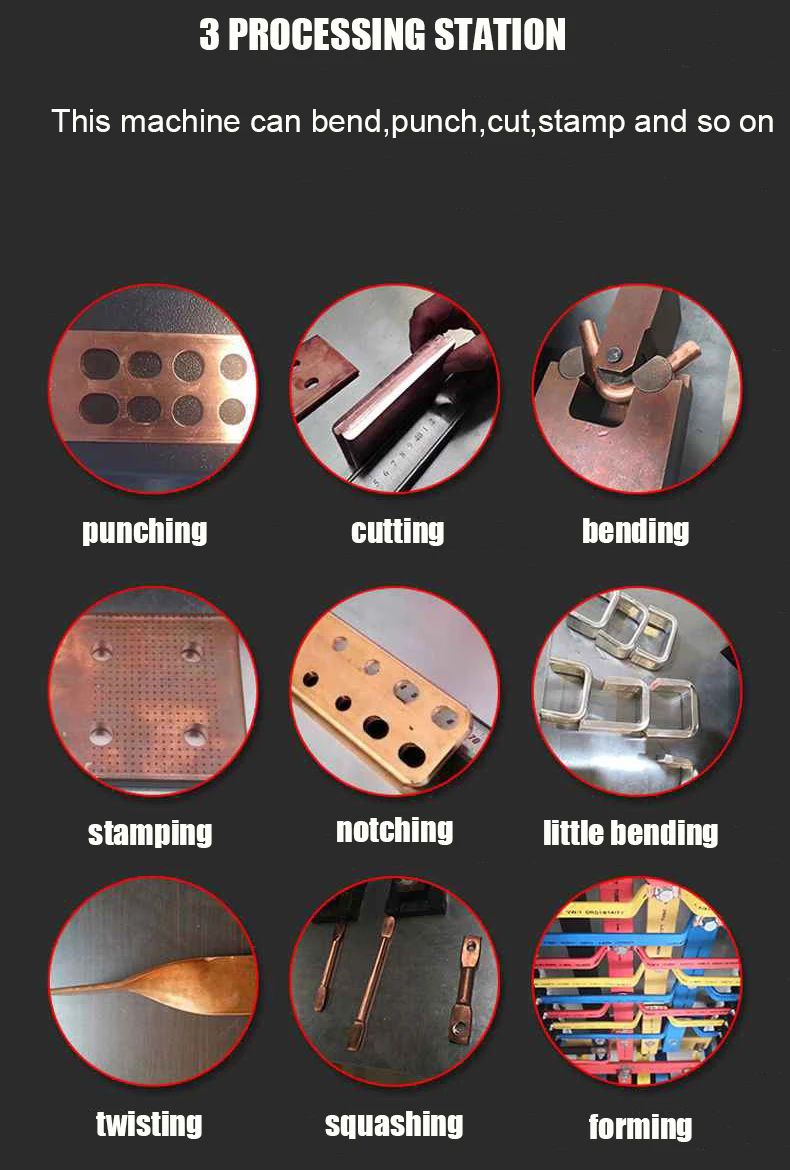

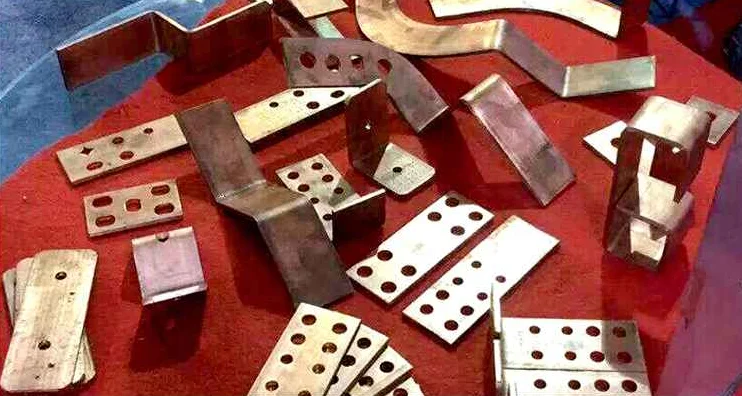

Samples
Hole Punching Sample
Cutting Sample
Notching Sample
Bending Sample

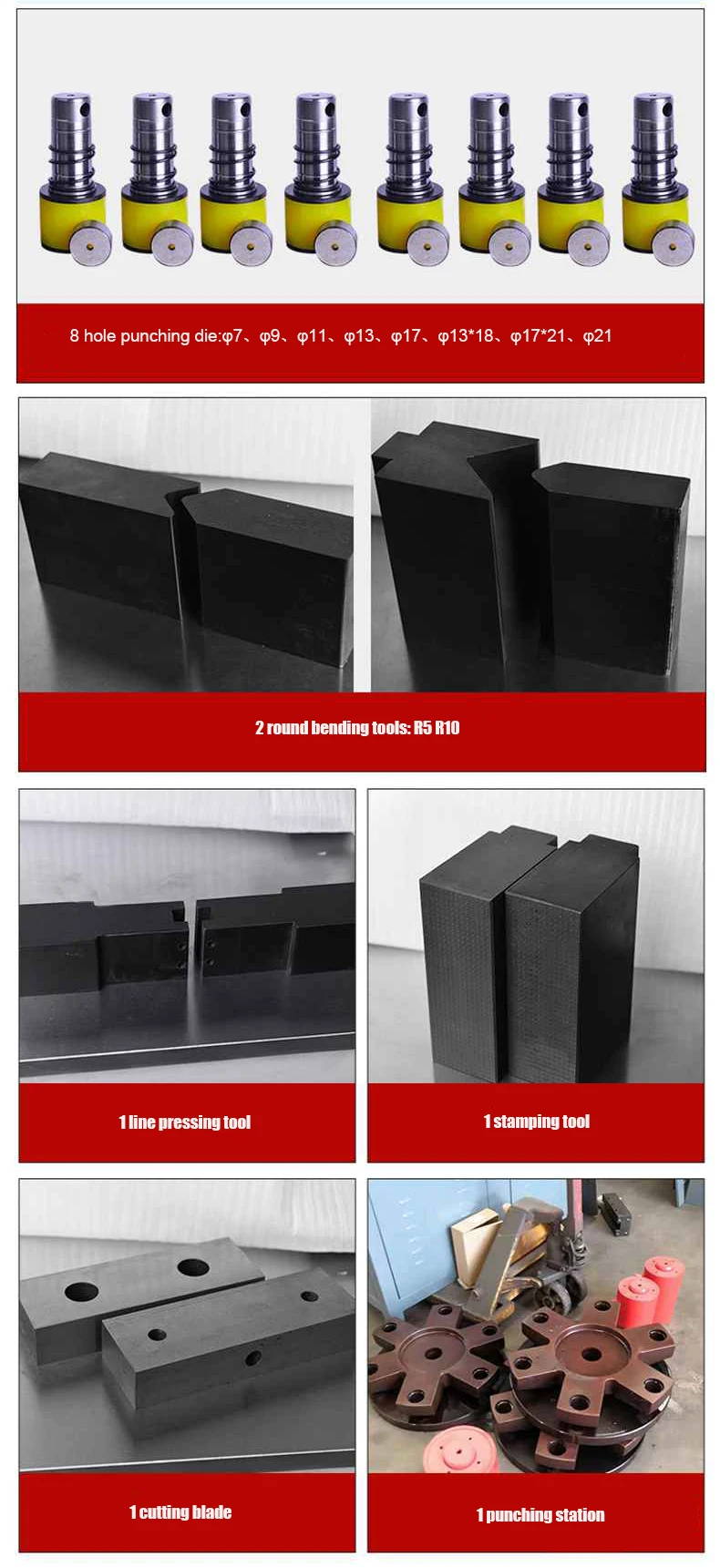

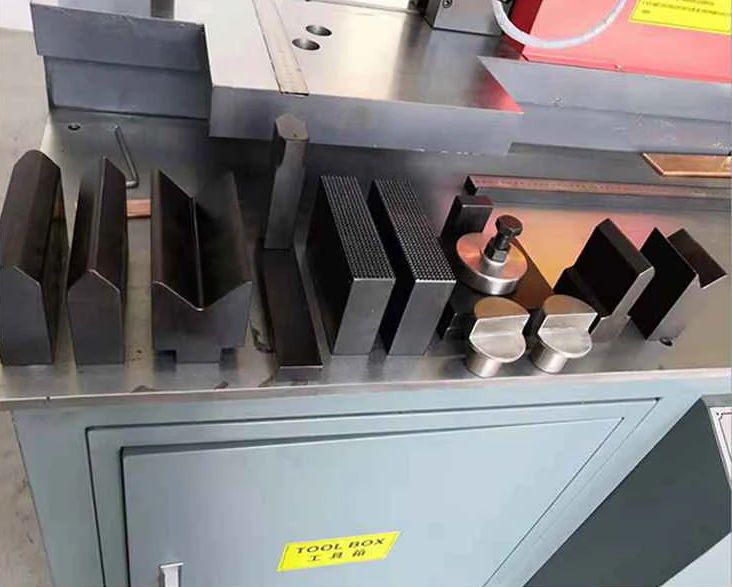

Standard Spare Parts
Recommend Products

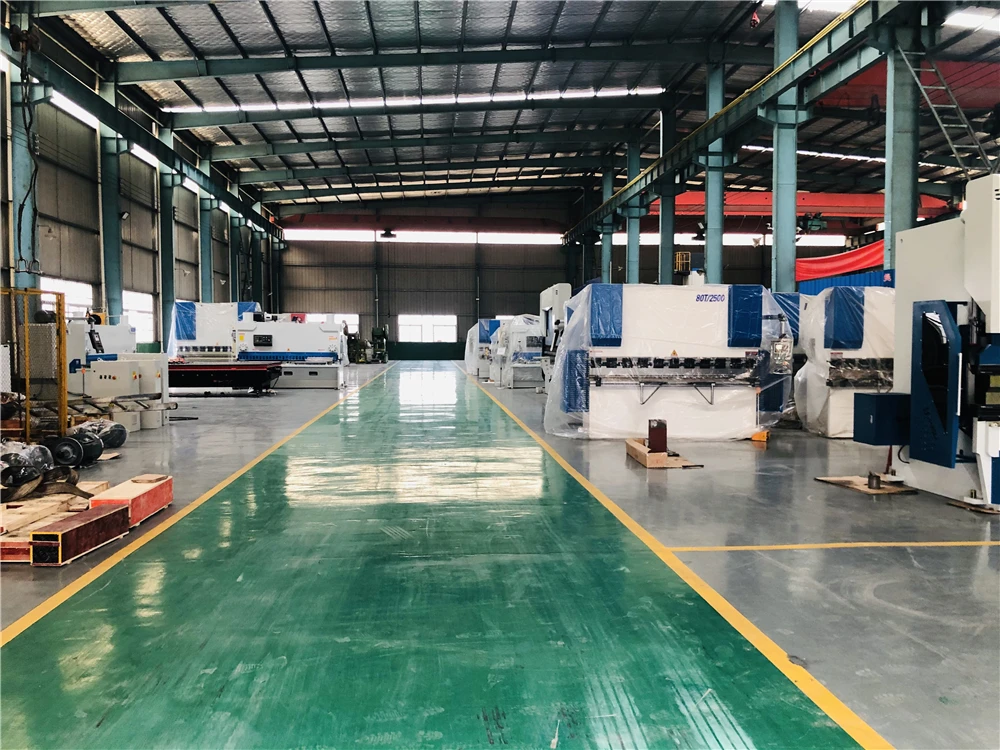

Company Profile
