Diesel Generator 50kw 100kw 120kw 150kw 240kw Diesel Electric Power Generator silent 50kva 100kva 120kva 300kva Doosan Generator

Diesel Generator 50kw 100kw 120kw 150kw 240kw Diesel Electric Power Generator silent 50kva 100kva 120kva 300kva Doosan Generator

Category: Diesel Generators >>>
Supplier: Jiangsu,Hengtong,Generator,Manufacture,Co.,Ltd

Price:$14,000.00 - $19,000.00

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

Diesel generator set specifications			Engine Specifications			Alternator Specifications
Model	GF240ds	Engine brand	DOOSAN	Alternator brand	NENJO
Prime Power	300KVA/240KW	Engine Model	P126TI-II	Model:	HJI-240
Standby Power	330KVA/264KW	Standby power(KW)	290	Rated Capacity (KW/KVA):	240/300
Frequency:	50Hz/60Hz	Prime power (KW)	264	Winding:	100% Copper Wire
Voltage:	400V or customized	Governor	Electronic	Frequency:	50Hz/ 60Hz
Phase:	3	Cylinders/ Arrangement	6/L	Speed:	1500 RPM/ 1800RPM
P.F(COS￠):	0.8	Bore x stroke(mm*mm)	123X155	Connecting Type:	3 Phase and 4 Wires, “Y” /“ Δ” type connecting
Fuel:	Diesel	Consumption of fuel	63.1 L/H	Power Factor:	0.8
Rated Current:	optional	Lub.oil cap.(L)	23	Protection Grade:	IP23
Start Method:	12/24V DC	displacement(L)	11	Exciter Type:	Brushless, self-exciting

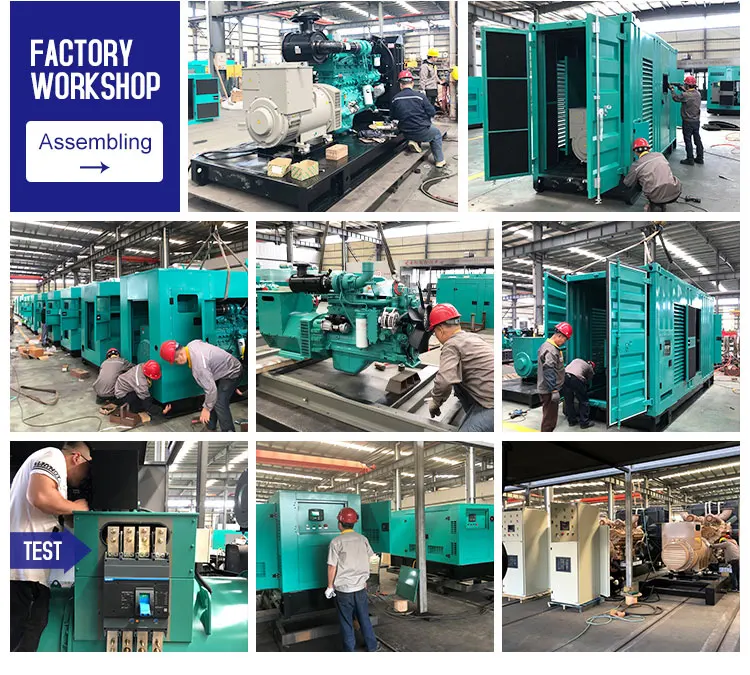

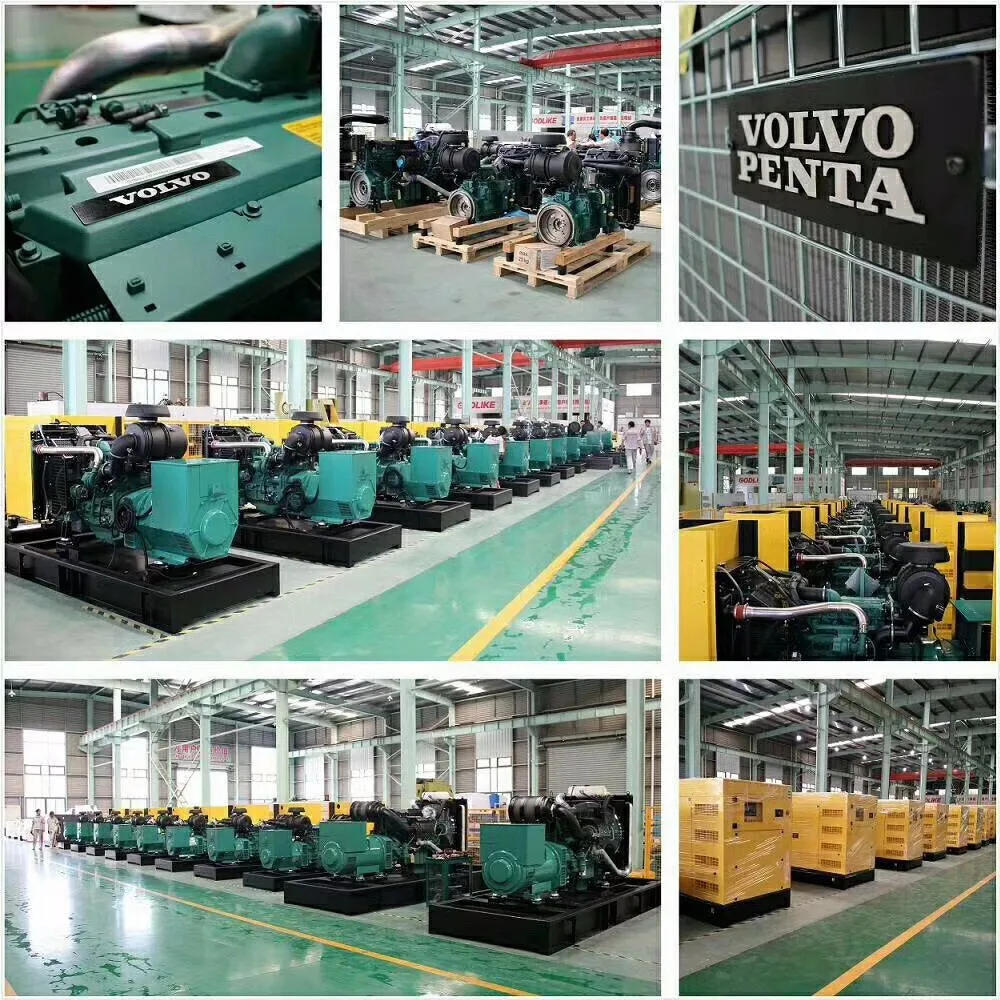

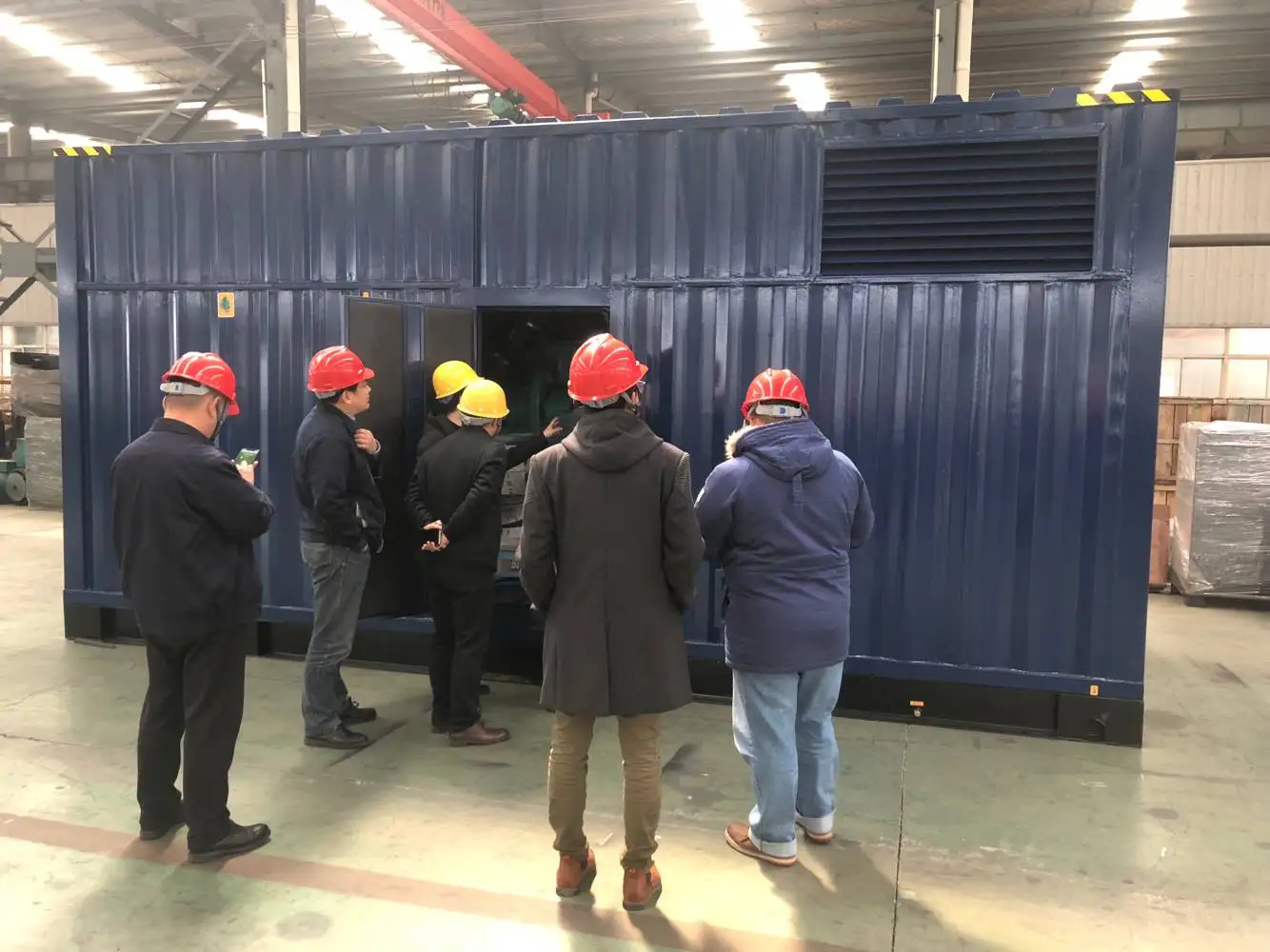

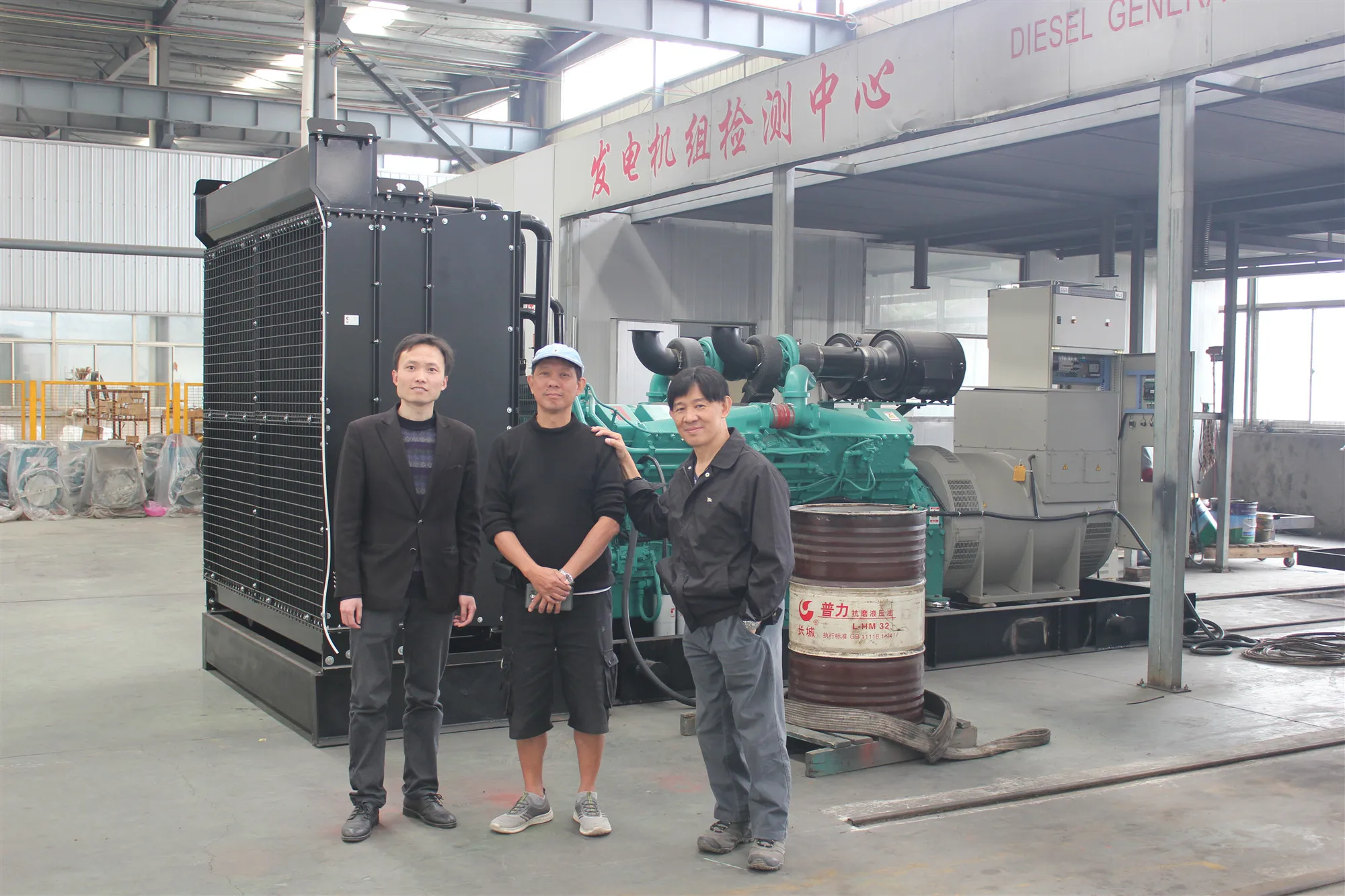

Factory and Workshop

Control System

Manual Controller

- A current, Voltage, Frequency simulative meters;
- An oil pressure, a water thermometer and indicator lights;
- 4 additional protection functions are provided optional;
- Start/ stop manually.

Automatic controller
Brand: Smartgen, ComAp or Deepsea

- Control with AMF module;
- Static battery charger;
- Emergency stop push button;
- Basic protection function, etc.

ATS Control System(Suyang, Aisikai, Schneider，ABB)

- Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine BottProvide start signal to automatic control system;
- Control the generator set to run with no load until the temperature of the engine is balanced and lowered. Stop running
automatically;.
- Changeover between the mains supply and power generated by gen-set;

Synchronous Parallel Controller
Brand: Smartgen, ComAp or Deepsea

- Manual/auto parallel system generators;
- Automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
- IP55 waterproofness level;
- Can control engine heater, cooler and fuel pump;
- Metal fixing clips enable perfect in high temperature environment, etc..

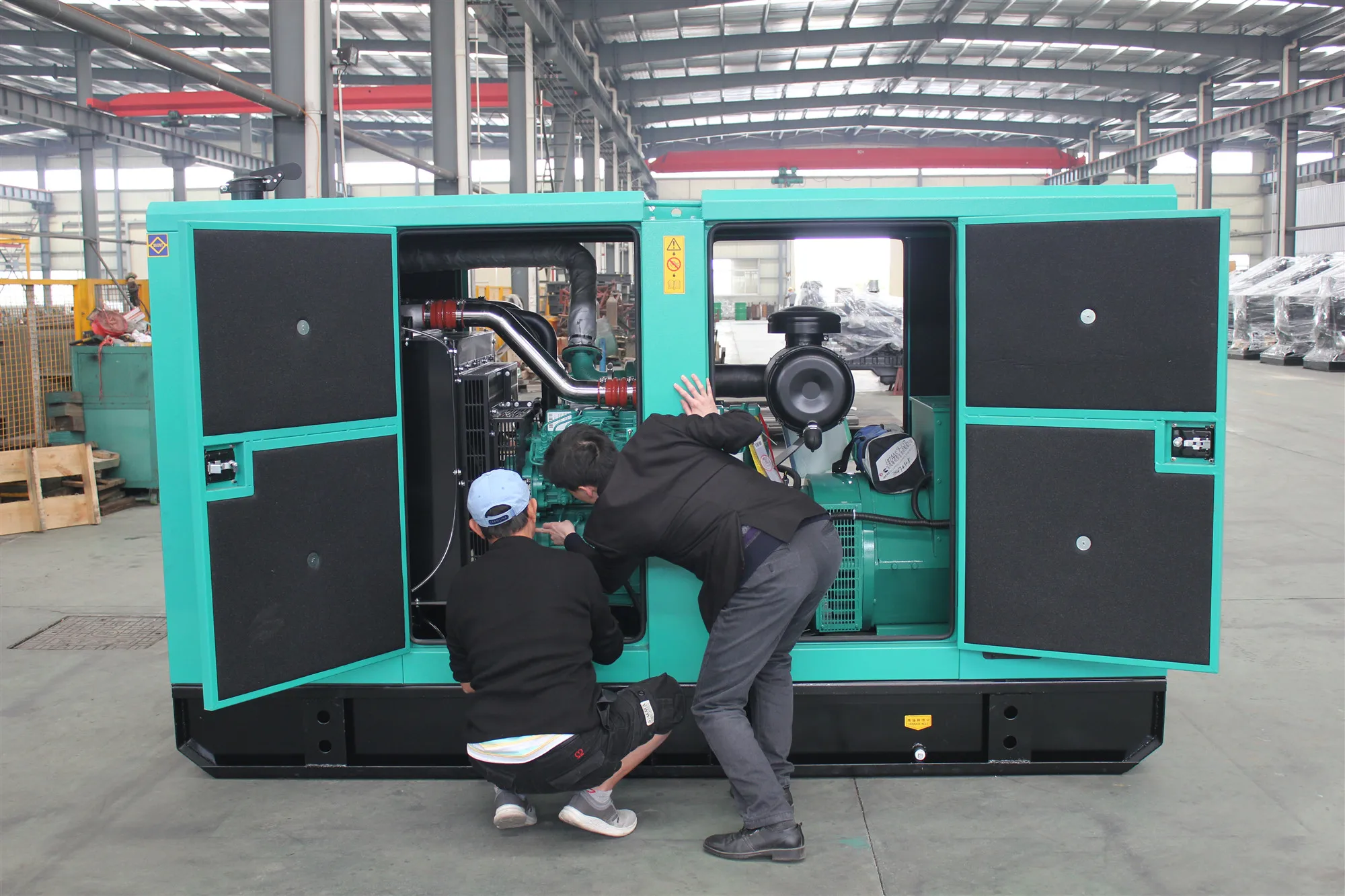

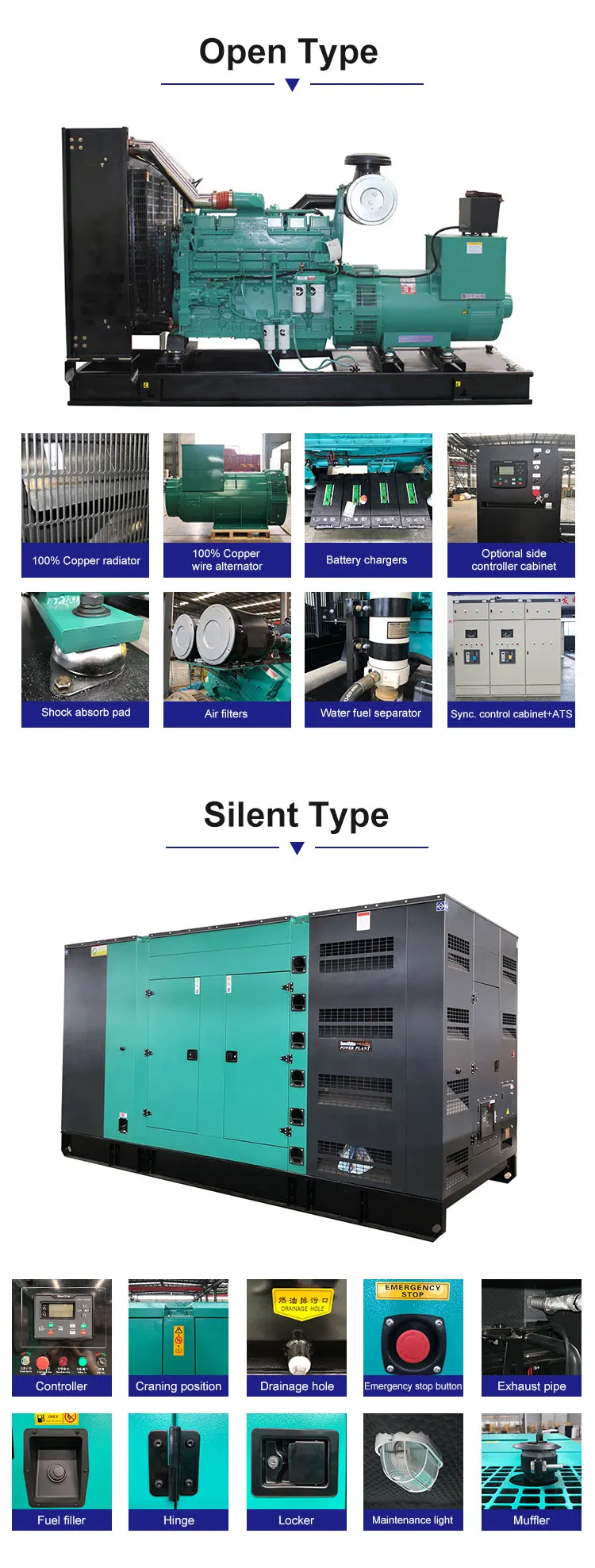

Silent Canopy Details

-Compact structure with high-strength chassis;
-Easy operation and maintenance, Low cost;
-Excellent performance damping system;
-Compliance with international electrical safety standards of electrical system;
-8 hours base tank;
-High-performance maintenance-free batteries with isolation switch

-40-50℃Radiator;
-Top lifting, Forklift bottom hole design, easy to transport;
-Industrial muffler;
-Noise reduction structure,Low noise;
-Convenient power output interface;
-IP56 (control system)
-Customized design for user
