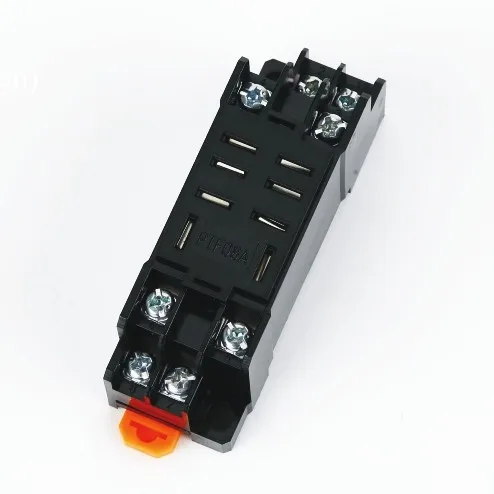

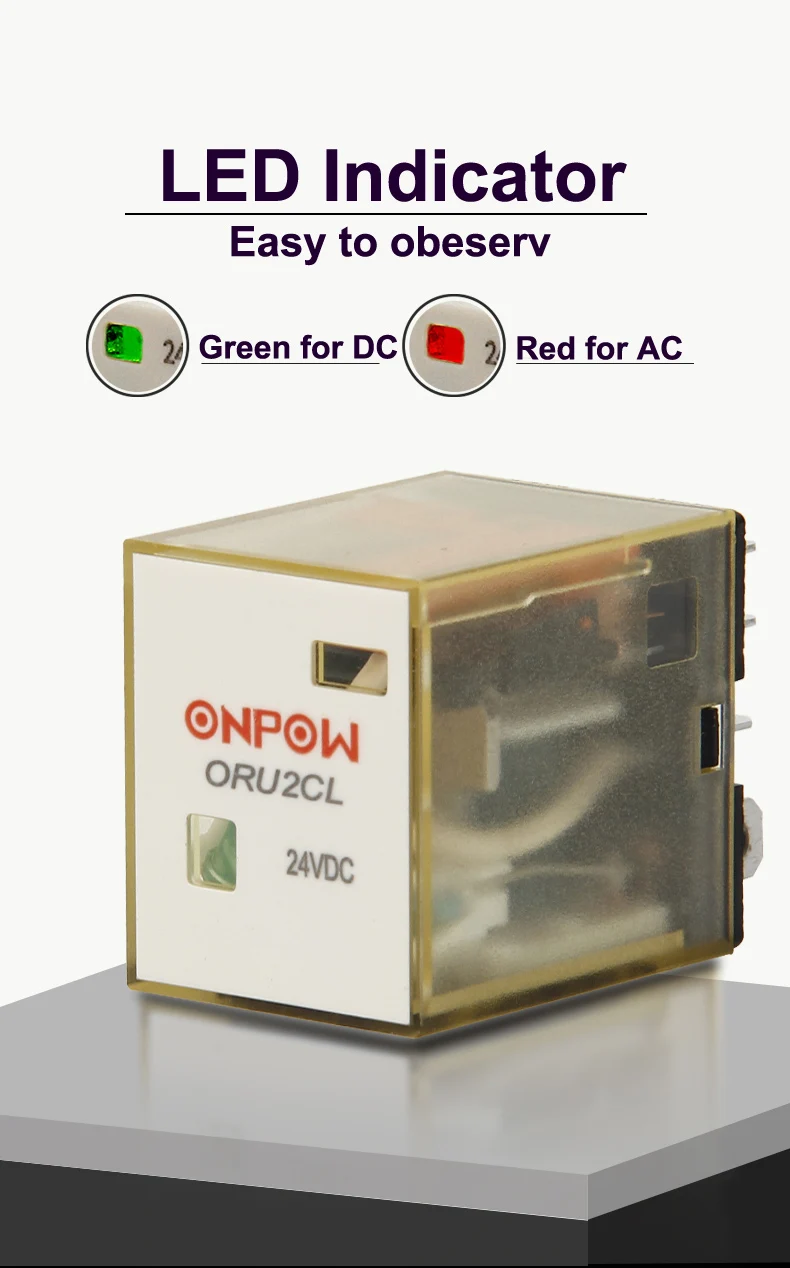

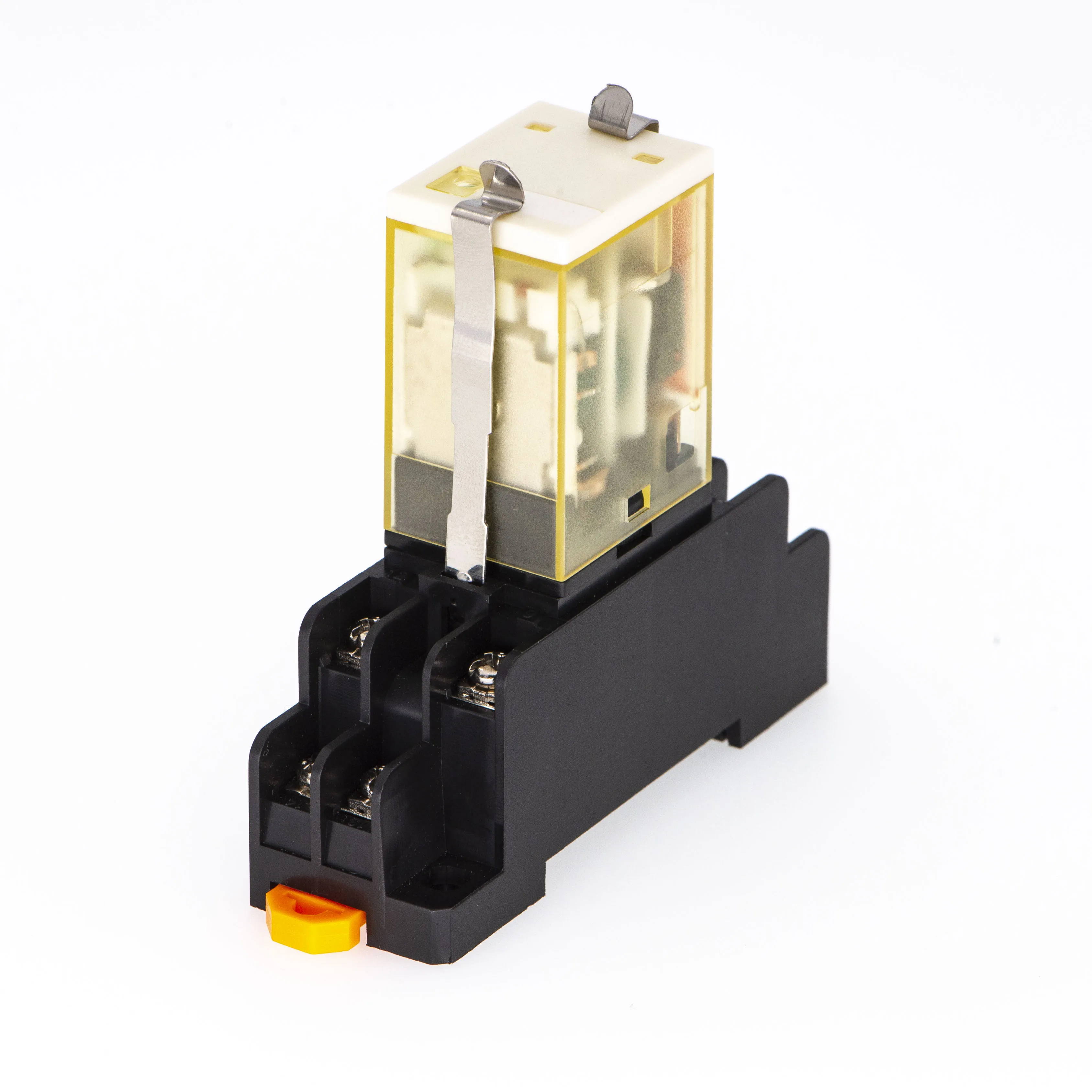

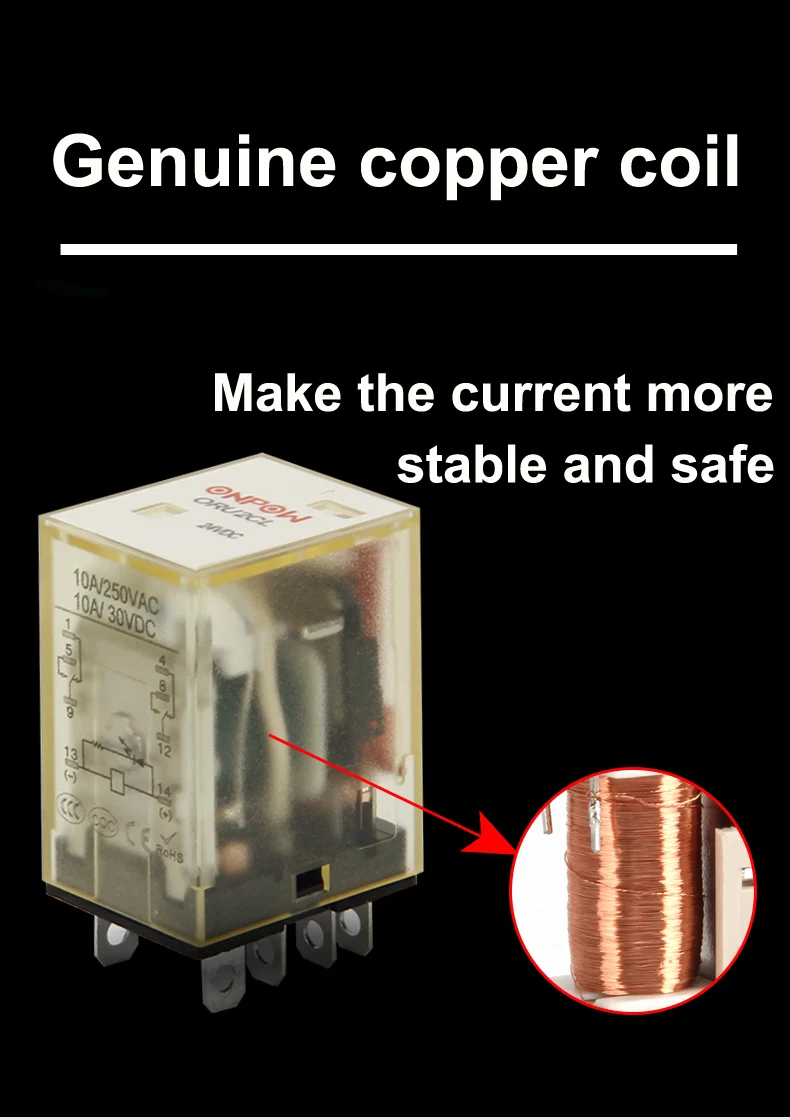

8 Pin 10A/110VAC Electrical Power Relay, Copper Coil with Socket Base, LED Indicator, DPDT 2NO 2NC
- Category: >>>
- Supplier: Shanghai Leyan Automatic Control Technology Co. Ltd.
Share on (1600326970320):
Product Overview
Description
| Contact Ratings | Contact form | 2C |
| Rated load(Resistive load) | 10A/110VAC | |
| Switching power(Resistive load) | 2500VA, 300W | |
| Contact resistance(initial) | ≤50mΩ | |

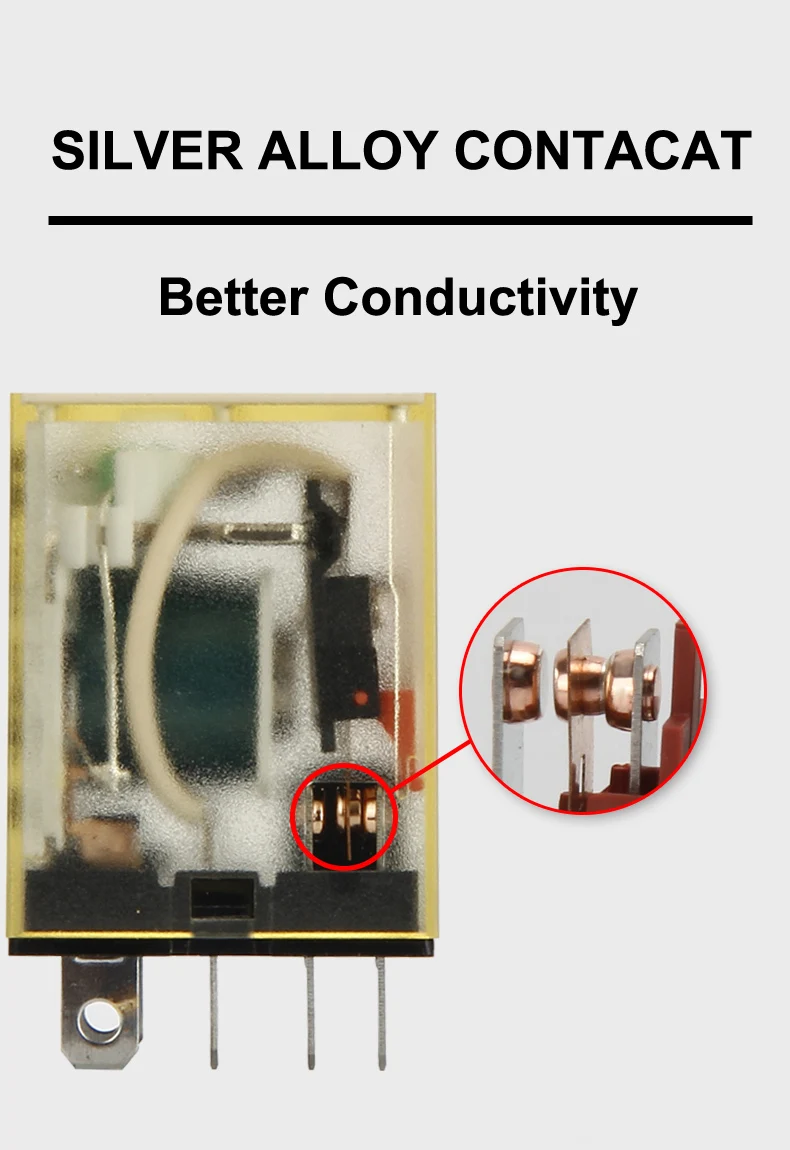

| Contact material | Ag alloy | |
| Electrical life | 1*10^5 times | |
| Mechanical life | AC: 1*10^7 times | |
| Performance parameter | Must-iperate voltage (23℃) | DC:≤75% (rated voltage) AC:≤80% (rated voltage),50/60Hz(rated voltage) |
| Must-release voltage (23℃) | DC:≥10% (rated voltage) AC:≥30% (rated voltage),50/60Hz(rated voltage) | |
| Maximum voltage (23℃) | 110% (rated voltage) | |
| Coil power consumption | DC: Approx. 0.9W AC: Approx. 1.2VA | |
| Operate time (rated voltage) | ≤20ms | |
| Release time (rated voltage) | AC: ≤25ms DC: ≤15ms, Built in freewheeling diode type: ≤25ms | |
| Insulation resistance | 1000MΩ (500VDC) | |
| Dielectric Strength | Between contacts of same polarity: ≥1000VAC/1min | |
| Between contacts of different polarity: 2000VAC/1min (Leakage current 1mA) | ||
| Between contact and Coil: 2000VAC/1min (Leakage current 1mA) |
The prices of DC and AC versions are different, please contact me and confirm the details before ordering.
For large quantity, we can give you more discount
