Product Overview
Description

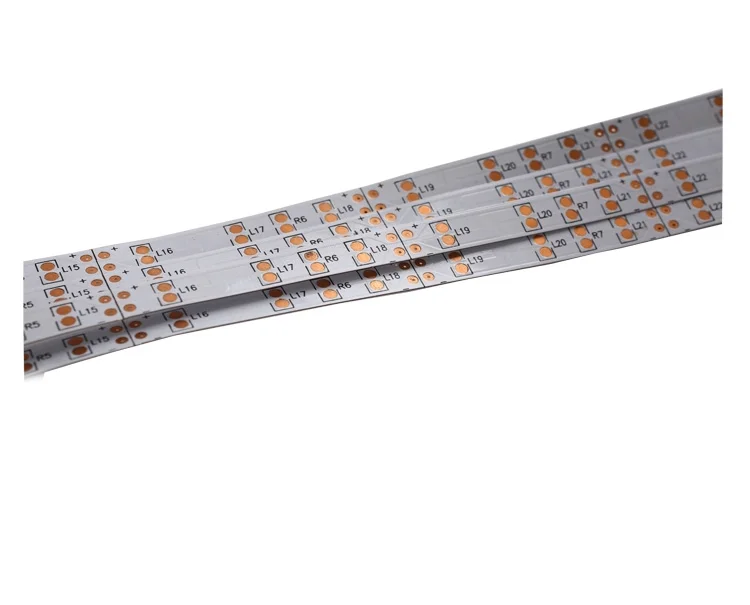

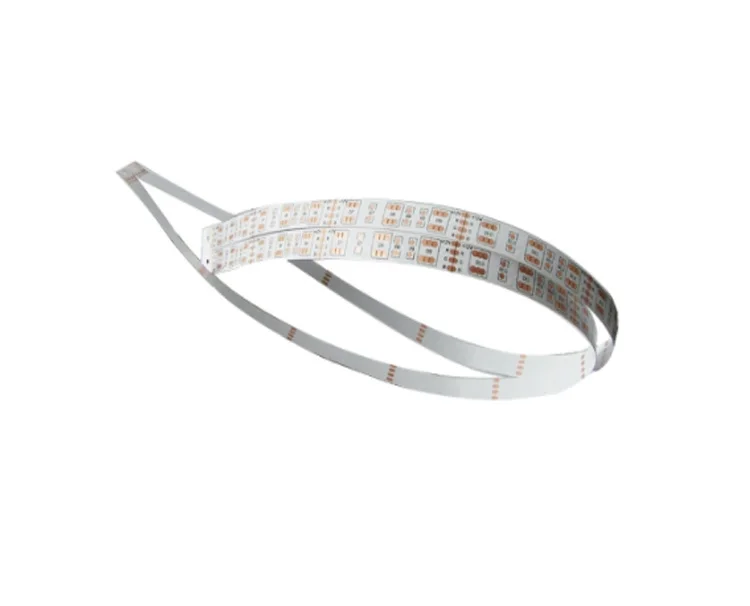

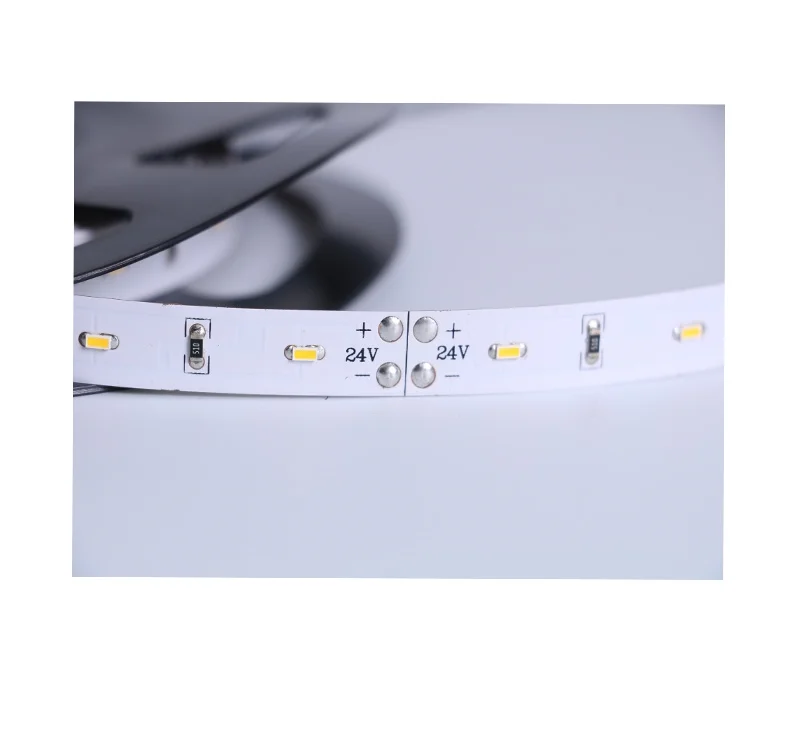

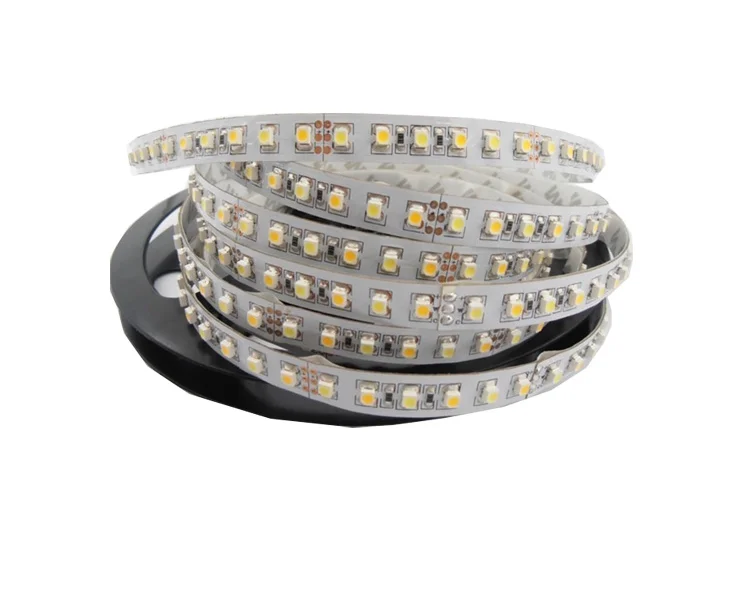

High Quality Custom PCB Manufacturer Provide Flexible PCB FPC Circuit Board For LED Strip Grow Lights
Aabout PCBQuick
PCBQuick is a PCB supplier that offers quick online quote service.
We can provide customized solutions for LED lighting PCB and UPS PCB.
Our Rigid PCB/ FPC/LED PCB/PCBA is exported to all parts of the world.
PCBQuick continuously improves the quality and service.
By the end of 2018, we have already served more than 300 companies worldwide.
Why us ?
1) Professional engineer team --help you to check design and do engineering before production
2) Rich expierences in pcb production industry--provide high quality and competitive price pcb.
3) After-sales service--every problem you have will get our professional advice and solution.
4) Constant follow up-- make us have the fast reaction of your requirement.
5) Inspected by the Inspection Institution--ISO,UL,ROHS cerfiticated
Our Service
We are able to provide you best electronics services.
1) PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,Rogers,CEM-1 )
2) FPC,PCB Copy Service.
3) PCB Assembly Service. (SMT, BGA, DIP)
4) PCBA Final Functional Testing.
5) PCBA Copy Service.
6) Electronic Components Purchasing & BOM List Purchasing Services.
7) PCB SMT Stencil. (Laser cut & Etching)
Process Capability
| Quality Grade | Standard IPC 2 | Material | DuPont PI, Domestic Shengyi PI |
| Number of Layers | 1 - 8layers | Board Size | Min 6*6mm, Max 406*610mm |
| Order Quantity | 1pc - 10000+pcs | Board Thickness | 0.1mm - 0.8mm |
| Build Time | 2days - 5weeks | Copper Weight (Finished) | 0.5oz - 2.0oz |
| Min Tracing/Spacing | 3mil/3mil | Silkscreen Sides | As per the file |
| Solder Mask Sides | As per the file | Silkscreen Color | White, Black, Yellow |
| Solder Mask Color | Green, White, Blue, Black, Red, Yellow | Surface Finish | HASL - Hot air solder leveling Lead - free HASL - RoHS ENIG - RoHS Immersion Tin - RoHS OSP - RoHS |
| Solder-stop coating---Soldermask oil | Green, White, Blue, Black, Red, Yellow | ||
| Solder-stop coating---Coverlay | PI and PET film | ||
| Min Annular Ring | 4mil | ||
| Min Drilling Hole Diameter | 8mil | ||
| Min. hole size---Drilling (PTH) | 0.2mil | Other Techniques | Peelable solder mask Gold fingers Stiffener (only for PI/FR4 substrate) |
| Min. hole size---Punching (NPTH) | 0.5mil | ||
| Tolerance of dimension | ±0.05mm |

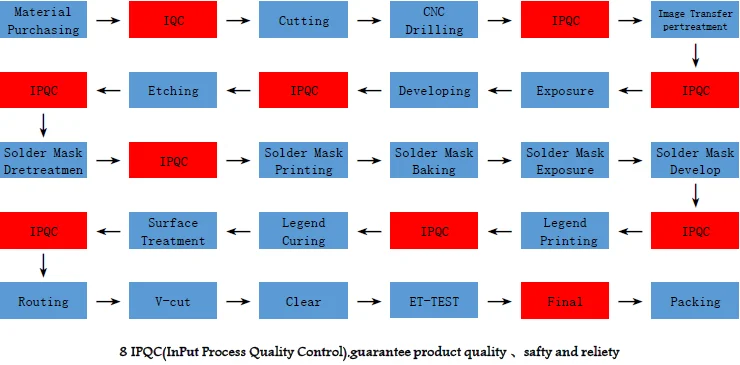

Production Flow
Certifications
- FAQ
Q1.What is needed for quotation?
PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for production?
Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
Q4. MOQ?
There is no MOQ in POE.We are able to handle Small as well as large volume production with flexibility.
Q5.Shipping cost?
The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
