Product Overview
Description
Product Paramenters

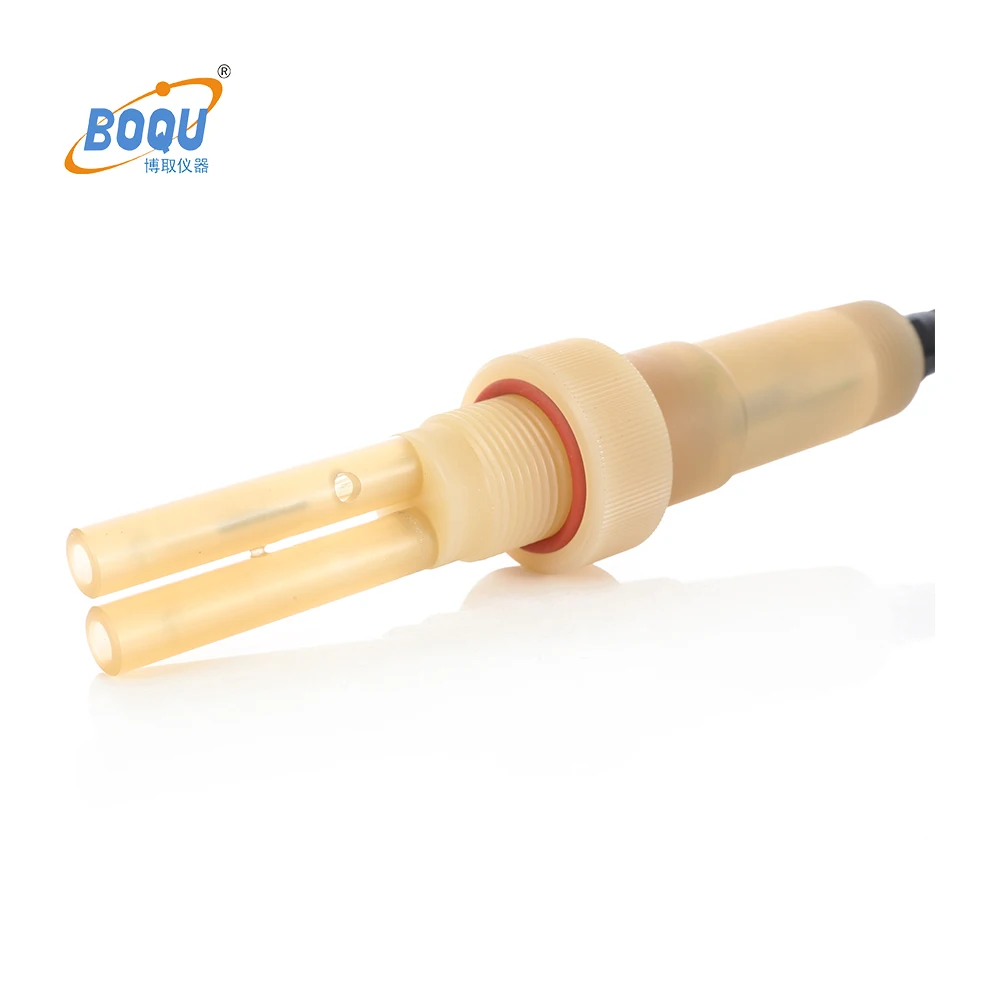

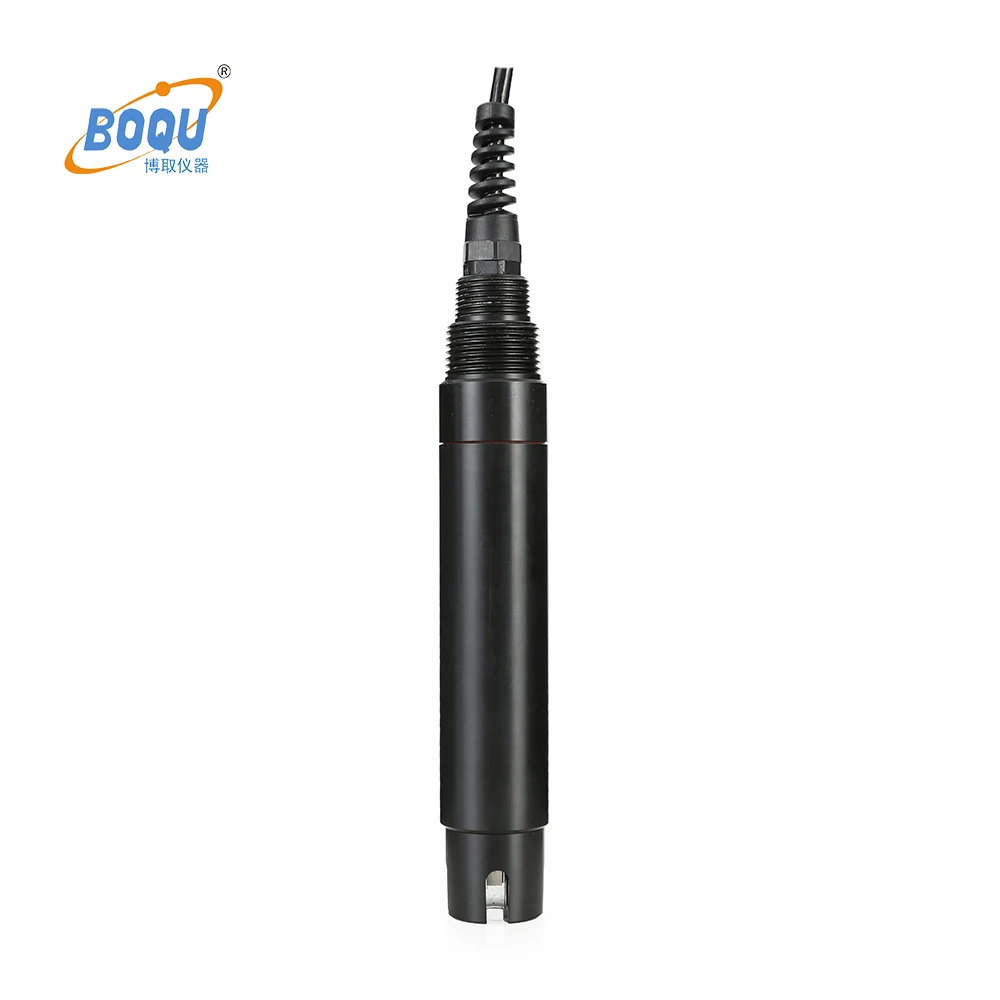

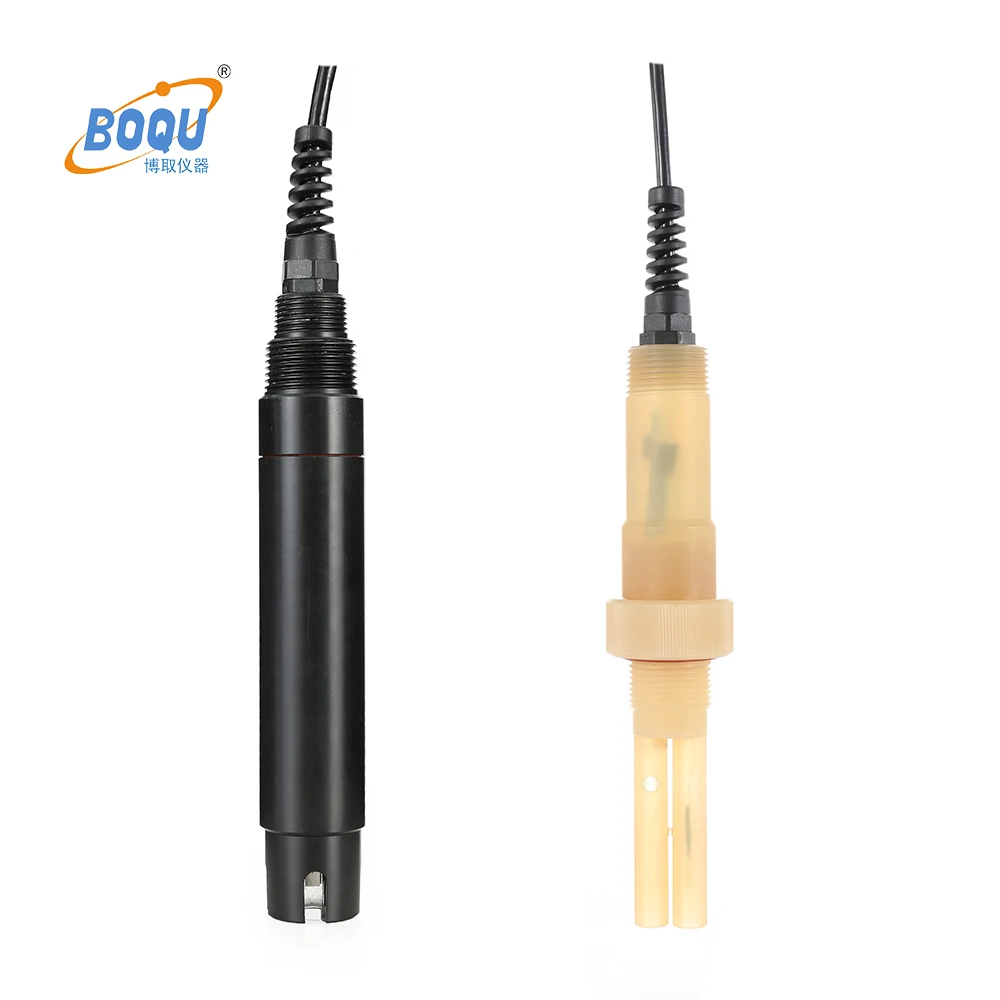

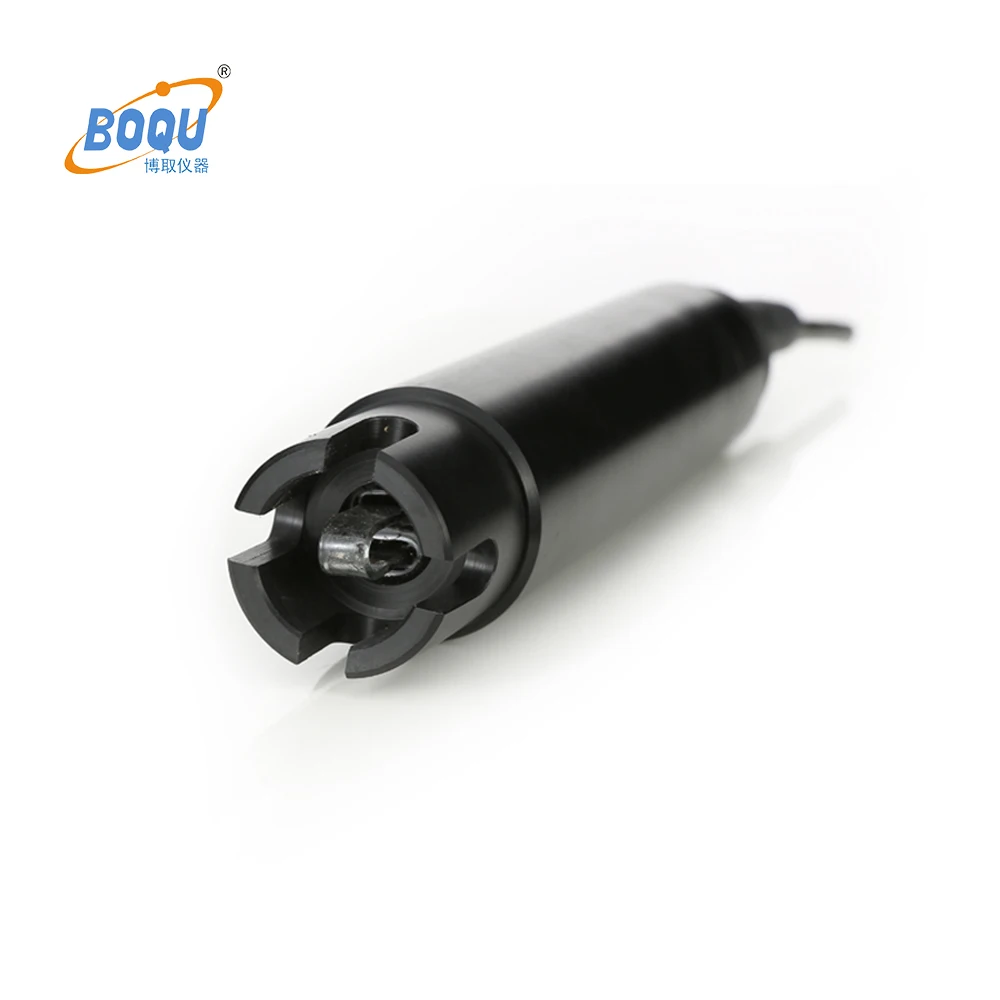

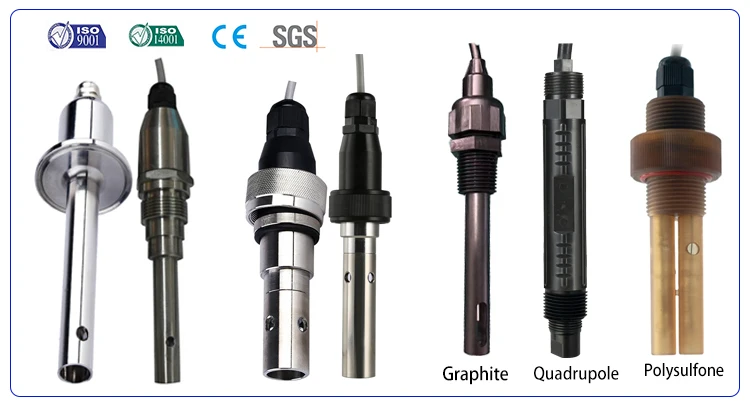

Industrial Conductivity Electrode
Model : DDG-0.01
Model : DDG-0.01
The conductivity industrial series of electrodes are specially used for the measurement of conductivity value of pure water, ultra-pure water, water treatment, etc. It is especially suitable for conductivity measurement in the thermal power plant and the water treatment industry. It is featured by the double-cylinder structure and the titanium alloy material, which can be naturally oxidized to form the chemical passivation. Its anti-infiltration conductive surface is resistant to all kinds of liquid except fluoride acid. The temperature compensation components are: NTC2.252K, 2K, 10K, 20K, 30K, ptl00, ptl000, etc.
Technical Parameters
1. Constant of electrode: 0.01
2. Compressive strength: 0.6MPa
3. Measuring range: 0.01-20uS/cm\t
4. Connection: tri-clamp,thread,flow-through etc.
5. Material: 316L stainless steel or Titanium Alloy
6. Application: power plant, water treatment industry
1. Constant of electrode: 0.01
2. Compressive strength: 0.6MPa
3. Measuring range: 0.01-20uS/cm\t
4. Connection: tri-clamp,thread,flow-through etc.
5. Material: 316L stainless steel or Titanium Alloy
6. Application: power plant, water treatment industry

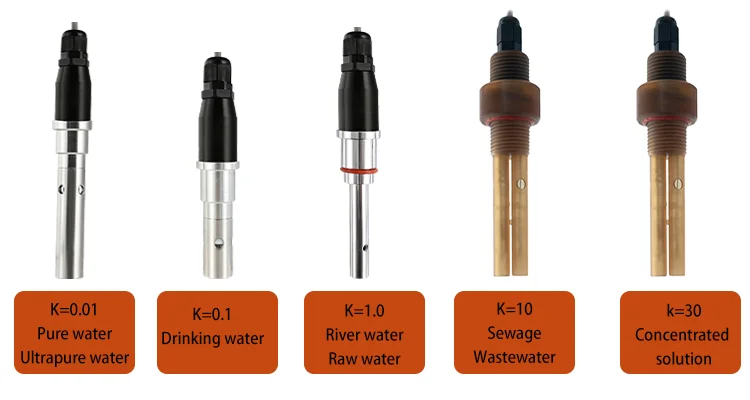

TDS Coefficient | Measuring range | Pressure | Installation | Material | application area |
K=0.01 | 0-20μS/cm | <0.6MPa | Hard, hose, flange and other pipe diameter: φ 6. φ 8. φ 14; chuck quick installation | 316L and titanium alloy | Power plants, water treatment industry |
K=0.1 | 0-200μS/cm | <0.6MPa | Hard, hose, flange and other pipe diameter: φ 6. φ 8. φ 14; chuck quick installation | 316L and titanium alloy | Power plants, water treatment industry |
K=1.0 | 0-2000μS/cm | <0.6MPa | 1/2 or 3/4 screw thread mounting;chuck quick mounting | 316L and titanium alloy, aluminum gold | water treatment industry |
K=10.0 | 0-20000μS/cm | <0.6MPa | 1/2 or 3/4 screw thread mounting | Polysulfone and forceps gold | water treatment industry |
K=30.0 | 30-600mS/cm | <0.6MPa | 3/4 screw thread mounting | polysulfone | acid cleaned |

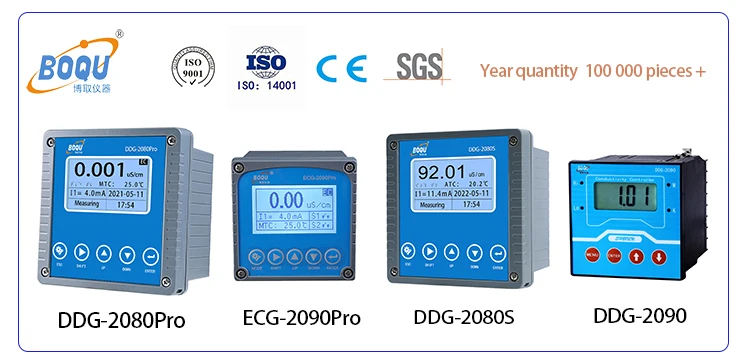

Other Conductivity Meter
ECG-2090Pro | DDG-2090 | DDG-2080S |
Measurement: Conductivity/Salinity/TDS/Resistivity/Temperature | Measurement: Conductivity | Measurement: Conductivity/Salinity/TDS/Resistivity/Temperature |
Measuring range: 0.00uS/cm~2000000.00 uS/cm； 0.00g/L~80.00 g/L(ppt); 0.00mg/L~130000.00 mg/L(ppm); 0.00MΩ~20.00MΩ; -40.0℃~200.0℃(refer to matching electrode) | Measuring range: 0.1-200 uS/cm (Electrode K=0.1) 1.0-2000 us/cm (Electrode K=1.0) 10-20000 uS/cm ( K=10.0) 0~19.99MΩ(Electrode K=0.01) | Measuring range: 0-2000000.00 us/cm; 0-80.00 ppt; 0-9999.00 mg/L(ppm); 0-20.00MΩ; -40.0-130.0℃. |
Sensor type: Analog Sensor | Sensor type: Analog Sensor | Sensor type: Digital Sensor with RS485 Modbus |
Relay:TWO Relay | Relay:Three Relay | |
Shell material: ABS plastic | Shell material: ABS plastic | Shell material: ABS plastic |
Power supply: 90V ~ 260V AC 50/60Hz | Power supply: AC 220V ±l0％, 50Hz | Power supply: 90V-260V AC 50/60Hz |
Output: Two 4-20mA output | Output: Two 4-20mA output | Output: Two 4-20mA output |
Size: 98.2×98.2×128.3mm | Size: 96x96x110mm | Size: 144×144×104mm |
Company Profile
Our Team
Our Factory
Exhibition
Certifications
Installation Cases
Why to choose BOQU?
Why choose BOQU Online dissolved oxygen monitoring analyzer ?
1.National High-tech Enterprises Certificates,only one percent company has this certificate.
2.Instruments has been exported to over 70 countries.
3.BOQU has more 50+ Softwares property
4.100% QC inspection Before Shippment.
5. ISO,CE,SGS standard and factory price.
6.All instruments has been 100% recognized by Bureau of National Metrology
1.National High-tech Enterprises Certificates,only one percent company has this certificate.
2.Instruments has been exported to over 70 countries.
3.BOQU has more 50+ Softwares property
4.100% QC inspection Before Shippment.
5. ISO,CE,SGS standard and factory price.
6.All instruments has been 100% recognized by Bureau of National Metrology
