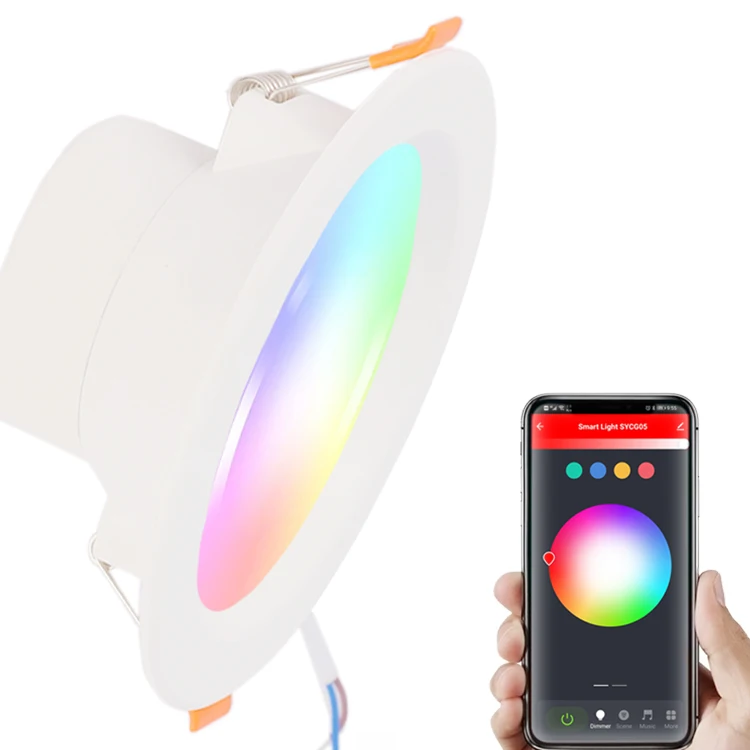

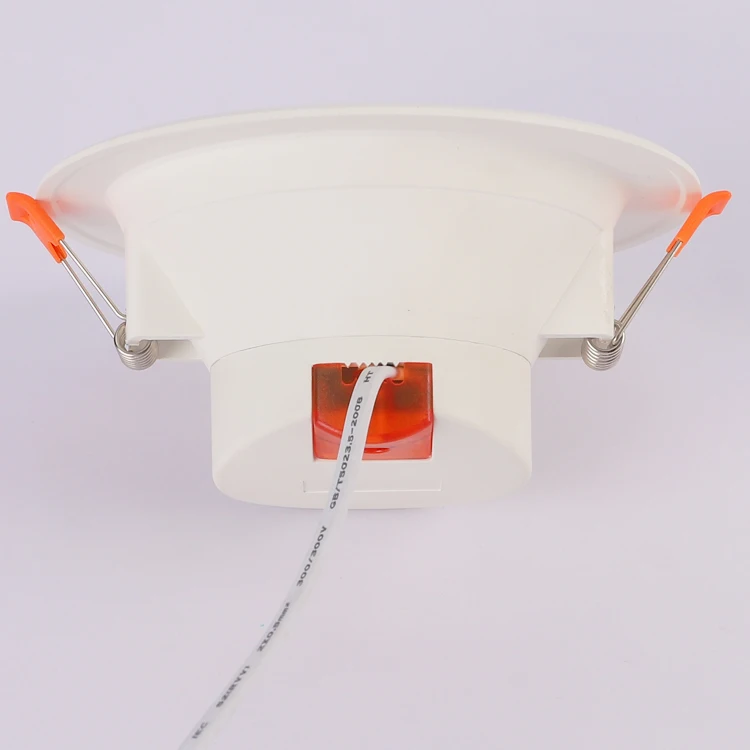

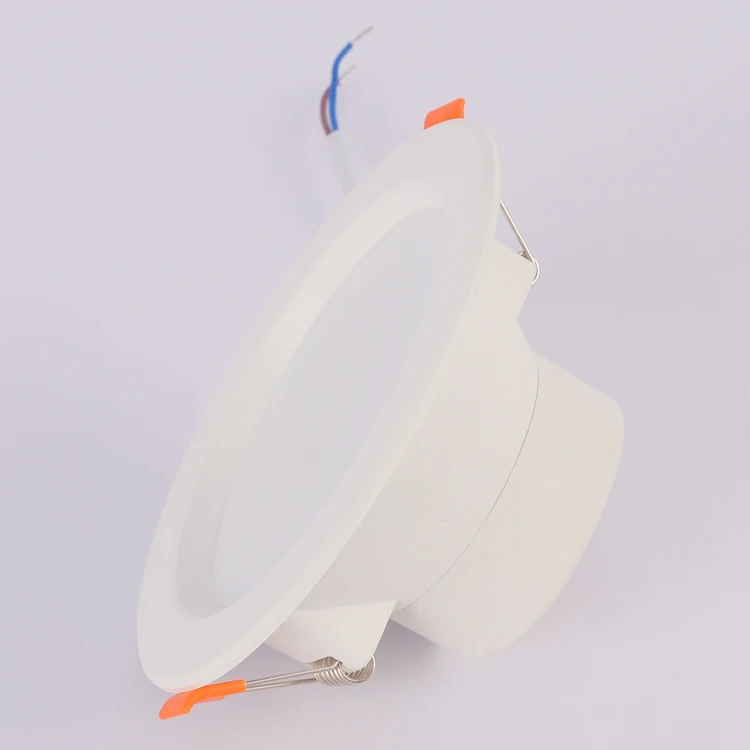

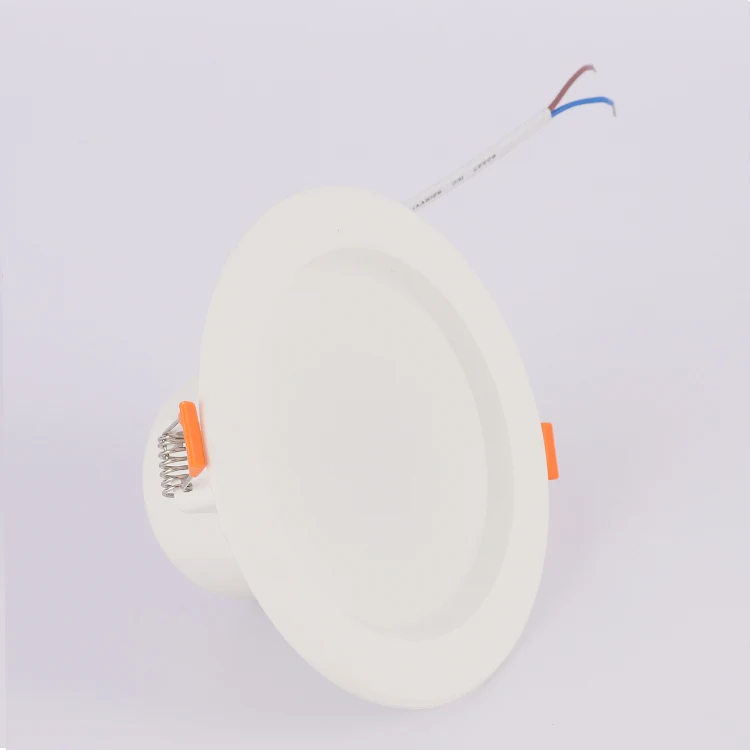

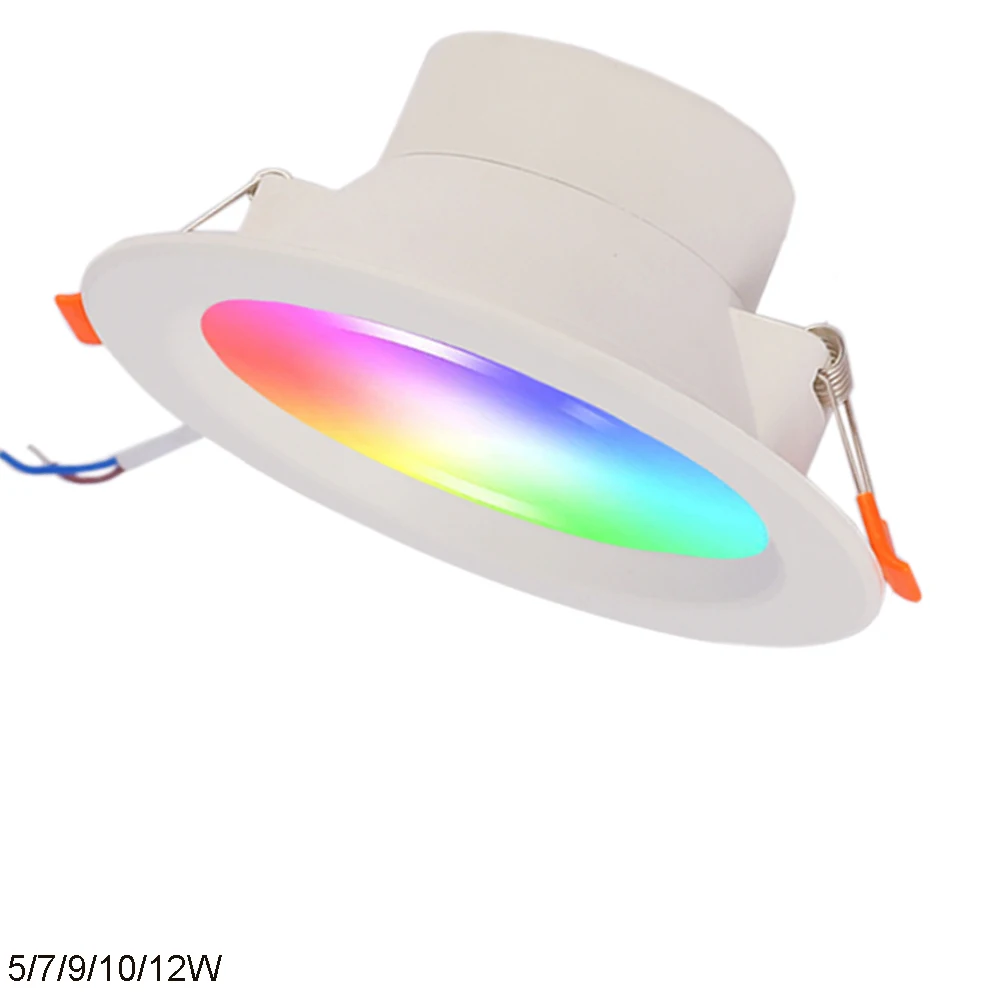

Wifi Downlight Smart Recessed Lighting Commercial Office Indoor Light 5W 7W 9W 10W 12W Ceiling Recessed LED Downlight
- Category: >>>
- Supplier: Zhongshan Sunye Lighting Tech Co. Ltd.
Share on (1600327587461):
Product Overview
Description
Video Description
Products Description
ITEM | POWER | SIZE | Hole size | LUMEN |
SYWFD1C412 | 5W | 97*54mm | 70-80mm | 400 |
7W | 97*54mm | 70-80mm | 650 | |
9W | 114*56mm | 83-93mm | 805 | |
10W | 114*56mm | 83-93mm | 1000 | |
12W | 145(DIA.)*70(H)mm | 115-130mm | 1200 | |
15W | 145(DIA.)*70(H)mm | 115-130mm | 1500 |
Product Details
1、ENVIRONMENTAL REQUIREMET:
1.1 cooling
Cooling shall be with natural convection cooling
1.2 Operating Temperature:
0℃ to 40℃,Full load, Normal operation.
1.3 Storage Temperature:-10℃ to 60℃
With cover
1.4 Relative Humidity:
5%(0℃)~85%(40℃)RH, 5%(0℃)~85%(40℃)RH,non-condensing, Full load Normal operating.
1.5 Vibration:
1. Operating: IEC 721-3-3 3M3
5~9Hz,A=1.5mm
(9~200Hz,Acceleration 5m/S2)
2. Transportation:
IEC 721-3-2 2M2
5-9Hz,A=3.5mm
9~200Hz, Acceleration=5m/S2
200~500Hz, Acceleration=15m/S2
3. Axes,10 cycles per axis.
2、connection method:
2.1
Wireless Type: Wi-Fi2.4GHz Wi-Fi standard: IEEE802.11b/g/n
Operating temperature: 0℃ - 40℃
Support system:Alexa/Home/IFTTT
Support mobile:Android/IOS
2.2 Scan the QR code below or search the Smart Life app on IOS/Android
Please refer to the product instruction for specific instructions.
3、SAFETY AND EMI REQUIREMENT:
3.1 SAFETY STANDARD:
Bulb conform to the EN 62560:2012+A1:2015 standard
EN 62311:2008 standard
ETSI EN 301 489-1 V2.1(2017-02) standard
ETSI EN 301 489-17 V3.1.1(2017-02) standard
ETSI EN 300 328 V2.1.1(2016-11) standard
UL 8750 standard
1.1 cooling
Cooling shall be with natural convection cooling
1.2 Operating Temperature:
0℃ to 40℃,Full load, Normal operation.
1.3 Storage Temperature:-10℃ to 60℃
With cover
1.4 Relative Humidity:
5%(0℃)~85%(40℃)RH, 5%(0℃)~85%(40℃)RH,non-condensing, Full load Normal operating.
1.5 Vibration:
1. Operating: IEC 721-3-3 3M3
5~9Hz,A=1.5mm
(9~200Hz,Acceleration 5m/S2)
2. Transportation:
IEC 721-3-2 2M2
5-9Hz,A=3.5mm
9~200Hz, Acceleration=5m/S2
200~500Hz, Acceleration=15m/S2
3. Axes,10 cycles per axis.
2、connection method:
2.1
Wireless Type: Wi-Fi2.4GHz Wi-Fi standard: IEEE802.11b/g/n
Operating temperature: 0℃ - 40℃
Support system:Alexa/Home/IFTTT
Support mobile:Android/IOS
2.2 Scan the QR code below or search the Smart Life app on IOS/Android
Please refer to the product instruction for specific instructions.
3、SAFETY AND EMI REQUIREMENT:
3.1 SAFETY STANDARD:
Bulb conform to the EN 62560:2012+A1:2015 standard
EN 62311:2008 standard
ETSI EN 301 489-1 V2.1(2017-02) standard
ETSI EN 301 489-17 V3.1.1(2017-02) standard
ETSI EN 300 328 V2.1.1(2016-11) standard
UL 8750 standard
