Manufacturer supply coated FH/Fep /F46 tape polyimide fep film
- Category: >>>
- Supplier: Shanghai Shenglongpan Electric Co. Ltd.
Share on (1600327620928):
Product Overview
Description
Product Description
Specification
item | value |
Brand Name | SLP |
Model Number | Fep |
Type | Insulation Tape |
Material | polyimide |
Application | High Temperature |
Rated Voltage | 33kv |
Tensile Strength | Excellent |
Color | Brown |
Thickness | Customer Demands |
Sample | Sample Avaliable |
Usage | Electrical Insulation Protection |
Certification | ISO9001 |
Working temperature | 45~+220 Degree Celsius |
Density | 1.45-1.5g/cm3 |
MOQ | 50kg |
Width | 8mm-1020mm |
Package | Standard Cardboard Cartons |
Items | Unit | PIFEP 616 | PIFEP 616B | PIFEP 919 | PIFEP 019 | PIFEP 011 | PIFEP 021 | |||||||
Thickness | Um(mil) | 31(1.2) | 33(1.3) | 50(2.0) | 38(1.5) | 50(2) | 75(3.0) | |||||||
Structure | FEP | um | 3.0 | 4.0 | 12.5 | 12.5 | 25.0 | 25 | ||||||
PI | 25.0 | 25.0 | 25.0 | 25.0 | 25.0 | 50 | ||||||||
FEP | 3.0 | 4.0 | 12.5 | 0 | 0 | 0 | ||||||||
Thickness Tolerance | % | +/-10 | ||||||||||||
Tensile Strength≥ | MD | Mpa | 130 | 130 | 100 | 140 | 100 | 110 | ||||||
TD | 110 | 110 | 80 | 110 | 80 | 90 | ||||||||
Elongation at rupture≥ | % | 50 | 50 | 50 | 50 | 60 | 60 | |||||||
Breakdown Strength ≥ | Average | 150 | 150 | 120 | 150 | 120 | 110 | |||||||
Individual | 120 | 120 | 110 | 120 | 100 | 100 | ||||||||
Peel Strength≥ | F-F | N/25mm | 6.0 | 6.0 | 6.5 | N/A | N/A | N/A | ||||||
F-H | N/A | N/A | N/A | 6.0 | 6.0 | 6.0 | ||||||||
*Surface Resistivity 200+/-5c(392F) ≥ | Ω | 1.0×1013 | ||||||||||||
*Volume Resistivity 200+/-5c(392F) ≥ | 1.0×1010 | |||||||||||||
*Dielectric constant (50Hz) | — | 3.5±0.4 | ||||||||||||
* Loss tangent (50Hz) ≤ | — | 4.0×10-3 | ||||||||||||

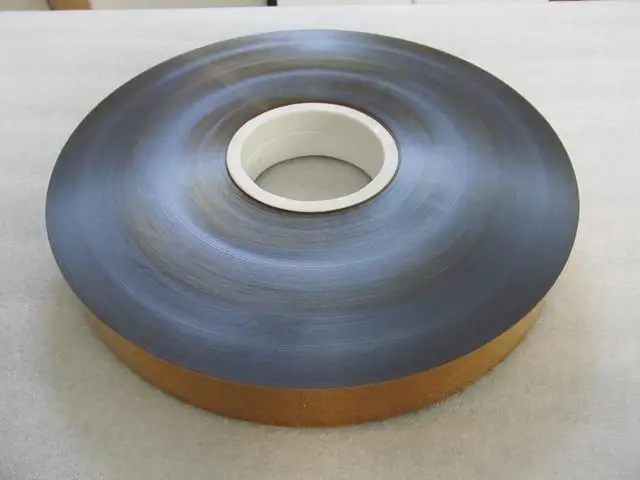

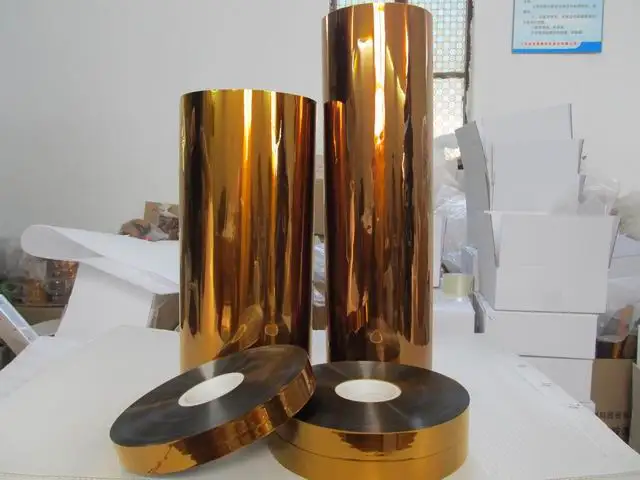

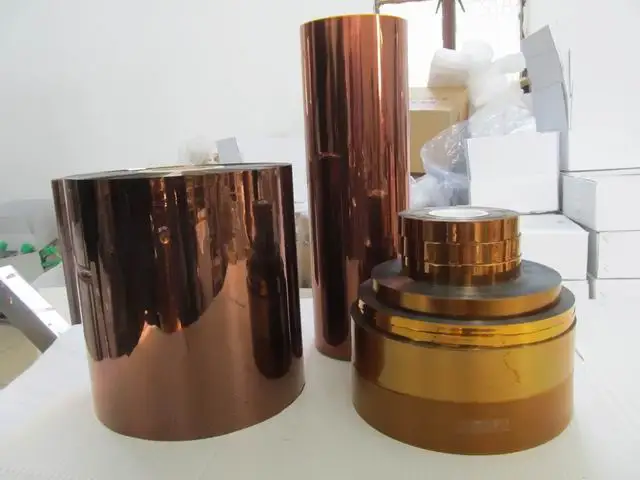

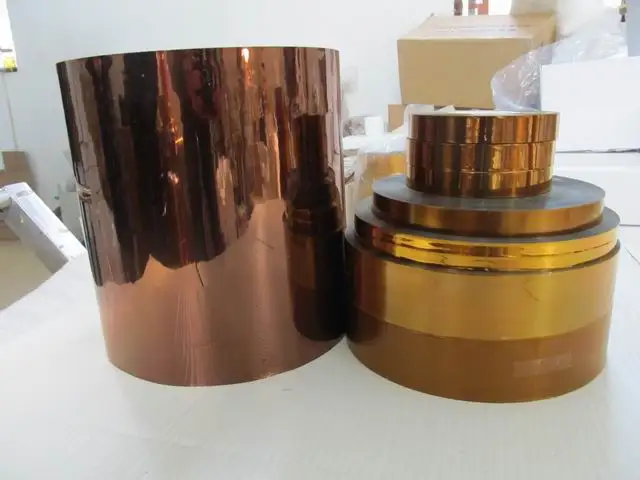

Product Name:(FH/FN Polyimide Fep Film)6051 film Coated with FEP/F46(polyimide FN Film)
Polyimide FEP(F46) film is made of coating Polyimide film with FEP resin(F46) on one side(FH) or
double sides(FHF) and through the sintering process at high temperature, which combines the excellent properties of
Polyimide film and FEP resin of high& low temp resistant, radiation resistant, corrosion resistant, excellent electrical
properties, superior dimensional stability and heat sealable properties. It performs successfully in the wide range of
temperature as low as -112F(-80c) and as high as +500F(+260c). Polyimide FEP(F46) film
widely used for insulation in motor, electrical apparatus and wrapping of cable and magnet wire, heater
Characters:
* Higher mechanical strength, better dielectric strength with thinner insulation ply;
* Excellent heat resistance ,used as class- H insulation and can work for a long term at
180°C but short time at 260°C;
* Good flexibility, better tear resistance and excellent workability, and can be glued on the
different-sized workpieces;
* Self-sticking and good bonding strength , no removal after stripping off;
* Different thickness and width to meet customers’ specific requirements;
Application
Electrical and Electronics, circuit board manufactureH grade electric engine, transformer coil and capacitor insulation
wrapping up in high-temperature, high-voltage conditionSMT thermal resistance, golden finger protection of PCB
boardHigh temperature resistance and waterproof for electronic transformer
