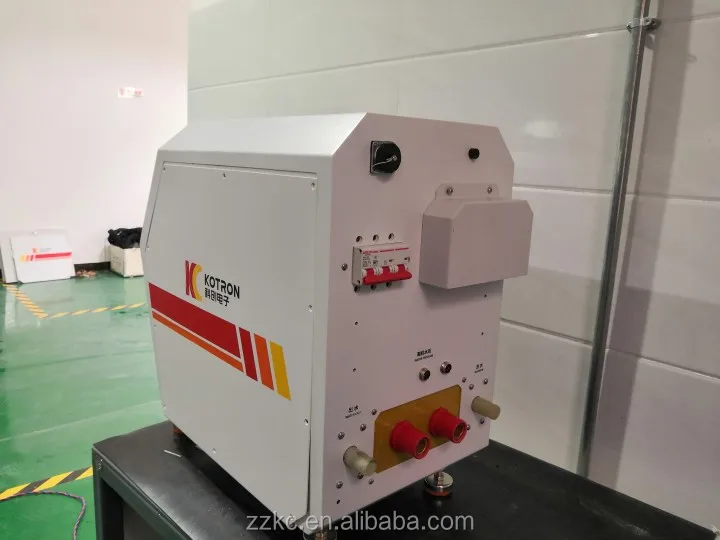

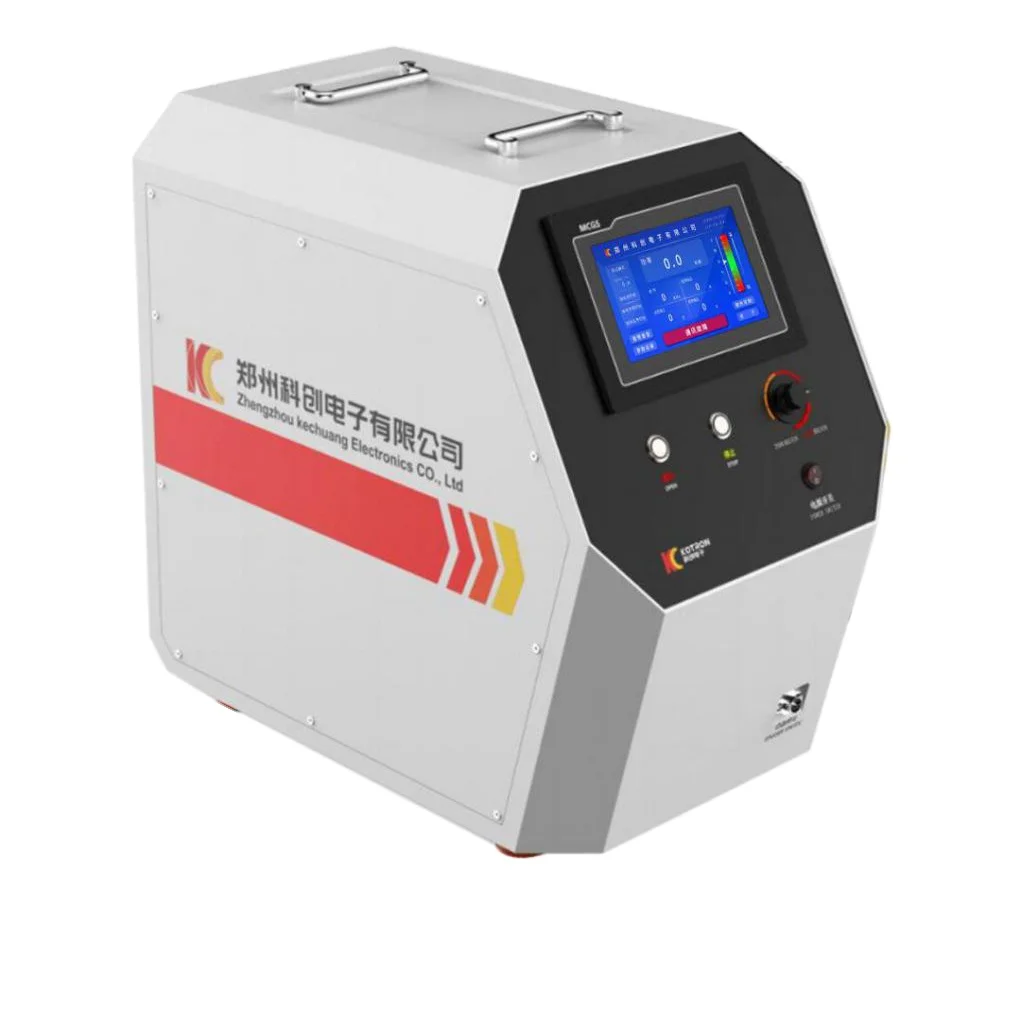

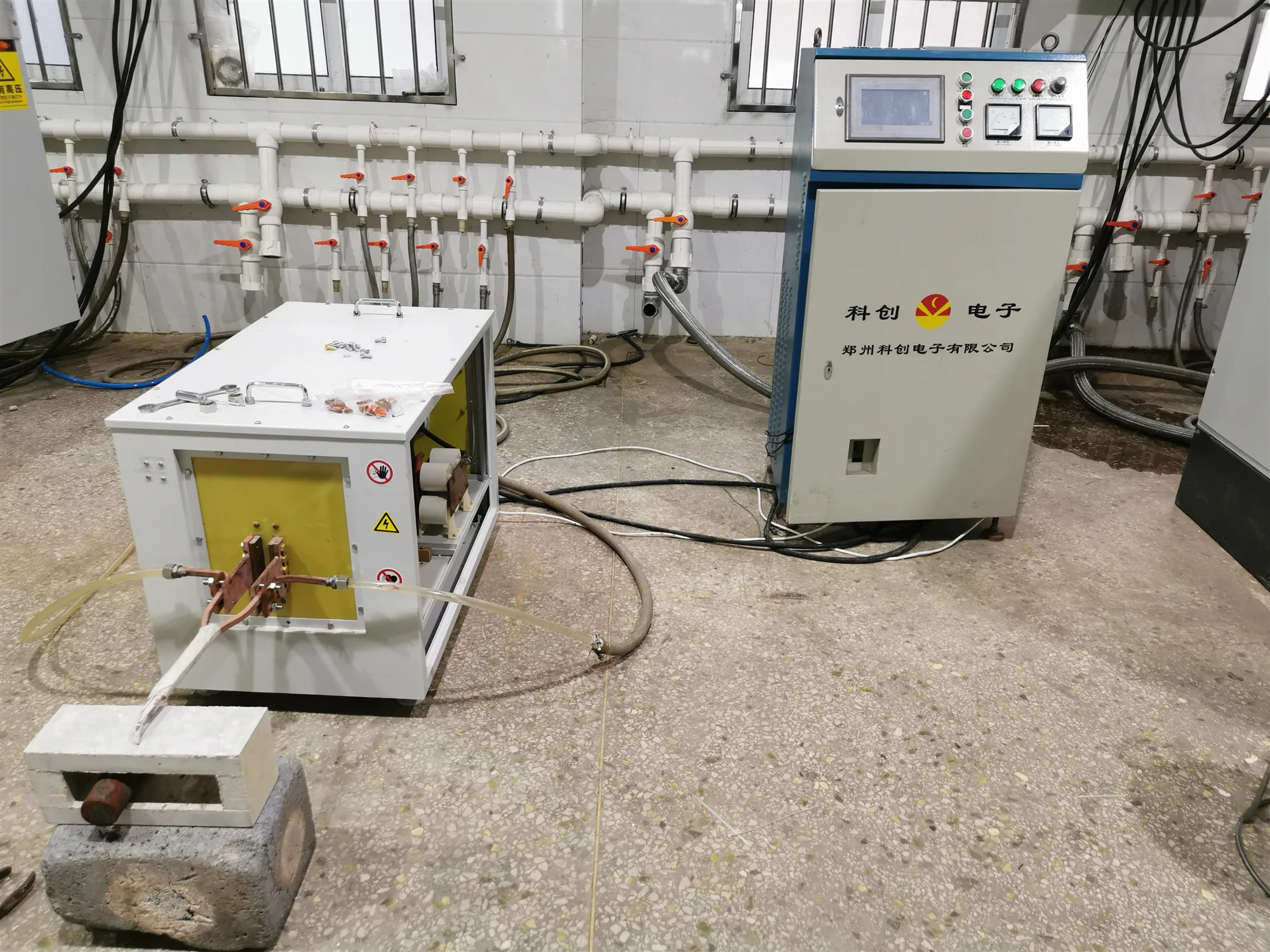

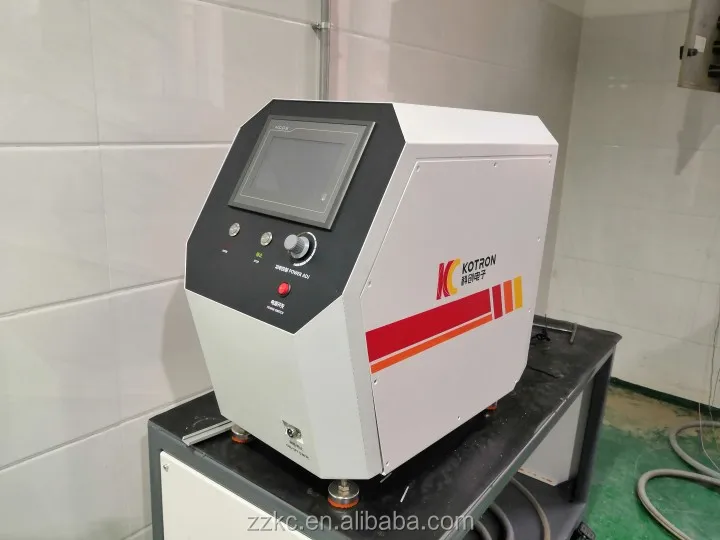

XZG 45/50SCZ portable superaudio/medium frequency induction hardening machine 50kw best induction heater
- Category: >>>
- Supplier: Zhengzhou Kechuang Electronic Co. Ltd.
Share on (1600327633455):
Product Overview
Description
Products Description
Model | XZG-50SCZ |
Input voltage | 380V ±10% |
incoming current | ≤110A |
frequency | 50-60hz |
Inverter frequency | 1-50kHz |
output power | ≤50kw |
control precision | 1‰ |
Power output range | 5%-100% |
Inverter power factor | ≥0.96 |
control mode | Constant current, constant power, constant temperature |
Cooling water pressure | 0.1-0.3MPa |
environment temperature | 5℃-45℃ |
Main characteristic
(1) frequency range:1kHz-50kHz
(2) The load adaptation range is wide : series resonance is not afraid of no load , parallel resonance is not afraid of heavy load
(3) Intelligent protection function: power regulation range 1%-100%, superior to most domestic manufacturers.
(4) Intelligent protection function: with overvoltage, overcurrent, overfrequency, overheating, leakage and other restrictive protection functions, but also with water pressure, lack of phase, short circuit and other conventional hardware protection functions, all faults can be remembered .
(2) The load adaptation range is wide : series resonance is not afraid of no load , parallel resonance is not afraid of heavy load
(3) Intelligent protection function: power regulation range 1%-100%, superior to most domestic manufacturers.
(4) Intelligent protection function: with overvoltage, overcurrent, overfrequency, overheating, leakage and other restrictive protection functions, but also with water pressure, lack of phase, short circuit and other conventional hardware protection functions, all faults can be remembered .
(5)adopt Rital cabinet , equipped with IP54 protection grade and equipped with industrial temperature and humidity adjustment air conditioning, signal transmission by optical fiber to effectively avoid the temperature, humidity, electromagnetic interference caused by power fluctuations and faults.
(6)100% success rate of startup: 100% success rate of starting equipment under any working condition.
(7)High startup speed: equipment startup to maximum power stable output time less than 0.15 seconds, much faster than traditional equipment startup time of 1-2 seconds
(8)Good repetition consistency: all digital power control, Power resolution can be achieved 0.25‰, through the touch screen directly input set power, can avoid the traditional equipment with analog potentiometer to adjust the power caused by power fluctuations
(9)Multifunctional extended interface: easy to connect with machine tool production line and digital communication interface, can realize centralized control of industrial field.
(7)High startup speed: equipment startup to maximum power stable output time less than 0.15 seconds, much faster than traditional equipment startup time of 1-2 seconds
(8)Good repetition consistency: all digital power control, Power resolution can be achieved 0.25‰, through the touch screen directly input set power, can avoid the traditional equipment with analog potentiometer to adjust the power caused by power fluctuations
(9)Multifunctional extended interface: easy to connect with machine tool production line and digital communication interface, can realize centralized control of industrial field.
Product Application
1.Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax,screwing tools.
2.·Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting rod, piston pin, chain wheel, aluminum wheel, valve,rock arm shaft,semi drive shaft, small shaft and fork.
3.Heat treatment for various electric tools, such as gear and axes.
3.Heat treatment for various electric tools, such as gear and axes.
4.Heat treatment for machine tools,such as lathe deck and guide rail. 5. Hardening for various hardware metal parts and machined parts, such as shaft,gear chain wheel, cam,chuck and clamp.
6. Heating for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
7. Annealing of various stainless steel products, such as stainless steel basin,annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
7. Annealing of various stainless steel products, such as stainless steel basin,annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
·8. Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others.
Why choose us
Our company
Company profile
Zhengzhou kechuang Electronics Co.,Ltd was established in 31th,August 2001.Kechuang has been developed hundreds of products which has been widely spread and enjoyed by both national and international market since 2001. In 2016,in order to meet the high-end users' demand both in domestic and overseas.We produced much higher performance,higher percision and higher cost-effective intelligent IGBT power supply. Kechuang always has always regard "more energy-saving","more reliable" as the product development direction.Completing the products automatic,intelligent and robotic functions , which leads in the first of national induction heating technology.All of our products and technologies can provide.
Exhibition
Certifications
Packing & Delivery

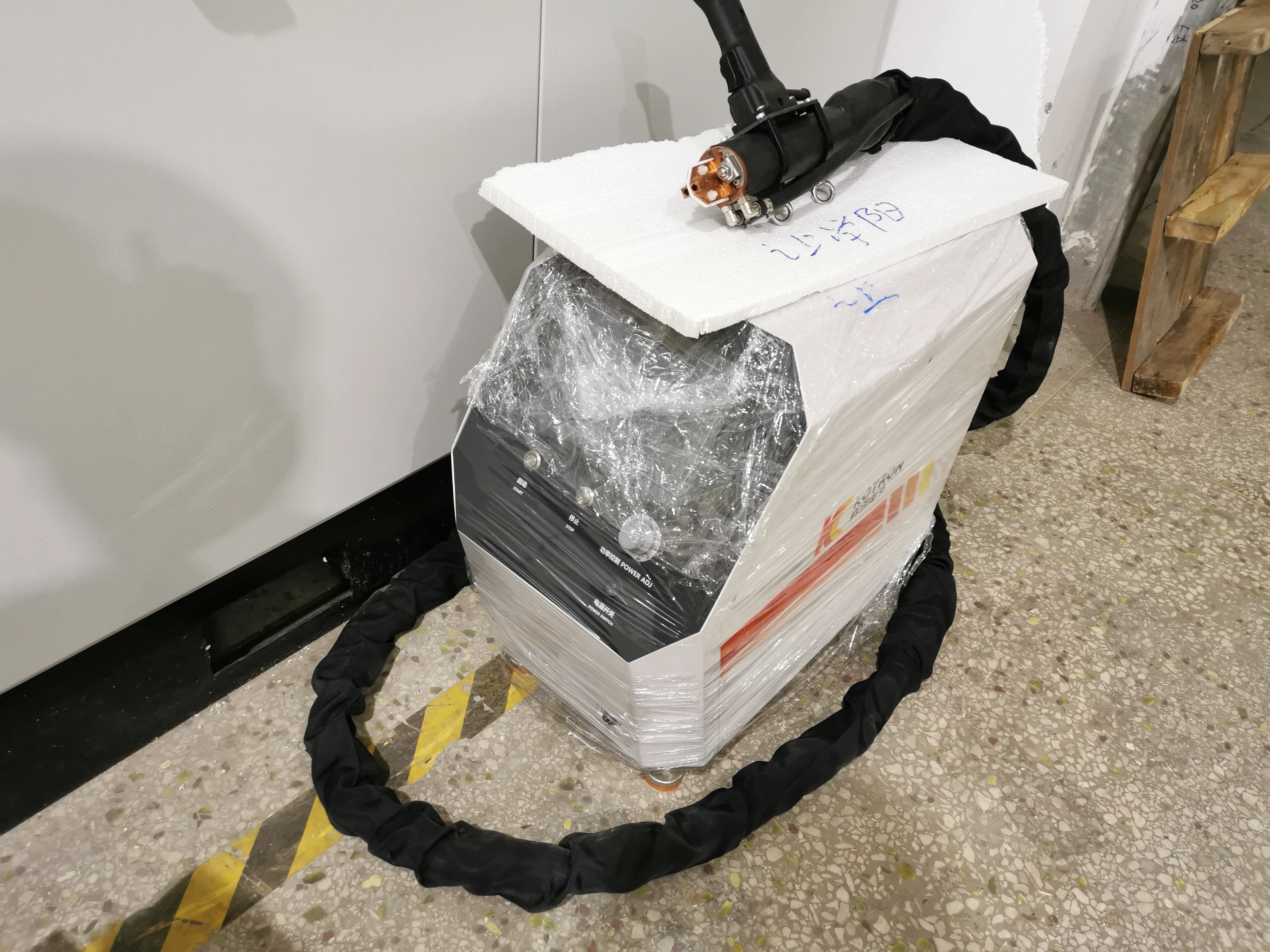

delicately packed
