Flat and Cylinder Heat Transfer Machine heat transfer machine plastic product thermal transfer machine with plc control system
- Category: >>>
- Supplier: Luen Cheong Printing Equipment Ltd.
Share on (1600327976752):
Product Overview
Description
Product Description

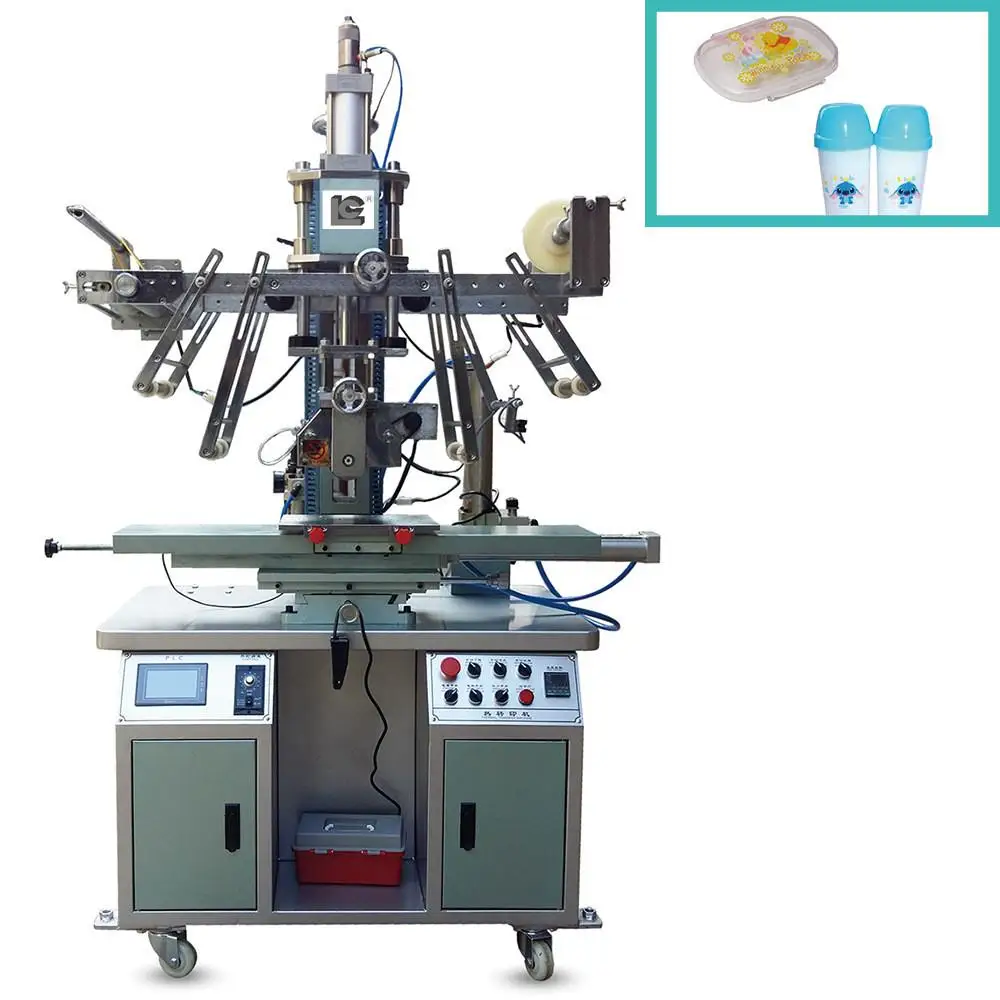

PLC Plane and Round Surface Heat transfer printing machine
Heat transfer shape: flat, round, oval, conical.
Applications:
Scope of application: such as daily chemical bottles, glass bottles, plastic cups, lunch boxes, comb, helmet, kettle, high-end toys, stationery, high-end cosmetics bottles, fishing rods, bait, etc.
Scope of application: such as daily chemical bottles, glass bottles, plastic cups, lunch boxes, comb, helmet, kettle, high-end toys, stationery, high-end cosmetics bottles, fishing rods, bait, etc.
1.An electronic controller IC integrated multifunction procedures to ensure that the machine to flat stamping, roll stamping, flat stamping, and round surface, such as a multi-purpose pressure round running. |
2. Gilding press elbow mechanism design, less compressed air consumption, strong steady pressure. |
3. Stamping pressure, temperature, hot pressing time is adjustable. |
4. Worktable can be customized to move back and forth automatically, it is easy to facilitate safe and fast operation. |
5. Worktable can swing around the center of rotation of the workpiece for rolling without slipping. |
6. automatic document feeder, collection, and adjustable. Taiwan OUTAI motor and it can be customized for Two-speed motor and high precision positioning |
7. Equipped with photocell (Taiwan FOTEK electric eye, 250 times per second high-precision motion), which tries to locate the point of thermal transfer paper with precise tracking control. |
8. The height of the lettering head is adjustable, stamping 300MM larger workpieces. Germany BOSCH can be a customized cylinder (super seal wear). Using Taiwan Mindman precise control solenoid valve, German NASS coil stable and durable. |
9. The work table level shuttle is using the wind to push the oil conversion device, the working mechanism drives the workpiece to rotate smoothly stamping, stamping stable quality. |
10. The machine can be customized according to customer requirements horizontal, hydraulic, grinding cross table, two-speed winders, table plus rodless cylinder automatic access, roll-to-roll hot stamping, stamping irregular shaped product development, and so on. |
11. Equipped with emergency stop safety devices to protect the safety of the operator. |
Specifications
Heating plate size | 400* 300mm | Work Table size | 300* 400mm |
Heating power | 3000W | Stamping head adjustable stroke | ≤70mm hot head outer diameter 100mm inner diameter of 80mm |
Max stamping diameter | φ300mm | Stamping temperature range of options | from room temperature to 280 degrees Celsius |
Workpiece taper Range | 5-20 degrees | Stamping pressure range of options | ≤2500kgf (7bar) |
Max.printing speed | 500pcs / hr | Swing cylinder stroke adjustment range | ≤125mm |
Air consumption | 165L / min | Power | 220 / 380V 60 / 50Hz |
Net weight | 295KG | Dimensions | 1250* 780* 1970mm |

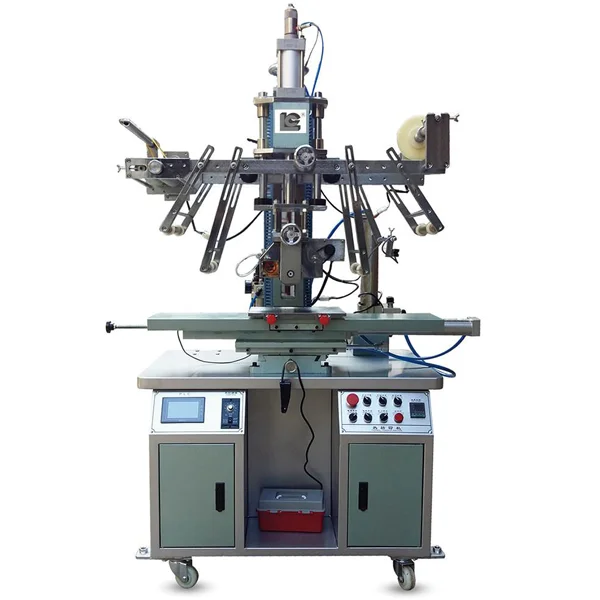

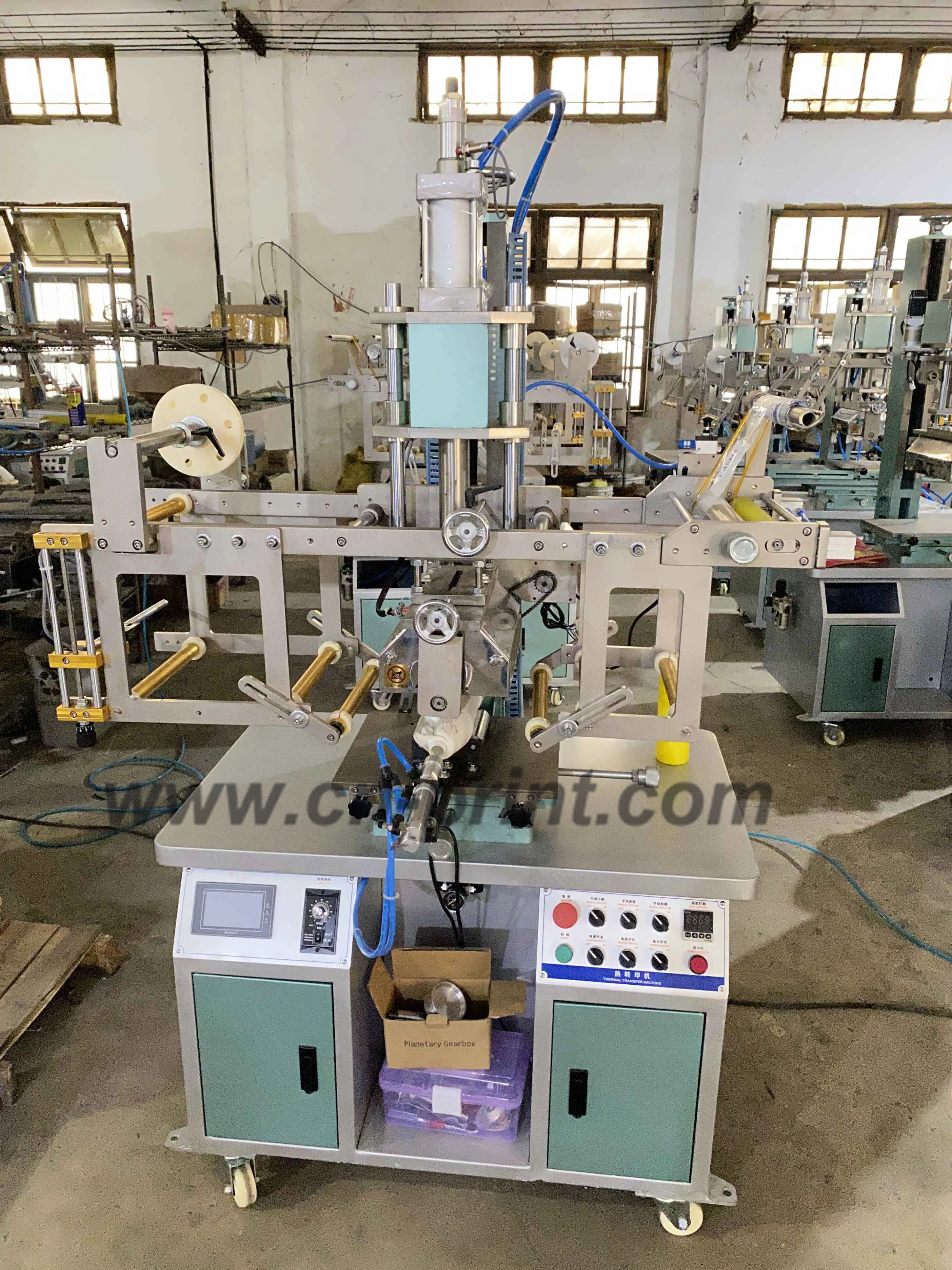

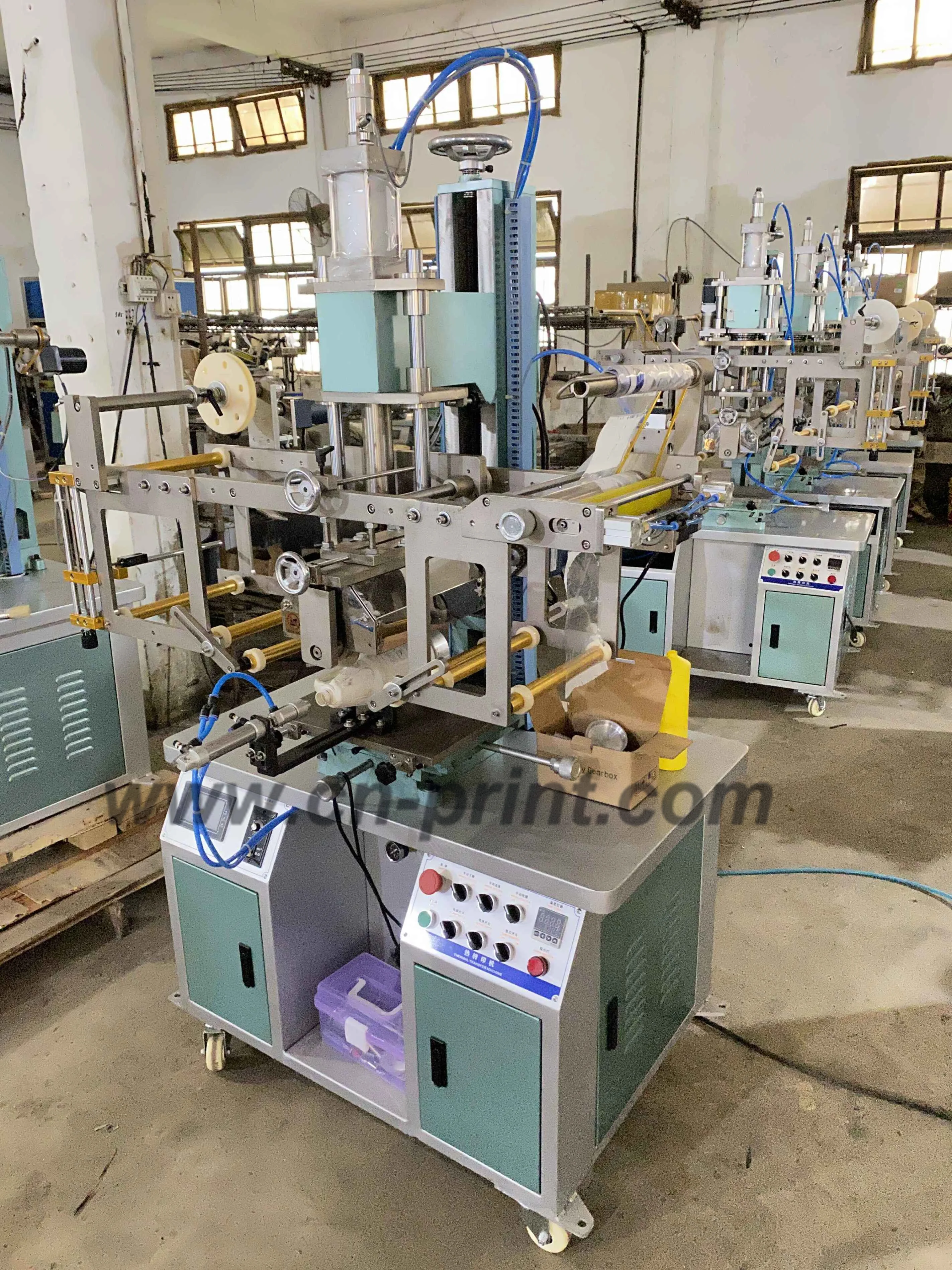

Machine Photos

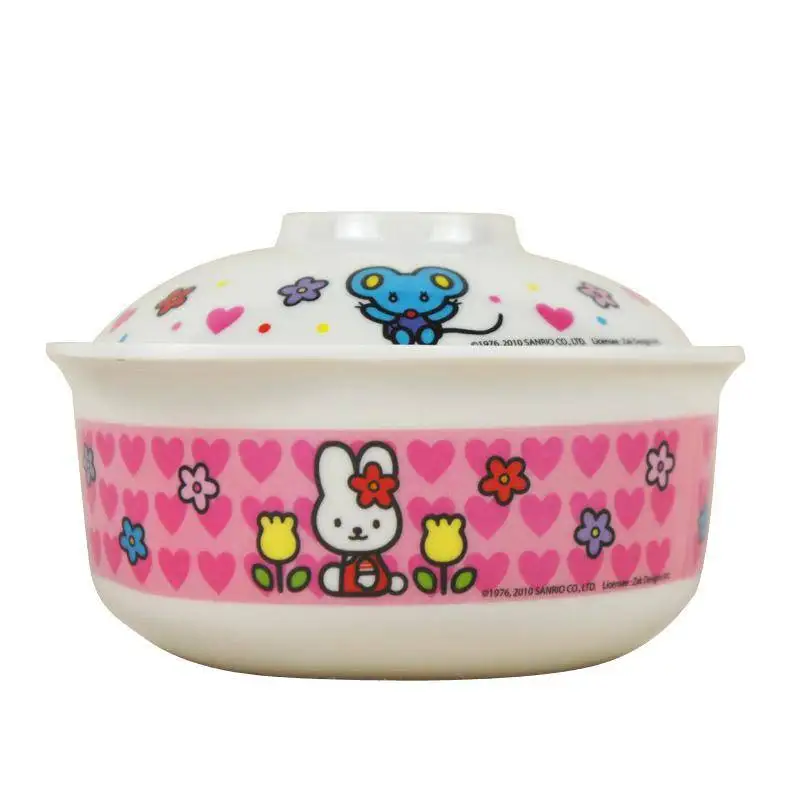

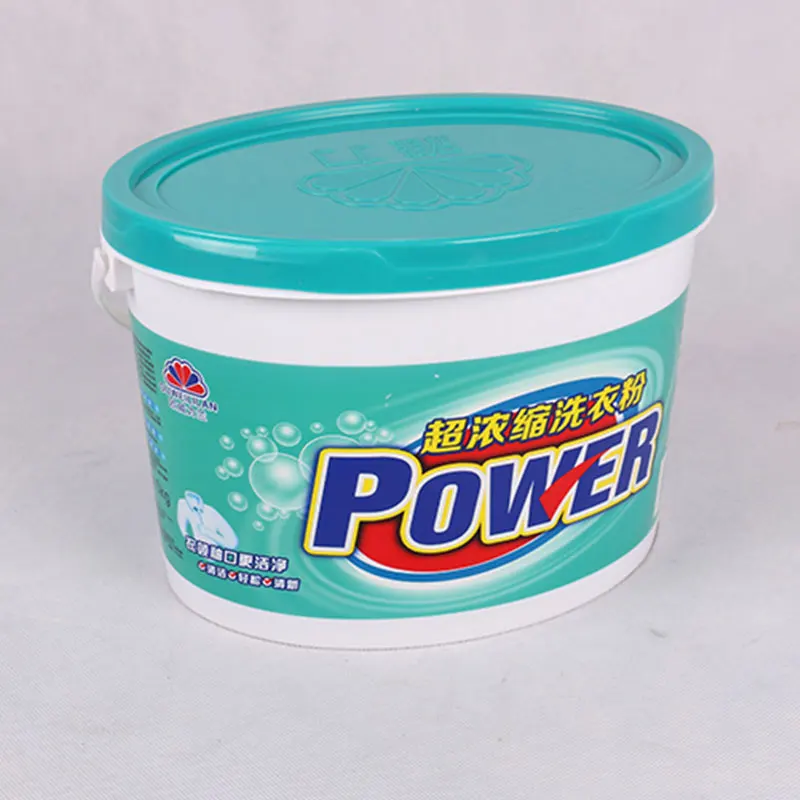

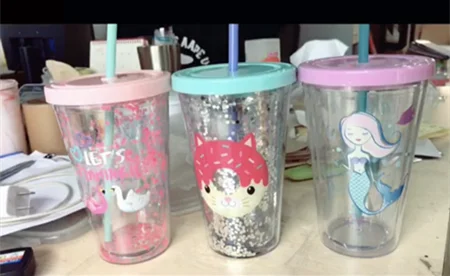

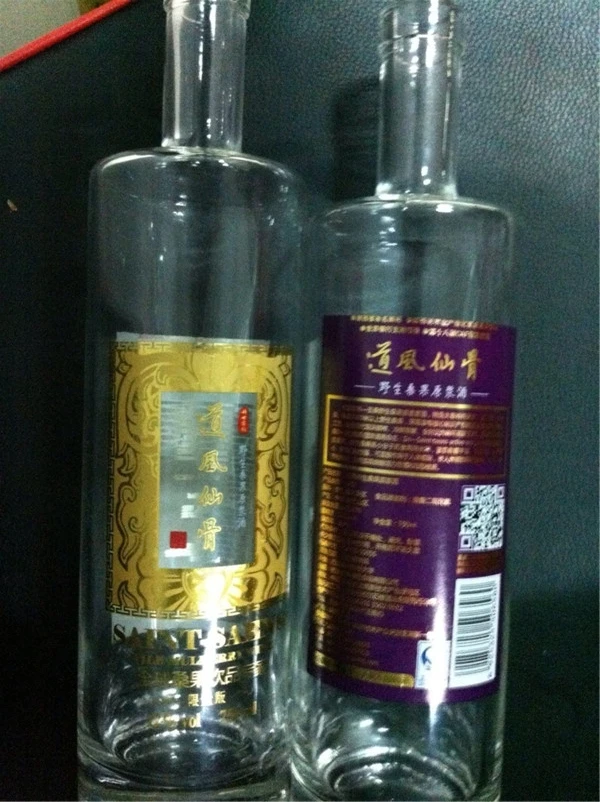

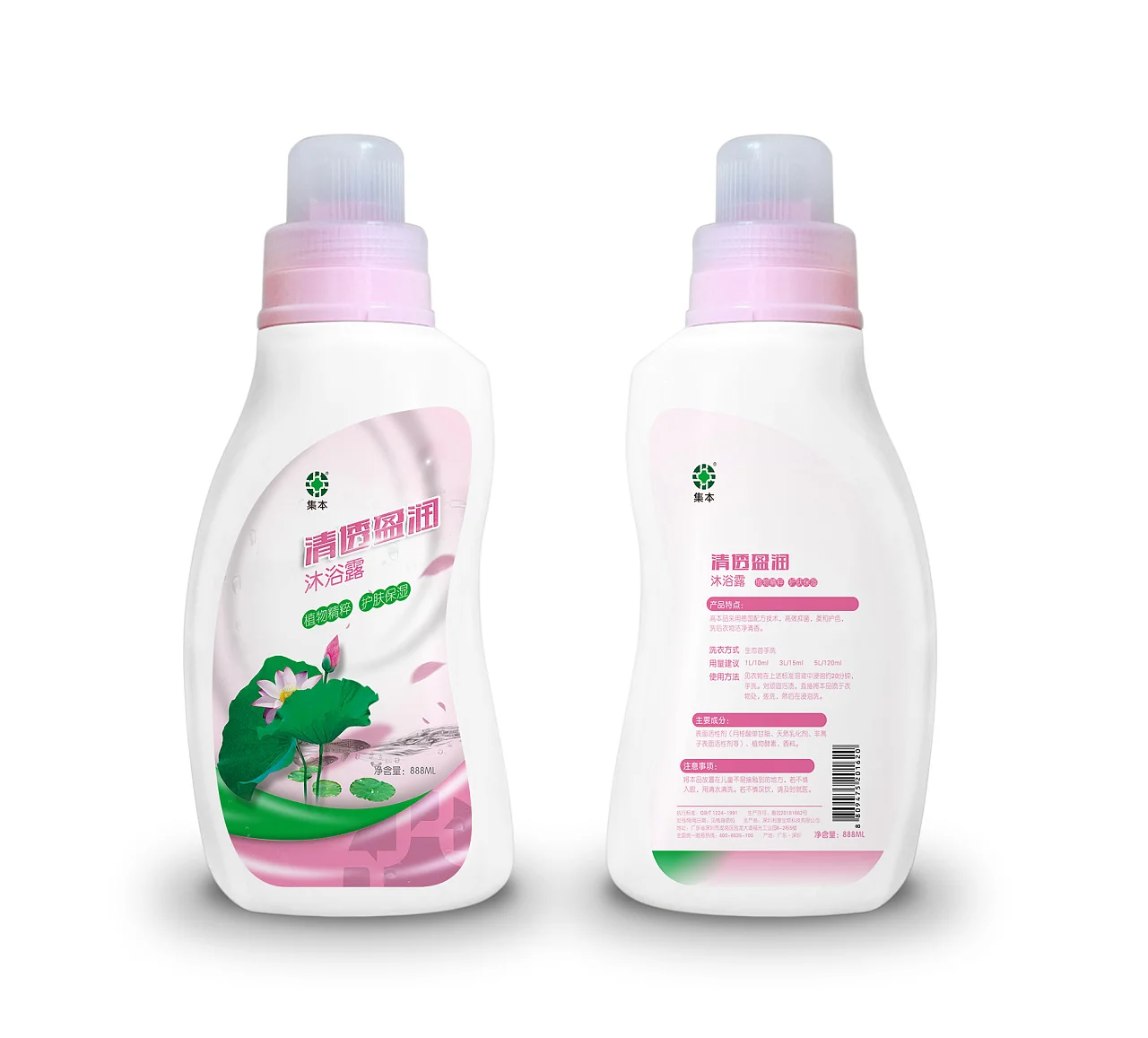

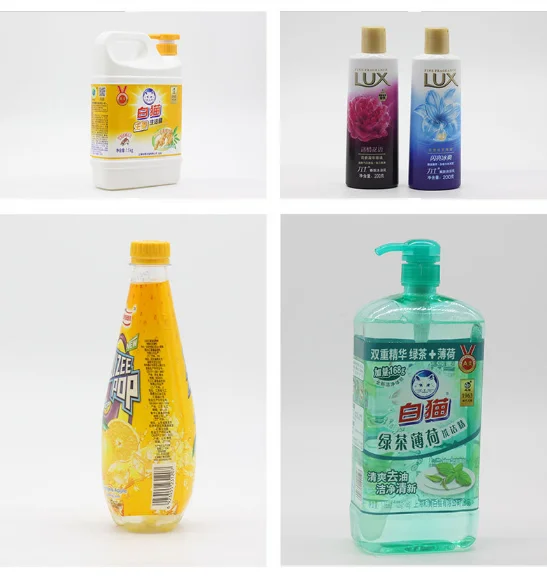

Samples
For more product information, sample pictures and videos, please contact us.
Related products

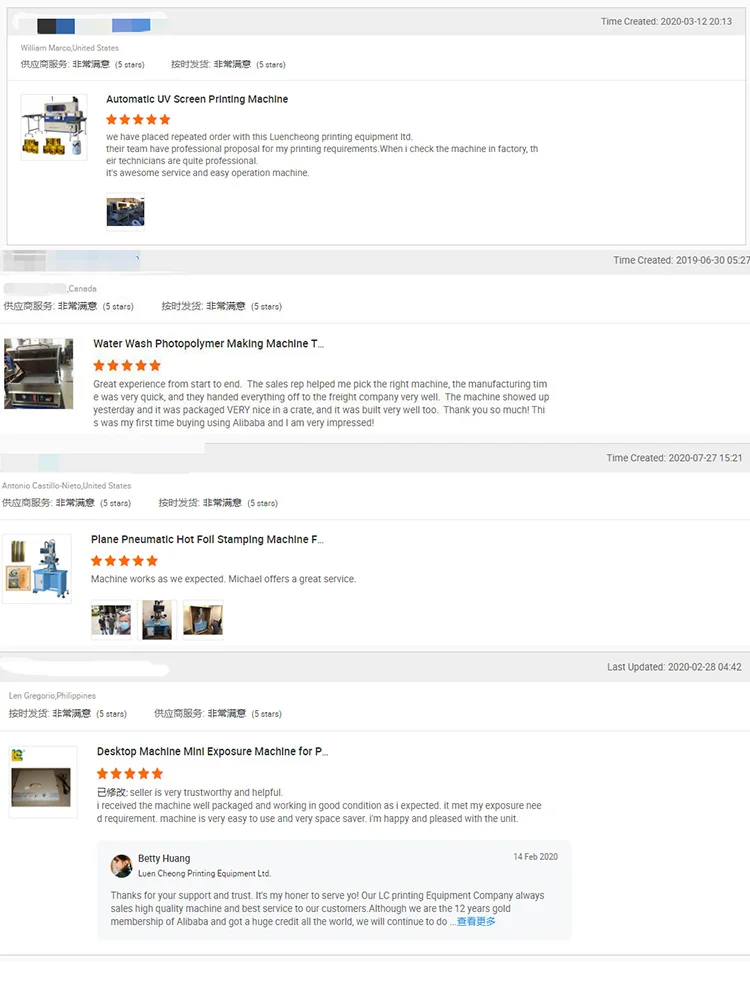

Comment

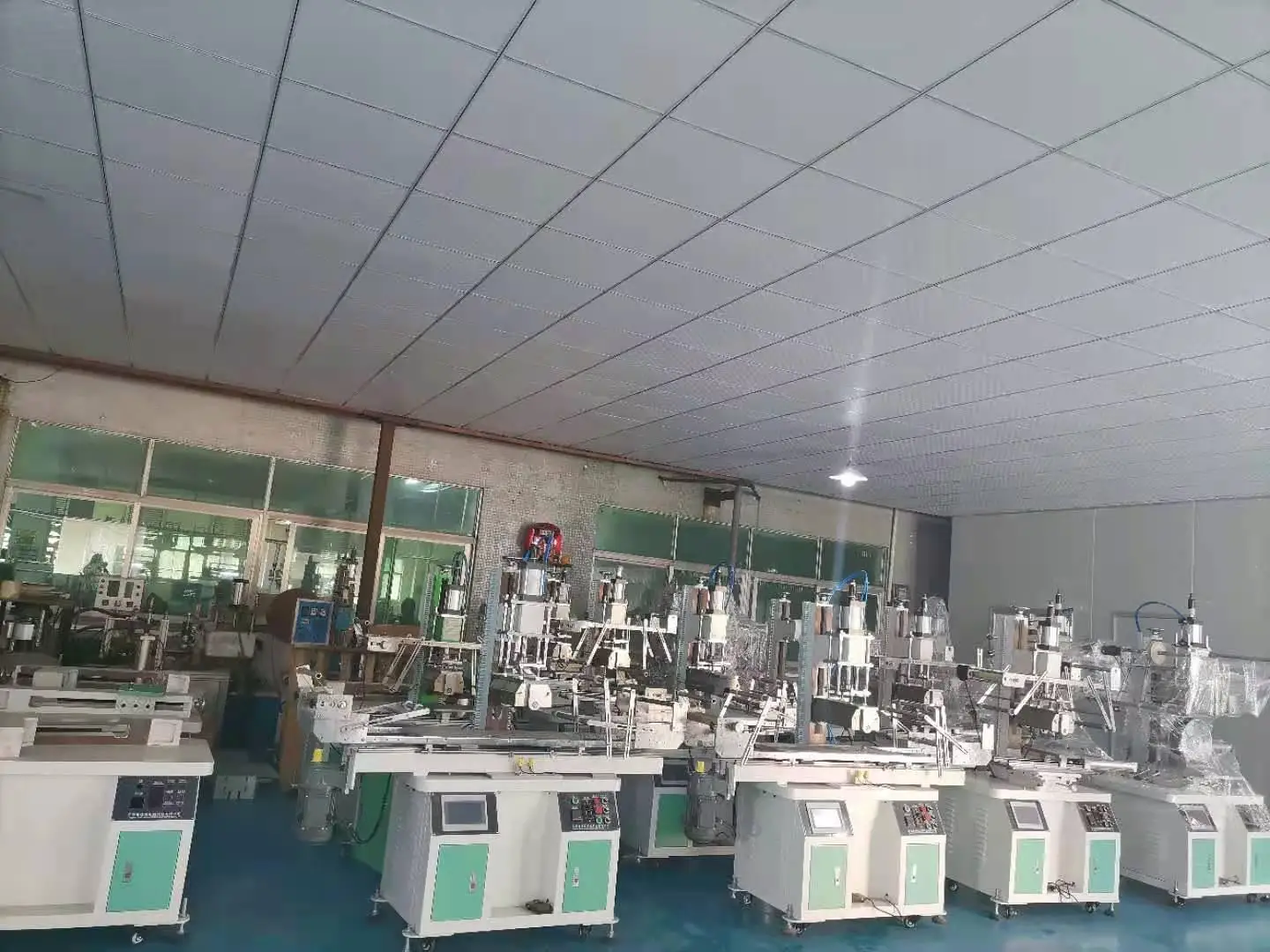

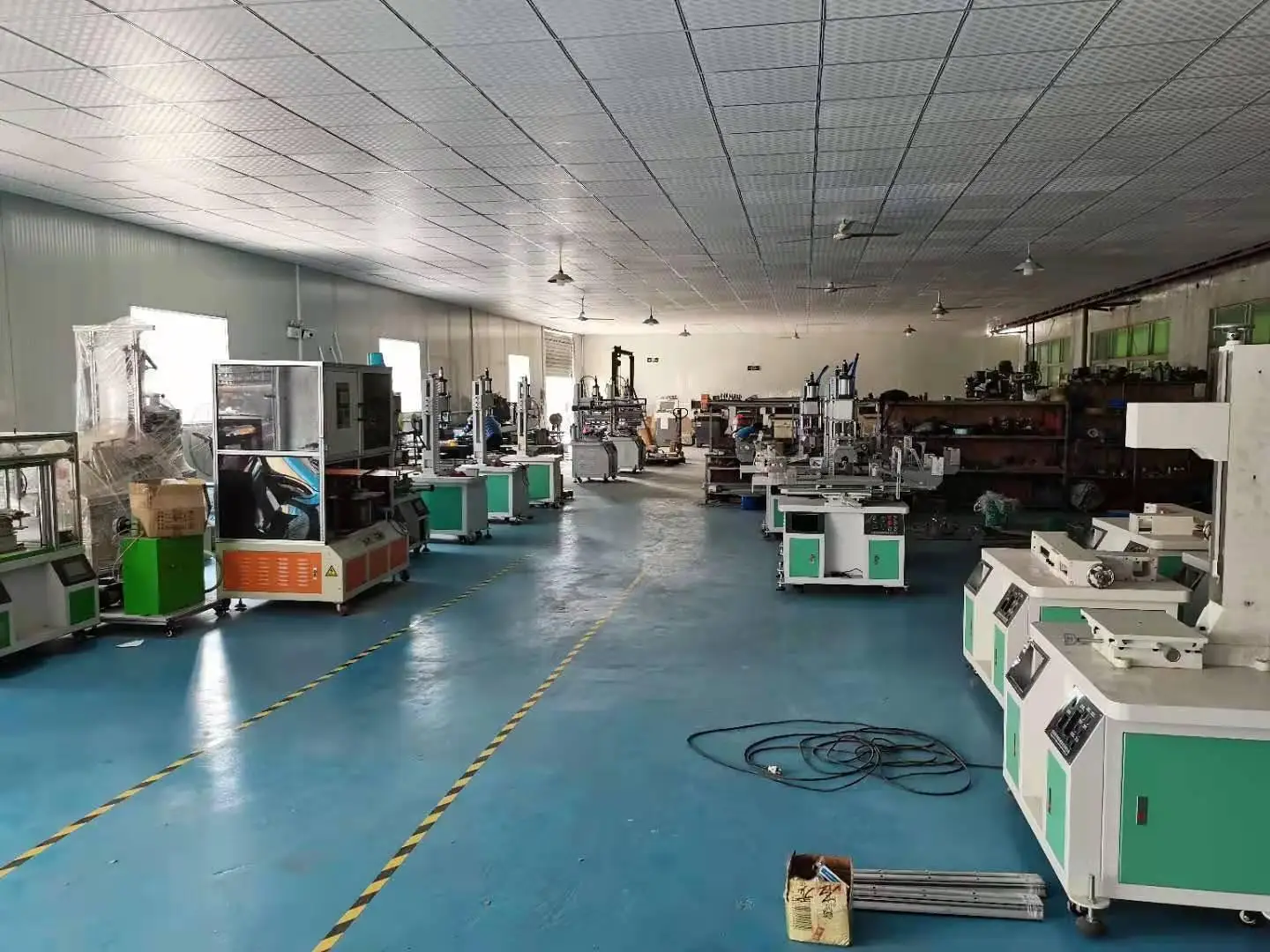

Company Information

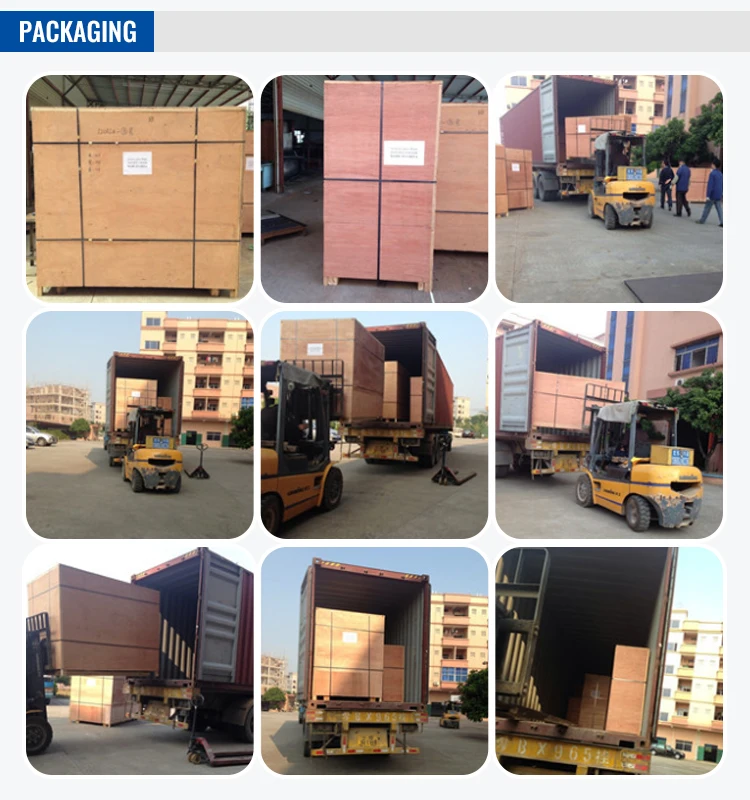

Packaging and Shiping
