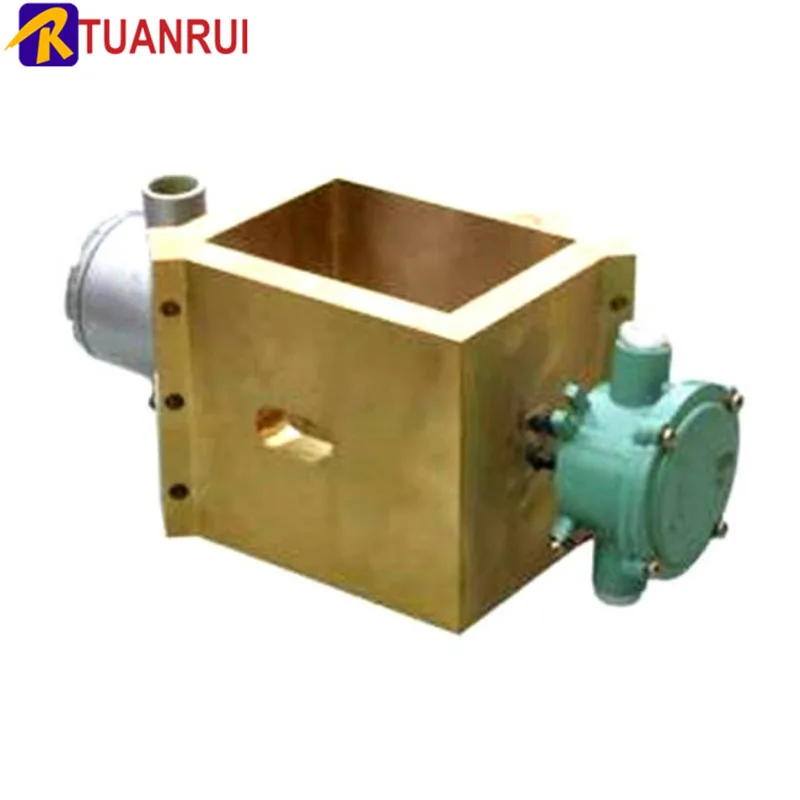

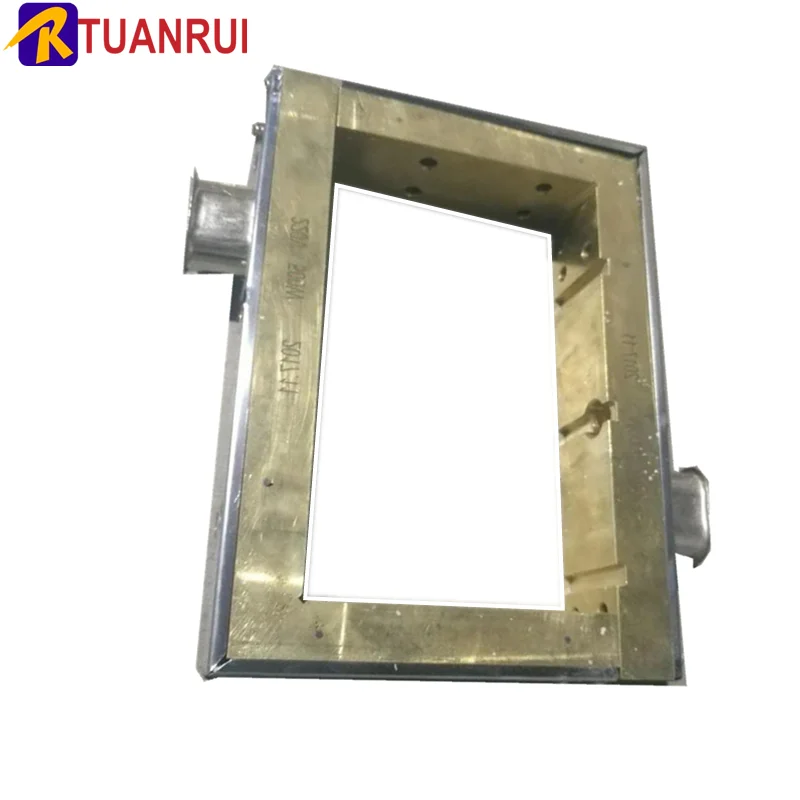

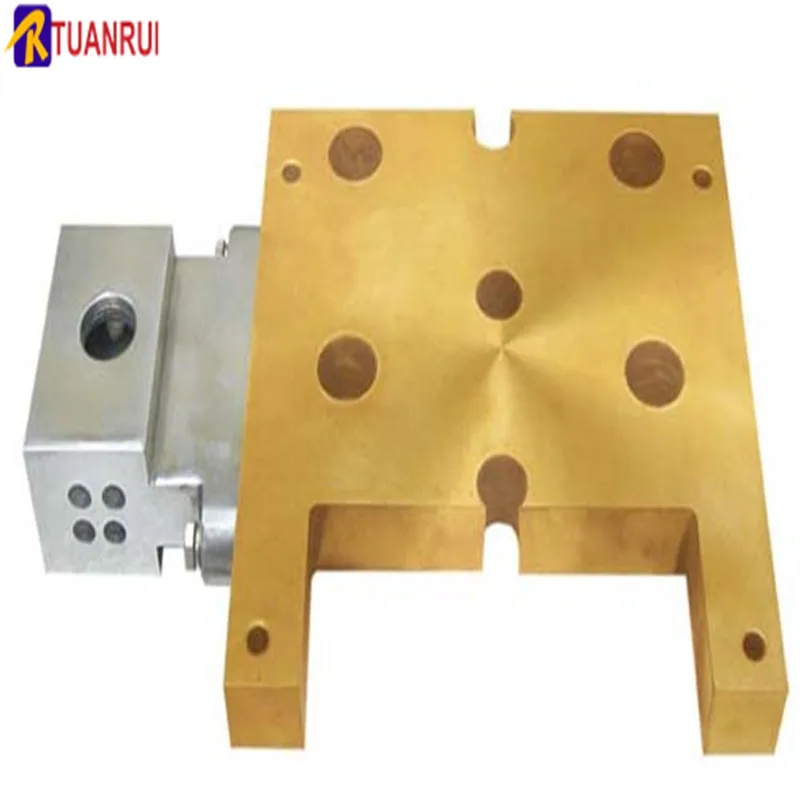

Custom cast copper heating plate for air trough
- Category: >>>
- Supplier: Yangzhou Tuanrui Electric Co. Ltd.
Share on (1600327991972):
Product Overview
Description
Detailed Images
Packaging machine heater
Rubber mechanical cast copper heater
Extruder cast copper heater
Die cast copper heating plate
Cast copper heater
Twin screw extruder heater
Extruder die cast copper heating plate
Packaging machine heater
Plastic mechanical heating plate
Extruder cast copper heating plate
Cast copper heating coil
Cast copper heating plate
Product Description

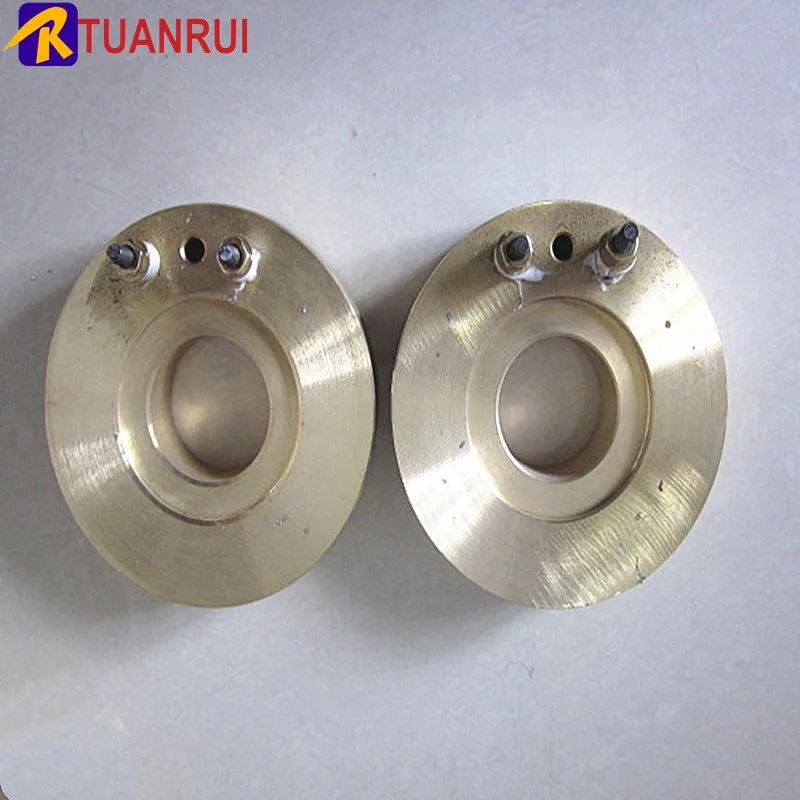

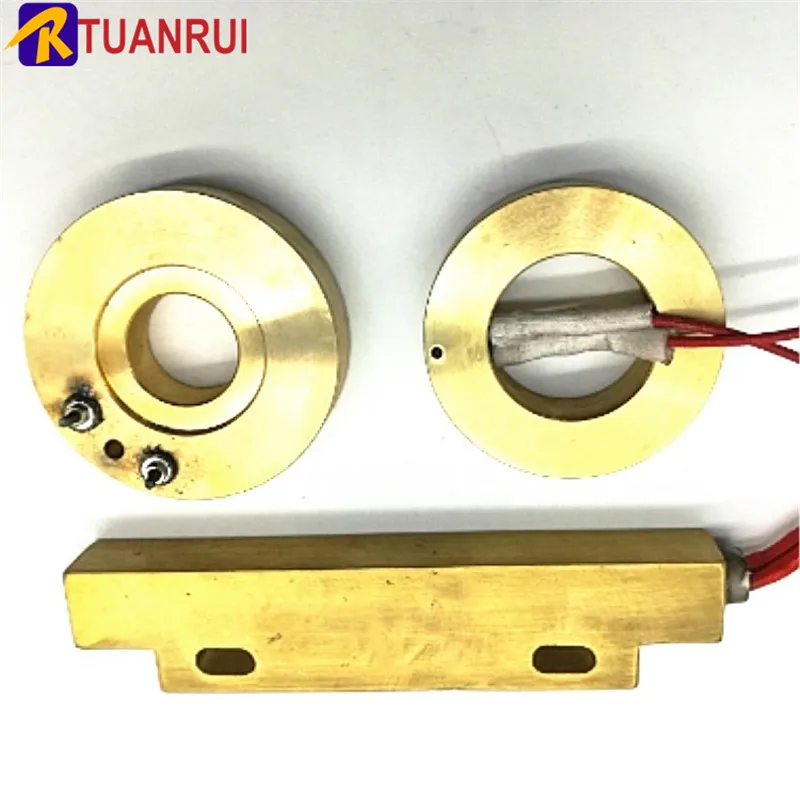

cast copper electric heater
cast copper electric heater to an electric heater which is formed by a tubular electric heating element as a heating element and is die-casted by a high-quality copper casting material. The use temperature is generally between 150 and 600 degrees Celsius, and can be widely applied to plastic machinery, die, cable machinery, Chemical, rubber, petroleum and other equipment. The cast copper electric heater features long life, good thermal insulation performance, strong mechanical properties, corrosion resistance and magnetic field resistance. Widely used in plastic machinery, molds, cable machinery, alloy die-casting machines, pipelines, chemicals, rubber, petroleum and other equipment.
Order Guide
Please specify the following when ordering.
1. The inner diameter (mm) and length (mm) of heaters
2. Thickness of heaters
3. Terminal length (max & min) and the distance of terminal length
4. The diameter, length of cooling tubes and the distance between them.
5. Voltage and power density
6. Gap of two pieces if applicable
7. Wiring type and position
8. Whether need air blowers
9. Content of the stamping if needed
10. Order quantity
Please specify the following when ordering.
1. The inner diameter (mm) and length (mm) of heaters
2. Thickness of heaters
3. Terminal length (max & min) and the distance of terminal length
4. The diameter, length of cooling tubes and the distance between them.
5. Voltage and power density
6. Gap of two pieces if applicable
7. Wiring type and position
8. Whether need air blowers
9. Content of the stamping if needed
10. Order quantity
model | dimension(mm) | Voltage(V) | power(W) | Main Specifications | ||||
TR-ZT-φ182*146*37 | φ182*146*37 | 230/380 | 1200 | 1 Conditions of use: Ambient temperature -20 ~ +60 ° C relative temperature <80% 2. Leakage current: <0.5MA 3. Insulation resistance: ≥5MΩ 4. Grounding resistance: <0.1Ω 5. Withstand voltage: 1500V, no breakdown in 1 minute 6. Temperature resistance: 500 ° C 7. Power deviation value: +5%-10% | ||||
TR-ZT-φ244+204*56 | φ244+204*56 | 230/380 | 2600 | |||||
TR-ZT-φ280+240*80 | φ280+240*80 | 380/380 | 3500 | |||||
TR-ZT-φ220+150*34 | φ220+150*34 | 230/380 | 3500 | |||||
TR-ZT-φ360+310*87 | φ360+310*87 | 230/380 | 1000 | |||||
TR-ZT-L190*145 | 190*145 | 230/380 | 1500 | |||||
TR-ZT-L310*276 | 310*276 | 230/380 | 4200 | |||||
TR-ZT-L400*270 | 400*270 | 250/380 | 6000 | |||||
TR-ZT-L100+70*102 | 100+70*102 | 230/380 | 2000 | |||||
TR-ZT-L140+100*140 | 140+100*140 | 230/380 | 3800 | |||||
TR-ZT-L150+110+176 | 150+110+176 | 230/380 | 5000 | |||||
TR-ZT-L200+140*210 | 200+140*210 | 230/380 | 8000 | |||||
TR-ZT-L258+185*272 | 258+185*272 | 230/380 | 14000 | |||||
TR-ZT-L114+113*60 | 114+113*60 | 230/380 | 1200 | |||||
TR-ZT-L190+145*80 | 190+145*80 | 230/380 | 2200 | |||||
TR-ZT-L210+145*82 | 210+145*82 | 230/380 | 2500 | |||||
TR-ZT-L260+170*95 | 260+170*95 | 230/380 | 3500 | |||||
Can be customized according to customer requirements, please refer to the ordering guide | ||||||||
Packing & Delivery
Packaging and delivery
•Packaging Details Carton box or wooden box for Electric Heating Heater
• Delivery Time 10 days for Electric Heater
• Delivery Time 10 days for Electric Heater
Our Company
Yangzhou Tuanrui Electric Co., Ltd. Located in the beautiful historical and cultural city of Yangzhou. The company is a factory that integrates R&D, design, production, and sales services. Our factory specializes in PTC heaters,MCH Ceramic Heater, mica heaters, ceramic heaters, cast aluminum heaters, cast copper heaters, cast iron heaters, electric heaters, Quartz Heater, Explosion-Proof Heater, Foil Heater, Teflon Heater, Track Heater, Hot Runner Heater, Armored Heater, Ceramic Fiber Heater, Far Infrared Ceramic Heater, Hot Melt Machine heater, electric heating film, silicon carbide heater, silicon molybdenum heater, metal heating tube, heating coil, heating plate, heating rod, silicone rubber heater, radiant heater, heating cable, temperature sensor, thermal resistance , thermocouples, high temperature wire and cable, instrumentation, slip line bridge, bus switchgear, insulation materials, test instruments, ceramic ignition pin and other electrical complete sets of equipment. Products are mainly used in military, chemical, power, electronics, steel, metallurgy, medicine, machinery, automobiles, air conditioning, industrial furnaces, home appliances and other heating industry equipment. All products can be customized according to the requirements of customers, many products have now filled the domestic blank, instead of imports. At present, our heaters, temperature sensors, etc. have been sold to countries in the world and are well received by customers. Welcome new and old customers at home and abroad to visit us.

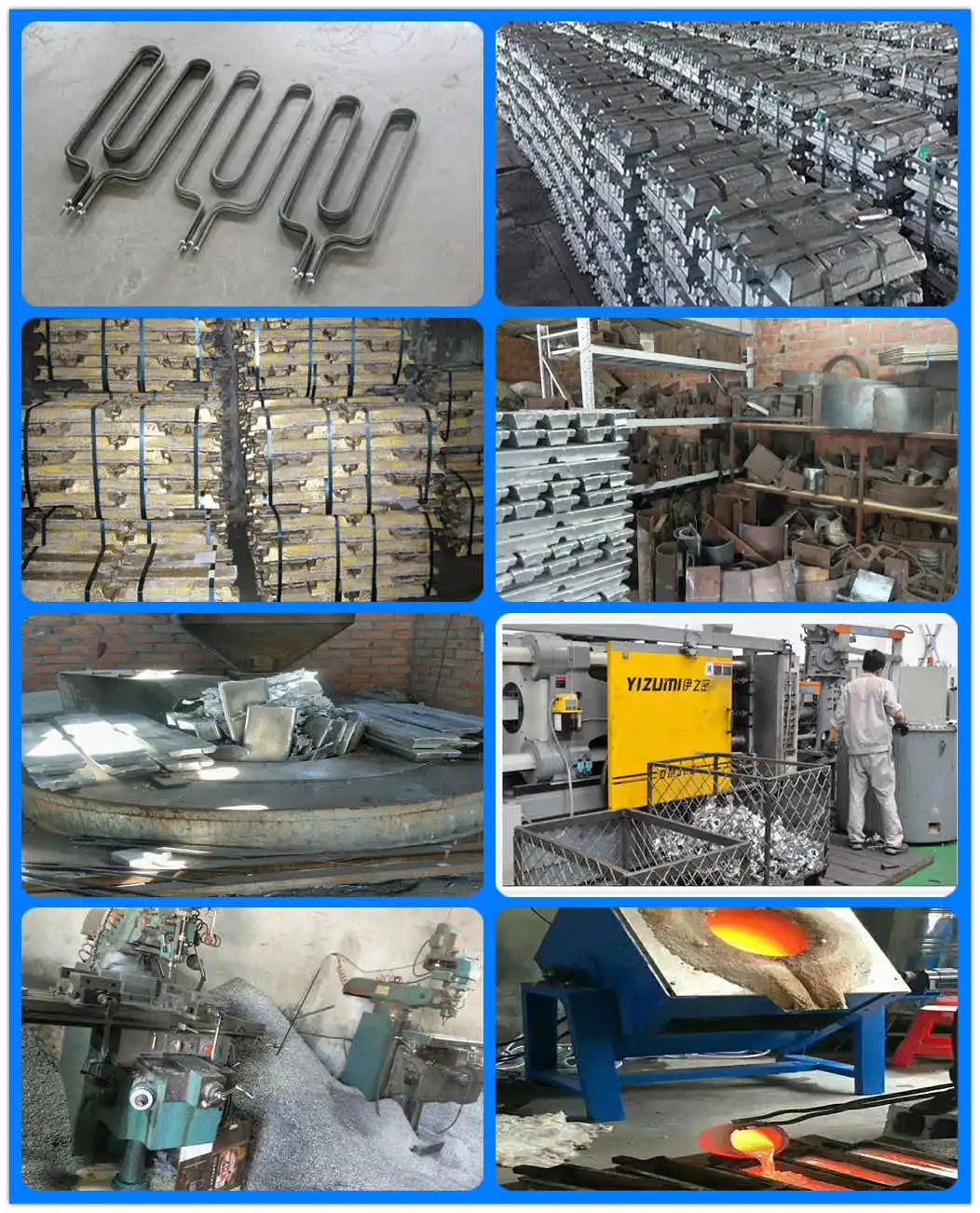

production process
Certifications
Our Service
FAQ
Q1. Can I have a sample order forCeramic Heater?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks
Q3. Do you have any MOQ limit for Ceramic Heater?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly provide the heater size , voltage, wattage, quantity
Secondly We quote according to your size
Thirdly customer confirms the order
Fourthly We arrange the production.
Q6. Is it OK to print my logo?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee?
A: Yes, we offer 8000 hours warranty to our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new heater with new order for small quantity.
