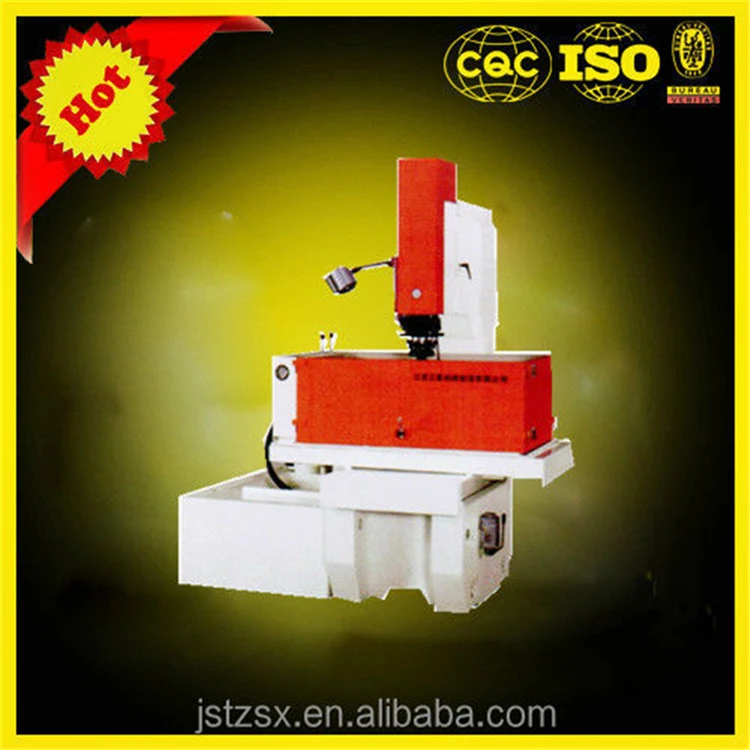

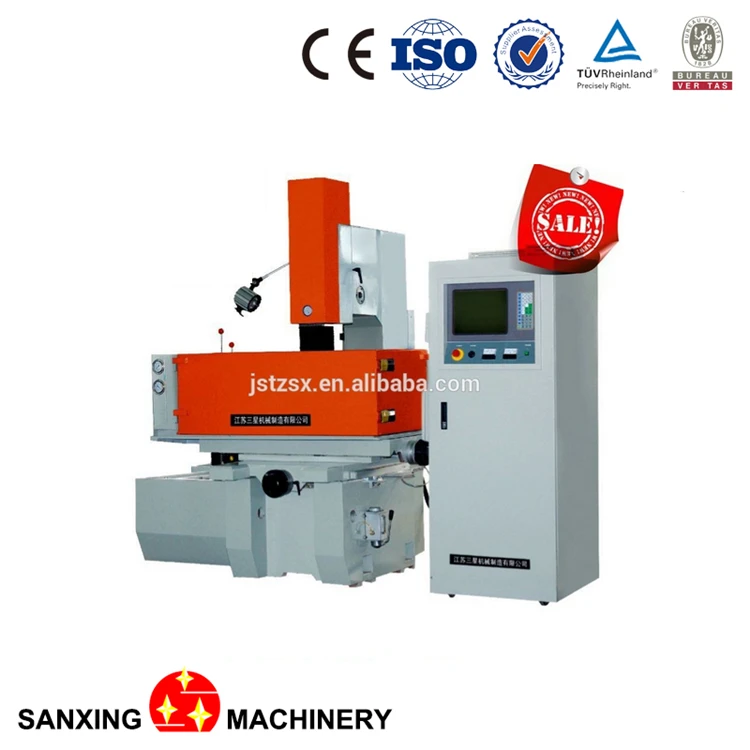

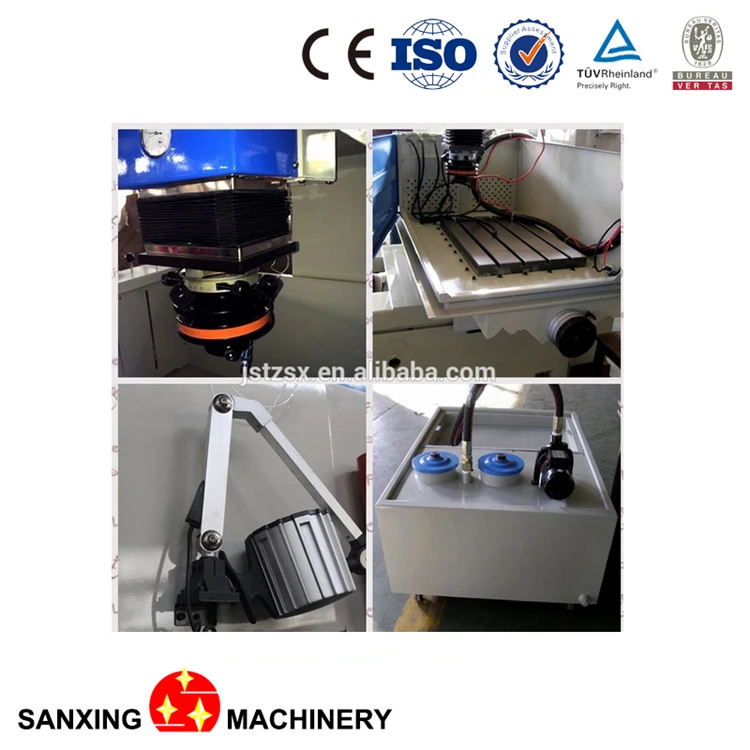

Factory Direct Sales High Precision Cnc Edm Die Sinking Machine
- Category: >>>
- Supplier: Jiangsu Sanxing Machinery Manufacture Co. Ltd.
Share on (1600328005192):
Product Overview
Description

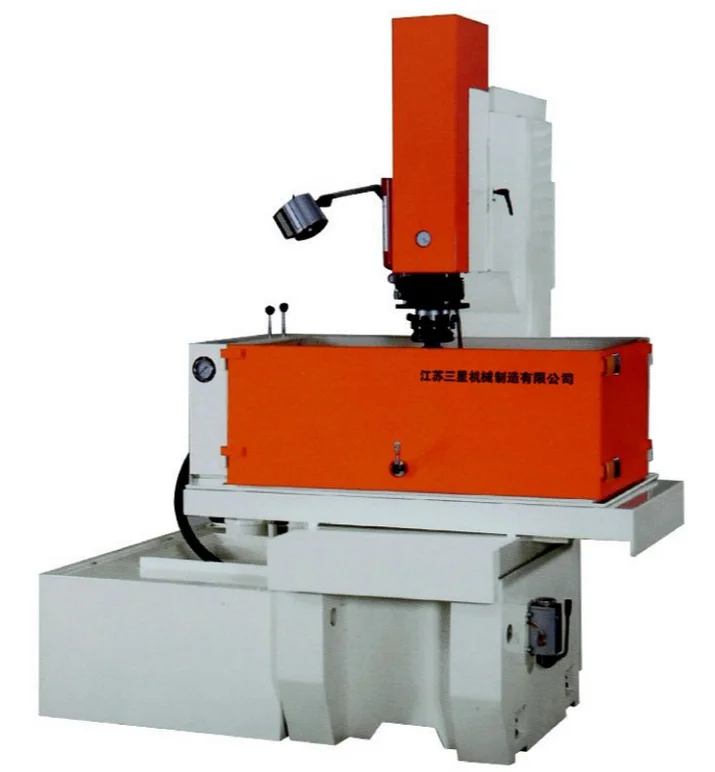

D7140 PNC die sinking machine EDM with the highest cost-performance products
Product Description
| Model | Unit | D7140 |
| Worktable size | mm | 650*400 |
| Table travel | mm | 400*300 |
| Z Axis travel | mm | 200+220 |
| Distance from head of electrode to work table | mm | 600 |
| Max. electrode weight | kg | 50 |
| Max. workpiece weight | kg | 750 |
| Interior Size of the Oil Groove | mm | 1125*640*395 |
| Total weight | kg | 2000 |
| Shape size | mm | 1520*1550*2165 |
♦ Main Features
| 1, Adopt Japan SANYO DC servo motor; |

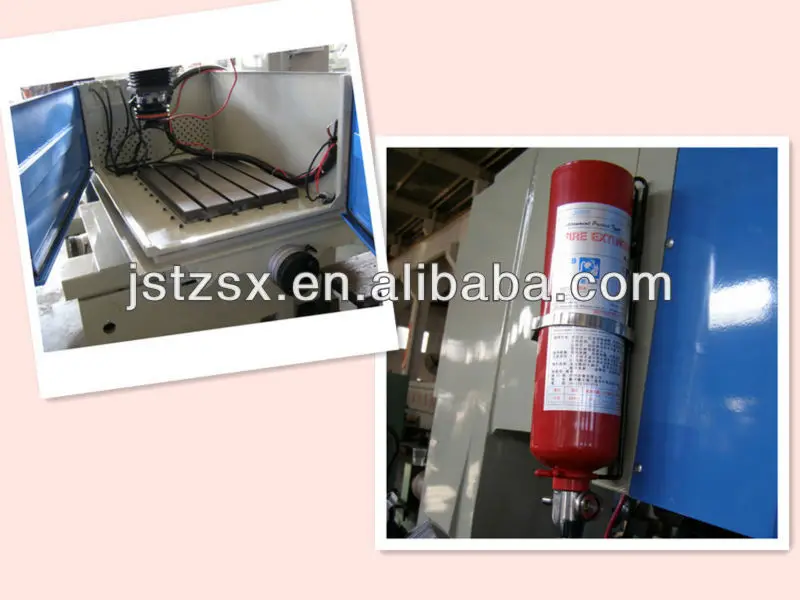

| 2, Steady safety device, optical sensors, auto answer, fire extinguisher and power cut off; |
| 3, Good machine structure, high rigidity, high precision, adopt V slide design; |
| 4, Adopt HT300 aging treatment casting, keep precision long time; |
| 5, Adopt high quality imported oil pump; |
| 6, Three-axis linear scale; |

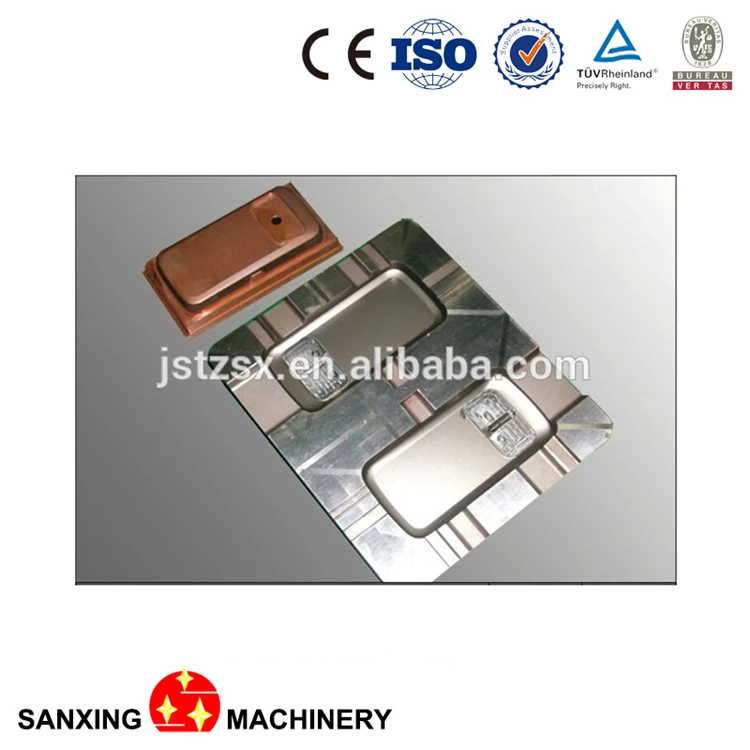

| 7, For copper, graphite, steel, on the cavity, and special shape holes machining; |
| 8, Lubrication system uses recovery mode, rail lubrication action at once, and keep the look clean; |
| 9, Equipped with Taiwan IPC configuration, the parameters can automatic set up; LCD display; |
| 10, The new design meets European CE safety standards, can be dustproof, waterproof, anti-interference and improve the life of electronic board; |
♦ Die Sinker Product Description
| A. There is automatical A. R. C carbon surveillant device to prevent destroying workingpiece; |
| B. Steady circuit of big area electrode; |
| C. High and low clearance individual circuit; |
| D. PWM servo system, standard DC servo motor; |
| E. Synchronous discharge system of high voltage superposited; |
| F. Square wave and equal energy output; |
| G. Circuits of super-fine process; |
| H. Capacity of mirror process (negative pole); |
Certifications
Packaging
| ♦ Packaging details: inner plastic, outer plywood case |
| ♦ Delivery detail: 15-20 days afterpayment |
| Minimum order quality: 1 set |
Port: Shanghai or any Chinese port |
| Payment Method: L/C, T/T, Western Union, MoneyGram |
| Supply Ability: 200 sets/month |
| Warranty period: 12 months |
Company profile
Jiangsu Sanxing Machinery Manufacture Co.,Itd was founded in 1993. The company is a high-tech enterprise integrating research and development, production and sales. Our company has been awarded IS09001-2008 international quality certificate CE certificated for Europe, and also honored with "enterprise of high-tech". Our many products are titled “high-tech products” and “provincial famous trademark”, get the Machinery Industrial Science And Technology Award and the Small & Medium Enterprises Innovation Award of the Ministry of Science and Technology, meanwhile, the products own 3 invention patents, 27 New practical patents, 3 designing patents and 7 patents during application. |
FAQ
| 1. What’s your MOQ ? |
| Our MOQ is one set for each machine. |
| 2. Could we use our own brand on your machine ? |
| Yes, we would love to accept. |
| 3. Could your engineers go to our factory to install the machine and train our workers? |
| Yes, our engineers could go to your factory and assist you. |
| 4. Whats your fast delivery time ? |
| According to machine, our production time is from 7 days to 30 days, and some machines are in stock. |
| 5. Could I visit your factory ? |
| Yes, sure, welcome. |
