Factory Prostepper cheap price high torque Encoder Stepper Motor Standard Type NEMA14 with CE certificate
- Category: >>>
- Supplier: Changzhou Prostepper Co. Ltd.
Share on (1600328007114):
Product Overview
Description
Product Description

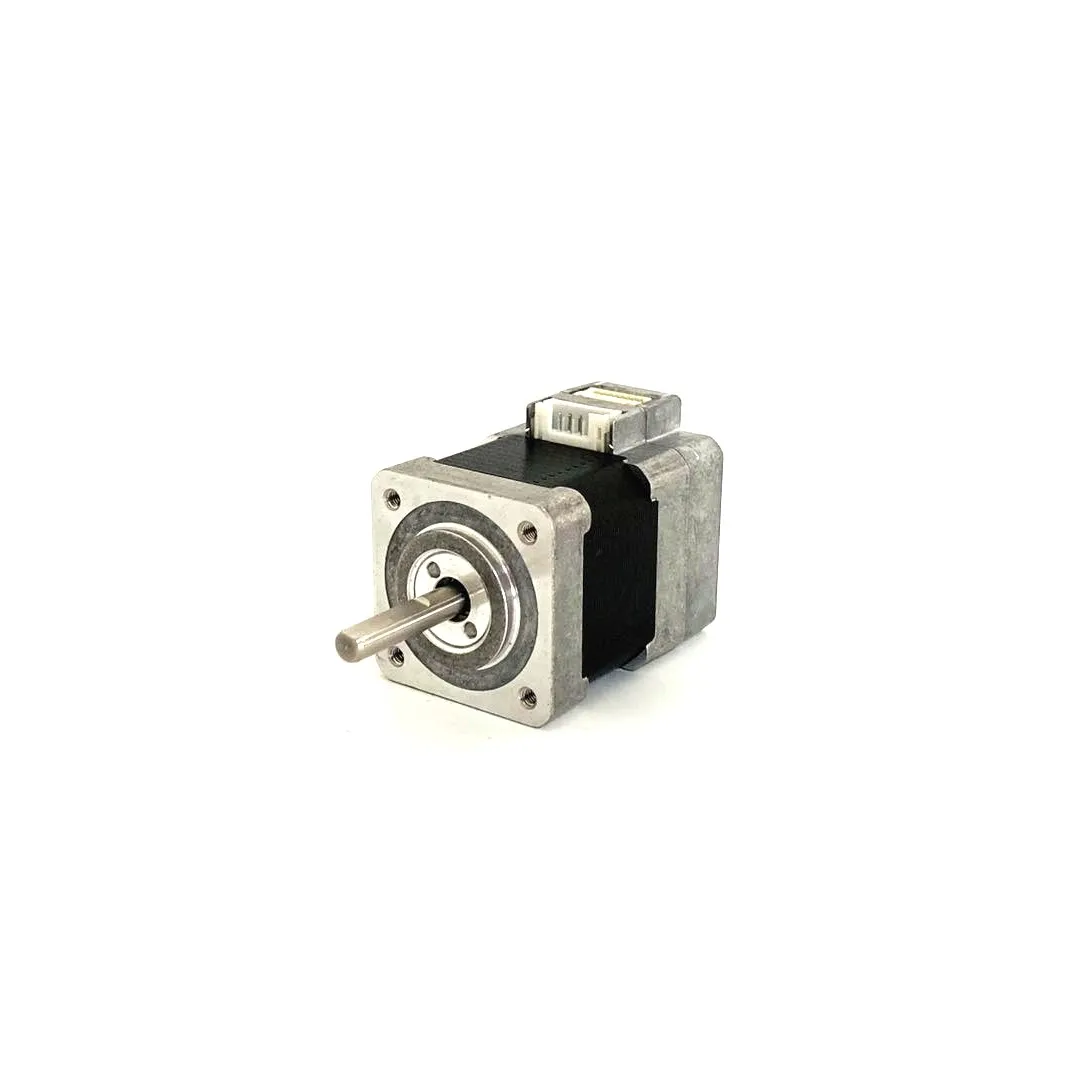

Factory Prostepper cheap price high torque Encoder Stepper Motor Standard Type NEMA14 with CE certificate
Product Features:
● High precision: positioning accuracy can reach 0.1μm
● High precision: up to 300m/min
● Long life and simple maintenance
● Application range: suitable for applications requiring precise positioning, fast movement and long life. Typical applications include X-Y workbenches, medical equipment, semiconductor processing, communication equipment, modulation valves, printing equipment, environmental protection equipment, automatic robots, 3D printers, etc.
● High precision: positioning accuracy can reach 0.1μm
● High precision: up to 300m/min
● Long life and simple maintenance
● Application range: suitable for applications requiring precise positioning, fast movement and long life. Typical applications include X-Y workbenches, medical equipment, semiconductor processing, communication equipment, modulation valves, printing equipment, environmental protection equipment, automatic robots, 3D printers, etc.
Specification
Product name | Nema14 stepper motor |
Model | PEM35H236E1KzS |
Holding Torque | 0.18 N.m |
Rated Current A/Phase | 1.5 A |
Resistance Ω/Phase | 2.1 Ω |
Inductance mH/Phase | 2.1 mH |
Inertia | 20 g.cm² |
Output | Differental |
Encoder Resolution | 1000 CPR |
Frame Size | 35*35mm |
Speed/Torque Characteristics(Reference Value)
NOTE
The Speed/torque curve is based on Prostepper's test conditions.When the conditions change, the dynamic torque changes too.
The rated current in the specification is an effective value, Plesae adjust the driver‘s current below the rated current.
The rated current in the specification is an effective value, Plesae adjust the driver‘s current below the rated current.

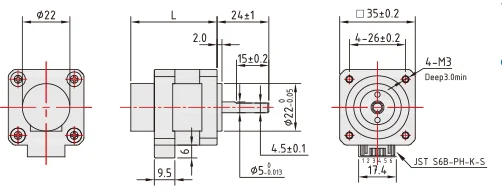

Outline(Unit:mm)
Encoder Specifications
MODEL | E1Kz | E2Kz | |
Resolution | 1000cpr/4000ppr | 2000cpr/8000ppr | |
Type | Incremental Encoder | ||
Output Mode | Differental | ||
Output Signal | A+A；B+B-； Z+Z- | A+ A；B+B-；Z+Z- | |
Supply Voltage | 5vDC±5% | ||
Packing & Delivery
Inner package is EPE foam, the outer package is carton.
Carton size also can be customized according to the customer's requirements.
Carton size also can be customized according to the customer's requirements.
Company Profile
CHANGZHOU PROSTEPPER CO.,LTD. was established in 2004 as Jiangsu High-Tech Enterprise, which is engaging in Developing, designing and producing professional stepper motor and DC brushless motor. It's motor manufacturing and R&D history dated from 1998. "Prostepper" Brand has a good reputation in China and oversea markets. Prostepper possess an annual production capacity is over 3.0 million motors. Prostepper is the high-level motor supplier in the field of Industrial Automation and Medical Science. Prostepper own a manufacturing team with rich experience and also have very strictly Quality control system, Obtained ISO9001 certificate, the motor products are compliance with CE and RoHS standard.
Prostepper has a large customers group across over the world, with products being exporting to over 10 countries, including the United States; Germany, Switzerland; Italy Korea and Japan, etc. Our products are widely used in various industries, such as textile Machinery, medical, robotics; Packaging, printing, communications, office automation; semiconductor industry and different industrial automation equipment.
With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper's commitment to customers.
Prostepper has a large customers group across over the world, with products being exporting to over 10 countries, including the United States; Germany, Switzerland; Italy Korea and Japan, etc. Our products are widely used in various industries, such as textile Machinery, medical, robotics; Packaging, printing, communications, office automation; semiconductor industry and different industrial automation equipment.
With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper's commitment to customers.
FAQ
Q:Where is your factory.
A:Our factory is located in Changzhou only one hour from Shanghai by high –speed railway.
Q:How to choose the suitable stepper motor.
A:There are several important points Size and length of the stepper motor Holding torque Step angle voltage Current etc. After confirm some of them then told us We can help you to choose the suitable stepper motor Or you can sent us the model you are using We can help you to find the suitable stepper motor.
Q:When can I receive the drawings of the stepper motor.
A:We will provide the drawings of the stepper motor after you place the order.
Q:How long is the warranty time.
A:12 months And we provide life-long technical service and after sale service.
Q:How can we know the product quality?
A:We suggest you to order a sample Also You can send us email for detail photos for checking if you cannot get enough information in the product page.
A:Our factory is located in Changzhou only one hour from Shanghai by high –speed railway.
Q:How to choose the suitable stepper motor.
A:There are several important points Size and length of the stepper motor Holding torque Step angle voltage Current etc. After confirm some of them then told us We can help you to choose the suitable stepper motor Or you can sent us the model you are using We can help you to find the suitable stepper motor.
Q:When can I receive the drawings of the stepper motor.
A:We will provide the drawings of the stepper motor after you place the order.
Q:How long is the warranty time.
A:12 months And we provide life-long technical service and after sale service.
Q:How can we know the product quality?
A:We suggest you to order a sample Also You can send us email for detail photos for checking if you cannot get enough information in the product page.
