2022 Newest high Purity Medical Oxygen Cylinder Filling Plant with CE, ISO13485, ISO9001
- Category: >>>
- Supplier: Beijing Cape Golden Gas System Company Ltd.
Share on (1600328014716):
Product Overview
Description
Medical Oxygen Cylinder Filling Plant with CE, ISO13485, ISO9001
Product Overview

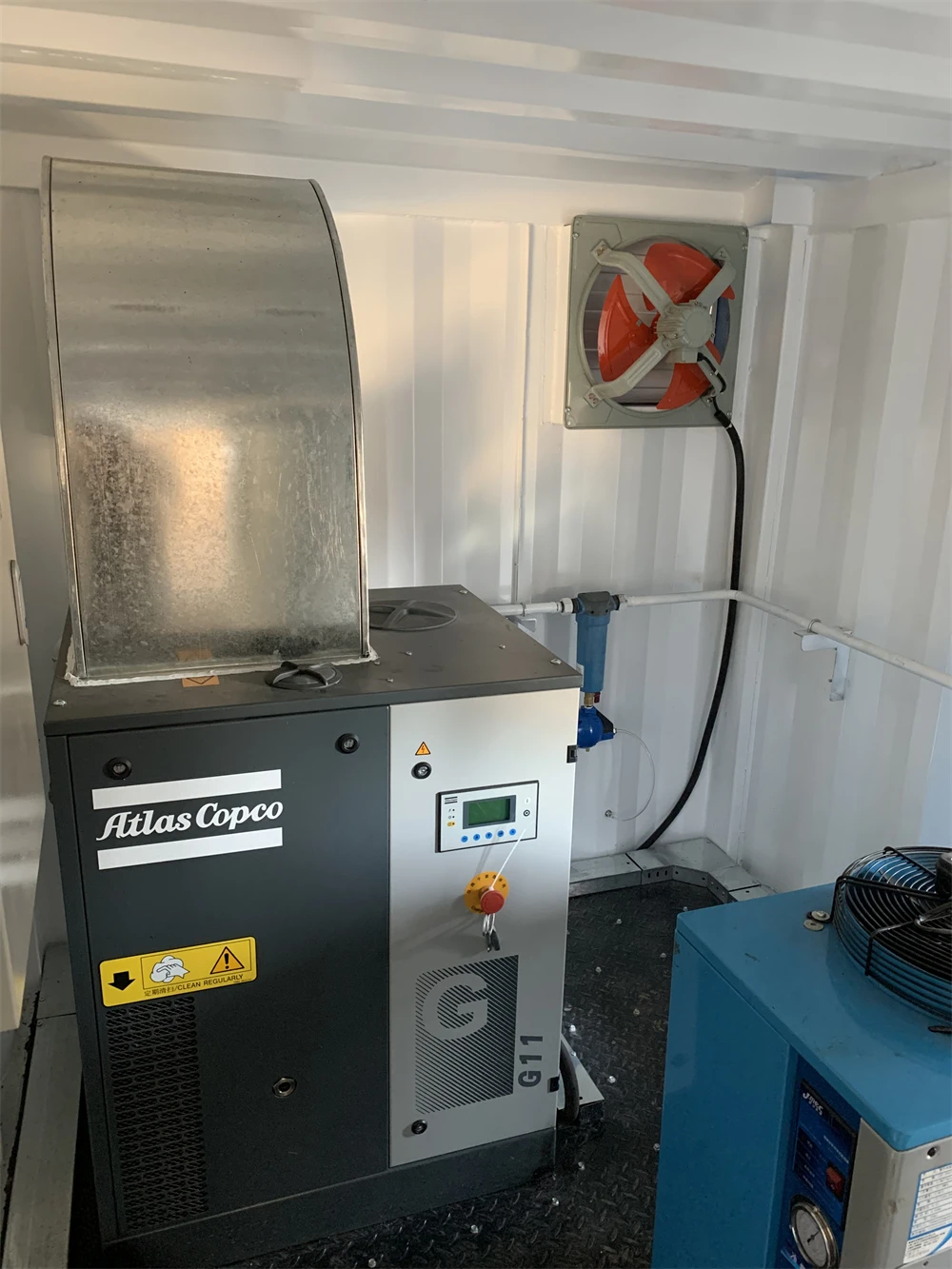

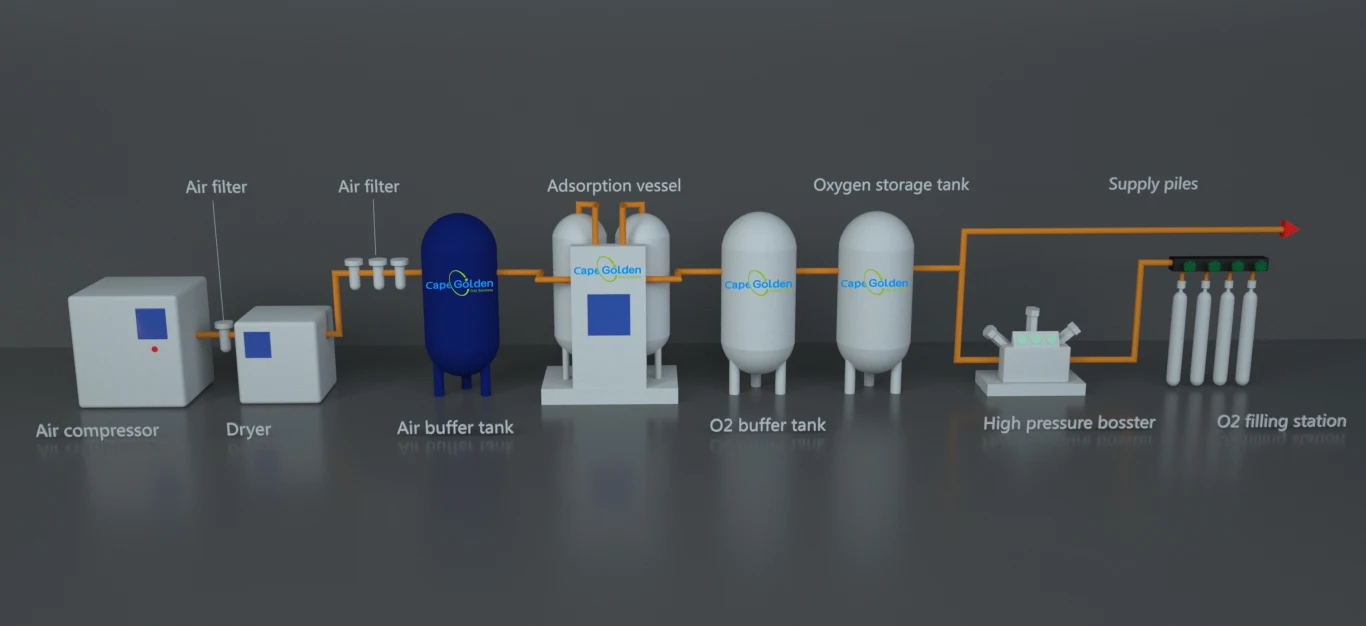

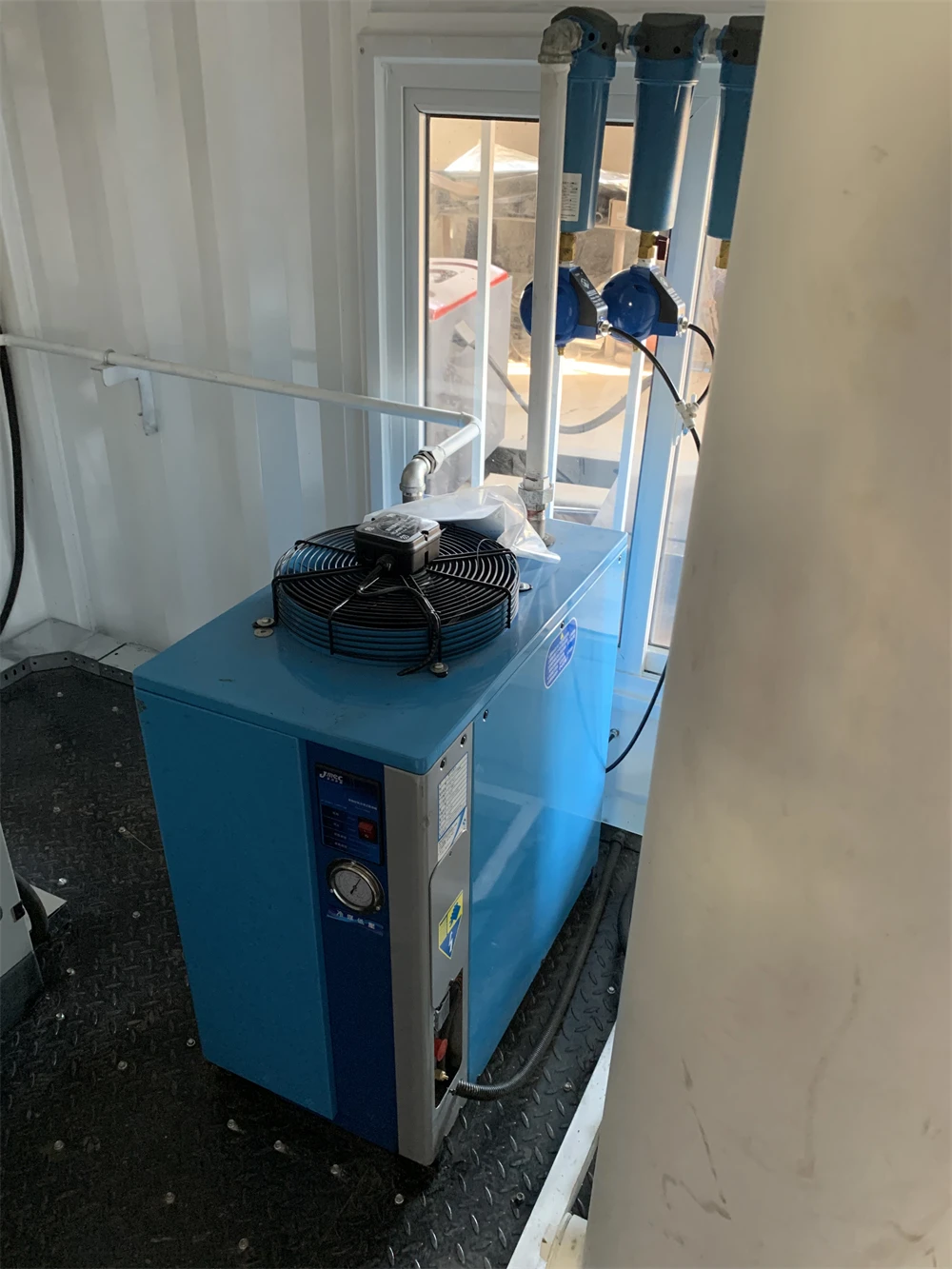

A full Medical Oxygen Cylinder Filling Plant Equipment installation requires air compressor, refrigerated air dryer, filters, air tank, oxygen generator and gas buffer tanks.
We supply full installations of Medical Oxygen Cylinder Filling Plant Equipment, and other optional supply like boosters, high pressure compressors, oxygen cylinders or filling stations can also be bought separately.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
No. | Item | Description |
1 | Condition | Brand New |
2 | Brand Name | Cape-Golden |
3 | Usage | Producing Oxygen |
4 | O2 Capacity | 5/200Nm3/h |
5 | O2 Purity | 93±3% |
6 | O2 Pressure | 150bar 200bar |
7 | Power | ≤43KW |
8 | Voltage | can be as local demand |
9 | Production Capacity | 350 sets/year |
10 | Service Life | Over 10 years with proper maintenance |
11 | Technology | Pressure Swing Adsorption (PSA) |
Principle of PSA Oxygen Generator
Medical Oxygen Cylinder Filling Plant Equipment uses clean compressed air as raw material and zeolite molecular sieve (ZMS) as adsorbent, to produce oxygen gas with Pressure Swing Adsorption (PSA) technology in normal temperature. ZMS is round granular adsorbent full of micro pores inside and outside, which has characteristic of selective adsorption. N2 has higher diffusion rate while O2 has lower, therefore N2 is adsorbed into ZMS while O2 is out of it. With controlling on/off state of the pneumatic valves by PLC, adsorbing under pressure and regenerating without pressure, to separate nitrogen and oxygen gas, and create continuous flow of oxygen with require purity.
for Petroleum Application
The oxygen reaction in petroleum process is oxidized by reoxygenation instead of air, which Medical Oxygen Cylinder Filling Plant Equipment improve the reaction speed and the output of petroleum products.

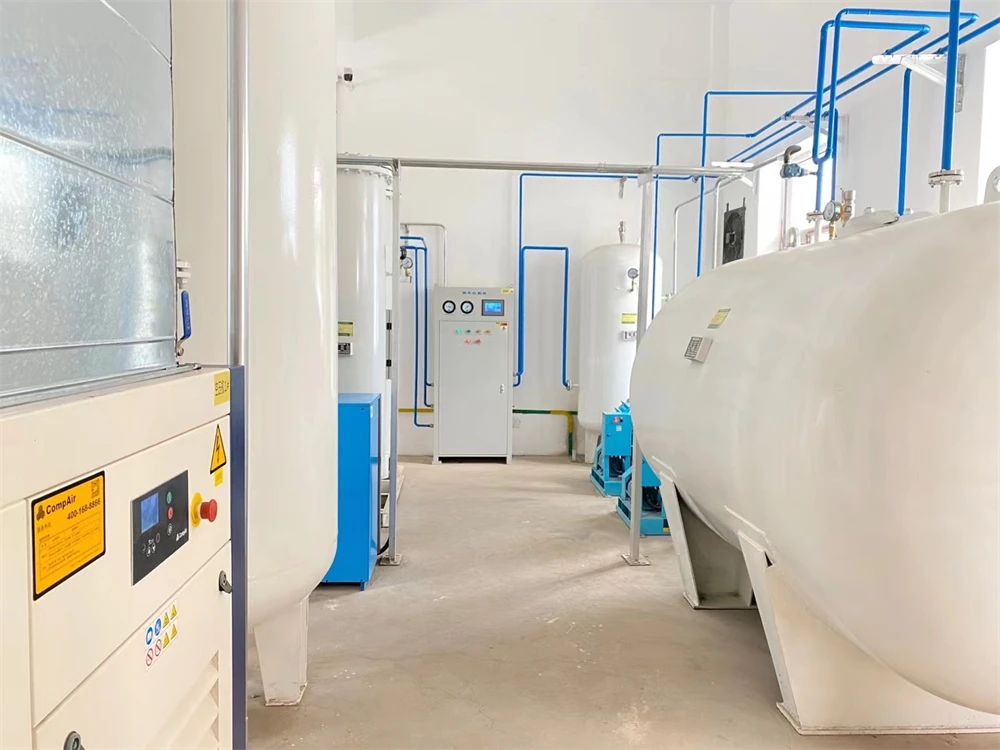

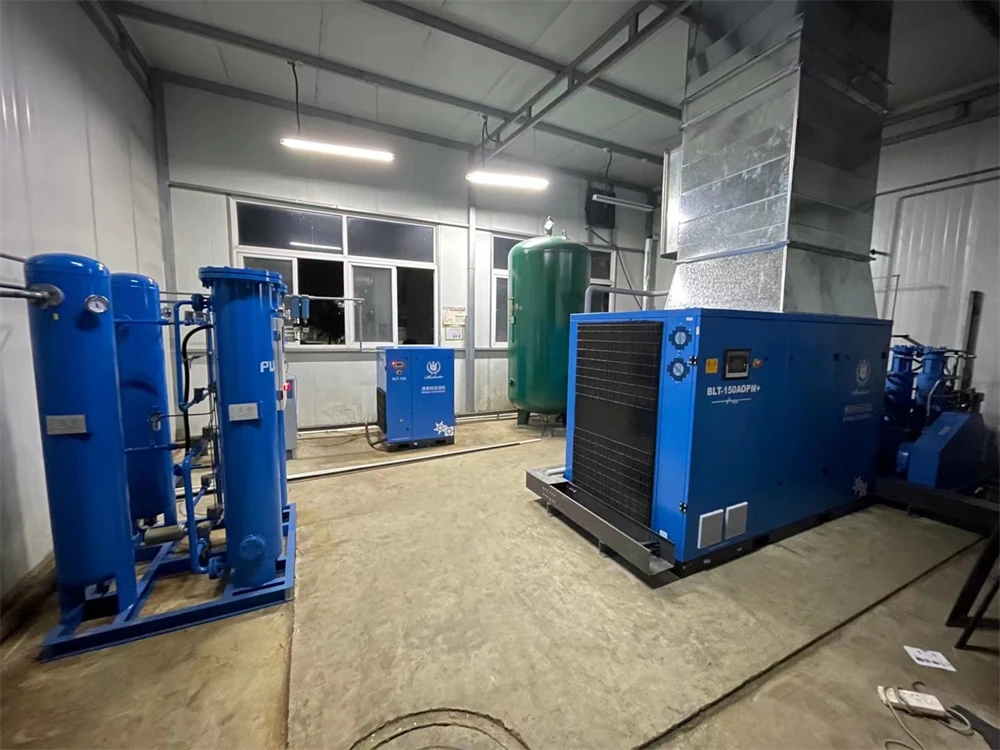

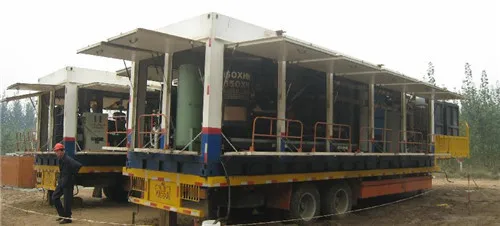

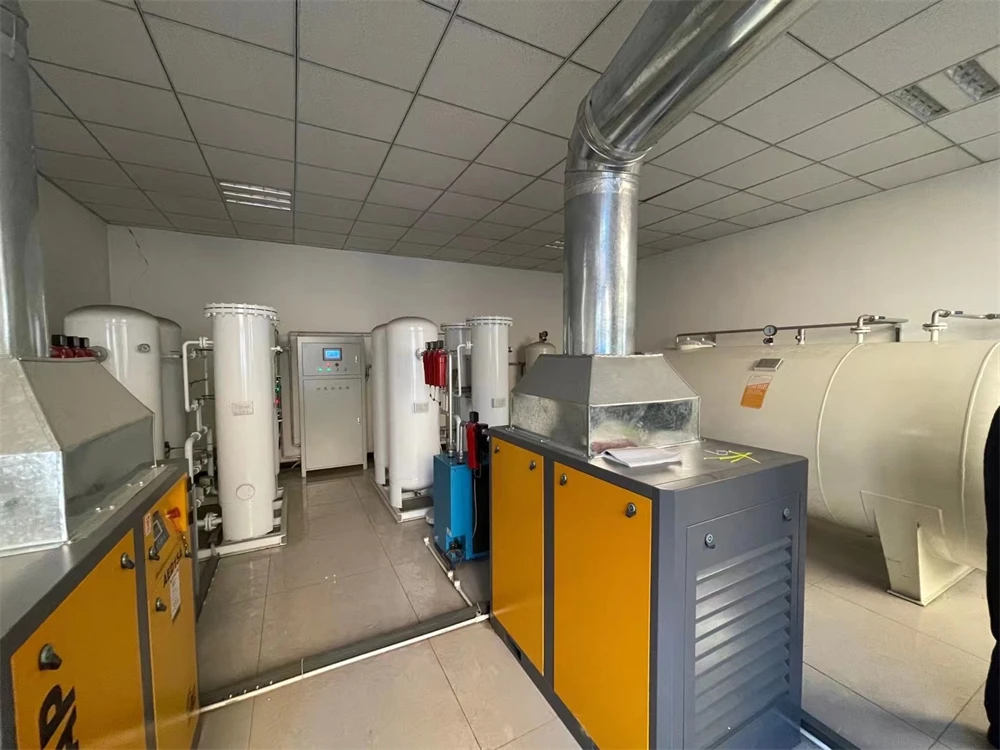

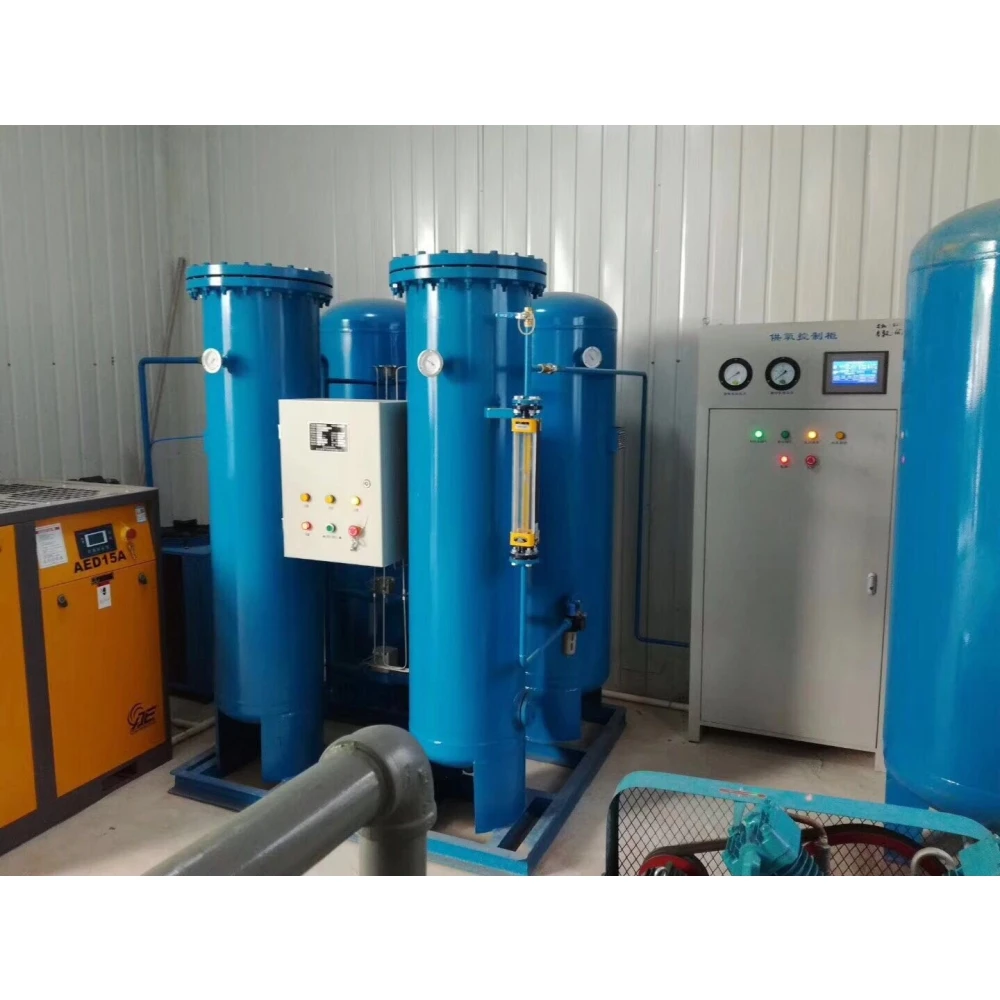

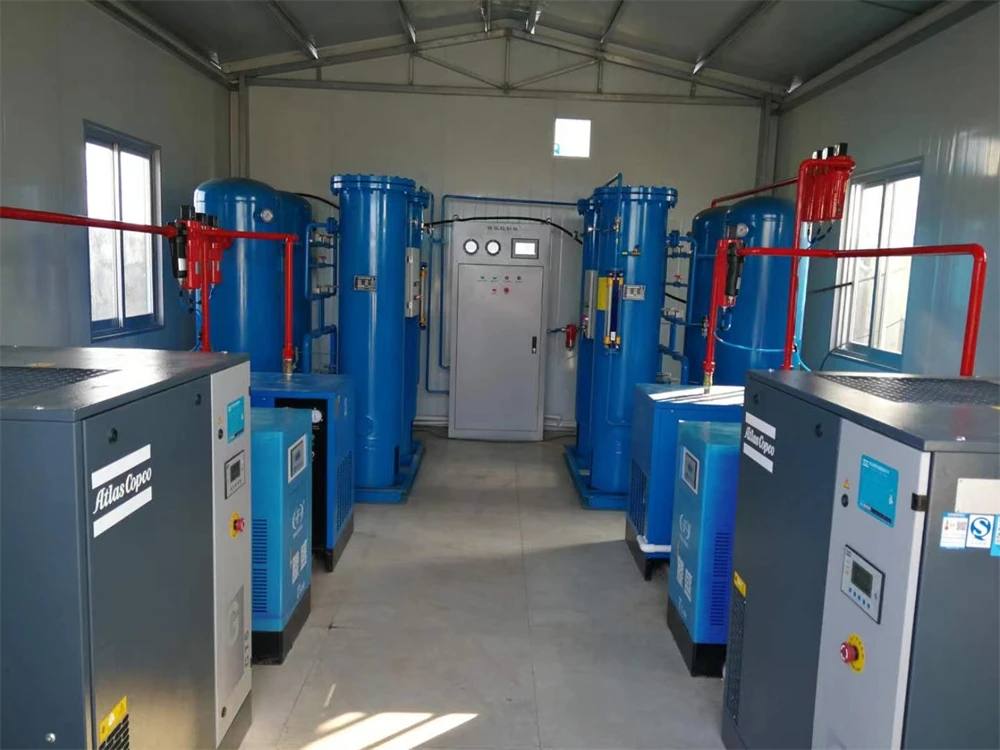

True Project Case
