High speed plastic extrusion extruder wire PP woven bag making machine for making pp yarn
- Category: >>>
- Supplier: Zhejiang Nanyi Plastic Machinery Co. Ltd.
Share on (1600328111437):
Product Overview
Description
Products Description
High-speed plastic extrusion extruder wire PP woven bag making machine for making pp yarn

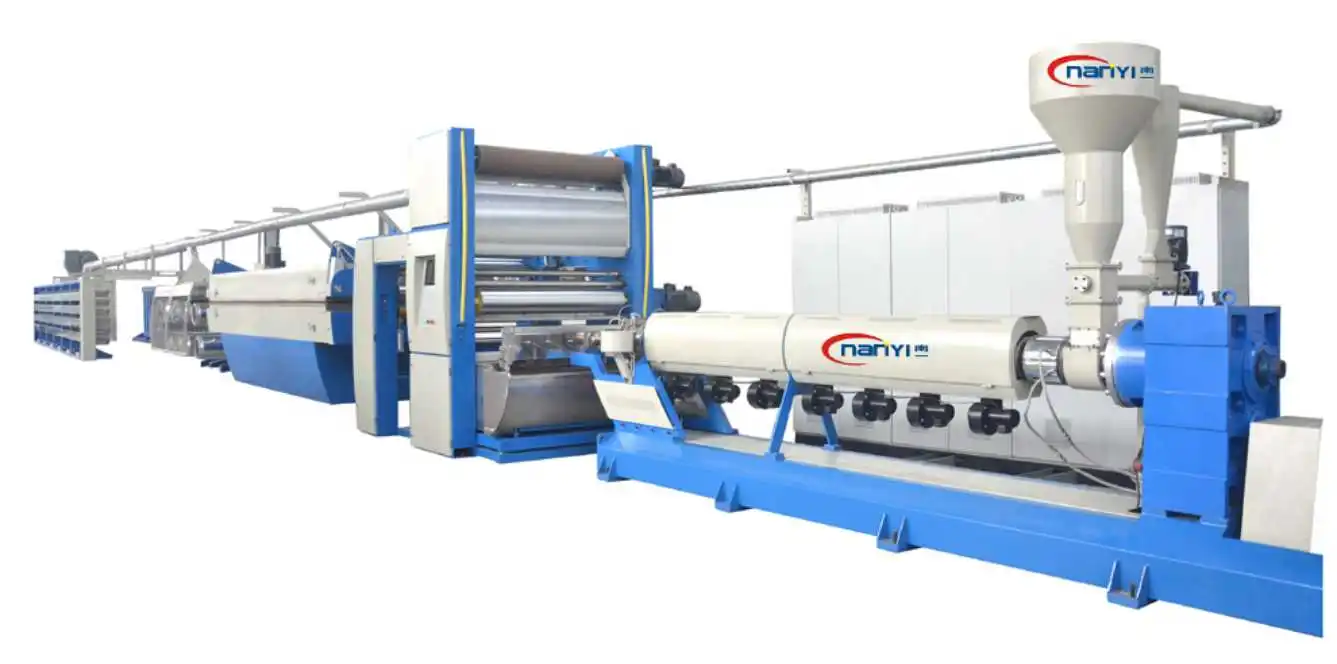

High Speed Plastic Extrusion Tape Line:
1.Direct drive motor and two stretching unit in tape stretching line application, with automatic adjustment of die and the thickness online measuring system, a high efficiency and energy saving, hand provides high strength, low Daniel yarn production regulation.
2.Online thickness measurement system of application so that the film is more uniform, stable, saving the cost of raw materials, visualization of the automatic adjustment of die lip, has changed the traditional mould head adjusting mode, more intuitive, more convenient ( optional)
3.Cutting unit adopts six groups of non-stop change form, improve the production efficiency.
4.Auto winding machine use, more suitable for the demand of high speed tape stretching line.
5.Electrical control unit: adopt the European famous-brand processor control (PC) to monitor and control the whole line centrally and fully, bring the easier operation and more stability. (option)
6.Apply to produce the PP, HDPE normal tape, fibrillated tape, folded tape and some other flat-type tape with various specifications.
1.Direct drive motor and two stretching unit in tape stretching line application, with automatic adjustment of die and the thickness online measuring system, a high efficiency and energy saving, hand provides high strength, low Daniel yarn production regulation.
2.Online thickness measurement system of application so that the film is more uniform, stable, saving the cost of raw materials, visualization of the automatic adjustment of die lip, has changed the traditional mould head adjusting mode, more intuitive, more convenient ( optional)
3.Cutting unit adopts six groups of non-stop change form, improve the production efficiency.
4.Auto winding machine use, more suitable for the demand of high speed tape stretching line.
5.Electrical control unit: adopt the European famous-brand processor control (PC) to monitor and control the whole line centrally and fully, bring the easier operation and more stability. (option)
6.Apply to produce the PP, HDPE normal tape, fibrillated tape, folded tape and some other flat-type tape with various specifications.
Technical date | ||||||||||
Model No. | SJMS-Z75X33-850*8 | SJMS-Z90X33-1000*8 | SJMS-Z105X33-1500*8 | SJMS-Z120X33-1600*8 | SJMS-Z130X33-2000*8 | |||||
Screw Diameter (mm) | 75 | 90 | 105 | 120 | 130 | |||||
Max. capacity (kg/h) | 200 | 350 | 500 | 600 | 650 | |||||
Screw Revolutions (r/min) | 20-132(r/min) | |||||||||
T-die Width (mm) | 850 | 1000 | 1500 | 1600 | 2000 | |||||
Length of over (m) | 6 m | |||||||||
Max.operating speed (m/min) | 450 m/min | |||||||||
Tape fibre scope | 400-2000D | |||||||||
Details Images
Machine Parts

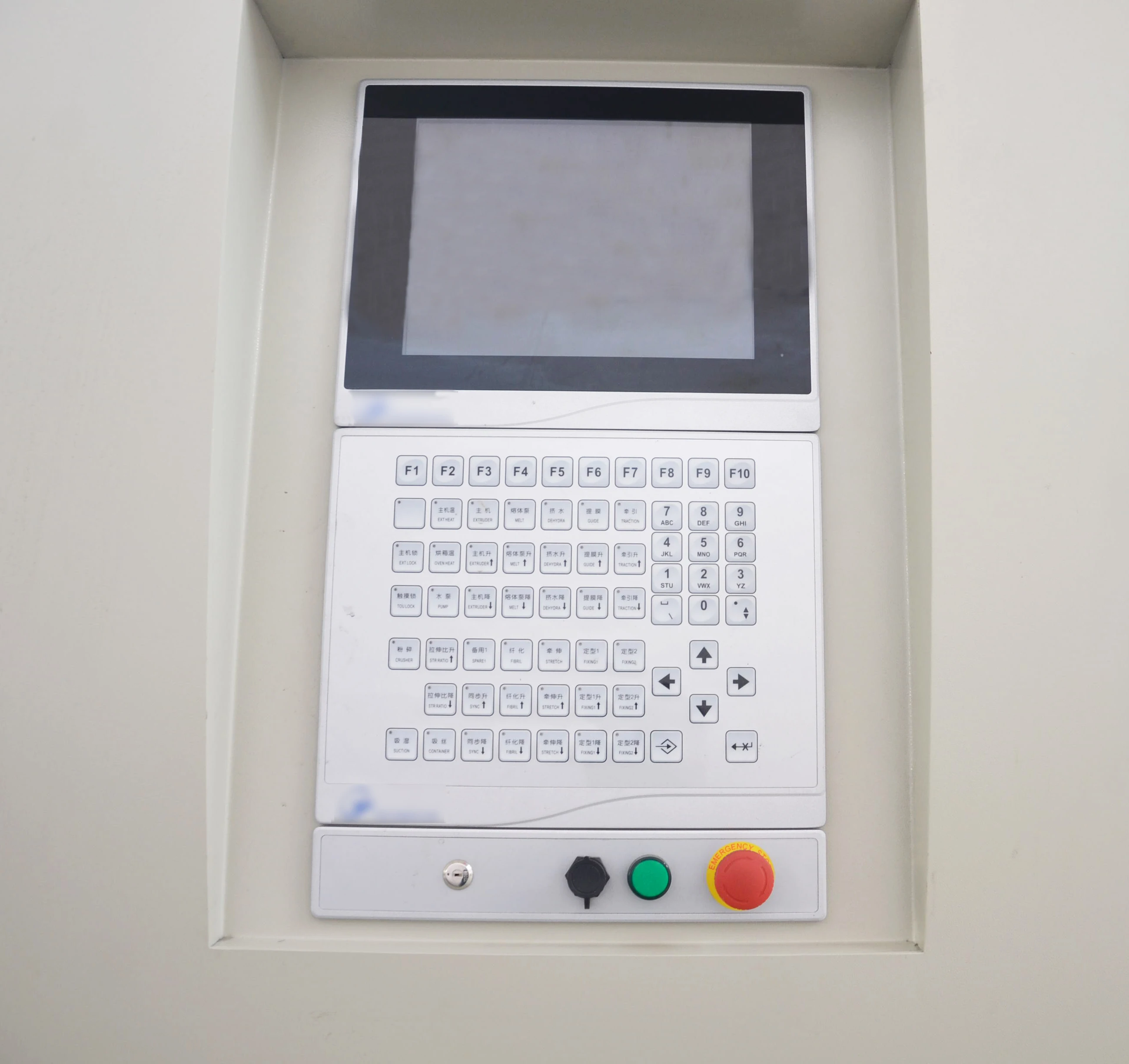

Name: Taiwan brand process controller
Brand: NANYI&PRESION
Original: China
Brand: NANYI&PRESION
Original: China
It can realize the monitoring and control of temperature, speed and current of each part
of the whole machine, and the speed can be unified and controlled by sections.
Machine Parts

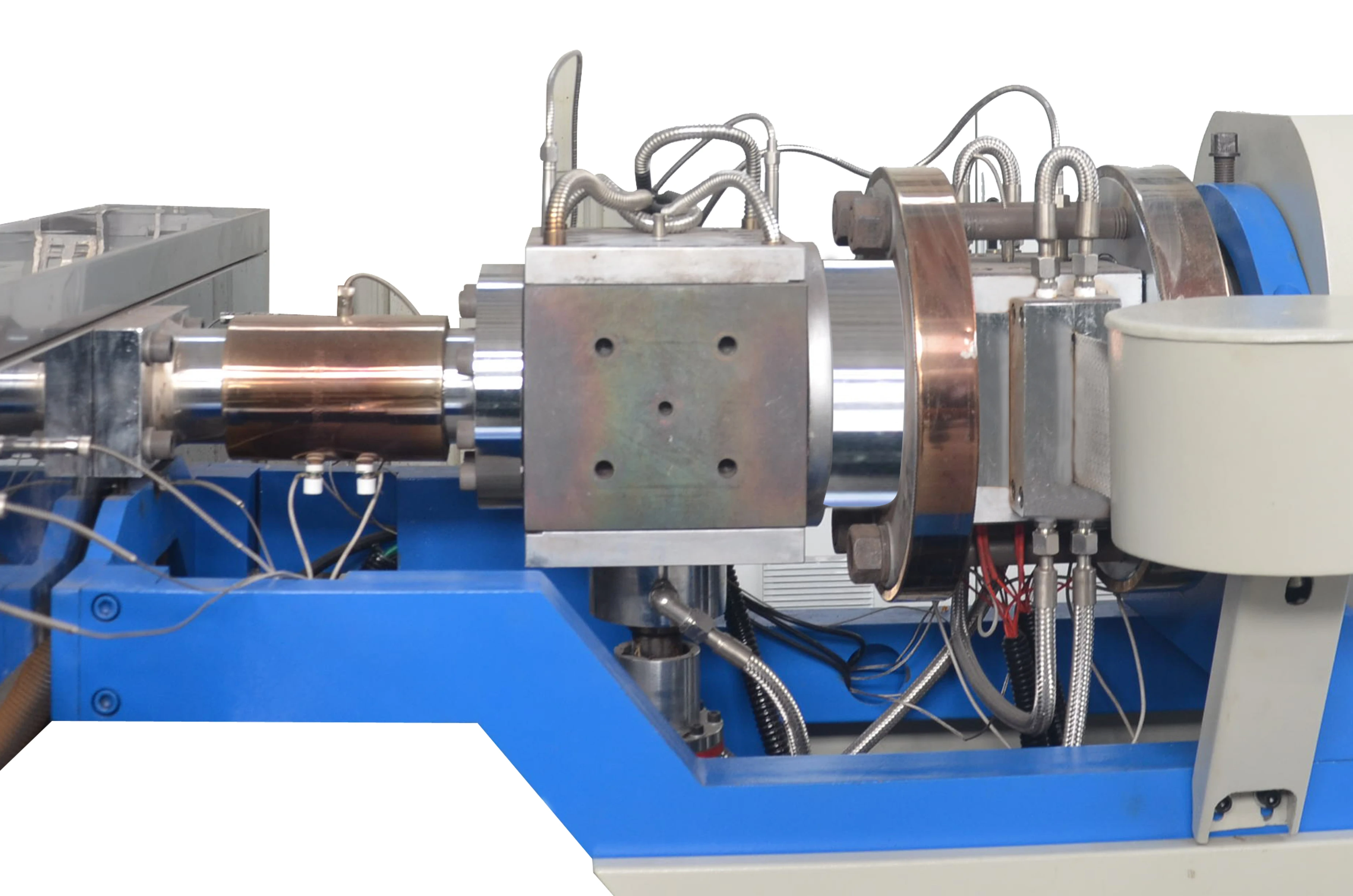

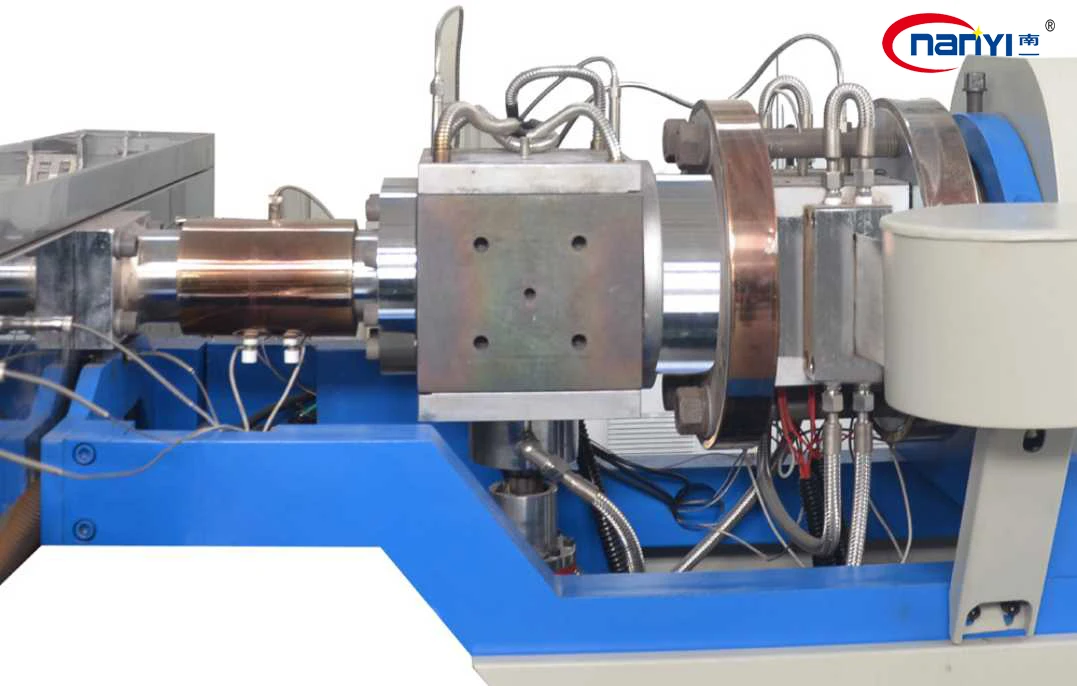

Name: Melt pump& Auto Screen changer
Brand: NANYI&PRESION
Original: China
Brand: NANYI&PRESION
Original: China
Implementation of melt transfer, pressure stabilization and metering
Machine Parts

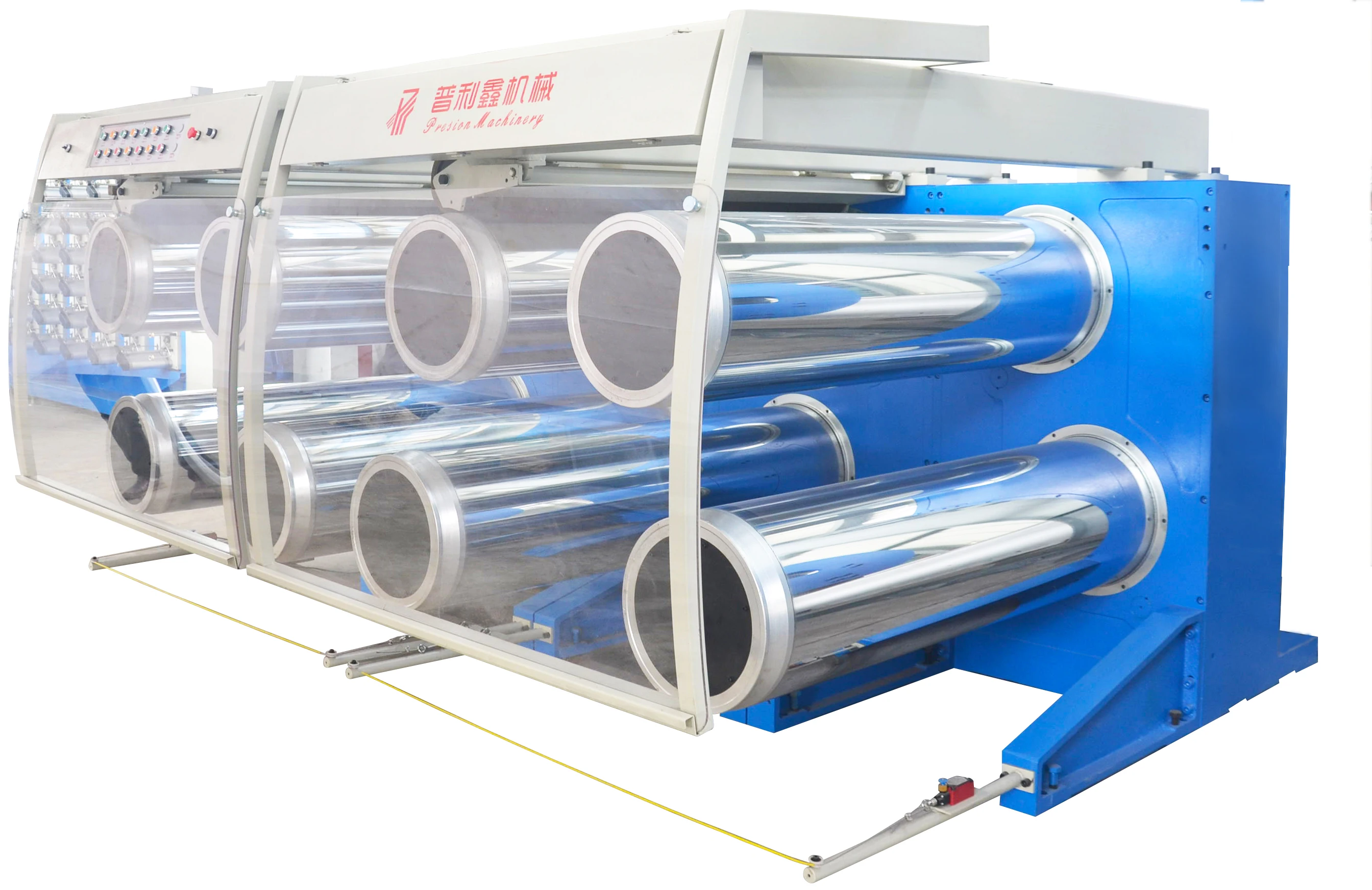

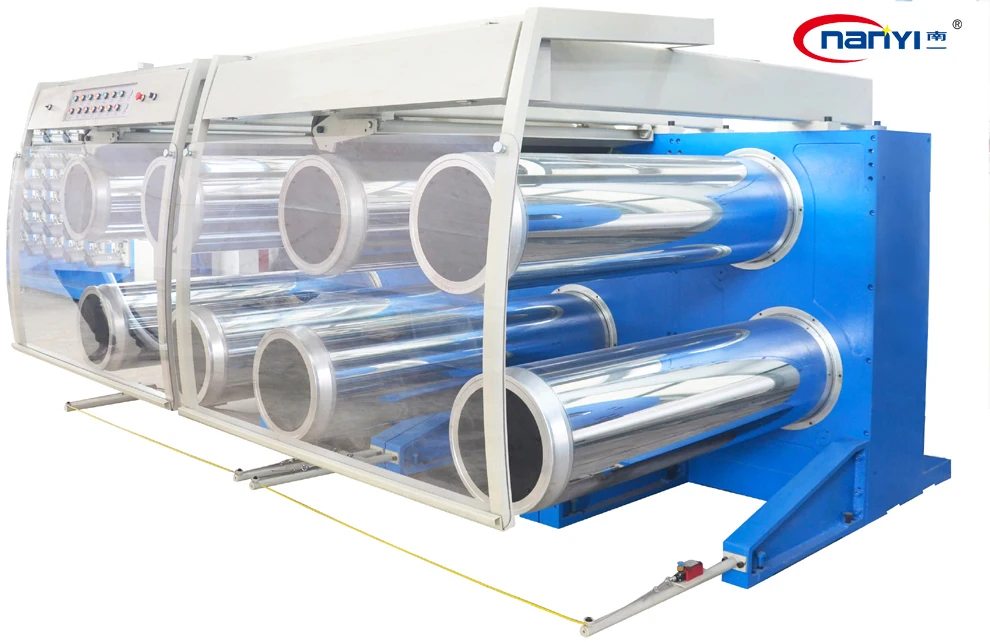

Name: 8 pieces Roller (cool&hot)
Brand: NANYI&PRESION
Original: China
Brand: NANYI&PRESION
Original: China
Includes heating and cooling double-sided control unit for more uniform diaphragm quality
Machine Parts

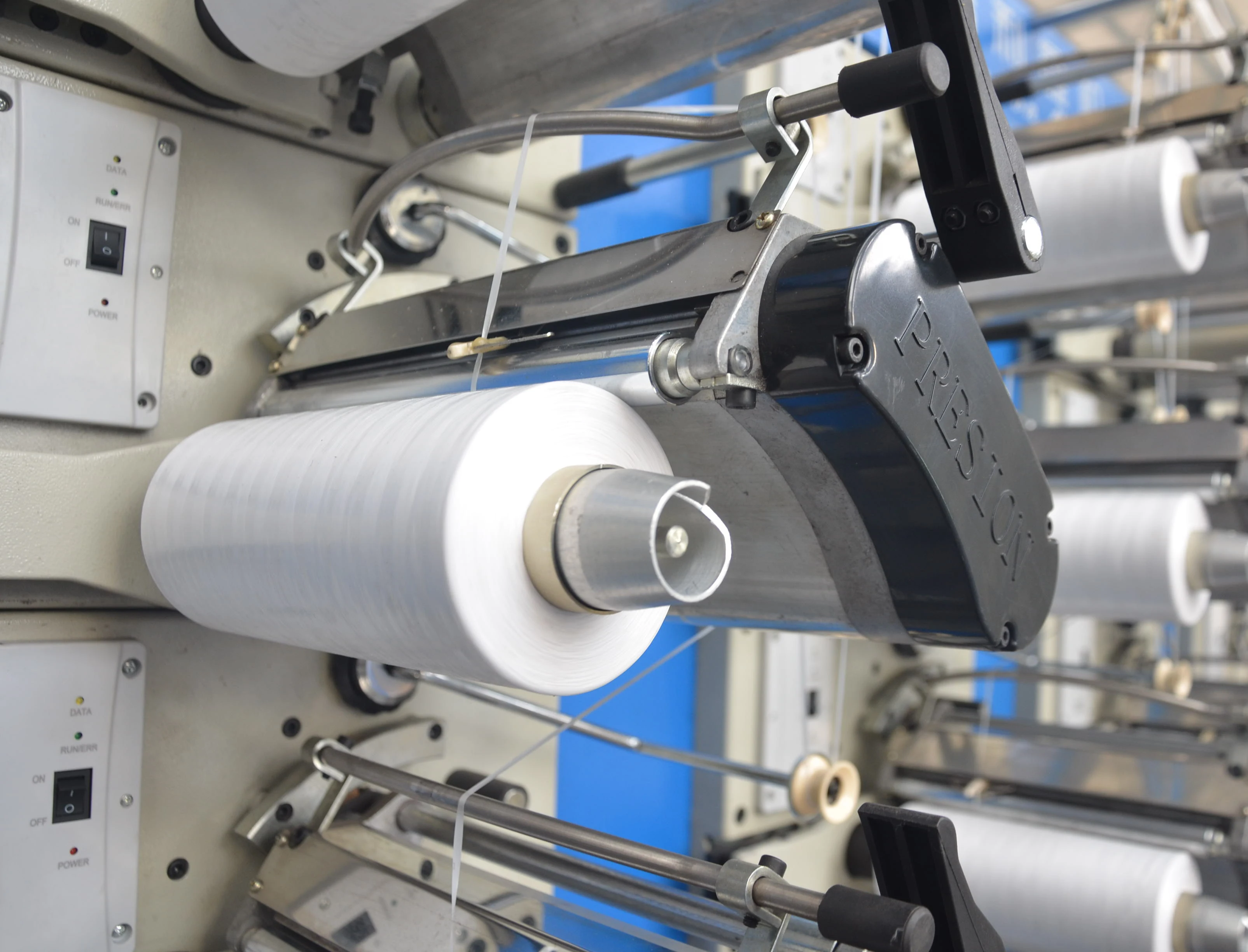

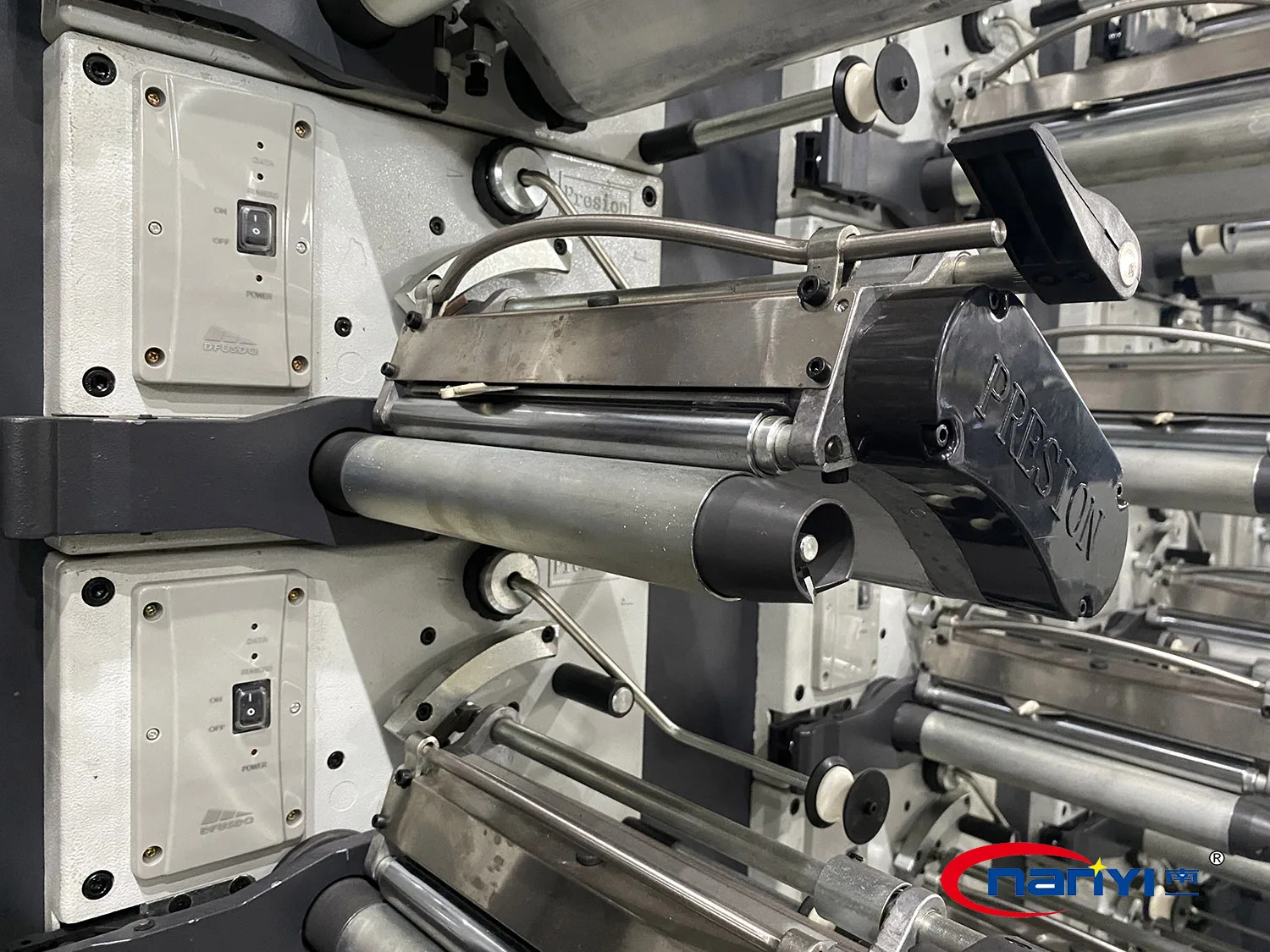

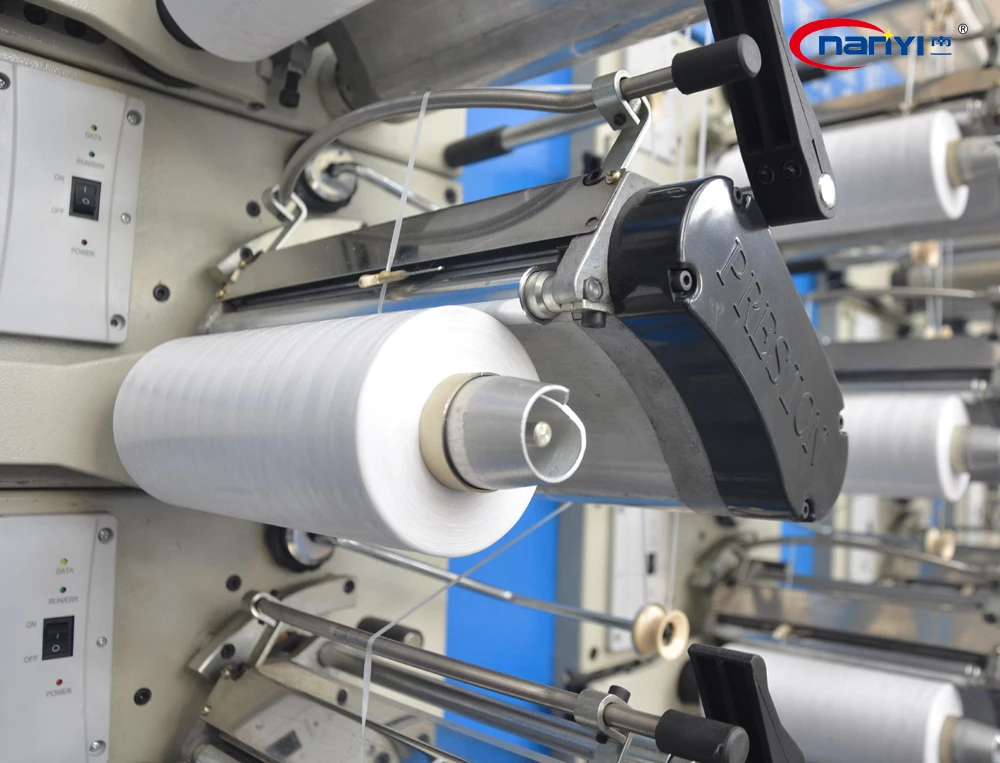

Name: High speed inverter winder
Brand: NANYI&PRESION
Original: China
Brand: NANYI&PRESION
Original: China
Realizes the digital tension control mode to make the spindle shape better.
At the same time, the single spindle uses variable frequency control to achieve lower energy consumption.high-quality spindles are
used in the production of circular looms to ensure better weaving quality.
At the same time, the single spindle uses variable frequency control to achieve lower energy consumption.high-quality spindles are
used in the production of circular looms to ensure better weaving quality.
Company Profile
Certifications
Why Choose Us

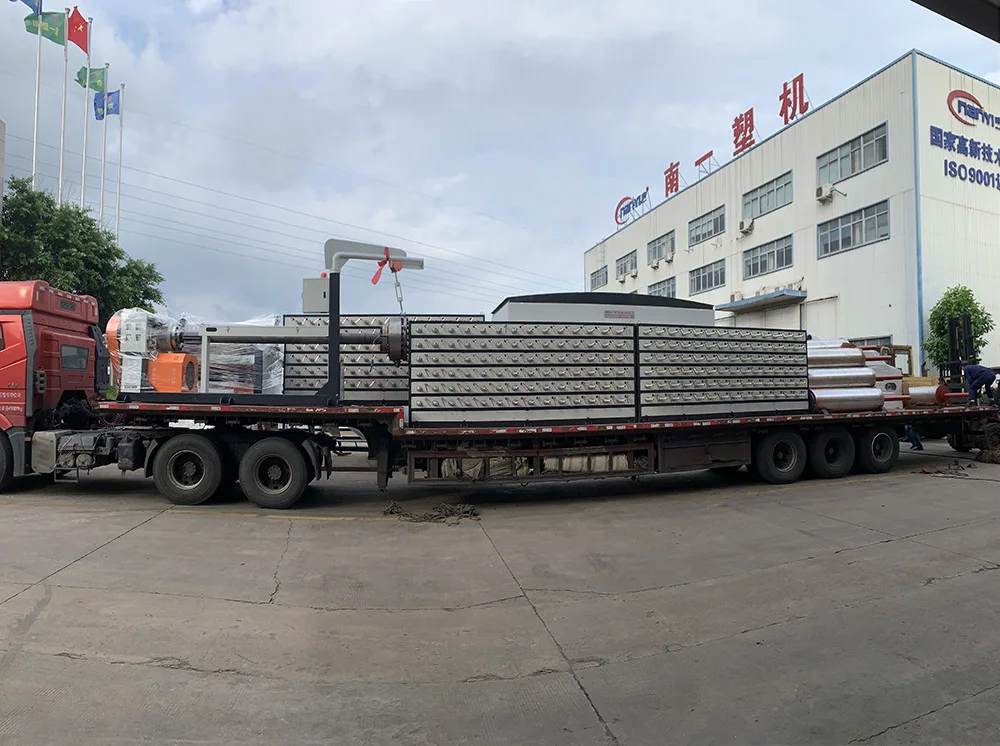

Transportation&packaging
FAQ & contact us
1. Are you trading company or manufacturer?
A: We are manufacturer.
2. What certificate do you have?
A: We have ISO9001, SGS, CE certificate.
3. What's the main market of your company?
A: we have customers all over the world.
4. What can you buy from us?
A: Plastic Tape Extrusion Line,Circular Loom,Automatic Cutting and Sewing Machine,Laminating Machine,Printing Machine.
5. How long is your machine's warranty period?
A: All our machine have one year guarantee.
6. How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
7. What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.
8. Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
9. How do we solve the machine problem after your engineer leaving?
A: Generally speaking, there will be no problem after finished installation, if any problems, you can contact our sales at any
time. Our engineer will take the solution video according to your description.
10. Where is your factory located? How can we visit there?
A: Our factory located in Chuiyang Industrial Zone, Aojiang town, Wenzhou City, Zhejiang, China
You can by air to Wenzhou Airport and by High-speed rain to pingyang Station.
We welcome all friends to visit us for future cooperation!
2. What certificate do you have?
A: We have ISO9001, SGS, CE certificate.
3. What's the main market of your company?
A: we have customers all over the world.
4. What can you buy from us?
A: Plastic Tape Extrusion Line,Circular Loom,Automatic Cutting and Sewing Machine,Laminating Machine,Printing Machine.
5. How long is your machine's warranty period?
A: All our machine have one year guarantee.
6. How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
7. What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.
8. Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
9. How do we solve the machine problem after your engineer leaving?
A: Generally speaking, there will be no problem after finished installation, if any problems, you can contact our sales at any
time. Our engineer will take the solution video according to your description.
10. Where is your factory located? How can we visit there?
A: Our factory located in Chuiyang Industrial Zone, Aojiang town, Wenzhou City, Zhejiang, China
You can by air to Wenzhou Airport and by High-speed rain to pingyang Station.
We welcome all friends to visit us for future cooperation!
